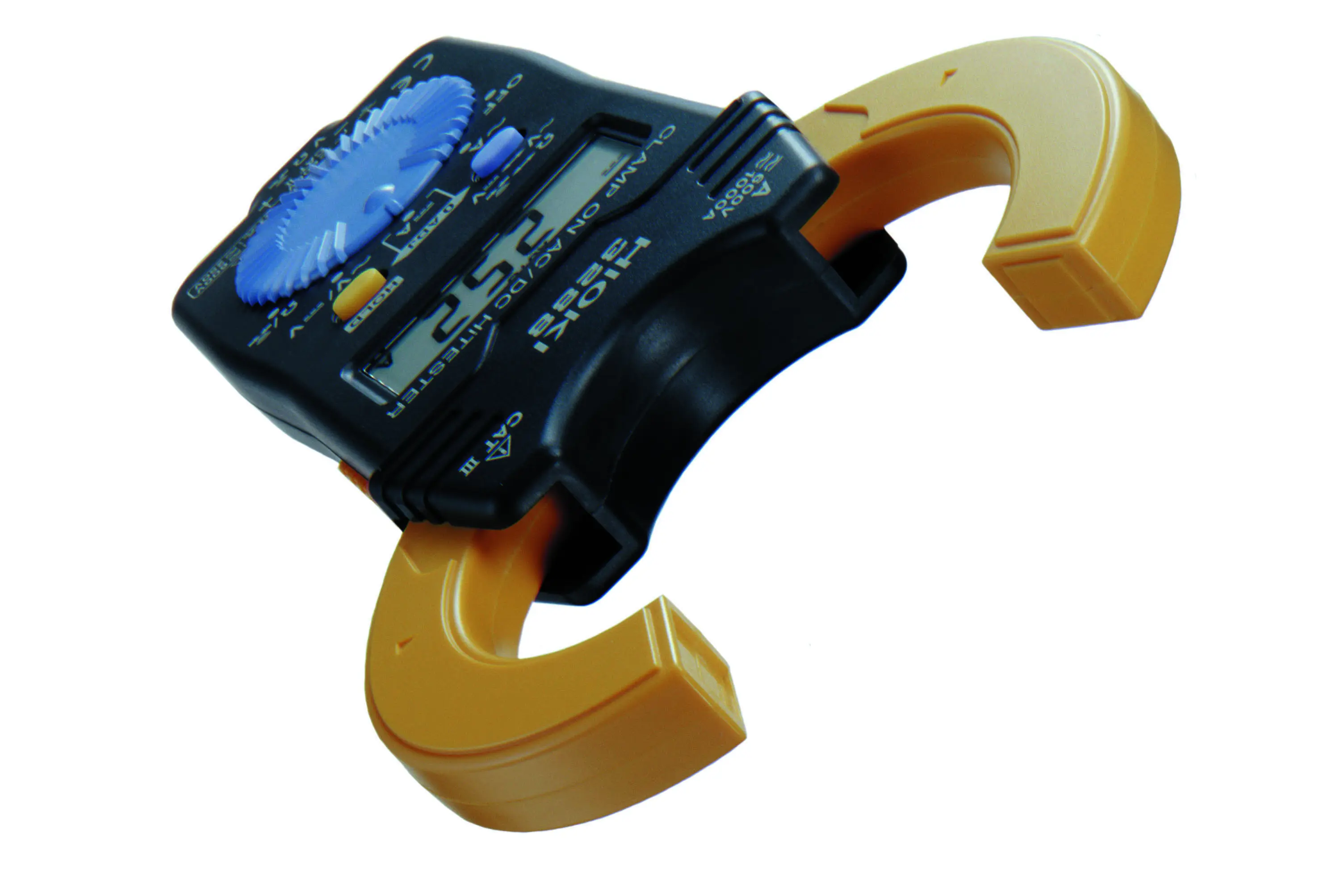

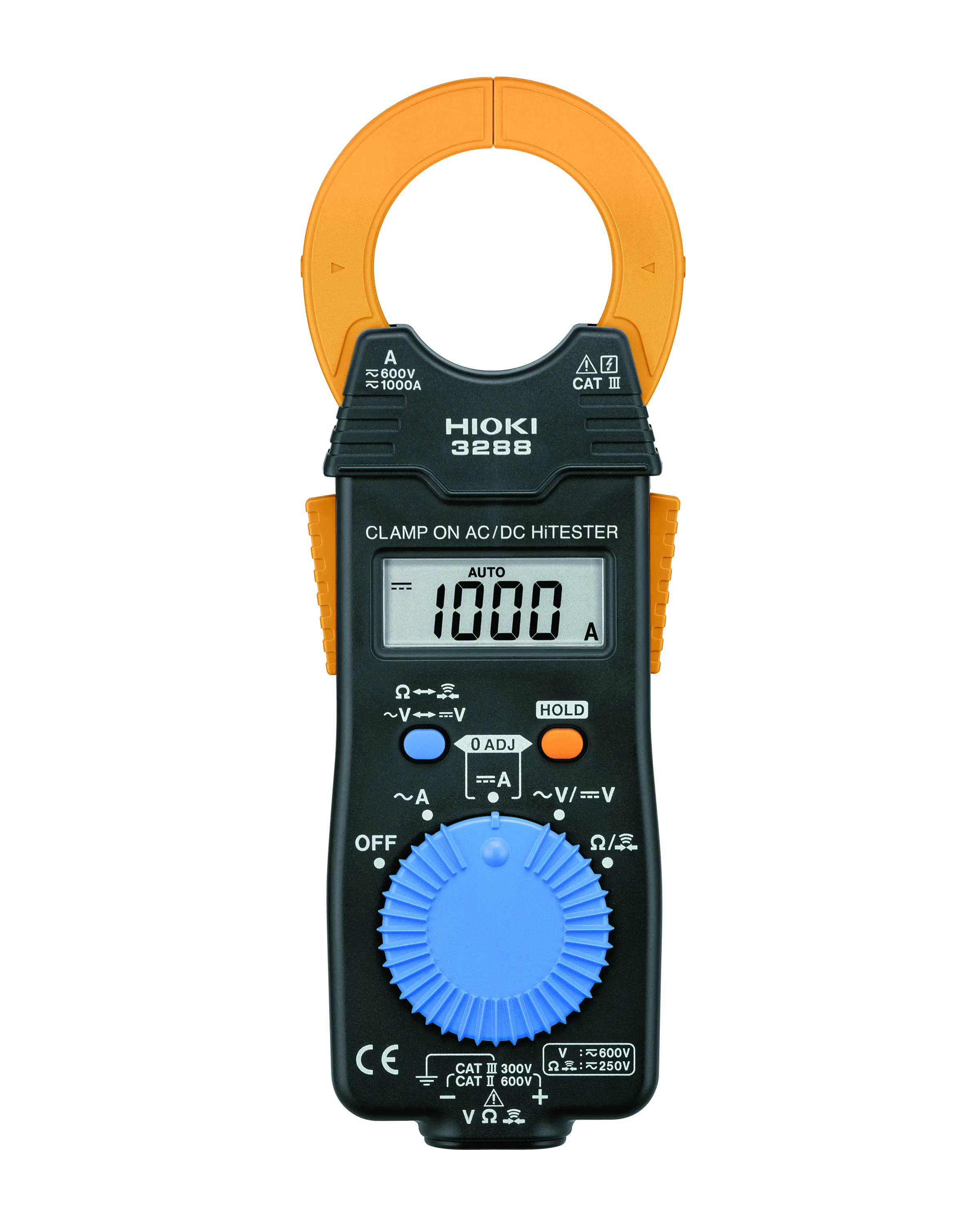

3288 - AC/DC Clamp Meter with 1000 A Current Range

Clamp meter with 100 A and 1000 A current ranges for AC/DC, voltage measurement up to 600 V AC/DC. CAT III 300 V (voltage), CAT III 600 V (current), 35 mm conductor diameter, resistance and continuity test

€248.00

Content: 1 Each

Available in 21 days

€248.00

3288 - AC/DC Clamp Meter with 1000 A Current Range

Product number: 3288

GTIN/EAN: 4536036002696

Length: 16 mm

Width: 57 mm

Height: 180 mm

Weight: 0.3 kg

Product information 3288 - AC/DC Clamp Meter with 1000 A Current Range

Key Specifications

Current measurement 100 A and 1000 A AC/DC
Voltage measurement up to 600 V AC/DC
Resistance and continuity test
35 mm clamp opening
CAT III 300 V (voltage), CAT III 600 V (current)

Typical Applications

Current measurements up to 1000 A in power distribution and electrical installations
Verification of load currents on motors and line powered equipment
Service and maintenance in industrial and building electrical systems

Feature	CM4371-50 CM4371-90	CM4373-50 CM4373-90 CM4373-93	CM4375-50 CM4375-90 CM4375-93	3287	3288-20	3288
Current (AC / DC)	20 A / 600 A	600 A / 2000 A	1000 A	10 A / 100 A	100 A / 1000 A	100 A / 1000 A
True RMS	Yes					-
Voltage (AC / DC)	1000 V			600 V
AC+DC voltage and current	yes			-
Safety Rating	CAT IV 600 V CAT III 1000 V			CAT III 300 V (voltage) CAT III 600 V (current)
Bluetooth	available or included			-

Detailed Product Overview

The 3288 clamp meter measures AC and DC current up to 1000 A. With current ranges of 100 A and 1000 A, the instrument is suited for checking load currents in electrical installations as well as in machines and equipment.

Current measurement is performed using the clamp, allowing conductors to be measured directly without opening the circuit. This enables quick verification of currents in supply lines, motor connections and distribution circuits. The clamp accepts insulated conductors up to 35 mm in diameter.

Electrical measurement functions

In addition to current measurement, the instrument measures voltage up to 600 V AC/DC. Resistance measurement and continuity testing are available through the test leads, allowing electrical connections and circuits to be checked. For DC current measurement, a zero adjustment can be performed to compensate the sensor before measurement. Measurement ranges can be selected automatically or manually.

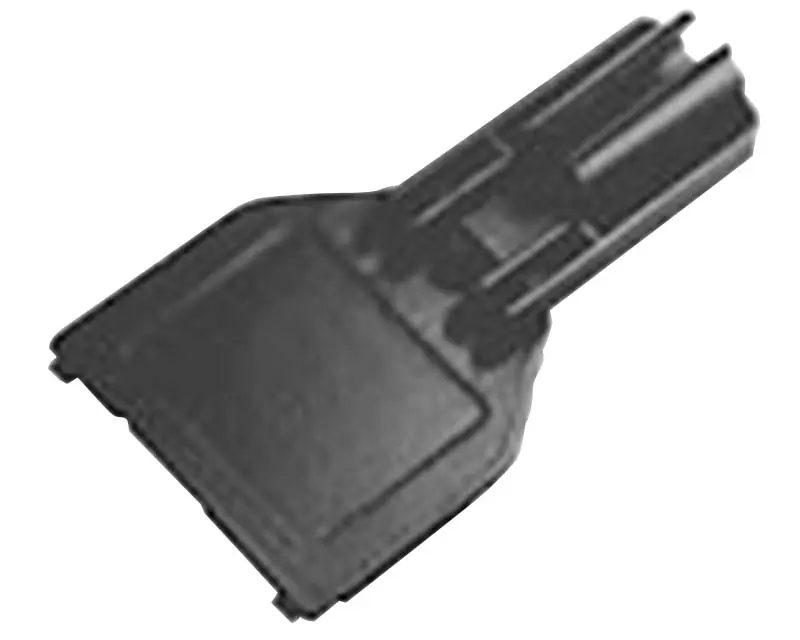

Voltage, resistance and continuity measurements are performed using the included L9208 test leads. The optional 9209 Test Lead Holder allows one test lead to be attached to the rear of the instrument so the clamp meter can be held in one hand while both probe tips are placed on the measurement points.

Safety and application range

The safety category depends on the measurement method. Current measurement using the clamp is rated for CAT III 600 V. Voltage and resistance measurements using test leads are rated for CAT III 300 V or CAT II 600 V.

This makes the instrument suitable for measurements in electrical installations within buildings, for example in distribution panels, machine connections or equipment circuits. Like all HIOKI clamp meters, clamp multimeters and current probes, the 3288 is manufactured in HIOKI’s own production facilities in Japan.

3288 Clamp Meter
L9208 Test Leads
9398 Carrying Case
Instruction Manual
CR2032 lithium battery
