3333 - AC/DC Power Meter
€910.40
% €1,138.00 (20% saved)
Content:
1 Each
In stock in Germany
Special price: The packaging may show slight external damage, it could be a discontinued model, or the items are surplus goods.
€910.40
% €1,138.00 (20% saved)
3333 - AC/DC Power Meter
Product number:
3333
Available stock:
1
GTIN/EAN:
4536036003341
Length:
227 mm
Width:
160 mm
Height:
100 mm
Weight:
1.9 kg
Product details
Description

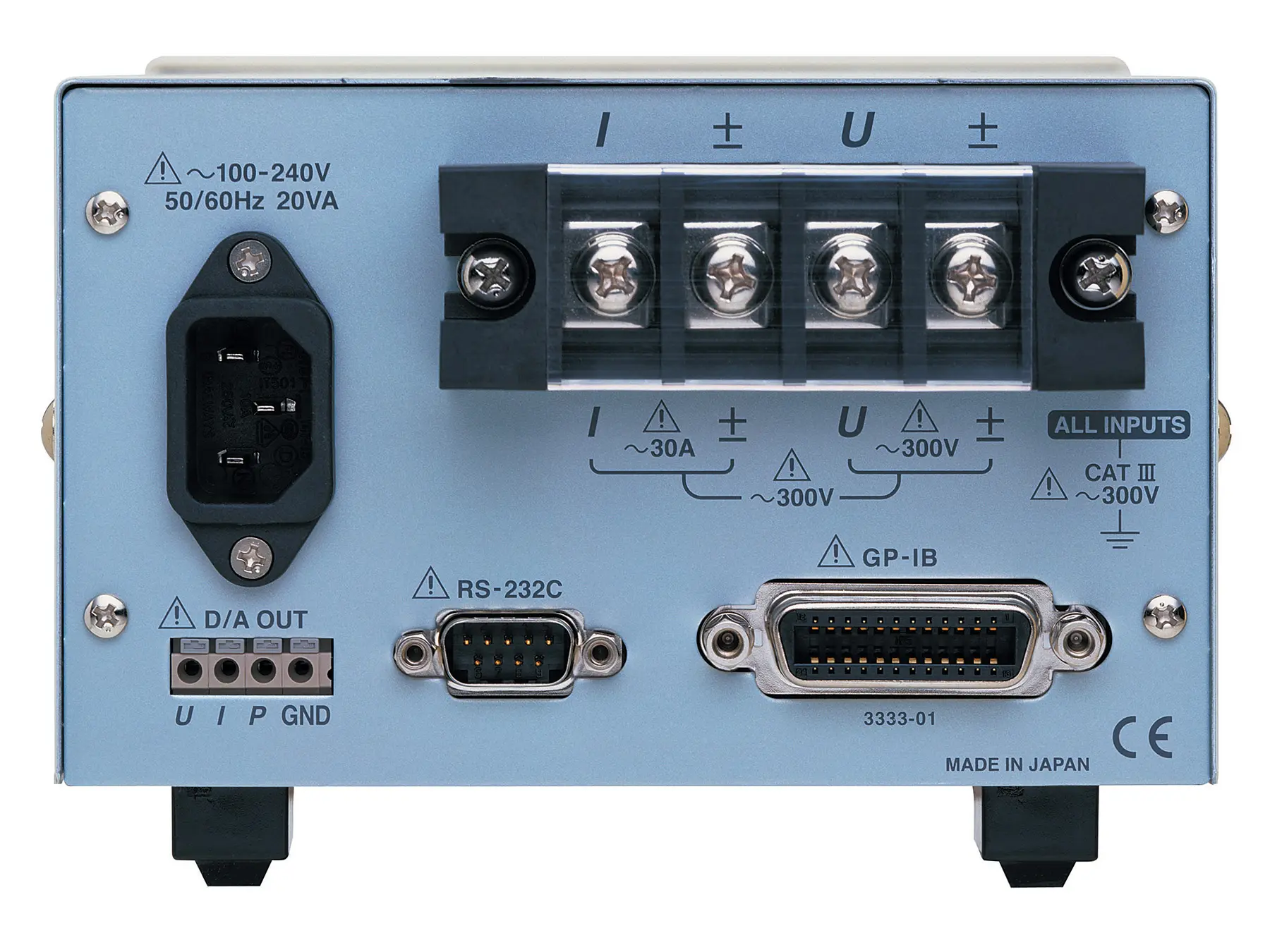

Product information 3333 - AC/DC Power Meter
The 3333 is a single-phase, direct input AC power meter designed to precisely measure the power consumption of devices such as electrical household appliances on production lines. It offers a basic accuracy of ±0.1% (for voltage, current, and active power) over a frequency range of 45 to 66 Hz, handling up to 30 Arms and 300 Vrms (425 V peak). In addition to measuring active power, the device also calculates apparent power and power factor. It is equipped with an RS232C interface for easy connectivity.
Technical Details:
- Measurement type: Single-phase, direct input AC power
- Accuracy: ±0.1% (voltage, current, active power)
- Frequency range: 45 to 66 Hz • Current range: 30 Arms
- Voltage range: 300 Vrms (425 V peak)
- Additional measurements: Apparent power, power factor
- Interface: RS232C
