9661 CLAMP ON SENSOR

Skip image gallery
9661 CLAMP ON SENSOR
9661 CLAMP ON SENSOR

€298.00

Content: 1 Each

In stock in Germany

€298.00

9661 CLAMP ON SENSOR
Product number: 9661
Available stock: 2
GTIN/EAN: 4536036007363
Length: 152 mm
Width: 78 mm
Height: 42 mm
Weight: 0.38 kg

Description

Product information 9661 CLAMP ON SENSOR

The Hioki 9661 Clamp-On Sensor is designed to measure AC current up to 500 A with high precision. It features a voltage output, making it ideal for use with recorders or other instruments. The compact design with a 46 mm conductor diameter capacity ensures flexibility in various electrical environments. The sensor is robust, complying with CAT III 600V safety standards, making it safe for use in industrial settings.

Technical Details:
  • Rated current: AC 500 A
  • Output rate: AC 1 mV/A
  • Amplitude accuracy: ±0.3% rdg. ±0.01% f.s. (500 A, 45 Hz - 66 Hz, at jaw center)
  • Phase accuracy: ±0.5° (45 Hz - 5 kHz)
  • Frequency range: 40 Hz - 5 kHz
  • Maximum current: 550 A (continuous)
  • Dielectric strength: AC 7060 V (for 1 minute)
  • Conductor diameter: 46 mm or less
  • Operating temperature: 0°C to 50°C (80% RH or lower, non-condensing)
  • Storage temperature: -10°C to 60°C
  • Safety standards: EN61010, CAT III 600V
  • Dimensions: 78 W x 152 H x 42 D mm
  • Weight: Approx. 380 g • Cable length: 3 m
Skip product gallery

Related products

PW3336 - AC/DC Power Meter PW3336 - AC/DC Power Meter
PW3336
PW3336 - AC/DC Power Meter
The PW3336 series measures power across a wide range of electrical equipment, from single-phase devices to industrial three-phase systems using 2 input channels.

€4,058.00
View product
PW3337 - 3-channel AC/DC power meter up to 65 A and 1000 V PW3337 - 3-channel AC/DC power meter up to 65 A and 1000 V
PW3337
PW3337 - 3-channel AC/DC power meter up to 65 A and 1000 V
3-channel AC/DC Power Meter, voltage up to 1000 V, direct current input up to 65 A without internal shunts, 5000 A via external sensors, frequency bandwidth DC to 100 kHz, IEC 61000-4-7 harmonic analysis, LAN and RS-232C interface

€5,598.00
View product
MR8875 - Portable memory recorder MR8875 - Portable memory recorder
MR8875
MR8875 - Portable memory recorder
The Hioki MR8875 Memory Recorder is a high-speed, multi-channel logger designed for long-term data recording and real-time waveform monitoring. It supports various input modules for mixed signal measurement, including voltage, temperature, strain, and CAN signals, with a sampling period as short as 2 µs. Its robust design is suitable for harsh environments, making it ideal for applications such as battery evaluation, motor testing, and power equipment analysis. Technical Details: Channels: Up to 60 channels with input modulesSampling Rate: 500 kS/sMemory Capacity: 32 MW (64 MB) Display: 8.4-inch TFT color LCD Storage: SD card, USB memory stick Dimensions: 298 mm × 224 mm × 84 mmWeight: 2.4 kg (excluding modules)

€4,998.00
View product
HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen
MR6000
HIOKI MR6000 - Modular 32-channel memory recorder, 200 MS/s, 1000 V direct input, touchscreen
Modular memory recorder, up to 32 channels, max. sampling rate 200 MS/s, max 1000 VDC isolated direct voltage input, up to 1 TB storage with SSD option, intuitive user interface, touchscreen, real-time waveform calculation and real-time saving

Request a quote
LR8513 - Bluetooth Current Logger LR8513 - Bluetooth Current Logger
LR8513
LR8513 - Bluetooth Current Logger
Compact 2-channel data logger, AC current logging with BNC current sensors, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation

€488.00
View product
20

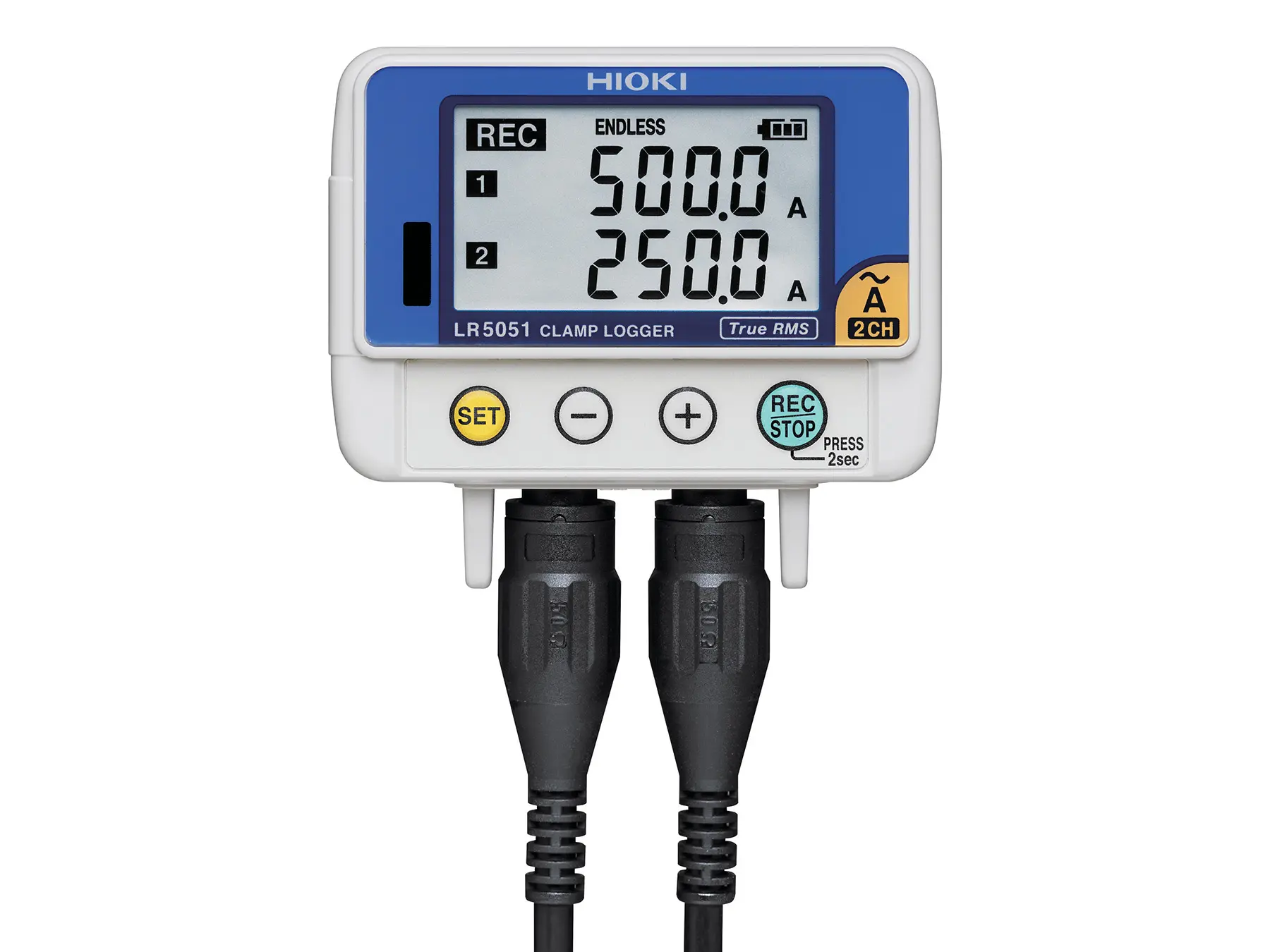

LR5051 - Data Logger for Current Clamps LR5051 - Data Logger for Current Clamps
