CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz

Flexible Rogowski type AC Current Sensor, rated current (2 ranges) 500 A / 5000 A, continuous current (45 to 66 Hz) 10.000 A max., basic accuracy ±2.0% rdg., bandwidth 10 to 20 kHz, maximum conductor diameter 180mm, easy to route through complex wiring.
Skip image gallery

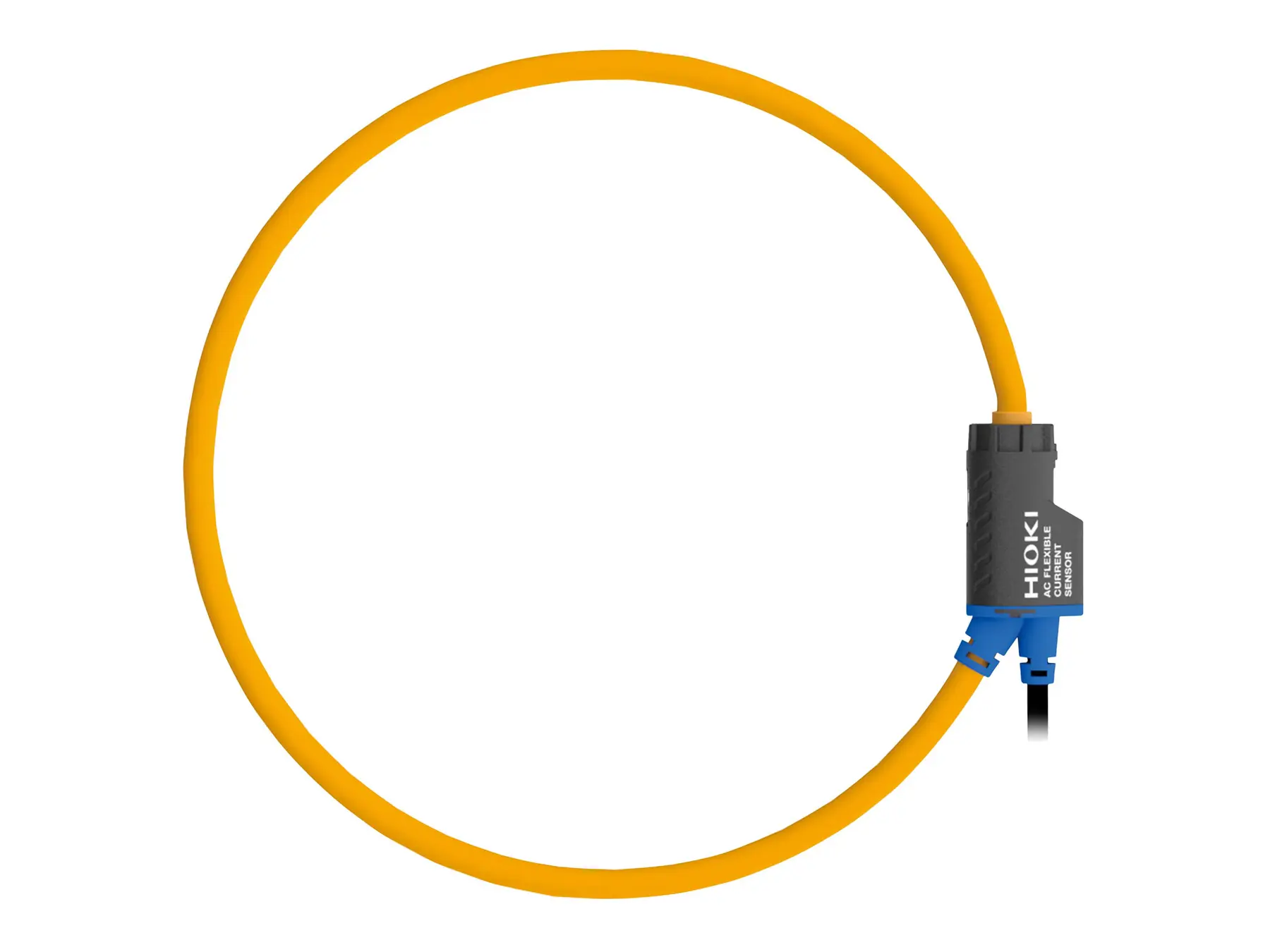

CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz

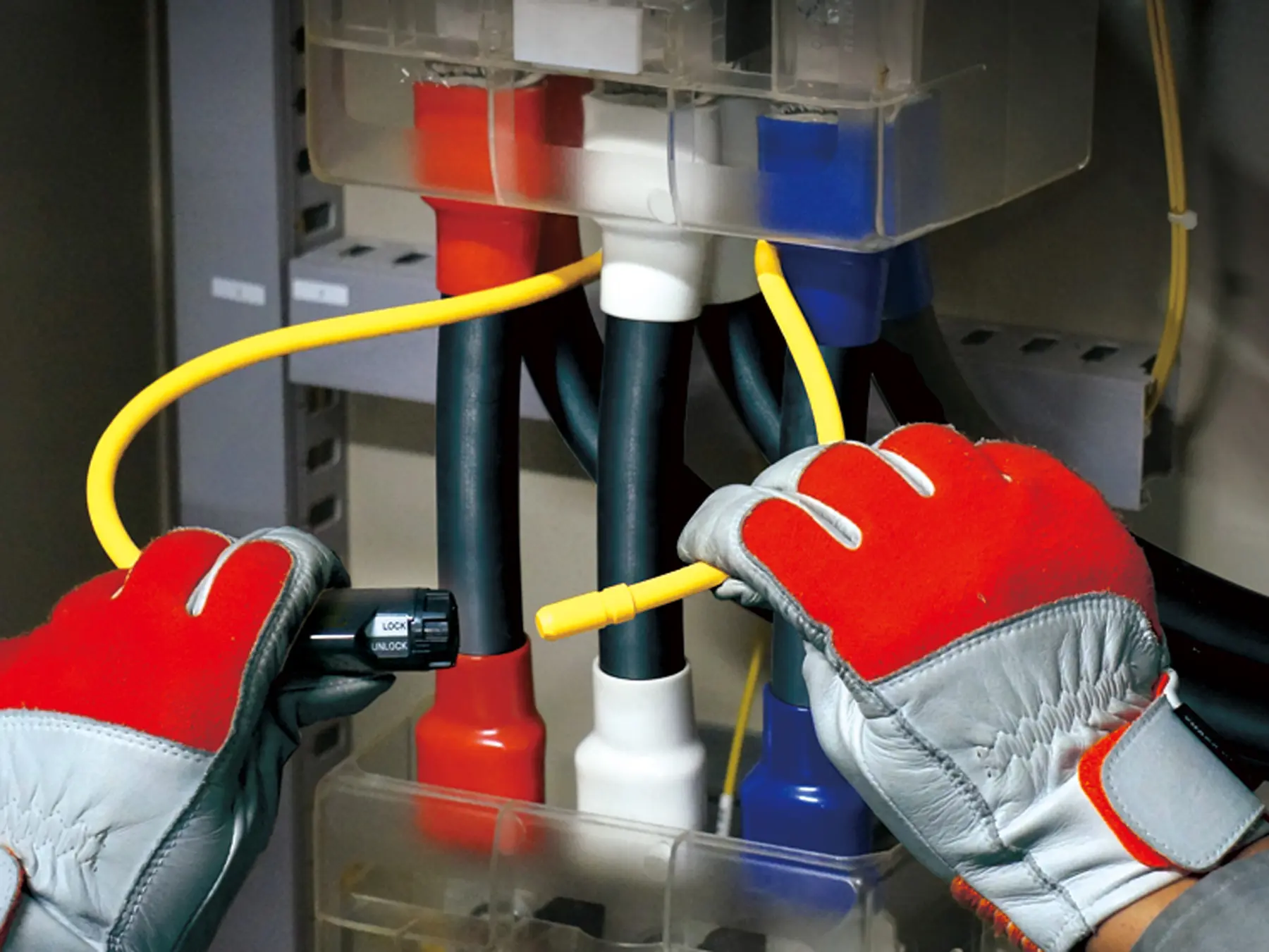

HIOKI CT9667-02 flexible current sensor 5000a 20khz slender 7mm loop
HIOKI CT9667-02 flexible current sensor 5000a 20khz slender 7mm loop

€578.00

Content: 1 Each

In stock in Germany

€578.00

CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
Product number: CT9667-02
Available stock: 1
GTIN/EAN: 4536036004287
Weight: 0.28 kg

Description

Product information CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz

Key Specifications

  • Rated measurement current: 500 A AC (500 A range) / 5000 A AC (5000 A range)
  • Bandwidth: 10 to 20 kHz
  • Basic accuracy: ±2.0% rdg.,
  • Output rate: 1 mV/A (500 A range), 0.1 mV/A (5000 A range)
  • Max. conductor diameter: 180 mm

Typical Applications

  • Current measurement in installations with limited spacing between conductors
  • Measurements on hard-to-reach busbars
  • Use in confined control cabinets and industrial environments
  • Analysis of dynamic current waveforms under high load conditions

In detail:
The CT9667-02 is a flexible Rogowski current sensor designed for accurate measurement of high alternating currents in confined or complex installation environments. With its particularly slim sensing cable of only 7.4 mm in diameter, the measurement loop can be easily routed through tightly packed cable structures – ideal for use in control cabinets, industrial systems, or retrofit installations.

Two selectable measurement ranges (500 A / 5000 A), combined with a wide frequency range from 10 Hz to 20 kHz, allow for detailed analysis of dynamic current waveforms. The basic accuracy of ±2.0% of reading provides reliable results even in demanding tasks such as power quality assessment or load analysis.

The sensing loop can encircle conductors with diameters up to 180 mm, making it suitable for a wide range of applications – from standard cabling to large-scale busbars. The output is voltage-proportional and available via a BNC connector, providing 1 mV/A in the 500 A range and 0.1 mV/A in the 5000 A range, allowing for straightforward integration into existing measurement systems.

The sensor can be powered either by batteries or via an external power source, offering flexibility for field applications. The sensing loop is rated IP54, making it suitable for use in harsh industrial environments.

What's in the Box

  •  LR6 (AA size) alkaline battery × 2
  • Instruction Manual
  • Current Sensor Operating Precautions
