EU8100 - 19-inch rack-mount kit for LR8101 and LR8102

19” rack-mount kit for LR8101 and LR8102 data logger and modules

Description

Product information EU8100 - 19-inch rack-mount kit for LR8101 and LR8102

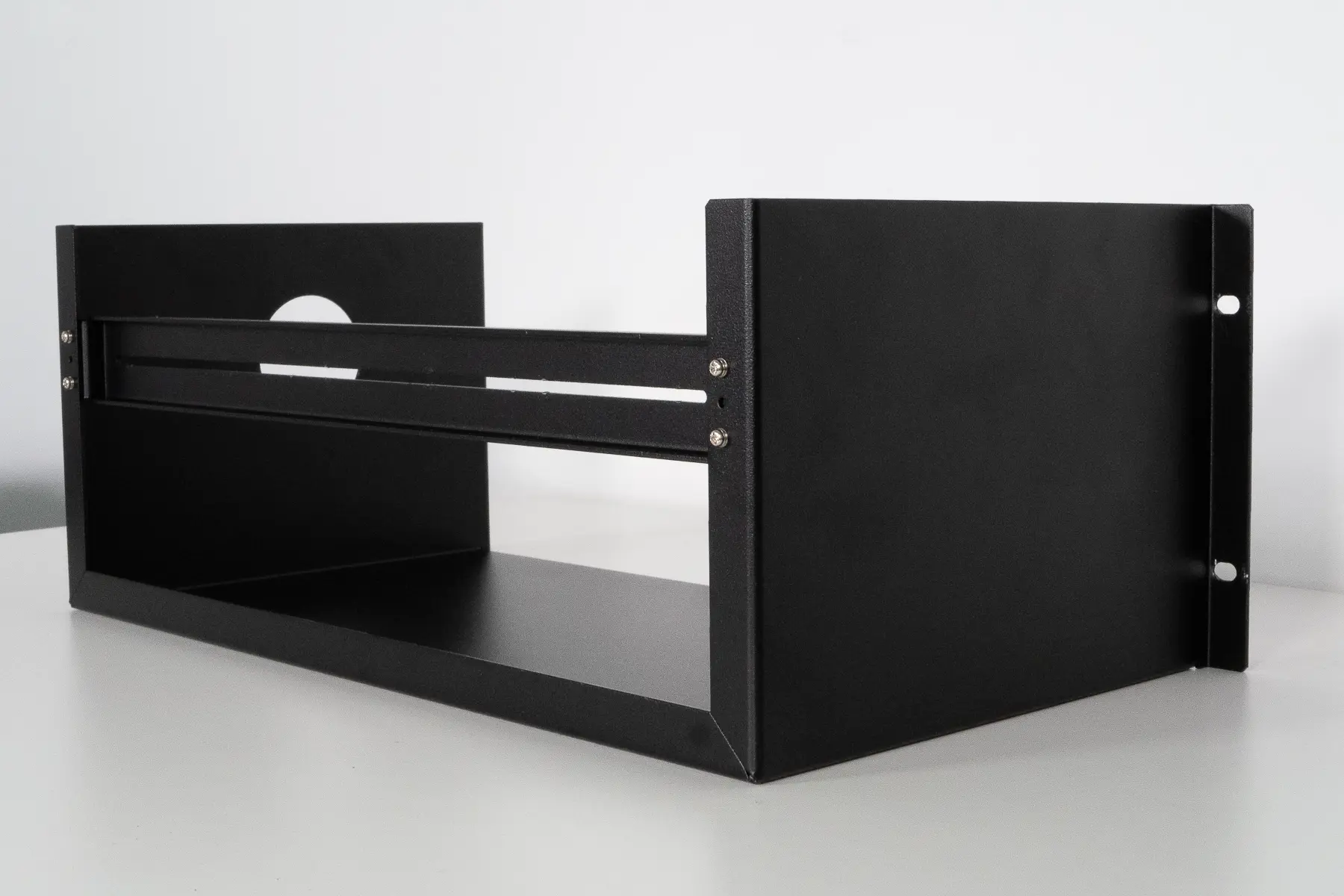

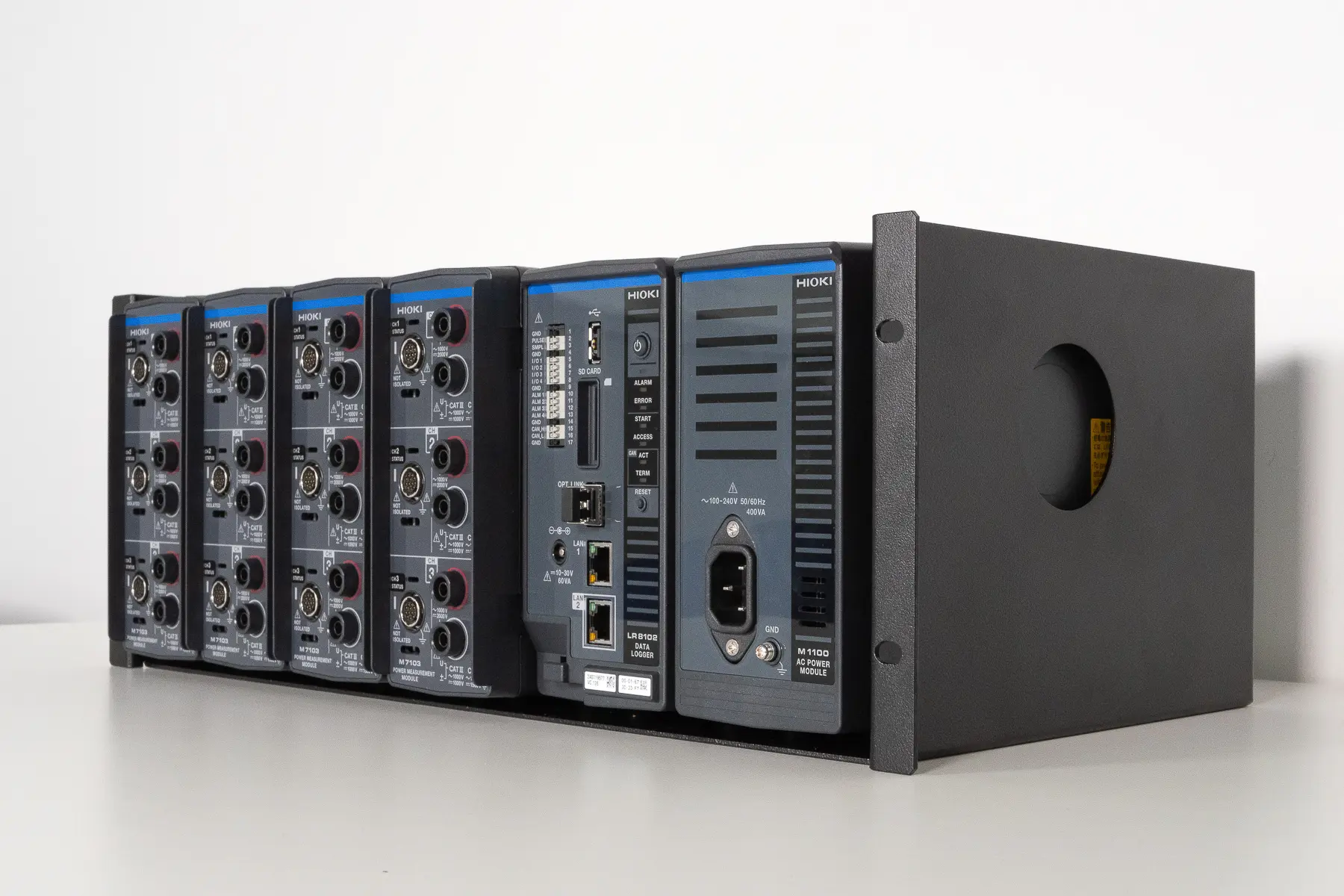

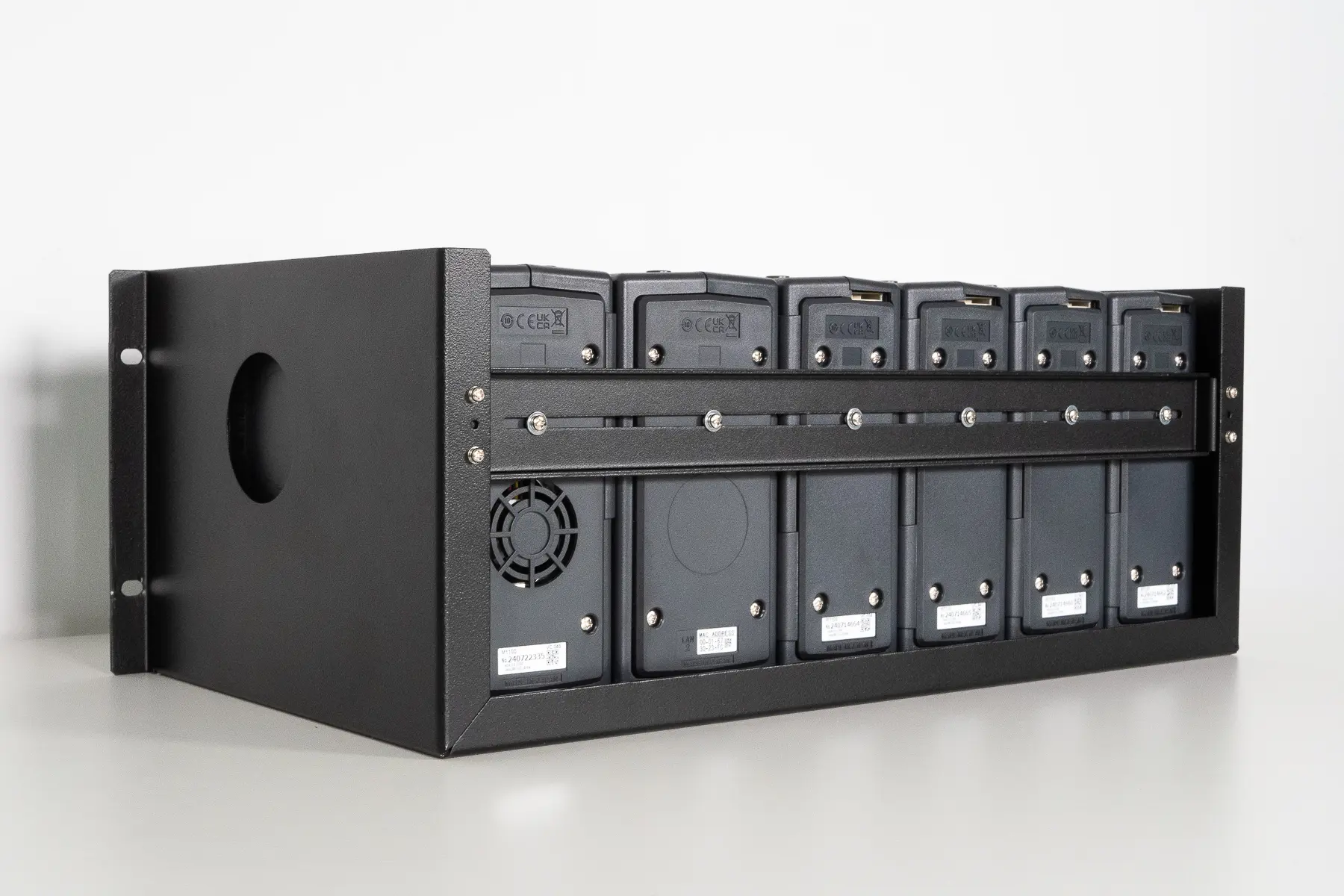

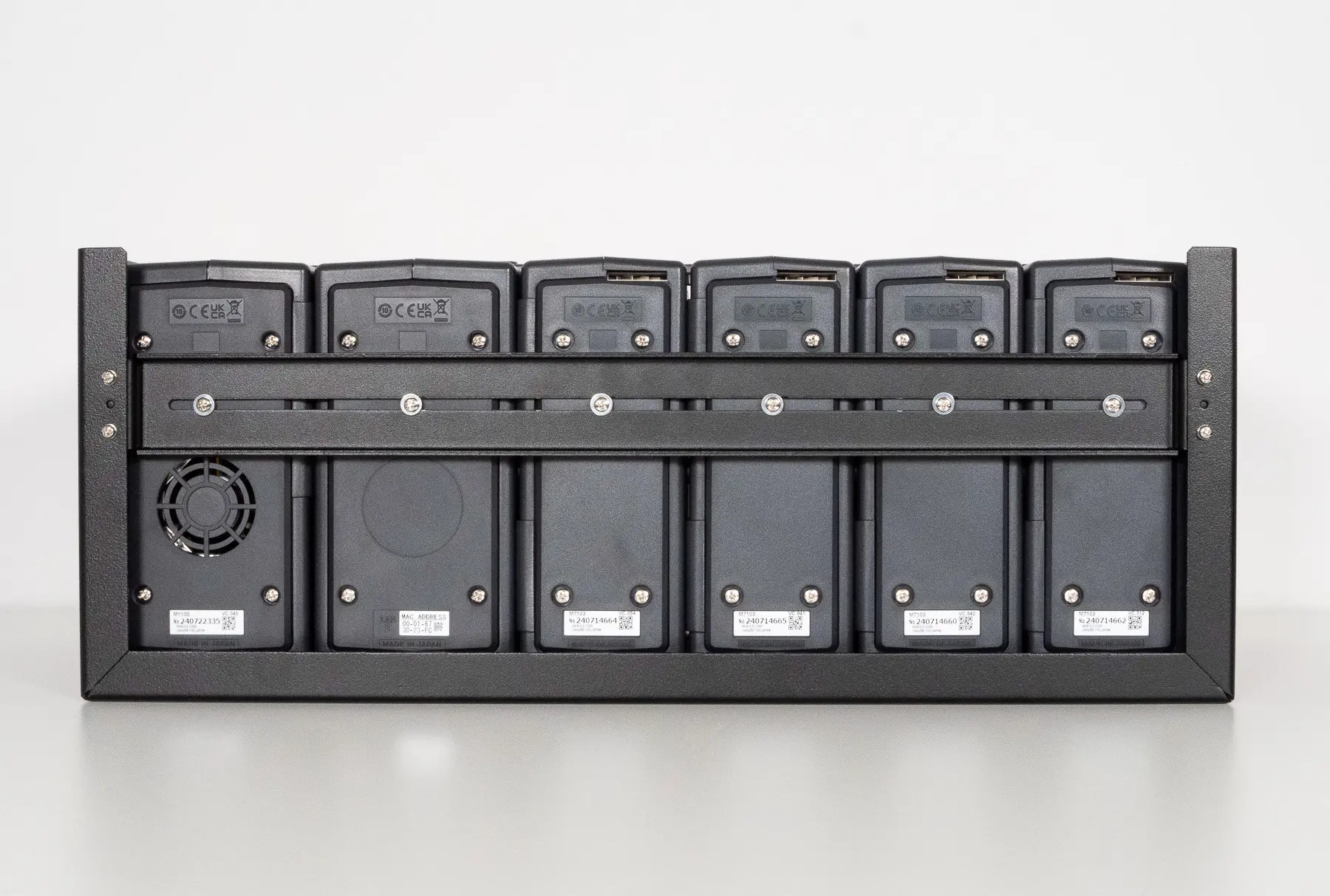

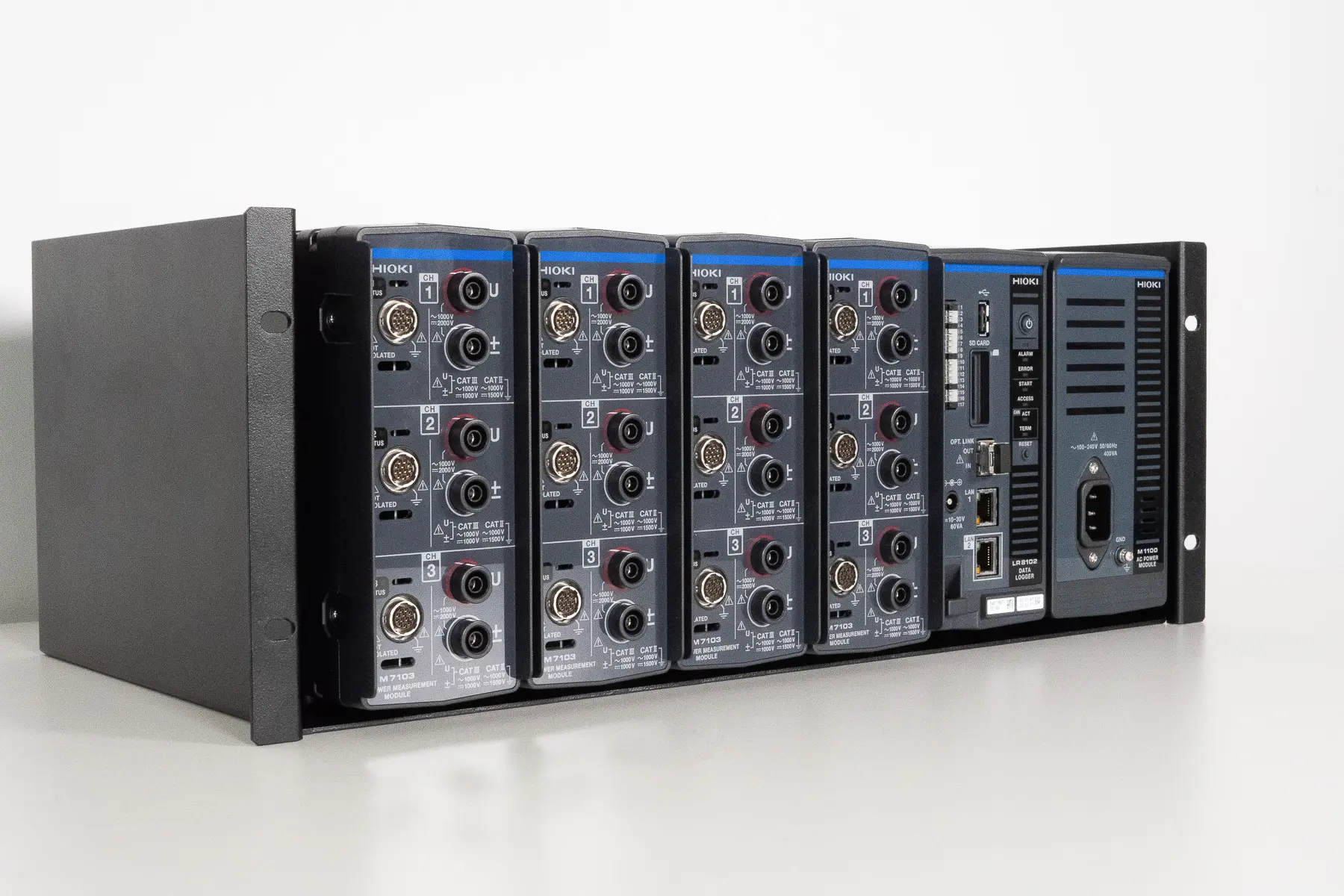

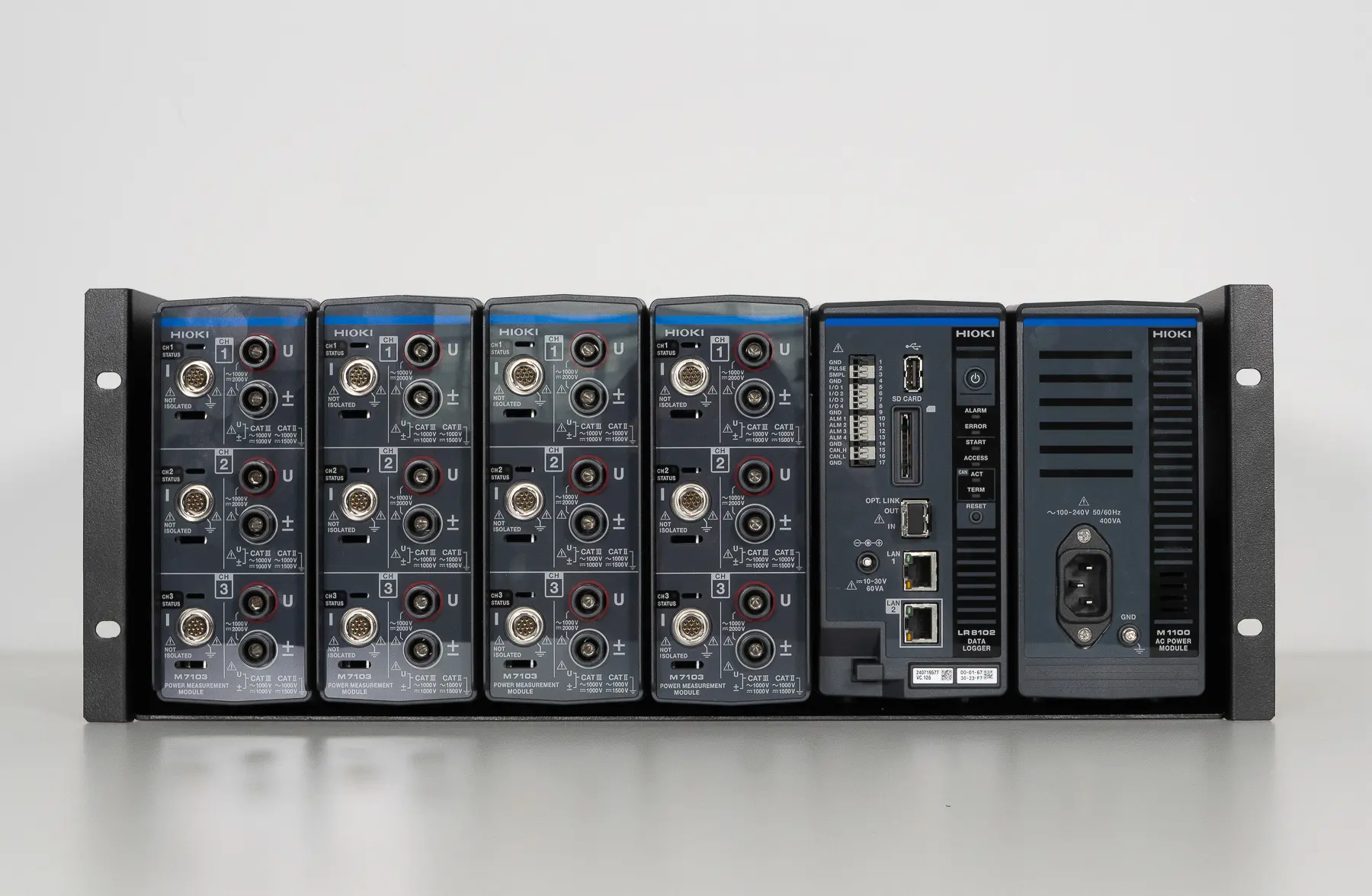

The rack-mount kit for the HIOKI LR810x Series enables secure and stable installation of the instrument into standard 19 inch racks. Each kit can accommodate one data logger (LR8101 or LR8102) paired with up to six M7100 or M7102 Voltage/Temp Modules. Alternatively, it can house one data logger along with one M1100 Power Supply Module and up to four M7103 Power Measurement Modules. The kit includes all necessary hardware for attaching the device using rear screw holes.

What's in the Box

  • EU8100 Rack-Montage-Kit
  • Screws
