FT3424 - Luxmeter, compatible with LED/OLED

Skip image gallery

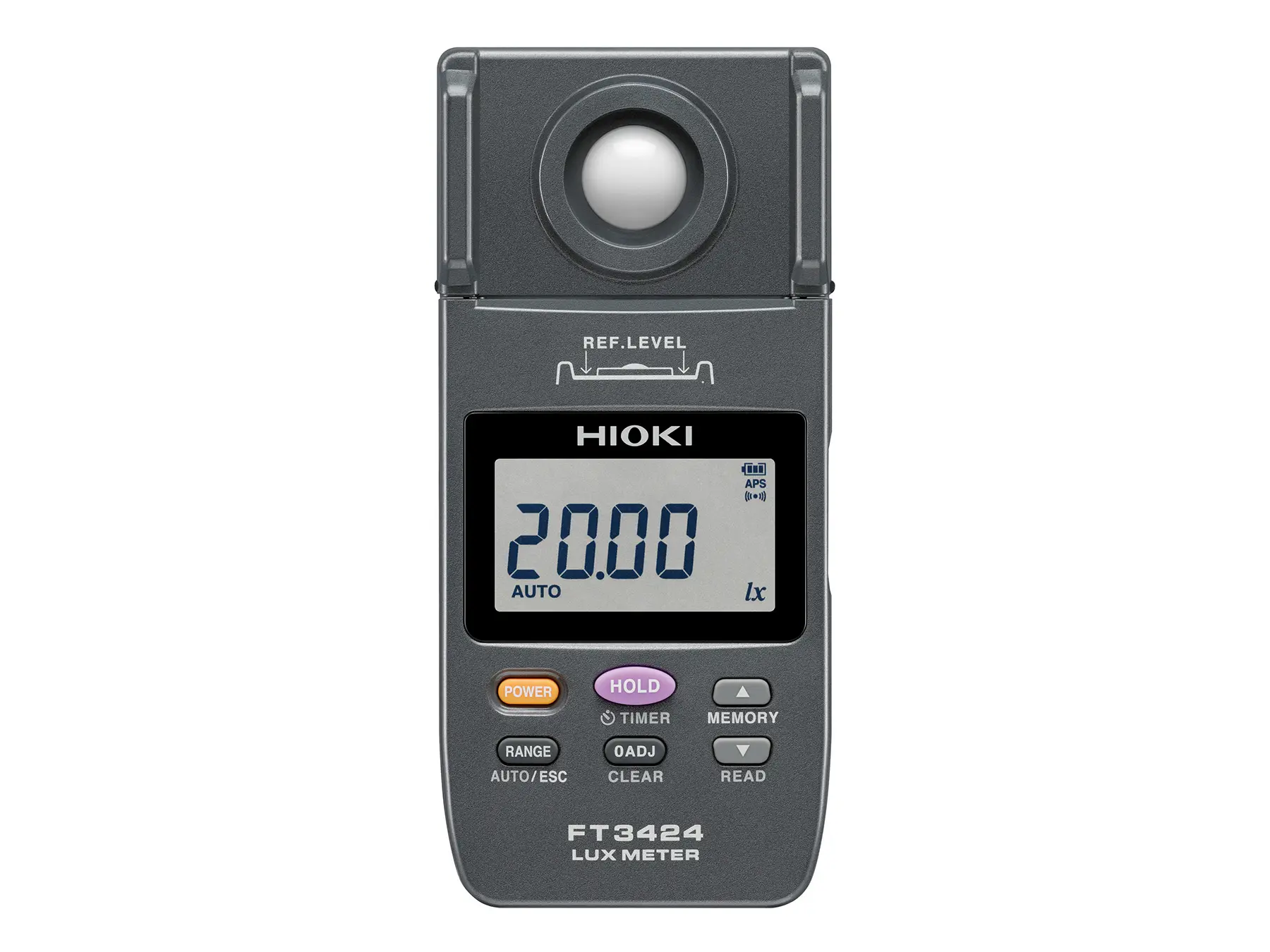

FT3424 - Luxmeter, compatible with LED/OLED
HIOKI FT3424 Luxmeter compatible with led oled
FT3424 - Luxmeter, compatible with LED/OLED
FT3424 - Luxmeter, compatible with LED/OLED
FT3424 - Luxmeter, compatible with LED/OLED
HIOKI FT3424 Luxmeter compatible with led oled

€768.00

Content: 1 Each

In stock in Germany

€768.00

FT3424 - Luxmeter, compatible with LED/OLED
Product number: FT3424
Available stock: 1
GTIN/EAN: 4536036001811
Length: 170 mm
Width: 78 mm
Height: 39 mm
Weight: 0.31 kg

Description

Product information FT3424 - Luxmeter, compatible with LED/OLED

The FT3424 Lux Meter is a highly accurate instrument designed to measure illuminance in various environments, ensuring that lighting conditions meet the required standards. Its compact, lightweight design and fast response time make it suitable for use in industries such as construction, facility management, and quality control.

Technical Specifications:
  • Classification: JIS C 1609-1: 2006 General Class AA, DIN 5032-7: 1985 Class B
  • Light Receiving Element: Silicon photo-diode
  • Display: 4-digit LCD, 2000 counts, Display update rate: 500 ms ±20 ms
  • Measurement Ranges: o 20 lx, 200 lx, 2000 lx, 20000 lx, 200000 lx o Measurement steps: 1 mV DC / 0.01 lx to 100 mV DC / 100 lx
  • Linearity: ±2% rdg (Multiply by 1.5 for values over 3000 lx)
  • Accuracy: ±4% f.s.
  • Response Time: Auto: within 5 seconds, Manual: within 2 seconds
  • Output Specifications: D/A output, 1 mV resolution, Output rate: 500 ms
  • Power Supply: 2 × AA (LR6) alkaline batteries or USB bus power 5 V DC
  • Operating Temperature: -10°C to 40°C (14°F to 104°F), 80% RH or less
  • Dimensions: 78 mm (W) × 170 mm (H) × 39 mm (D)
  • Weight: Approx. 310 g (including batteries)
