HIOKI 3269 - Power Supply for Current Probes, 2500 mA

4-channel power supply unit for HIOKI Hall-sensor based zero-flux current probes, 12 VDC output voltage, 2500 mA total maximum output current
Skip image gallery
HIOKI 3269 - Power Supply for Current Probes, 2500 mA
HIOKI 3269 - Power Supply for Current Probes, 2500 mA

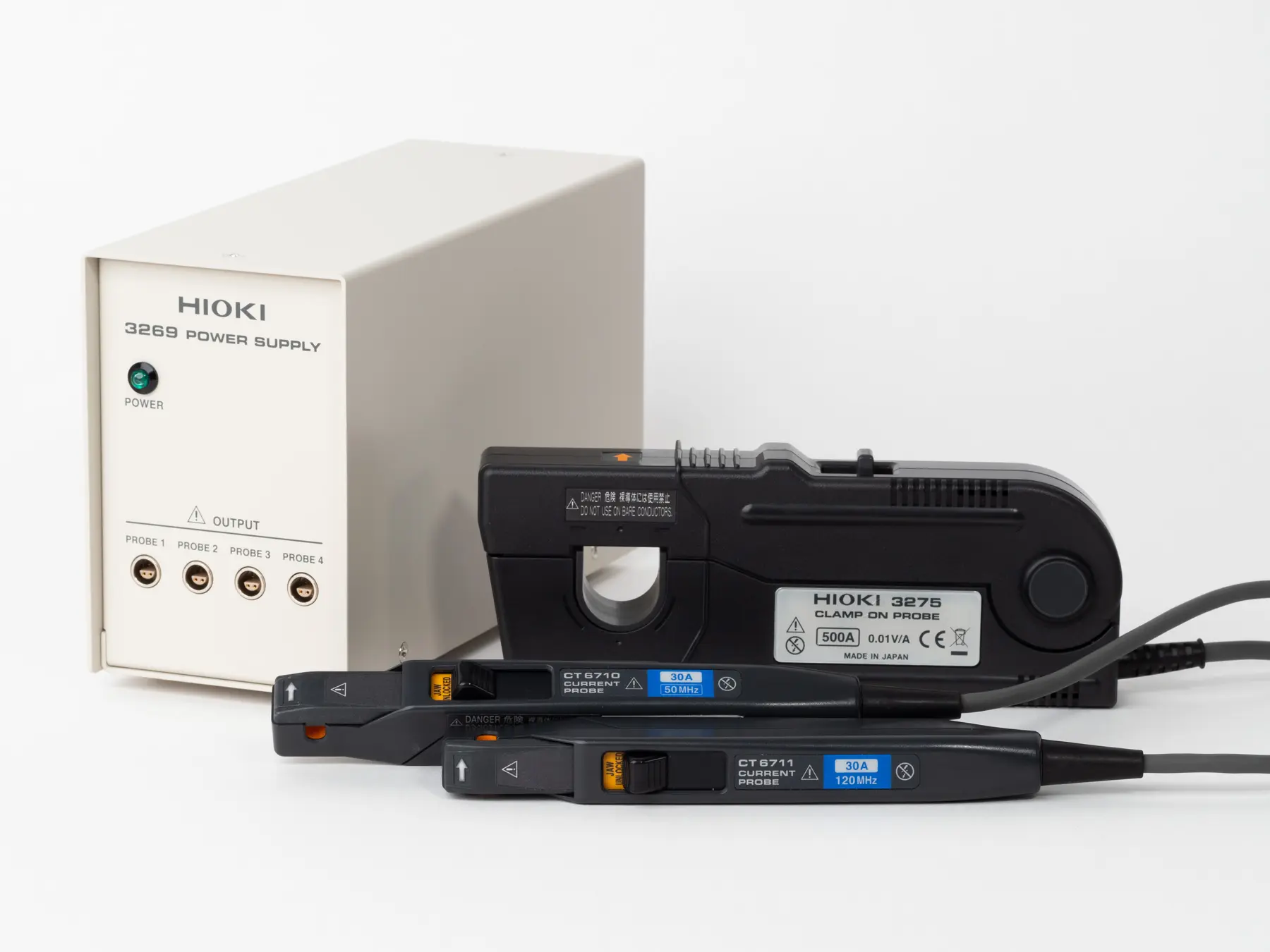

HIOKI 3269 power supply 12v 2500ma for ct6710 ct6711

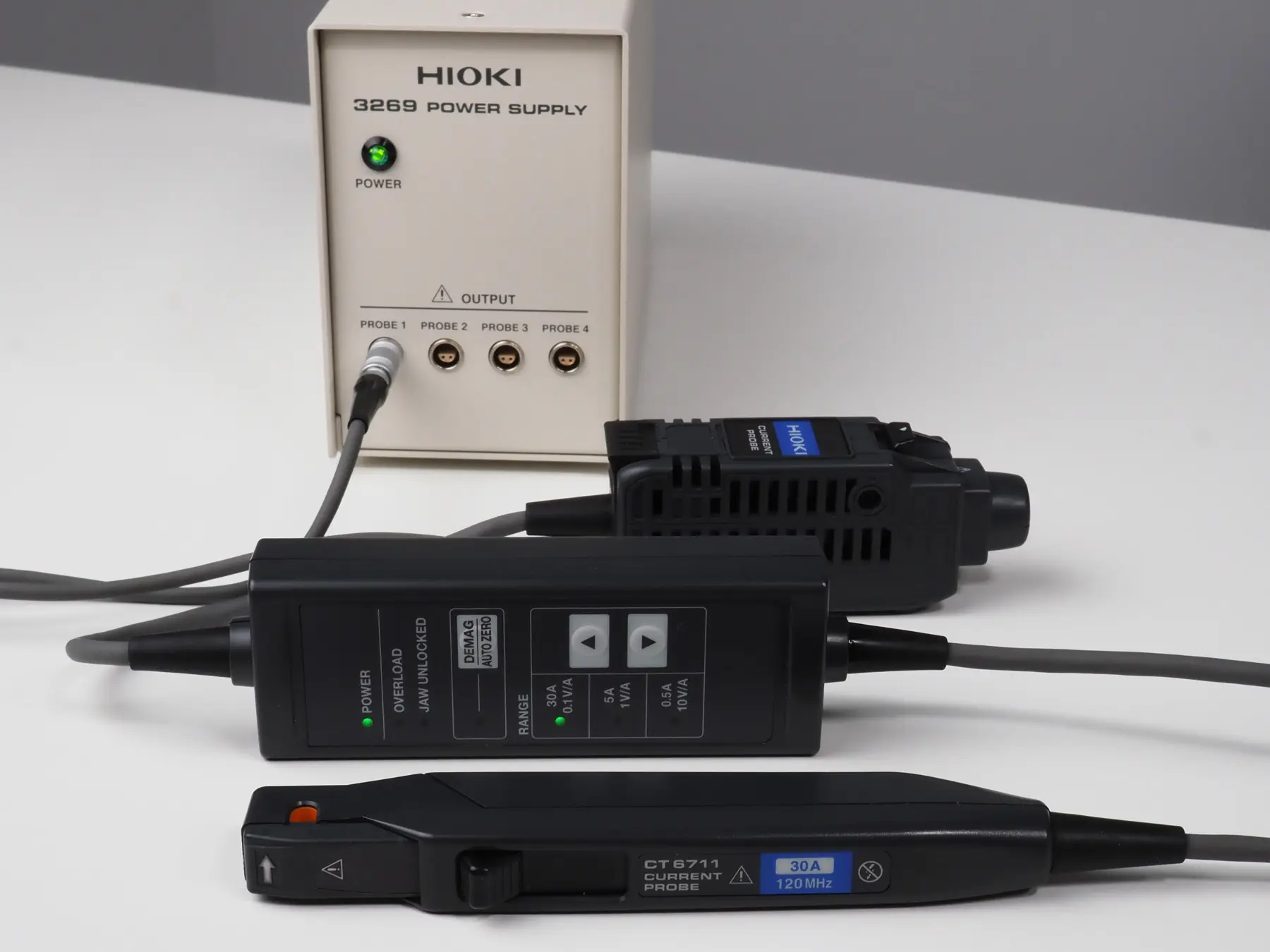

HIOKI 3269 power supply 12v 2500ma multi sensor setup
HIOKI 3269 power supply 12v 2500ma for ct6710 ct6711
HIOKI 3269 power supply 12v 2500ma multi sensor setup

€1,078.00

Content: 1 Each

In stock in Germany

€1,078.00

HIOKI 3269 - Power Supply for Current Probes, 2500 mA
Product number: 3269
Available stock: 2
GTIN/EAN: 4536036006038
Length: 200 mm
Width: 80 mm
Height: 119 mm
Weight: 1.1 kg

Description

Product information HIOKI 3269 - Power Supply for Current Probes, 2500 mA

Key Specifications

  • 2500 mA total maximum output current
  • 12 VDC output voltage

Detailed Product Overview


The HIOKI 3269 Power Supply Unit is designed to provide stable power to HIOKI Hall-sensor-based zero-flux current probes. With an output of 12 VDC and a total maximum current of 2500 mA, it delivers the consistent power necessary for precision measurements. Designed with four channels that share this total output, the 3269 supports efficient multi-sensor setups. Each channel includes a 2-pin LEMO connector, customized for secure and reliable connections with HIOKI sensors. Ideal for demanding applications, this unit enhances sensor performance, ensuring high accuracy in controlled environments.

The HIOKI 3269 Power Supply Unit supports powering multiple HIOKI sensors, though the number of probes it can support simultaneously varies depending on the individual sensor's power consumption. When using a single type of probe per power supply, the following configuration limits apply:

• CT6710 and CT6711: Up to 2 probes (each with approx. 650 mA consumption)
• CT6700 and CT6701: Up to 4 probes (each with approx. 250 mA consumption)
• 3273-50 and 3274: Up to 4 probes (each with approx. 450 mA consumption)
• 3275: Up to 4 probes (each with approx. 600 mA consumption)
• 3276: Up to 4 probes (each with approx. 450 mA consumption)

Caution:
HIOKI introduced the 2-pin LEMO connector for supplying power to Hall-sensorbased zero-flux current probes in the late 1990s. Today, many current sensors carrying other brand names use the same connector type, often with the same supply voltage and polarity as HIOKI. However, some sensors from third parties may have different specifications. Always verify compatibility to prevent damage or malfunction.

What's in the Box

  • 3269
  • Operating instructions
  • Mains cable
