HIOKI BT5525 - Battery Insulation Tester

Skip image gallery
HIOKI BT5525 battery insulation tester
HIOKI BT5525 battery insulation tester use with L2130 L2131 test leads

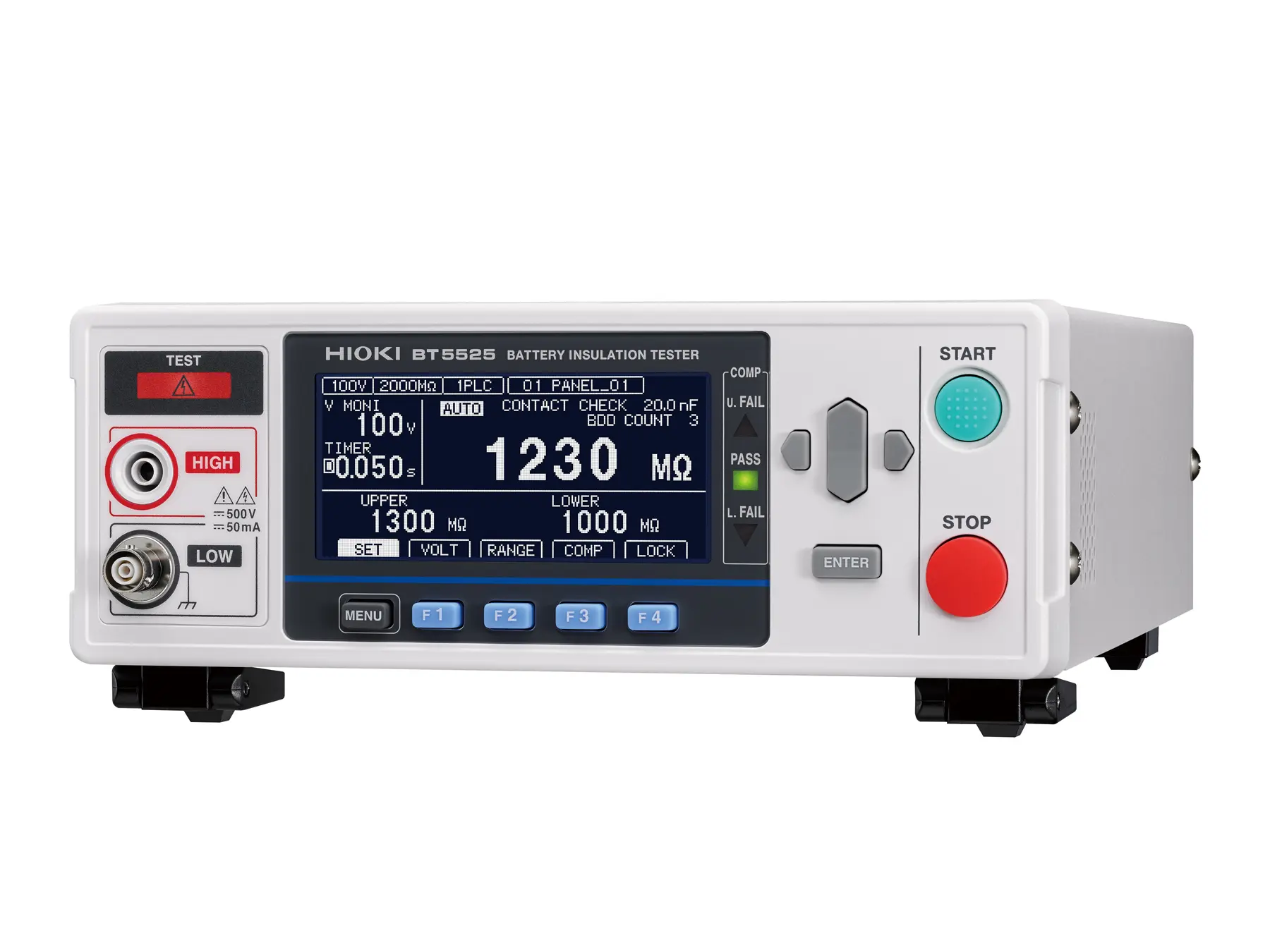

HIOKI BT5525 battery insulation tester bench and production line use

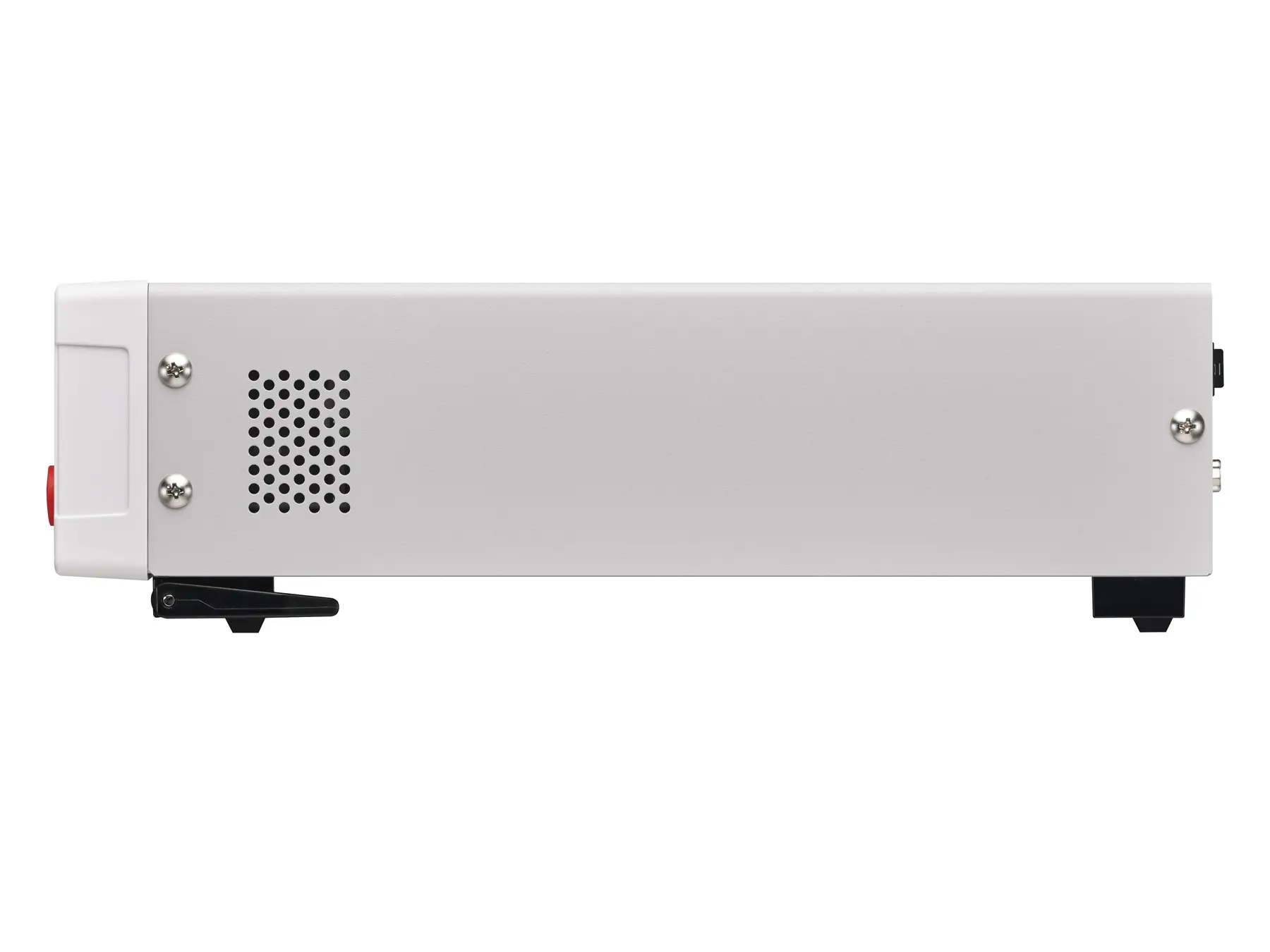

HIOKI BT5525 battery insulation tester insulation resistance up to 9999mohm

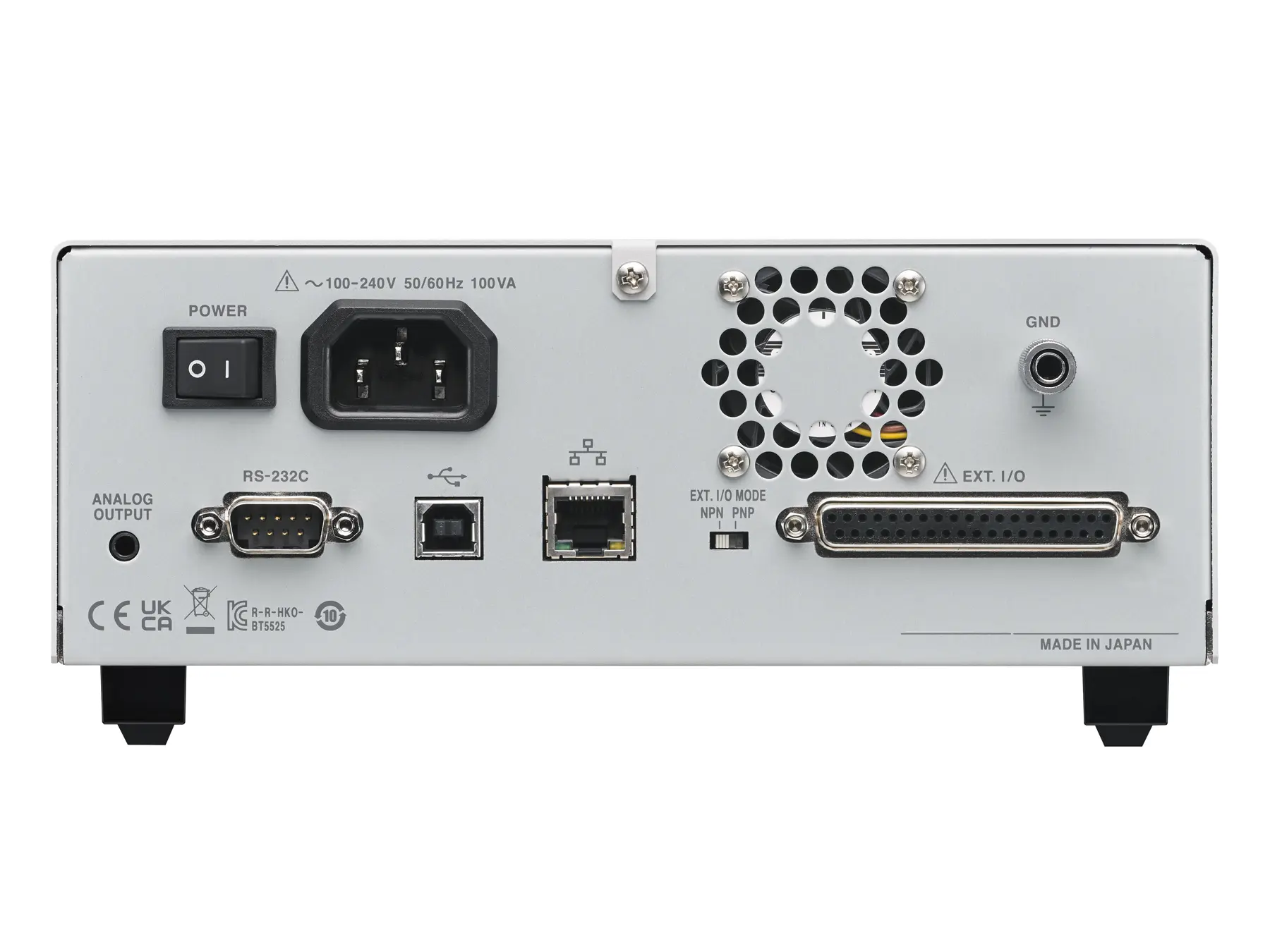

HIOKI BT5525 battery insulation tester charging current up to 50ma

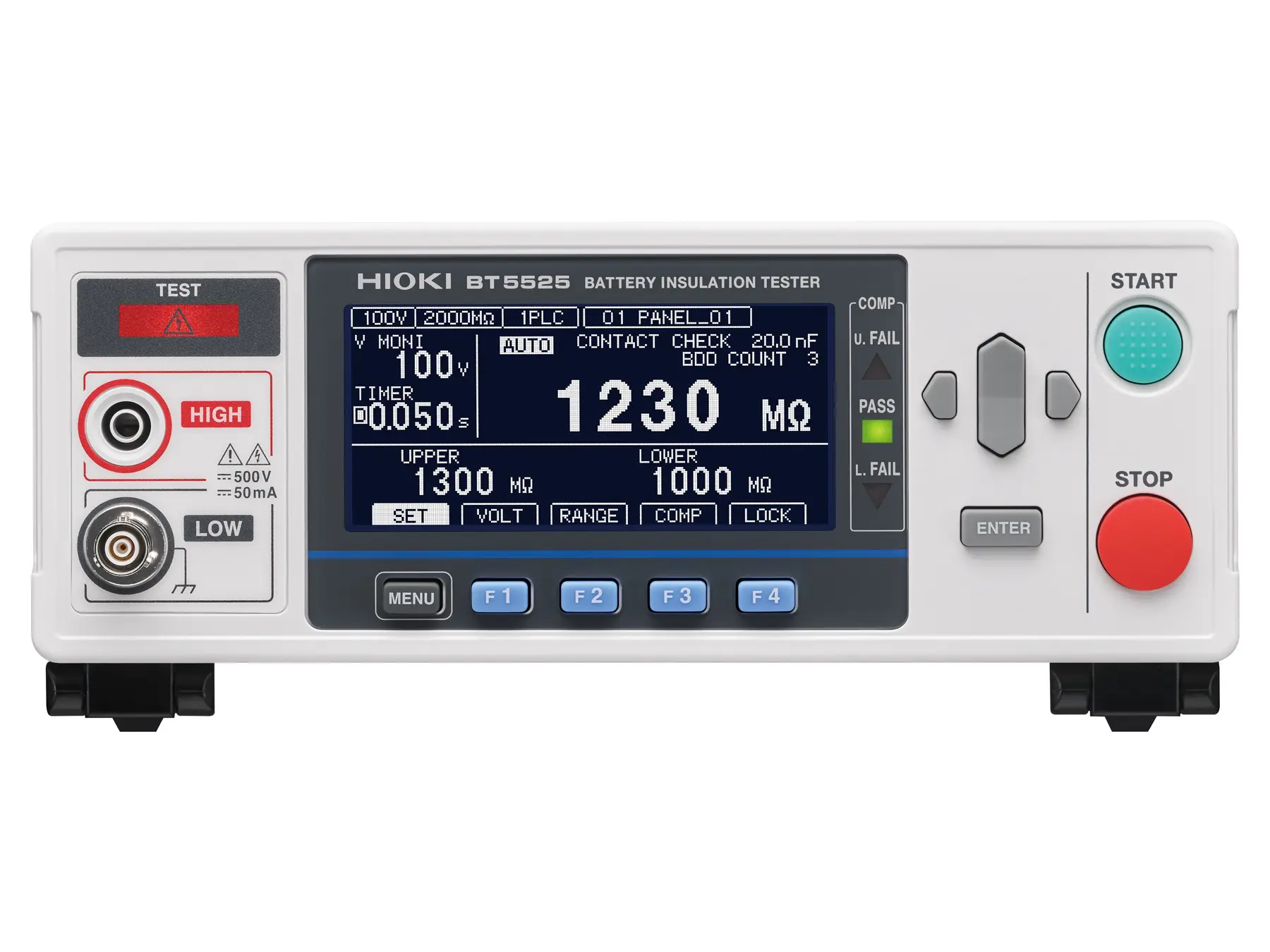

HIOKI BT5525 battery insulation tester usb lan rs 232c ext io interfaces

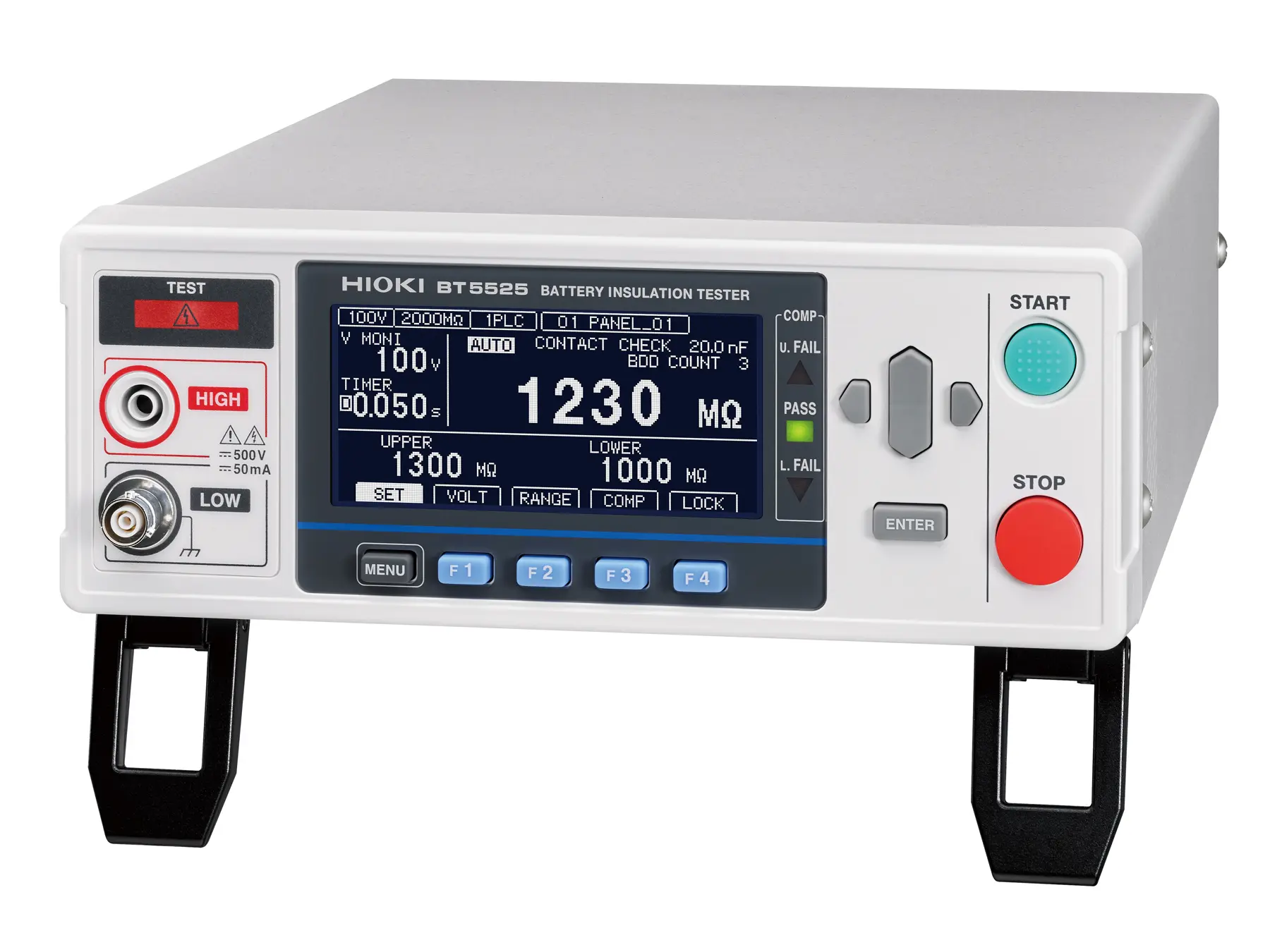

HIOKI BT5525 battery insulation tester break down detection bdd

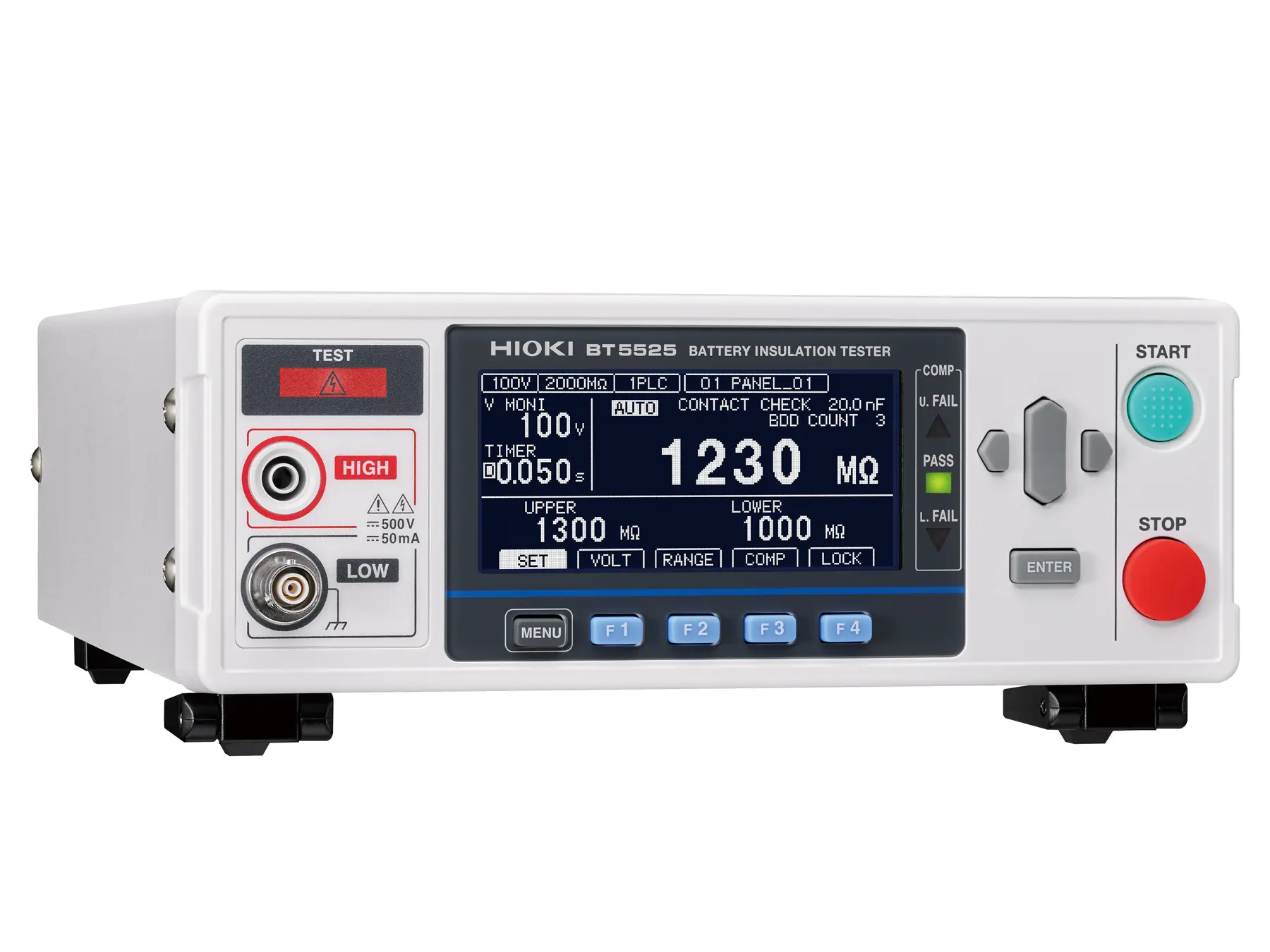

HIOKI BT5525 battery insulation tester contact check function
HIOKI BT5525 battery insulation tester
HIOKI BT5525 battery insulation tester use with L2130 L2131 test leads
HIOKI BT5525 battery insulation tester bench and production line use
HIOKI BT5525 battery insulation tester insulation resistance up to 9999mohm
HIOKI BT5525 battery insulation tester charging current up to 50ma
HIOKI BT5525 battery insulation tester usb lan rs 232c ext io interfaces
HIOKI BT5525 battery insulation tester break down detection bdd
HIOKI BT5525 battery insulation tester contact check function

€5,198.00

Content: 1 Each

Available in 21 days

€5,198.00

HIOKI BT5525 - Battery Insulation Tester
Product number: BT5525
GTIN/EAN: 4536036014477
Length: 215 mm
Width: 306.5 mm
Height: 80 mm
Weight: 2.8 kg

Description

Product information HIOKI BT5525 - Battery Insulation Tester


Battery Insulation Tester, Break Down Detection (BDD), contact check function, use in combination with Test Leads L2130 and L2131 for benchtop testing, use in combination with L2132 and L2133 for production line testing.

Technical specifications

  • Test voltage: 25 V to 500 V
  • Charging current: 50 mA maximum
  • Insulation resistance measurement: up to 9999 MΩ
  • Contact check function
  • Break Down Detect (BDD) function
  • Interfaces: USB, LAN, RS-232C, EXT. I/O
  • Use in combination with Test Leads L2130 and L2131 for benchtop testing, use in combination with L2132 and L2133 for production line testing.
  • Helps prevent shipment of batteries with latent insulation defects that could lead to fire
  • Enables easy system integration and automation via multiple interfaces
  • Offers a wide range of functions for convenient and reliable measurements

What's in the Box

  • BT5525 Battery Insulation Tester
  • Power cord
  • EXT. I/O male connector
  • EXT. I/O connector cover
  • EXT. I/O interlock cancellation jig
  • Startup Guide
Skip product gallery

Related Products

ST5520 - Insulation Tester ST5520 - Insulation Tester
ST5520
ST5520 - Insulation Tester
The ST5520 is an insulation resistance tester designed for fast, accurate testing in production lines. It is ideal for high-throughput environments where rapid, reliable measurements are crucial.

€1,428.00
View product
L2130 - Clip Type Lead (red)
L2130

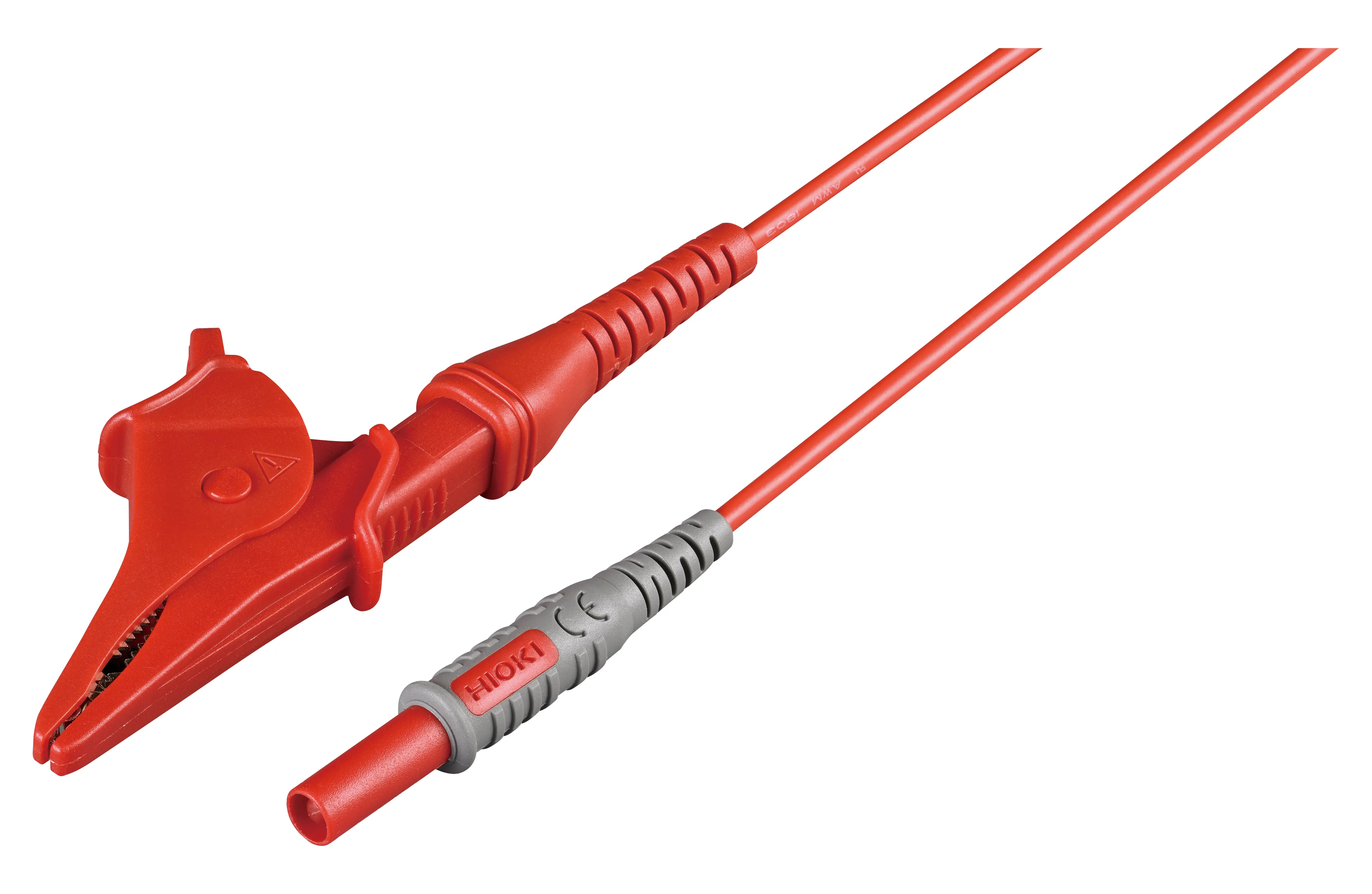

L2130 - Clip Type Lead (red)
The L2130 is a clip type measurement lead designed for connection to the HIGH terminal of compatible Hioki instruments. It is equipped with a banana plug on the instrument side and a clip on the DUT side. The lead has a total cable length of 1.5 m. Key Specifications Connector type: Banana plug to clip Terminal assignment: HIGHCable length: 1.5 mColor: Red Rated voltage: 500 V Rated current: 50 mA Standard: EN 61010 Type A Operating temperature: 0 °C to 40 °C Operating humidity: 80% RH or less, non condensing

€58.00
View product

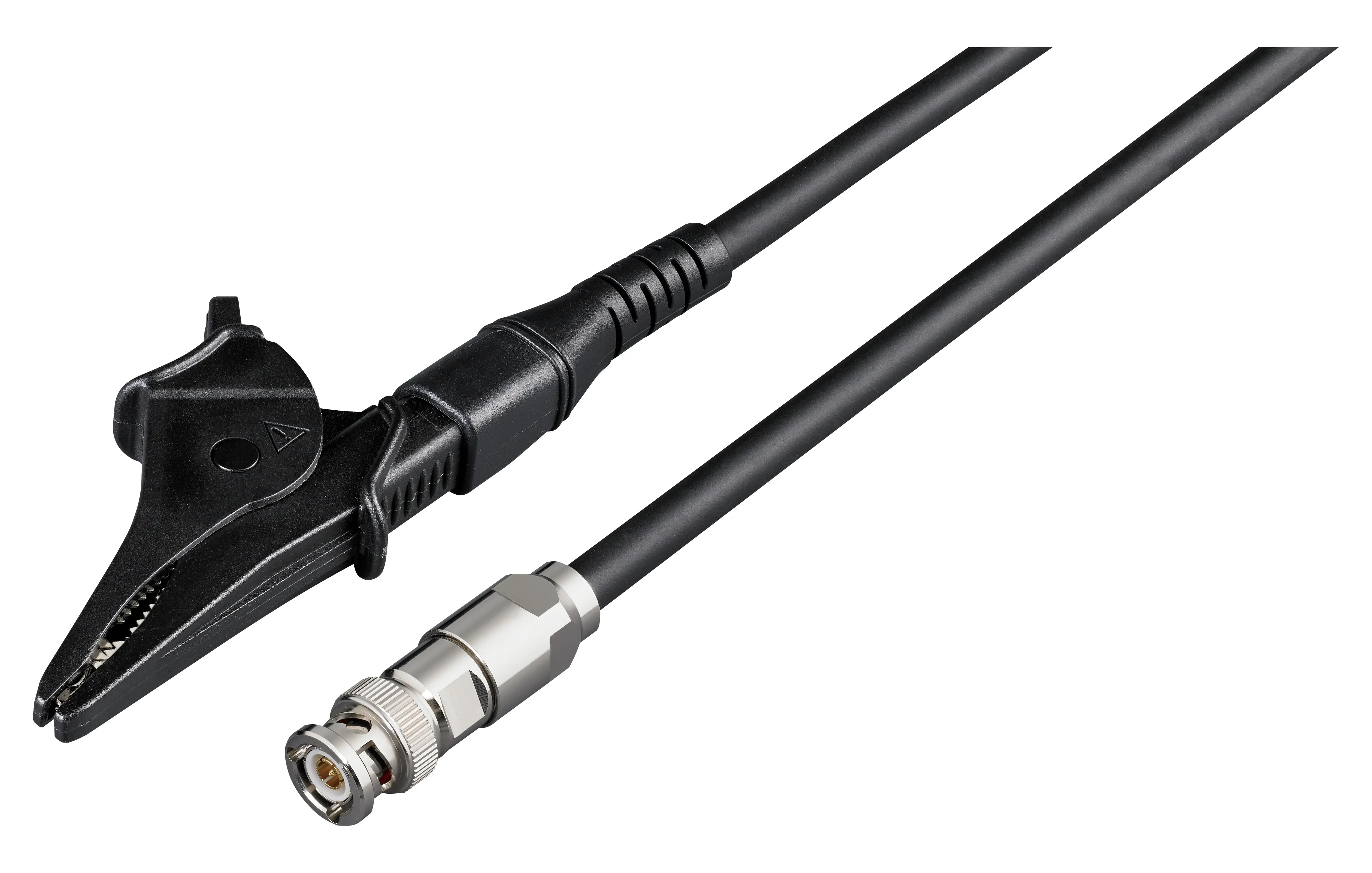

L2131 - Clip Type Lead (black)
L2131
L2131 - Clip Type Lead (black)
The L2131 is a clip type measurement lead designed for connection to the LOW terminal of compatible Hioki instruments. It is equipped with a special triaxial connector on the instrument side and a clip on the DUT side. The lead has a total cable length of 1.5 m. Key SpecificationsConnector type: Triaxial connector to clipTerminal assignment: LOW Cable length: 1.5 mColor: Black Rated voltage: 500 VRated current: 50 mA Standard: EN 61010 Type A Operating temperature: 0 °C to 40 °C Operating humidity: 80% RH or less, non condensing

€758.00
View product
L2132 - Unterminated Lead (red)
L2132

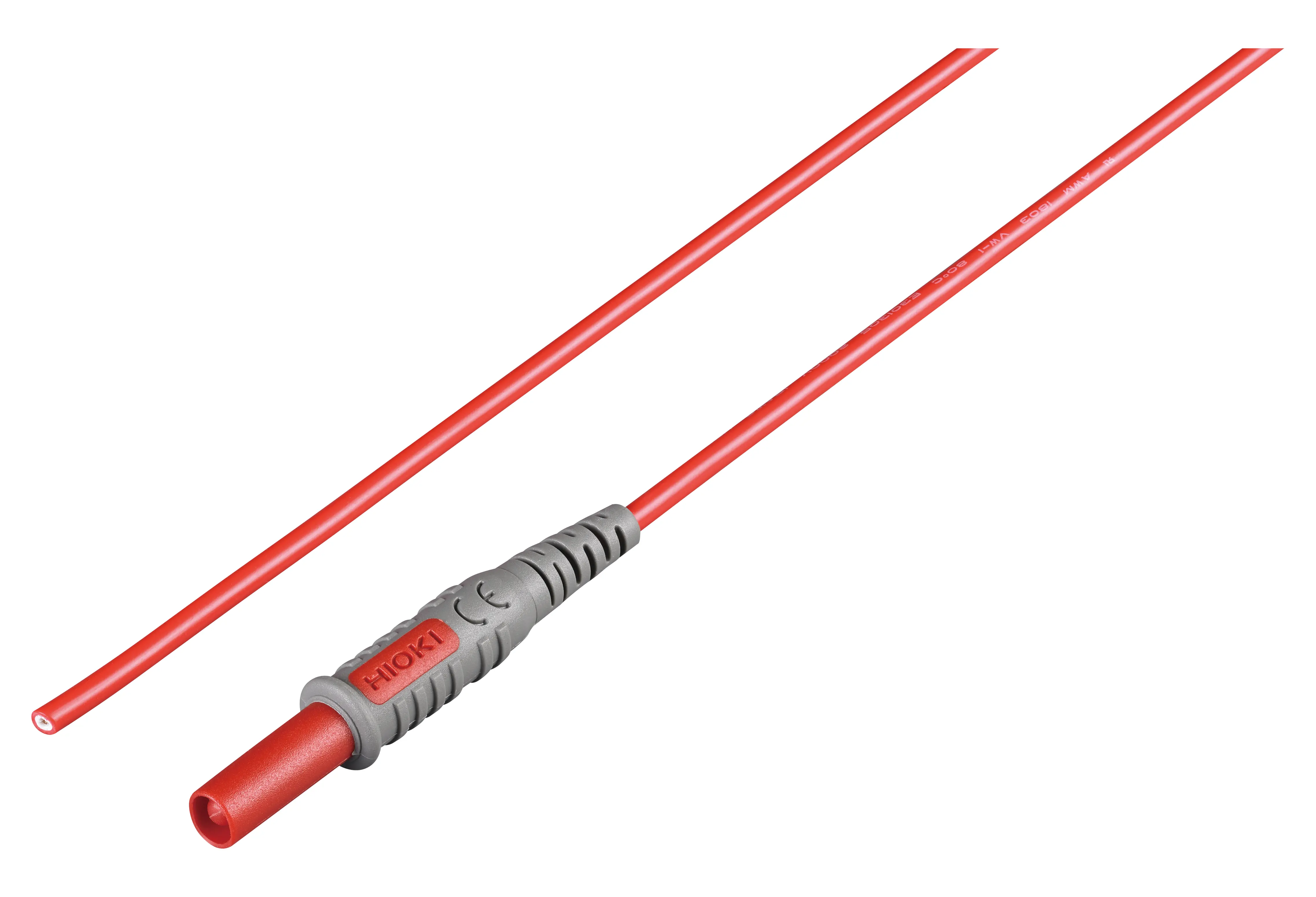

L2132 - Unterminated Lead (red)
The L2132 is an unterminated measurement lead designed for connection to the HIGH terminal of compatible Hioki instruments. It is equipped with a banana plug on the instrument side and an open end on the DUT side. The lead has a total cable length of 5 m. Key SpecificationsConnector type: Banana plug to open end Terminal assignment: HIGHCable length: 5 m Color: RedRated voltage: 500 V Rated current: 50 mA Operating temperature: 0 °C to 40 °C Operating humidity: 80% RH or less, non condensing

€38.00
View product
L2133 - Unterminated Lead (black)
L2133

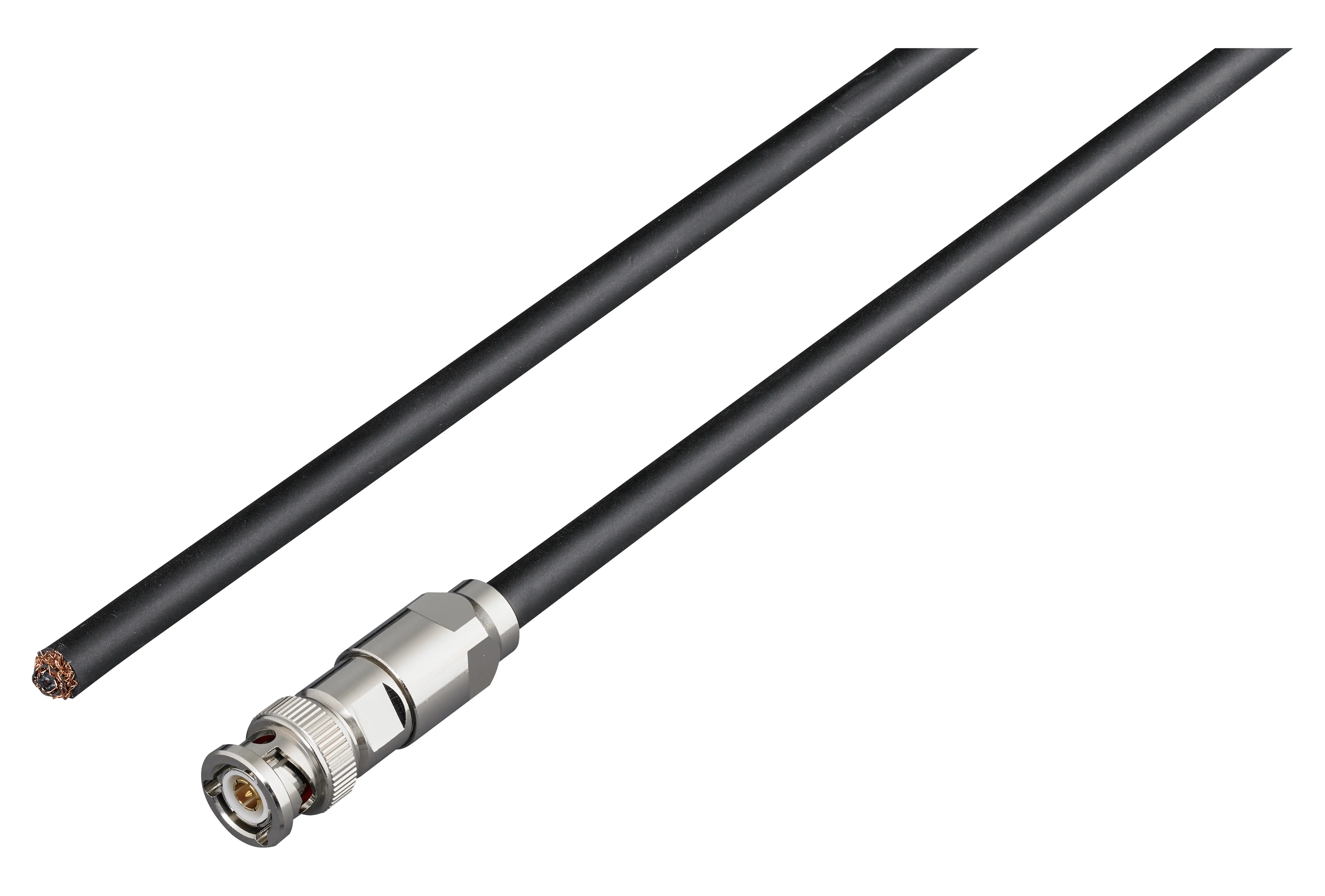

L2133 - Unterminated Lead (black)
The L2133 is an unterminated measurement lead designed for connection to the LOW terminal of compatible Hioki instruments. It is equipped with a special triaxial connector on the instrument side and an open end on the DUT side. The lead has a total cable length of 5 m.Key SpecificationsConnector type: Triaxial connector to open endTerminal assignment: LOWCable length: 5 mColor: Black Rated voltage: 500 VRated current: 50 mAOperating temperature: 0 °C to 40 °C Operating humidity: 80% RH or less, non condensing

€398.00
View product
L9094 - Output cable for 3283
L9094

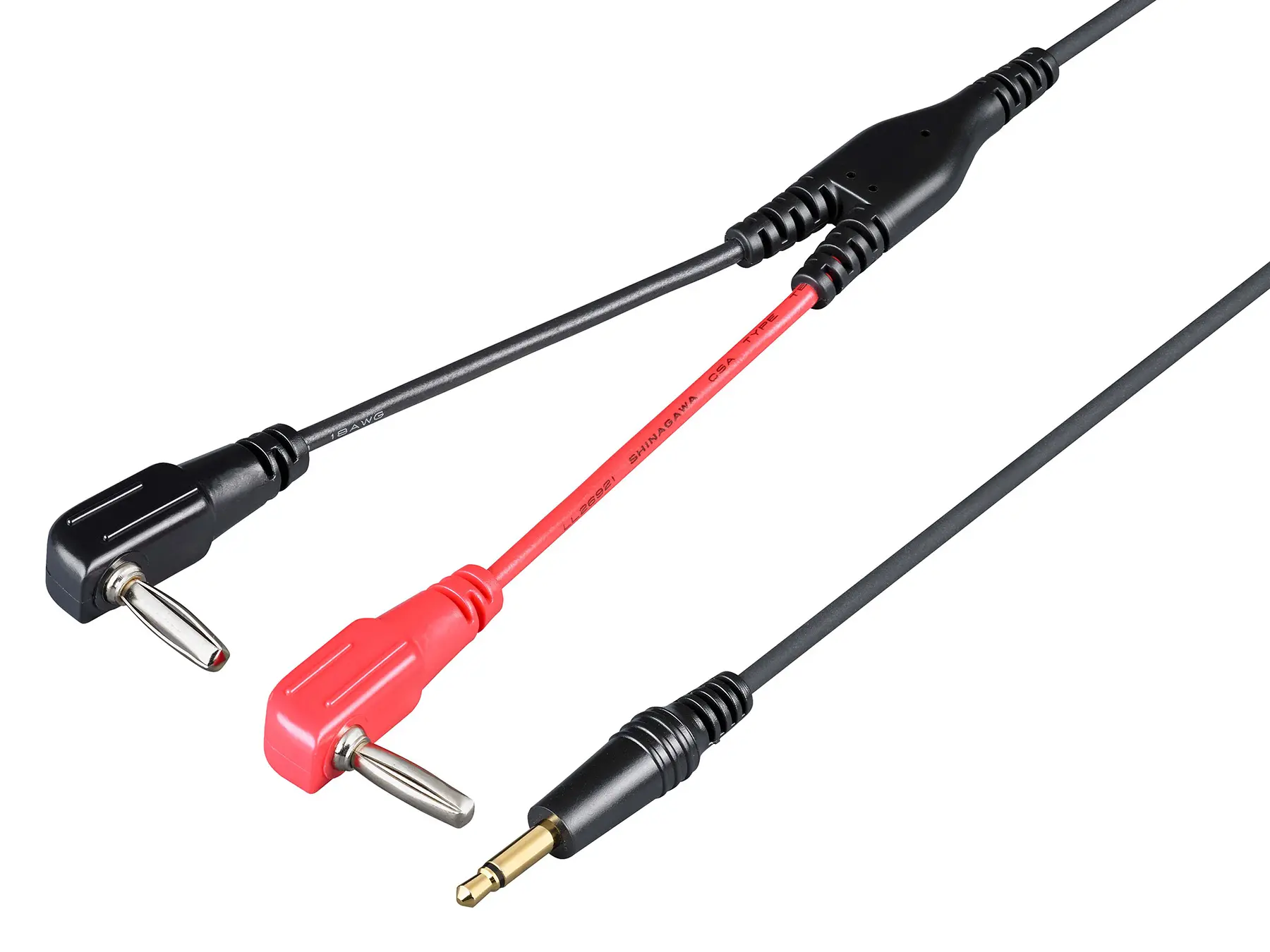

L9094 - Output cable for 3283
