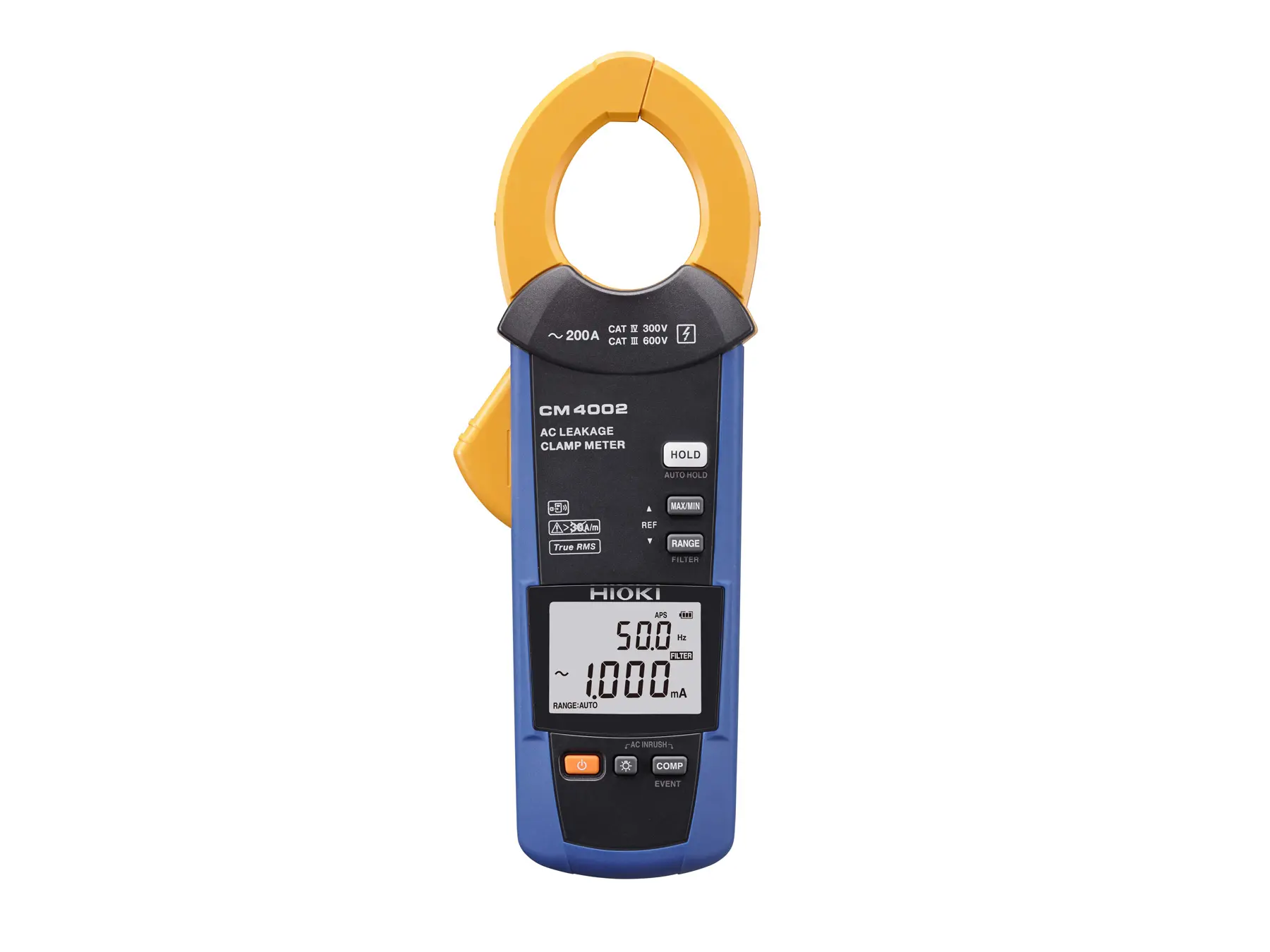

HIOKI CM4002 - AC Leakage Clamp Meter

€618.00

Content: 1 Each

In stock in Germany

€618.00

HIOKI CM4002 - AC Leakage Clamp Meter

Product number: CM4002

Available stock: 1

GTIN/EAN: 4536036013265

Length: 233 mm

Width: 64 mm

Height: 37 mm

Weight: 0.4 kg

Product information HIOKI CM4002 - AC Leakage Clamp Meter

The HIOKI CM4002 is a true RMS AC leakage current meter with a measuring range of 6 mA to 200 A and a frequency range of 15 to 2000 Hz. It is designed for conductors with a diameter of up to 40 mm and offers a variety of functions, including Max/Min/AVG/PEAK MAX/PEAK MIN value display, display hold and auto-hold, backlight, automatic energy saving mode, acoustic signal (buzzer), event display, comparison function, simple event recording and inrush current measurement.

The HIOKI CM4002 is also prepared for wireless data transmission via Bluetooth, for which the Z3210 module is required.

Technische Details:

Measuring range: 6 mA to 200 A
Frequency range: 15 to 2000 Hz
Cable diameter: Up to 40 mm
Main functions: Max/Min/AVG/PEAK MAX/PEAK MIN, display hold, auto hold, backlight, auto power save mode, buzzer, event display, comparison function, simple event recording, inrush current measurement
Wireless data transmission: Bluetooth ready (Z3210 module required)

Learn more in our blog
What’s special about HIOKI’s AC Leakage Current Clamps?
