IM9905 - APC-7 Calibration Standards for Impedance Analyzers
Calibration kit with OPEN, SHORT and LOAD standards for 7 mm (APC-7) reference plane
€4,168.00
Content:
1 Each
€4,168.00
IM9905 - APC-7 Calibration Standards for Impedance Analyzers
Product number:
IM9905
GTIN/EAN:
4536036002580
Weight:
1.24 kg
Description
Product information IM9905 - APC-7 Calibration Standards for Impedance Analyzers
The IM9905 calibration kit provides OPEN, SHORT and LOAD standards for calibration of
HIOKI impedance analyzers with two-terminal measurement capability at the 7 mm (APC-7)
reference plane. These standards are used to correct systematic measurement errors in the
measurement path up to this reference plane.
For calibration of impedance measurement systems, the 7 mm (APC-7) reference plane is
commonly applied in high-frequency metrology. When calibration is performed on systems
with a 3.5 mm test head, such as those of the HIOKI IM7587, IM7585, IM7583 or IM7581, a
suitable adapter is required to establish the 7 mm reference plane. The adapter provided by
HIOKI for this purpose is the IM9906.
What's in the Box

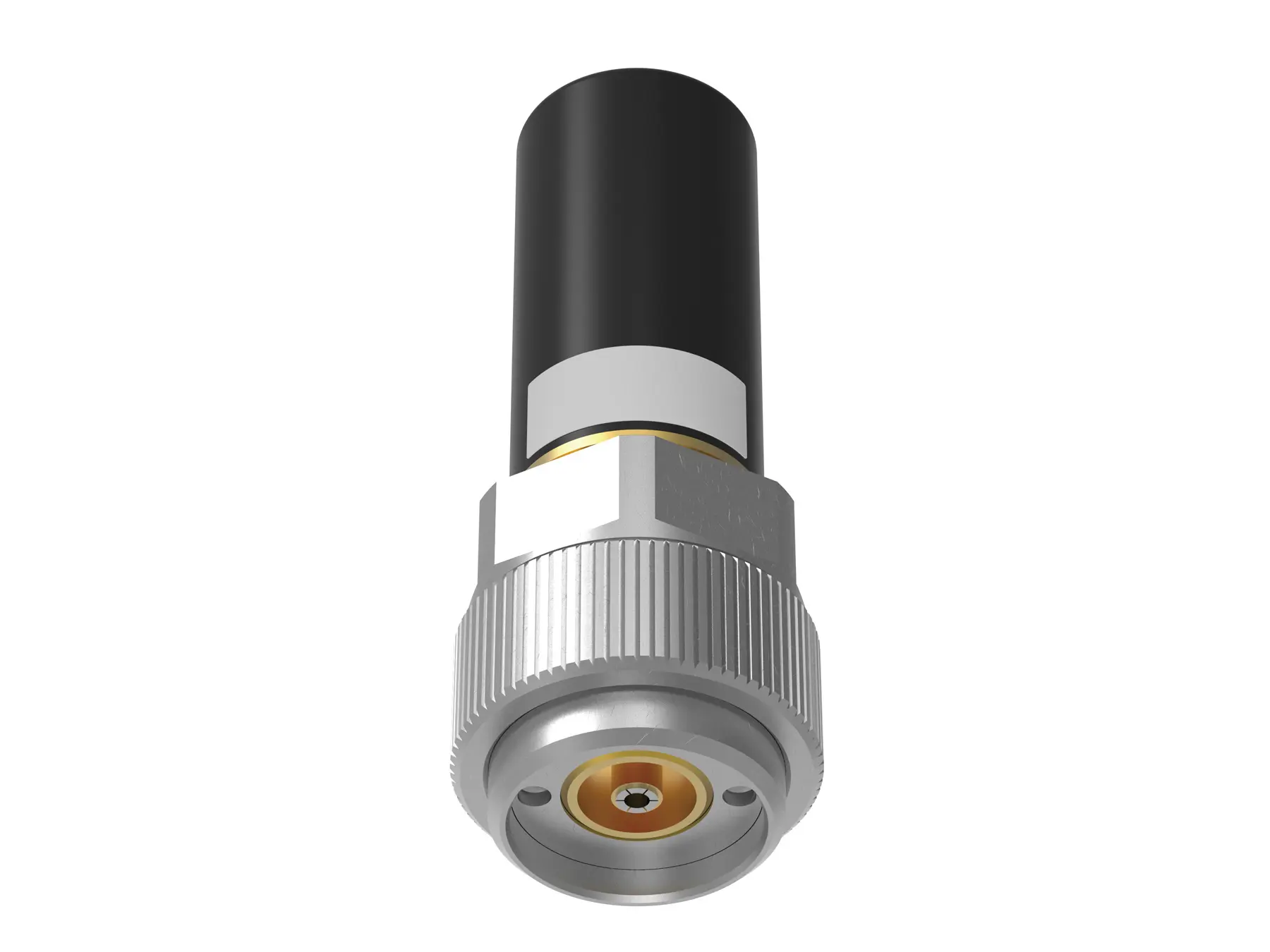

- OPEN calibration standard

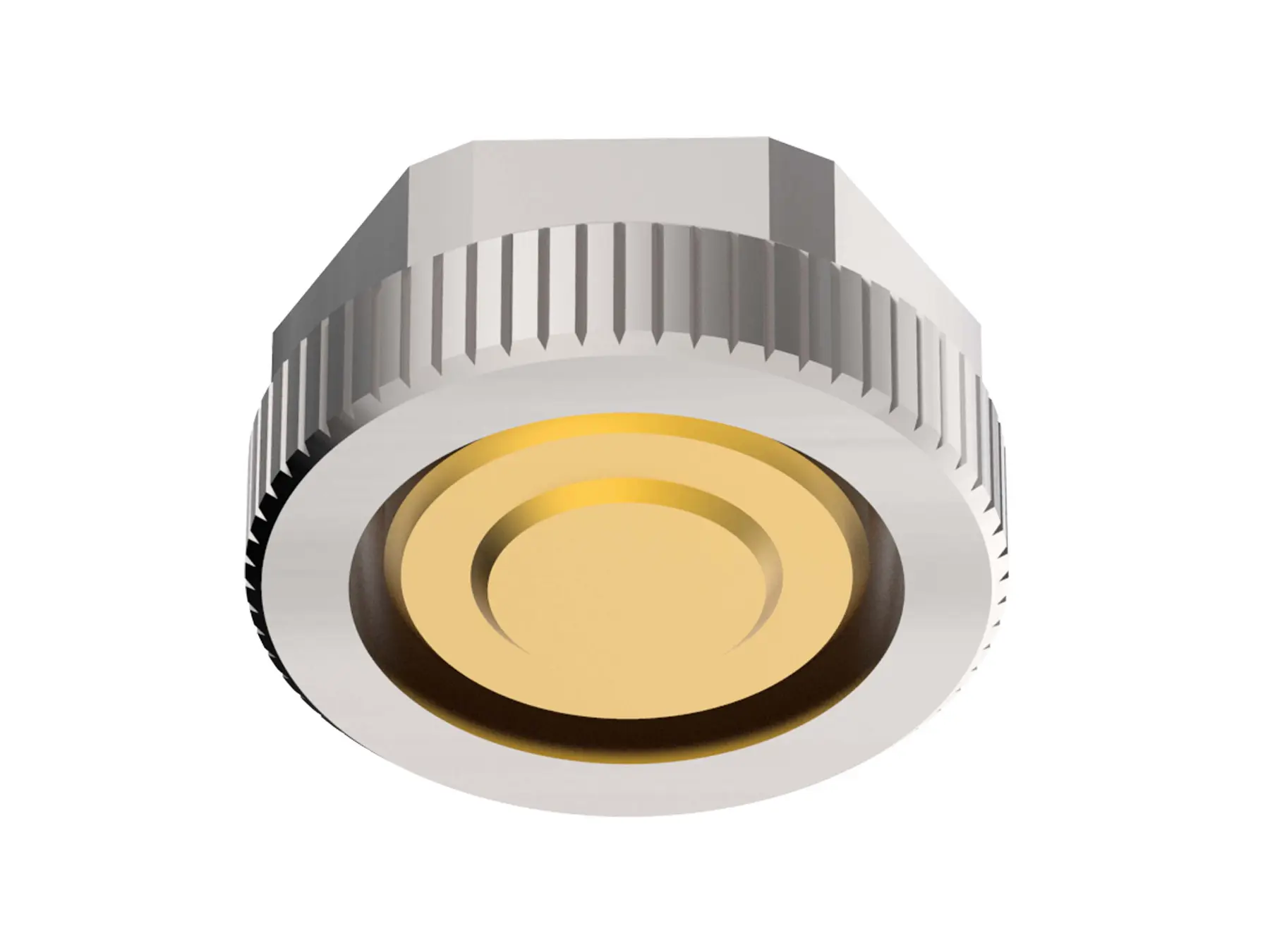

- SHORT calibration standard
- LOAD calibration standard
- CD-ROM with PC application software
- Carrying case - Instruction manual
