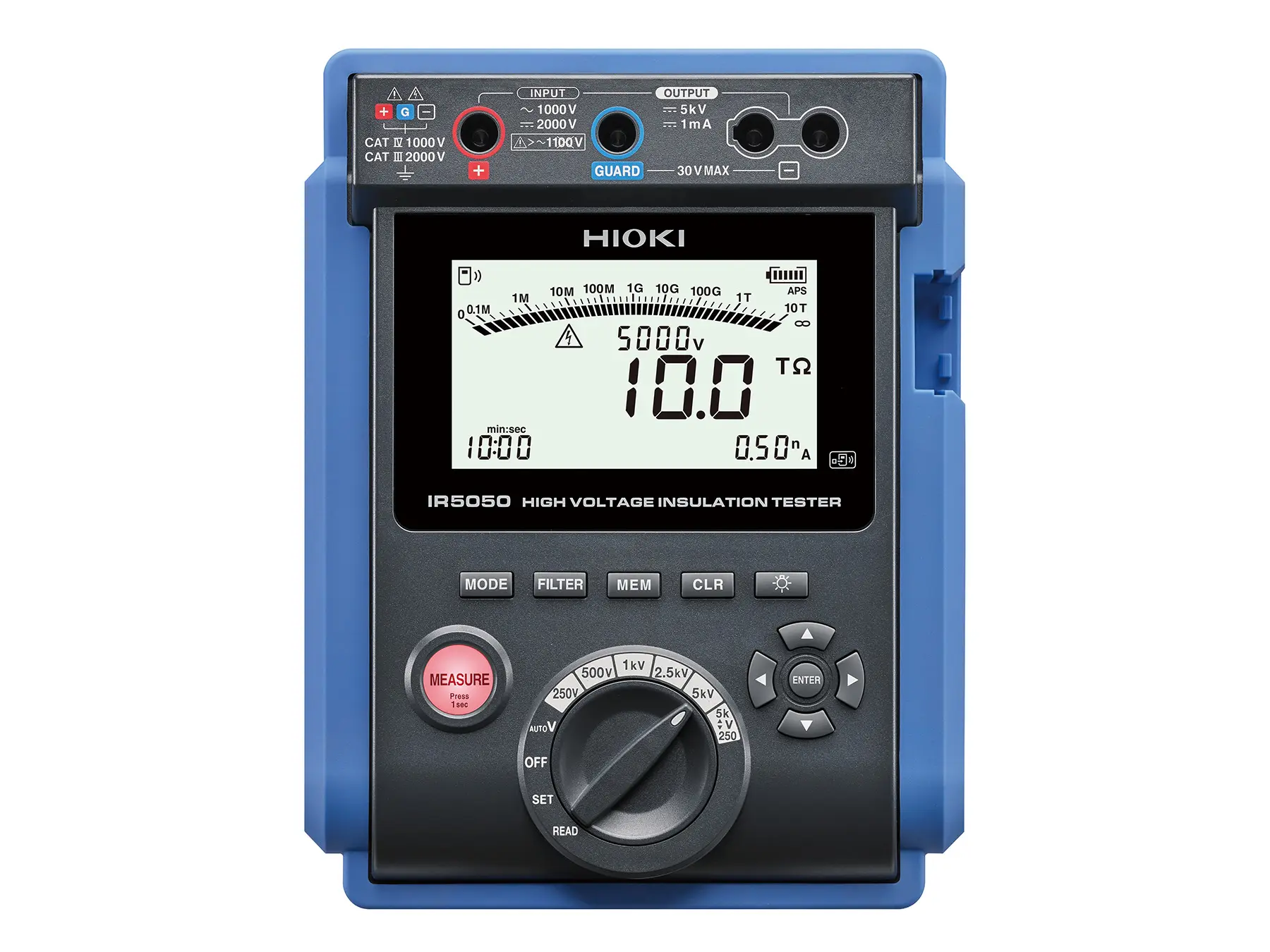

IR5050 - Portable 5 kV high voltage insulation tester

Portable high voltage insulation tester, five test voltage ranges from 250 V to 5 kV, seven insulation resistance ranges from 10 MΩ to 10 TΩ, CAT III 2000 V, CAT IV 1000 V, IP65, optional Bluetooth communication

€2,058.00

Content: 1 Each

In stock in Germany

€2,058.00

IR5050 - Portable 5 kV high voltage insulation tester

Product number: IR5050

Available stock: 1

GTIN/EAN: 4536036015375

Length: 89 mm

Width: 195 mm

Height: 254 mm

Weight: 1.7 kg

Product information IR5050 - Portable 5 kV high voltage insulation tester

Key Specifications

Insulation test voltage range: 250 V to 5kV
Insulation resistance range: 10.0 MΩ to 10.0 TΩ
Safety rating: CAT III 2000V, CAT IV 1000V
Enclosure sealing: IP 65 (with carrying case)

Typical Applications

Insulation testing

Detailed Product Overview

The IR5050 is a portable high voltage insulation tester. It offers five insulation test voltage ranges from 250 V to 5 kV and seven insulation resistance ranges from 10.0 MΩ to 10.0 TΩ. Bluetooth connectivity enables fast and efficient data transfer directly to smartphones or tablets when used with the optional Z3210 Bluetooth adapter. The IR5050’s compact, lightweight design makes it an ideal tool for on-site use. The included hard case ensures suitability for IP65 environments, providing protection against dust and water. With a 2000 V CAT III safety rating, it guarantees safe measurements for high voltage systems under CAT III. An automatic discharge function adds extra safety by discharging residual charge after measurements, while shielded cables and guarding minimize noise influence for stable, reliable results.

Insulation resistance values are useful for instant evaluation but insufficient for assessing aging, moisture, and contamination in detail. Additionally, insulation resistance fluctuates with temperature and humidity, making a single measurement unreliable for determining long-term degradation. To address this, the IR5050 includes measurement functions for Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge (DD) to provide a more comprehensive assessment.

The Polarization Index (PI) is a test used to examine the increase of leakage current in insulating materials over time. Typically, it is expressed as the ratio of the insulation resistance value after 10 minutes of applied voltage to that after 1 minute. PI is an important diagnostic measure for cable insulation as it is unaffected by the shape or size of the insulation and is sensitive to moisture absorption.

The Dielectric Absorption Ratio (DAR) follows the same methodology as PI but requires a shorter duration. DAR is defined as the ratio between insulation resistance values measured from 30 seconds to 1 minute after voltage application and those measured from 15 seconds to 30 seconds. When leakage currents stabilize quickly within 1 minute, DAR is preferred for its efficiency.

The Dielectric Discharge (DD) method is particularly effective for diagnosing multi-layer insulation. It evaluates internal degradation by measuring the discharge current and the capacitance value of the insulating material one minute after the test ends.

Combining a wide measurement range, comprehensive diagnostic capabilities, and userfriendly operation, the IR5050 is an indispensable instrument for professionals seeking efficient and reliable insulation resistance measurements. It significantly enhances the safety and reliability of critical electrical installations, such as high voltage cables, contributing to stable equipment operation and accurate diagnostics.

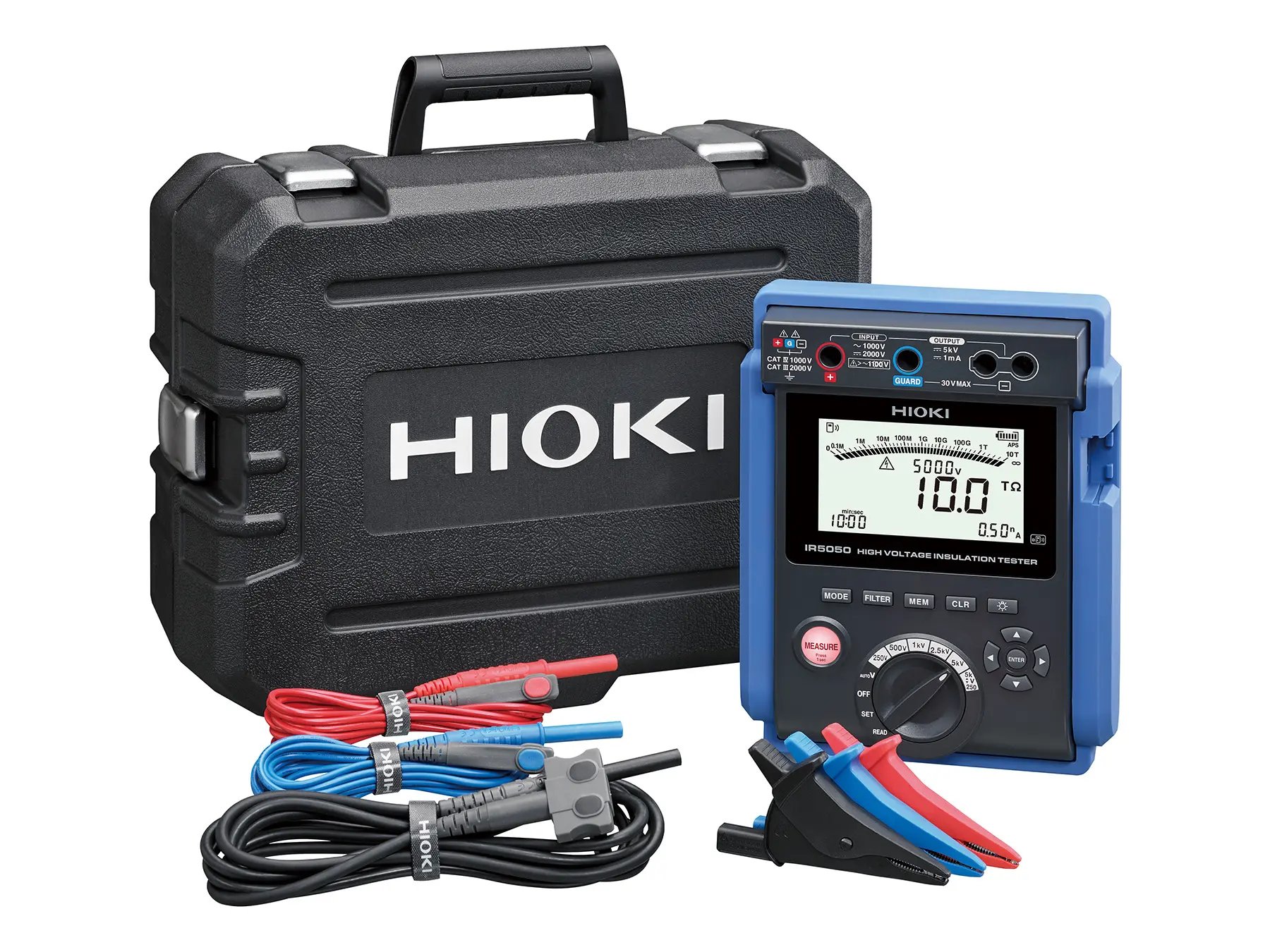

IR5050 High Voltage Insulation Tester
C0212 Carrying Case
L9850-01 Red Test Lead 3 meter
L9850-02 Black Test Lead 3 meter, shielded
L9850-03 Blue Test Lead 3 meter
L9851-01 Red Alligator Clip (plugged to L9850-01)
L9851-02 Black Alligator Clip (plugged to L9850-02)
L9851-03 Blue Alligator Clip (plugged to L9850-03)
LR6 Alkaline Batteries x8 - Instruction Manual
