L1011-10 - CONVERSION CABLE
€54.40
% €68.00 (20% saved)
Content:
1 Each
In stock in Germany
Special price: The packaging may show slight external damage, it could be a discontinued model, or the items are surplus goods.
€54.40
% €68.00 (20% saved)
L1011-10 - CONVERSION CABLE
Product number:
L1011-10
Available stock:
2
GTIN/EAN:
4536036005161
Length:
2400 mm
Weight:
0.096 kg
Product details
Description
Product information L1011-10 - CONVERSION CABLE
The L1011-10 is a 2.4 m conversion cable for converting BNC to wire, designed for use with the HIOKI P9000 Differential Probe and similar products or connection with screw terminals .
Technical Details:
- Connector: BNC(f) plastic version
- Purpose: Converts BNC-male connector to open wire
- Length: 2.4 meters
- Wire type: Two open-end wires (black/red)
Skip product gallery
Regular price:
€648.00
Regular price:
€508.00
Related Products

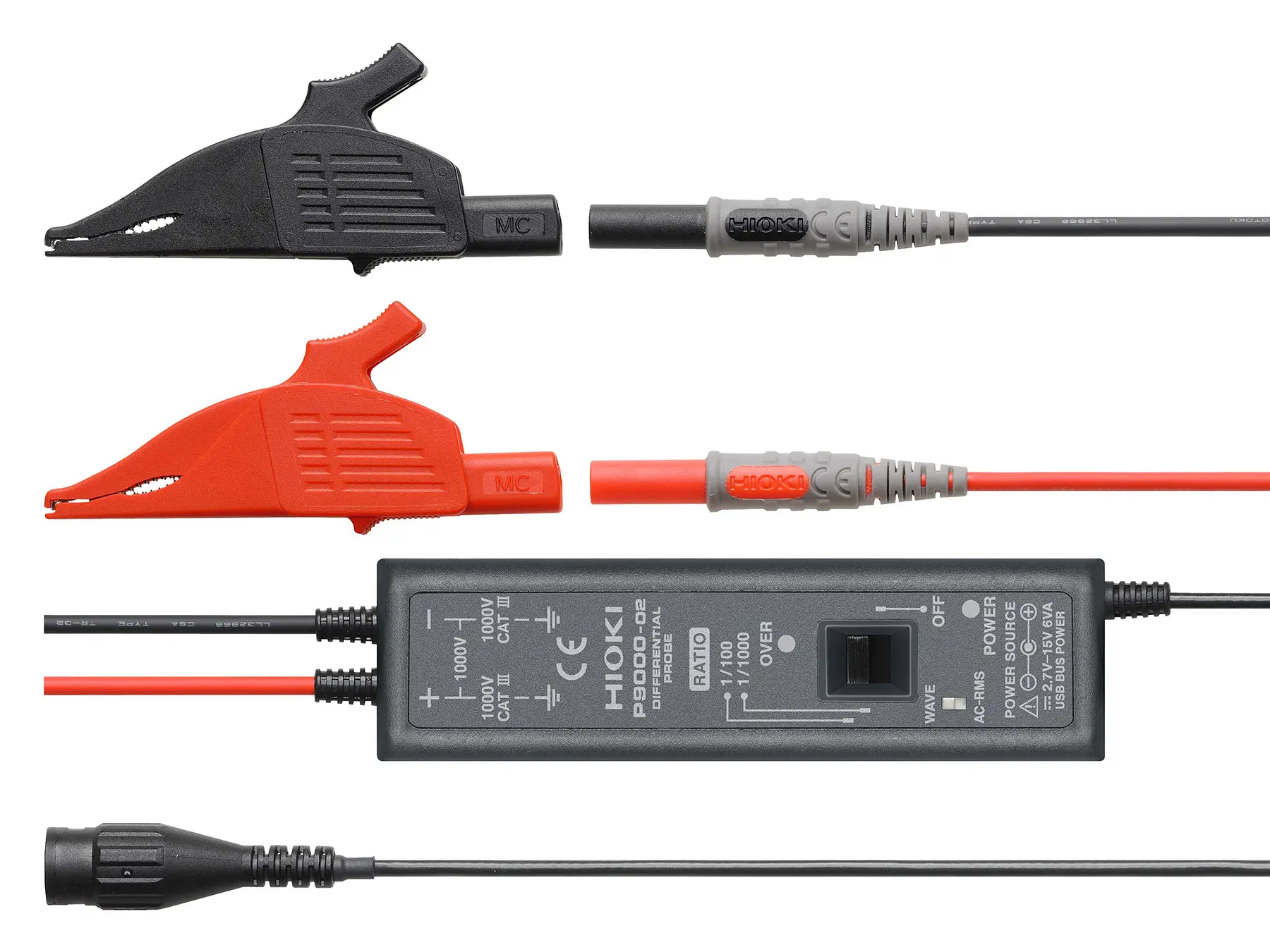

P9000-02
P9000-02 - Differential probe
The Differential Probe P9000-02 combines waveform monitoring with AC RMS value output, offering increased versatility for high-voltage applications. With the capability to monitor waveforms and RMS values, it is suitable for industrial applications such as electric vehicle battery circuits, solar power systems, and commercial high-voltage circuits. The probe is lightweight, compact, and offers high accuracy across a wide range of operating temperatures, ensuring durability and performance in demanding conditions. Technical Specifications: Measurement Functions: Waveform monitor output and AC RMS value output (switchable) Frequency Characteristics (Wave Mode): DC to 100 kHz, -3 dB Frequency Characteristics (RMS Mode): 30 Hz to 10 kHz RMS Amplitude Accuracy: ±1% f.s. (30 Hz to 1 kHz); ±3% f.s. (1 kHz to 10 kHz) Response Time (RMS Mode): 300 ms (rising), 500 ms (falling) Division Ratio: 1000:1 or 100:1 (user selectable) DC Amplitude Accuracy: ±0.5% f.s. Input Resistance and Capacity: 10.5 MΩ, 5 pF or less (at 100 kHz) Maximum Allowable Input: 1000 V AC/DC Max. Rated Voltage to Earth: 1000 V AC/DC (CAT III) Operating Temperature Range: -40°C to 80°C Power Supply Options: o AC Adapter (Z1008), USB, External DC (2.7V to 15V DC) Dimensions: 128 mm (W) × 36 mm (H) × 22 mm (D) Mass: 170 g Cord Length: Input 70 cm; Output 1.5 m

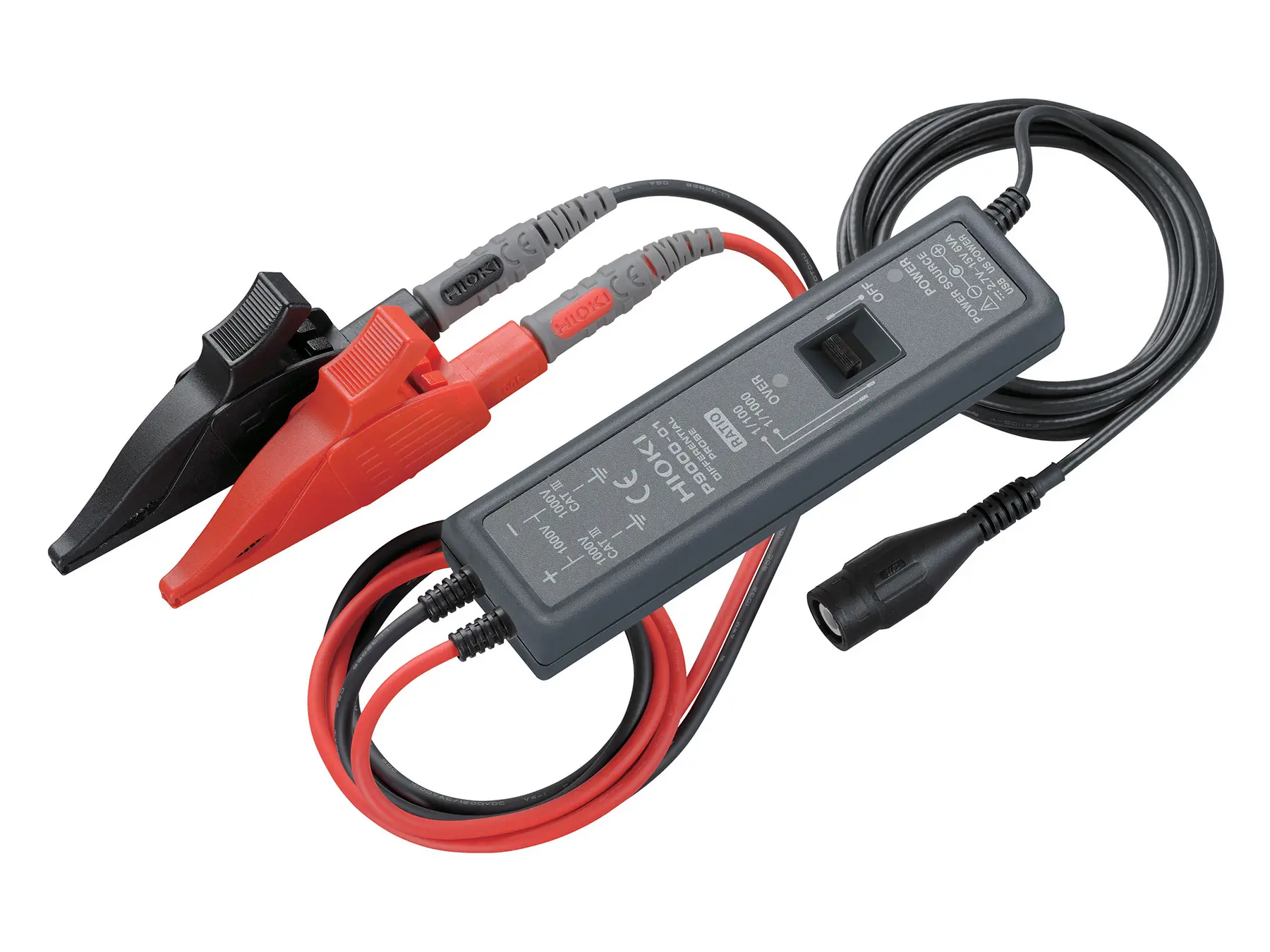

P9000-01
