L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers

Test lead set, red L9788-10 lead with integrated remote switch and LED illumination, black 1.2 m test lead with 4 mm connectors, black probe tip, black alligator clip
Skip image gallery
L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers
HIOKI L9788-11 test lead trigger button earth lead alligator led indicator
HIOKI L9788-11 test lead trigger button earth lead alligator 1,2m red
HIOKI L9788-11 test lead trigger button earth lead alligator led indicator
HIOKI L9788-11 test lead trigger button earth lead alligator 1,2m red

€78.00

Content: 1 Each

In stock in Germany

€78.00

L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers
Product number: L9788-11
Available stock: 10
GTIN/EAN: 4536036001149
Weight: 0.14 kg

Description

Product information L9788-11 - Remote Switch Lead Set for HIOKI Insulation Testers

The L9788-11 is a test lead set for HIOKI insulation testers. It includes the red L9788-10 lead with integrated remote switch and LED illumination as well as a black 1.2 m test lead with 4 mm connectors.

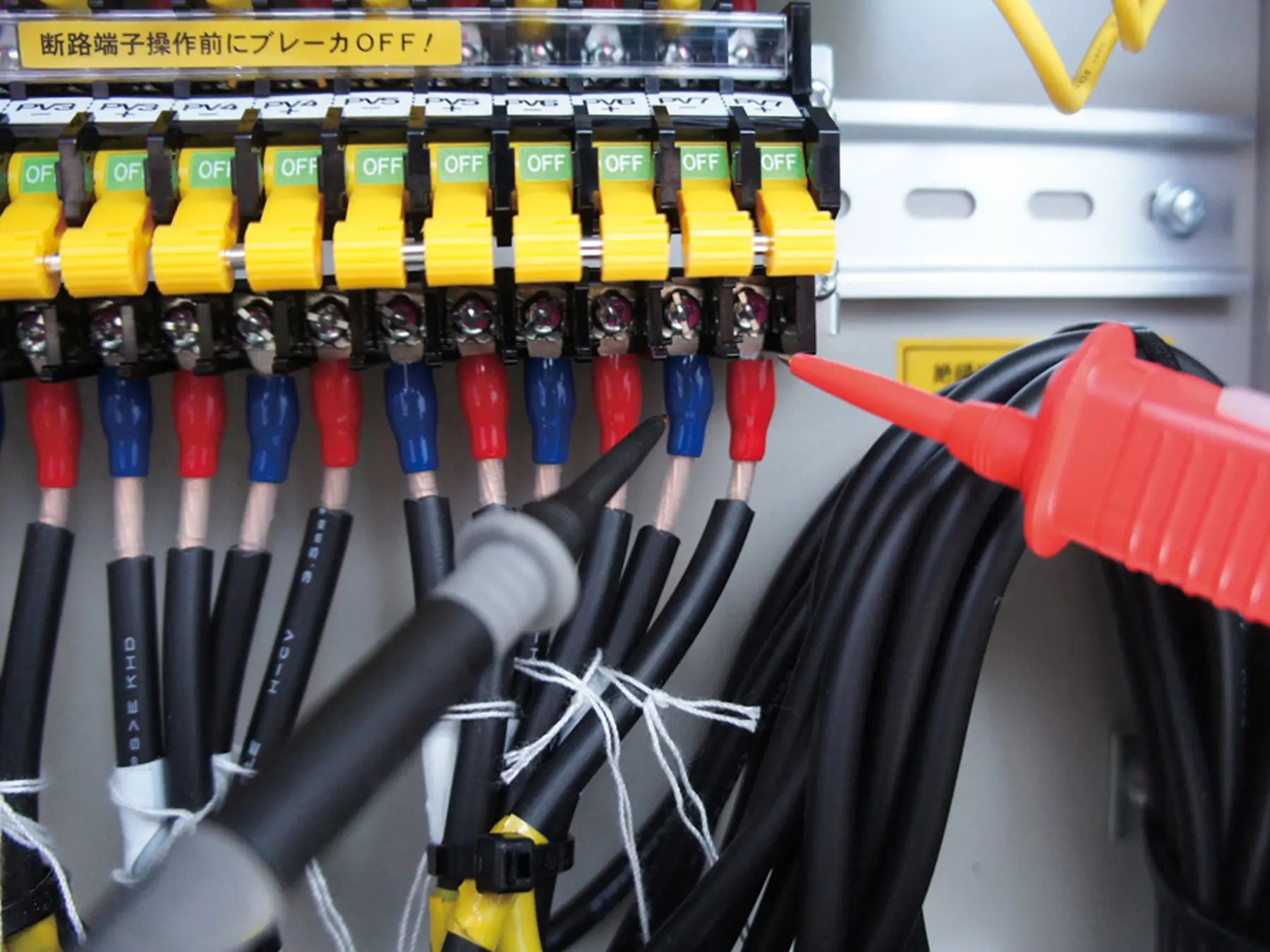

The L9788-10 allows measurements to be started directly from the probe. This allows both hands to remain on the installation for secure positioning of the test leads at the test object. The LED illumination is switched on and off together with the insulation tester’s display backlight and supports work in poorly lit distribution boards and technical rooms.

The black test lead features one straight and one right-angle 4 mm connector. It is supplied with a detachable black probe tip and a detachable black alligator clip for flexible connection to different test objects.

With the tip covers attached, the measurement category is CAT III 600 V. Without the tip covers, it is CAT II 600 V.

The L9788-11 is compatible with HIOKI digital insulation testers IR4053, IR4056, IR4057-50, IR4057-90 and IR4059, as well as with analog insulation testers 3490, IR4016, IR4017 and IR4018 and the FT4310 Bypass Diode Tester.

What's in the Box

  • L9788-11 Remote Switch Lead Set
Skip product gallery

Related Products

HIOKI IR4059 - Digital Insulation Tester with Bar Graph and Remote Switch, 50 V to 1000 V HIOKI IR4059 - Digital Insulation Tester with Bar Graph and Remote Switch, 50 V to 1000 V
IR4059
HIOKI IR4059 - Digital Insulation Tester with Bar Graph and Remote Switch, 50 V to 1000 V
Digital insulation tester with bar graph display, 5 test voltages from 50 V to 1000 V, insulation resistance up to 4000 MΩ, PASS/FAIL comparator, 200 mA protective conductor test, integrated remote switch in test lead, Bluetooth optional with Z3210

€498.00
View product
HIOKI IR4057-90 digital insulation tester 50v to 1000v bar graph with bluetooth HIOKI IR4057-90 digital insulation tester 50v to 1000v application
IR4057-90
HIOKI IR4057-90 Digital Insulation Tester with Bar Graph and Bluetooth, 50 V to 1000 V
Digital insulation tester with bar graph display and integrated Bluetooth, 5 test voltages from 50 V to 1000 V, insulation resistance up to 4000 MΩ, PASS/FAIL comparator, 200 mA protective conductor test, operating temperature from -25 °C to 65 °C

€548.00
View product
IR4057-50 - Digital Insulation Tester with Bar Graph, 50 V to 1000 V HIOKI IR4057-50 digital insulation tester bluetooth ready
IR4057-50
IR4057-50 - Digital Insulation Tester with Bar Graph, 50 V to 1000 V
Digital insulation tester with bar graph display, 5 test voltages from 50 V to 1000 V, insulation resistance up to 4000 MΩ, PASS/FAIL comparator, 200 mA protective conductor test, operating temperature from -25 °C to 65 °C, Bluetooth optional with Z3210

€488.00
View product
IR4056 - Digital Portable Insulation Tester, 50 V to 1000 V, up to 4000 MΩ IR4056 - Digital Portable Insulation Tester, 50 V to 1000 V, up to 4000 MΩ
IR4056-20
IR4056 - Digital Portable Insulation Tester, 50 V to 1000 V, up to 4000 MΩ
Digital insulation tester, 5 test voltages from 50 V to 1000 V, insulation resistance measurement up to 4000 MΩ, PASS/FAIL judgment, 200 mA protective conductor (PE) testing, AC/DC voltage verification up to 600 V, battery-powered

€248.00
View product
IR4053 - Digital Insulation Tester with PVΩ Function, 50 V to 1000 V IR4053 - Digital Insulation Tester with PVΩ Function, 50 V to 1000 V
IR4053-10
IR4053 - Digital Insulation Tester with PVΩ Function, 50 V to 1000 V
Digital insulation tester with PVΩ function for measurements on live PV strings, 5 test voltages from 50 V to 1000 V, insulation resistance measurement up to 4000 MΩ, AC/DC voltage measurement up to 600 V, battery-powered

€488.00
View product
L9788-10 - Test lead with release button red HIOKI L9788-10 Test lead with release button red
L9788-10
L9788-10 - Test lead with release button red
Red test lead with integrated remote switch and LED illumination, 1.2 m, for HIOKI insulation testers IR4053, IR4056, IR4057-50, IR4057-90 and IR4059

€68.00
View product

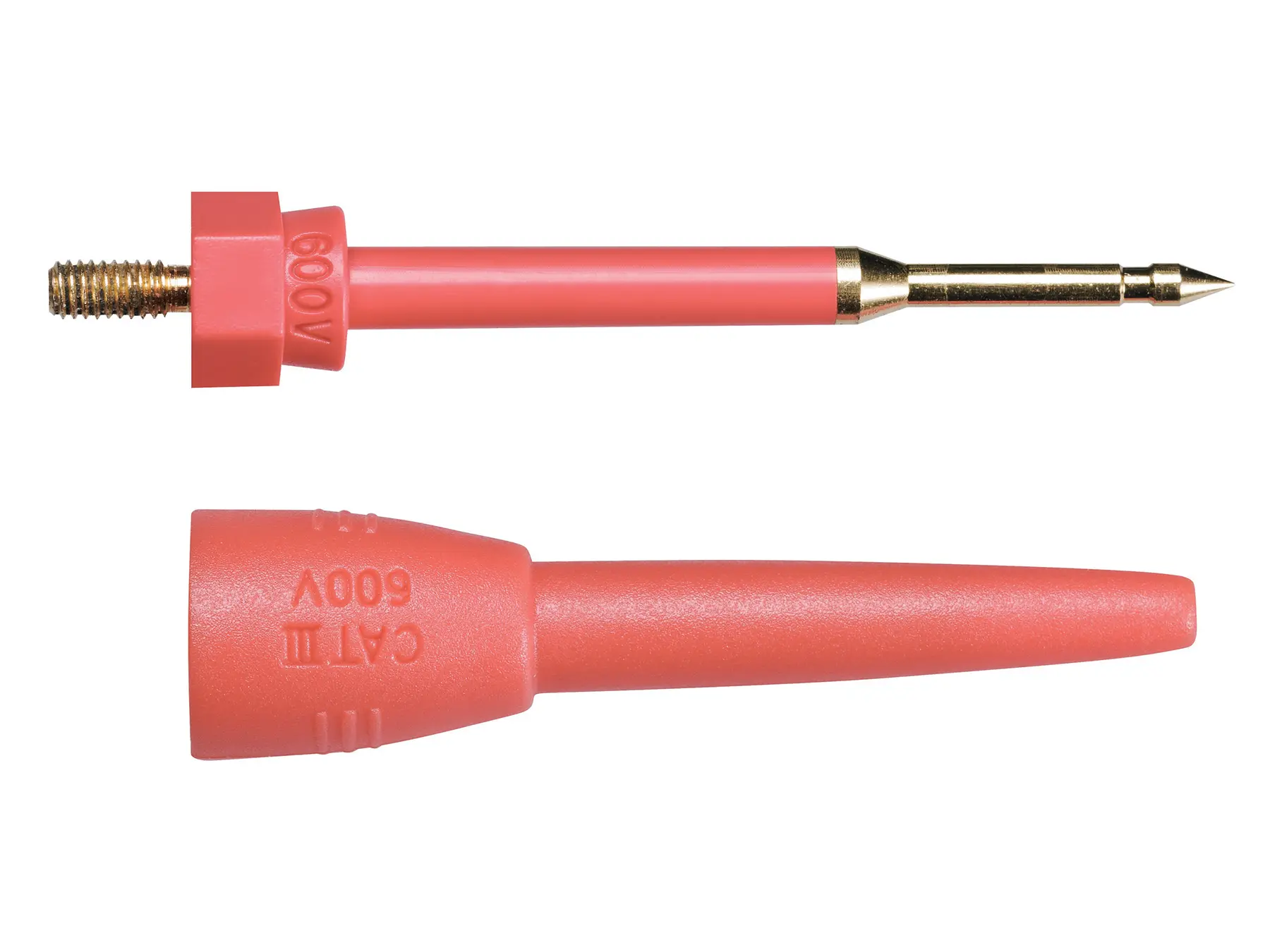

L9788-90 - Replacement measuring tip for L9788, L9788-10
