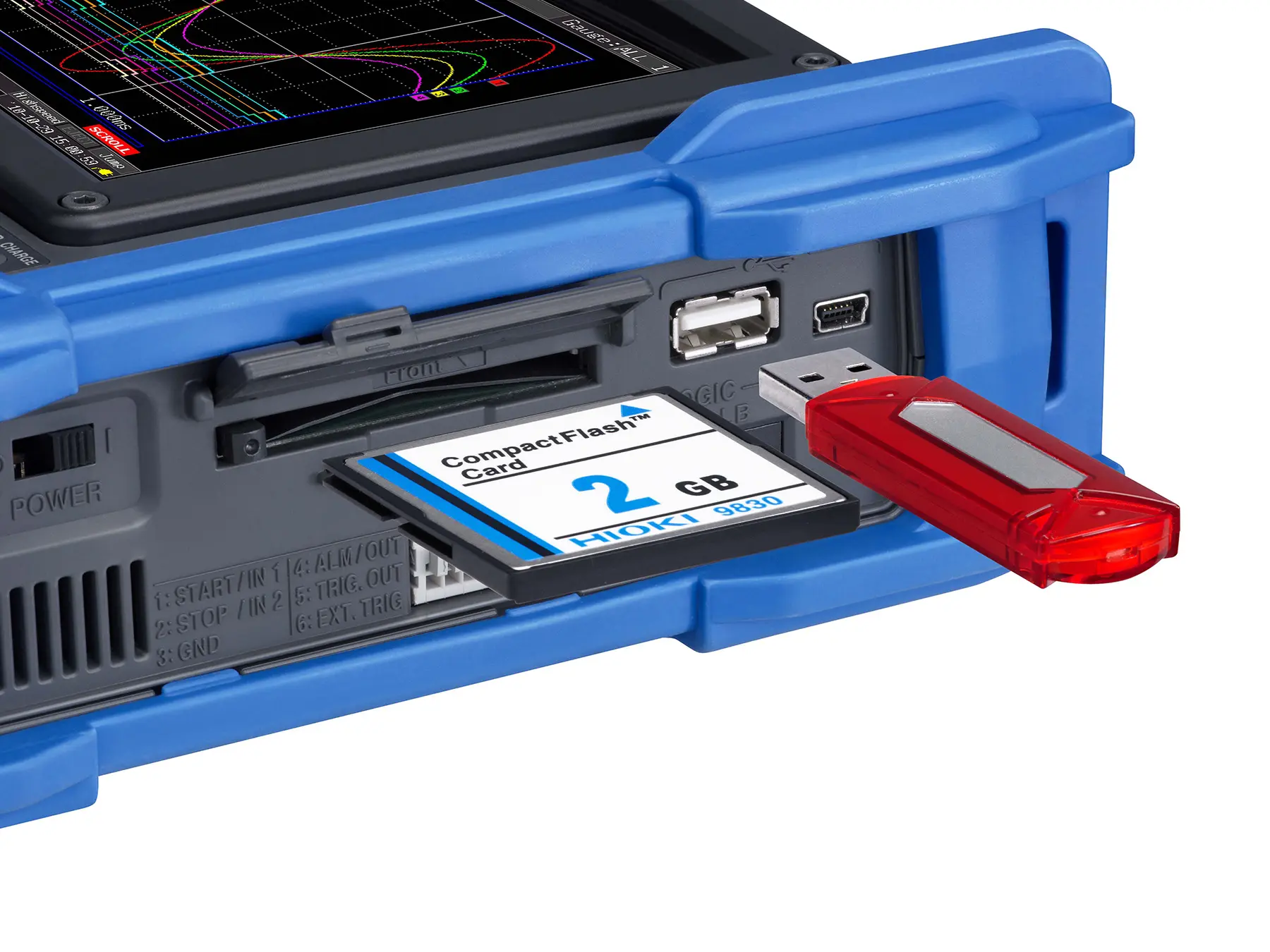

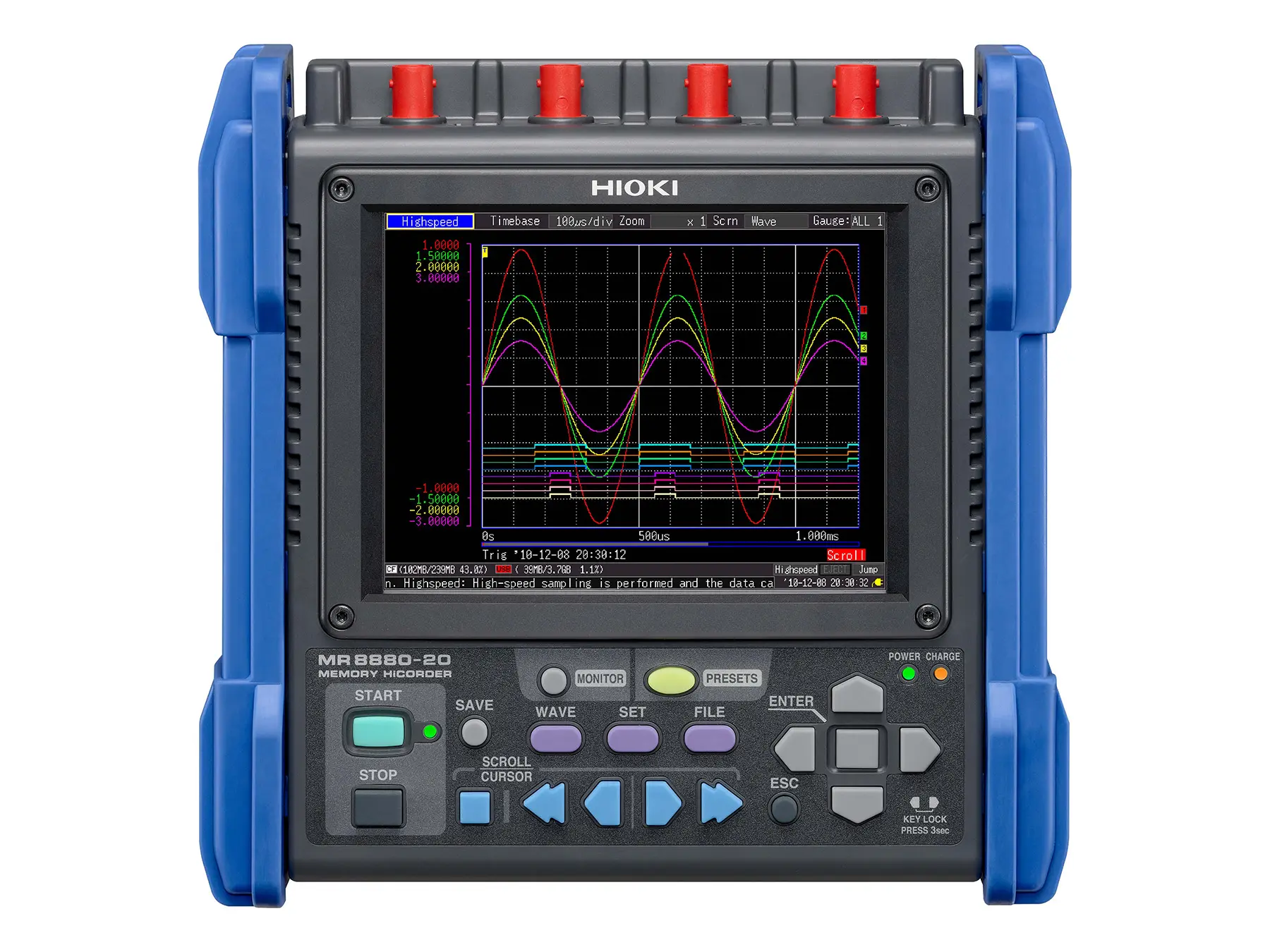

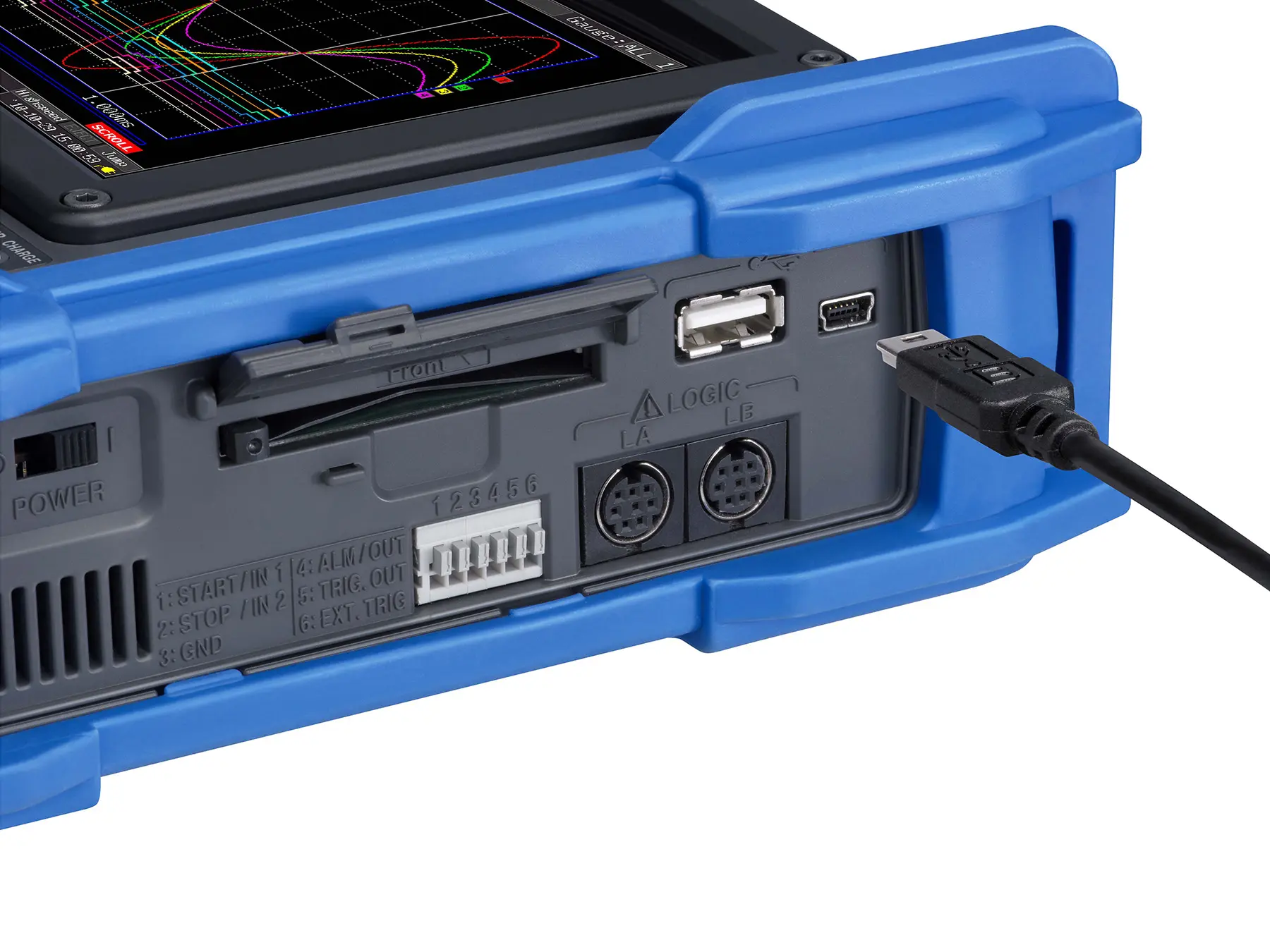

MR8880 - Portable Memory Recorder, 4 Channels

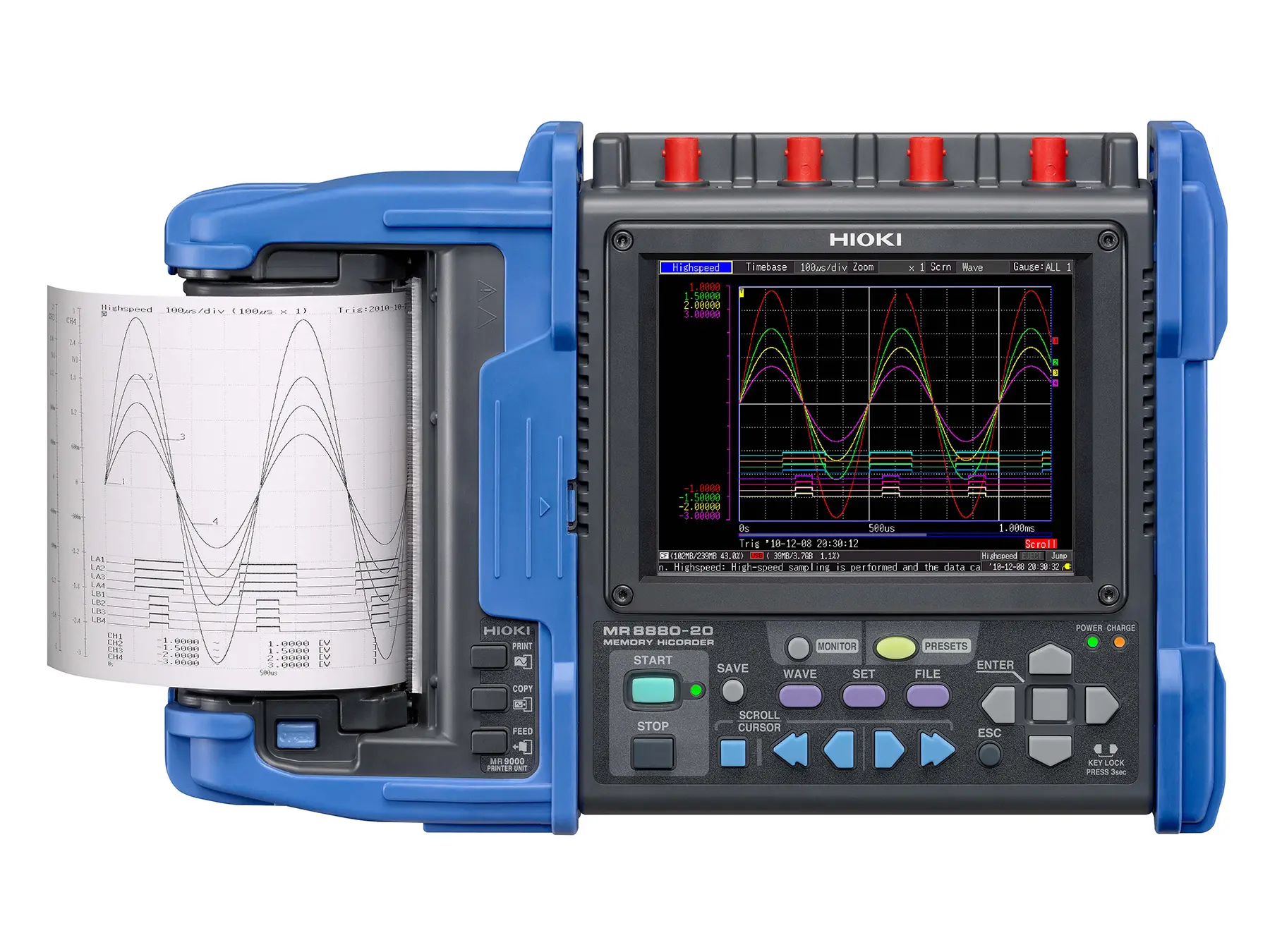

The MR9000 Printer Unit is designed for use with the Hioki MR8880-20 Memory recorder, enabling easy printouts of measurement results. This compact and efficient printer offers precise waveform documentation directly from the connected Memory HiCorder, making it ideal for fieldwork and quick data review. The MR9000 ensures seamless integration with your HiCorder, delivering accurate and reliable outputs for all your measurement needs. Technical Information: Compatible devices: Hioki MR8880-20 Memory HiCorder Usable recording paper: 9234 Recording Paper Recording width: 104 mm (832-dot resolution), waveform section width 100 mmRecording speed: Max 1 cm/s Paper feed accuracy: ±3% (at 25°C, 60% RH)

The Hioki Wave Processor 9335 is advanced software designed for Memory recorder, allowing users to display, convert, calculate, and print waveform data on a PC. It supports large volumes of data recorded by Memory Recorders, providing features like X-Y graph display, CSV export, and rich printing options, making it ideal for data analysis and report generation.Technical Details: Supported Devices: Hioki Memory Recorder models such as MR6000, MR8875, 8807-20, etc. Operating System: Windows 10/8/7 (32/64-bit) Display Functions: Waveform, X-Y graph, cursor, scroll, gauge display Data Conversion: CSV, tab-delimited, batch conversion File Loading: MEM, REC, RMS, POW formats Print Functions: Print image file (EMF format)

The Hioki 9322 Differential Probe is a versatile 3-in-1 probe designed for the floating measurement of high-voltage waveforms, detecting power line surge noise, and providing true RMS rectified output of high-voltage AC. With the ability to handle up to 2000 V DC and 1000 V AC (CAT II), the 9322 ensures safe and accurate measurements even in demanding environments. This probe is compatible with the Memory Memory recorder series and can be powered via an AC adapter or Hioki’s Probe Power Unit Z5021. It offers a wide frequency range for detecting high-frequency components, making it ideal for inverter circuits and power supply noise detection. Technical details: Measurement functions: o DC mode: Waveform monitor output, DC to 10 MHz ±3 dB o AC mode: Detection of power line surge noise, 1 kHz to 10 MHz ±3 dB o RMS mode: Rectified RMS output of DC and AC voltages, DC, 40 Hz to 100 kHz o Response speed: 200 ms or less (400 V AC) Max. allowable input: 2000 V DC, 1000 V AC Max. rated voltage to earth: o 1000 V AC/DC (CAT II) when using the Grabber Clip L9243 o 1000 V AC/DC (CAT II), 600 V AC/DC (CAT III) when using alligator clips Output: Voltage division ratio 1/1000, BNC terminal (3-mode selectable: DC/AC/RMS) • DC amplitude accuracy: ±1% f.s. (1000 V DC or less), ±3% f.s. (2000 V DC) RMS amplitude accuracy: ±1% f.s. (DC, 40 Hz to 1 kHz), ±4% f.s. (1 kHz to 100 kHz)Input resistance and capacity: o H-L: 9 MΩ, approx. 10 pF (at 100 kHz) o H-case, L-case: 4.5 MΩ, approx. 20 pF (at 100 kHz) Power supply: o General requirement: +5 V to +12 V, less than 300 mA (DC jack OD 5.5 mm, ID 2.1mm)Hioki provided power supplies: o AC Adapter 9418-15 o Z5021combined plus Power Cord 9248 o Use of Logic terminal on Memory Recorder plus Power Cord 9324 o Use of sensor terminal of F/V Unit 8940 plus Power Cord 9325 o Use of DC power output terminal attached to the input unit for the 8855 through Power Cord 9328 o Via the 8860 series Probe Power Unit 9687 plus Power Cord 9248 Dimensions and mass: 70 mm (W) × 150 mm (H) × 25 mm (D), 350 g, Cord length: Input 46 cm, Output 1.3 m
