HIOKI Precision Current Clamps with Zero-Flux Technology

HIOKI-Current-clamps-2-1

Accurate current measurement with flexible clamp-on design

HIOKI precision current clamps enable accurate, non-intrusive AC and DC current measurement without interrupting the circuit. Across the portfolio, they support currents from milliampere levels up to 1000 A, bandwidths up to 2 MHz, and high measurement accuracy. Select the optimum current clamp for your application, for example the CT6746A Current Clamp for currents up to 1000 A or the CT6834 with an ultra-slim design for measurements in confined areas. All models are suitable for measurements on production-ready equipment in operation.

Precision current clamps are used where accuracy, ease of use, and minimal impact on the test setup are essential, including vehicle on-board measurements (incl. WLTP), power electronics testing, efficiency analysis, and measurements in hard-to-access environments.
11 Products
HIOKI CT6846A - AC/DC High-accuracy Current Clamp, 1000 A / 100 kHz HIOKI CT6846A - AC/DC High-accuracy Current Clamp, 1000 A / 100 kHz
CT6846A
HIOKI CT6846A - AC/DC High-accuracy Current Clamp, 1000 A / 100 kHz
AC/DC current clamp using advanced fluxgate technology, 1000A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, bandwidth from DC to 100 kHz, maximum conductor diameter 50 mm, cable length 3 m

€2,498.00
View product
HIOKI CT6841A - AC/DC High-accuracy Current Clamp, 20 A / 2 MHz HIOKI CT6841A - AC/DC High-accuracy Current Clamp, 20 A / 2 MHz
CT6841A
HIOKI CT6841A - AC/DC High-accuracy Current Clamp, 20 A / 2 MHz
AC/DC current clamp using advanced fluxgate technology, 20A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, wide bandwidth from DC to 2 MHz, maximum conductor diameter 20 mm, cable length 3 m

€1,948.00
View product
CT6834 - Super-slim AC/DC high-accuracy Current Clamp, 500 A / 50 kHz HIOKI CT6834 current clamp low phaseshift
CT6834
CT6834 - Super-slim AC/DC high-accuracy Current Clamp, 500 A / 50 kHz
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 500 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 5 m

€2,368.00
View product

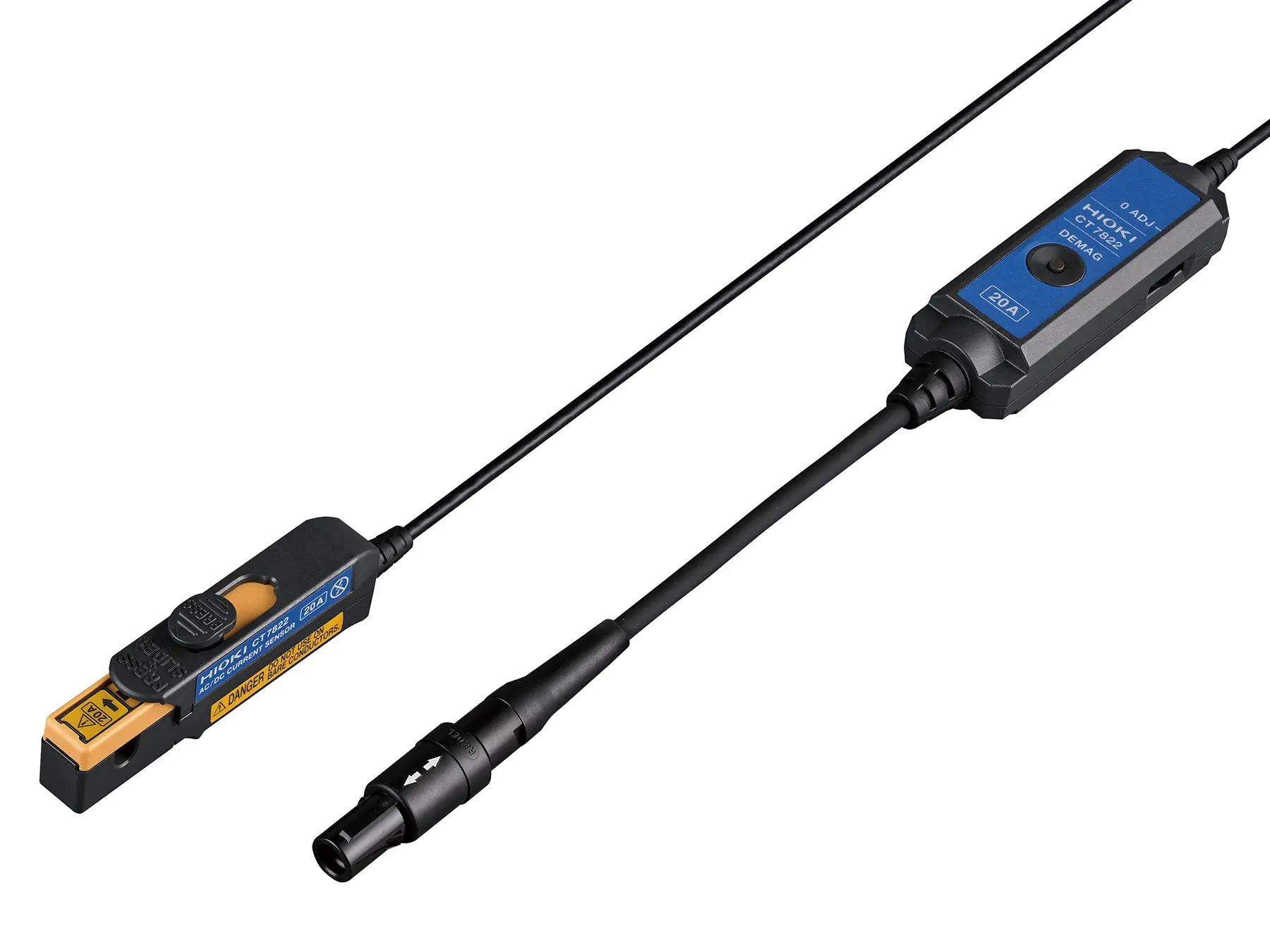

HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
CT7822
HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
Ultra-small, zero-flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3%, max. resolution 1 mA, wide temperature range -40 to 85 oC, measurable current up to 20 A, designed exclusively for LR8450 Series Data Logger

€1,338.00
View product
CT6833 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz CT6833 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz
CT6833
CT6833 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 200 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 5 m

€2,288.00
View product
CT6831 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz CT6831 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
CT6831
CT6831 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
Ultra small zero flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3% rdg., wide temperature range -40 to 85 °C, measurable current up to 20 A, ME15W connector

€1,628.00
View product
HIOKI CT6845A - AC/DC Current Clamp, Fluxgate, 500 A / 200 kHz HIOKI CT6845A - AC/DC Current Clamp, Fluxgate, 500 A / 200 kHz
CT6845A
HIOKI CT6845A - AC/DC Current Clamp, Fluxgate, 500 A / 200 kHz
AC/DC current clamp using advanced fluxgate technology, 500A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, bandwidth from DC to 200 kHz, maximum conductor diameter 50 mm, cable length 3 m

€2,128.00
View product

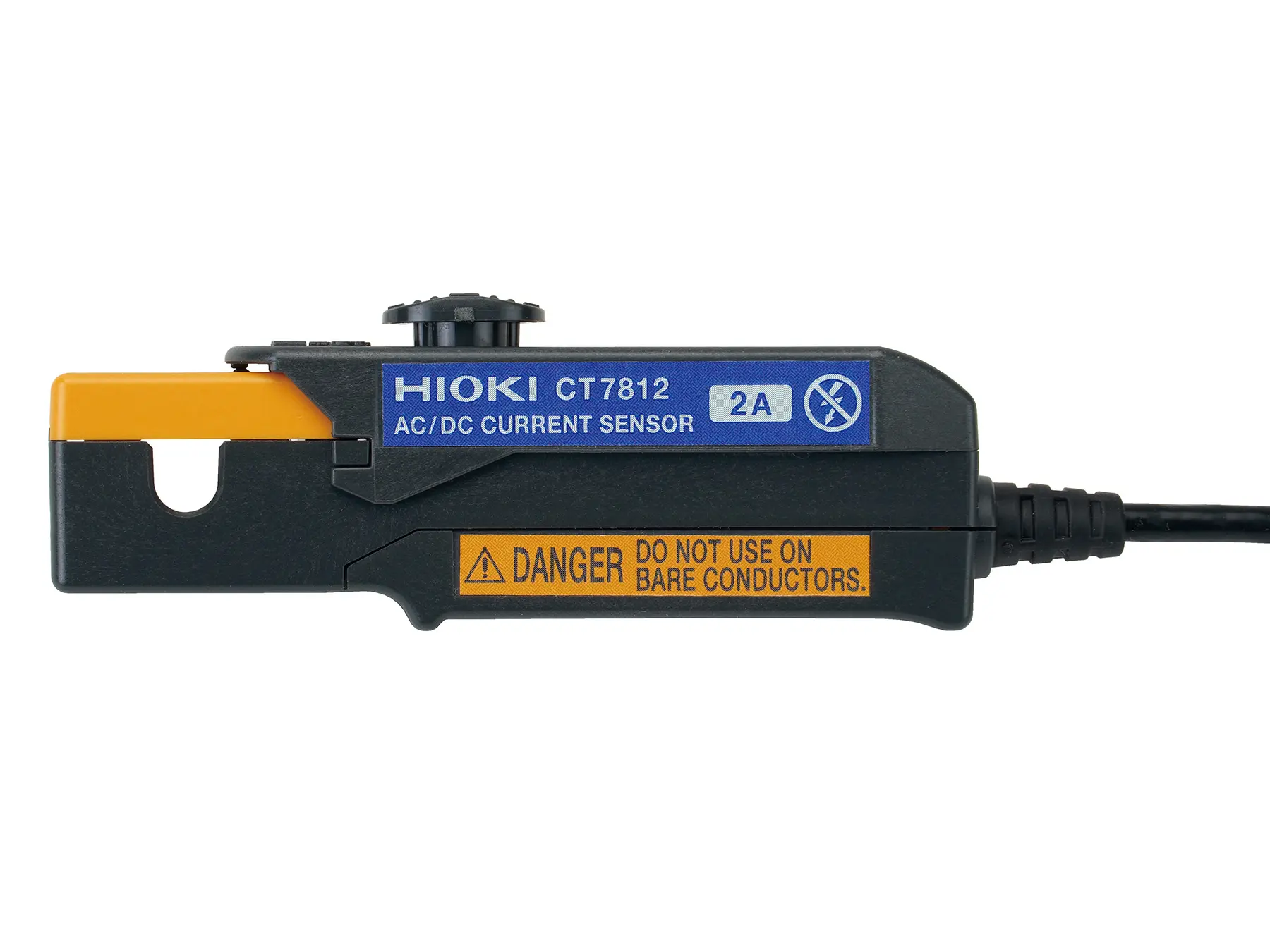

CT7812 - Ultra-compact AC/DC Current Probe, 2 A / 100 kHz CT7812 - Ultra-compact AC/DC Current Probe, 2 A / 100 kHz
CT7812
CT7812 - Ultra-compact AC/DC Current Probe, 2 A / 100 kHz
Ultra-small, zero-flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3 %, max. resolution 0.1 mA, wide temperature range -40 to 85 °C, measurable current up to 2 A, designed exclusively for LR8450 Series Data Logger

€1,338.00
View product
HIOKI CT6830 current probe ultra compact CT6830 - Ultra-compact AC/DC Current Probe, 2 A / 100 kHz
CT6830
CT6830 - Ultra-compact AC/DC Current Probe, 2 A / 100 kHz
Ultra-small, zero-flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3% rdg., wide temperature range -40 to 85 °C, measurable current up to 2 A, ME15W connector

€1,628.00
View product

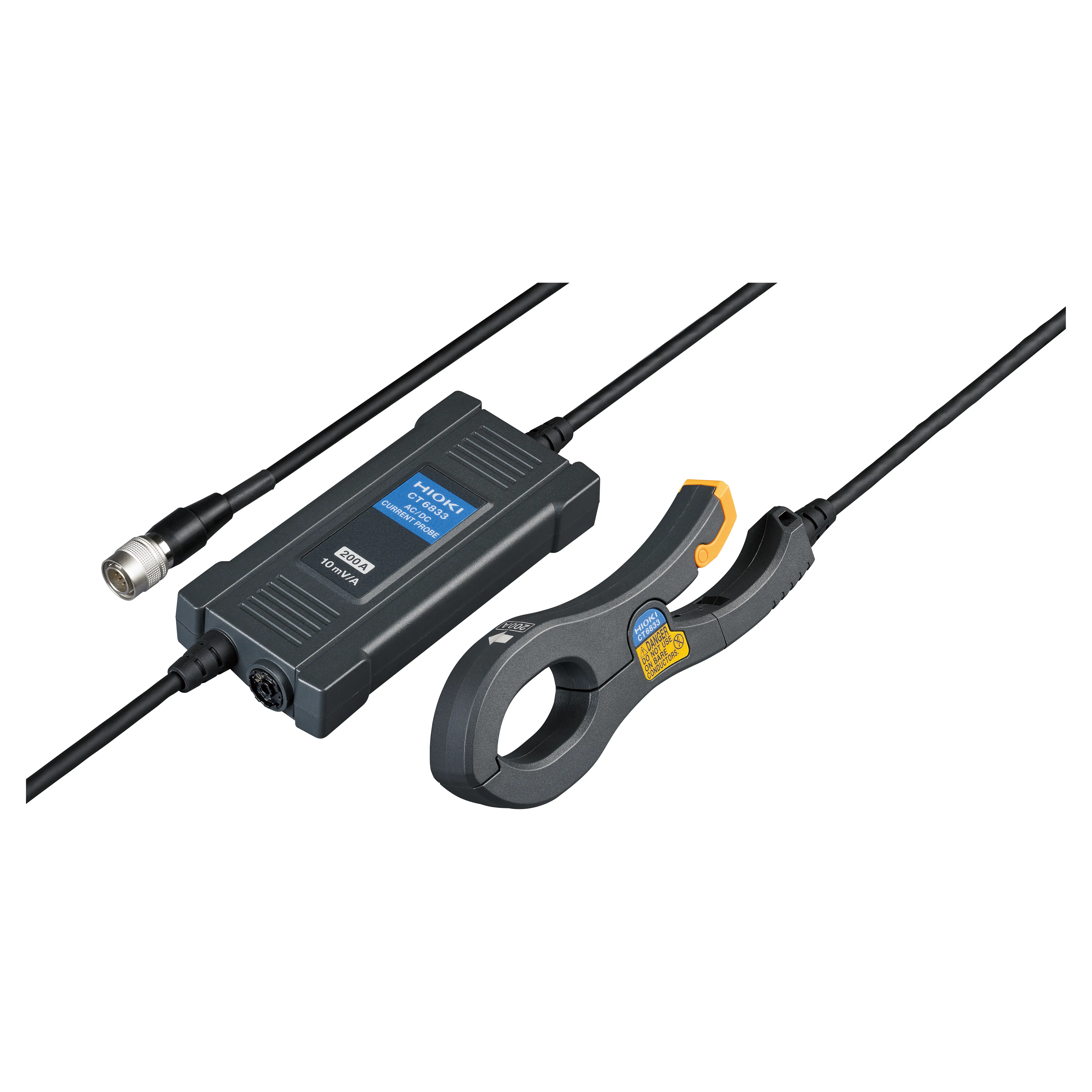

CT6833-01 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz, 10 m cable CT6833-01 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz, 10 m cable
CT6833-01
CT6833-01 - Super-slim AC/DC high-accuracy Current Clamp, 200 A / 50 kHz, 10 m cable
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 200 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 10 m

€2,608.00
View product
HIOKI CT6843A - AC/DC High-accuracy Current Clamp, 200 A / 700 kHz HIOKI CT6843A - AC/DC High-accuracy Current Clamp, 200 A / 700 kHz
CT6843A
HIOKI CT6843A - AC/DC High-accuracy Current Clamp, 200 A / 700 kHz
AC/DC current clamp using advanced fluxgate technology, 200A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, wide bandwidth from DC to 700 kHz, maximum conductor diameter 20 mm, cable length 3 m

€2,018.00
View product

HIOKI Precision Current Clamp Sensor Overview


HIOKI’s AC/DC current clamps offer the perfect balance of ease of use and high-precision measurement, thanks to fluxgate-technology in a practical split-core design. Engineered for non-contact current measurement, these clamps enable fast, hassle-free deployment in both laboratory and field applications.
Large Clamps up to 1 kA
/ 200 kHz		 Precision Clamps up to 500 A
/ 2 MHz		 NEW Compact Clamps up to 500 A / 50 kHz Ultra-compact Sensors up to 20 A / 100 kHz
Model CT6846A CT6845A CT6844A CT6843A CT6841A CT6834 CT6833 CT6831 CT6830
Rated Current ±1000 A ±500 A ±500 A ±200 A ±20 A ±500 A ±200 A ±20 A ±2 A
Bandwidth DC – 100 kHz DC – 200 kHz DC – 500 kHz DC – 700 kHz DC – 2 MHz DC – 50 kHz DC – 100 kHz
Basic Accuracy ±0.2% rdg ±0.07% rdg ±0.3% rdg
Output Voltage 2 mV/A 4 mV/A 10 mV/A 100 mV/A 4 mV/A 10 mV/A 100 mV/A 1 V/A
Max. Conductor Diameter Ø 50 mm Ø 20 mm Ø 5 mm
