SP7001 - Non-contact CAN/CAN FD Sensor, 125 kbit/s to 3 Mbit/s

Non-contact CAN/CAN FD sensor, for use with SP7100 or SP7150 interface and SP9200 or SP9250 probes, 125 kbit/s to 3 Mbit/s, requires interface and probes
Skip image gallery
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s passive detection

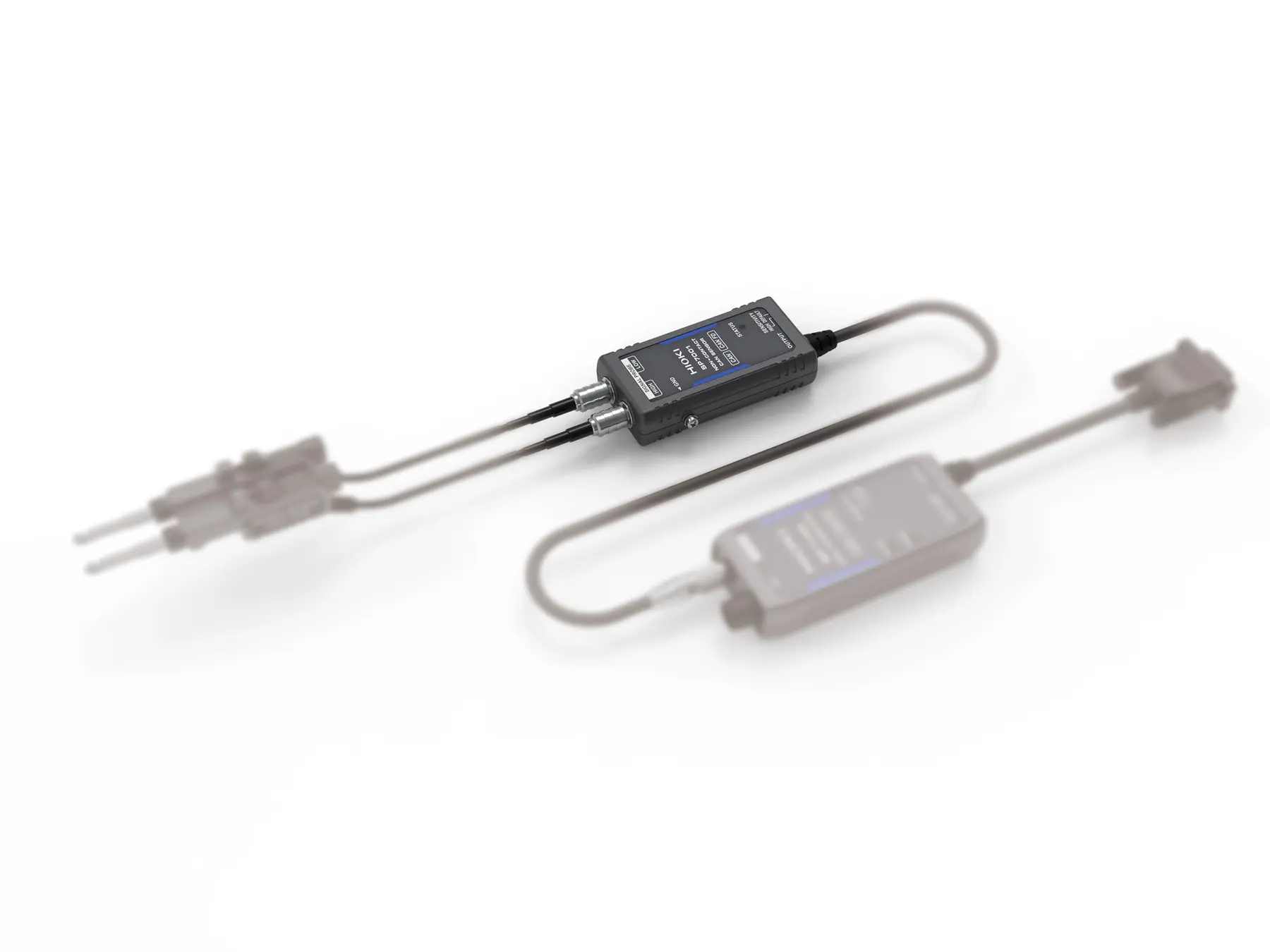

HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s bus monitoring

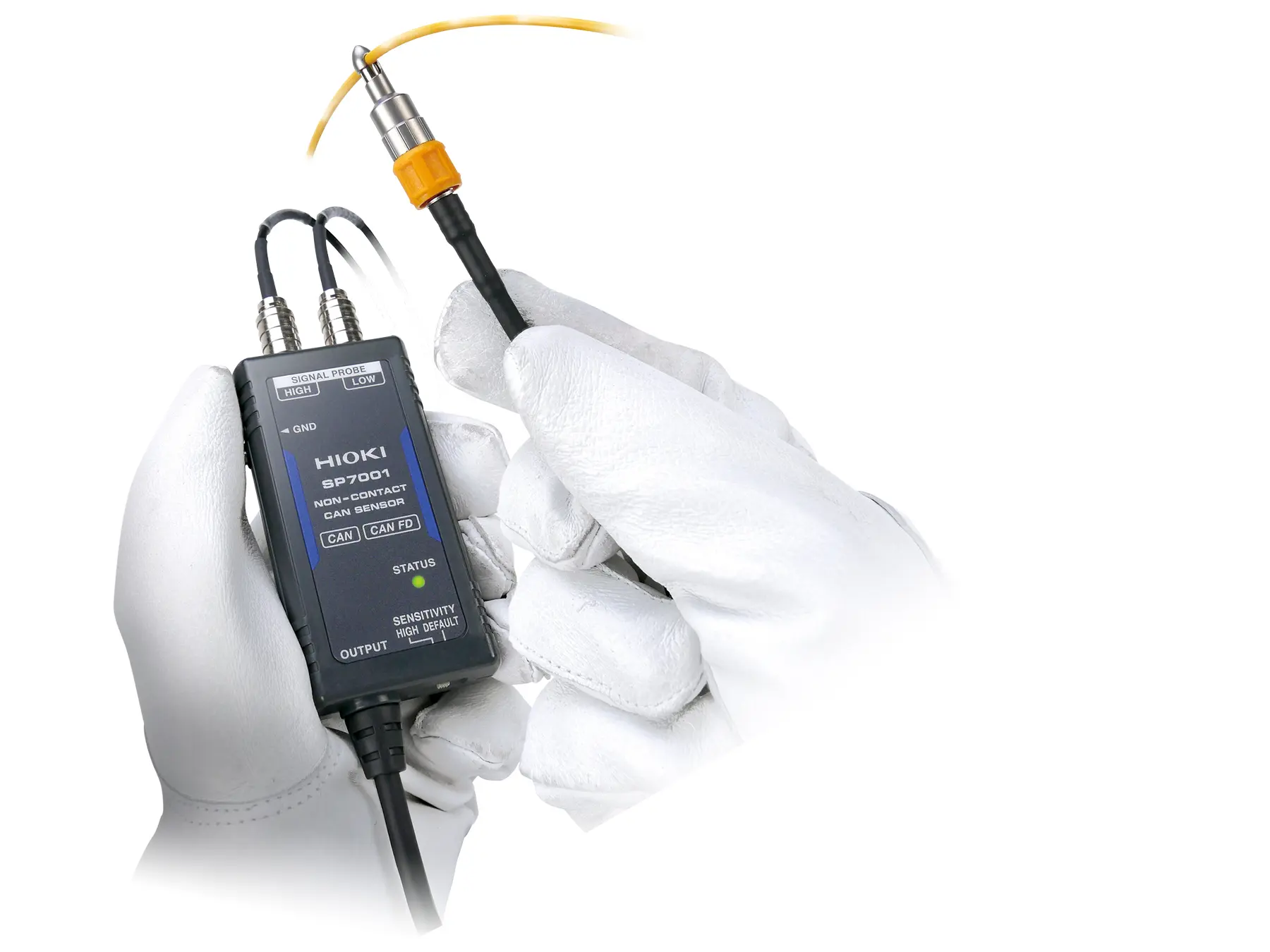

HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s cable diameter range

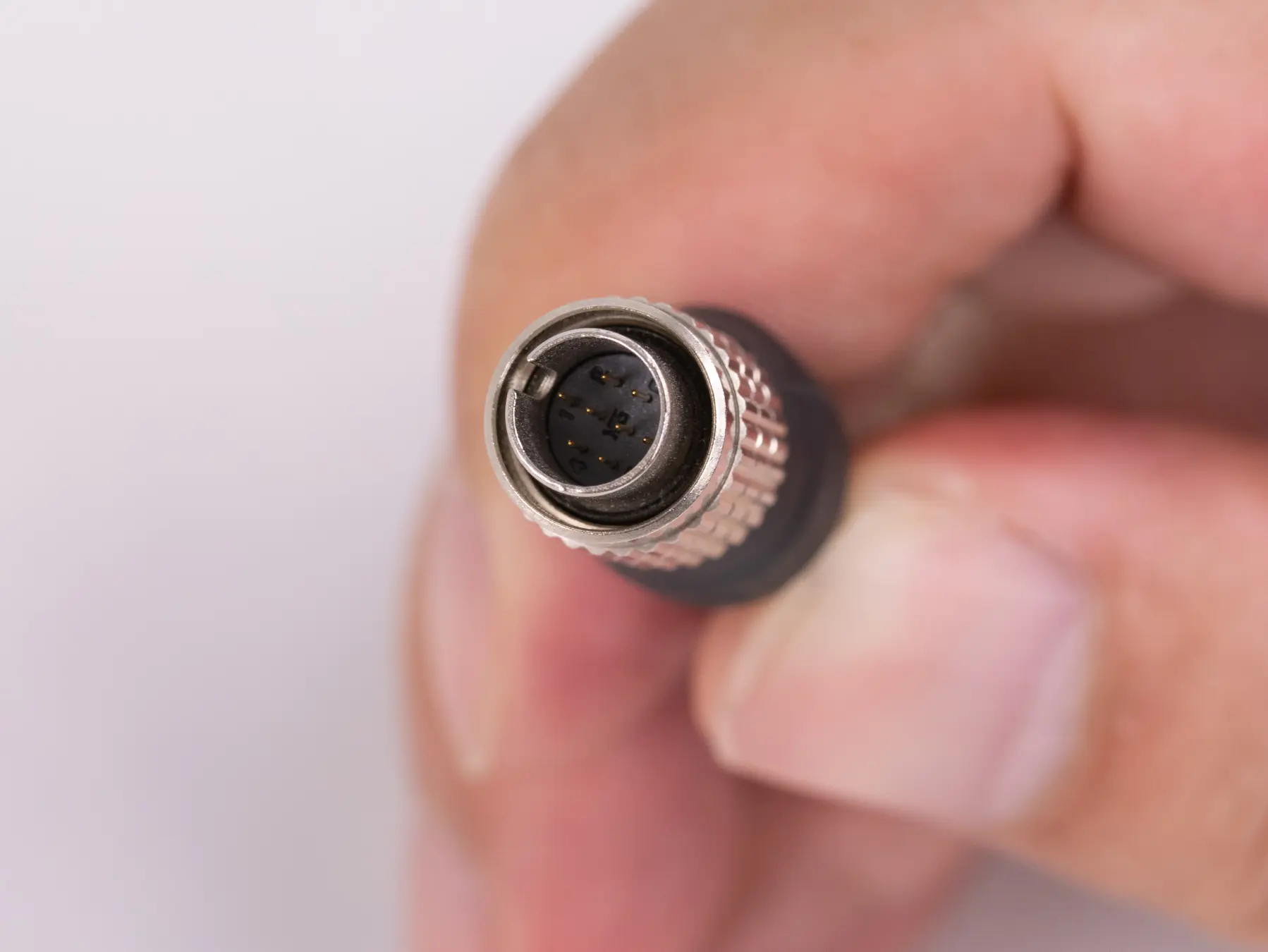

HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s bnc connector

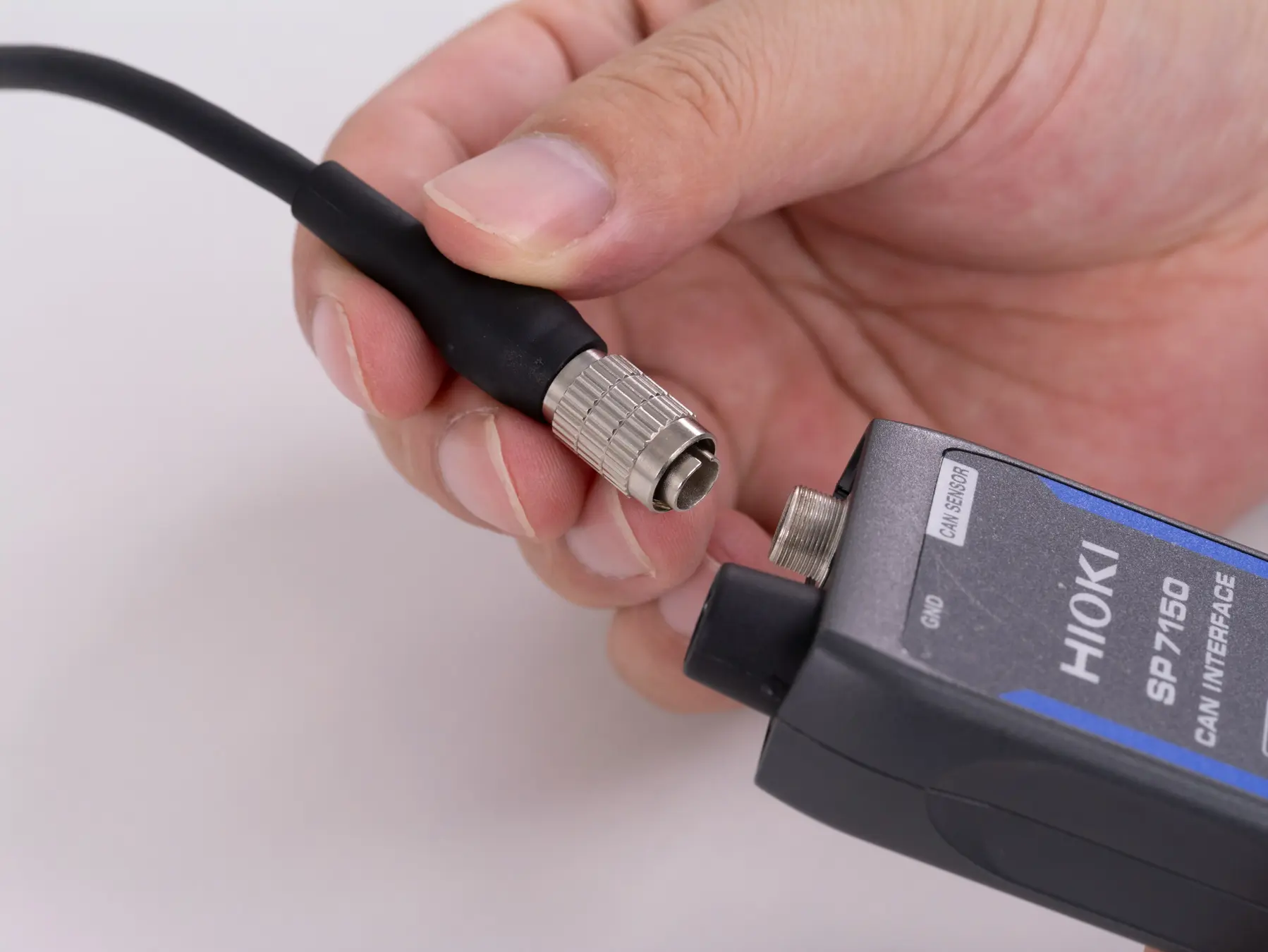

HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s for vehicle bus analysis

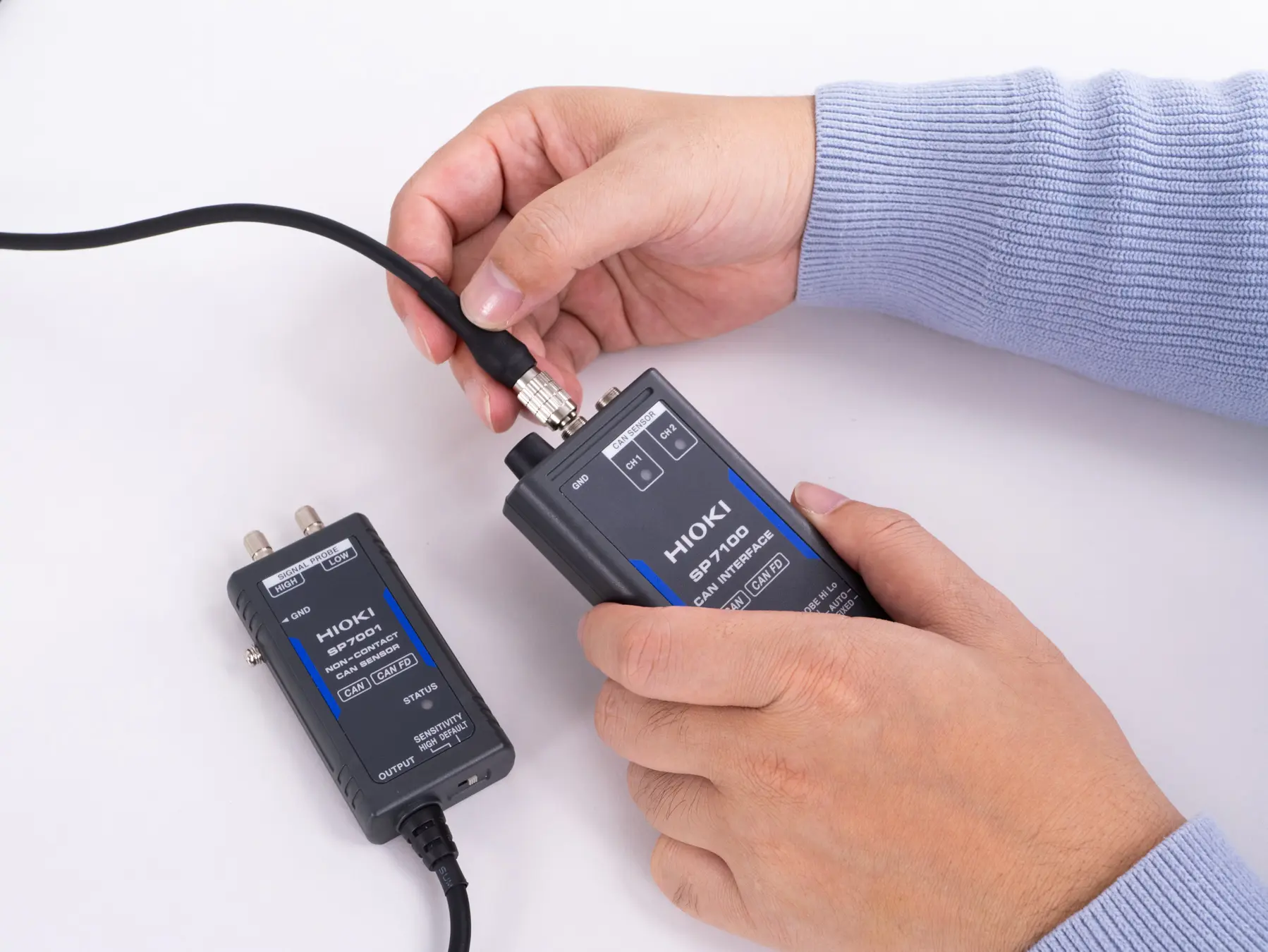

HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s coupling method to SP7100
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s passive detection
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s bus monitoring
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s cable diameter range
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s bnc connector
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s for vehicle bus analysis
HIOKI SP7001 non-contact can fd sensor 125kbit s to 3mbit s coupling method to SP7100

€1,138.00

Content: 1 Each

In stock in Germany

€1,138.00

SP7001 - Non-contact CAN/CAN FD Sensor, 125 kbit/s to 3 Mbit/s
Product number: SP7001
Available stock: 1
GTIN/EAN: 4536036012350
Length: 44 mm
Width: 20 mm
Height: 85 mm
Weight: 0.28 kg

Description

Product information SP7001 - Non-contact CAN/CAN FD Sensor, 125 kbit/s to 3 Mbit/s


Detailed Product Overview

The HIOKI SP7001 CAN FD Sensor is a sensing unit designed for non-intrusive measurement of CAN and CAN FD signals. Using capacitive coupling, the SP7001 detects differential CAN signals through the insulation of the CAN-H and CAN-L lines, providing accurate signal acquisition without modifying the vehicle wiring.

To perform a measurement, the sensor must be used together with an SP7100 (DC powered) or SP7150 (USB powered) CAN Interface, and either an SP9200 screw-type or SP9250 clamp-type probe set. The probes are attached to the insulated CAN lines, while the interface reconstructs the detected signal and outputs it through a Vector-compatible 9-pin Dsub connector, allowing direct connection to Vector Informatik systems or to the HIOKI PW4001 Power Analyzer.

The SP7001 is commonly used to expand an existing SP7001-90 set for monitoring a second CAN bus, or by users who wish to build custom configurations tailored to specific test environments. When connected to an SP7100 interface, two SP7001 sensors can operate simultaneously to monitor two independent CAN buses.

Supporting communication speeds from 125 kbit/s to 3 Mbit/s (CAN / CAN FD), the SP7001 maintains precise timing and waveform integrity even with high-speed signals. Its noncontact sensing method allows accurate signal detection without influencing the bus load or communication timing, ensuring dependable CAN and CAN FD measurements under real operating conditions.

Designed for operation between -40 °C and +85 °C, the SP7001 is suitable for automotive development, EV and HV powertrain validation, and ECU communication analysis. In combination with compatible interfaces and probes, it provides a safe, flexible, and scalable solution for non-intrusive CAN / CAN FD signal monitoring throughout the automotive development process.

What's in the Box

  • SP7001 CAN FD Sensor
