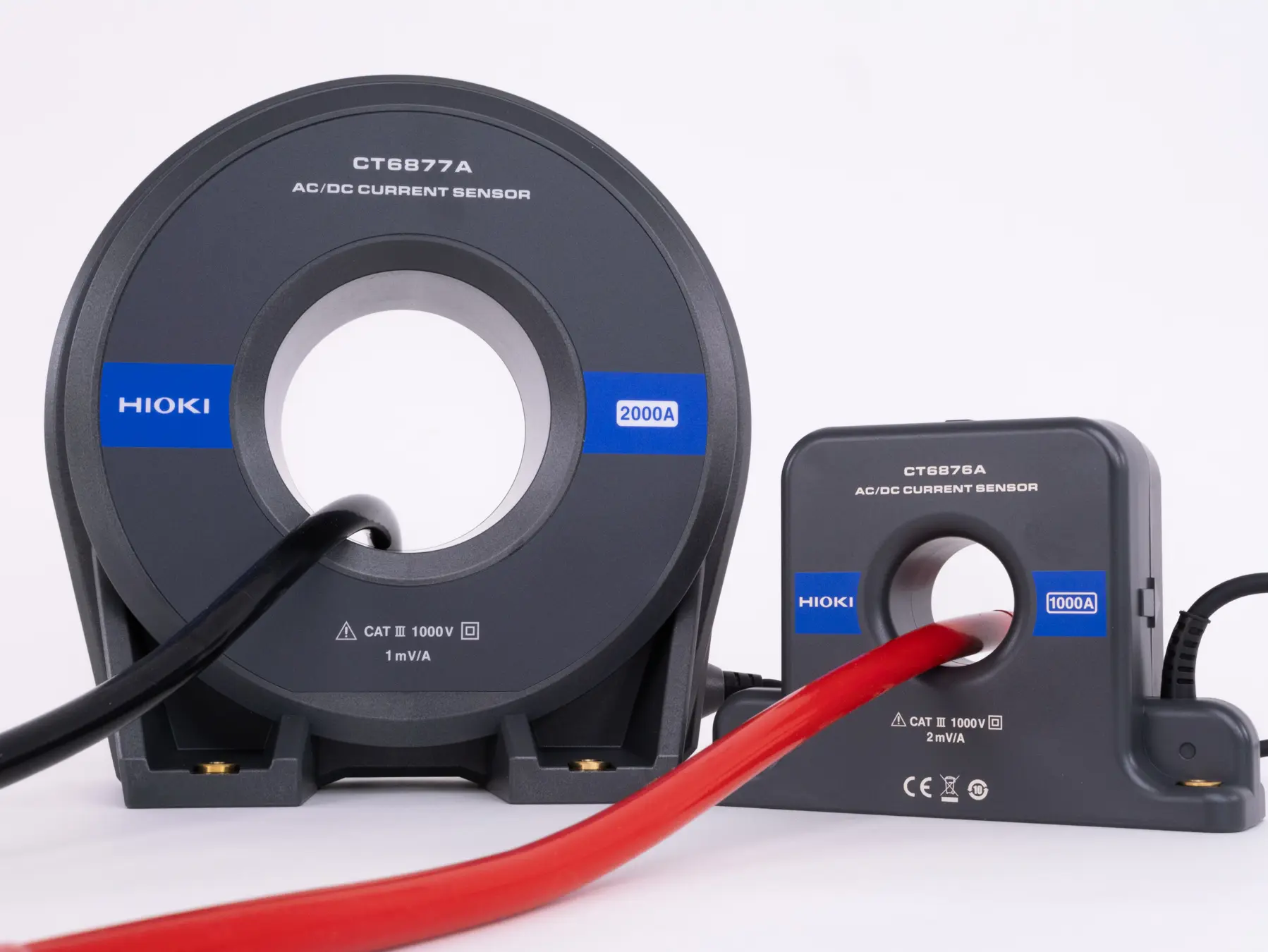

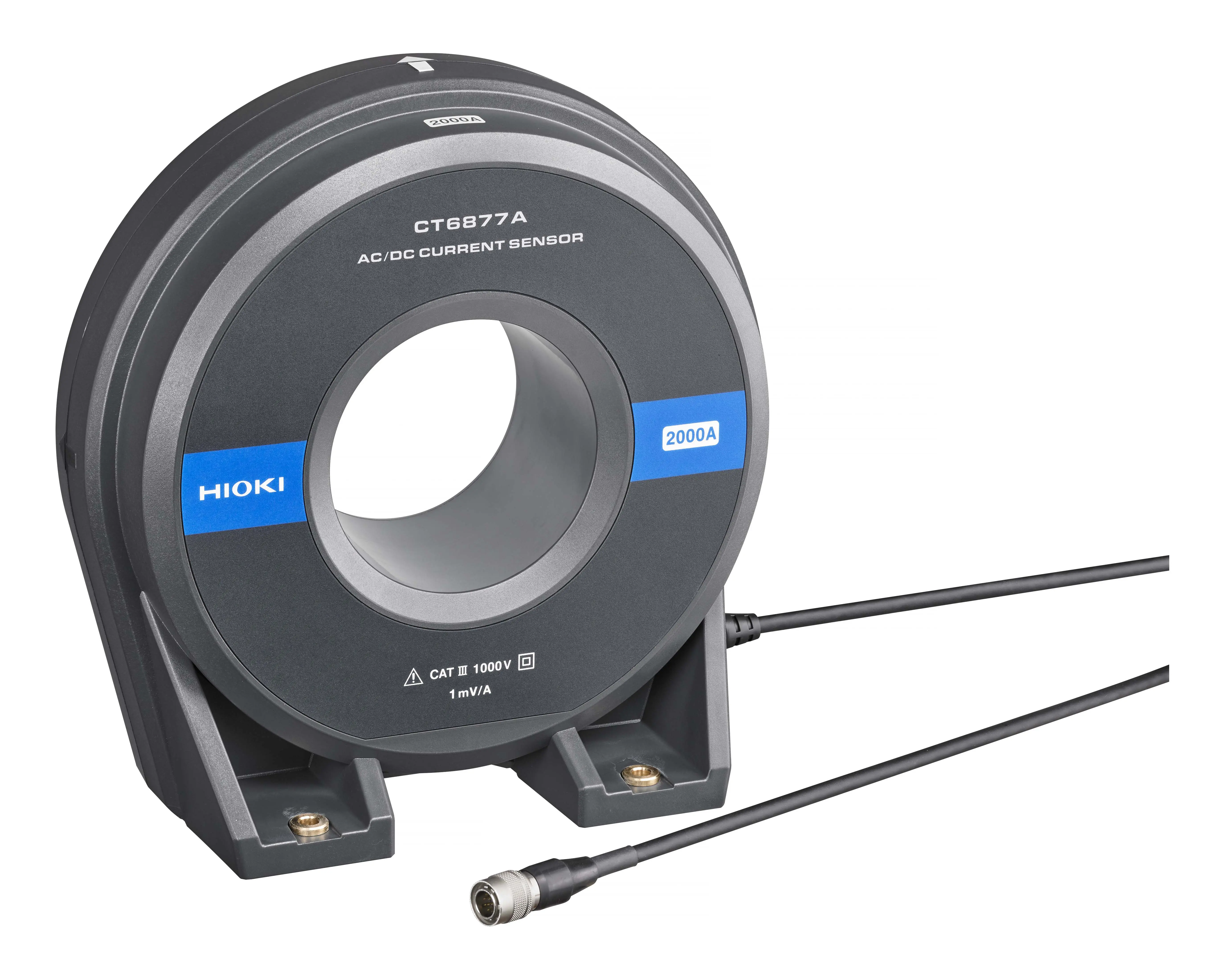

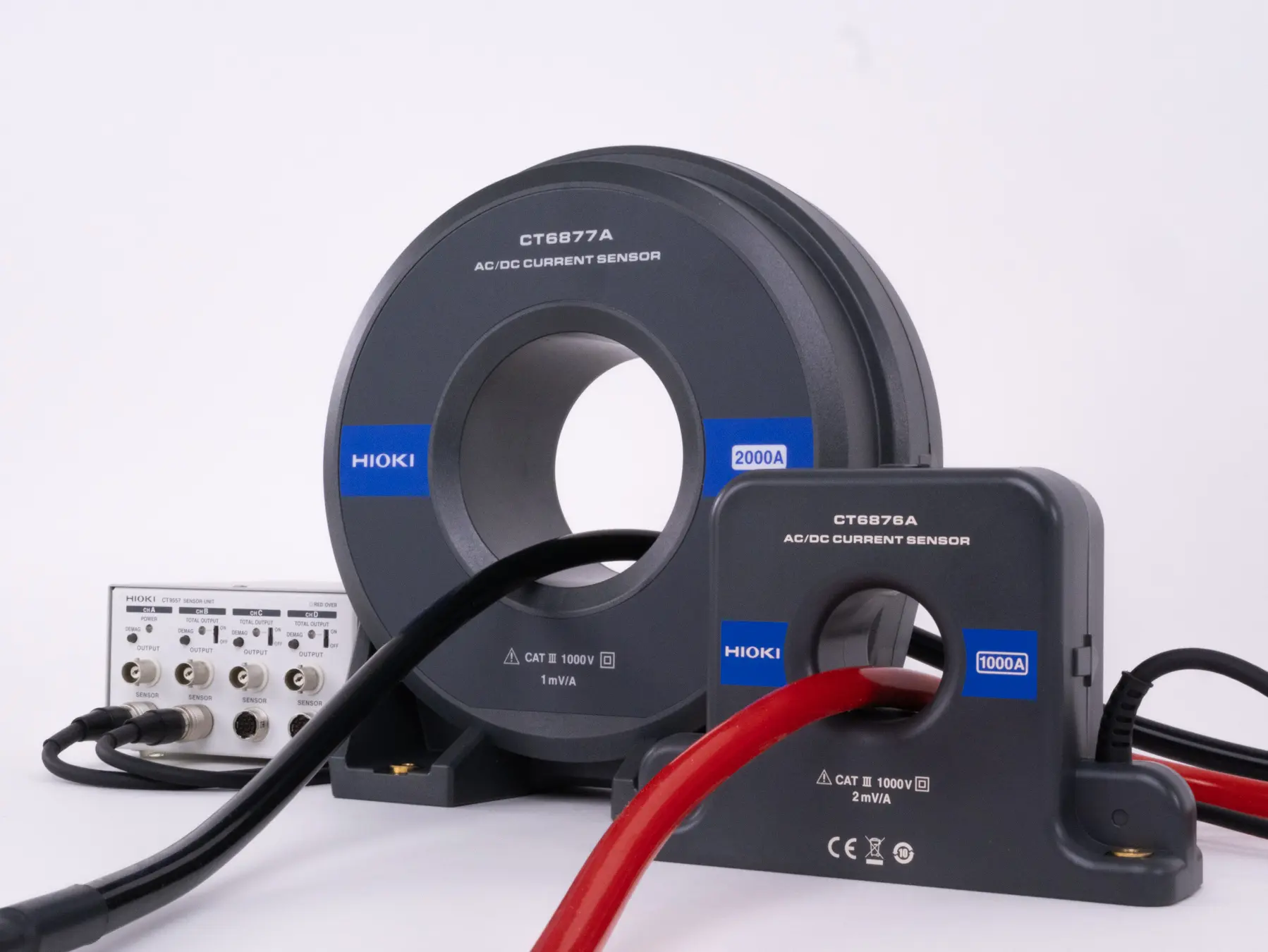

CT6877A - AC/DC-Current sensor, 2000 A / 1 MHz
Hioki's pass-through AC/DC current sensors are premium devices for use with power meters, memory HiCorders and high performance oscilloscopes.
Product number:
CT6877A
GTIN/EAN:
4536036013951
Length:
232 mm
Width:
229 mm
Height:
112 mm
Weight:
5 kg
Description
Product information CT6877A - AC/DC-Current sensor, 2000 A / 1 MHz
Hioki's pass-through AC/DC current sensors are premium devices for use with power meters, memory HiCorders and high performance oscilloscopes. The CT6877 is a DC to 1 MHz/2000 A sensor that is ideal for evaluating inverter power conversion efficiency in next generation devices. The CT6877 offers a wide frequency band and excellent noise immunity, prerequisites for the proper evaluation of inverter motors used in electric vehicles and hybrid vehicles, a class of devices that continues to move towards ever higher currents and higher frequency circuits.
More than specs – find more details here:
Measure Power with Precision – Across All Applications
Main features:
- The combined accuracy with the HIOKI power analysers PW8001, PW6001 and PW3390 is specified. Details on the combined accuracy can be found in the operating instructions.
- Measures high currents up to 2000 A for EV, HEV and other electric vehicles
- Improved noise resistance through stronger shielding enables accurate measurement of the current hidden in the noise
- Highly accurate measurement due to flat frequency characteristics and CMRR performance
- Improved environmental resistance than ever before enables measurements at -40 to 85 °C

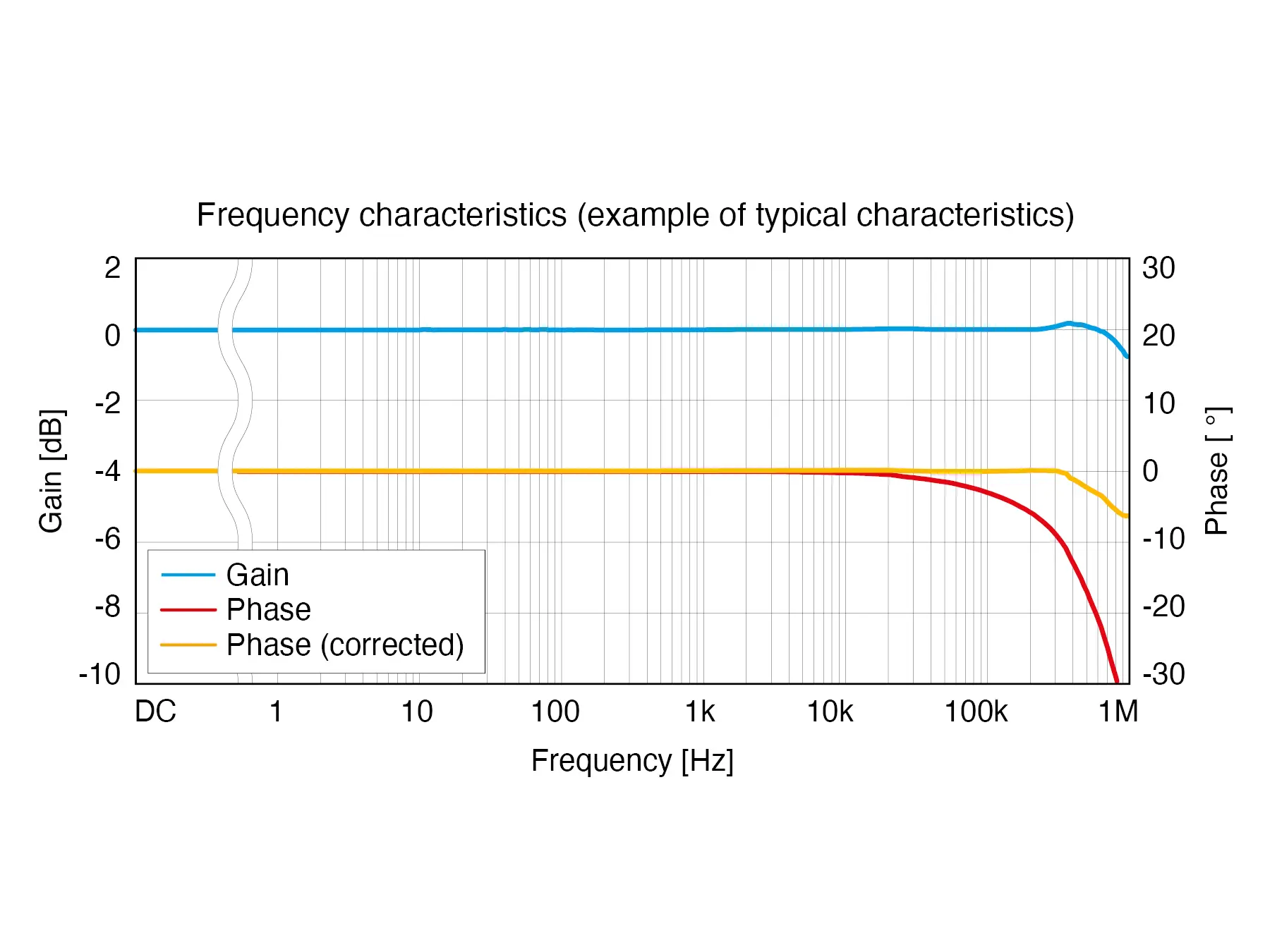

- Superior frequency characteristics from DC to 1 MHz (amplitude)
- Fulfil a wide range of applications from measuring battery charge/discharge to the secondary side of inverters in photovoltaic power generation and the evaluation of fuel cells, etc.
- Überwachen Sie Wellenformen in Verbindung mit Oszilloskopen oder Memory HiCorders und Sensor Unit
More than specs – find more details here:
Measure Power with Precision – Across All Applications
What's in the Box
- Operating instructions
- Marking tapes
- Precautionary measures during operation
