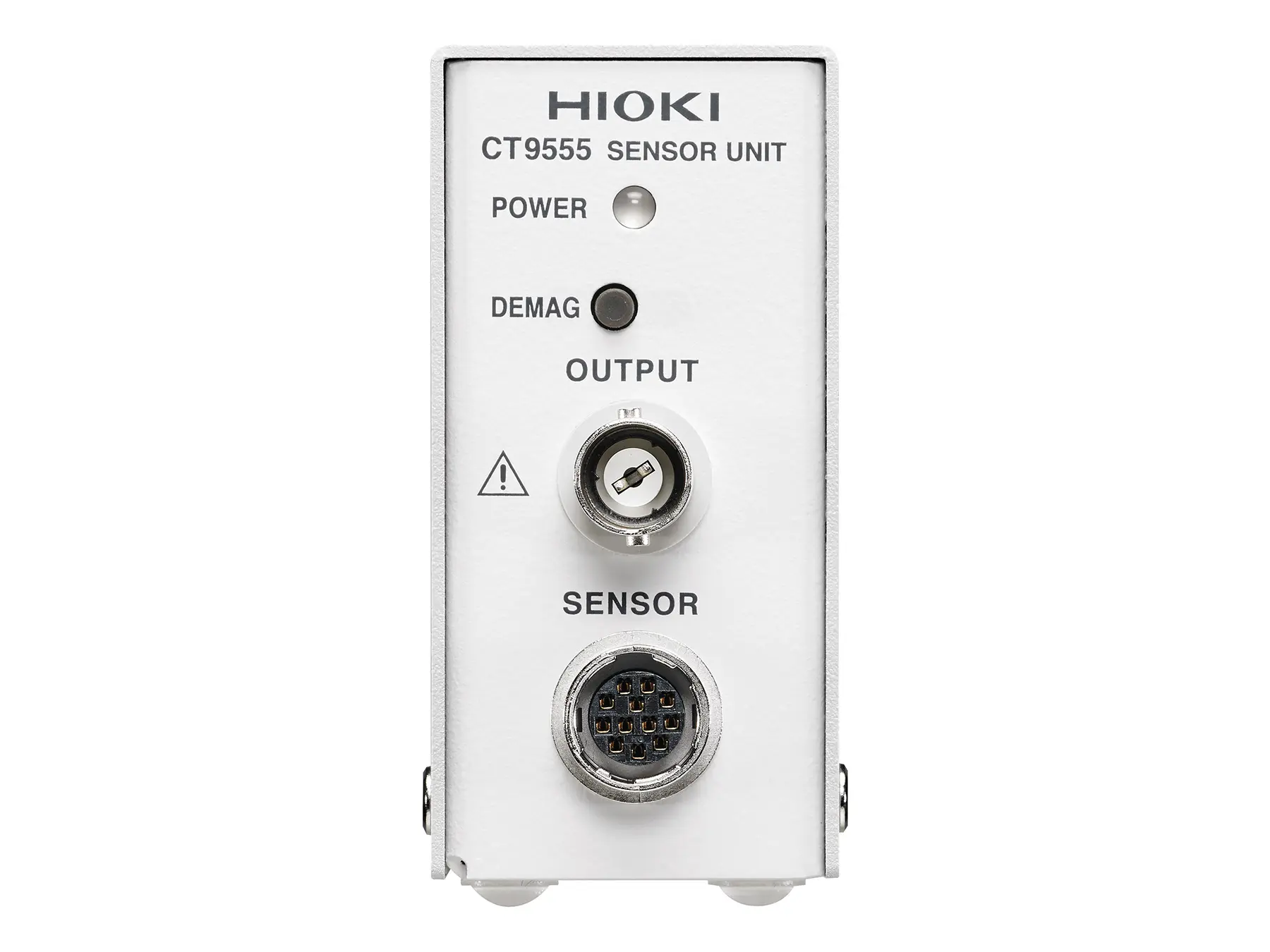

CT9555 - SENSOR UNIT

€508.00

Content: 1 Each

€508.00

CT9555 - SENSOR UNIT

Product number: CT9555

Available stock: 1

GTIN/EAN: 4536036010844

Width: 1320 mm

Height: 670 mm

Weight: 0.8 kg

Product details

Product information CT9555 - SENSOR UNIT

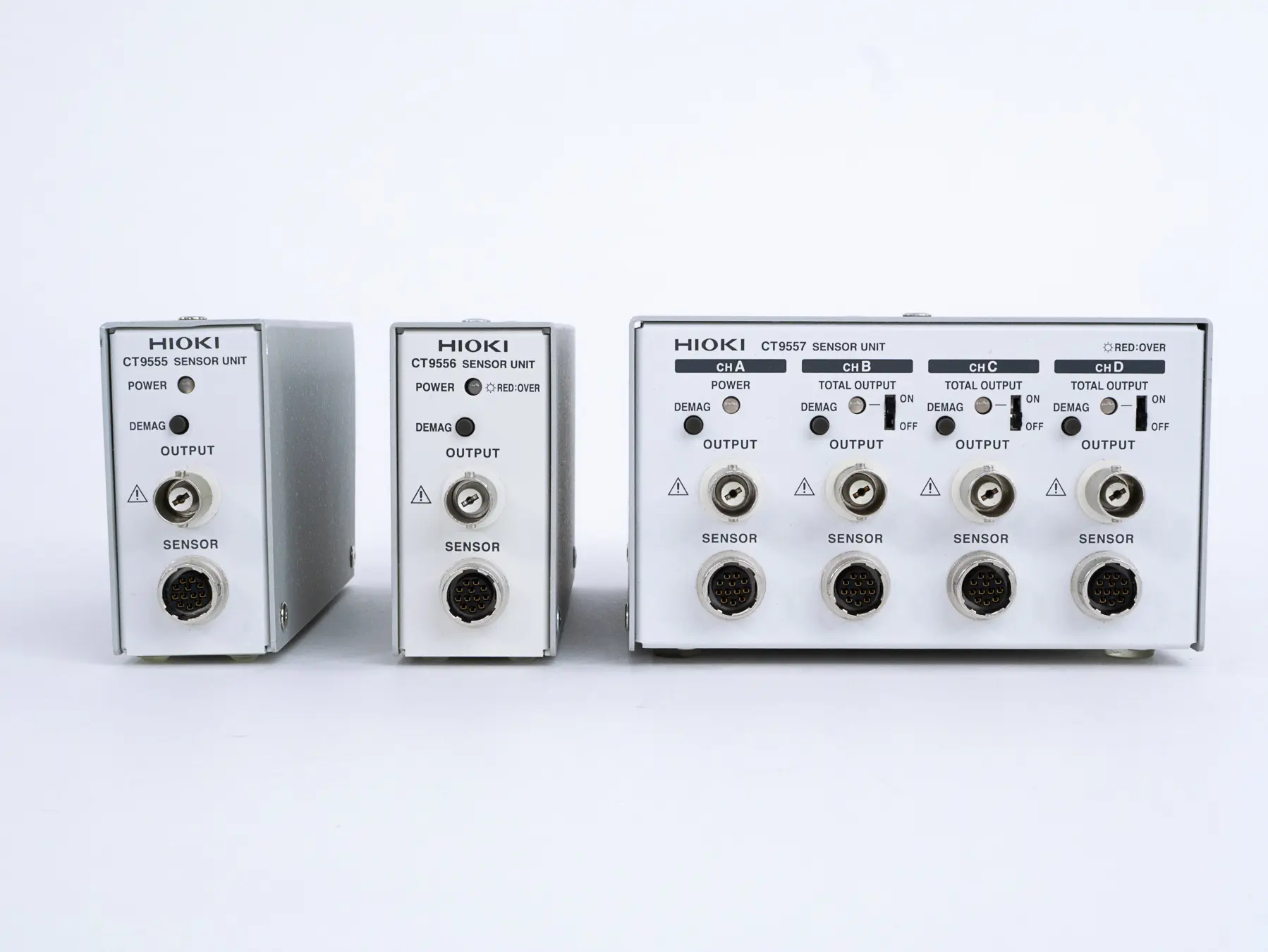

The CT9555 is a power supply unit designed for single-channel current sensors providing a high-precision waveform output. It is ideal for applications requiring accurate waveform measurement from a single source.

Technical Details:

Channels: 1
Output: Waveform (BNC terminal)
Power consumption: 45 VA max
Power supply: AC Adapter Z1008
Input connector type: Hioki ME15W female terminal
Output connector type: BNC
Dimensions: 33 x 67 x 132 mm
Weight: 200 g
Supported sensors: 9272-05, CT684x-05, CT684xA, CT686x-05, 9709-05, CT687x, CT687xA, PW9100, CT6904, CT6904A
