CT6876A - AC/DC Current sensor, 1000A / 1.5 MHz

€2,388.00

Content: 1 Each

In stock in Germany

€2,388.00

CT6876A - AC/DC Current sensor, 1000A / 1.5 MHz

Product number: CT6876A

Available stock: 1

GTIN/EAN: 4536036013937

Width: 500 mm

Height: 112 mm

Weight: 1.2 kg

Product information CT6876A - AC/DC Current sensor, 1000A / 1.5 MHz

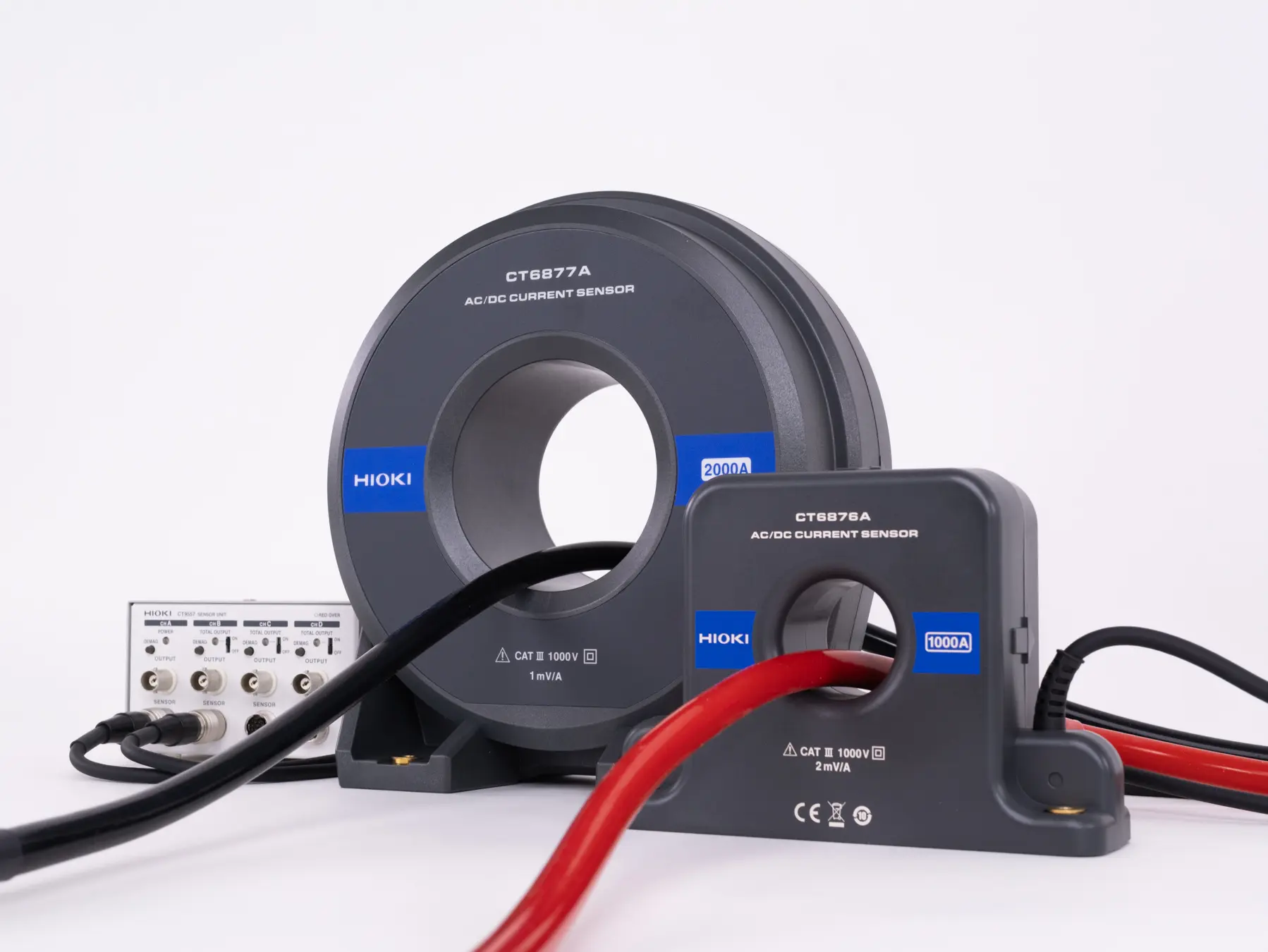

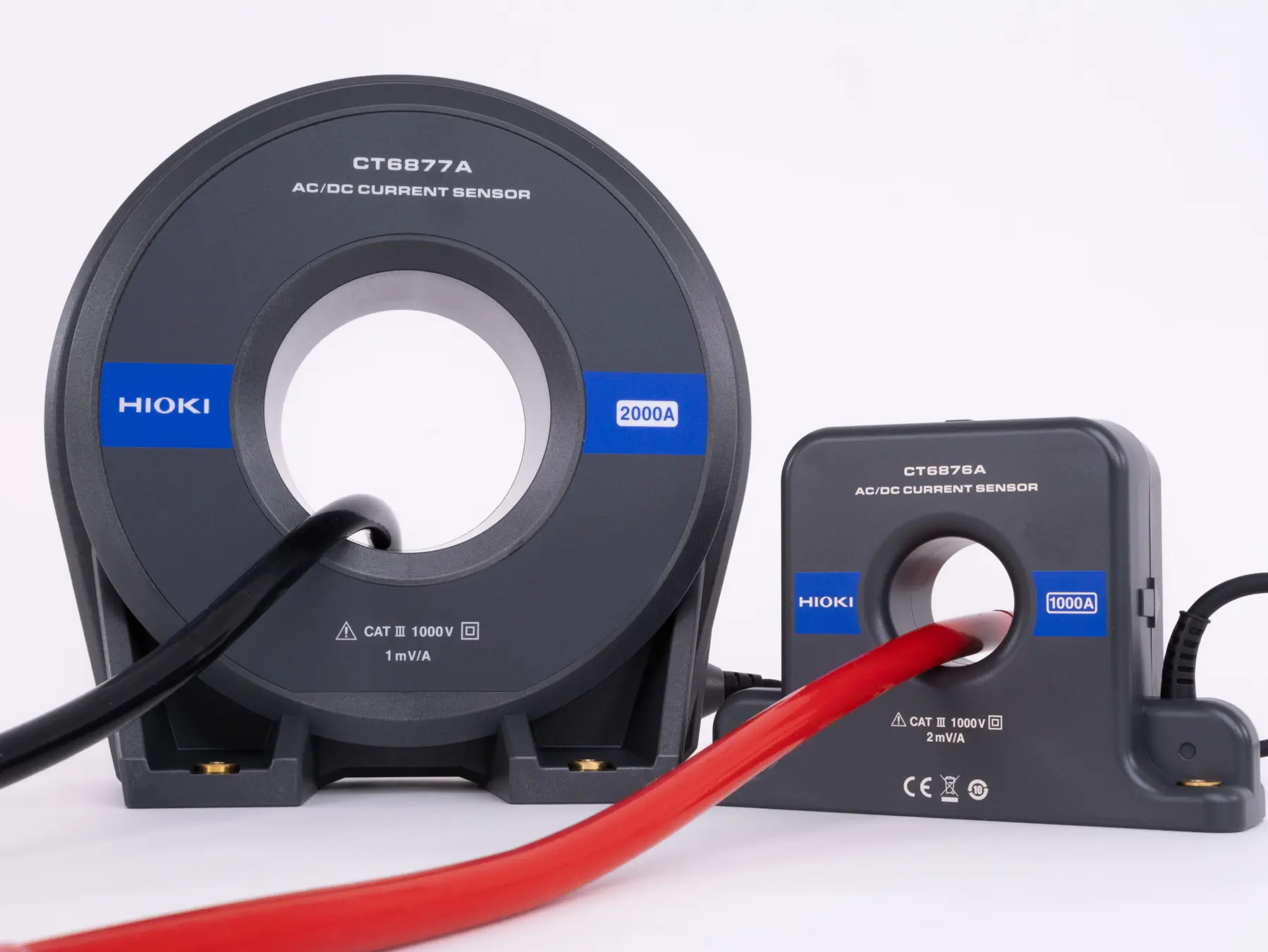

Product Description for CT6876 AC/DC Current Sensor The CT6876 AC/DC Current Sensor is designed for accurate current measurements with a broad frequency range from DC to 1.5 MHz. With a rated current of 1000 A, it is ideal for demanding applications in industries such as inverter motors, electric vehicles, and power electronics.

The sensor offers excellent noise resistance and high precision, making it a top choice for high-current, high-speed measurements. When combined with Hioki's Power Analyzers, it ensures accurate power conversion efficiency measurements, especially in high-frequency environments.

Technical Details:

Model: CT6876

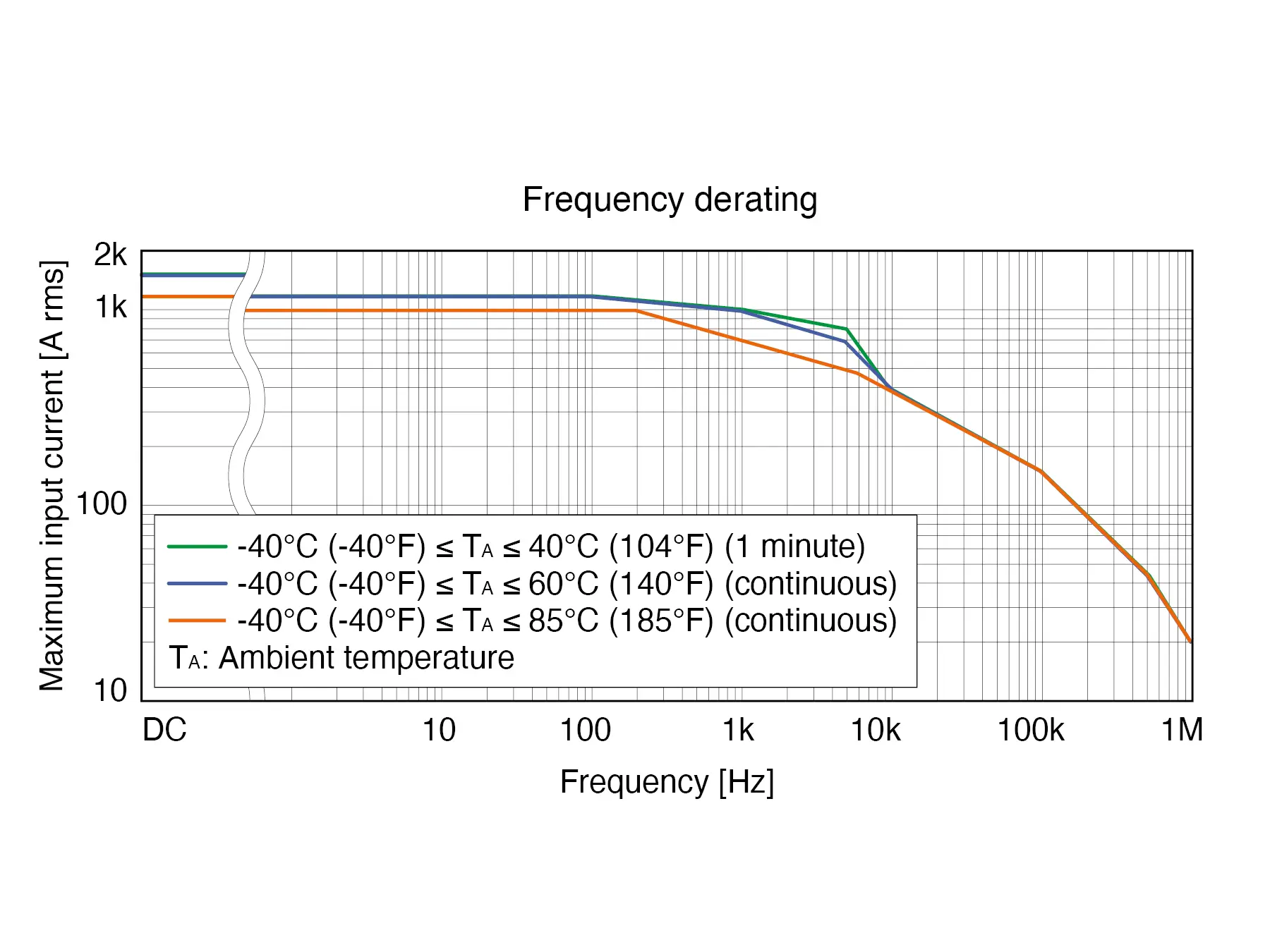

Rated Current: 1000 A

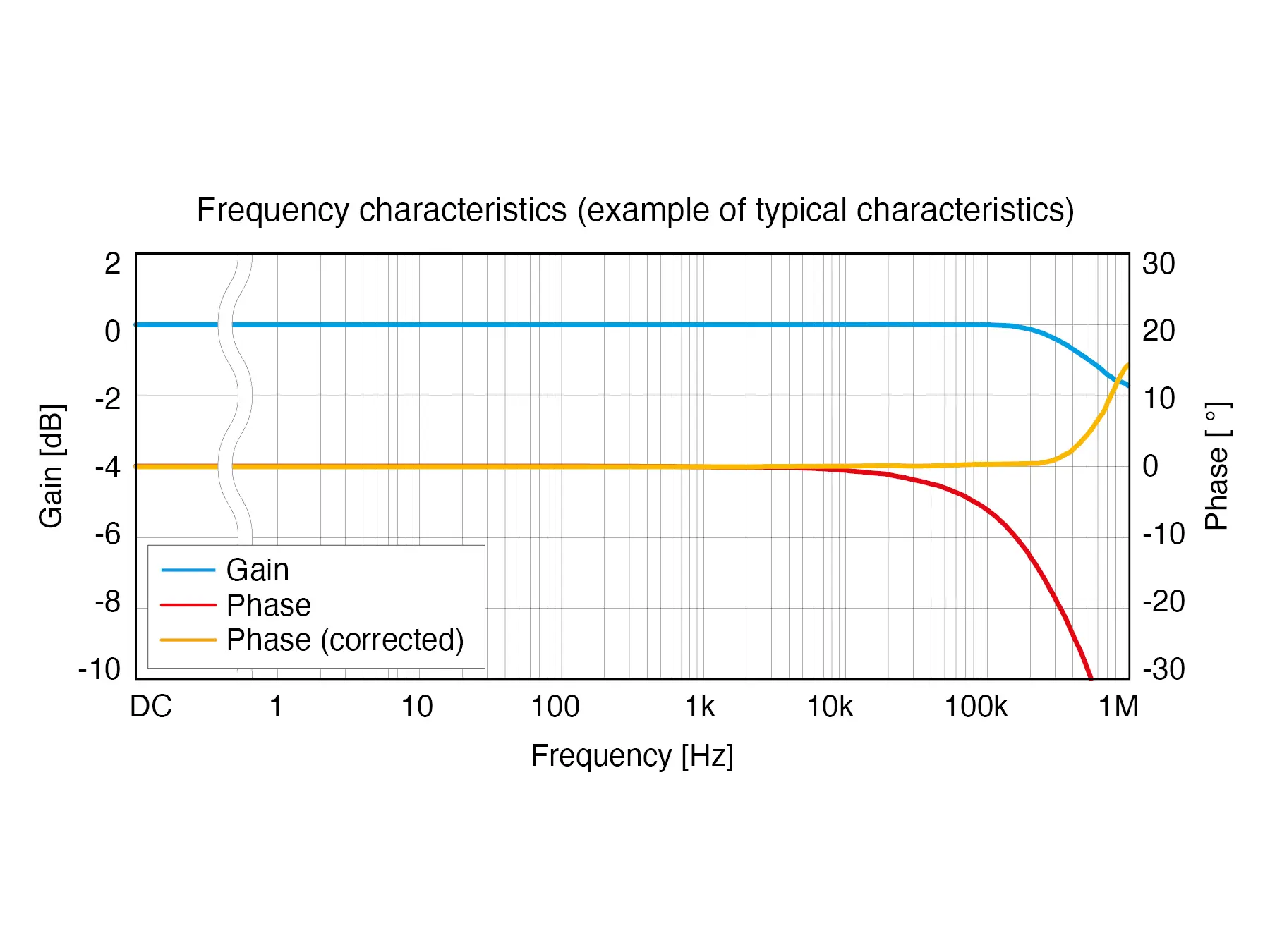

Frequency Bandwidth: DC to 1.5 MHz
Basic Accuracy: Amplitude: ±0.04% rdg. ±0.008% f.s. Phase: ±0.1°
Maximum Conductor Diameter: 36 mm
Maximum Rated Voltage to Ground: 1000 V CAT III
Operating Temperature: -40°C to 85°C
Input Impedance Requirement: 1 MΩ or higher
Output Terminal: ME15W
