HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz

AC/DC current clamp using advanced fluxgate technology, 500A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, wide bandwidth from DC to 500 kHz, maximum conductor diameter 20 mm, cable length 3 m
Skip image gallery
HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz
HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

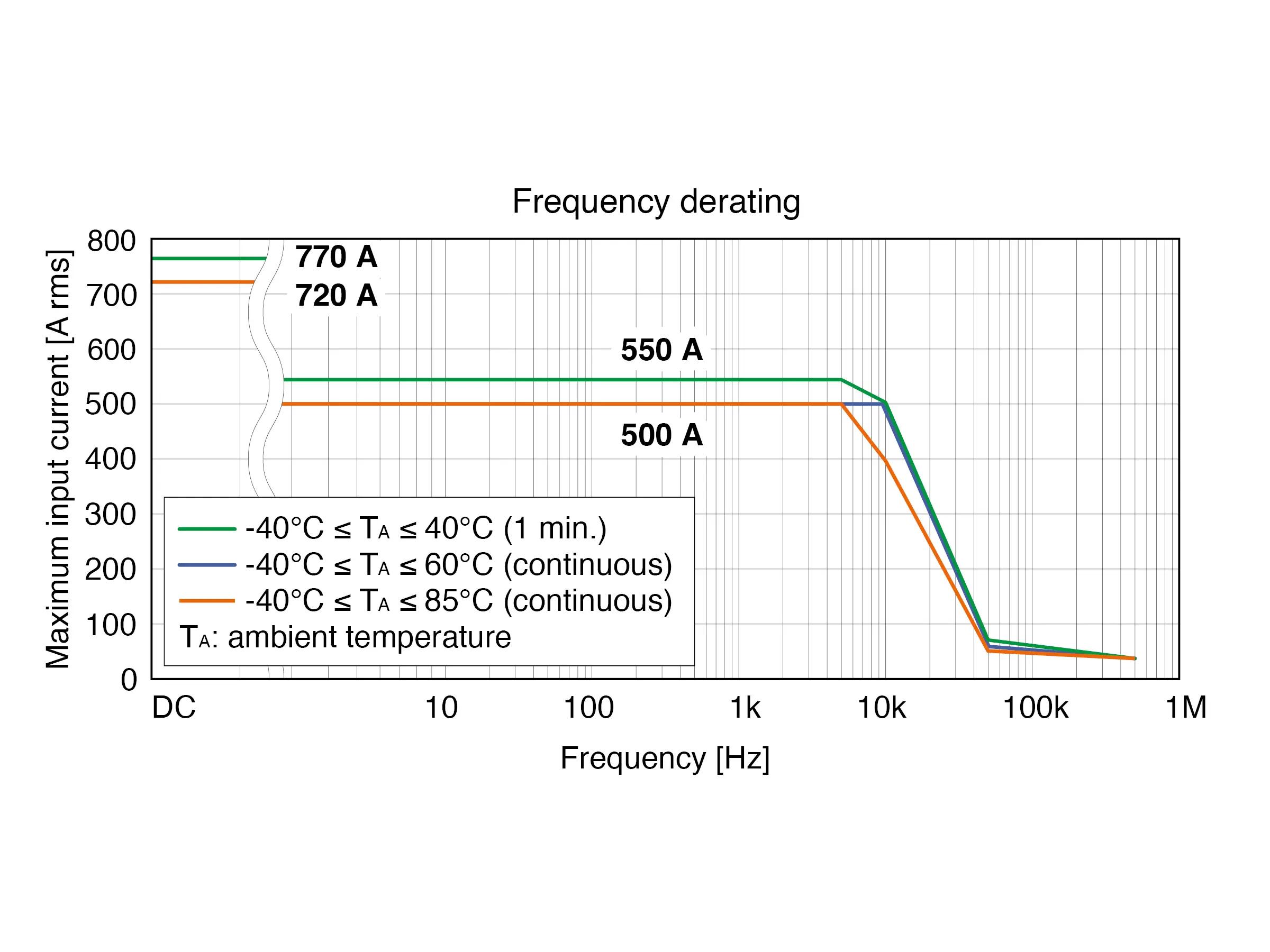

HIOKI CT6844A ac dc high accuracy current clamp 500a 500khz derating graph2
HIOKI CT6844A ac dc high accuracy current clamp 500a 500khz derating graph
HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz
HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz
HIOKI CT6844A ac dc high accuracy current clamp 500a 500khz derating graph2
HIOKI CT6844A ac dc high accuracy current clamp 500a 500khz derating graph

€1,702.40

% €2,128.00 (20% saved)
Content: 1 Each

In stock in Germany

€1,702.40

% €2,128.00 (20% saved)
HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz
Product number: CT6844A
Available stock: 5
GTIN/EAN: 4536036013883
Length: 153 mm
Width: 67 mm
Height: 25 mm
Weight: 0.4 kg
Product details

Description

Product information HIOKI CT6844A - AC/DC High-accuracy Current Clamp, 500 A / 500 kHz

Key Specifications

  • AC/DC currents up to 500 A
  • Frequency Bandwidth DC to 500 kHz
  • Basic accuracy: ±0.2% rdg.
  • Operating temperature: -40 °C to 85 °C
  • Output voltage ratio 4 mV/A

Typical Applications

  • WLTP testing (Worldwide harmonized Light vehicles Test Procedure)
  • Evaluation of current consumption of automotive electrical components like air compressors or power steering systems
  • On-site efficiency and current evaluation of inverters and motors

Detailed Product Overview

The CT6844A AC/DC Current Clamp combines the flexibility of a clamp-style sensor with high-precision measurement, achieving a basic accuracy of ±0.2% rdg. This allows for easy, non-intrusive current measurement without breaking the circuit while maintaining the accuracy needed for precise power analysis in demanding applications. Utilizing advanced fluxgate technology, it ensures outstanding stability and accuracy in both AC and DC current measurements. With a maximum current rating of 500 A and a wide frequency bandwidth from DC to 500 kHz, it enables accurate detection of rapid current fluctuations. This capability makes it suitable for applications with demanding measurement requirements, such as automotive and power electronics industries.

The current clamp delivers reliable performance across a wide temperature range of -40 °C to 85 °C, ensuring stability even in demanding environments such as engine compartments and outdoor testing locations. It is well-suited for evaluating the current consumption of automotive electrical components, including air compressors and power steering systems. Additionally, its high-accuracy clamp design allows for efficient on-site assessment of IGBT inverters (Insulated Gate Bipolar Transistors) and motor performance. Technicians can use it to conduct precise efficiency evaluations and current measurements, enabling them to quickly identify anomalies or performance degradation, ultimately supporting effective maintenance and diagnostics.

Phase shift correction functions of HIOKI Power Analyzers are supported, including the automatic correction feature of the PW8001 Power Analyzer. By integrating these features, it ensures accurate power analysis in dynamic and high-frequency applications, minimizing measurement errors and enabling higher precision in power evaluation.

Direct connection to HIOKI Power Analyzers and Memory Recorders is possible via the ME15W connector, which also supplies power to the CT6844A. Additionally, when combined with a HIOKI sensor unit (CT9555, CT9556, CT9557), it can be used with oscilloscopes and other data acquisition (DAQ) systems, providing a voltage output ratio of 4 mV/A. Furthermore, its robust construction, 20 mm core diameter, and 3-meter cable length allow for flexible installation in various test environments.

The CT6844A is an essential tool for high-precision current measurement, including WLTP testing (Worldwide harmonized Light vehicles Test Procedure). With a durable design, precise fluxgate technology, and adaptability to various operating environments, it provides reliable measurement performance across both laboratory and field applications.


More than specs – find more details here:
Zero-flux Current Clamps: Accuracy without effort from mA to kA

What's in the Box

  • Carrying Case
  • Markup bands ×6
  • Instruction Manual
