HIOKI 9465-10 - Straight Test Lead with Pogo Pins

HIOKI 9465-10 straight pin type test lead, max. 60 VDC, total length 1900 mm, pogo pin tip with coaxial design, for BT3554 portable battery tester and RM3548 portable resistance meter
Skip image gallery

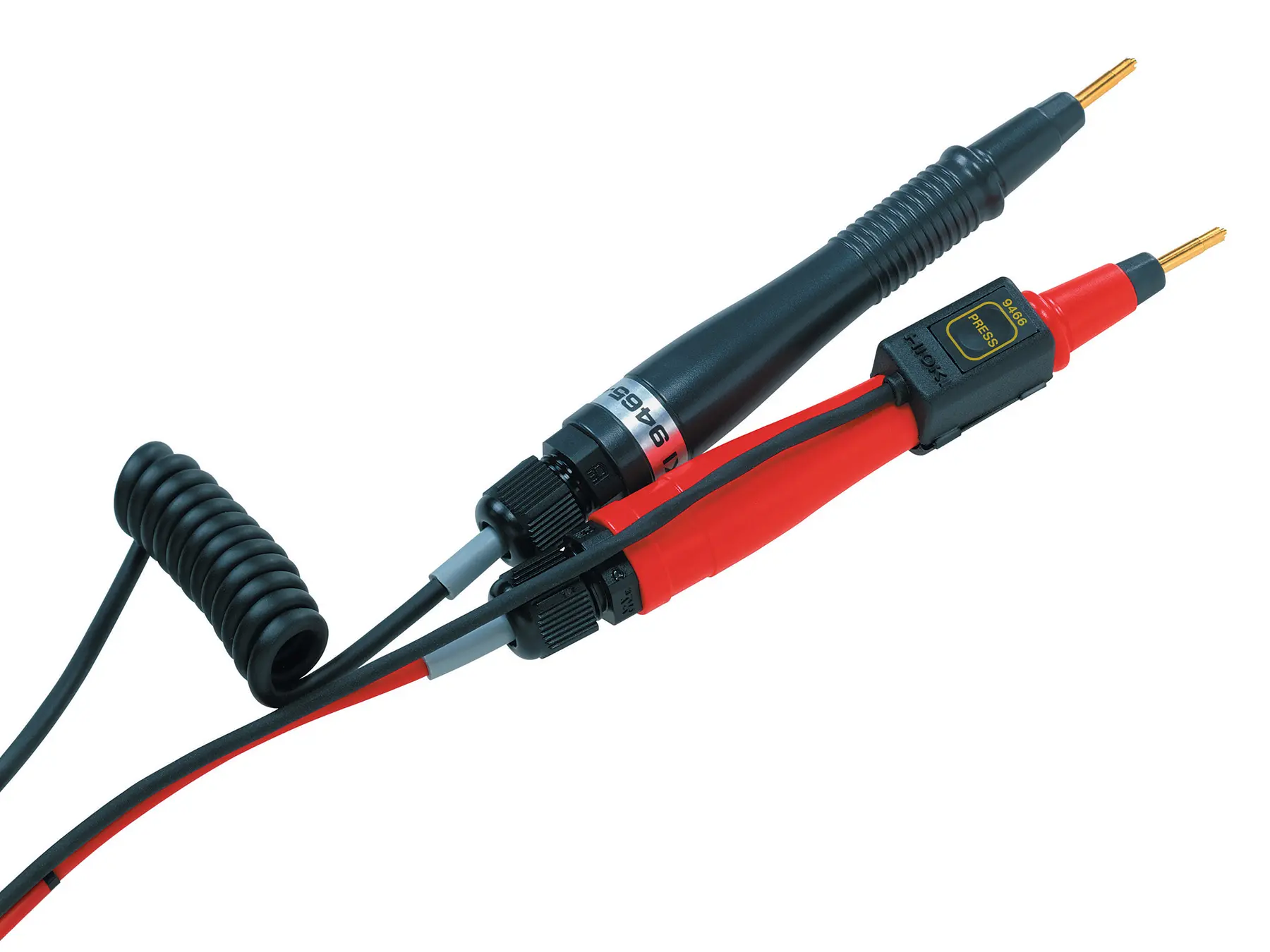

HIOKI 9465-10 - Straight Test Lead with Pogo Pins
HIOKI 9465 10 straight test lead pogo pins 200v max
HIOKI 9465-10 - Straight Test Lead with Pogo Pins
HIOKI 9465 10 straight test lead pogo pins 200v max

€298.00

Content: 1 Each

In stock in Germany

€298.00

HIOKI 9465-10 - Straight Test Lead with Pogo Pins
Product number: 9465-10
Available stock: 5
GTIN/EAN: 4536036008087
Length: 1925 mm
Weight: 0.18 kg

Description

Product information HIOKI 9465-10 - Straight Test Lead with Pogo Pins

The HIOKI 9465-10 test lead with straight pogo-pin tips is designed for use with the portable BT3554 battery testers and RM3548 resistance meters. Rated for a maximum voltage of 60 VDC, it has a total length of approximately 1900 mm, providing ample flexibility to connect the instrument to the test object, even in hard-to-reach areas.

The gold-plated pogo-pin tips, with a coaxial structure featuring a SENSE terminal at the center and a SOURCE terminal on the outer edge, have a diameter of just 2.9 mm. This design makes them ideal for measurements on battery contacts with very limited accessible surface and allows measurements through an inspection hole made in a battery connector cover without requiring the removal of the cover.

The probe tips of the cable are replaceable (replacement tip 9465-90), ensuring a long service life.

Technical Details:
  • Type: Straight test lead with pogo pins, total length 1900 mm
  • Maximum rated voltage: 60 VDC
  • Split-to-probe length: Approx. 100 mm (red), 550 mm at maximum (black)
  • Plug-to-split length: Approx. 1660 mm
  • Contact pressure (approx.): Initial 190 g, total 250 g, stroke 1 mm
  • Pin tips: pogo pins (one on each tip), diameter 2.9 mm, length 13.5 mm
  • For use with: BT3554-50, BT3554-51, BT3554-52, BT3554-91, BT3554-92, RM3548, RM3548-50
  • Also compatible with: BT3554, BT3554-01, BT3554-10, BT3554-11, 3554

What's in the Box

  • 9465-10 Straight Test Lead
  • Instruction Manual
