HIOKI CM4003-90 - AC Leakage Clamp Meter, Bluetooth

Skip image gallery
HIOKI CM4003-90 - AC Leakage Clamp Meter, Bluetooth
HIOKI CM4003 ac leakage clamp meter measuring range of 6ma to 200a

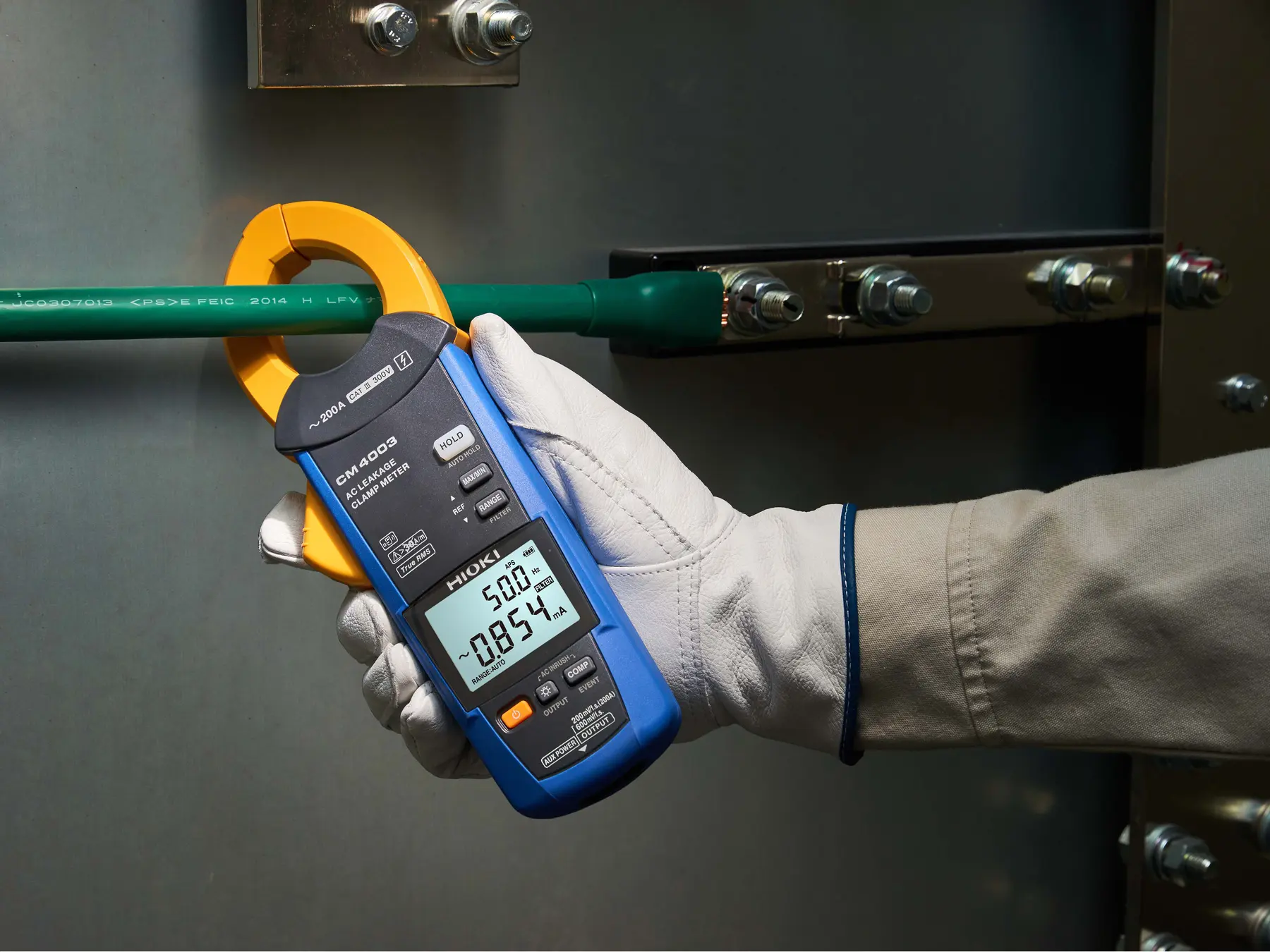

HIOKI CM4003 ac leakage clamp meter true rms
HIOKI CM4003 ac leakage clamp meter bluetooth
HIOKI CM4003 ac leakage clamp meter measuring range of 6ma to 200a
HIOKI CM4003 ac leakage clamp meter true rms
HIOKI CM4003 ac leakage clamp meter bluetooth

€778.00

Content: 1 Each

In stock in Germany

€778.00

HIOKI CM4003-90 - AC Leakage Clamp Meter, Bluetooth
Product number: CM4003-90
Available stock: 1
GTIN/EAN: 4536036013715
Length: 233 mm
Width: 64 mm
Height: 37 mm
Weight: 0.4 kg

Description

Product information HIOKI CM4003-90 - AC Leakage Clamp Meter, Bluetooth

The HIOKI CM4003-90 is a True RMS AC leakage meter with a measuring range of 6mA to 200A and a frequency range of 15 to 2000 Hz. It accommodates conductors up to 40 mm in diameter. The CM4003 offers advanced features such as Max/Min/AVG/PEAK MAX/PEAK MIN value display, display hold and auto-hold, backlight, automatic current saving mode, acoustic signal (buzzer), event display, comparator, simple event recording, and inrush current measurement.

In addition, the HIOKI CM4003 is equipped with a Waveform/RMS output function, allowing the recording of available signals with a memory recorder. The HIOKI CM4003-90 is bundled with the HIOKI Z3210 Bluetooth-Module wireless data transmission.

Technical Details:
  • Measuring range: 6 mA to 200 A
  • Frequency range: 15 to 2000 Hz
  • Cable diameter: Up to 40 mm
  • Key functions: Max/Min/AVG/PEAK MAX/PEAK MIN, display hold, auto-hold, backlight, automatic power-saving mode, buzzer, event display, comparator, simple event recording, inrush current measurement
  • Additional feature: Waveform/RMS output for signal recording with a memory recorder
  • Wireless data transmission via Bluetooth using Z3210 module
