HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance

Industrial digital multimeter with True RMS, 10 A AC/DC direct input and clamp sensor support, AC and DC voltage with LoZ mode, 2000 V DC CAT III with optional P2010, resistance, capacitance, 6000 count, Bluetooth optional with Z3210
Skip image gallery
HIOKI DT4261 industrial digital multimeter for service and maintenance resistance capacitance frequency
HIOKI DT4261 digital multimeter catalog ac dc current voltage
HIOKI DT4261 industrial digital multimeter for service and maintenance
HIOKI DT4261 industrial digital multimeter for service and maintenance true rms ac dc voltage

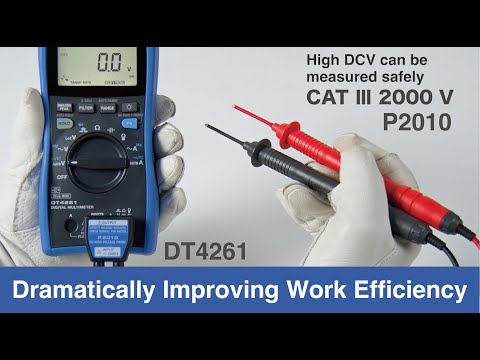

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI DT4261 industrial digital multimeter for service and maintenance resistance capacitance frequency
HIOKI DT4261 digital multimeter catalog ac dc current voltage
HIOKI DT4261 industrial digital multimeter for service and maintenance
HIOKI DT4261 industrial digital multimeter for service and maintenance true rms ac dc voltage
HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance

€288.00

Content: 1 Each

In stock in Germany

€288.00

HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance
Product number: DT4261
Available stock: 2
GTIN/EAN: 4536036013517
Length: 185 mm
Width: 87 mm
Height: 47 mm
Weight: 0.48 kg

Description

Product information HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance


Key Specifications

  • 10 A AC/DC direct input
  • Clamp sensor support
  • LoZ voltage mode
  • CAT III 1000 V, CAT IV 600 V, 2000 V DC CAT III with optional P2010
  • Bluetooth optional with Z3210

Typical Applications

  • Troubleshooting in control cabinets and power distribution systems
  • Verification of supply voltages in industrial installations
  • Measurement on inverter driven systems and motor drives
  • DC voltage measurement in PV strings with optional P2010
  • AC and DC current measurement with direct input or clamp sensors

Detailed Product Overview

The DT4261 is an industrial digital multimeter for service, maintenance and commissioning in electrical installations and industrial systems. It combines direct current measurement up to 10 A with clamp sensor support. DC voltage measurement up to CAT III 2000 V is available when used with the P2010 high voltage divider. Bluetooth communication is available via the Z3210 wireless adapter.

The instrument performs AC, DC and combined AC+DC voltage measurements with True RMS evaluation up to 1000 V. Measurement functions include resistance, capacitance, frequency, diode test and continuity. Additional functions such as MIN/MAX/AVG recording, peak measurement, relative mode and data hold support troubleshooting tasks. It features a 6000 count display and safety ratings up to CAT III 1000 V and CAT IV 600 V.

LoZ Voltage Mode

The DT4261 provides a dedicated LoZ voltage mode with reduced input impedance compared to the standard voltage measurement. In the standard voltage mode, the high input impedance places almost no load on the measurement point. Under certain installation conditions, such as parallel cable routing or long unterminated conductors, small capacitively coupled voltages can remain visible on a high-impedance instrument.

In LoZ mode, the reduced input impedance applies a defined load to the measurement point. Very weak or capacitively coupled voltages are more likely to collapse under this condition, while voltages with sufficient source capability remain stable. This supports clearer evaluation of the actual voltage condition in electrical installations.

Current Measurement

For direct current measurement, the DT4261 provides a 10 A AC/DC input. A fuse check function is automatically performed when switching from clamp measurement to direct current measurement, verifying fuse continuity before measurement.

When used with one of the three compatible HIOKI multi-range current clamps, the DT4261 supports AC current measurements from 10 A up to 1000 A. The 9010-50 covers measurement ranges from 10 A up to 500 A with a frequency bandwidth up to 1 kHz. The 9132-50 extends the measurement range from 20 A up to 1000 A with a frequency bandwidth up to 1 kHz. The 9018-50 covers ranges from 10 A up to 500 A and provides an extended frequency bandwidth up to 3 kHz with higher amplitude and phase accuracy compared to the 9010-50.

All three current clamps provide a voltage output proportional to the measured current and are connected via the 9704 BNC adapter. When using one of these multi-range clamps, the corresponding measurement range is selected manually on the instrument to match the clamp setting.

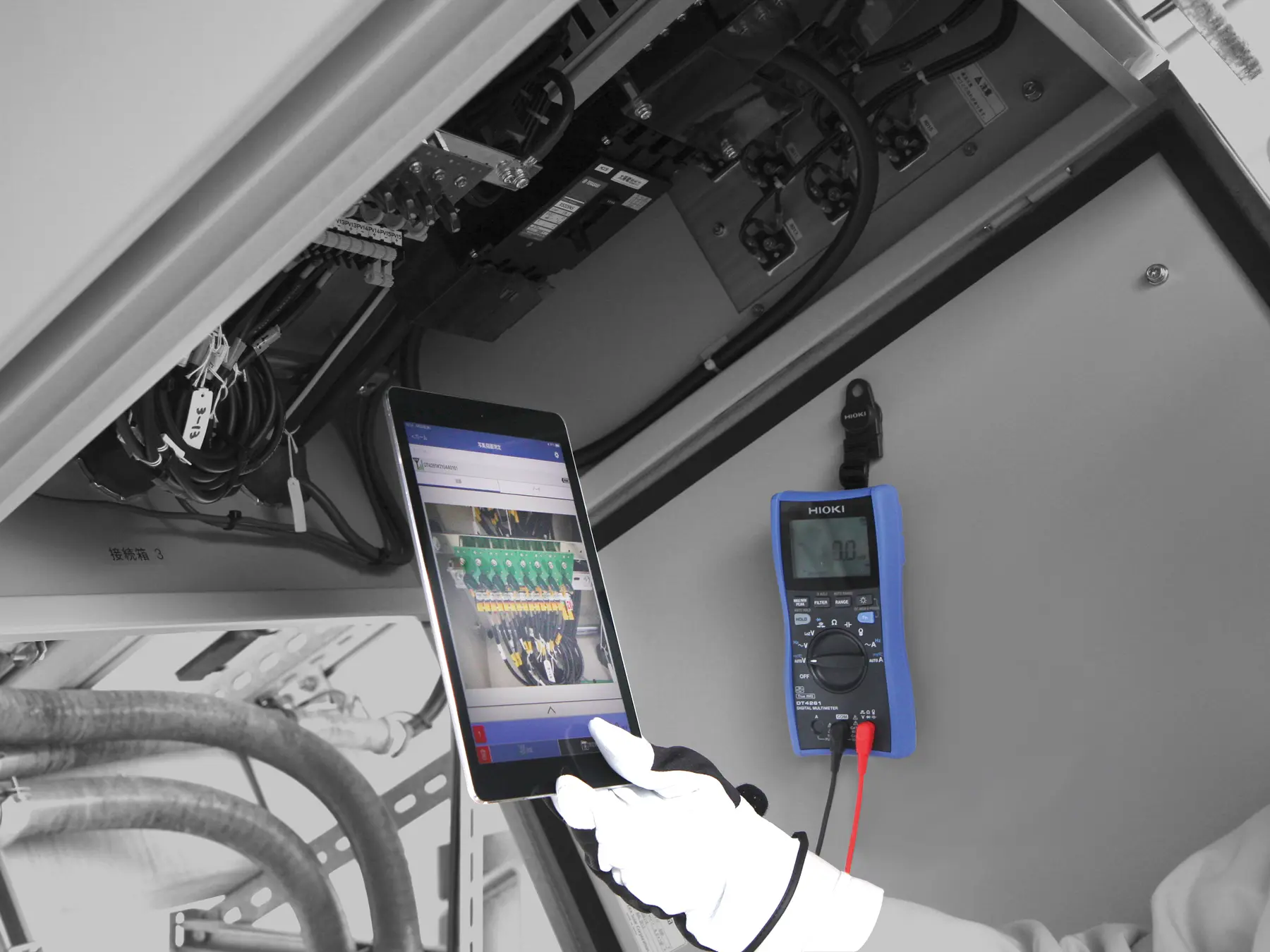

Wireless and PC Communication

With the optional Z3210 wireless adapter installed, the DT4261 enables Bluetooth communication with the free GENNECT Cross app for Android and iOS. Measured values can be transferred to a smartphone or tablet for documentation, evaluation and harmonic analysis of voltage signals, for example in power supply systems or photovoltaic inverters.

Using the HID function of the Z3210, measured values can also be transferred directly into Excel templates or other applications. In HID mode, the adapter is recognized by the operating system as a Bluetooth keyboard. For PC-based applications, the DT4261 supports communication via the optional DT4900-01 USB Communication Pack. The optically isolated adapter enables USB connection to a Windows PC for data transfer and remote control of the instrument. Bluetooth communication via Z3210 and PC communication via DT4900-01 cannot be used simultaneously.

Operational Safety and Robust Design

To prevent incorrectly inserted test leads, the DT4261 incorporates terminal shutters linked to the rotary switch. Depending on the selected measurement function, unused input terminals are mechanically blocked. Excessive input conditions are indicated by a red backlight.

The instrument operates within an ambient temperature range of -25 °C to 65 °C and withstands drops onto concrete from a height of 1 m under specified test conditions. Automatic AC/DC voltage detection and visual HOLD indication support measurement tasks in industrial environments.

The DT4261 is supplied with the L9300 test leads, rated for current measurements up to 10 A. The L9300 test leads feature integrated safety caps. The measurement category is adjusted by sliding the cap to change the exposed contact length. The permanent connection between cap and probe tip prevents removal or loss.

The instrument is powered by three LR6 AA alkaline batteries and provides an operating time of up to 130 hours. When used with the Z3210 wireless adapter, operating time is typically up to 70 hours. Developed and manufactured in Japan, the DT4261 reflects HIOKI’s long-standing commitment to precision, reliability and controlled production quality.

What's in the Box

  • DT4261 Industrial Digital Multimeter
  • Instrument Protector
  • L9300 Test Lead Set
  • Instruction Manual
  • Operating Precautions
  • 3 × LR6 AA alkaline batteries
Skip product gallery

Related Products

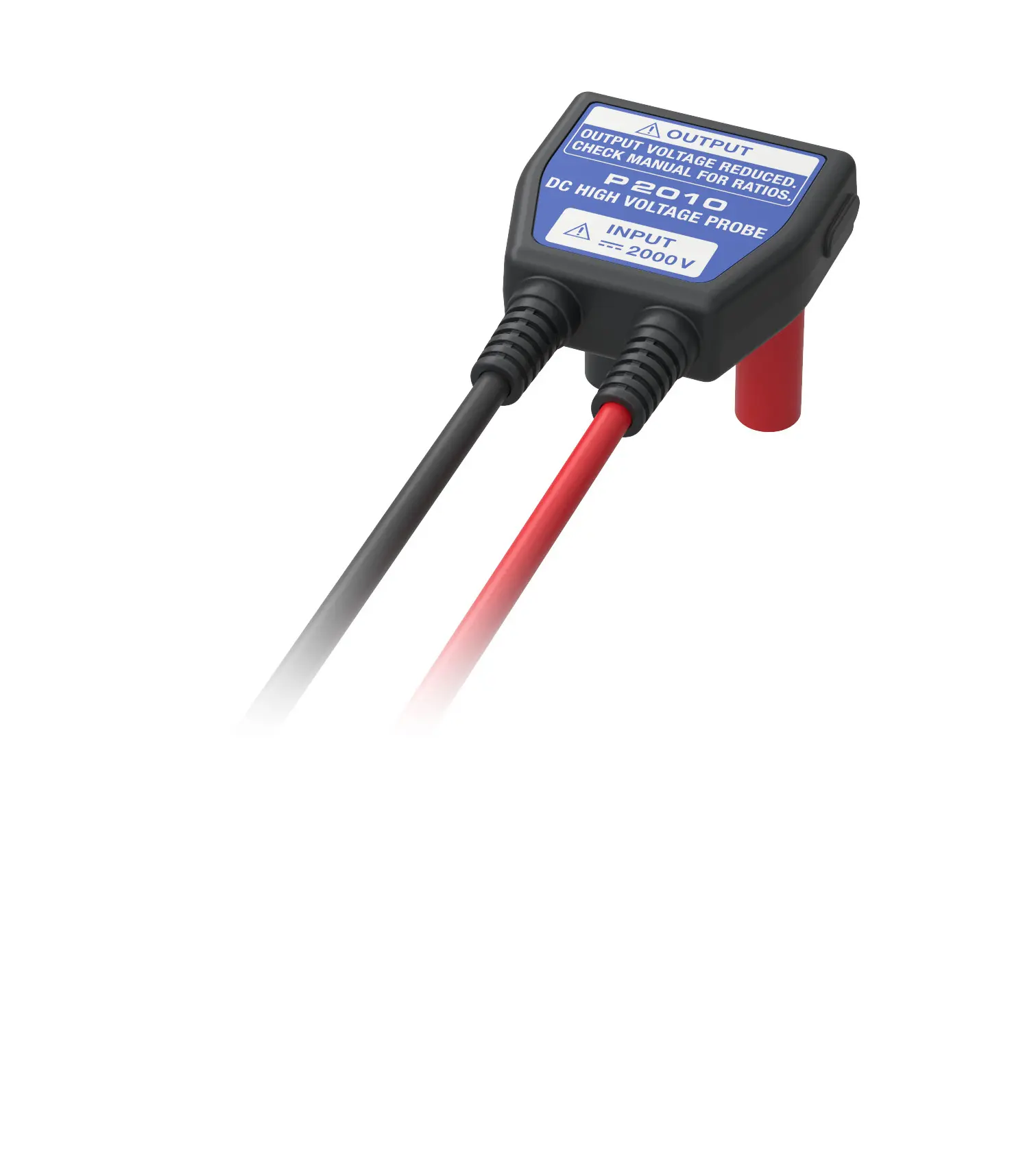

P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
P2010
P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
High voltage divider for safe DC measurement up to CAT III 2000 V or CAT IV 1000 V, division ratio 1/10. Designed to look and feel like compact test leads with standard 4 mm output connectors

€188.00
View product
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Z3210
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Bluetooth adapter for data transfer from compatible HIOKI instruments to Windows, iOS or Android devices using GENNECT Cross or HID keyboard profile

€118.00
View product
DT4900-01 - USB Communication Package for HIOKI Digital Multimeters
DT4900-01
DT4900-01 - USB Communication Package for HIOKI Digital Multimeters
USB communication pack with optical communication adapter, USB cable and Windows PC software available for download. Compatible with DT4282, DT4281, DT4261, DT4256, DT4255, DT4253 and DT4252

€138.00
View product
9704 - BNC Adapter, BNC Female to 2 × 4 mm Banana Plug, CAT III 600 V 9704 - BNC Adapter, BNC Female to 2 × 4 mm Banana Plug, CAT III 600 V
9704
9704 - BNC Adapter, BNC Female to 2 × 4 mm Banana Plug, CAT III 600 V
BNC adapter, BNC female to 2 × 4 mm banana plugs, 19 mm plug spacing, CAT III 600 V

€38.00
View product
9010-50 - AC Multi-Range Current Clamp, 500 A, 1 kHz, BNC Output 9010-50 - AC Multi-Range Current Clamp, 500 A, 1 kHz, BNC Output
9010-50
9010-50 - AC Multi-Range Current Clamp, 500 A, 1 kHz, BNC Output
AC multi-range current clamp, 6 selectable ranges from 10 A to 500 A AC, BNC output with 0.2 V AC f.s., frequency bandwidth 1 kHz, CAT III 600 V

€168.00
View product
9018-50 - AC Multi-Range Current Clamp, 500 A, 3 kHz, BNC Output 9018-50 - AC Multi-Range Current Clamp, 500 A, 3 kHz, BNC Output
9018-50
9018-50 - AC Multi-Range Current Clamp, 500 A, 3 kHz, BNC Output
AC multi-range current clamp, 6 selectable ranges from 10 A to 500 A AC, BNC output with 0.2 V AC f.s., frequency bandwidth 3 kHz, CAT III 600 V

€338.00
View product

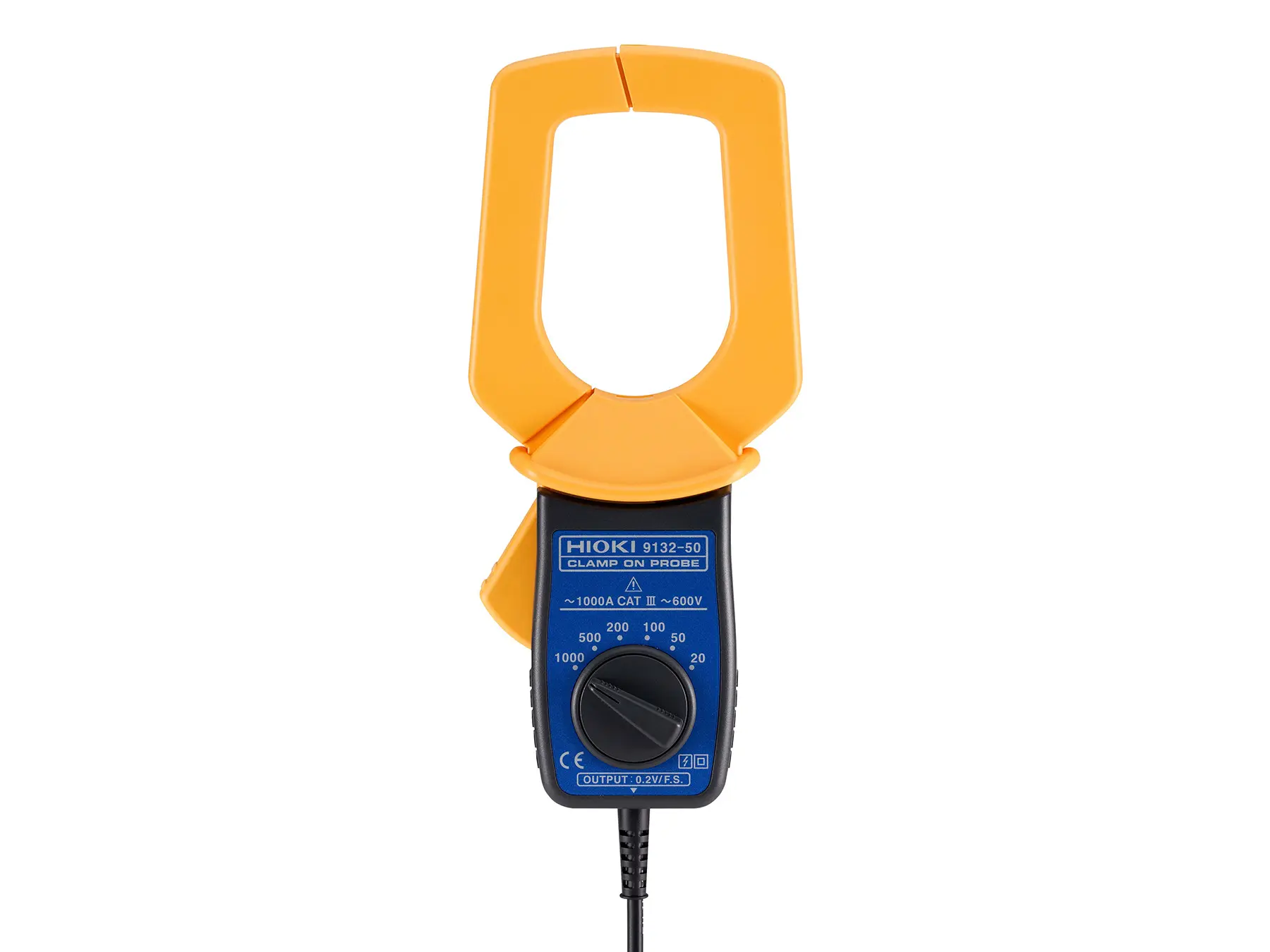

9132-50 - AC Multi-Range Current Clamp, 1000 A, 1 kHz, BNC Output 9132-50 - AC Multi-Range Current Clamp, 1000 A, 1 kHz, BNC Output
9132-50
9132-50 - AC Multi-Range Current Clamp, 1000 A, 1 kHz, BNC Output
AC multi-range current clamp, 6 selectable ranges from 20 A to 1000 A AC, BNC output with 0.2 V AC f.s., frequency bandwidth 1 kHz, CAT III 600 V

€288.00
View product

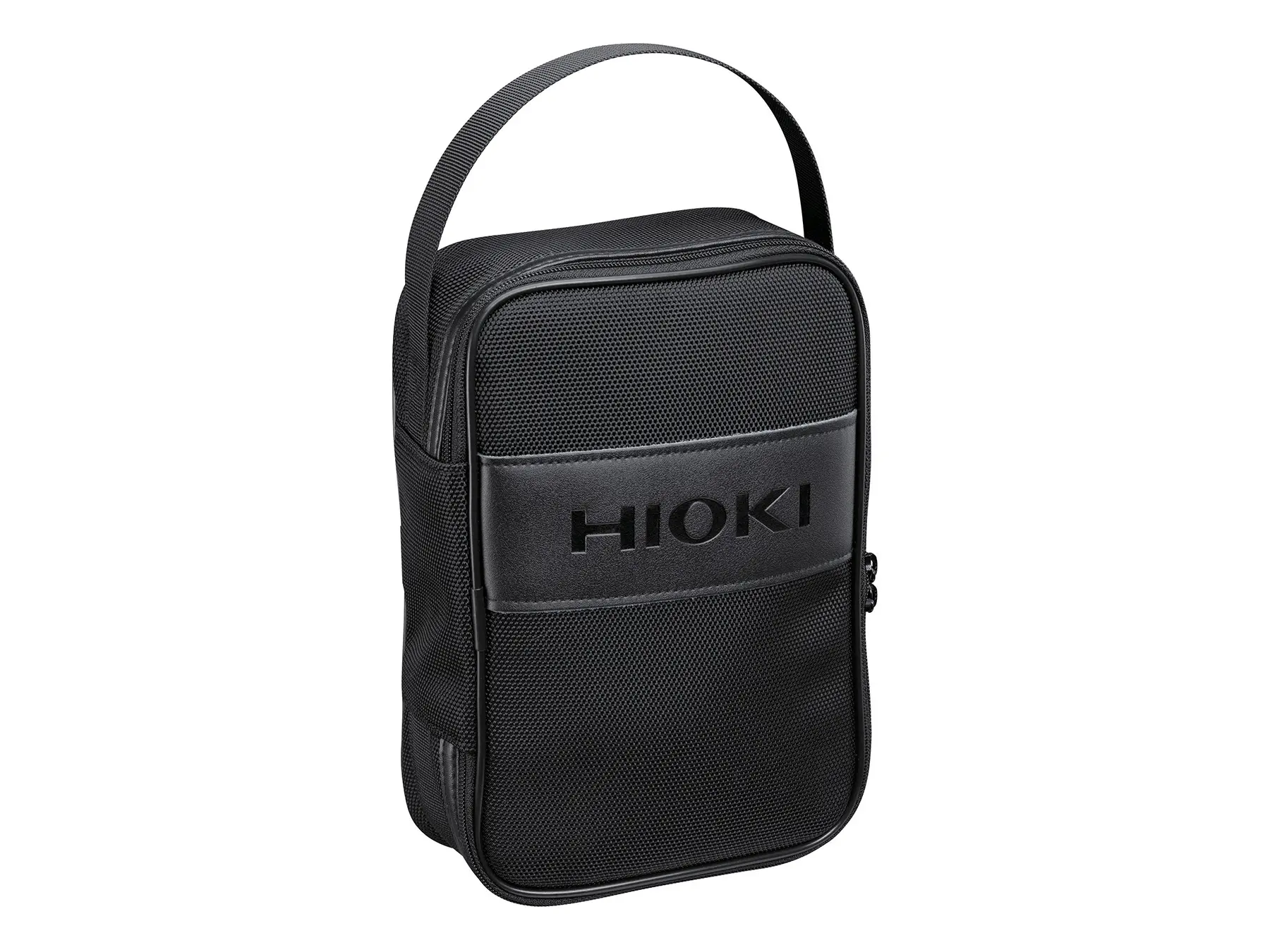

HIOKI C0202 - Carrying Case for Digital Multimeters and Lux Meters HIOKI C0202 - Carrying Case for Digital Multimeters and Lux Meters
C0202
HIOKI C0202 - Carrying Case for Digital Multimeters and Lux Meters
Soft carrying case for compatible HIOKI Digital Multimeters and Lux Meters, external dimensions 21 × 15 × 7 cm, internal dimensions 19.5 × 13.5 × 5.5 cm

€48.00
View product

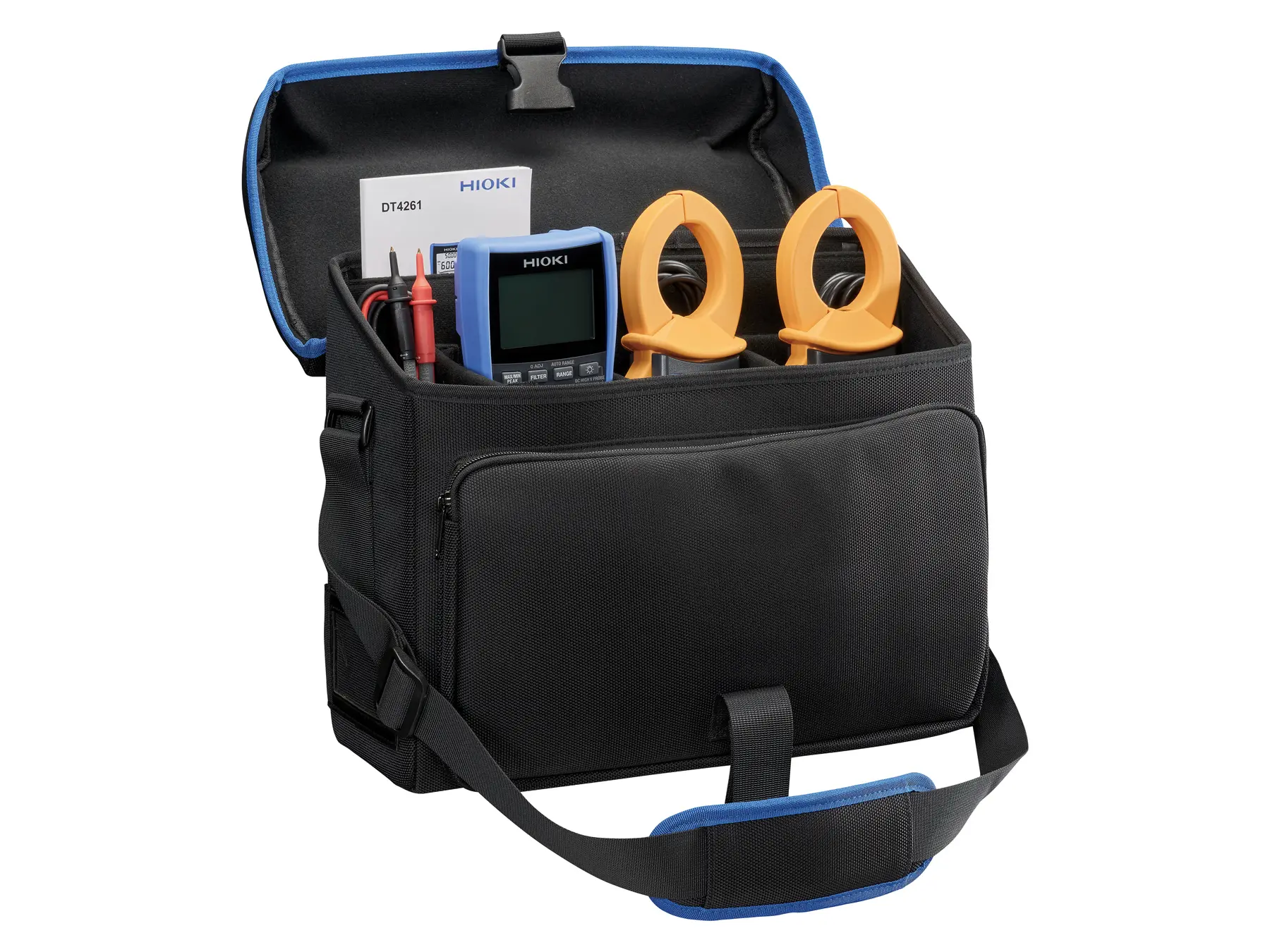

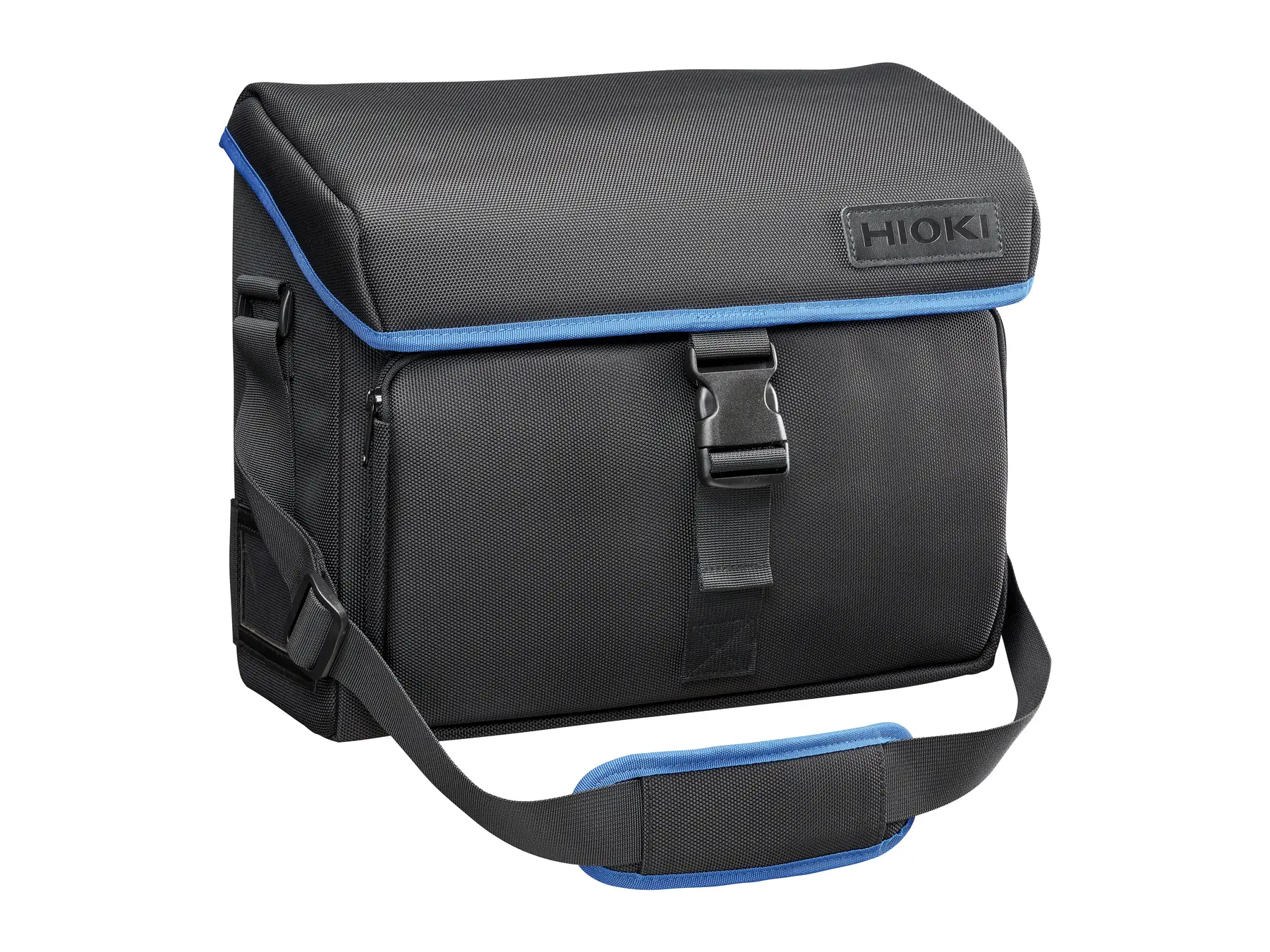

HIOKI C0207 instrument carrying case with adjustable compartments for multimeters HIOKI C0207 instrument carrying case with adjustable compartments
C0207
C0207 - Instrument Carrying Case with Adjustable Compartments
Carrying case with adjustable main compartment for multiple instruments and accessories, external dimensions 37 × 19 × 28 cm, internal main compartment 33.5 to 34.5 × 12 to 13 × 22 to 26 cm

€188.00
View product

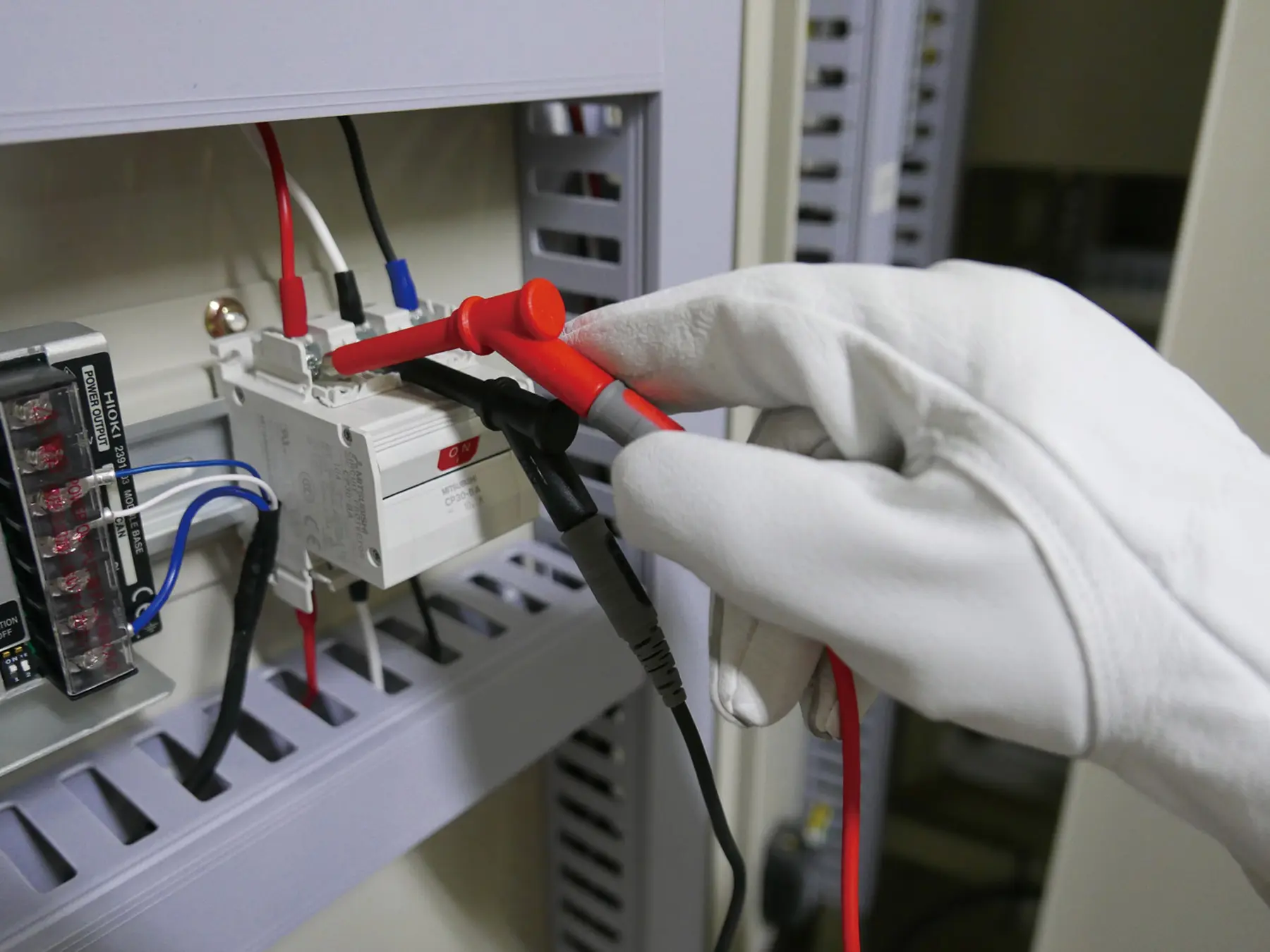

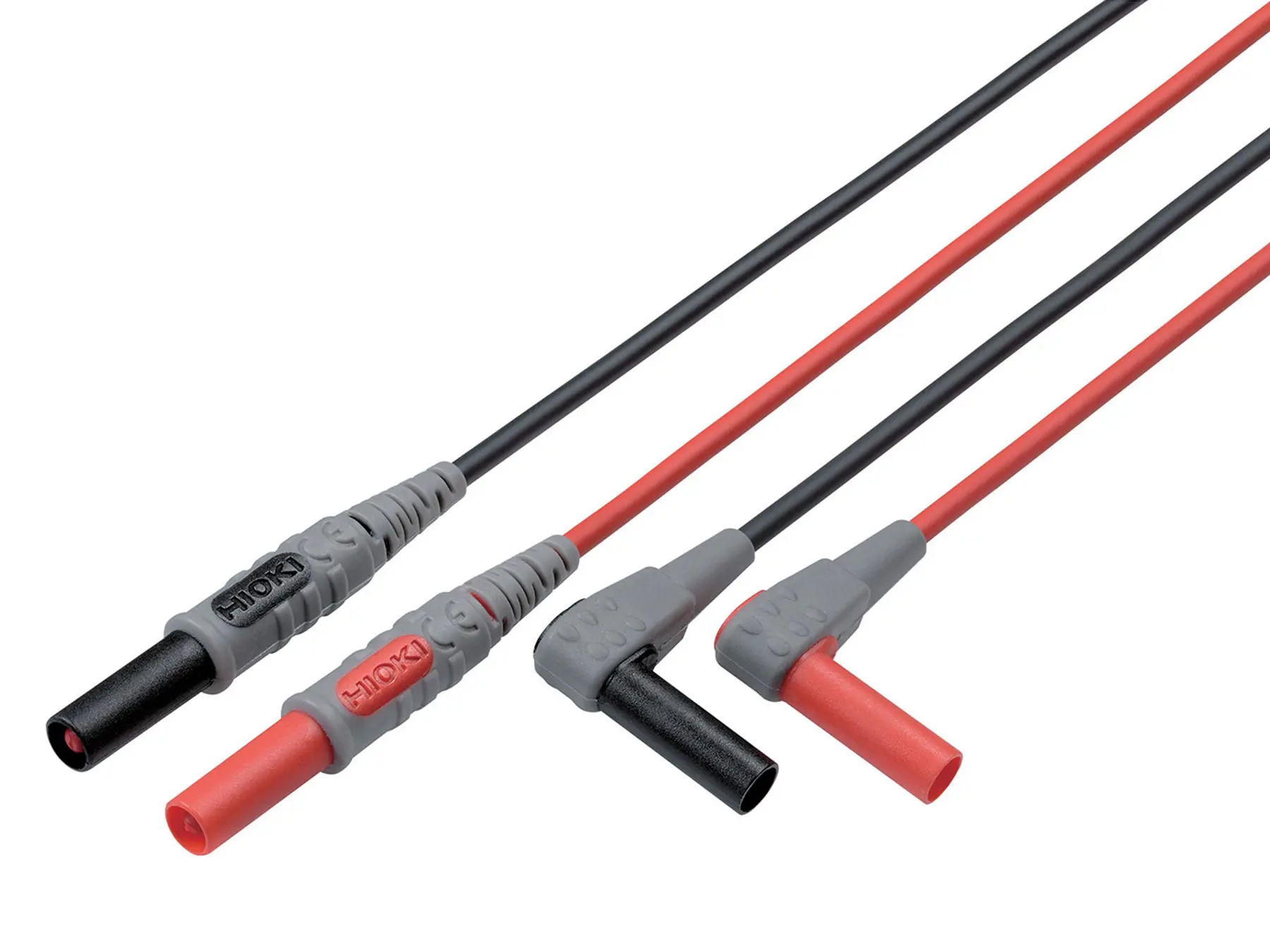

HIOKI L4930 - CONNECTION CABLE SET HIOKI L4930 connection cable set 1 2m for dt4250 dt4280
L4930
HIOKI L4930 - CONNECTION CABLE SET
The cable set contains two cables (red and black) usable for the DT4280/DT4250 multimeter series to connect with L493x series test pins and clips. Technical Details: 1.2 m length CATIV 600V, CATIII 1000V Contact protection Contact diameter 4 mm (Banana plug) Protective caps

€28.00
View product

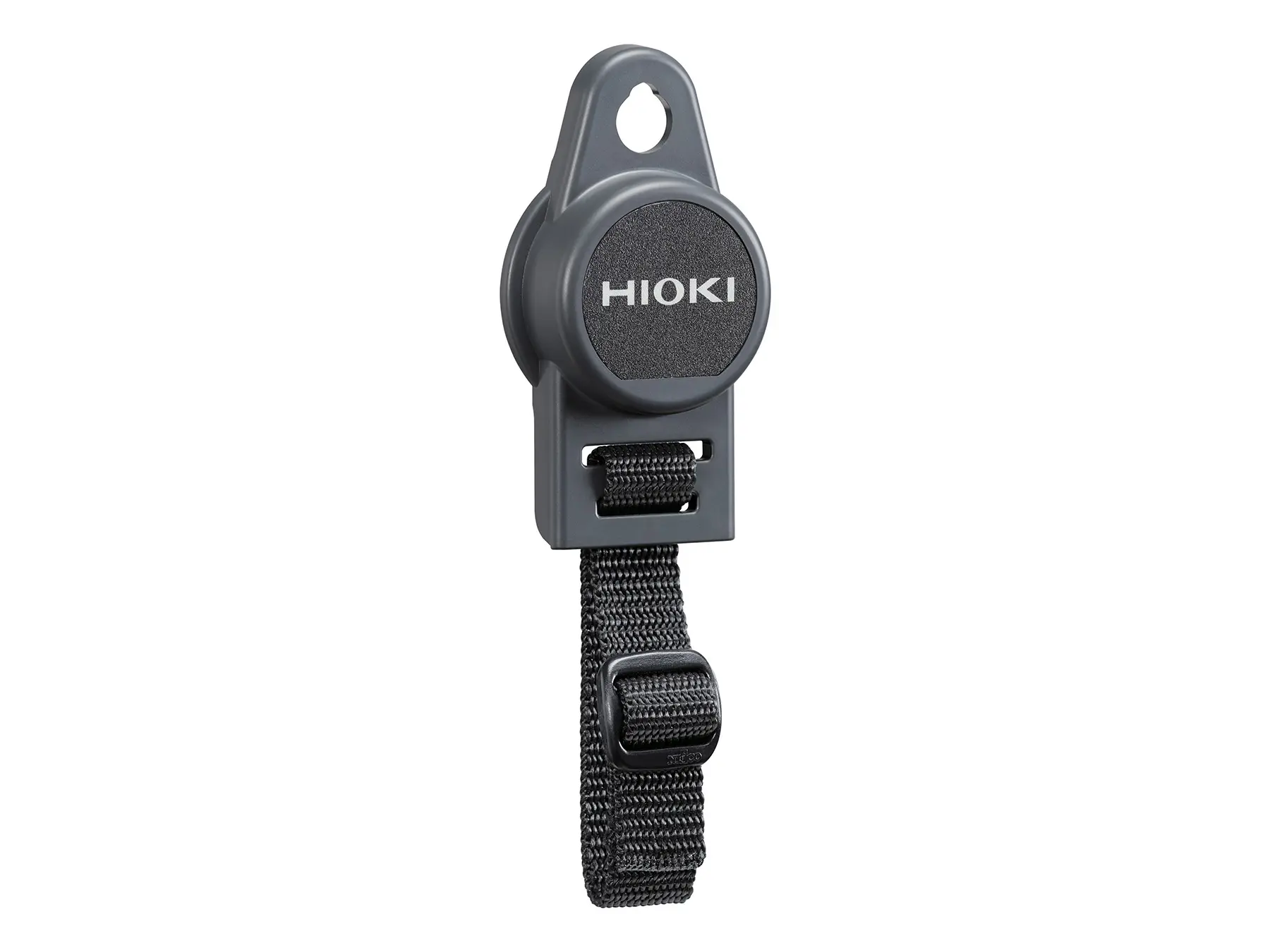

Z5020 - Extra Strong Magnetic Strap HIOKI Z5020 extra strong magnetic strap magnetic holding belt
Z5020
Z5020 - Extra Strong Magnetic Strap
The HIOKI Z5020 is a holding strap with an extra-strong magnet that can be used with data loggers in the HIOKI LR85xx / HIOKI LR5000 series, the HIOKI PD3259 phase detector and similar products, as well as digital multimeters in the HIOKI DT42xx series.

€68.00
View product
HIOKI DT4253 true rms digital multimeter for process and instrumentation applications HIOKI DT4253 true rms digital multimeter for process and instrumentation applications 4 20ma process measurement percentage display
DT4253
DT4253 - True RMS digital multimeter for process and instrumentation applications
Key SpecificationsDC voltage measurement range: 600 mV to 1000 V AC voltage measurement range: 6 V to 1000 V Current measurement ranges: 60.00 µA / 600.0 µA / 6.000 mA / 60.00 mA 4–20 mA process measurement with percentage display: 0–100% (4 mA = 0%, 20 mA = 100%)Temperature measurement range: −40 °C to +400 °C (K-type) Safety rating: CAT III 1000 V / CAT IV 600 V  Detailed Product OverviewThe HIOKI DT4253 is a True RMS digital multimeter specifically designed for process measurement as well as service and maintenance applications. It is ideally suited for use in control and regulation circuits, HVAC systems, and gas and oil burner systems. A key distinguishing feature of the DT4253 is its high-resolution DC µA measurement range up to 60 µA, which is specifically designed for flame current and ionization measurements in gas and oil burner systems. This allows reliable verification of burner operation as well as associated safety and monitoring circuits. Building on this, the DT4253 supports 4–20 mA process measurement with direct percentage display. Transmitter and control signals are displayed immediately as a percentage value (0–100%), eliminating the need for manual calculation. The dual display allows simultaneous indication of the measured value and the percentage value, significantly simplifying the evaluation of process signals. For extended applications, the DT4253 can be used in combination with external AC clamp-on probes. This enables non-contact AC current measurement without interrupting the circuit. The functional range is further expanded by temperature measurement using a K-type thermocouple as well as automatic AC/DC voltage detection, which simplifies measurements in mixed environments and reduces operating errors.Thanks to its robust design, fast response time, and safety rating CAT III 1000 V / CAT IV 600 V, the DT4253 is a reliable tool for professional use in industrial and building technology environments. The DT4253 is the ideal choice for precise measurement of flame currents, process signals, and small DC currents in daily service and maintenance work.

€258.00
View product
DT4282 - DIGITAL MULTIMETER DT4282 - DIGITAL MULTIMETER
DT4282
DT4282 - DIGITAL MULTIMETER
The DT4282 Digital Multimeter offers a versatile and reliable solution for precision electrical measurements. Equipped with a 5-digit display and advanced features, this multimeter is ideal for professionals handling a variety of applications, from basic voltage and current measurements to more complex functions such as capacitance, frequency, and data logging. Its robust safety ratings ensure secure usage in demanding environments.Technical Details: Display: 5-digit, 60,000 counts Measurement functions: AC/DC voltage, AC/DC current, resistance, conductance, capacitance, temperature, frequency, diode test, continuity test Additional functions: dB (voltage), % (current), data memory, auto range, true RMS Safety range: CAT III 1000V, CAT IV 600V Basic accuracy: ±0.025 % (DC voltage)

€568.00
View product
HIOKI DT4224 digital multimeter cat iv 300v cat iii 600v includes dt4911 testlead HIOKI DT4224 digital multimeter cat iii 600v cat iv 300v portable
DT4224
HIOKI DT4224 - Universal Pocket Digital Multimeter
Pocket digital multimeter with True RMS, AC and DC voltage, resistance, capacitance, frequency, diode test, continuity, 6000 count display, CAT III 600 V, CAT IV 300 V

€168.00
View product
HIOKI DT4223 digital multimeter cat iii 600v cat iv 300v installation and service HIOKI DT4223 digital multimeter cat iii 600v cat iv 300v
DT4223
HIOKI DT4223 - Pocket Digital Multimeter for Installation and Service
Pocket digital multimeter with True RMS, AC and DC voltage with automatic AC/DC detection, resistance, frequency, continuity, voltage detection function, 6000 count display, CAT III 600 V, CAT IV 300 V

€138.00
View product

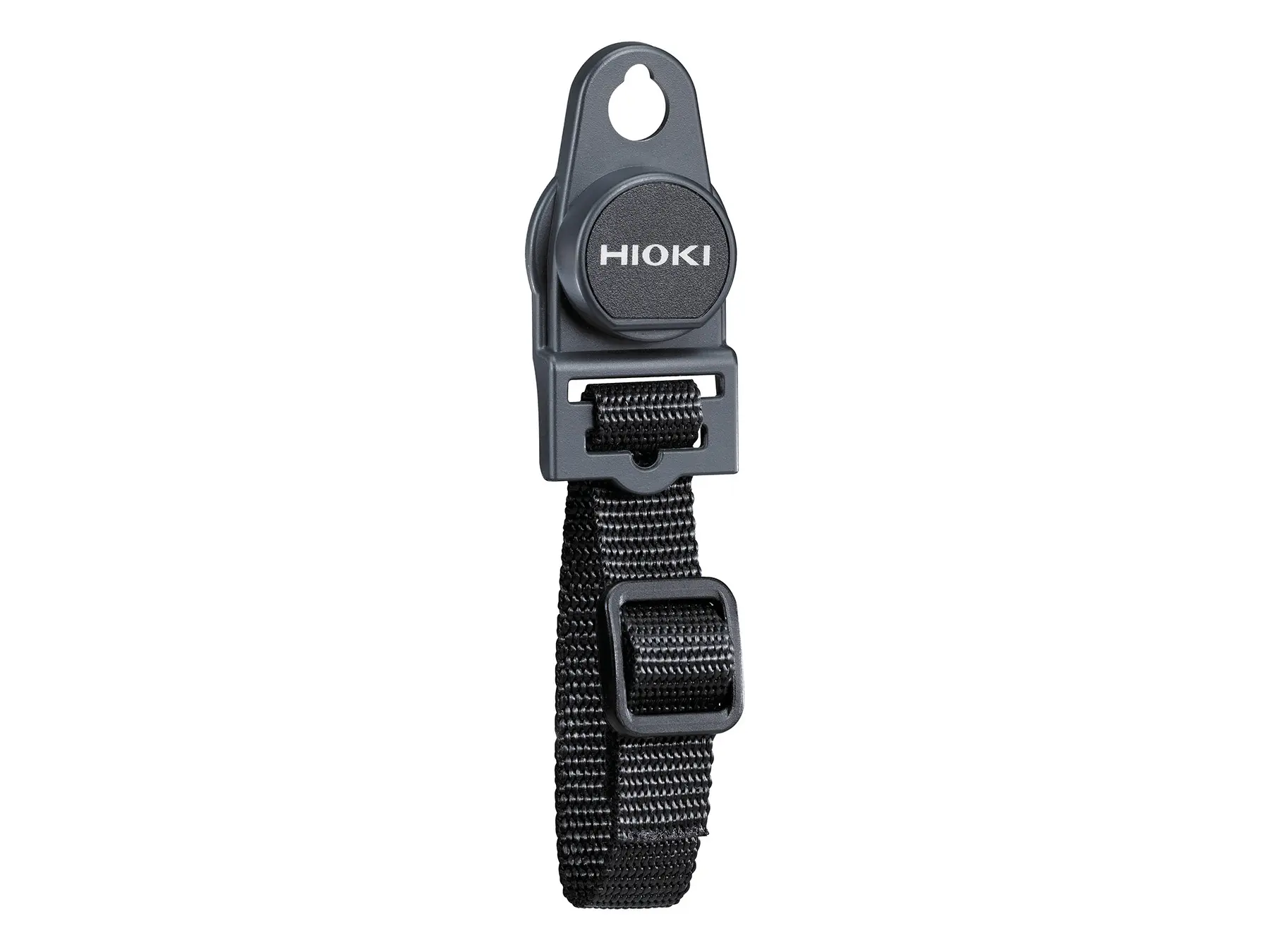

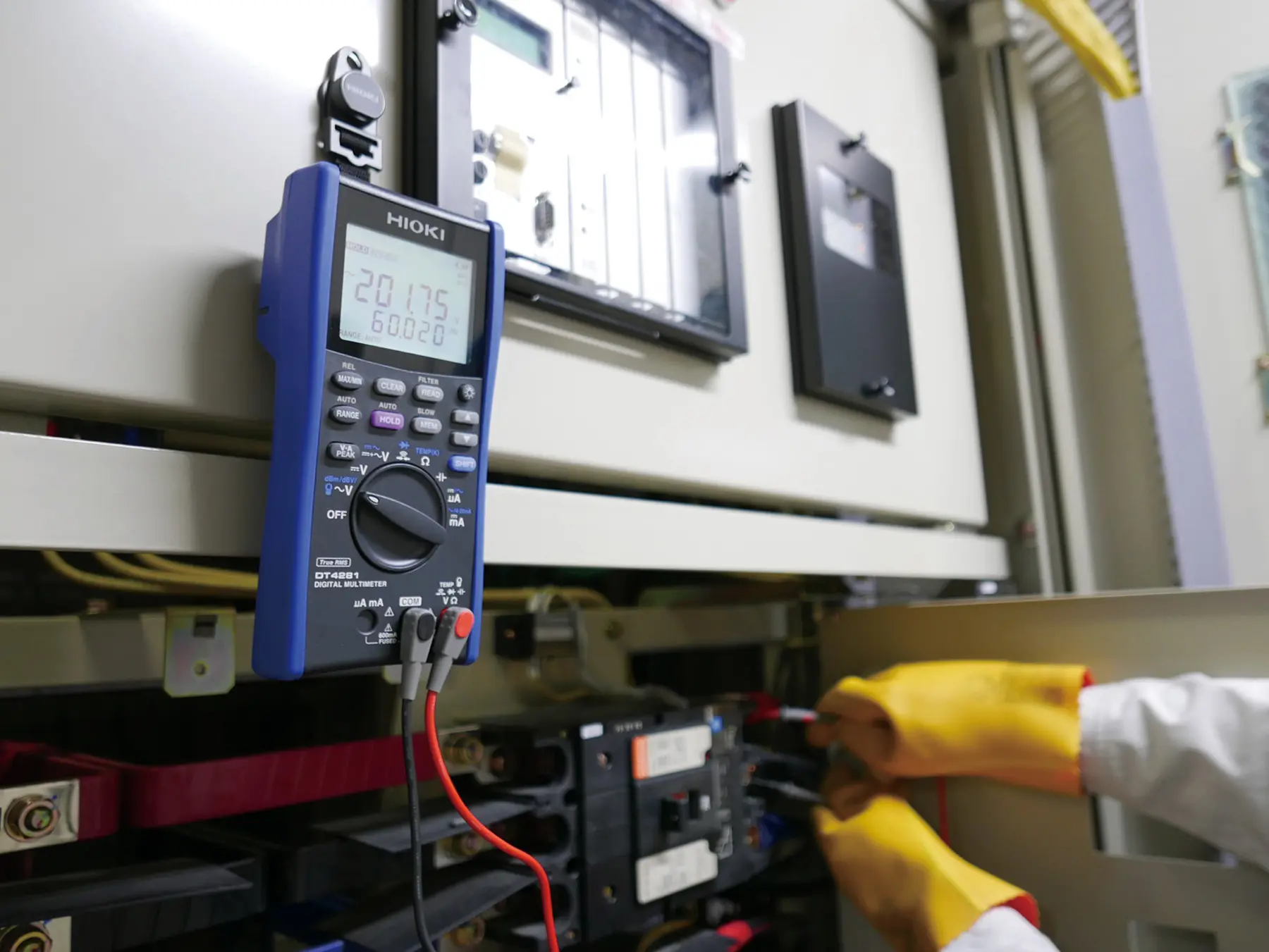

Z5004 - Magnetic Strap HIOKI Z5004 magnetic strap field use multimeter
