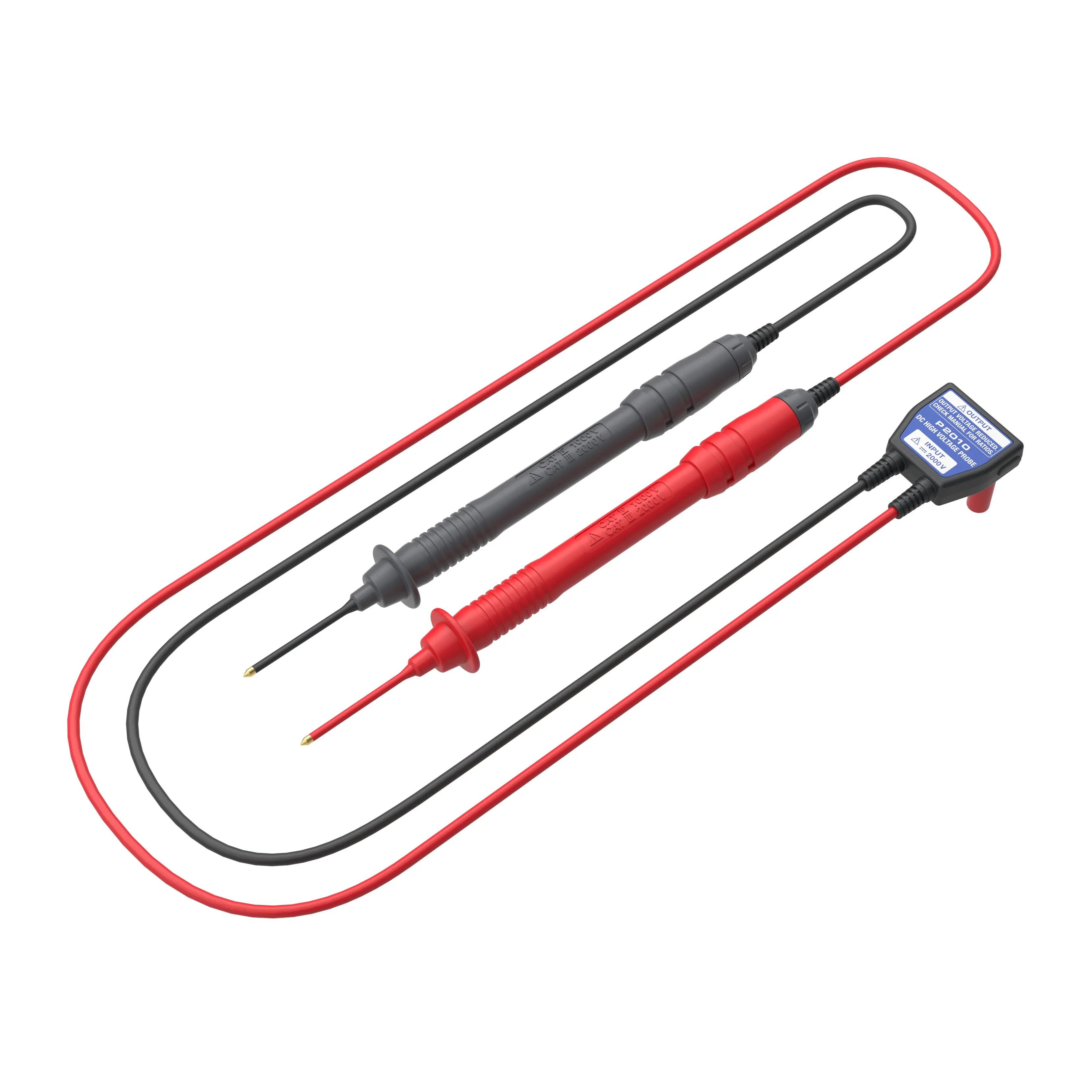

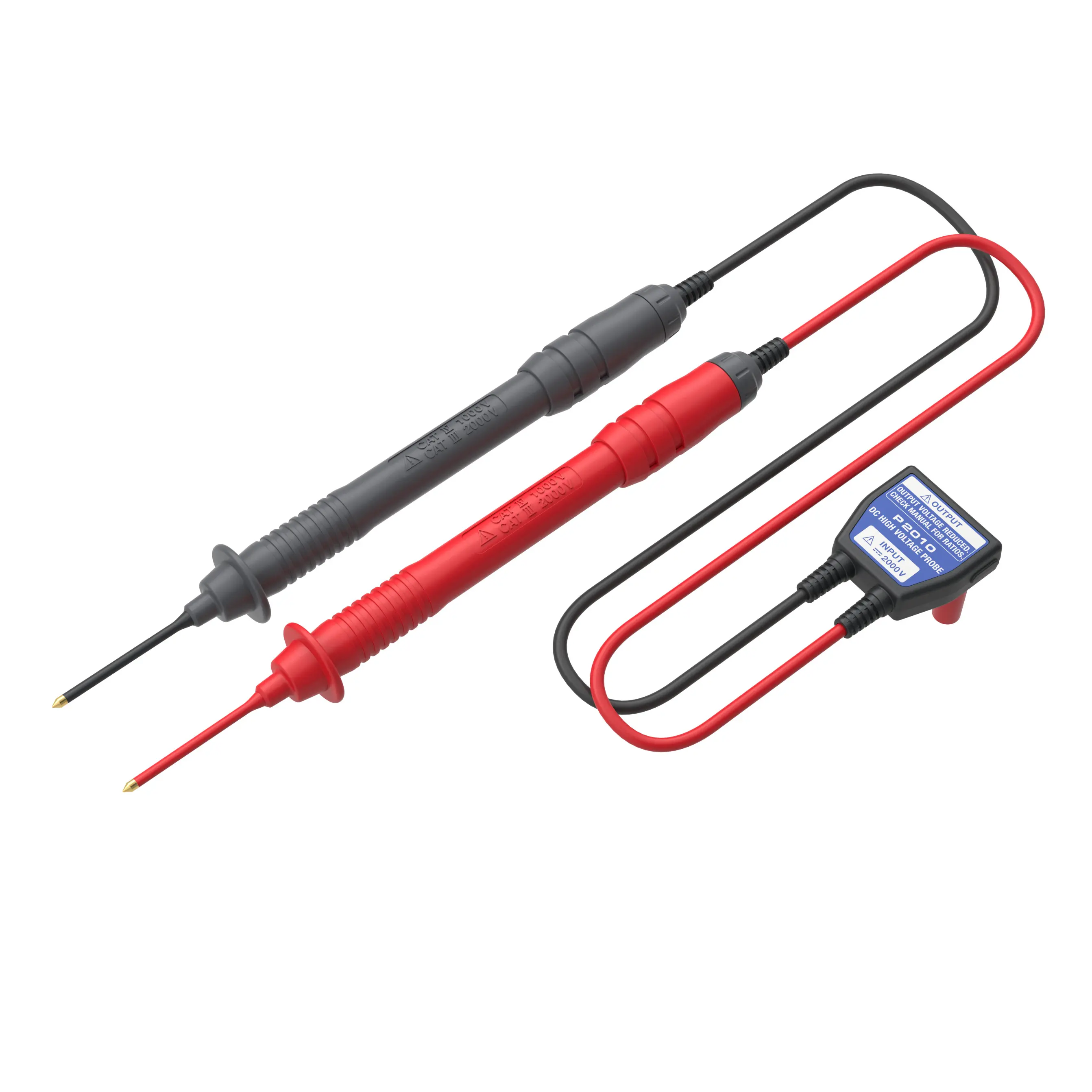

P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V

High voltage divider for safe DC measurement up to CAT III 2000 V or CAT IV 1000 V, division ratio 1/10. Designed to look and feel like compact test leads with standard 4 mm output connectors
Skip image gallery
P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V

€188.00

Content: 1 Each

In stock in Germany

€188.00

P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V
Product number: P2010
Available stock: 1
GTIN/EAN: 4536036015658
Length: 1700 mm
Weight: 0.15 kg

Description

Product information P2010 - High Voltage Divider for DC Measurement up to CAT III 2000 V

Key Specifications

  • DC measurements up to CAT III 2000 V
  • DC measurements up to CAT IV 1000 V
  • Division ratio 1/10

Typical Applications

  • Measurement of today’s 1500 V PV strings
  • Testing of high-voltage EV batteries and DC bus circuits
  • Maintenance and troubleshooting in industrial high-voltage environments

Detailed Product Overview

The P2010 High Voltage Divider enables DC measurements up to CAT III 2000 V and CAT IV 1000 V and is designed for use with compatible HIOKI clamp multimeters and digital multimeters. It enables safe testing in applications such as 1500 V photovoltaic strings or high-voltage battery environments, where higher voltages are increasingly common.

Designed to look and feel like compact test leads, it features standard 4 mm banana connectors at the output. This familiar interface ensures simple connection to compatible HIOKI instruments while maintaining full safety compliance. The long and slim probe tip allows reliable contact even in confined or recessed measurement points.

Designed for HIOKI multimeters
The P2010 is compatible with HIOKI CM4371-50, CM4371-90, CM4373-50, CM4373-90, CM4375-50, CM4375-90 clamp multimeters, and the DT4261 digital multimeter. With a division ratio of 1/10, it provides accurate scaling for high voltage signals in demanding applications.

As is typical for HIOKI instruments, this high voltage divider was also designed and is manufactured in Japan at HIOKI’s own factories in Nagano Prefecture, ensuring precise performance, safety, and long-term reliability

What's in the Box

  • P2010 High Voltage Divider
  • Instruction Manual
  • Safety Instructions
Skip product gallery

Related products

HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
CM4373-50
HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth with Z3210

€508.00
View product
HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws
CM4375-50
HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws
True RMS clamp multimeter with 1000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 34 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth optional

€558.00
View product
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
CM4371-50
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
True RMS clamp multimeter with 20 A / 600 A ranges for AC/DC currents, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 33 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth (Z3210)

€488.00
View product
HIOKI DT4261 industrial digital multimeter for service and maintenance resistance capacitance frequency HIOKI DT4261 digital multimeter catalog ac dc current voltage
DT4261
HIOKI DT4261 - Industrial Digital Multimeter for Service and Maintenance
Industrial digital multimeter with True RMS, 10 A AC/DC direct input and clamp sensor support, AC and DC voltage with LoZ mode, 2000 V DC CAT III with optional P2010, resistance, capacitance, 6000 count, Bluetooth optional with Z3210

€288.00
View product
HIOKI CM4371-90 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
CM4371-90
HIOKI CM4371-90 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
True RMS clamp multimeter with 20 A / 600 A ranges for AC/DC currents, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 33 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush measurement, Bluetooth included

€548.00
View product
HIOKI CM4373-90 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
CM4373-90
HIOKI CM4373-90 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth included (Z3210)

€568.00
View product
HIOKI CM4375-90 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws HIOKI CM4375-90 ac dc clamp multimeter 1000A bluetooth
CM4375-90
HIOKI CM4375-90 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws
True RMS clamp multimeter with 1000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 34 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth included (Z3210)

€618.00
View product

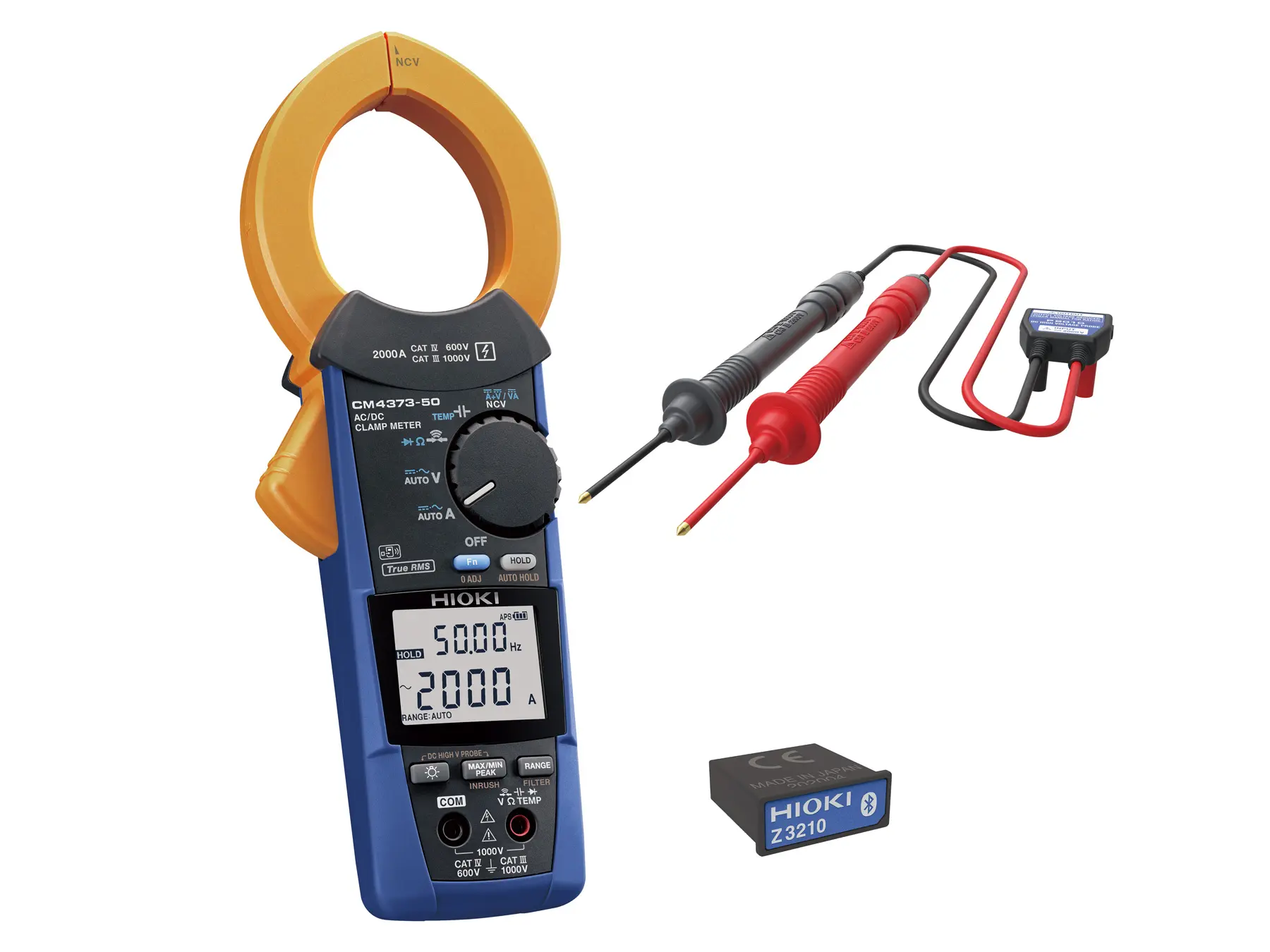

HIOKI CM4373-93 clamp multimeter kit 2000a ac dc 2000v dc bluetooth
CM4373-93
HIOKI CM4373-93 - Clamp Multimeter Kit, 2000 A AC/DC, 2000 V DC and Bluetooth
Clamp multimeter kit including CM4373-50, Z3210 Bluetooth adapter, and P2010 High Voltage Divider. 2000 A AC/DC, 55 mm jaw diameter, CAT IV 600 V / CAT III 1000 V, up to 2000 V DC CAT III with P2010

€628.00
View product
HIOKI CM4375-93 clamp multimeter pv kit 1000a ac dc 2000v dc bluetooth
CM4375-93
HIOKI CM4375-93 - Clamp Multimeter PV Kit, 1000 A AC/DC, 2000 V DC and Bluetooth
Clamp multimeter kit including CM4375-50, Z3210 Bluetooth adapter, and P2010 High Voltage Divider. 1000 A AC/DC, 34 mm jaw diameter, CAT IV 600 V / CAT III 1000 V, up to 2000 V DC CAT III with P2010

€688.00
View product
HIOKI CM4141-50 true rms clamp multimeter 2000a ac compact design HIOKI CM4141-50 true rms clamp multimeter 2000a ac low current
CM4141-50
HIOKI CM4141-50 - True RMS Clamp Multimeter, 2000 A AC with 3 Current Ranges
True RMS clamp multimeter with 3 AC current ranges (60 A, 600 A, 2000 A) and voltage up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm conductor diameter; resistance, continuity, diode test, inrush, Bluetooth optional

€398.00
View product

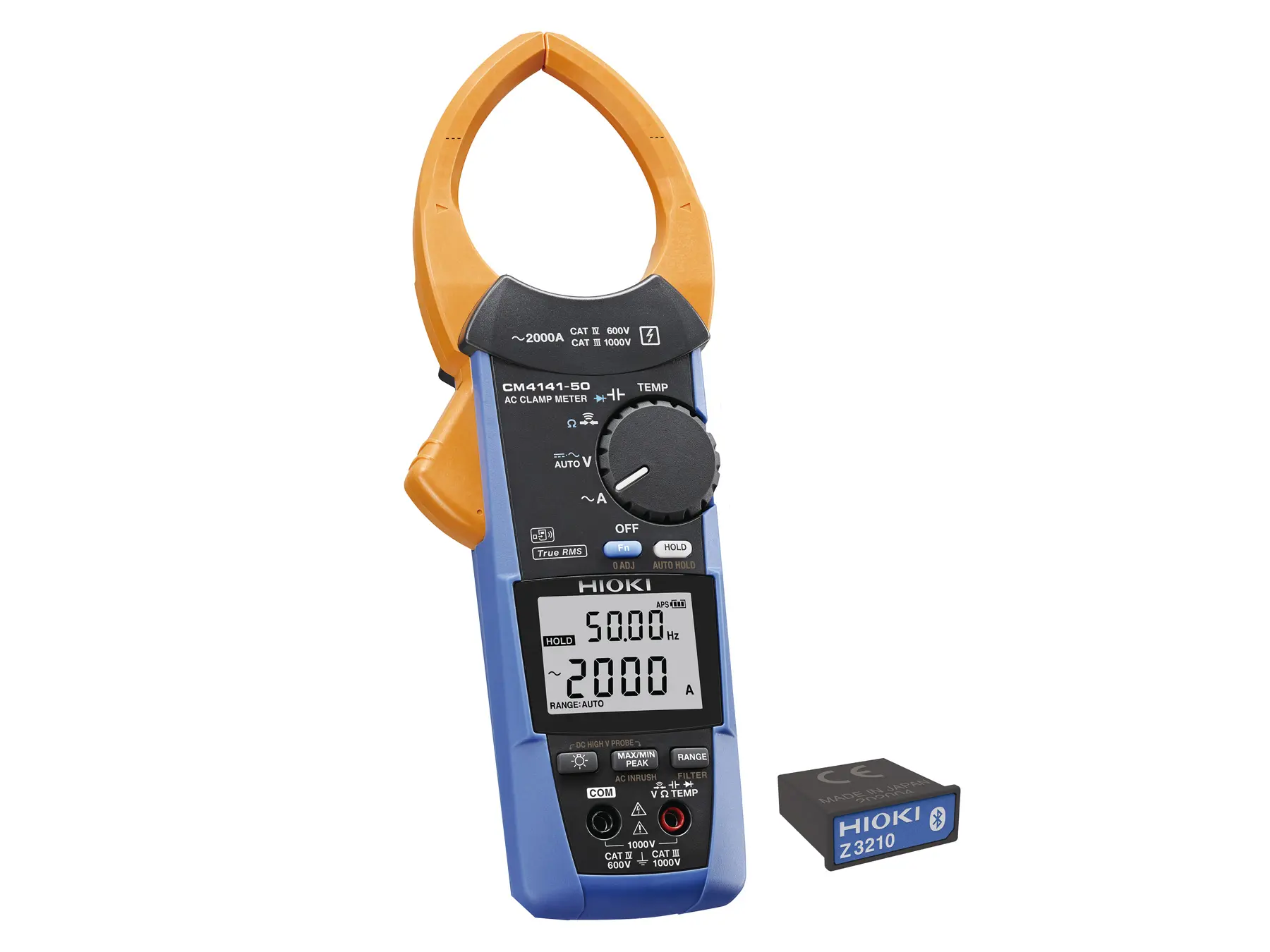

HIOKI CM4141-90 true rms clamp multimeter 2000a ac z3210 bluetooth HIOKI CM4141-90 true rms clamp multimeter 2000a ac compact design
