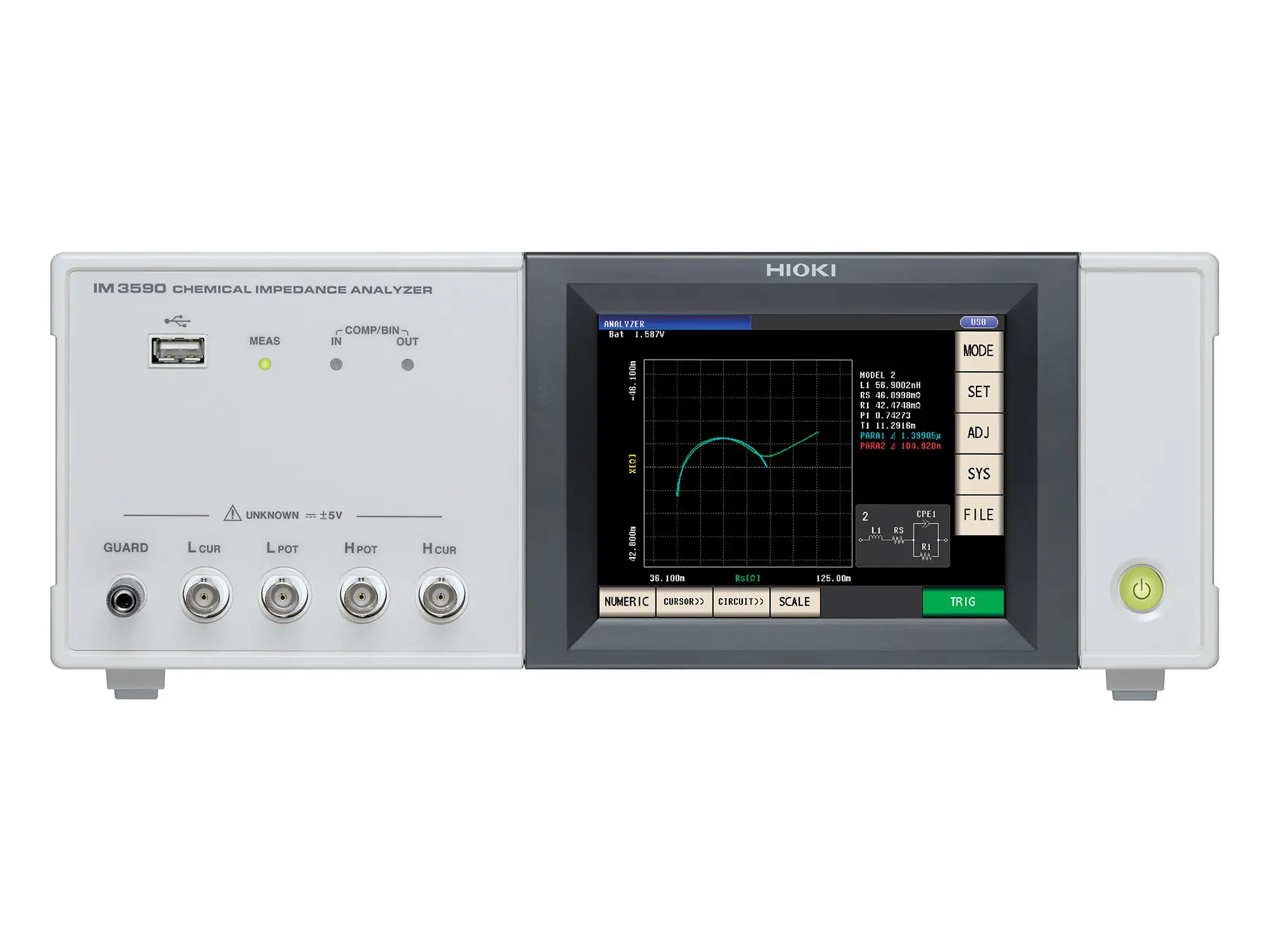

HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz

Chemical impedance analyzer, 1 mHz to 200 kHz, battery mode with automatic DC bias up to 5 V, frequency sweep and equivalent circuit analysis, ±0.05% basic accuracy, USB and handler I/O, optional LAN, RS-232C and GP-IB
Skip image gallery
HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz
HIOKI IM3590 impedance analyser measurement of electrochemical components and materials
HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz
HIOKI IM3590 impedance analyser high measurement speed of 2 ms

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

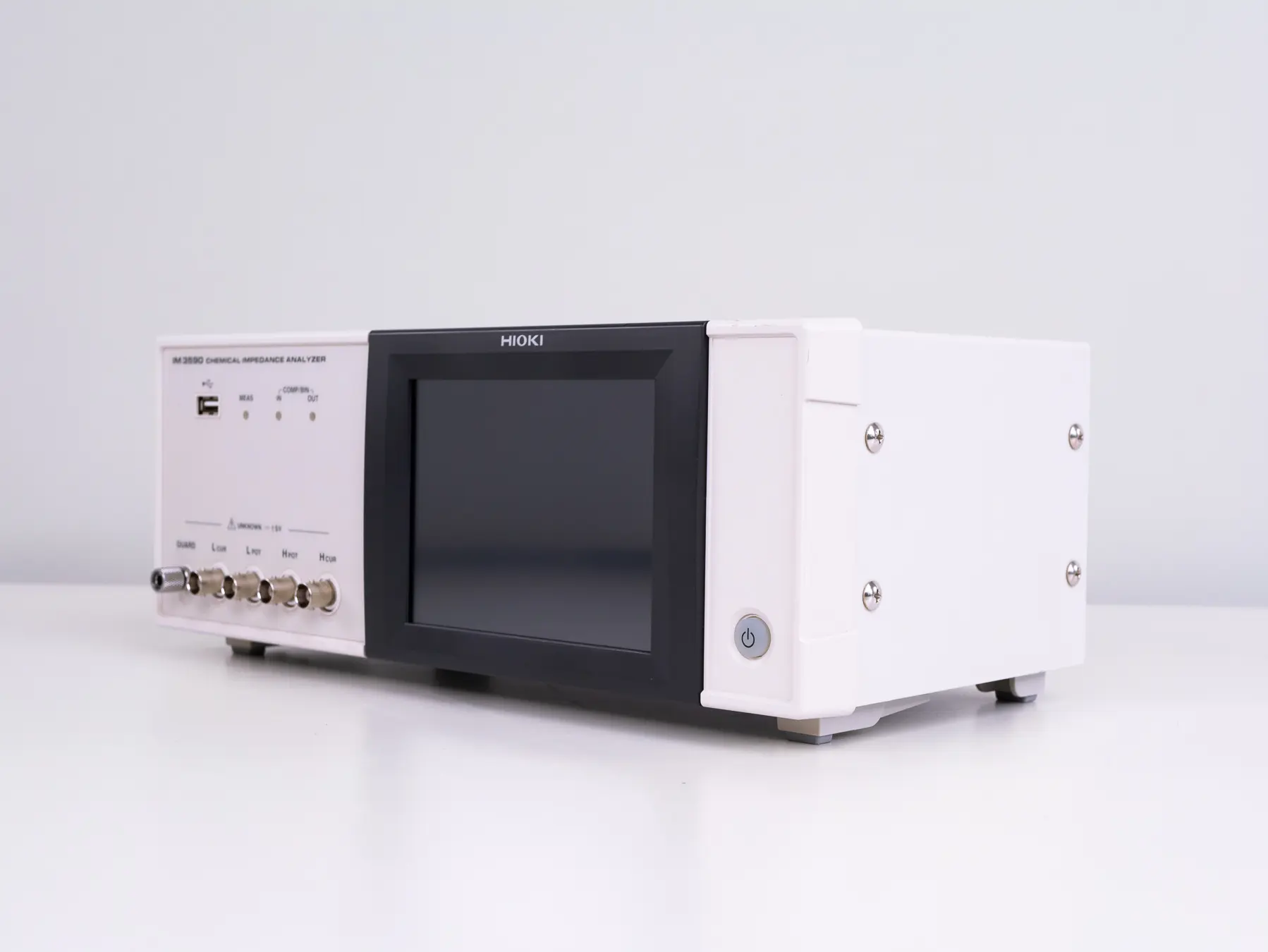

HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz basic accuracy 0 05 percent

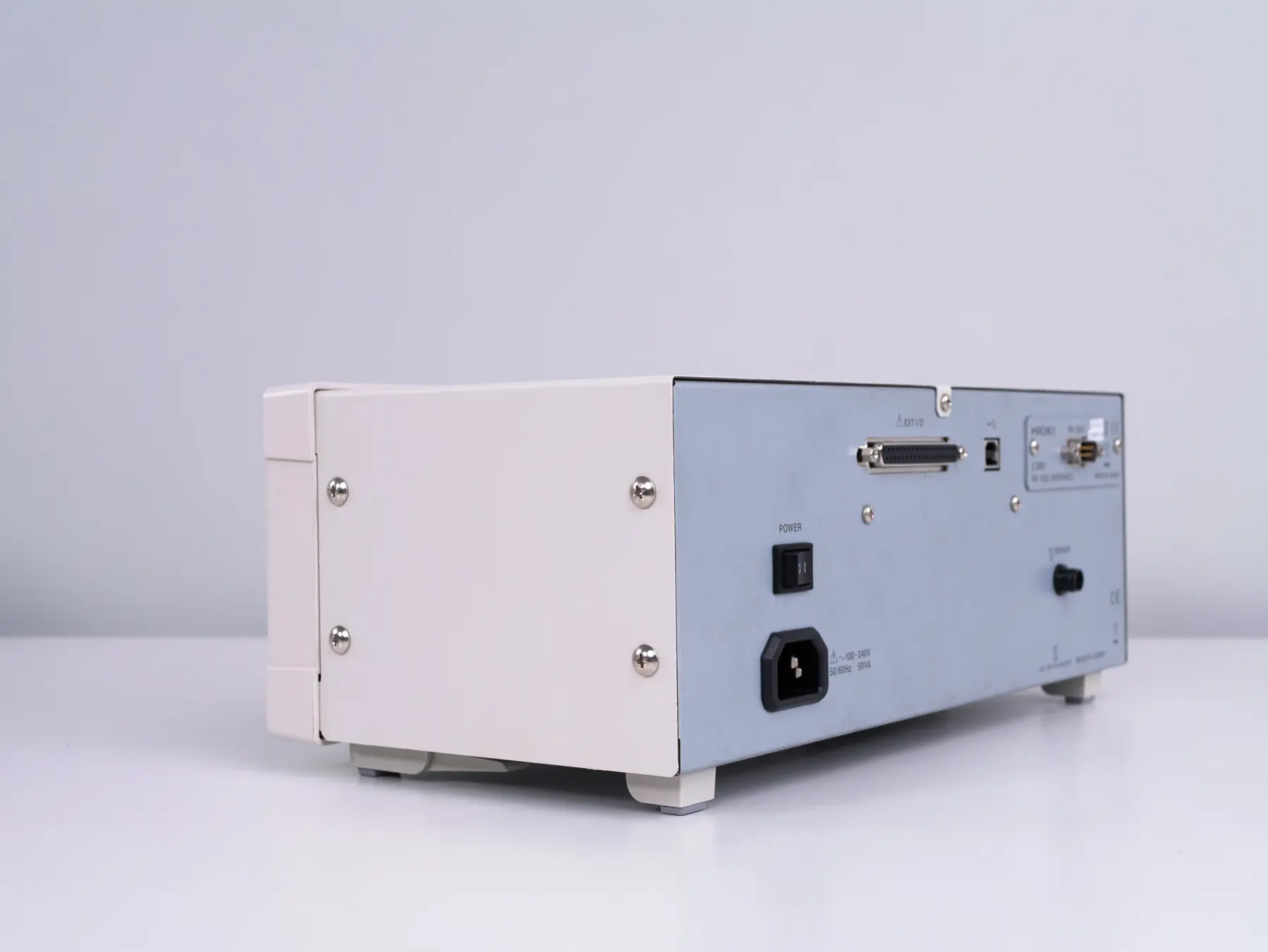

HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz frequency sweep up to 800 points

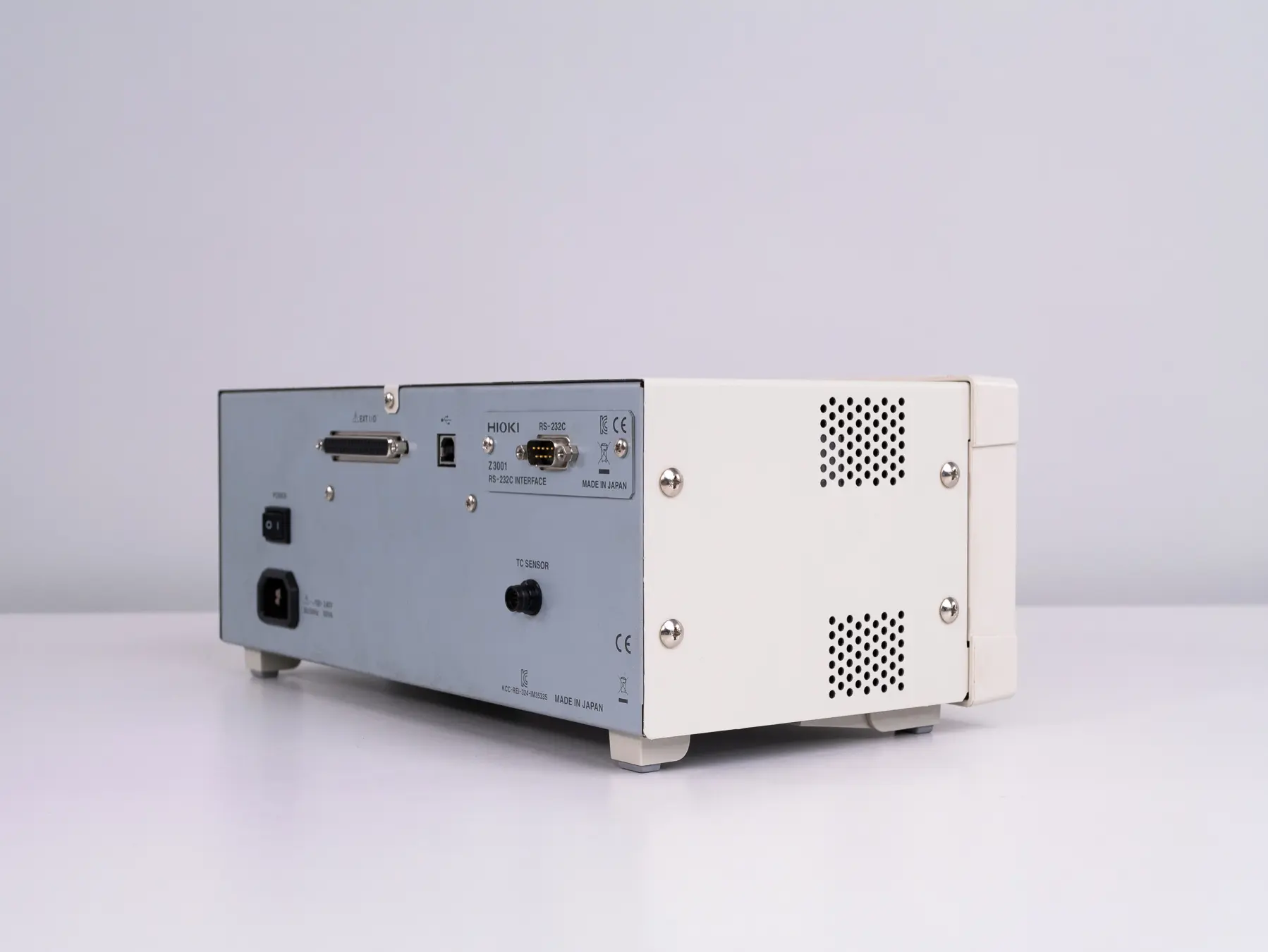

HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz

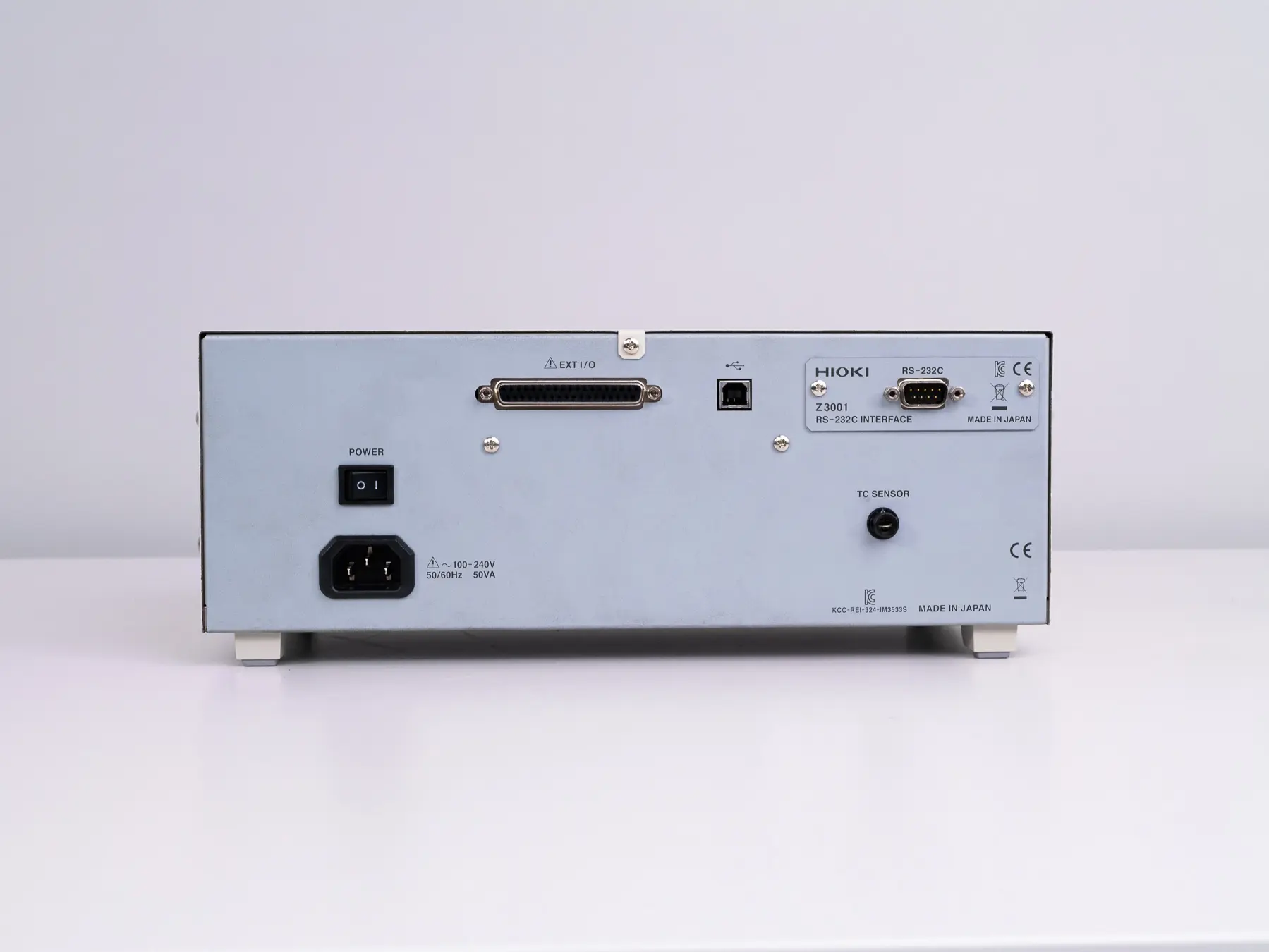

HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz backside
HIOKI IM3590 impedance analyser measurement of electrochemical components and materials

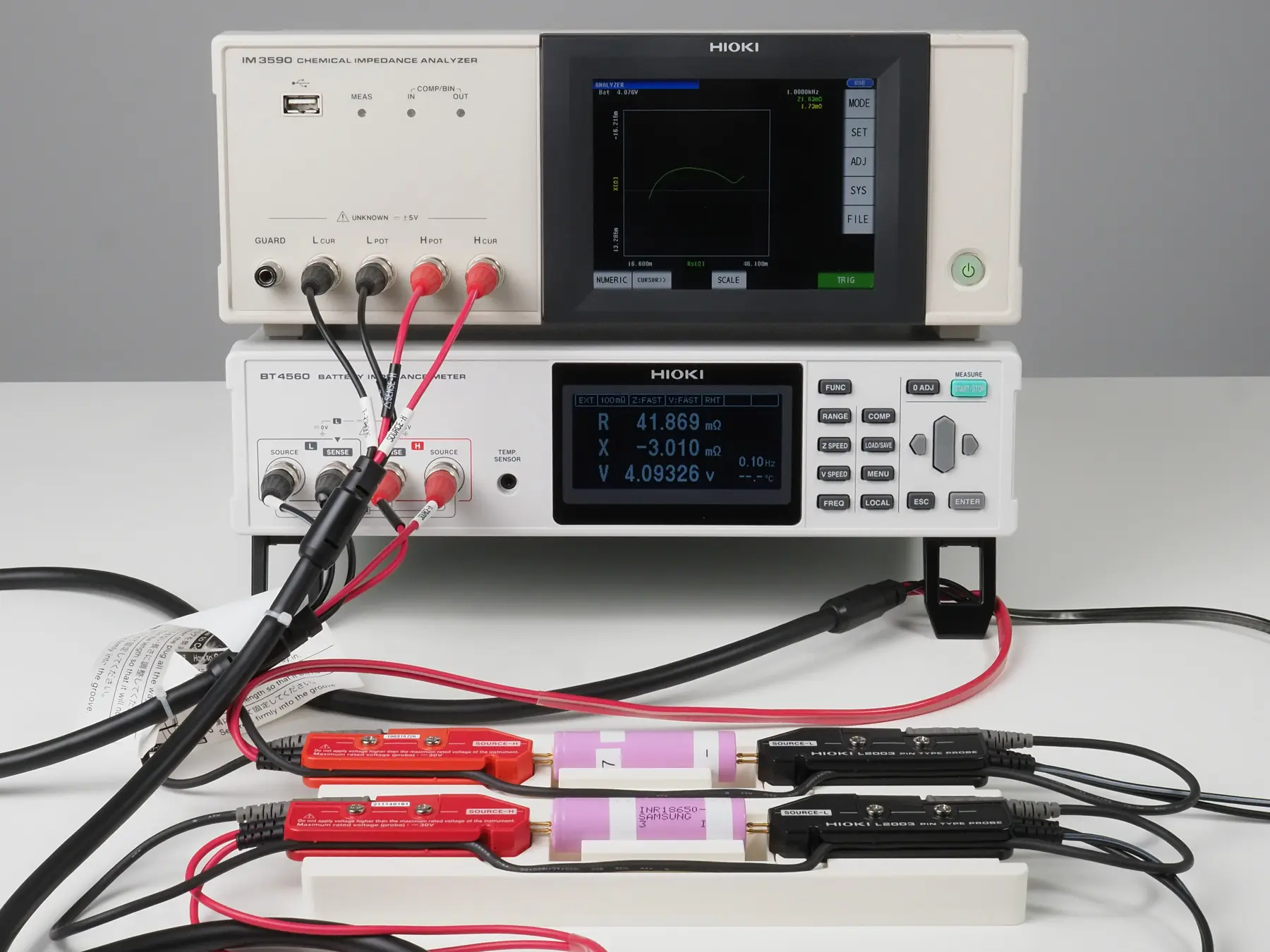

HIOKI IM3590 impedance analyser high measurement speed of 2 ms
HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz
HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz
HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz basic accuracy 0 05 percent
HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz frequency sweep up to 800 points
HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz
HIOKI IM3590 chemical impedance analyzer 1mhz to 200khz backside

€8,328.00

Content: 1 Each

€8,328.00

HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz
Product number: IM3590
Available stock: 1
GTIN/EAN: 4536036010165
Width: 1680 mm
Height: 1190 mm
Weight: 5 kg
Product details

Description

Product information HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz


Key Specifications

  • Measurement frequency: 1 mHz to 200 kHz
  • Basic accuracy: ±0.05%
  • Battery mode with automatic DC bias up to 5 V
  • Frequency sweep and equivalent circuit analysis with Nyquist and Bode plots
  • 5.7” color TFT LCD with touch panel

  Typical Applications

  • Electrochemical impedance spectroscopy (EIS) of battery cells, supercapacitors, and other electrochemical devices
  • Analysis of charge-transfer resistance, ion conductivity, and diffusion behavior in electrochemical systems
  • Equivalent circuit modeling of electrochemical processes and materials
  • Incoming inspection and screening of battery cells using comparator and BIN functions

Detailed Product Overview

The HIOKI IM3590 is a chemical impedance analyzer designed for the evaluation of electrochemical devices such as battery cells and supercapacitors. It combines wide-range frequency sweep measurements from 1 mHz to 200 kHz with equivalent circuit analysis, supporting detailed impedance characterization of electrochemical components.

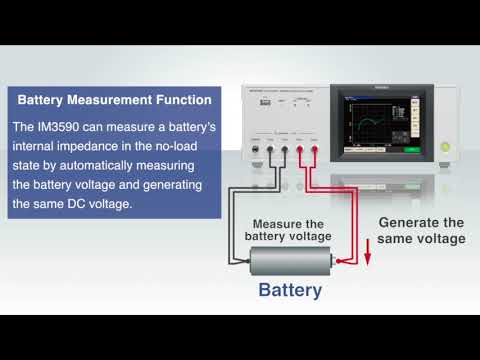

Battery Mode

A dedicated battery mode enables direct electrochemical impedance spectroscopy (EIS) of battery cells. In this mode, the instrument applies an automatic DC bias that is adjusted to the cell voltage, establishing the electrical potential conditions required for impedance analysis of batteries.

This allows frequency-dependent analysis of charge-transfer resistance, ion conductivity, and diffusion behavior under realistic operating conditions. The IM3590 supports electrochemical impedance measurements in the impedance range from approximately 100 mΩ to 10 Ω, making it suitable for the evaluation of battery cells with internal resistances above approximately 10 mΩ.

Frequency Sweep and Equivalent Circuit Analysis

The IM3590 supports frequency sweep measurements over the full measurement range with up to 800 configurable frequency points. This enables detailed frequency-dependent impedance analysis and provides the basis for Nyquist and Bode evaluations of electrochemical systems.

For circuit modeling, the instrument offers multiple electrochemical equivalent circuit models, including unipolar and polar configurations, as well as standard LCR component models. These models allow parameters such as electrolyte resistance, charge-transfer resistance, double-layer capacitance, constant phase elements, and inductance to be extracted directly from sweep data.

Measurement Parameters and Automation

For frequency sweep measurements and equivalent circuit analysis, the IM3590 provides a measurement speed of up to 2 ms, depending on the measurement frequency, with a basic accuracy of ±0.05%. Test signal voltage and current can be set from 5 mV to 5 V and from 10 µA to 100 mA. When used with the optional 9478 Sheath Type Temperature Probe, temperature-dependent impedance measurements are supported, allowing impedance characteristics and equivalent circuit parameters to be evaluated as a function of temperature.

The instrument also features a comparator and BIN function for automated pass/fail classification, useful in incoming inspection or production screening of cells and capacitors. Interfaces include USB as standard, with LAN, RS-232C, and GP-IB available as options. The 5.7” color TFT touchscreen provides intuitive operation and clear visualization of parameters and plots. Designed and manufactured in Japan, the IM3590 reflects HIOKI’s focus on long-term measurement stability in daily engineering and laboratory use.

What's in the Box

  • IM3590 Chemical Impedance Analyzer
  • Power cord
  • Instruction manual
