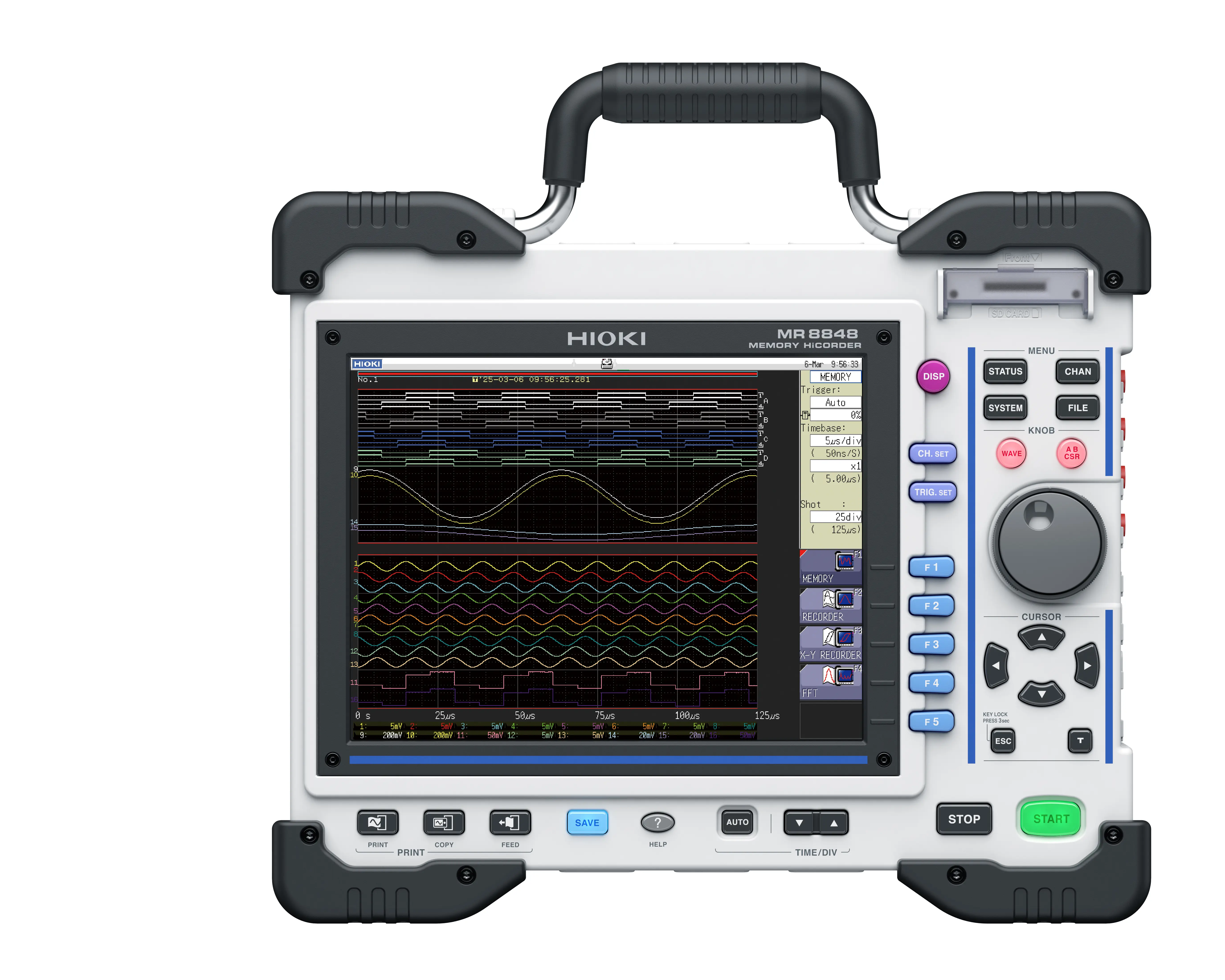

HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design

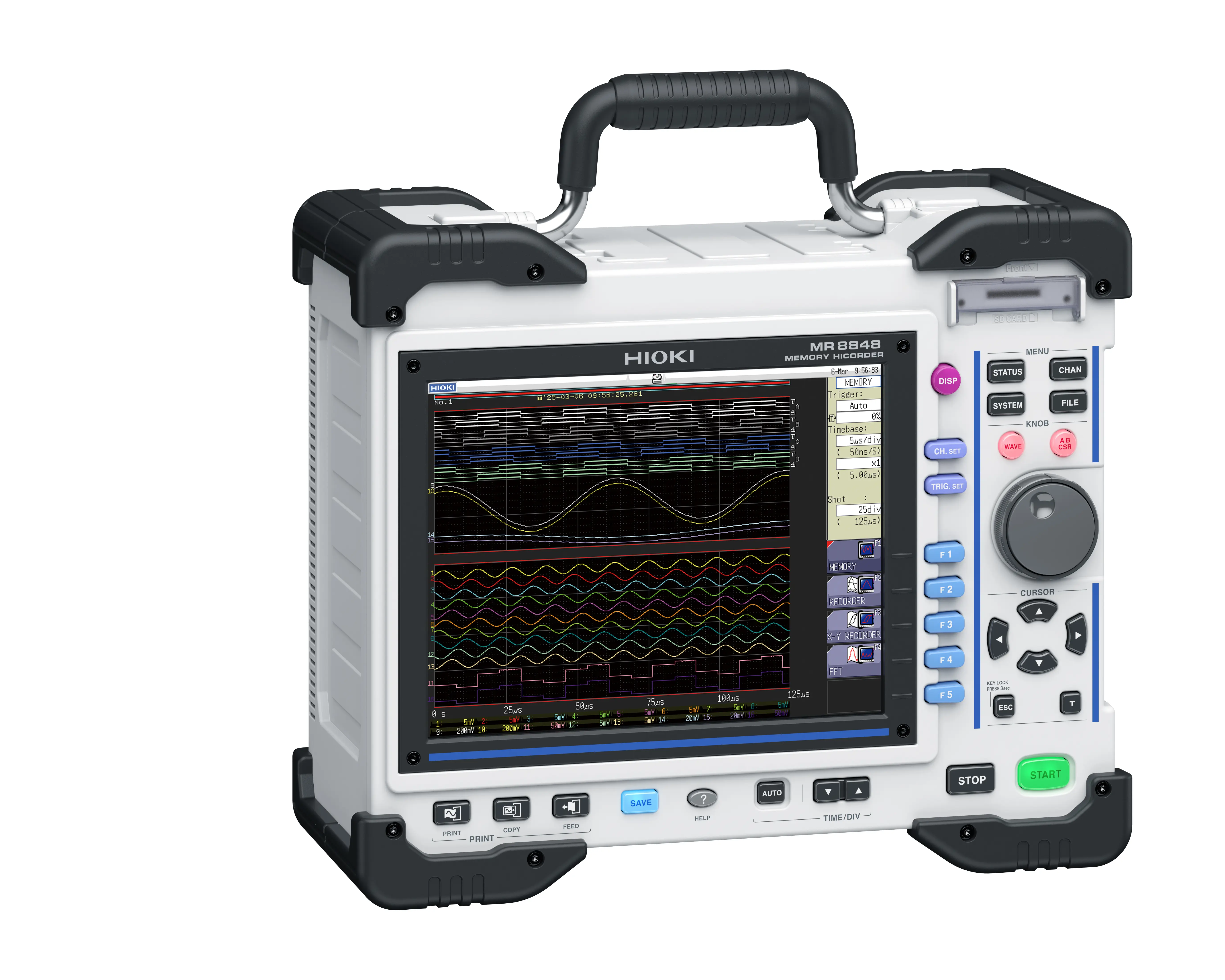

Modular memory recorder, up to 32 analog and 16 logic channels, max. sampling rate 20 MS/s, max 1000 VDC isolated direct voltage input, 1 TB storage with SSD option, optional real-time saving, rugged design, AC or DC power supply
Content:
1 Each
Product number:
MR8848
GTIN/EAN:
36036016082
Length:
176 mm
Width:
365 mm
Height:
304 mm
Weight:
6.9 kg
Description
Product information HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design
Key Specifications
- 8 slots, up to 32 isolated analog and 16 logic channels simultaneously
- High-speed sampling with up to 20 MS/s
- Max. 1000 VDC, 700 VAC
- Real-time saving directly to optional 1 TB SSD
- AC or DC power supply
Unique Advantages
- Operation with an external DC power supply (10 to 28 V)
- Immediate, tamper-proof printout of measurement data directly at the test site
Typical Applications
- Evaluation of backup response time during power failures in UPS and data centers
- Monitoring of hydropower turbine control and shutdown after sudden load loss
- Measurement of phase response timing to ensure safe disconnection of circuit breakers
- Monitoring of drive, brake, and vibration data during real railway test runs
- Waveform-based pass/fail judgment of welding quality
- Versatile tool for general maintenance applications which require off-grid highchannel, high-voltage recording

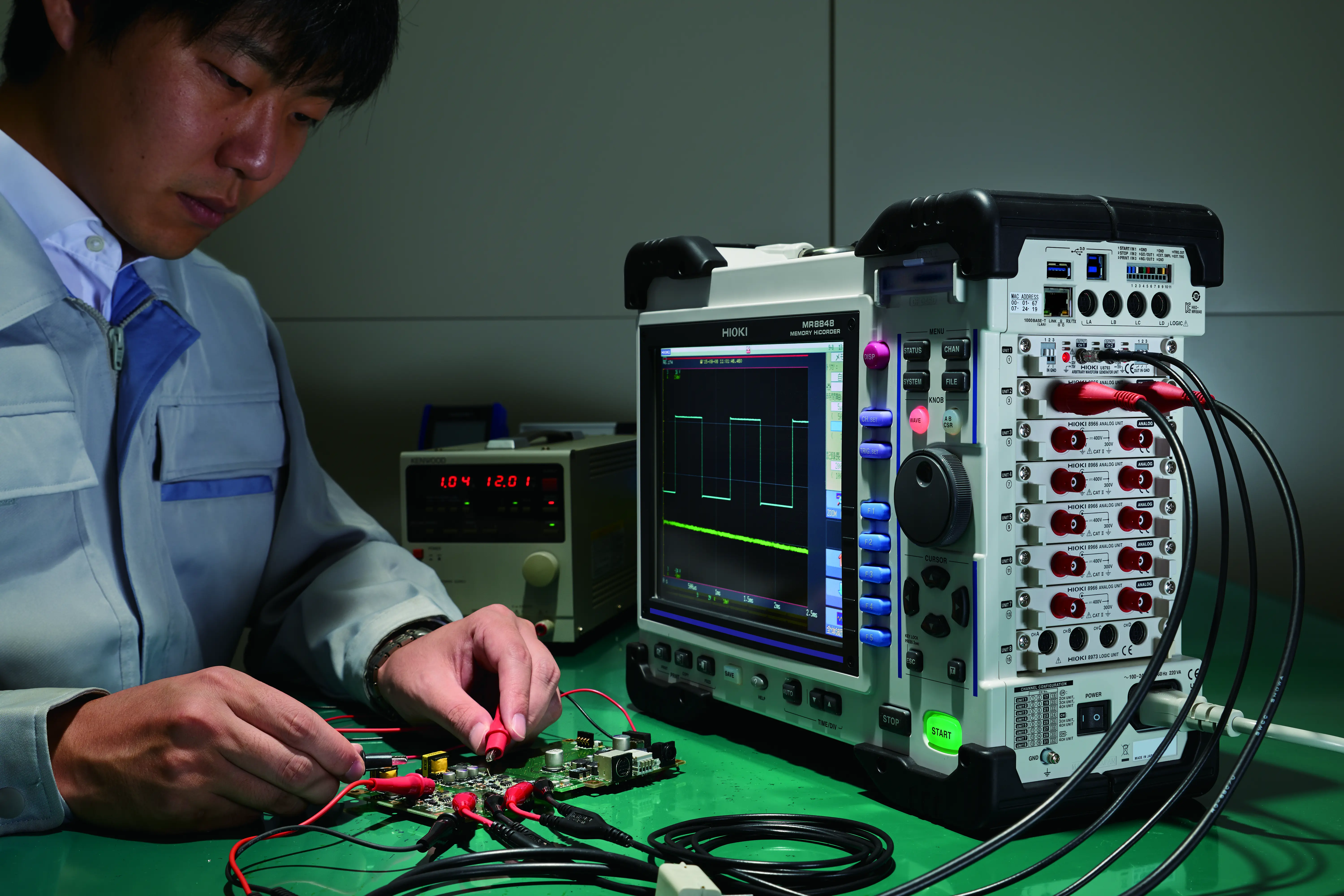

Detailed Product Overview
The system features eight input slots and supports a broad range of interchangeable modules, offering flexibility for various measurement scenarios. It can simultaneously record multiple physical parameters – including voltage, current, logic, temperature, vibration, pressure, and strain – facilitating comprehensive analysis of complex systems. Users can configure the system for either simultaneous isolated measurement on up to 32 analog channels, or for high-speed acquisition at up to 20 MS/s, depending on the selected modules. For high-voltage measurements, another specialized module enables direct input up to 1000 VDC or 700 VAC. The MR8848 enhances flexibility by enabling direct connection to HIOKI’s high-accuracy current sensors. Wideband current probes like the CT6711 can be used together with analog modules such as the U8978. Dedicated current modules, including the U8977 and 8971, provide accurate measurements across a broad current range and are designed to work effortlessly with precision clamps and sensors like the CT6841A or CT6904A. These specialized current modules automatically detect and supply power to connected HIOKI sensors and clamps, making setup simple and efficient.
Four built-in logic inputs support up to 16 logic channels when used with 4-channel logic probes. If additional logic channels are needed, logic input modules can be added to further expand capacity.
Three compatible output modules provide functions such as pulse output and waveform generation for signal testing and simulation. With the Arbitrary Waveform Generator Module U8793, users can program and output custom waveforms, making it perfect for replicating and simulating anomalies. The free SF8000 software makes it easy to create waveforms by entering data directly and supports tasks like simulating noise or combining waveforms for complex applications.

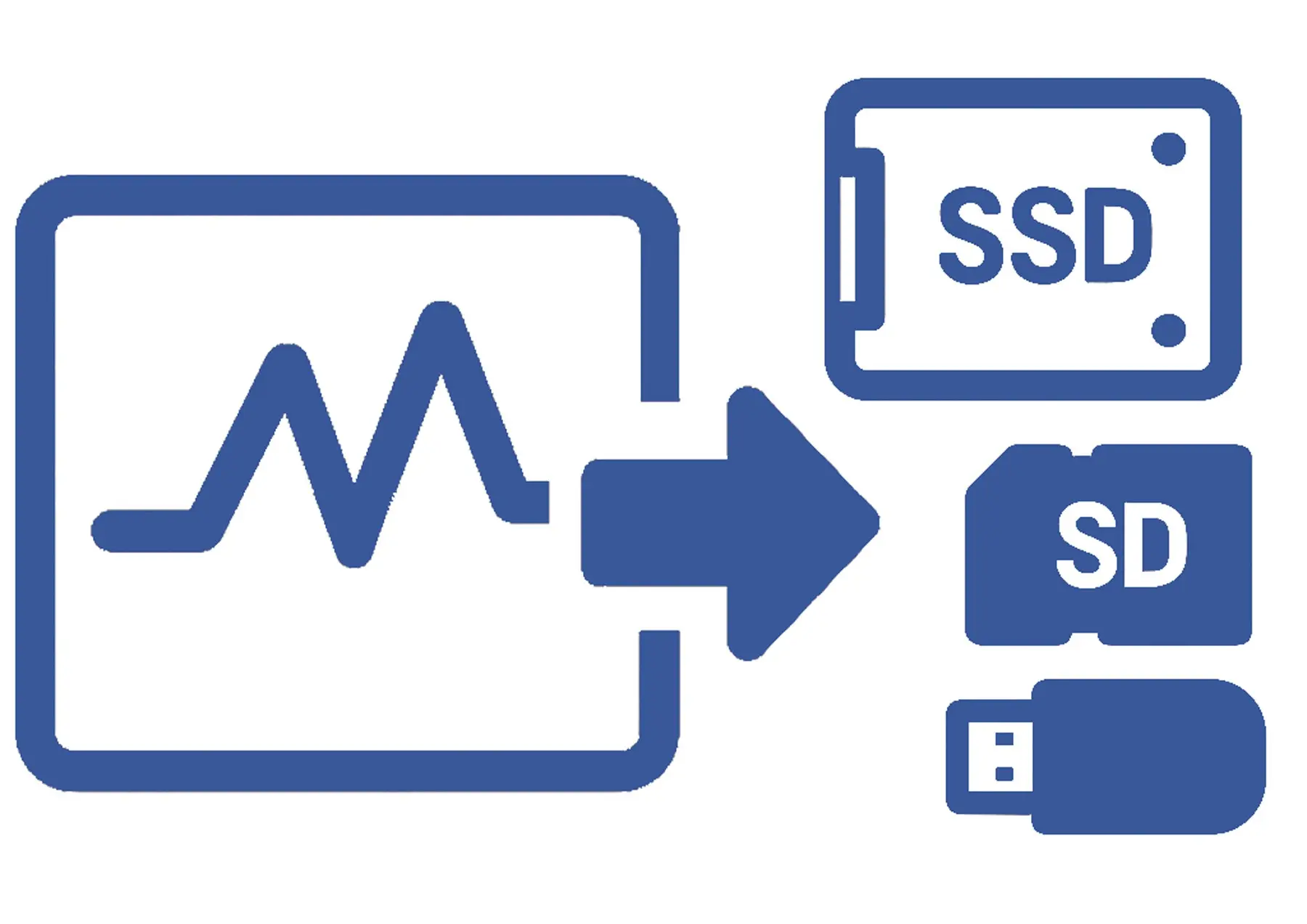

To support extended and uninterrupted recordings, the MR8848 features the optional realtime saving function MR9001-01 that enables data to be written directly to the optional 1 TB SSD or to another external storage, e.g. SD card or USB drive, during measurement. Unlike conventional systems that rely on internal memory buffers, this approach eliminates the need to pause testing for data offload, allowing continuous acquisition over long durations. In addition, real-time saving minimizes the risk of data loss in the event of unexpected power interruptions, ensuring stable and reliable data logging throughout the measurement process.

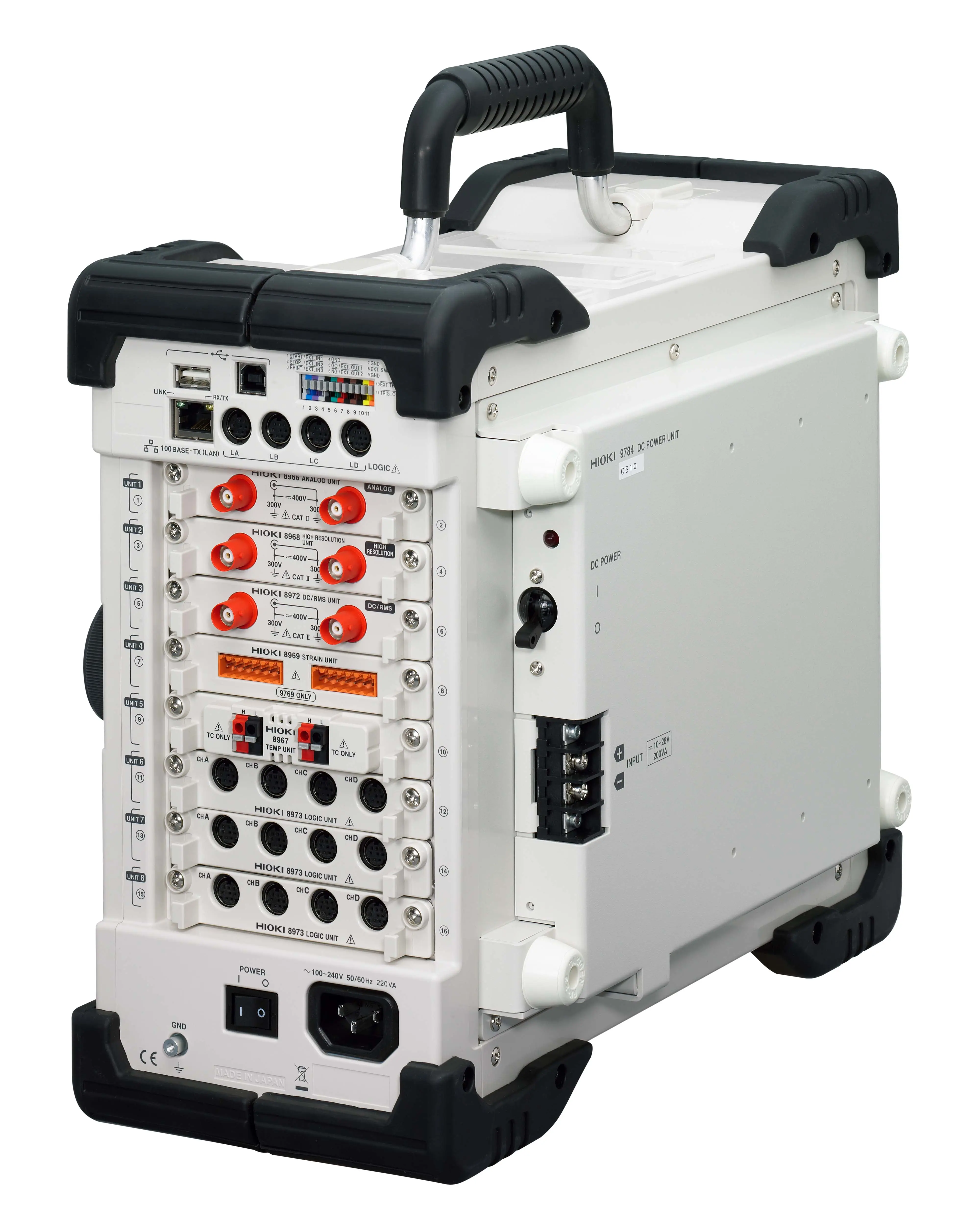

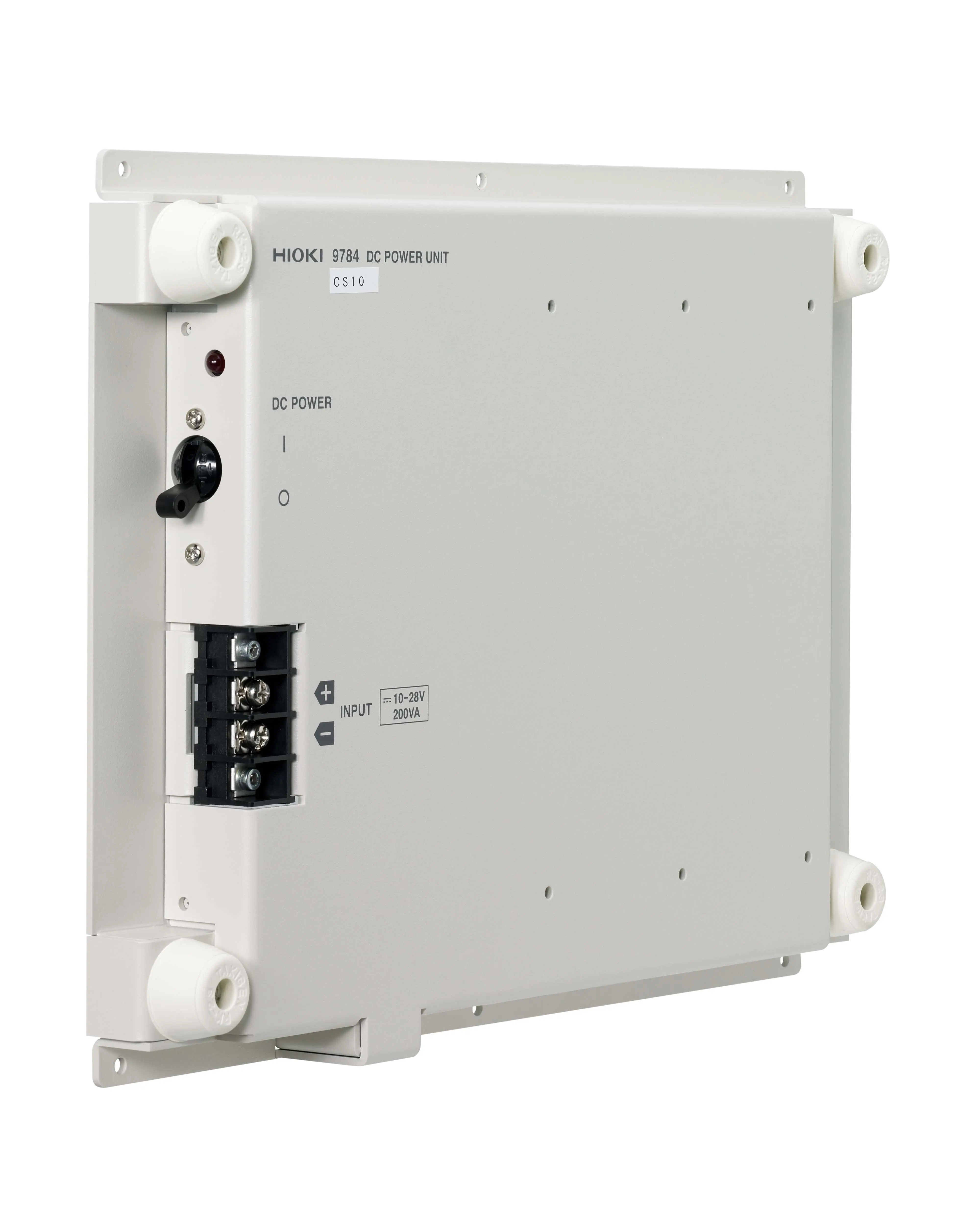

The DC Power Unit 9784 is a factory-installed option for the MR8848 Memory Recorder, enabling operation from external DC sources between 10 V and 28 V – such as vehicle batteries. This wide input range removes the need for AC power or external converters, making it ideal for field measurements, mobile testing, and other demanding environments. Seamlessly integrated during production, the 9784 provides a compact and reliable power solution for use on the go.

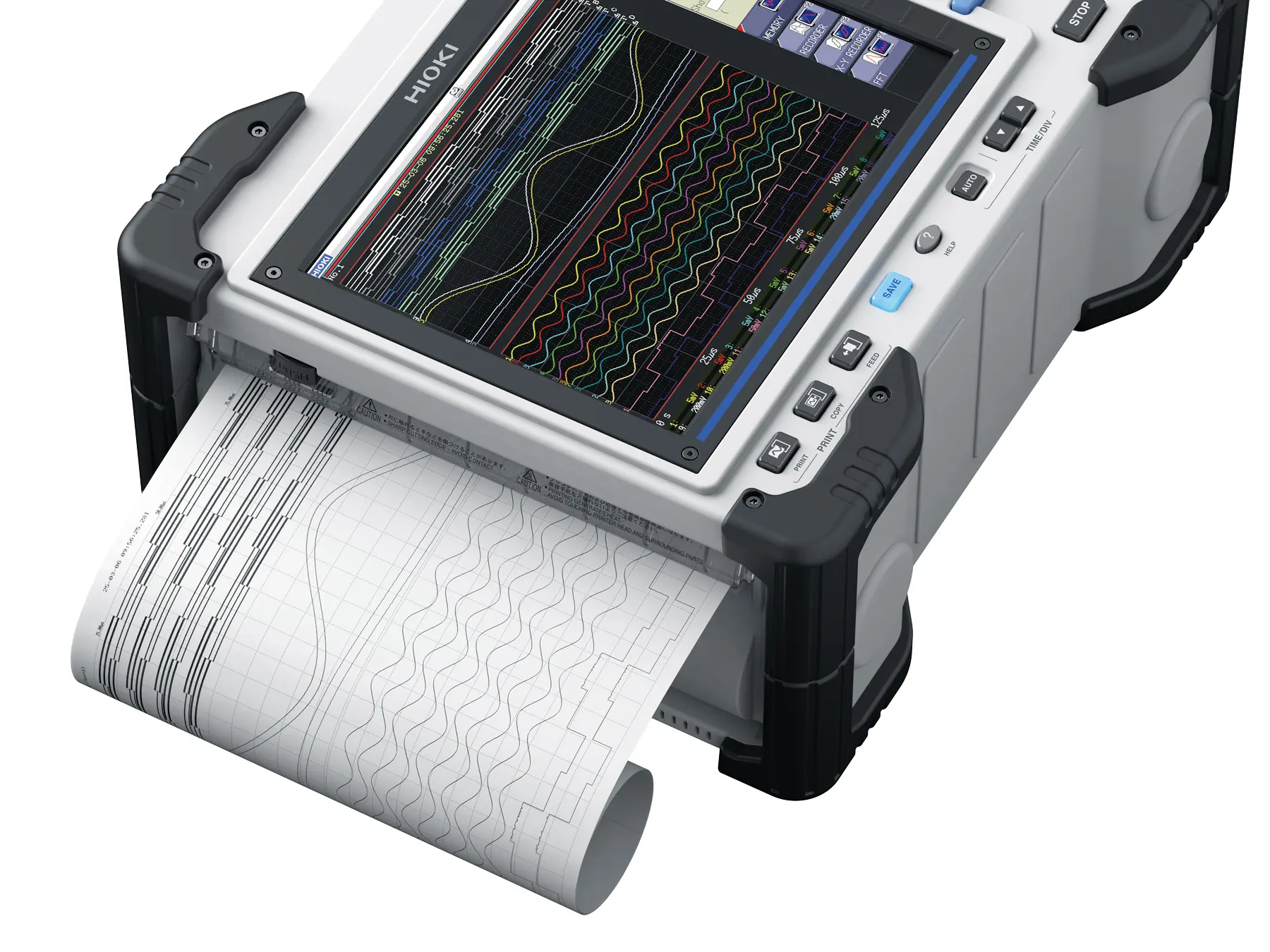

The U8351 Printer Unit is a factory-installed option for the MR8848 Memory Recorder that enables immediate, tamper-proof printouts of waveform data and measurement results directly at the test site. It is ideal for applications requiring verifiable hard copies, such as regulatory documentation, service reports, or customer acceptance records. The printer is especially useful in environments where digital media are impractical or restricted, providing fast documentation without needing a PC or USB storage.
Included software tools support a smooth workflow. Use the free MR6000 Viewer and Waveform Viewer to display, analyze, and export your data with ease. For more advanced tasks, the 9335 Wave Processor adds powerful processing and batch conversion features. Integration with LabVIEW, MATLAB, and operation via SCPI commands allows flexible automation and control.

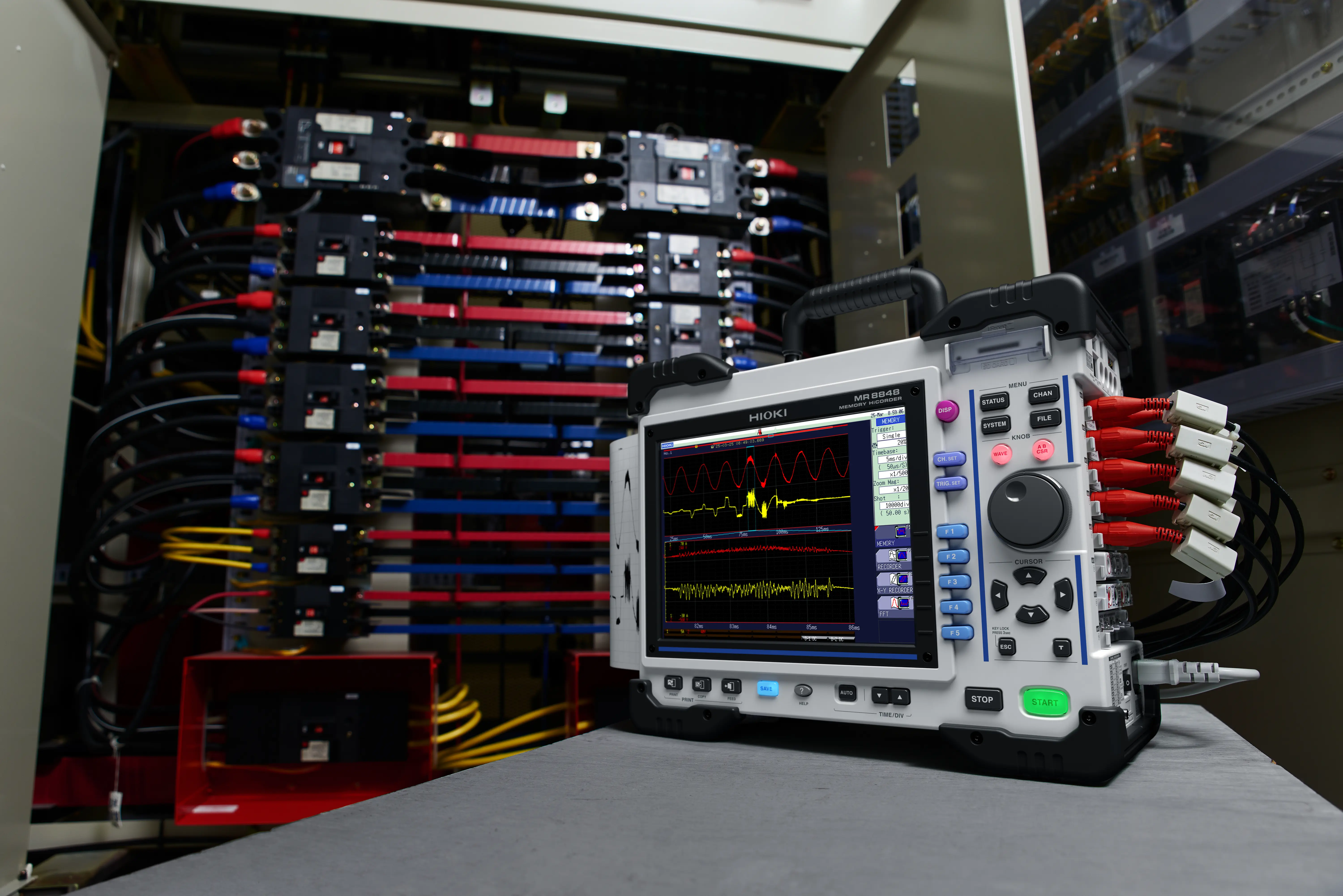

The MR8848 is widely used across a range of infrastructure and transport sectors, where its high-speed, multi-channel capability and modular input options make it a powerful tool for system diagnostics and validation. In electric power systems, it supports UPS operation testing, ensuring reliable backup activation by recording voltage, current, and temperature behavior across both input and output sides. In hydropower generation, it enables detailed load rejection testing, capturing multiple signals such as turbine speed, generated current, and water pressure to verify that the turbine shuts down safely after a sudden load drop.
For high-voltage circuit breaker testing, the MR8848 precisely measures the time difference between command signals and contact response across all three phases, helping identify switching delays and ensuring timing compliance. In the railway sector, it records drive motor voltage and current, vehicle speed, brake pressure, and vibration during actual operation, making it a key solution for correlating multi-parameter behavior and validating safety-critical subsystems.
- Never Miss a Beat: Choosing the Right Sampling Rate for Data Acquisition
- DC Current Measurement and Bandwidth
- Back to the Future: The story continues...
- Zero-Flux Current Sensors: Like in "Back to the Future"?
- Current Sensors: How much is the drift?
- Promotion Bundle: MR8848 Memory Recorder + free 9784 DC Power Supply Unit
- Pair your MR8848 with our compatible precision current sensors
What's in the Box
- MR8848 Memory Recorder
- Startup guide
- Precautions for use
- Power cord
- Recording Paper 9231 and roll paper attachment (when Printer Unit U8351 is installed)
-
Product brochure with data sheet, Modular Memory Recorder MR8848 (English)5,153 KB pdf
-
Data sheet, Modular Memory Recorder MR8848 (English)3,118 KB pdf
-
Instruction Manual, Modular Memory Recorder MR8848 (English)11,435 KB pdf
-
Product brochure with data sheet, Waveform Generator System U8793 (English)3,050 KB pdf
Skip product gallery
Regular price:
€368.00
Regular price:
€138.00
Regular price:
€618.00
Sale price:
€390.40
Regular price:
€488.00
Regular price:
€438.00
Regular price:
€98.00
Regular price:
€58.00
Regular price:
€58.00
Regular price:
€58.00
Related products
Z4003
Z4003 - SD Memory Card 8GB
The HIOKI Z4003 SD memory card is designed for use with Hioki instruments that support SD memory cards. With a storage capacity of 8 GB, it is ideal for data logging.
Z4001
Z4001 - SD Memory Card 2GB
The HIOKI Z4001 SD memory card provides 2 GB of industrial-grade storage, making it ideal for use with the HIOKI PW3360 Power Logger and similar products.
Z4006
HIOKI Z4006 - USB-stick 16GB
The Z4006 USB drive is designed for use with HIOKI instruments that support USB storage devices. With a storage capacity of 16 GB, it provides ample space for data logging.
20
MR9321-01
MR9321-01 - logic probe
The MR9321-01 is a logic probe with an indicator, designed to connect to the logic input units of Hioki Memory recorder such as the MR8870, MR8875, MR8880, MR8827, and MR8847. It detects the presence of AC or DC voltage, enabling the measurement of relay sequence circuit operation timing. Each channel is insulated for easy and safe connection, making this probe ideal for accurate measurements in a variety of environments. Technical Information: Number of channels: 4 (insulated) Input voltage range: o LOW: 0 VAC to 150 VAC / ±(0 to 15) VDC o HIGH: 170 VAC to 250 VAC / ±(70 to 250) VDCMaximum input voltage: 150 V rms (LOW), 250 V rms (HIGH) Maximum rated voltage to earth: 250 V rms Maximum current: 0.2 ADielectric strength: 2.224 kVAC / 15 sInsulation resistance: > 100 MΩ / 500 VDC Operating temperature and humidity: 0°C to 40°C, up to 80% RH (no condensation) Storage temperature and humidity: -10°C to 50°C, up to 90% RH (no condensation) Dimensions: 62W x 128H x 20D mm Probe tip cable length: 1200 mm Weight: 300 g Applicable standards: EN 61010 (Safety), EN 61326 Class A (EMC)
9784
HIOKI 9784 - DC Power Unit for MR8848, factory-installed option
DC Power Unit for MR8848, 10 to 28 V DC input range, factory-installed option, not
retrofittable
U8351
HIOKI U8351 - Printer Unit for MR8848, factory-installed option
Printer Unit for MR8848, factory-installed option, 200 mm printing width
MR9001-01
HIOKI MR9001-01 - Real-time Saving Function for MR8848
Real-time saving option for MR8848; direct data storage to external media (SSD/USB/SD card), max. 1 MS/s
U8334

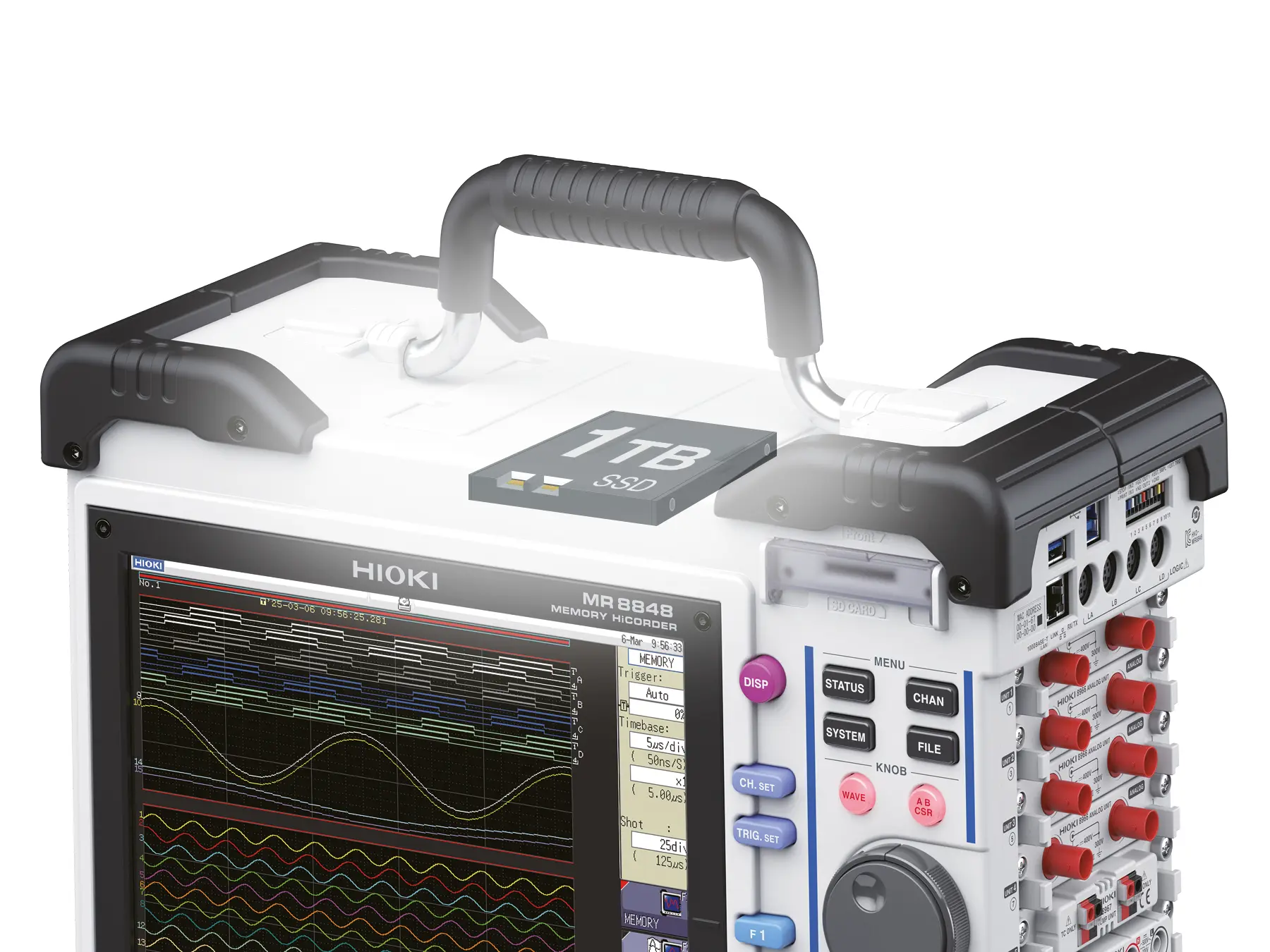

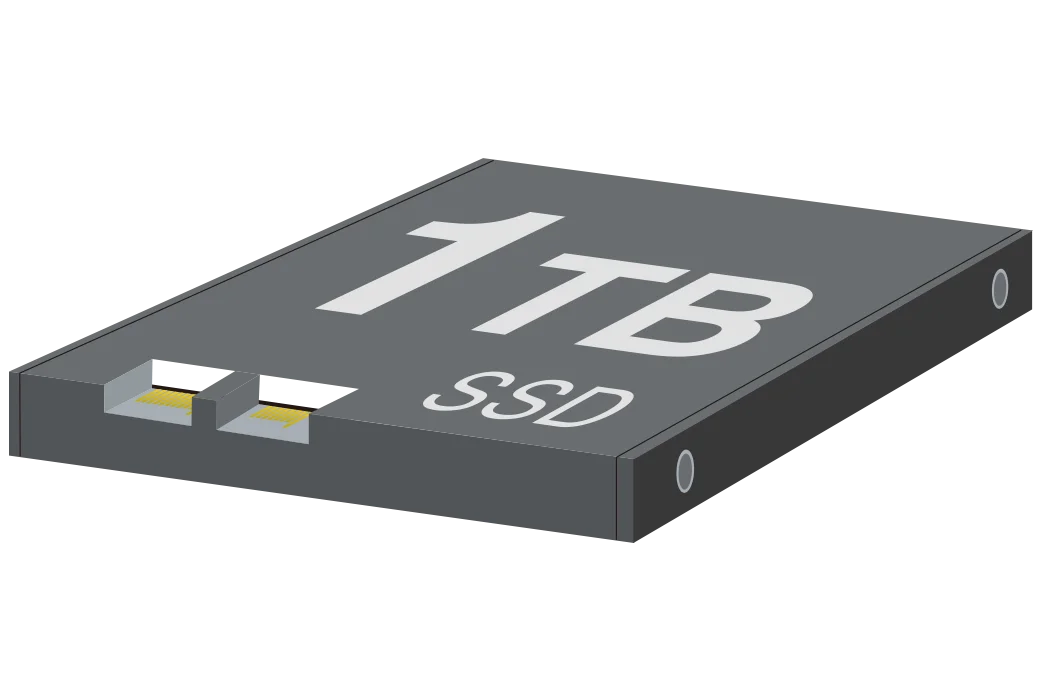

HIOKI U8334 - SSD Unit for MR8848, 1 TB, factory option
