L2102 - PIN TYPE LEAD
€358.00
In stock in Germany
€358.00
Description
Product information L2102 - PIN TYPE LEAD
- Compatibility: RM3544, RM3545 series
Related Products
Content:
1 Each
L2102 - PIN TYPE LEAD
Product number:
L2102
Available stock:
2
GTIN/EAN:
4536036001248

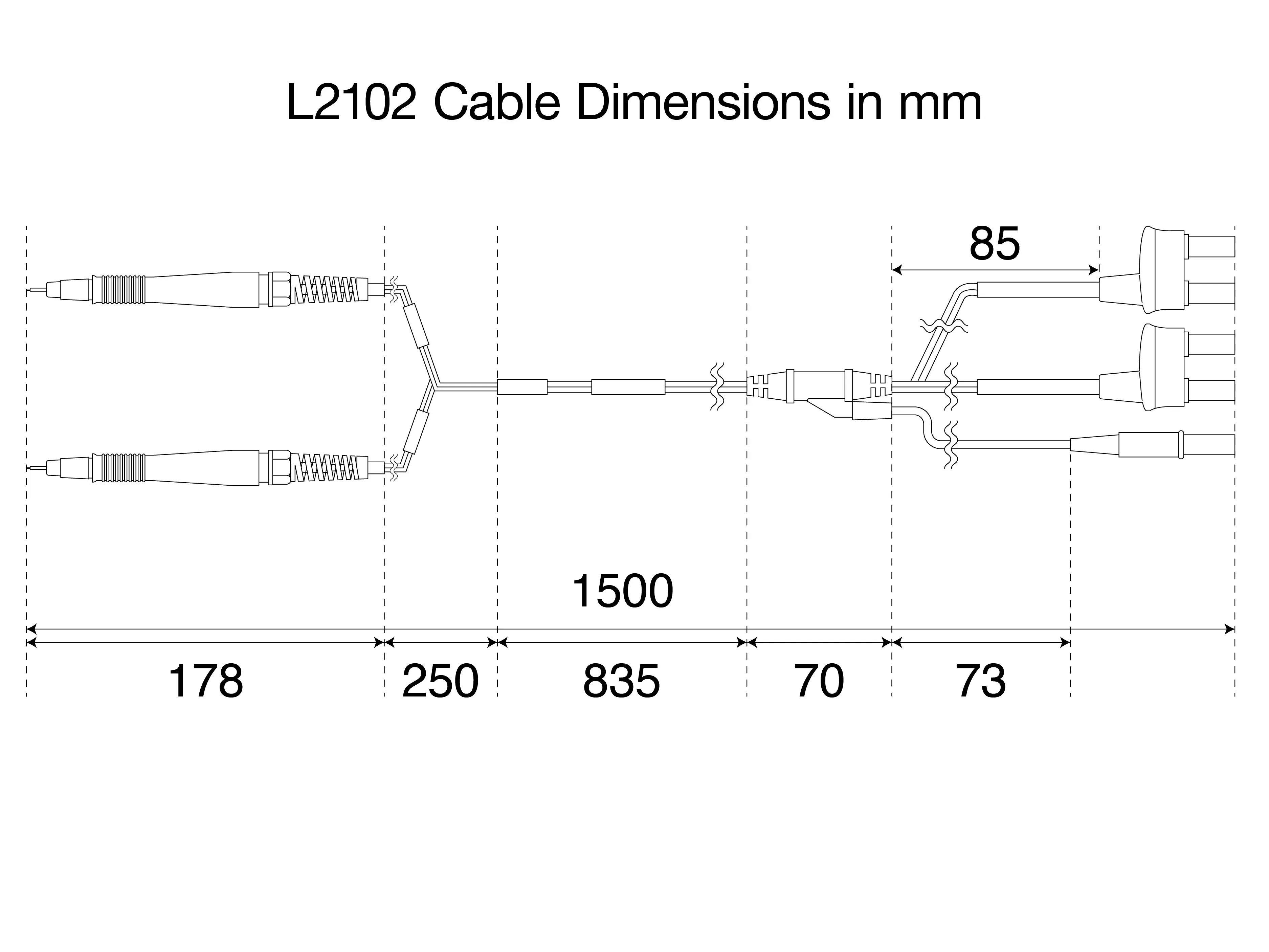

Length:
1500 mm
Weight:
0.18 kg

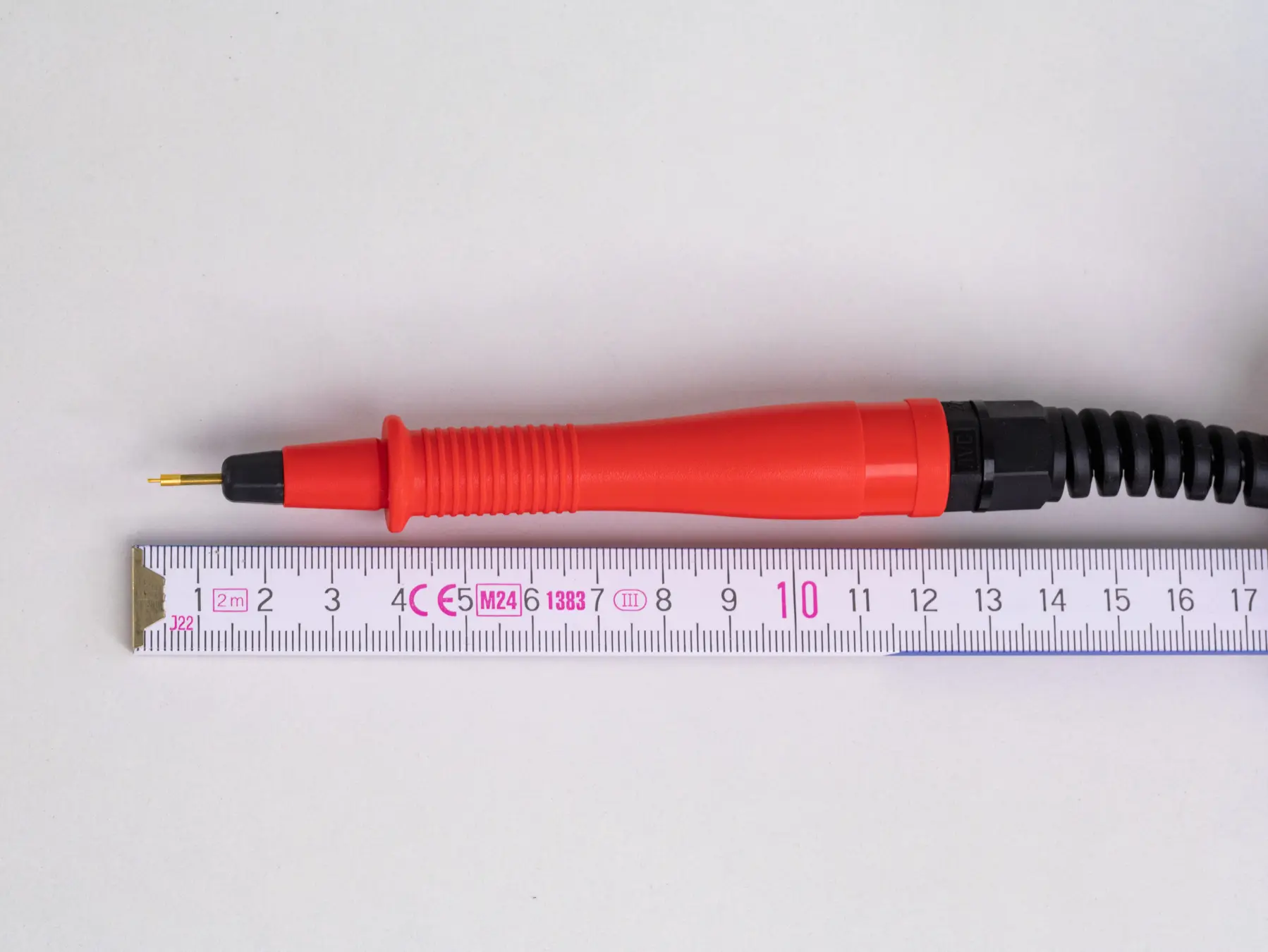

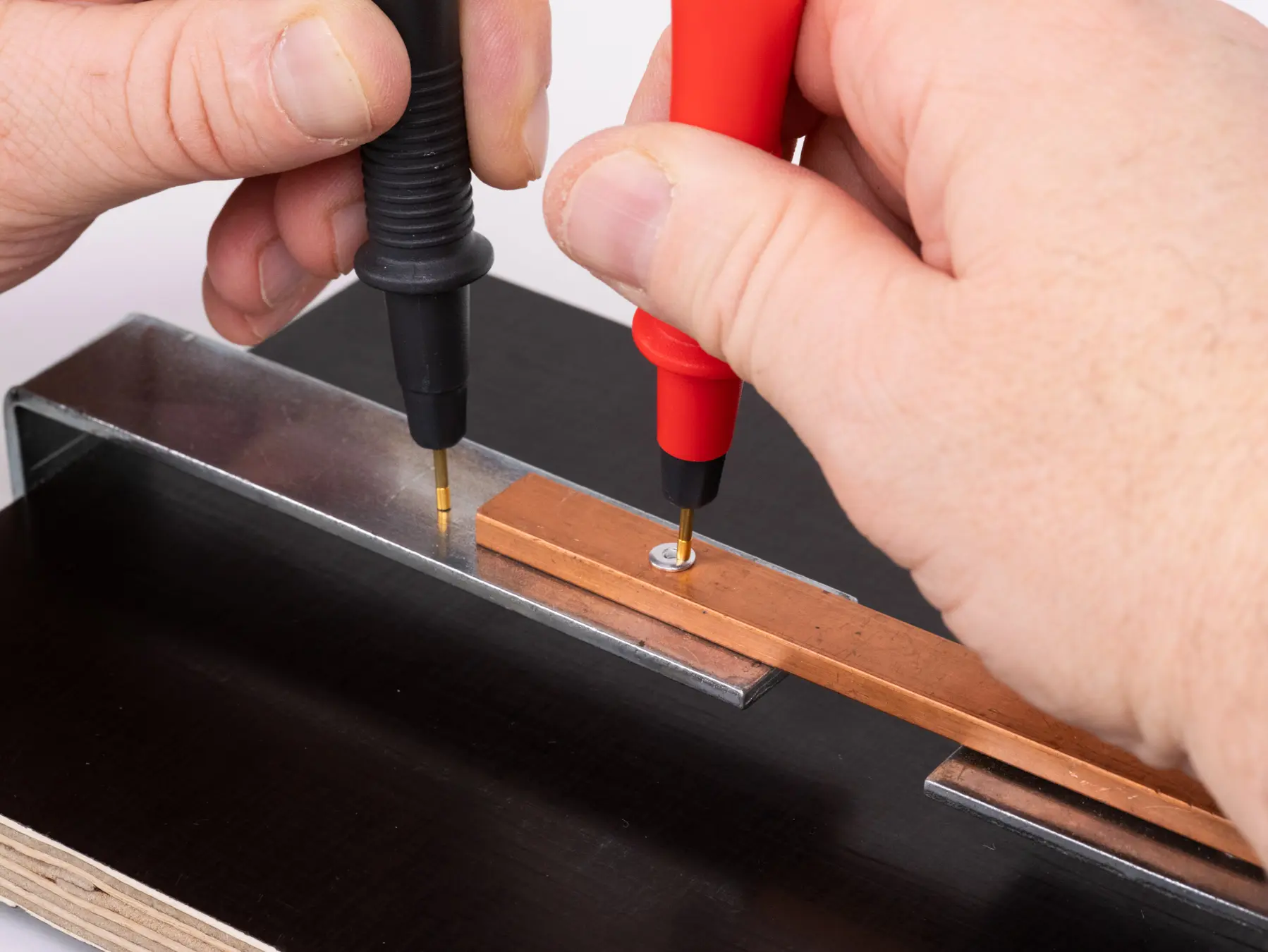

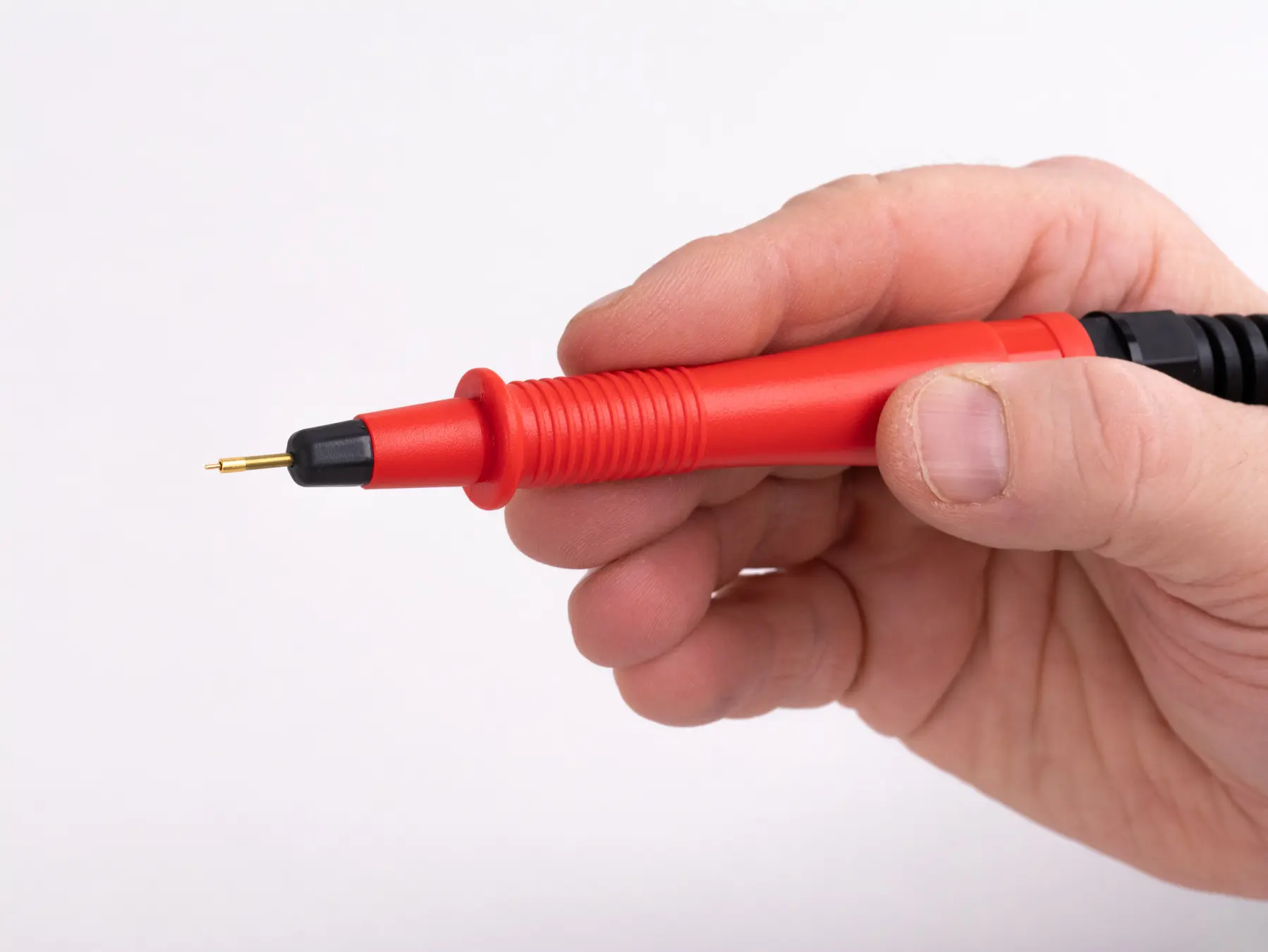

The L2102 Pin Type Lead features a gilded, spring contact needle, offering reliable contact for precise measurement, suitable for the RM3544 and RM3545 series.
Technical Details:
