HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option

High-precision DC resistance meter, 13 ranges from 1 mΩ to 1200 MΩ, basic accuracy 0.045 %, 1 nΩ resolution, 6 ½-digit display, multiplexer option (up to 20 channels), 2.3 ms fastest measurement time, remote control via LAN, RS-232C and USB
Skip image gallery

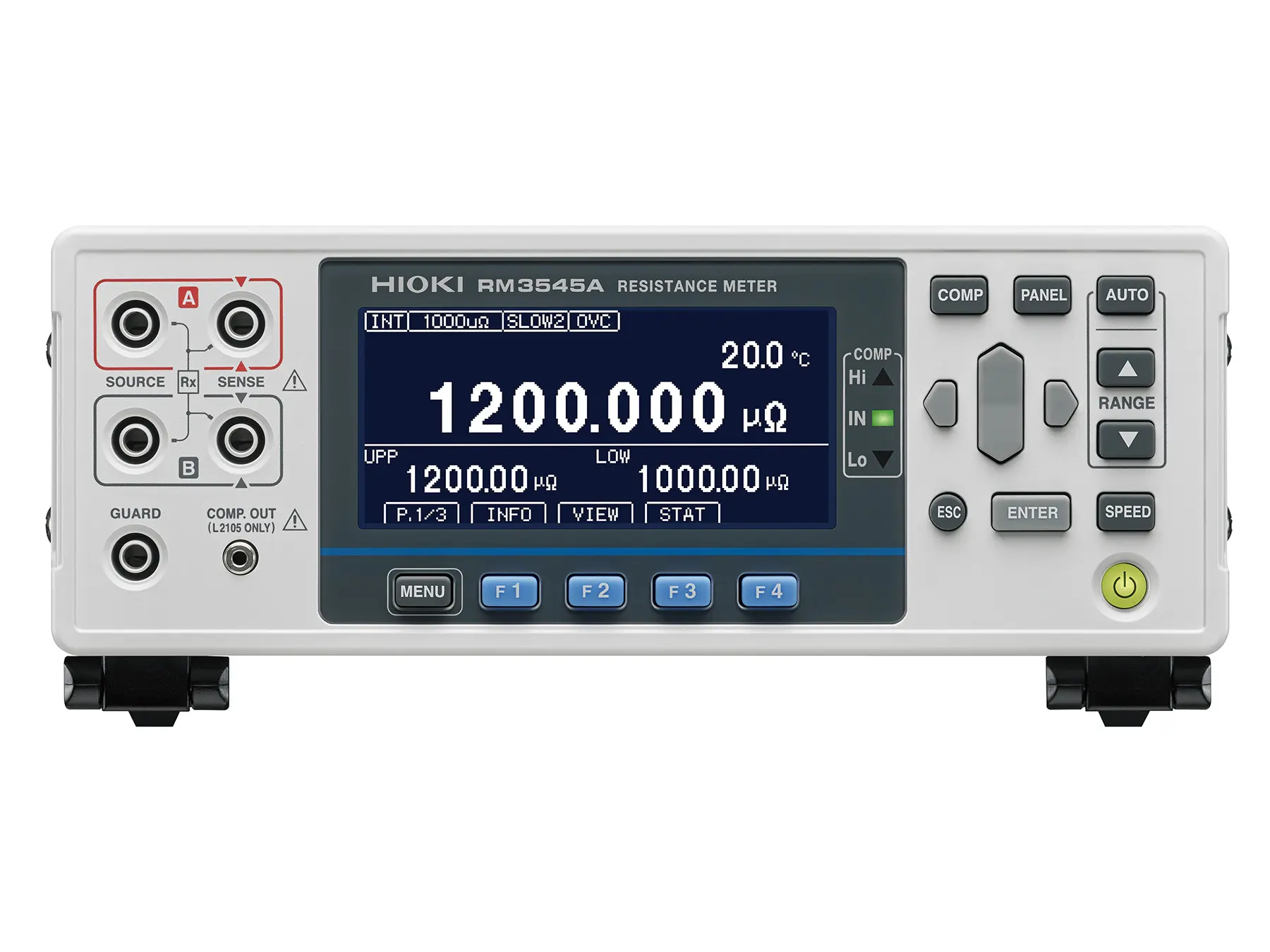

HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option
HIOKI RM3545A-1 resistance meter 1 nano ohm-1200mega ohm high accuracy 0-045 percent Hands measuring
HIOKI RM3545A-2 resistance meter 1 nano ohm-1200mega ohm high accuracy 0-045 percent

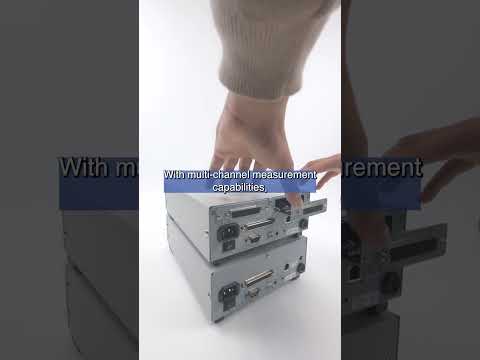

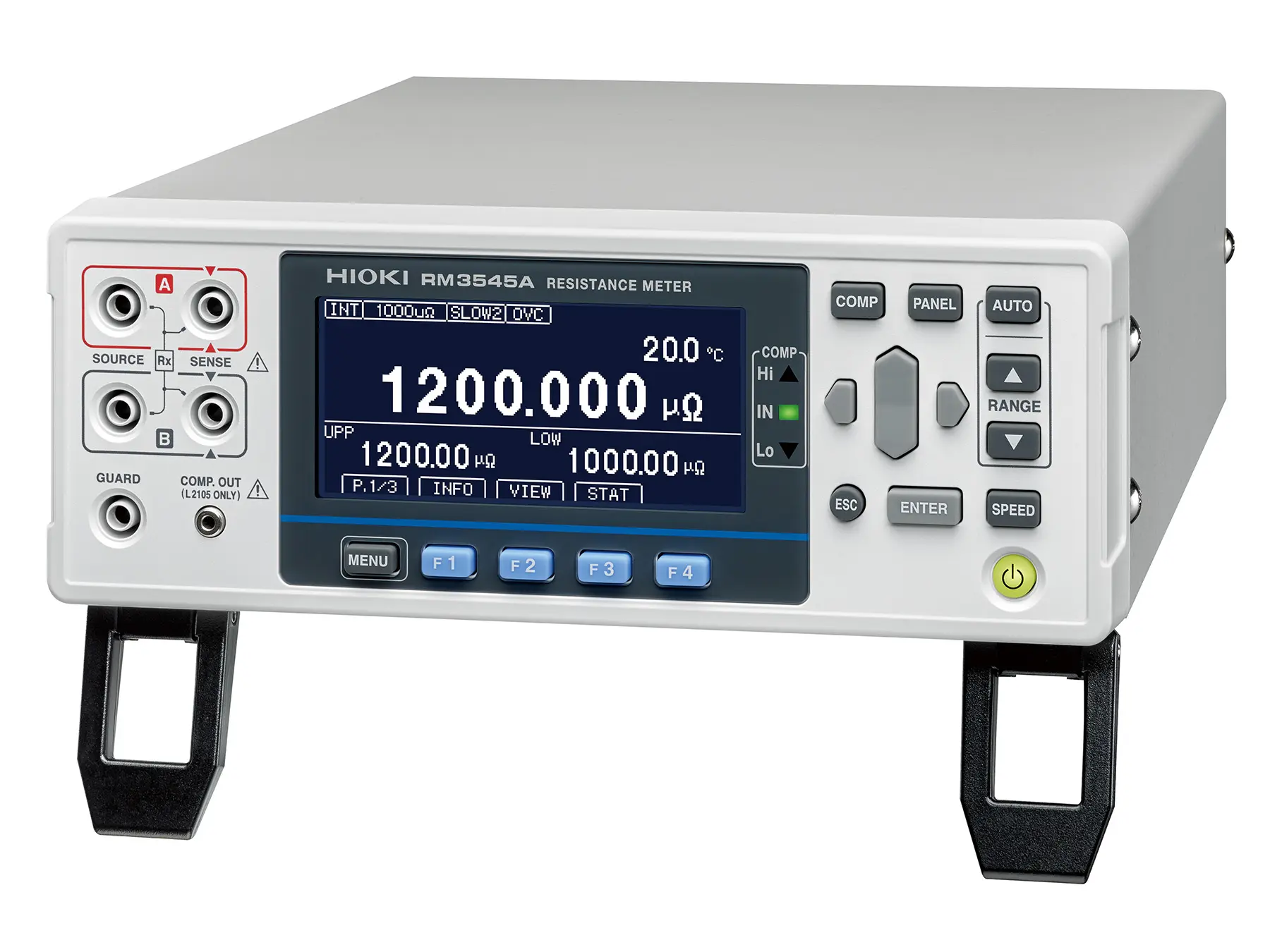

HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option
HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option

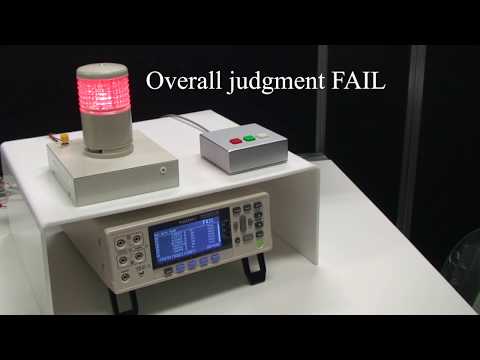

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI RM3545A-1 resistance meter 1 nano ohm-1200mega ohm high accuracy 0-045 percent Hands measuring
HIOKI RM3545A-2 resistance meter 1 nano ohm-1200mega ohm high accuracy 0-045 percent
HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option
HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option

€3,248.00

Content: 1 Each

In stock in Germany

€3,248.00

HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option
Product number: RM3545A-2
Available stock: 1
GTIN/EAN: 4536036014897
Length: 307 mm
Width: 215 mm
Height: 80 mm
Weight: 3.4 kg

Description

Product information HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option


Key Specifications

  • Resistance ranges: 1 mΩ to 1200 MΩ (13 ranges)
  • Basic accuracy: 0.045% rdg ± 0.010% full scale (1 mΩ range)
  • Resolution: 1 nΩ (1 mΩ range)
  • Measurement time: 2.3 ms (10 Ω range, fast mode)
  • Multiplexer option with Z3003 for up to 20 measurement channels (4-wire mode)

Typical Applications

  • Verification of busbar and weld joint resistance in battery modules
  • Measurement of winding resistance in motors and transformers
  • Testing of connection quality in EV charging connectors
  • Pattern resistance measurement on printed circuit boards
  • Automated multi-point resistance measurement (using Z3003 multiplexer option)

Detailed Product Overview

The RM3545A-2 Resistance Meter combines high-precision DC resistance measurement with integrated multiplexer capability for automated multi-channel testing. It offers 13 measurement ranges from 1 mΩ to 1200 MΩ and a maximum test current of 1 A, providing stable, repeatable results across a wide range of components and materials. With a 6 ½-digit display, 1 nΩ resolution, and a basic accuracy of ±0.045 % rdg ± 0.010 % f.s., the instrument delivers immediate, high-precision readings without the need for warm-up or manual zero adjustment.

Measurement times as short as 2.3 ms (10 Ω range, FAST mode) enable high-throughput testing and short cycle times, which is especially beneficial when the instrument is integrated into automated production lines or inspection systems. The RM3545A-2 supports all functions of the RM3545A-1 and adds multiplexer capability for efficient multi-point testing.

Integrated multiplexer capability

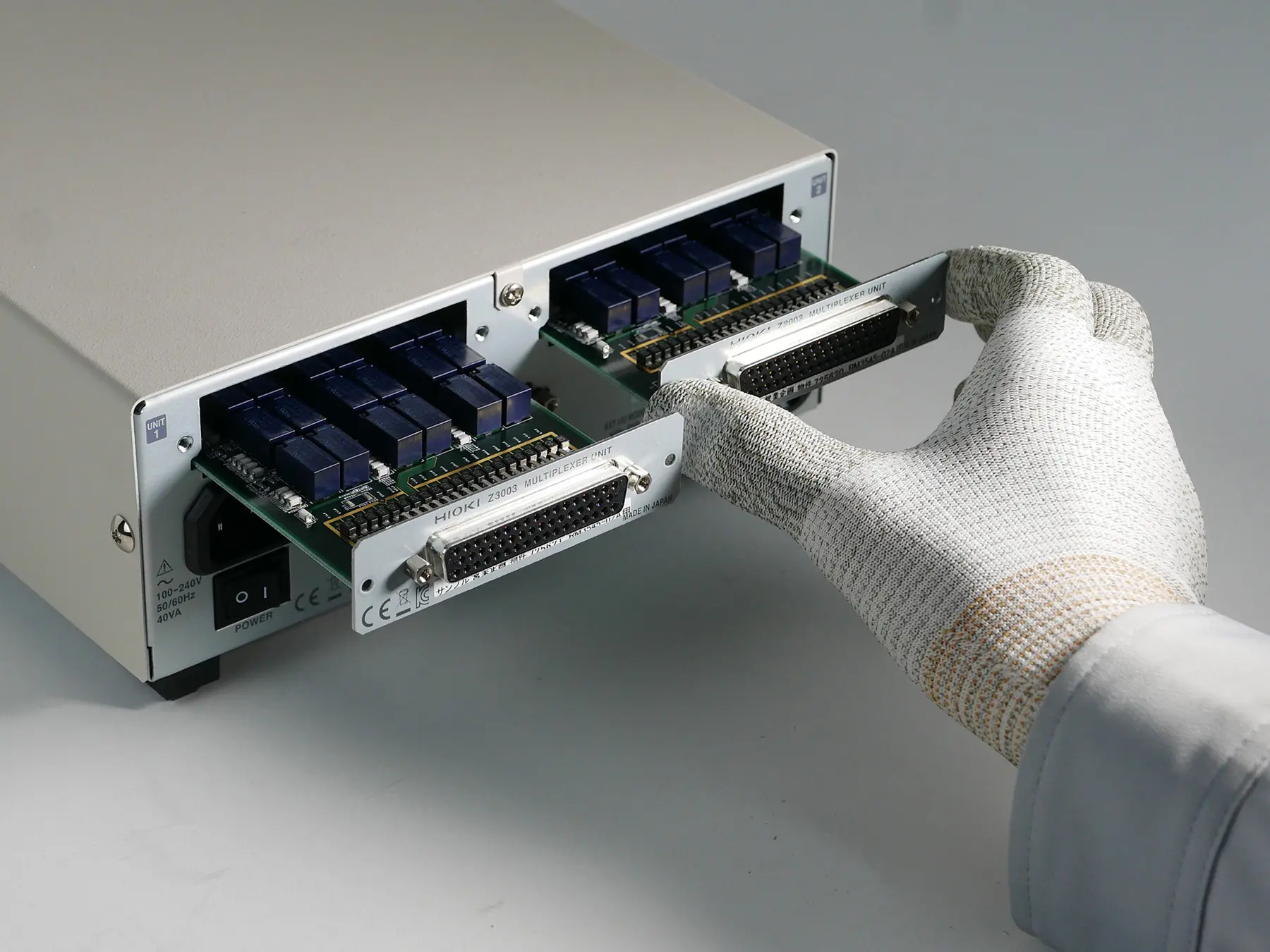

Two optional Z3003 Multiplexer Cards can be installed in the RM3545A-2, each providing 10 measurement channels in 4-wire mode. When two cards are fitted, the instrument can measure up to 20 channels automatically in sequence, enabling resistance evaluation of multiple DUTs without manual reconnection. This internal multiplexer configuration reduces system size, wiring effort, and cost compared to external switching systems.

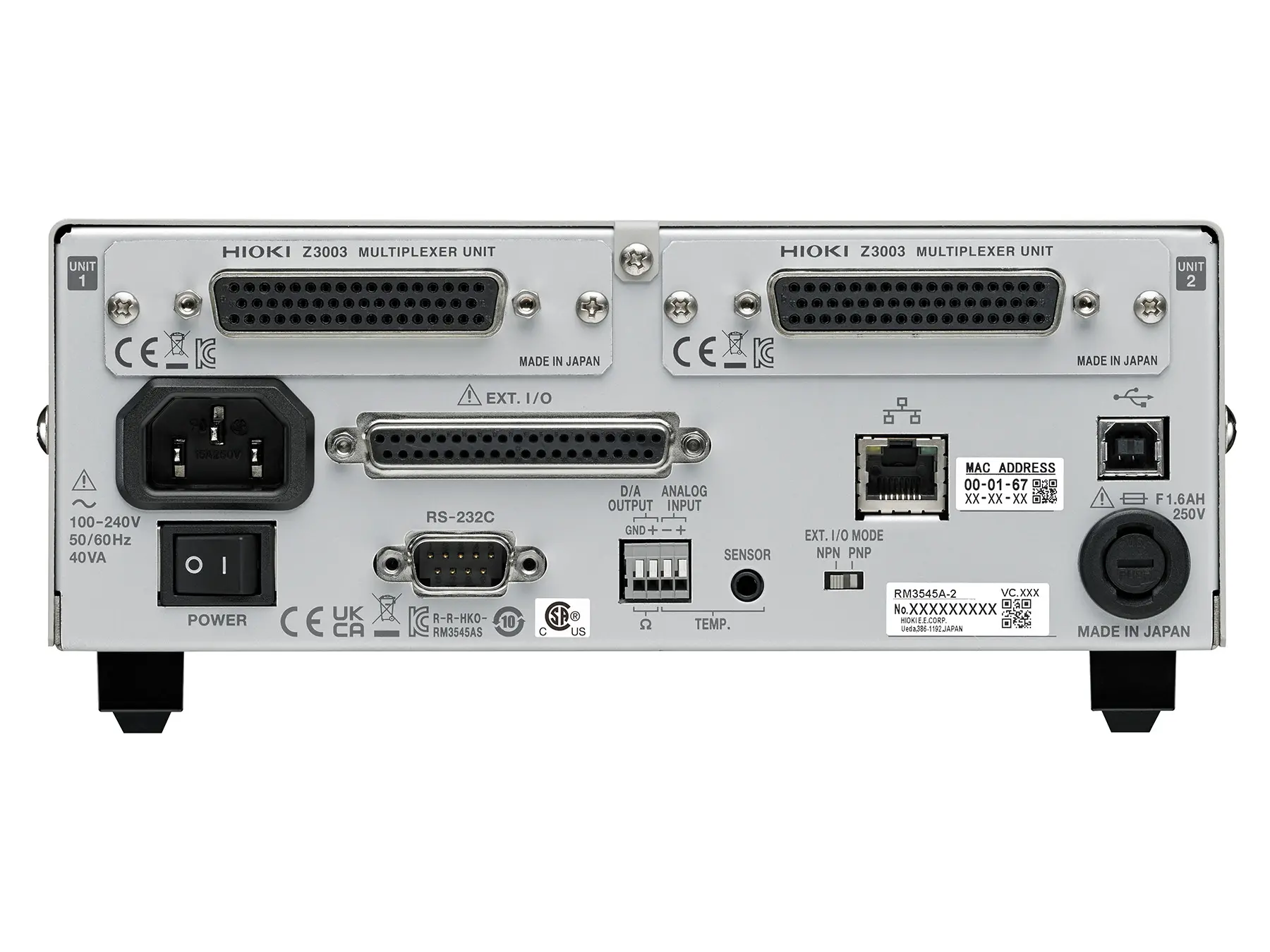

For automation and data acquisition, the RM3545A-2 provides LAN, USB, and RS-232C interfaces for communication with PCs and controllers, as well as an EXT I/O port for external triggering and pass/fail control. An analog D/A output (0 V to 1.5 V DC) enables monitoring or feedback control. The command-monitor function displays communication commands and responses at the bottom of the instrument’s display, simplifying debugging during system setup and reducing integration time.

Advanced precision functions

To ensure consistent measurement results under fluctuating temperature conditions, the RM3545A-2 includes a Temperature Compensation (TC) function that references measured resistance values to a defined reference temperature. This compensates for material-specific temperature coefficients, for example those of copper (approximately 0.4 % / °C). Temperature can be measured using the supplied Z2001 sensor or a compatible external analog thermometer.

The Offset Voltage Compensation (OVC) function suppresses thermoelectric voltages and internal offset voltages by applying current in both directions and averaging the results. The temperature rise function calculates the actual temperature increase of the DUT from the change in resistance and ambient temperature, while the contact-check function detects insufficient probe contact and reduces errors caused by poor connections.

Future-proof investment

The RM3545A-2 keeps future expansion options open. One or two Z3003 Multiplexer Cards can be installed at any time, allowing the instrument to be upgraded from a single-channel configuration to an automated multi-channel measurement system. Installation requires only a Phillips screwdriver and takes about two minutes. This flexibility allows users to start with manual measurements or prototype setups and later expand to a fully automated test environment without replacing the instrument.

For applications requiring more than 20 channels, the RM3545A-2 can alternatively be combined with the HIOKI SW1002 Multiplexer System, offering up to 132 channels in 4-wire mode.

What's in the Box

  • RM3545A-2 Resistance Meter
  • Power cord
  • Temperature sensor Z2001
  • Male EXT I/O connector
  • EXT. I/O connector cover
  • Spare fuse (F1.6AH 250 V)
  • Start-up guide
  • Operating precautions
  • Instruction manual
Skip product gallery

Related products

Z3003 - Multiplexer Card for RM3545A-2, 10 Channels (4-wire) HIOKI Z3003 multiplexer unit for RM3545A-2
Z3003
Z3003 - Multiplexer Card for RM3545A-2, 10 Channels (4-wire)
Multiplexer card for the RM3545A-2 resistance meter, provides 10 (4-wire) or 21 (2-wire) channels per card, mechanical relays, 50-pin D-sub output

€838.00
View product
HIOKI RM3545A-1 - Precision instrument for DC resistance, 13 ranges from 1 mΩ to 1200 MΩ HIOKI RM3545A-1 resistance meter 1 nano ohm-1200mega ohm high accuracy 0-045 percent Hands measuring
RM3545A-1
HIOKI RM3545A-1 - Precision instrument for DC resistance, 13 ranges from 1 mΩ to 1200 MΩ
High precision DC resistance meter, 13 ranges from 1 mΩ to 1200 MΩ, basic accuracy 0.045%, 1 nΩ resolution, 6 1/2 digit display, compatible with SW1001 / SW1002 Multiplexer Systems, remote controllable via LAN, RS-232C, USB

€3,028.00
View product
20
RM3544 - Resistance Meter HIOKI RM3544 resistance meter measurement range up to 3 5mega ohm
RM3544
RM3544 - Resistance Meter
The RM3544 provides precise measurements for a wide range of applications in electronics manufacturing and testing. It uses the 4-terminal measurement method with a constant current source to perform accurate resistance measurements. It is suitable for measuring electrical components such as motors, transformers, relays, switches, and wire connections. Additionally, it supports temperature measurement using thermistors, which is particularly important for applications requiring temperature compensation. With its high resolution and measurement accuracy, it is equally effective on production lines and in research laboratories. Technical details: High measurement accuracy of 0.02%Measurement range from 0.000 mΩ to 3.5 MΩSupports measurement currents up to 300 mAIdeal for simpler applications and manual operation on production linesScaling function for converting resistance values into physical quantities. Comparator function for pass/fail assessments based on predefined thresholds.Temperature compensation function to correct for temperature fluctuations.

€854.40 €1,068.00
View product
RM3544-01 - Resistance meter HIOKI RM3544 resistance meter measurement range up to 3 5mega ohm
RM3544-01
RM3544-01 - Resistance meter
The RM3544-01 is a high-precision bench-top resistance meter designed for reliable resistance measurement across a wide range of applications. It is suitable for production lines, quality inspections, and integration with automated systems. With its ability to measure resistance from microohms to megohms and an optional LED Comparator attachment for clear pass/fail judgments, this device delivers fast, stable results in even noisy environments. The RM3544-01 also features enhanced durability and noise resistance, making it a robust choice for industrial use. Technical details: Measurement range: 0.000 mΩ to 3.5000 MΩ Max. resolution: 1 μΩ Basic accuracy: 0.02% Measurement speed: Fast (21 ms at 50 Hz) to Slow (401 ms) Temperature measurement range: -10.0 °C to 99.9 °C (thermistor) Display: 5 digits/4 digits selectable Safety: EN61010, EMC: EN61326 Power supply: 100 to 240 VAC Dimensions: 215W × 80H × 166D mm Weight: Approx. 1.0 kg Selectable communication interfaces: EXT I/O, RS-232C, USB

€1,428.00
View product
L2100 - PIN TYPE LEAD HIOKI L2100 pin type lead for high voltage robust insulation
L2100
L2100 - PIN TYPE LEAD
L2100 - Pin Type Lead The L2100 is a pin type lead designed for high voltage battery measurements with robust insulation and long reach for precise readings. Technical Details:Max voltage: 1000 V DC Compatibility: BT3562, BT3563, BT3564

€418.00
View product
L2101 - CLIP TYPE LEAD L2101 - CLIP TYPE LEAD
L2101
L2101 - CLIP TYPE LEAD
The L2101 clip type lead features Kelvin clamps, providing precision measurements for resistance testing, designed specifically for the RM3544 and RM3545 series. Technical Details:Compatibility: RM3544, RM3545 series

€178.00
View product
HIOKI L2103 pin type lead picture HIOKI L2103 pin type lead rm3545A compatible
L2103
L2103 - PIN TYPE LEAD
The L2103 pin type lead is designed for accurate testing applications, compatible with the RM3544 and RM3545 series. Technical Details:Compatibility: RM3544, RM3545 series

€488.00
View product

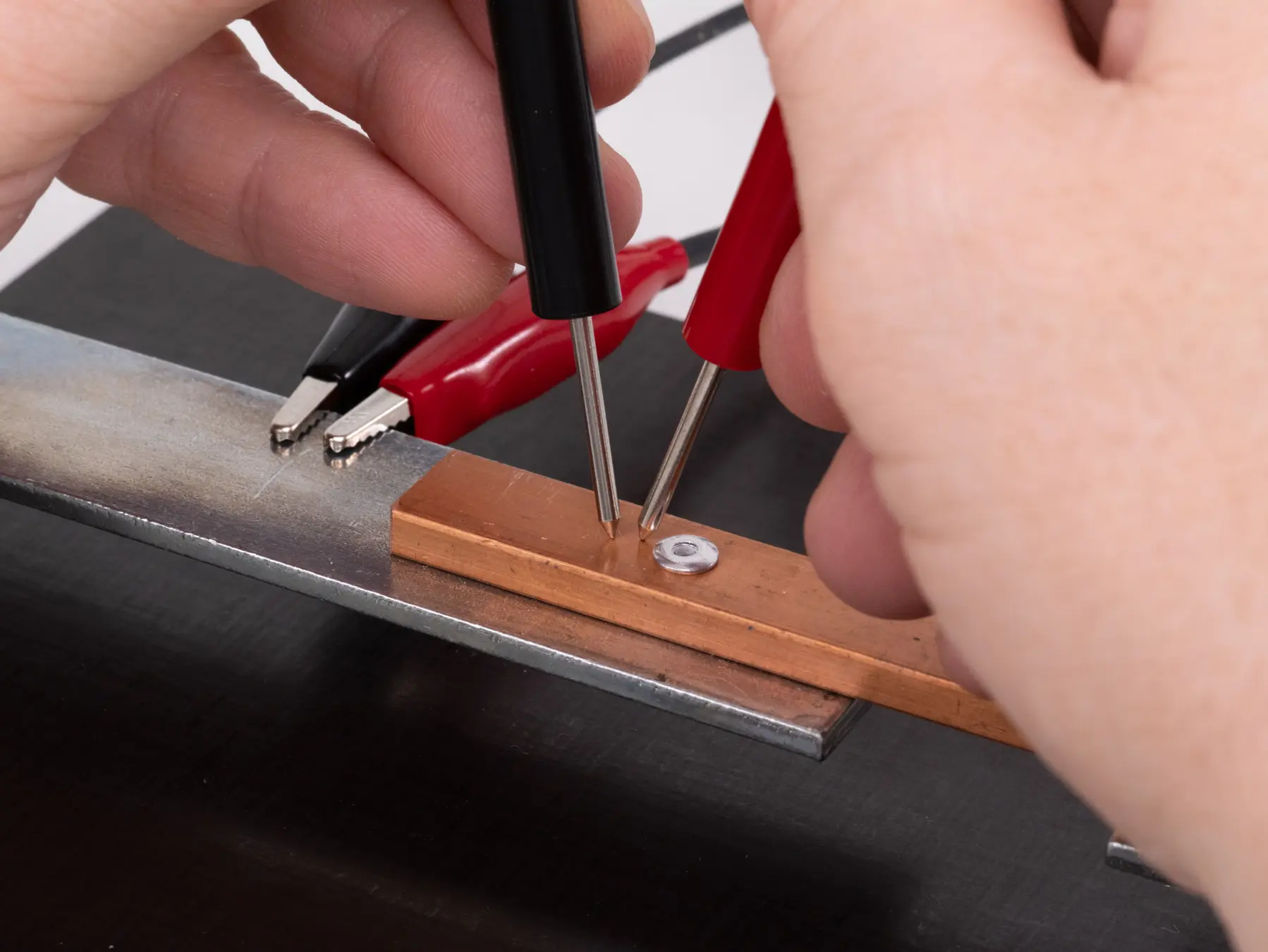

HIOKI L2104 4-terminal lead HIOKI L2104 4-terminal lead field use
L2104
L2104 - 4-Terminal Lead

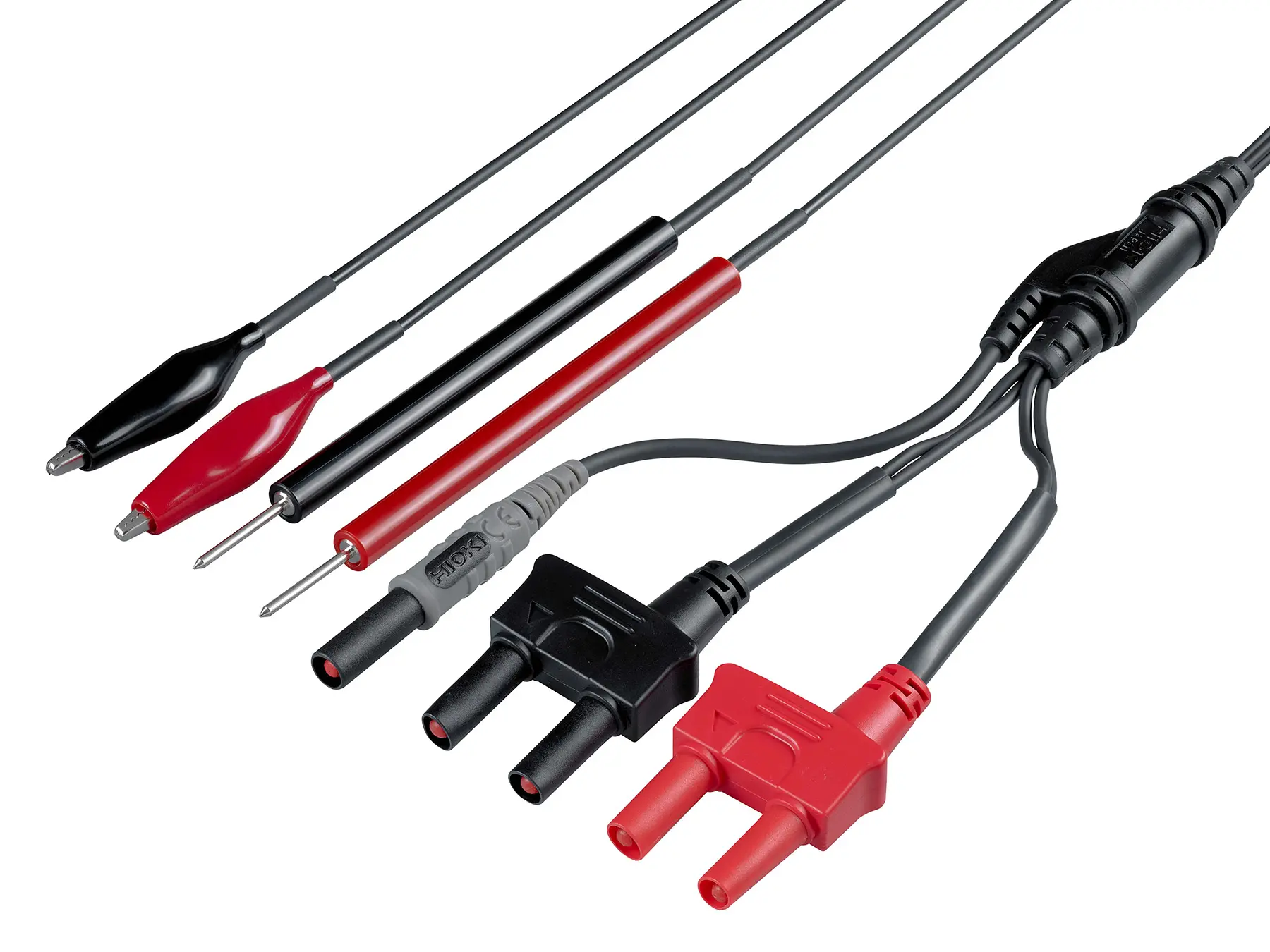

4-Terminal Lead The L2104 - 4-Terminal Lead is designed for precision measurements, offering durable construction for use with the RM3544 and RM3545 series. Technical Details:Compatibility: RM3544, RM3545 series

€288.00
View product
L2105 LED COMPARATOR ATTACHMENT L2105 LED COMPARATOR ATTACHMENT
L2105
L2105 LED COMPARATOR ATTACHMENT
The Hioki L2105 LED Comparator Attachment is designed for efficient judgment indication when connected to the COMP.OUT jack of compatible instruments. It allows users to easily check measurement results from a distance, with the LED indicator showing green for acceptable (IN) results and red for high (Hi) or low (Lo) readings.

€78.00
View product
HIOKI L2102 pin type lead HIOKI L2102 pin type lead rm3544 compatible
L2102
L2102 - PIN TYPE LEAD
The L2102 Pin Type Lead features a gilded, spring contact needle, offering reliable contact for precise measurement, suitable for the RM3544 and RM3545 series. Technical Details:Compatibility: RM3544, RM3545 series

€358.00
View product
HIOKI Z2001 temperature sensor HIOKI Z2001 temperature sensor 1,75m cable
Z2001
Z2001 - Temperature Sensor
The HIOKI Z2001 temperature sensor is designed for use with the HIOKI RM3545 series and similar products, delivering reliable temperature measurements with a 1.75 m cable.

€88.00
View product
Z5038 - Zero Adjustment Board
Z5038
Z5038 - Zero Adjustment Board
The HIOKI Z5038 Zero setting board is an accessory for Hioki battery testers to do a defined zero adjustment with HIOKI test leads.

€58.00
View product
9642 LAN CABLE 9642 LAN CABLE
9642
9642 LAN CABLE
LAN cable, straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m length, for the Memory HiCorder, LR8400 series, and similar products

€58.00
View product
20

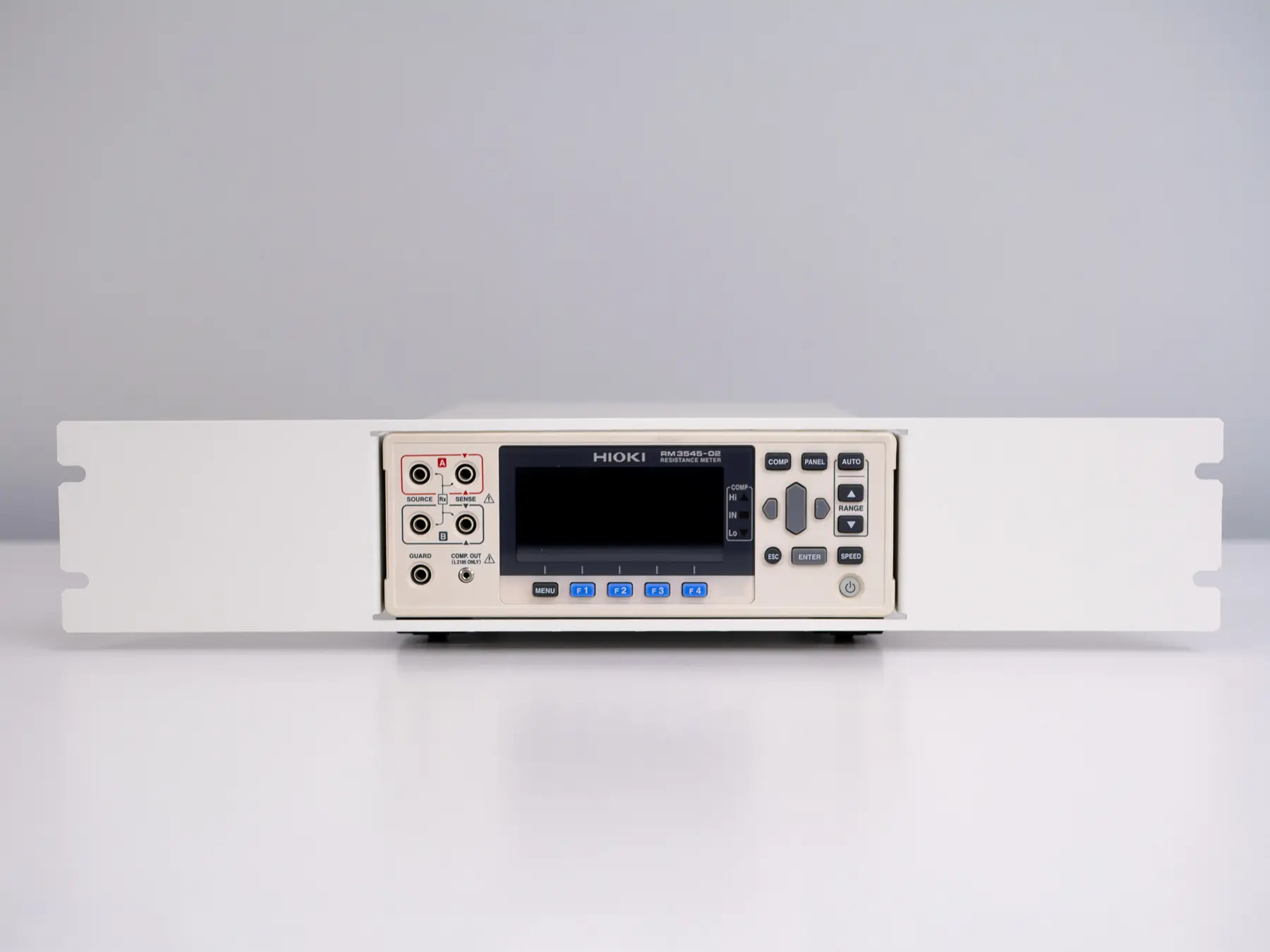

HIOKI EU3545A 19inch rack-mount-kit dedicated brackets HIOKI EU3545A 19inch rack mount kit for rm3545 series
EU3545A
HIOKI EU3545A - 19-inch rack-mount kit for RM3545 series

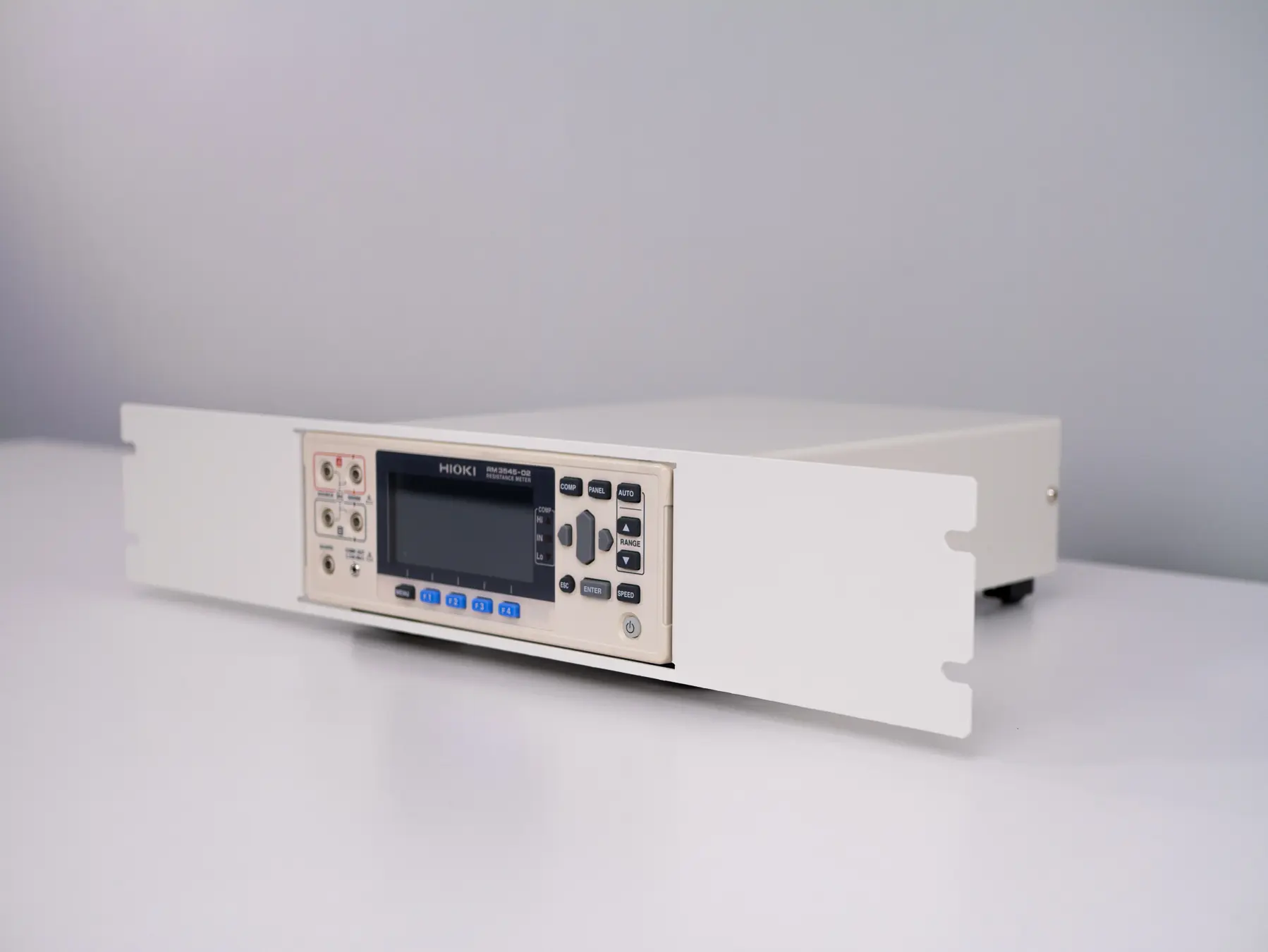

Rack-mount accessory for installing RM3545 resistance meters in 19-inch racks
