L2103 - PIN TYPE LEAD
€488.00
In stock in Germany
€488.00
Description
Product information L2103 - PIN TYPE LEAD

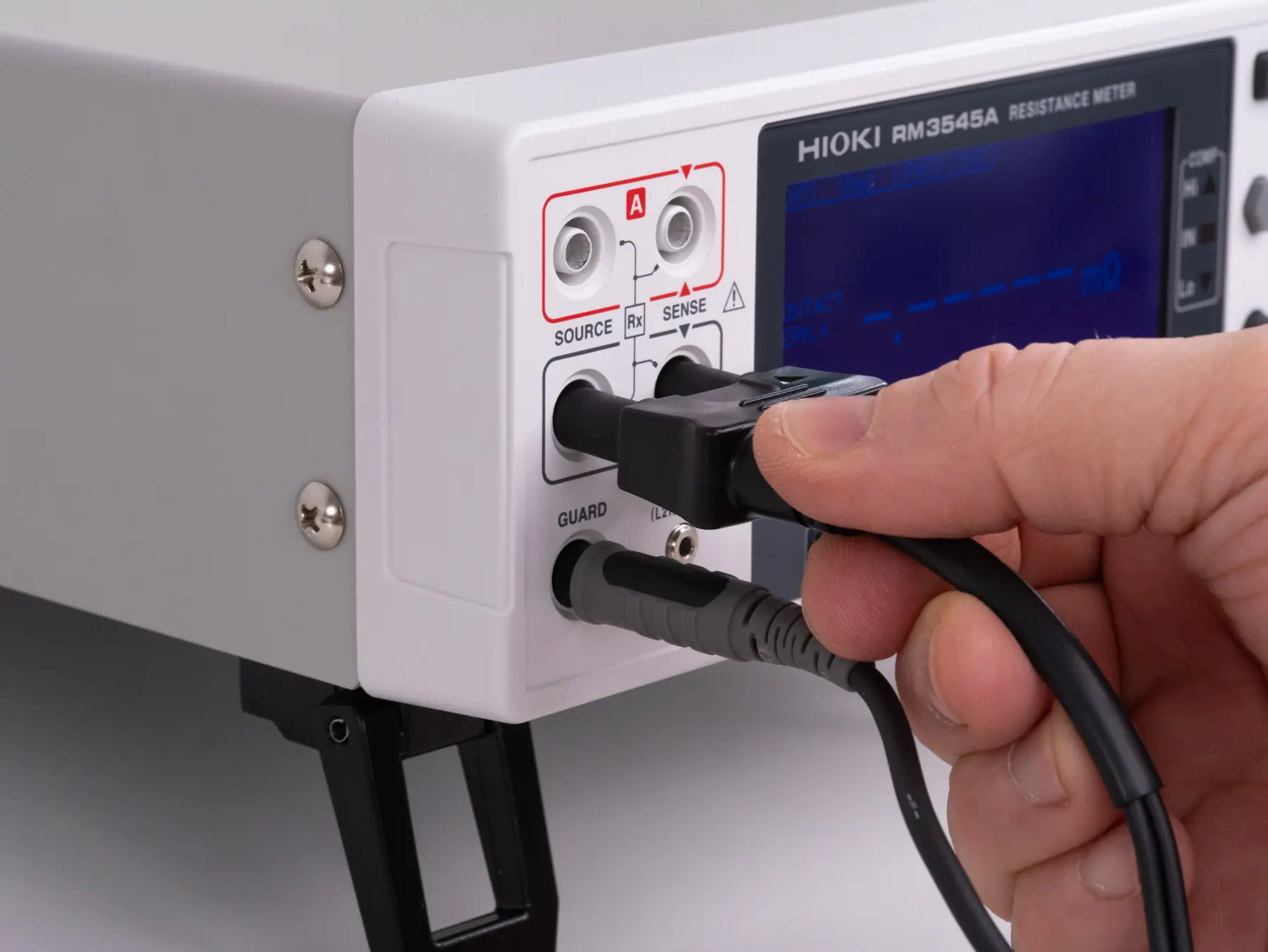

- Compatibility: RM3544, RM3545 series
Related Products
Content:
1 Each
L2103 - PIN TYPE LEAD
Product number:
L2103
Available stock:
3
GTIN/EAN:
4536036001255

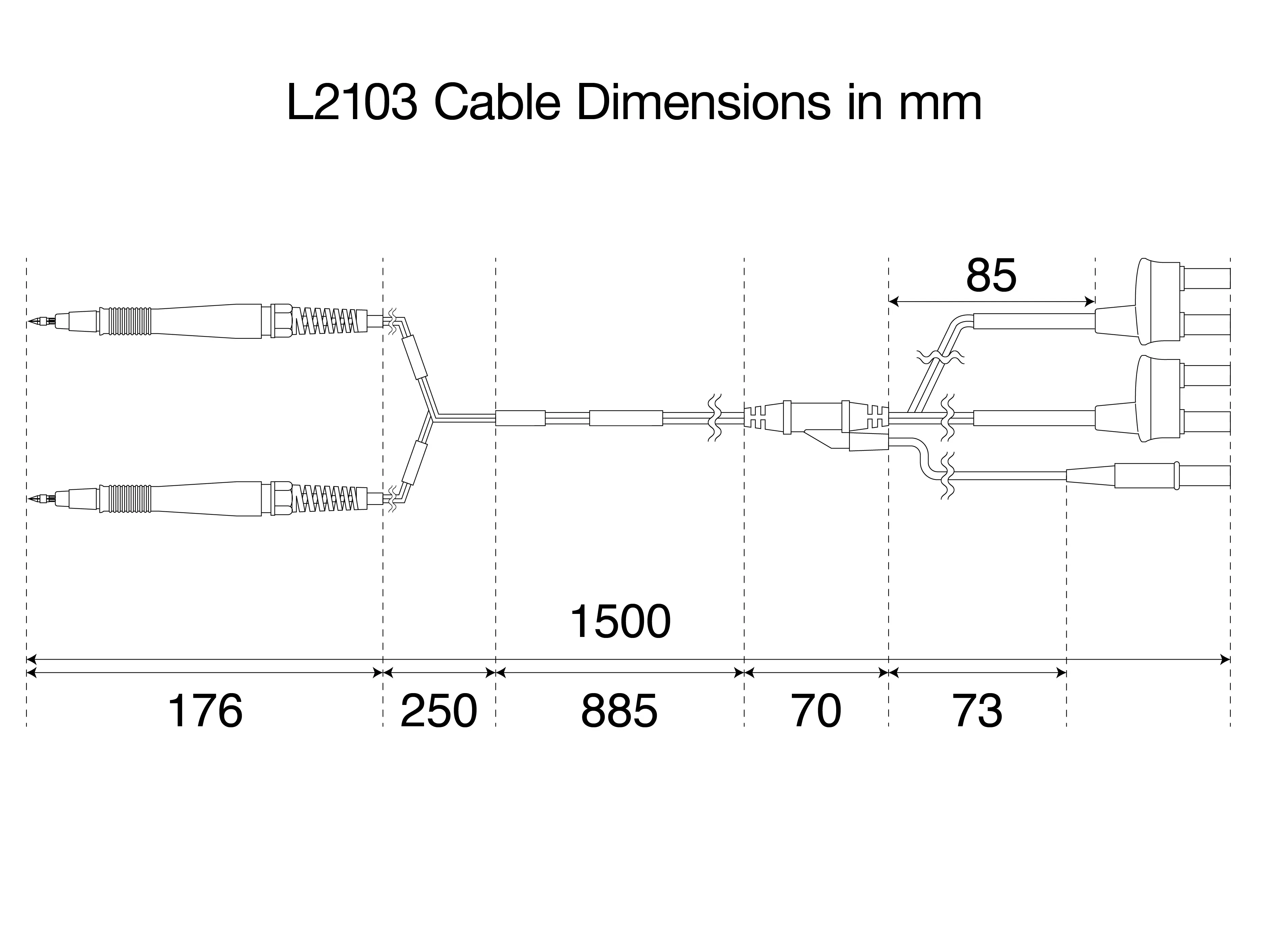

Length:
1500 mm
Weight:
0.18 kg

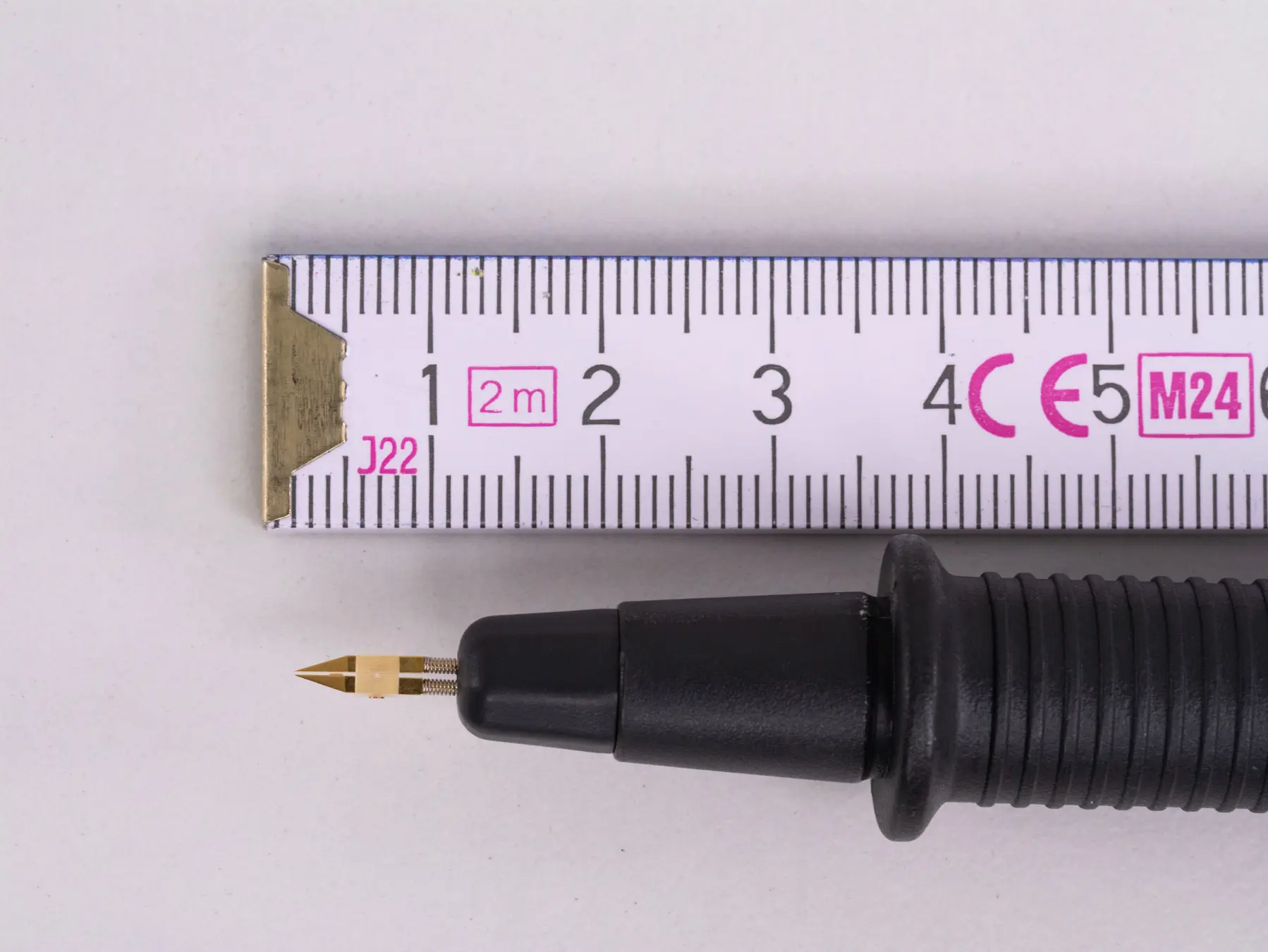

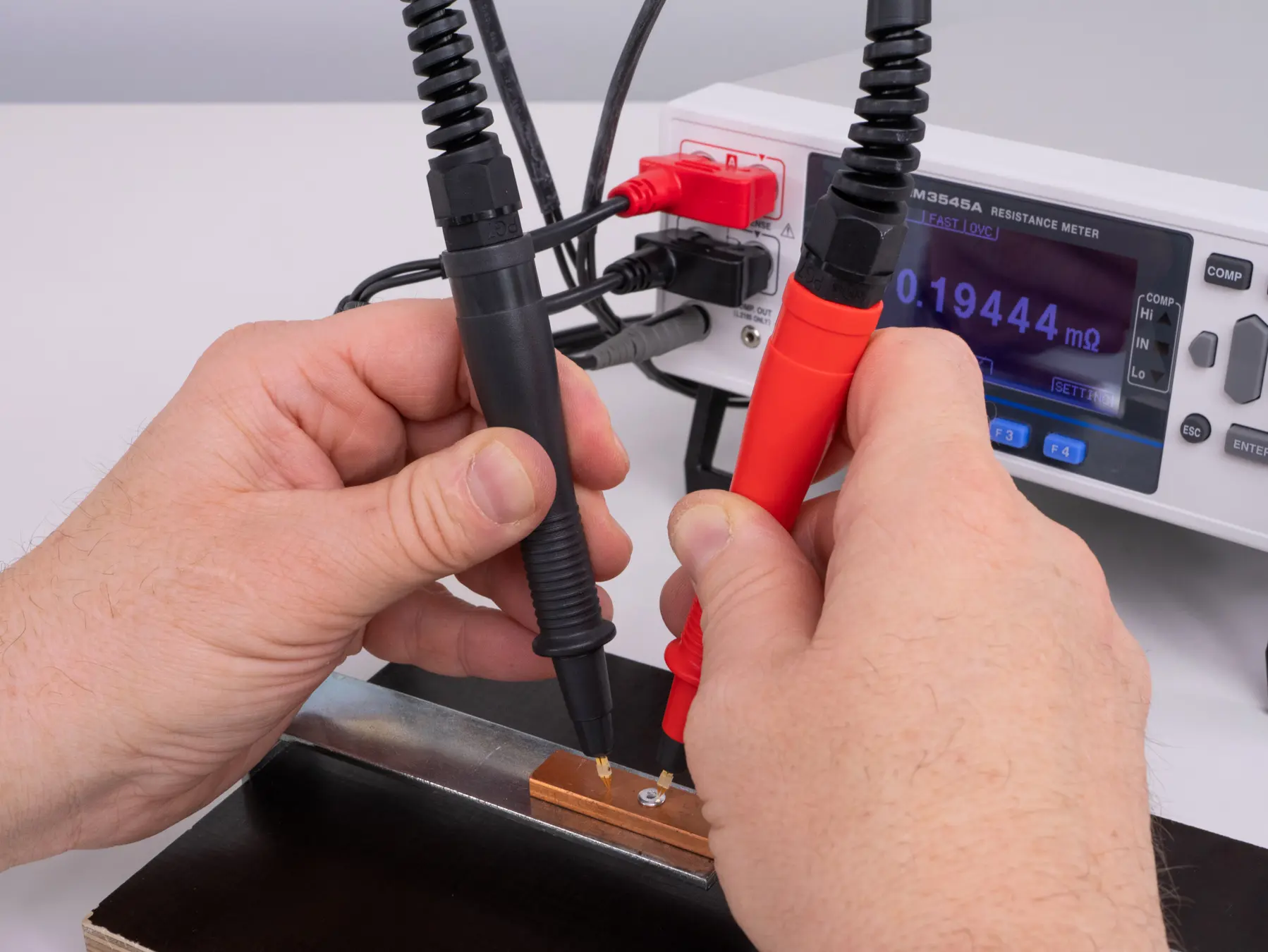

The L2103 pin type lead is designed for accurate testing applications, compatible with the RM3544 and RM3545 series.
Technical Details:
