RM9010-02 - FOUR-POINT ARRAY PROBE

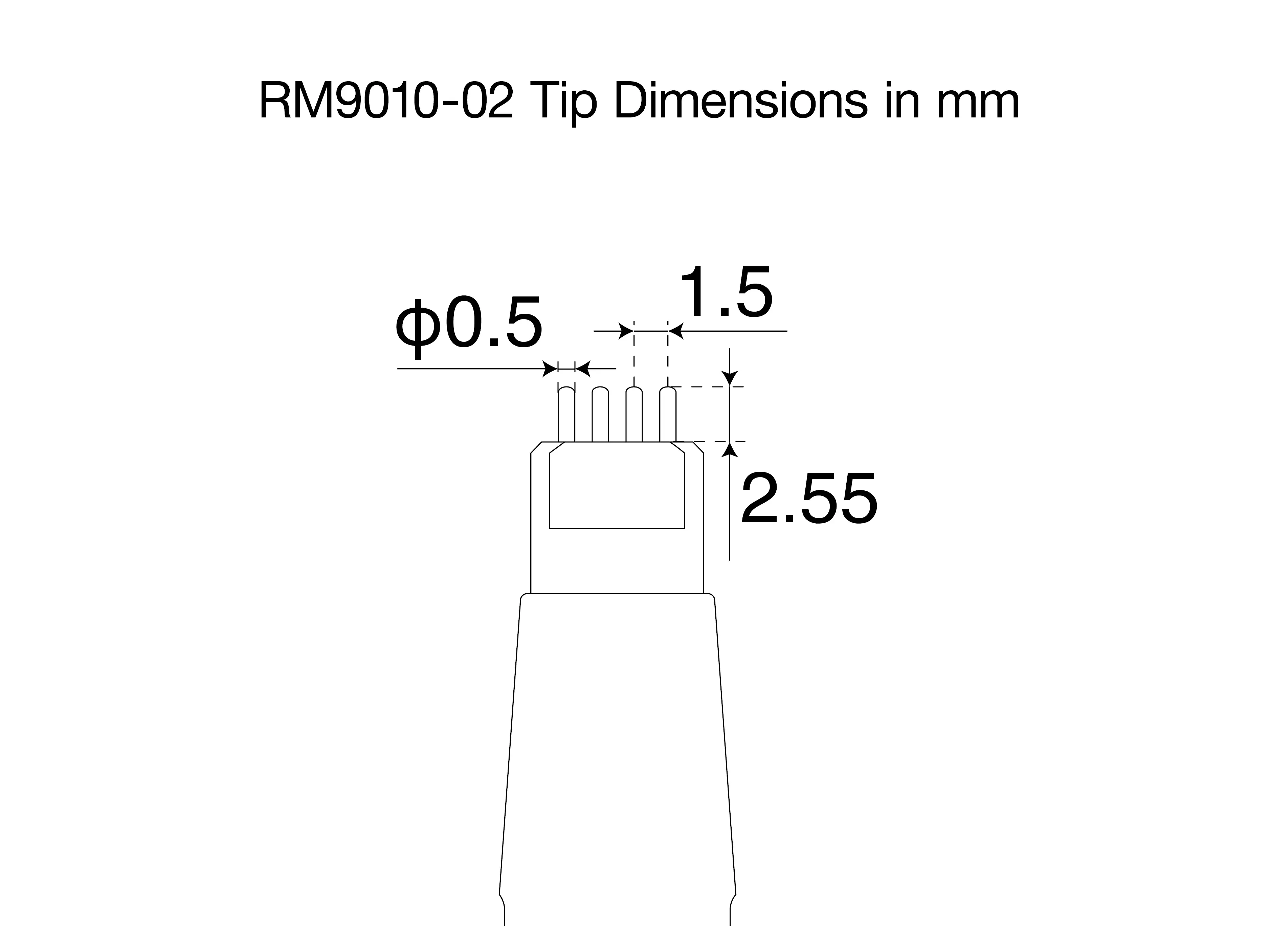

Four-point array probe with 1.5 mm between the contact pins, for the RM3545, including PC software for calculating volume resistivity (O-m), surface resistivity (O/sq), conductivity (S/cm) and resistance (O)
€2,818.00
Content:
1 Each
€2,818.00
RM9010-02 - FOUR-POINT ARRAY PROBE
Product number:
RM9010-02
Available stock:
1
GTIN/EAN:
4536036013395
Product details
Description
Product information RM9010-02 - FOUR-POINT ARRAY PROBE
RM9010-02 four-point array probe is the probe assembly that can plug into the RM3545, RM3545-01, and RM3545-02 resistance meter to perform the four-point probe resistivity measurements. You can employ the four-point probe method to measure resistivity and conductivity using the PC application designed for the RM3545 exclusively. The application can be installed using the installer contained in the CD that came with the instrument.
- Maximum rated terminal to ground voltage is 30VAC rms or less, 42.4VAC peak or less, 60VDC or less
- 1.5A AC/DC rated current
- Operating temperature range 0 to 40°C(32 to 104°F)
-
Product brochure with datasheet, resistance meter RM3545, RM3544 (English)5,063 KB pdf
-
Product brochure, RESISTANCE METER RM3545A (English)2,021 KB pdf
-
RM3545A, RM3546 Measurement Lead Selection Guide (English)1,048 KB pdf
-
Instruction Manual, FOUR-POINT ARRAY PROBE RM9010-01, RM9010-02 (Japanese, English)3,251 KB pdf
-
Datasheet, Resistance Meter RM3545A, RM3546 (English)1,987 KB pdf
Skip product gallery
Regular price:
€2,608.00
Regular price:
€3,028.00
Regular price:
€3,248.00
Related Products
RM3545

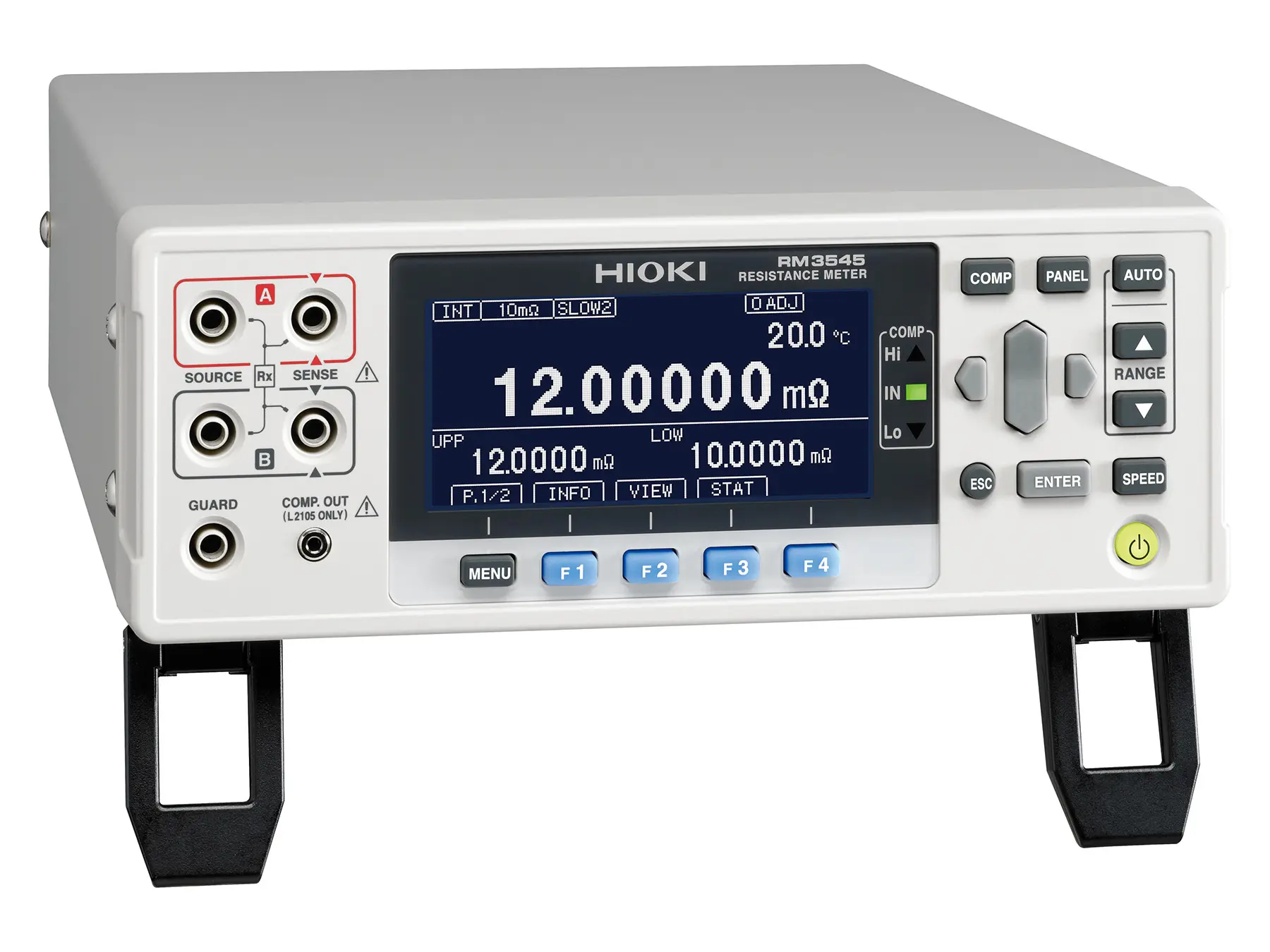

RM3545 - Resistance meter
