SA9001 - Slurry sample container for NMP-based slurry measurement

Slurry sample containers for NMP-based lithium-ion battery slurries, nickel-plated electrodes, for use with SA9002 Test Fixture, pack of 50
Skip image gallery
HIOKI SA9001 slurry sample container sa9002 test fixture
HIOKI SA9001 slurry sample container pack of 50

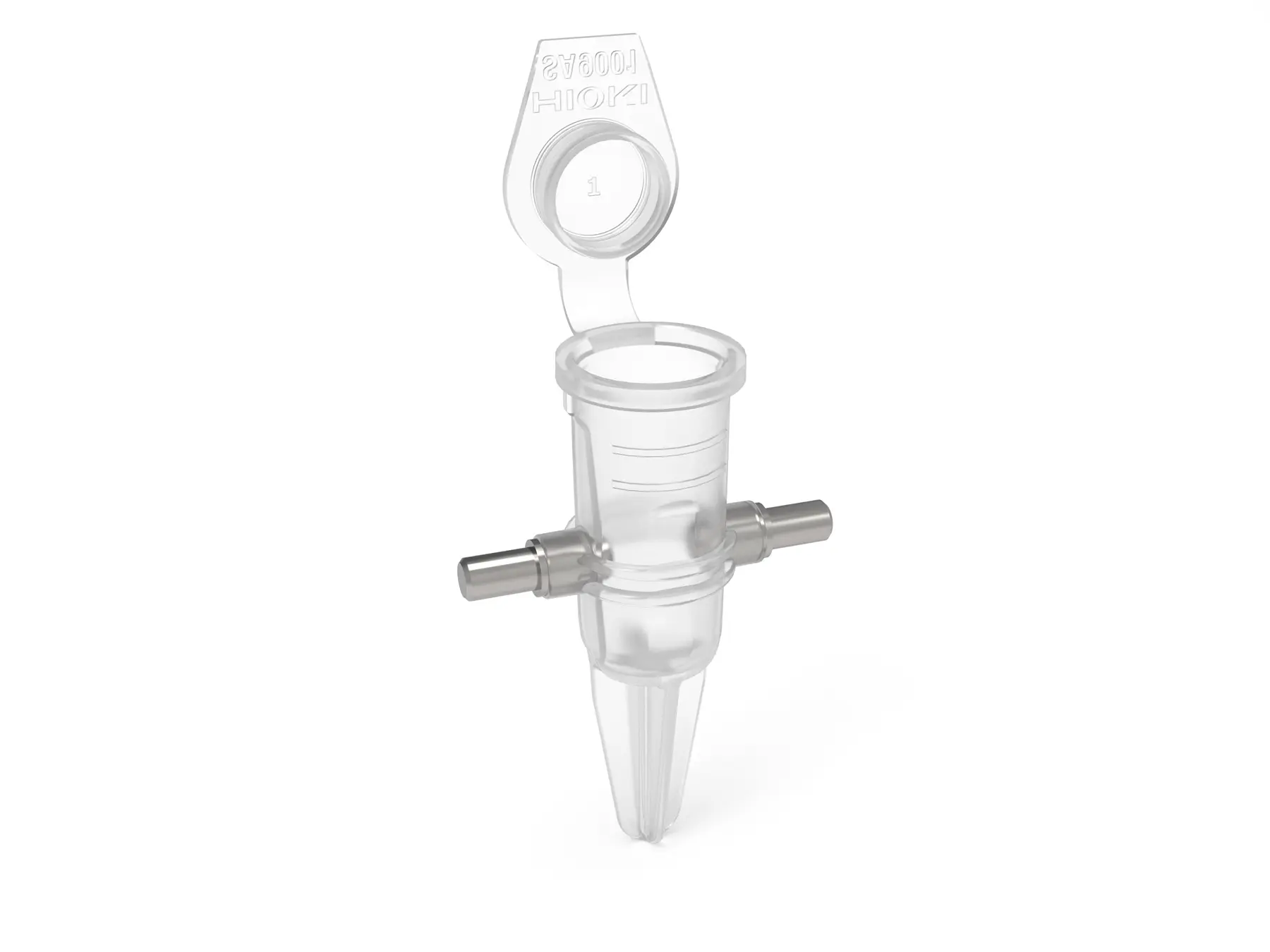

HIOKI SA9001 slurry sample container nickel plated electrodes

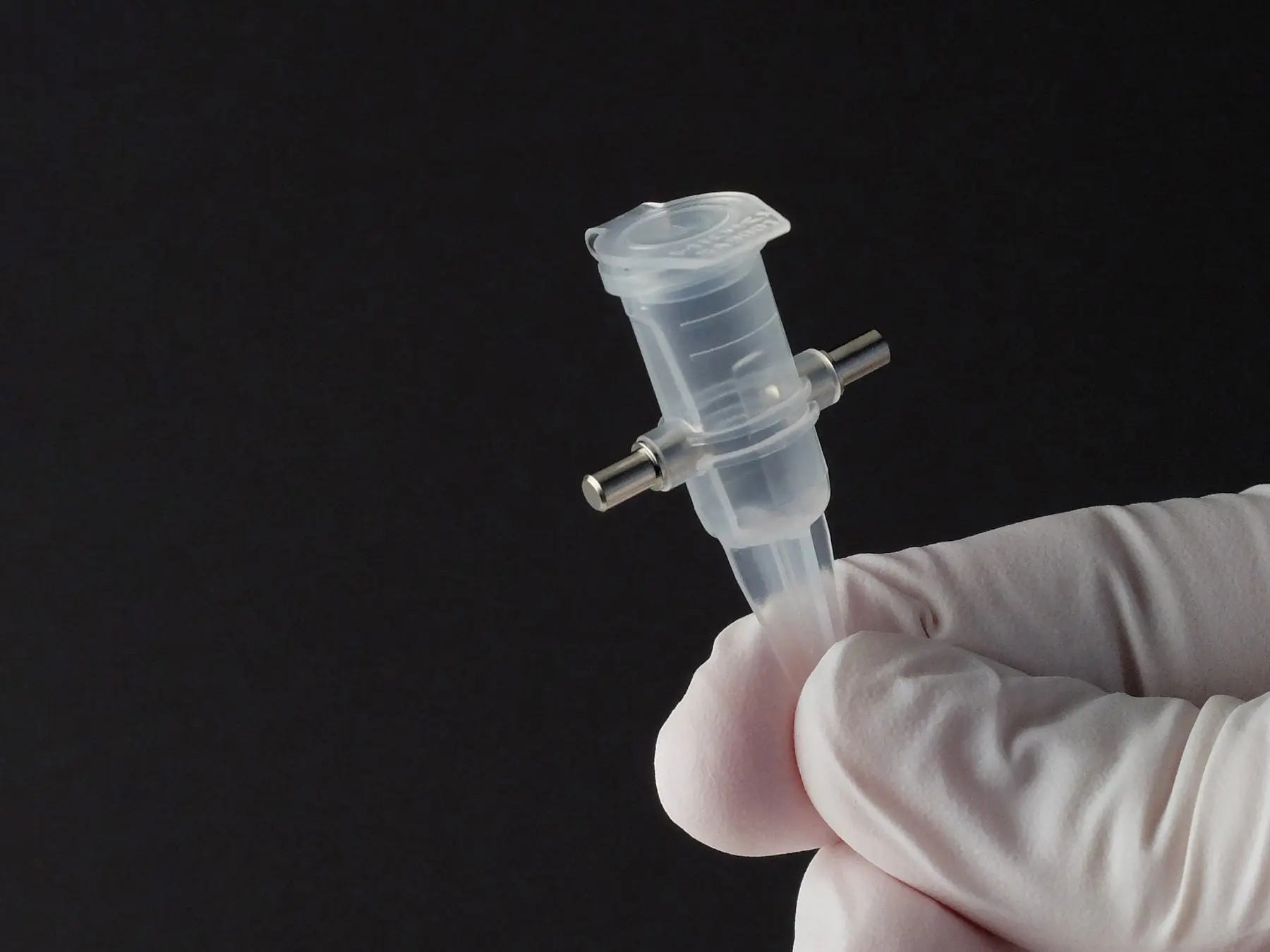

HIOKI SA9001 slurry sample container lithium ion battery slurry

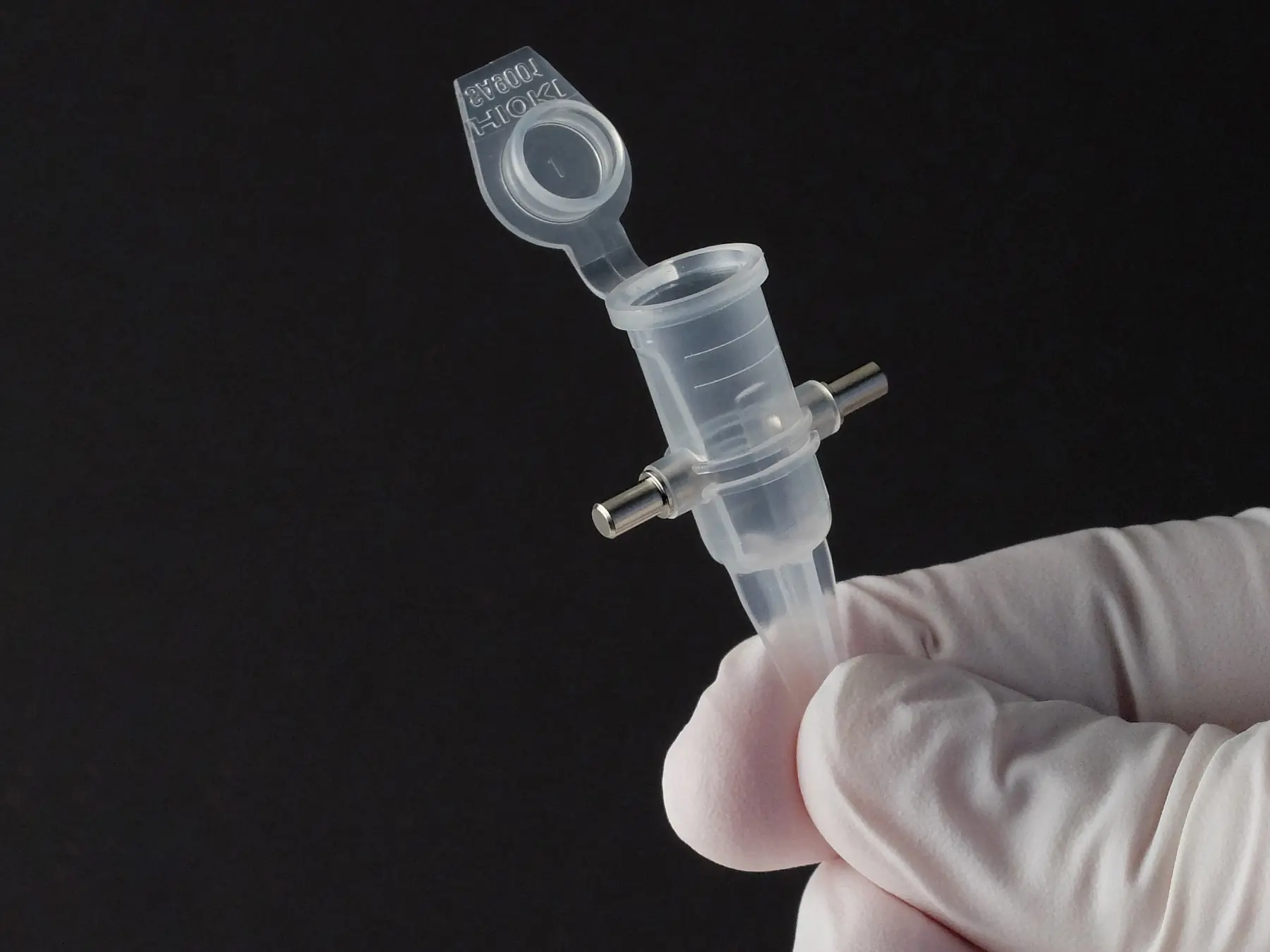

HIOKI SA9001 slurry sample container nmp based

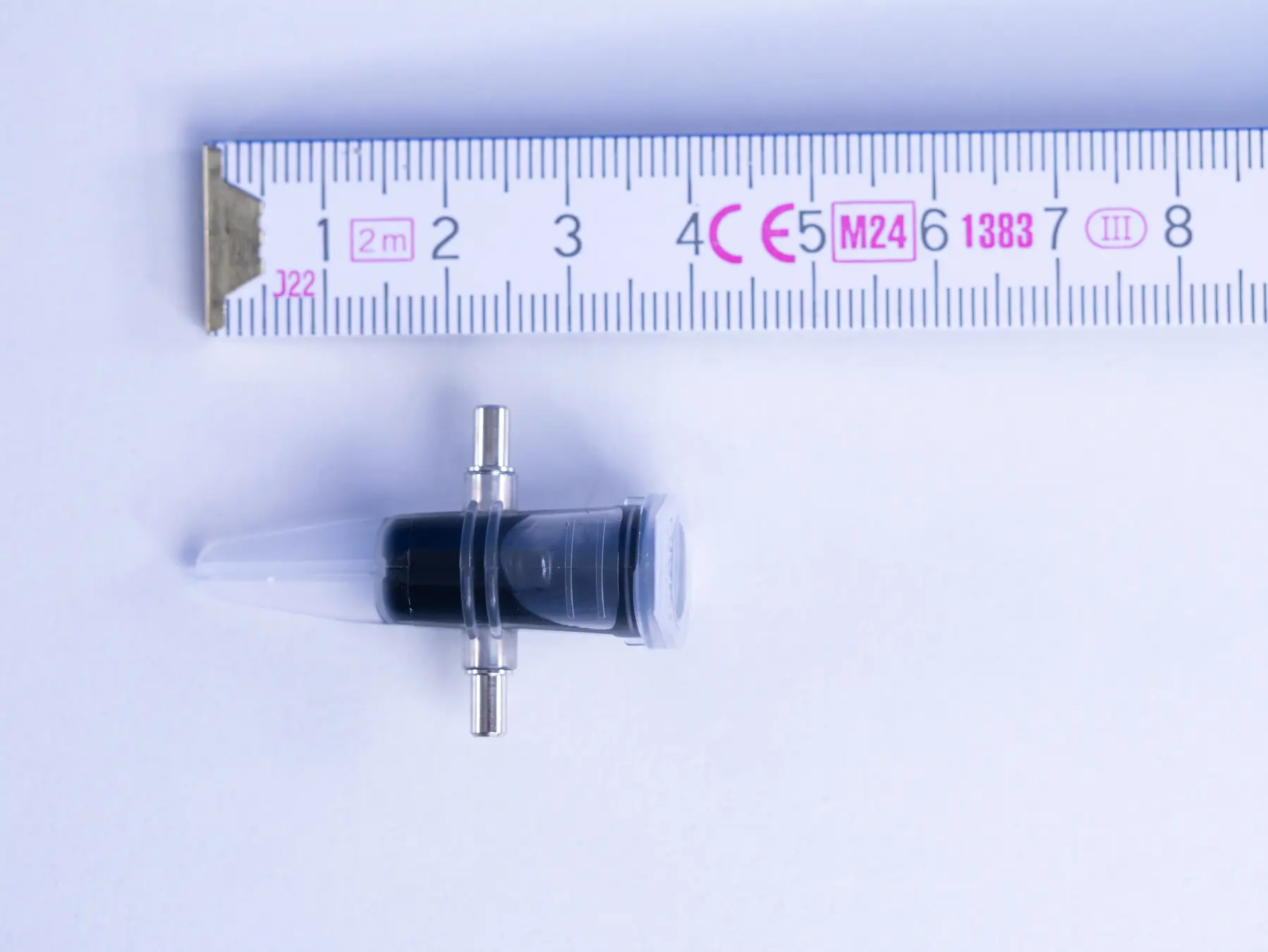

HIOKI SA9001 slurry sample container size

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI SA9001 slurry sample container sa9002 test fixture
HIOKI SA9001 slurry sample container pack of 50
HIOKI SA9001 slurry sample container nickel plated electrodes
HIOKI SA9001 slurry sample container lithium ion battery slurry
HIOKI SA9001 slurry sample container nmp based
HIOKI SA9001 slurry sample container size
SA9001 - Slurry sample container for NMP-based slurry measurement

€208.00

Content: 1 Pack

In stock in Germany

€208.00

SA9001 - Slurry sample container for NMP-based slurry measurement
Product number: SA9001
Available stock: 1
GTIN/EAN: 4536036014323
Length: 37 mm
Width: 27 mm
Height: 42 mm
Weight: 0.19 kg

Description

Product information SA9001 - Slurry sample container for NMP-based slurry measurement

The SA9001 is used together with the SA9002 Test Fixture as part of HIOKI’s SA2634-KIT Slurry Analysis System. Each pack contains 50 slurry sample containers (also referred to as electrode cells) for impedance measurement of N-Methyl-2-Pyrrolidone (NMP)-based lithiumion battery slurries. The nickel-plated electrode surfaces provide durable, low-resistance contact optimized for impedance analysis of NMP-based slurries.

NMP-based slurries are mainly used in the development and production of cathode materials such as Nickel-Cobalt-Manganese (NCM) and Nickel-Cobalt-Aluminum (NCA). The performance of these electrodes strongly depends on the homogeneous dispersion of conductive additives within the slurry. Because NMP effectively dissolves binder materials, it enables uniform dispersion and coating, making impedance characterization a key tool for process optimization.

Each container holds approximately 1 ml of slurry and is intended for single use to avoid cross-contamination between measurements. When mounted in the SA9002 Test Fixture, it defines the electrode geometry and ensures consistent contact conditions for reproducible impedance measurements.

Although part of the SA2634-KIT Slurry Analysis System, the SA9001 sample containers can also be purchased separately or used independently with other HIOKI LCR Meters and impedance analyzers in combination with the SA9002 Test Fixture. The containers are optimized for slurry materials; use with other conductive pastes may lead to different contact characteristics and is not covered by HIOKI specifications.

What's in the Box

  • 1 × SA9001 Slurry Sample Container (pack of 50)
