Precision test fixtures for impedance and resistance meters
HIOKI test fixtures – reliable contact for accurate measurements

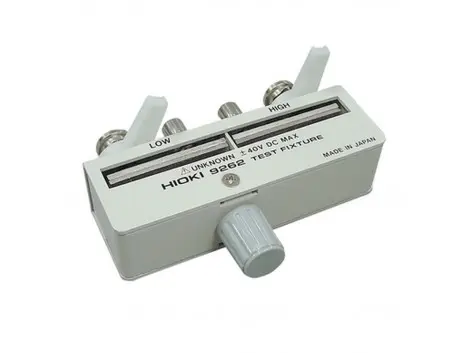

Select the suitable option depending on the shape and size of your device under test (DUT). For example the HIOKI 9263 Test Fixture for SMD components (from 1 mm to 10 mm), or select HIOKI 9262 Test Fixture for leaded components with conductor diameters from 0.3 mm to 2 mm. Fixtures with DC bias input are also available.
The RM9004 Test Fixture is part of the RM2610 Measurement System for LIB Electrode Sheets, a unique system designed for high-precision measurement of electrode resistance in battery research and QA.
Discover the right test fixtures for your resistance and impedance meter!
