HIOKI Test leads & probe tips
Precise Contact Solutions for Reliable Test and Measurement Results
For dependable results in test and measurement applications, high-quality test leads and probes are essential. HIOKI test cables, adapters, and contact probes ensure stable, low-loss connections and enable precise detection of even the smallest signals: whether using rugged test probes, fine pogo and spring contacts, or accurate Kelvin clamps for four-wire measurements. From battery testing and functional checks to PCB quality control and detailed laboratory analysis, all components are perfectly matched to HIOKI instruments to minimize contact resistance and measurement errors. Discover the ideal accessories for reproducible, high-precision measurement data.
83 Products
9453

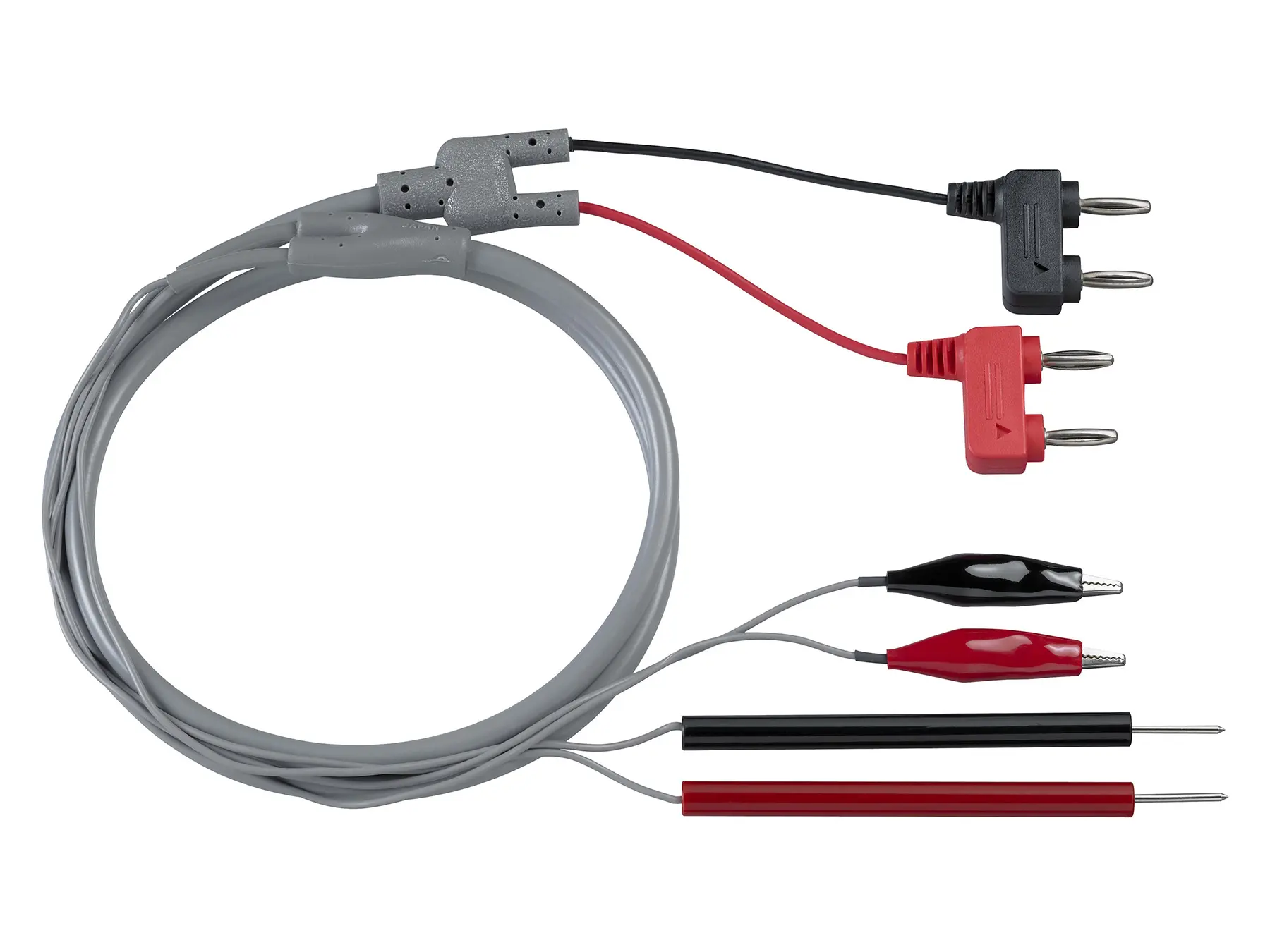

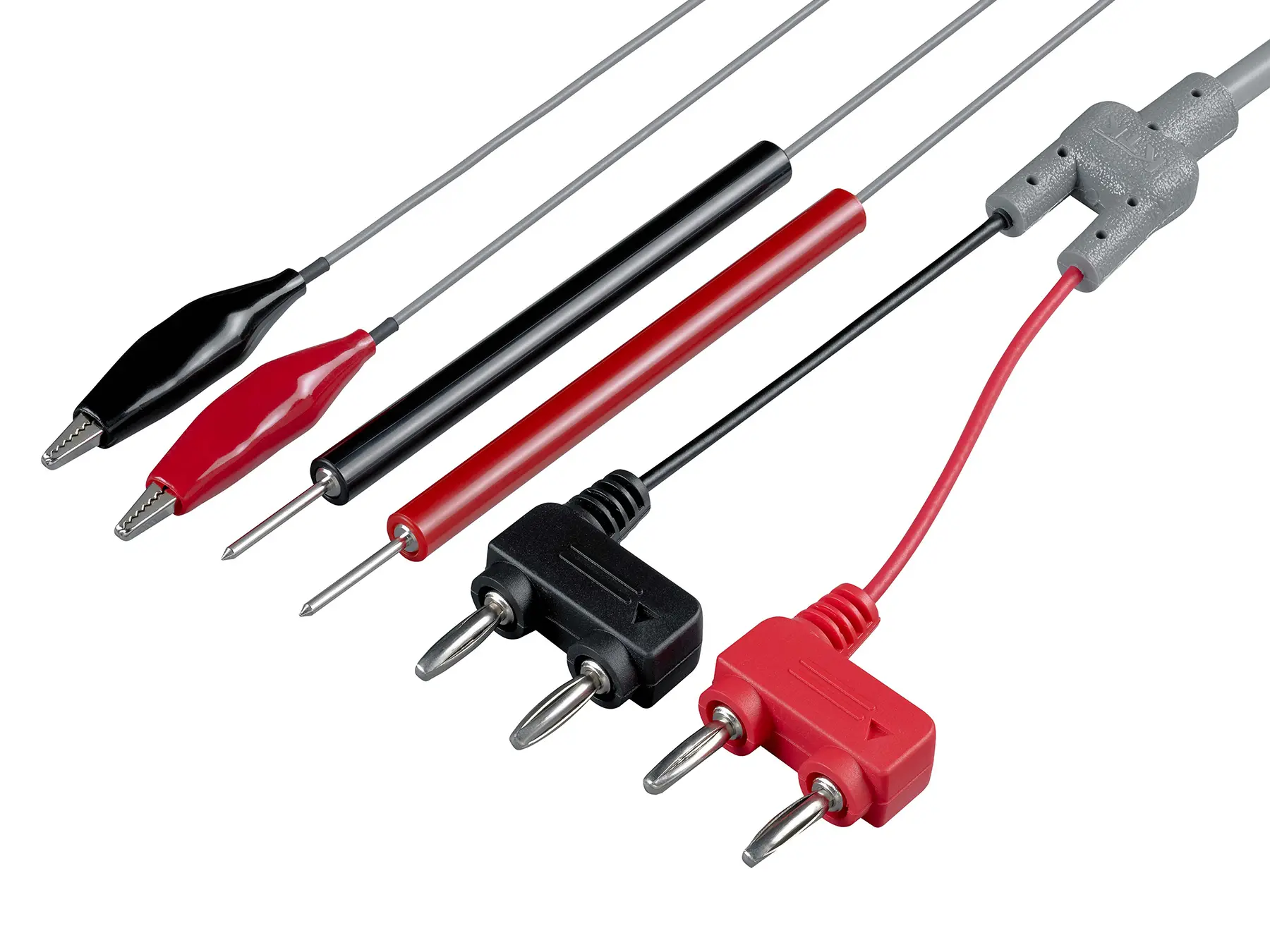

9453 - Four-wire measuring cable
The 9453 is of 4-pole design. It can be used to perform the 4-pole resistance measurement method. The 9453 test lead has four separate tips in red and black. Two are small alligator clips and two are probes with tips. Technical details: Length: 1350mm Measuring devices (accuracy guaranteed): 3227, 3540, 3541, 3555, 3560, 3561, BT3562, BT3563 (operating voltage below 60V)
9465-11

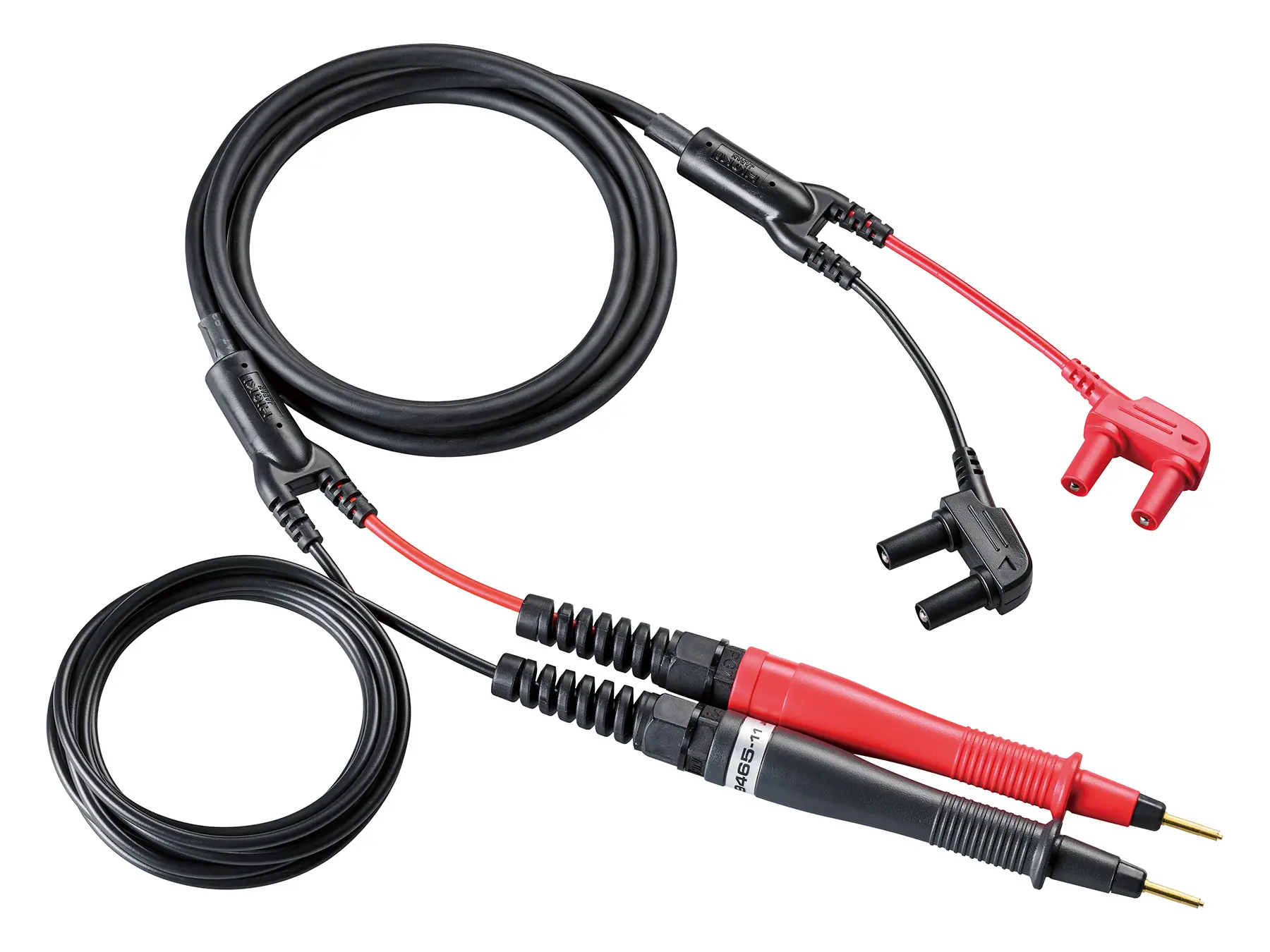

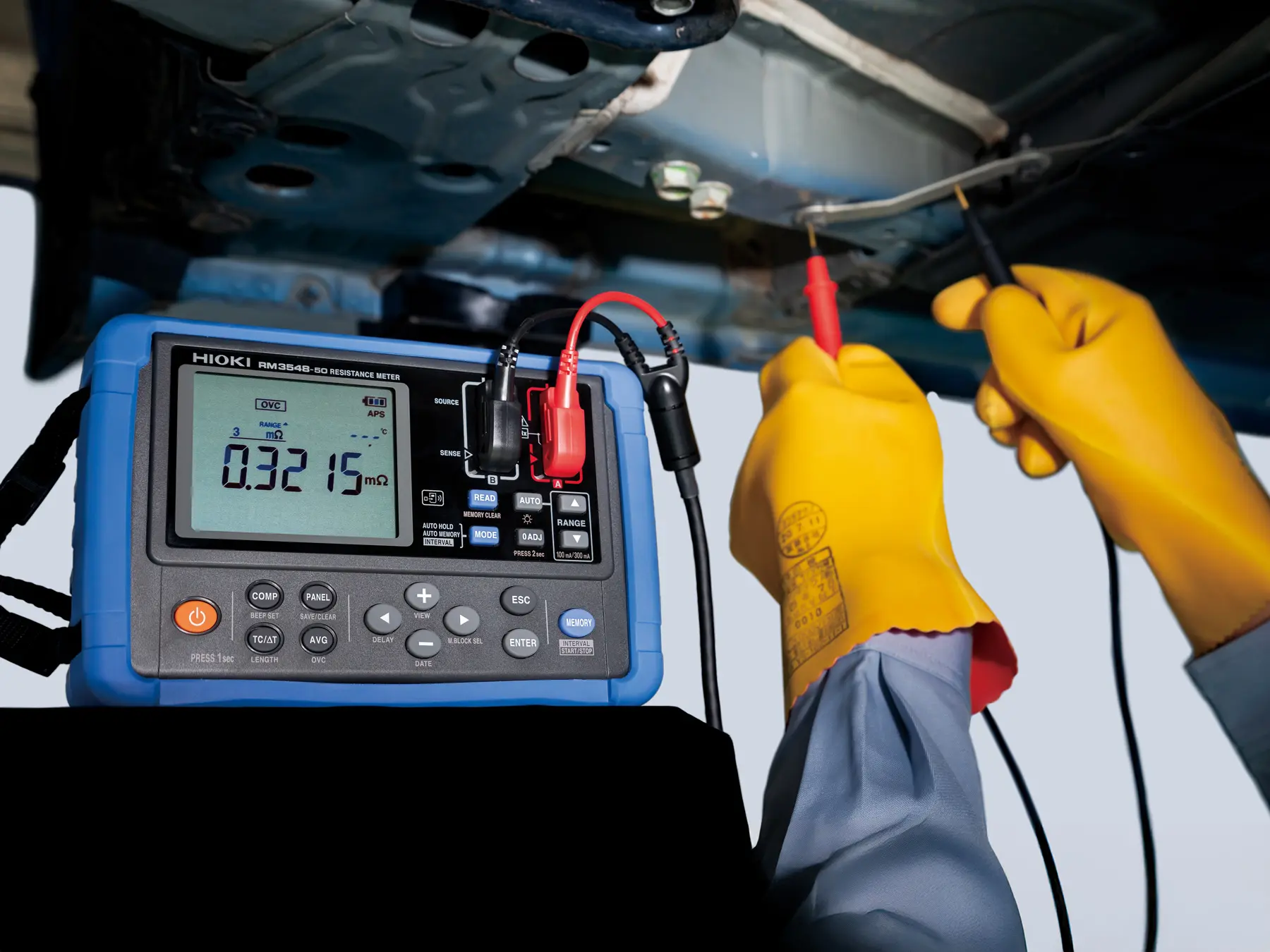

9465-11 - PIN TYPE LEAD
Four-terminal test leads with straight gold-plated spring-loaded pogo-pin tips (Ø 2.9 mm),
total length 3.9 m (black) and approx. 2.0 m (red), for DC resistance measurements with
HIOKI RM3548-50

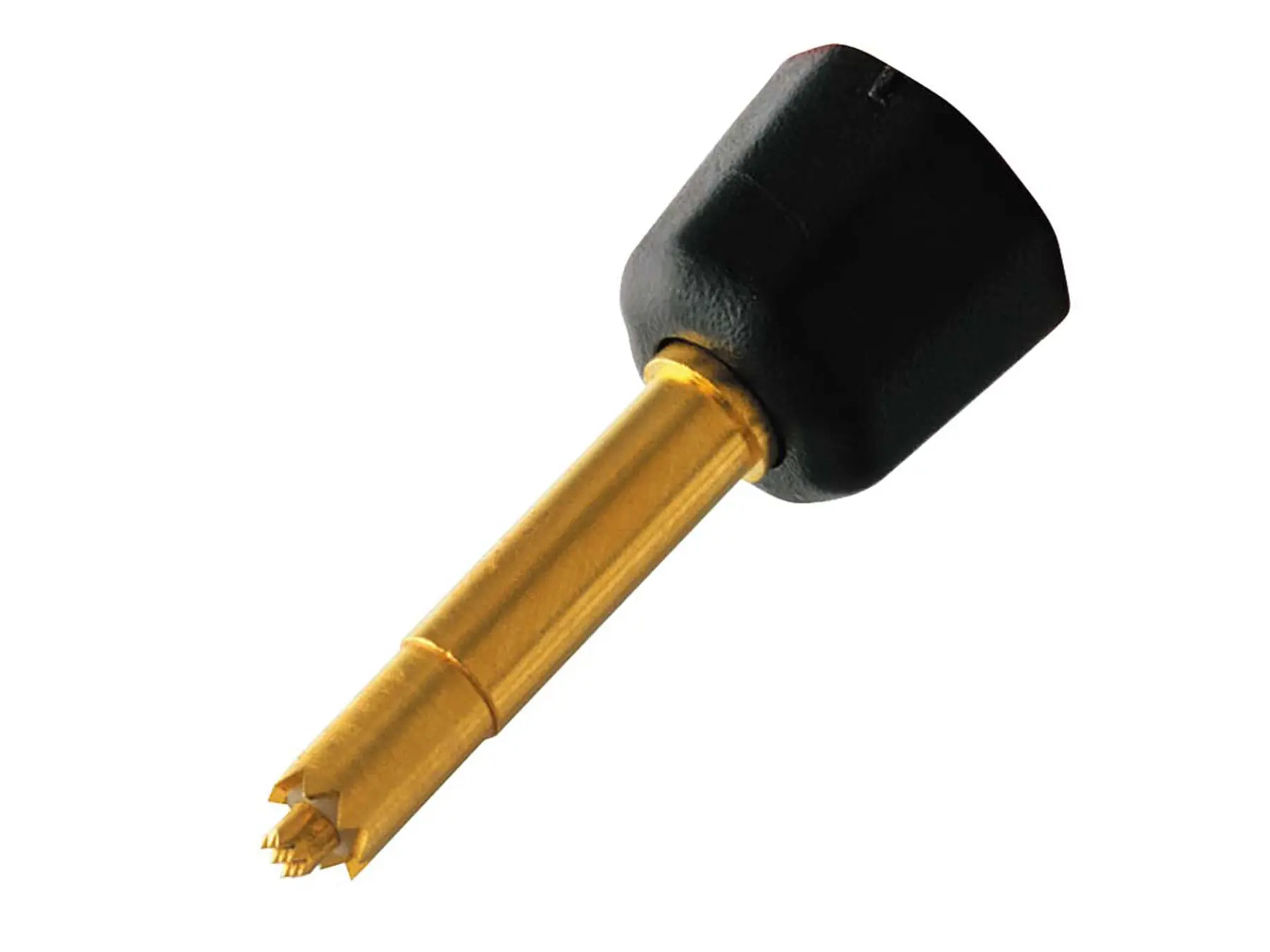

9465-90
9465-90 - Replacement Tip for Test Leads
9465-90 replacement Tip Pin, spare part for test leads 9465-10, 9465-11, L2020 and L2140, coaxial designed pogo pin, pack of one.
9467

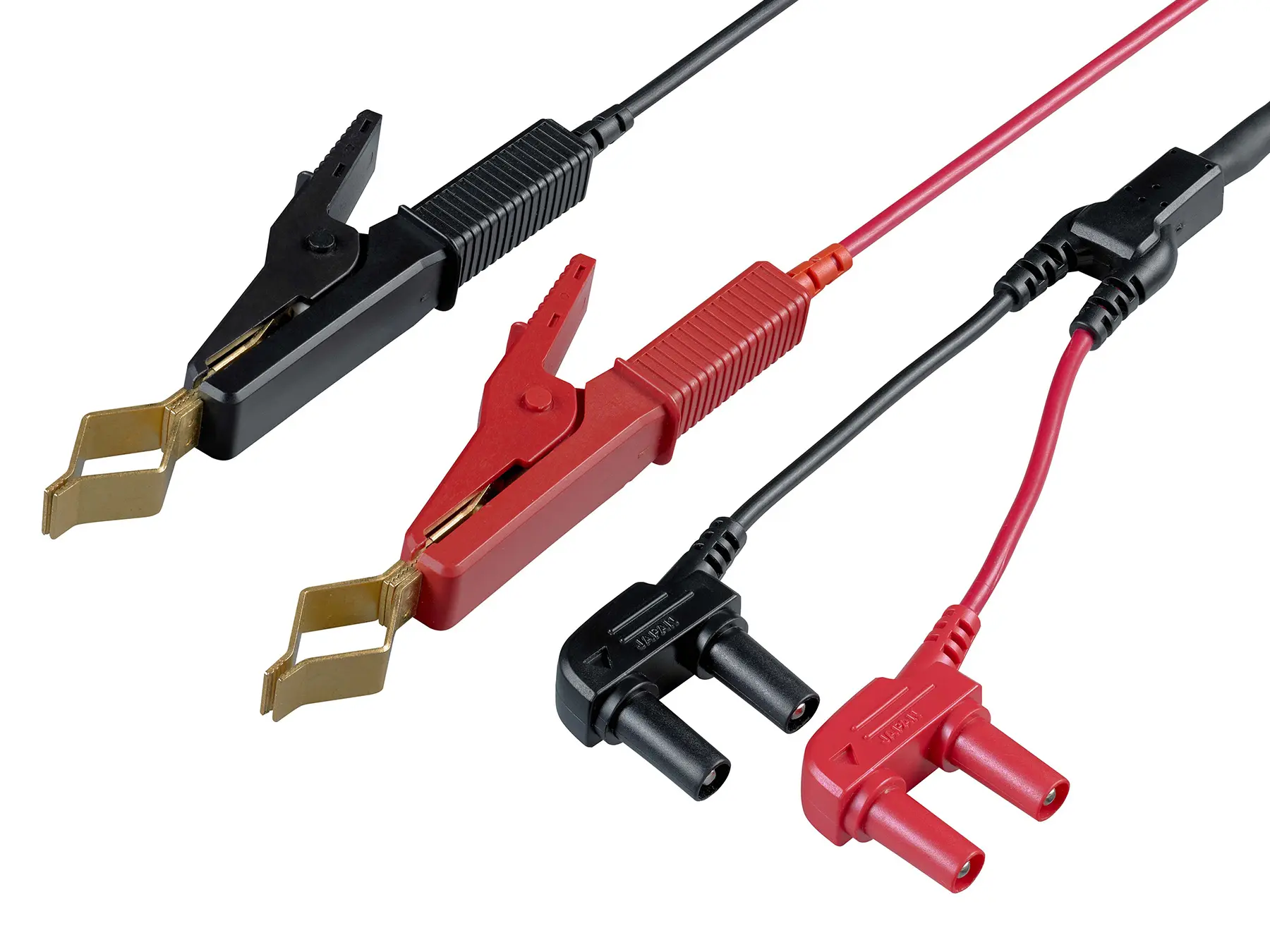

9467 - Four-wire measuring cable with large terminals
The 9467 four-pole design measurement lead features large alligator clips for clamping onto lead-acid battery terminals, supporting operating voltages up to 50V.Technical details: Compatibility: Hioki 3227, 3540, 3541, 3550, 3551, 3554, 3560, 3561, BT3554, BT3554-01, BT3562, BT3563 (for operating voltages below 50V), RM3548Mass: 165g Length: 1.3m

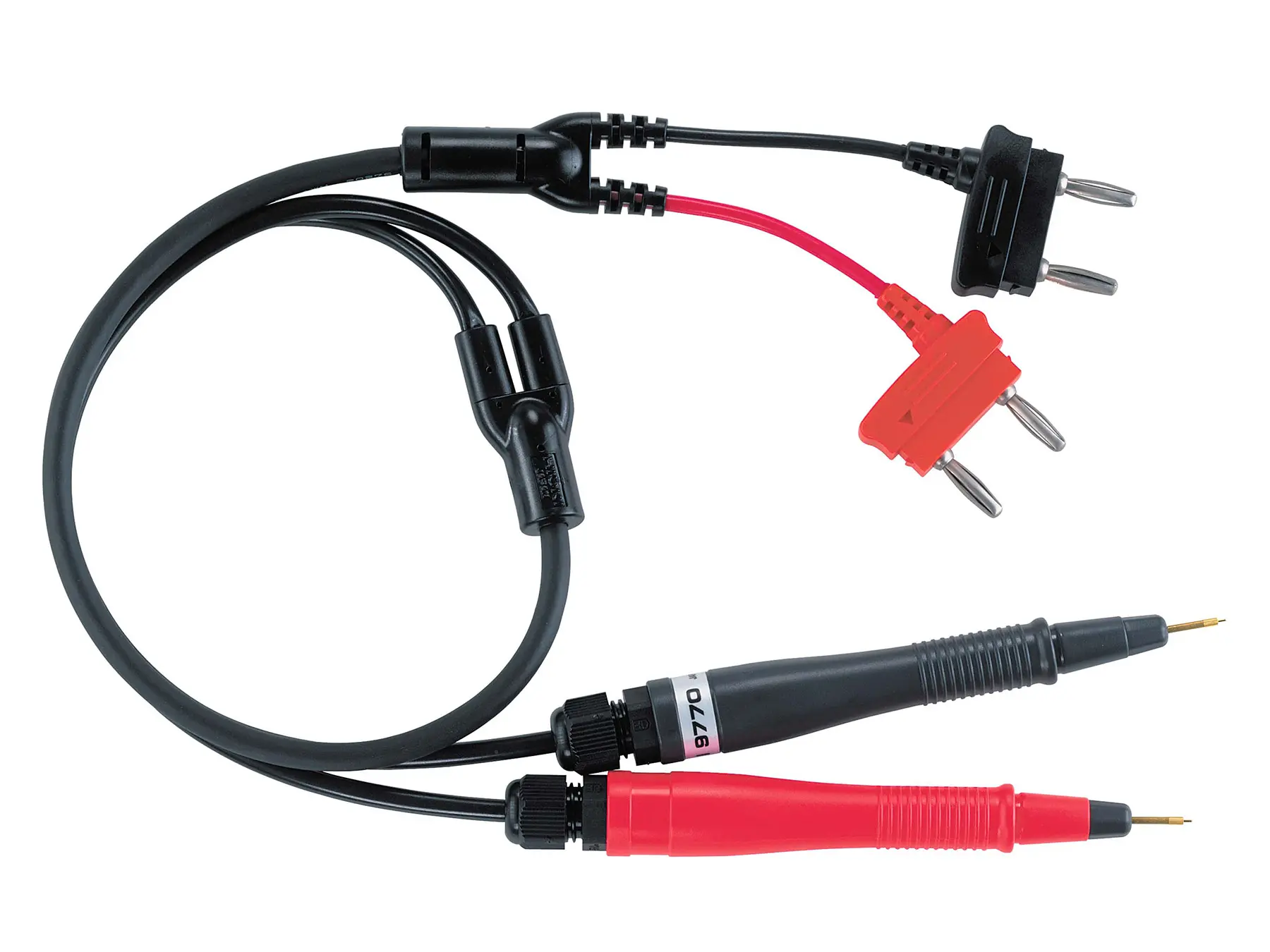

9770
9770 - PIN TYPE LEAD
The Hioki 9770 Pin-Type Lead is designed for precise resistance measurements on small objects, such as battery terminals. Its coaxial pin with a diameter of 1.8 mm ensures easy and accurate contact during measurements. The 9770 model utilizes a 4-terminal structure to deliver precise and reliable results in industrial applications. Technical Details: Coaxial pin, diameter: 1.8 mm Continuous current: AC/DC 3 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 860 mm Weight: approx. 110 gSpare parts: 9770-90 tip pin
9770-90

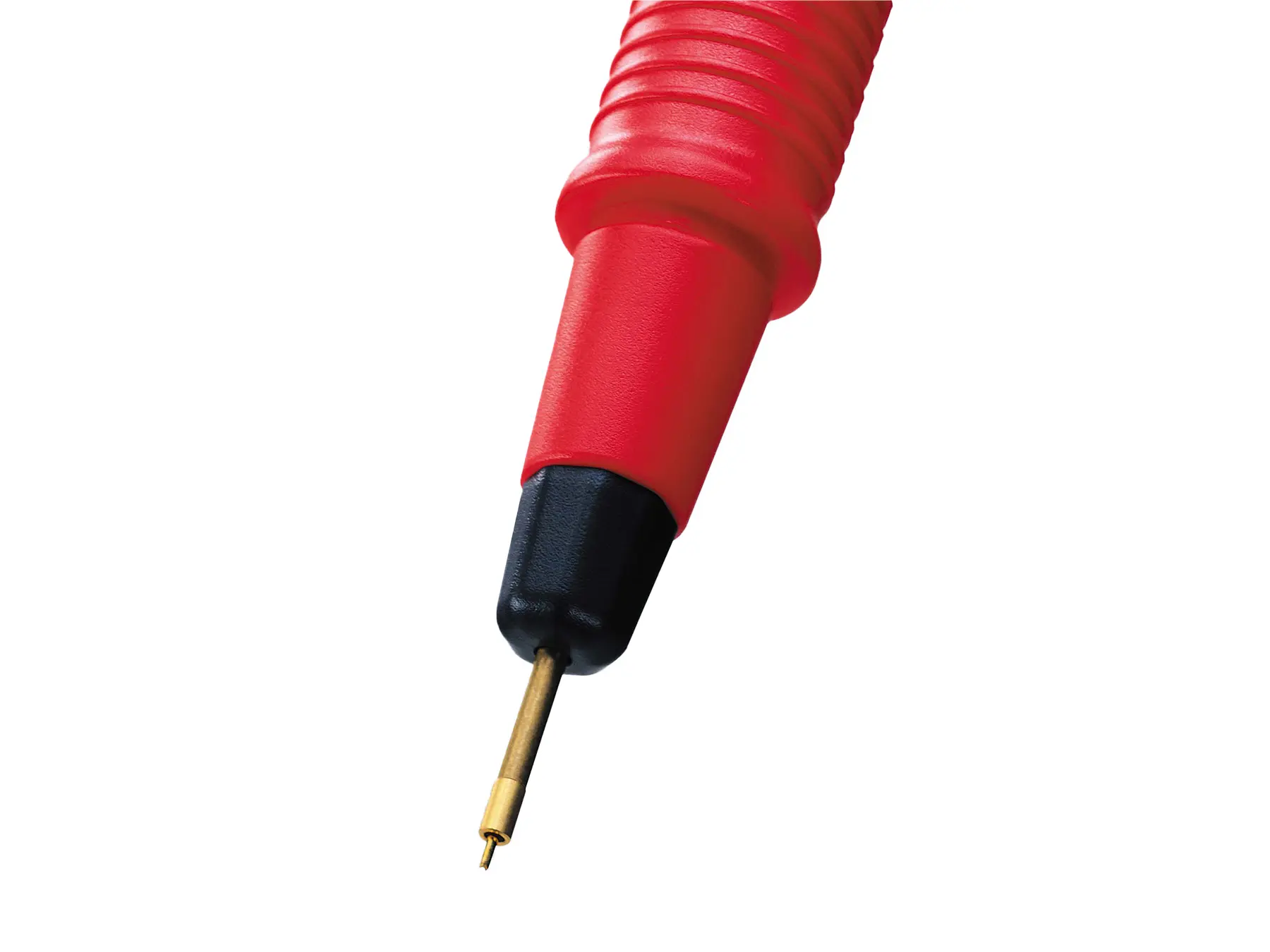

9770-90 - TIP PIN
The Hioki 9770-90 is the replacement measurement tip for the Hioki 9770. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded
9771

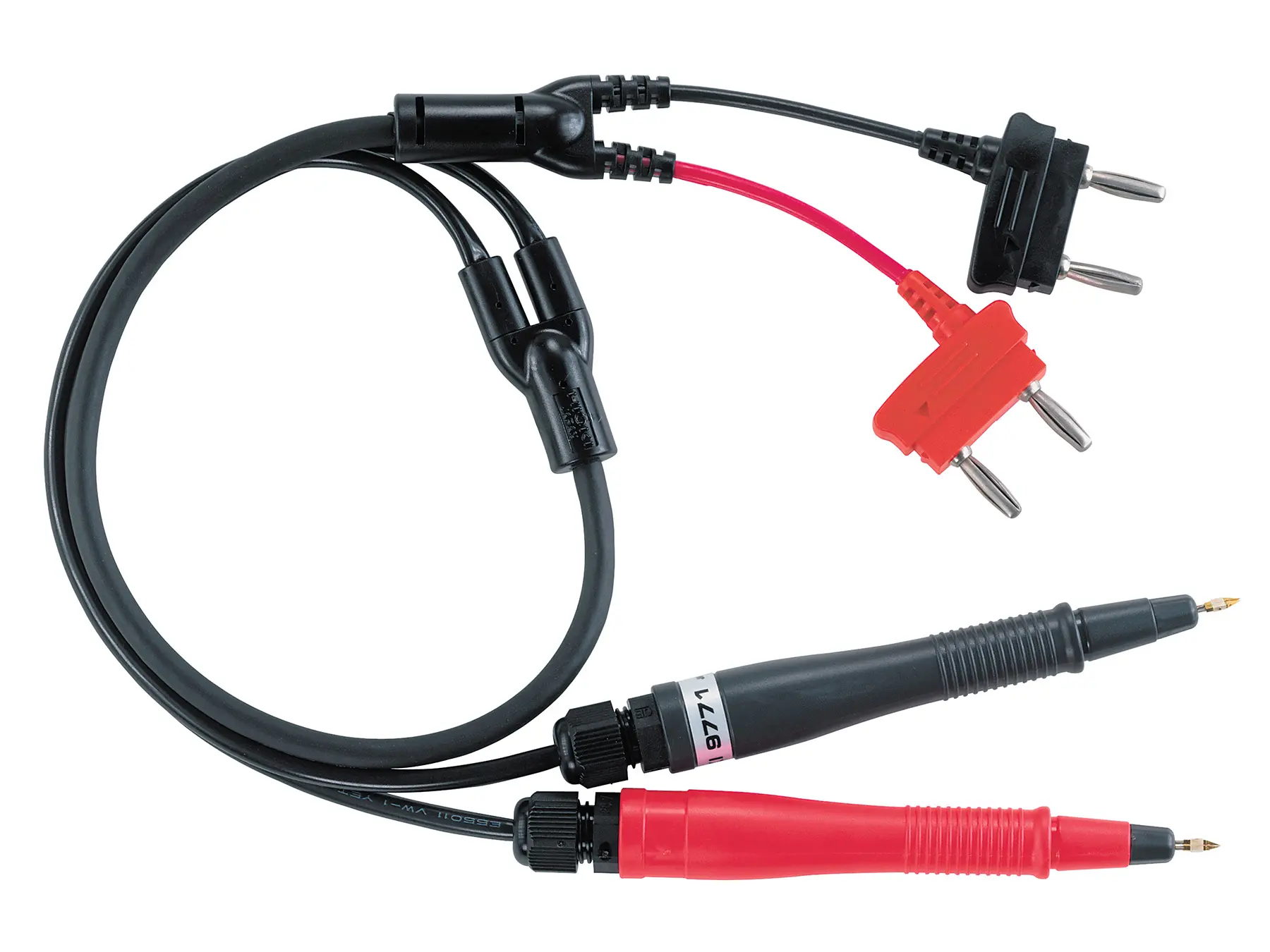

9771 PIN TYPE LEAD
The Hioki 9771 Pin-Type Lead is developed for precise inspection of PCBs, through holes, and SMD components. It features parallel pins spaced 0.2 mm apart with a four-sided pyramid tip, making it ideal for measuring small objects on PCBs. This model also uses a 4-terminal structure to provide accurate and efficient measurements. Technical Details: Parallel pin, spacing: 0.2 mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 860 mm Weight: approx. 110 g Spare parts: 9771-90 tip pin Surface of contacs: gilded

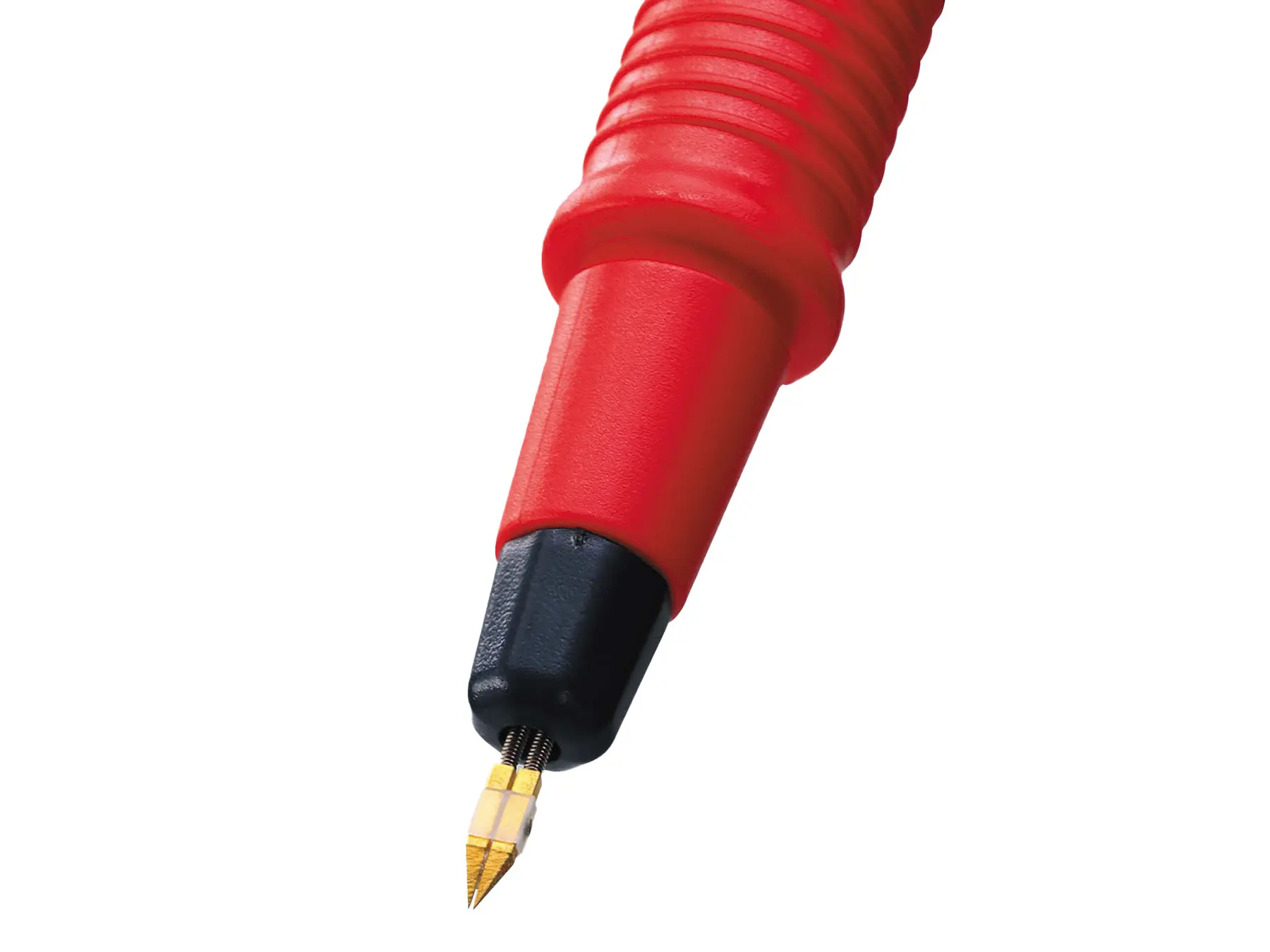

9771-90
9771-90 - TIP PIN
The Hioki 9771-90 is the replacement measurement tip for the Hioki 9771. Technical Detail: Parallel pin, spacing: 0.2 mm Contact surface: gilded"

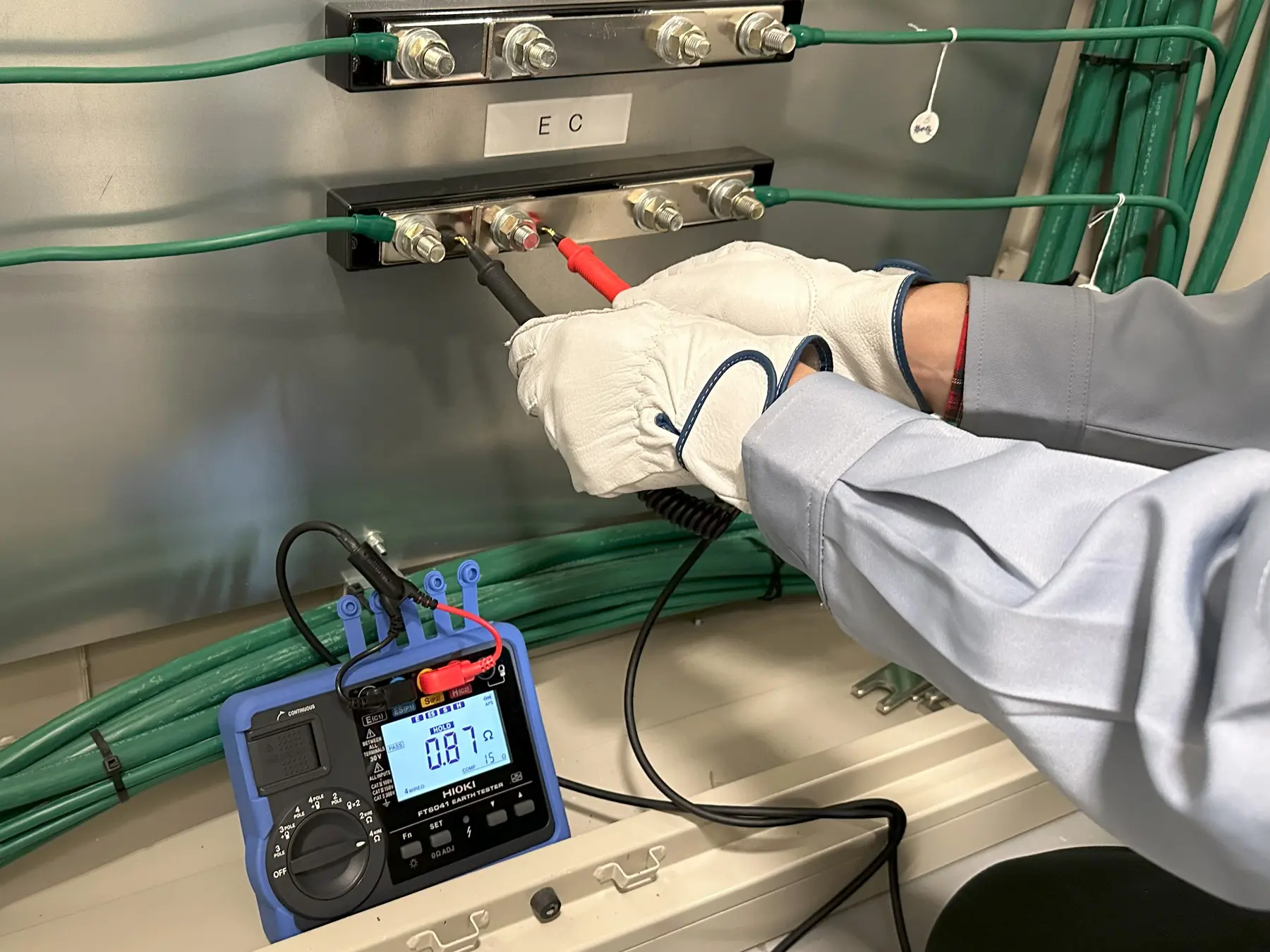

9772

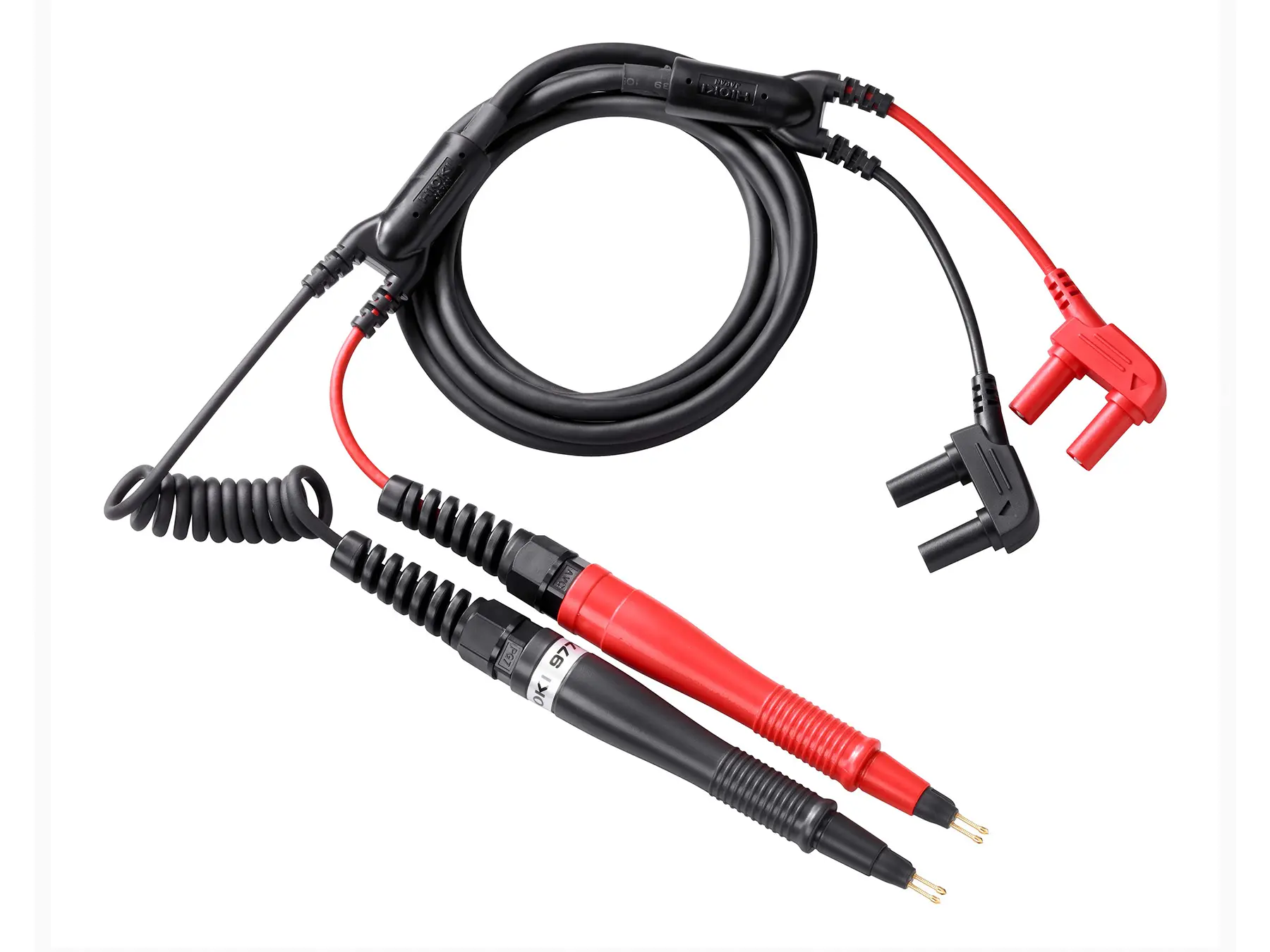

9772 PIN TYPE LEAD
The Hioki 9772 Pin-Type Lead is designed for use in narrow spaces where making contact with the subject of measurement is difficult, such as when maintaining emergency batteries. The lead features two parallel, spring contact tips with a diameter of 1.8 mm, allowing for stable connection with the measurement object. Its four-terminal structure ensures precise measurements in confined spaces. Technical Details: Parallel tips, spacing: 2.5 mm Diameter singe tip: 1.8mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 1900 mm Weight: approx. 180 g Accessories: Instruction manual Spare parts: 9772-90 tip pin

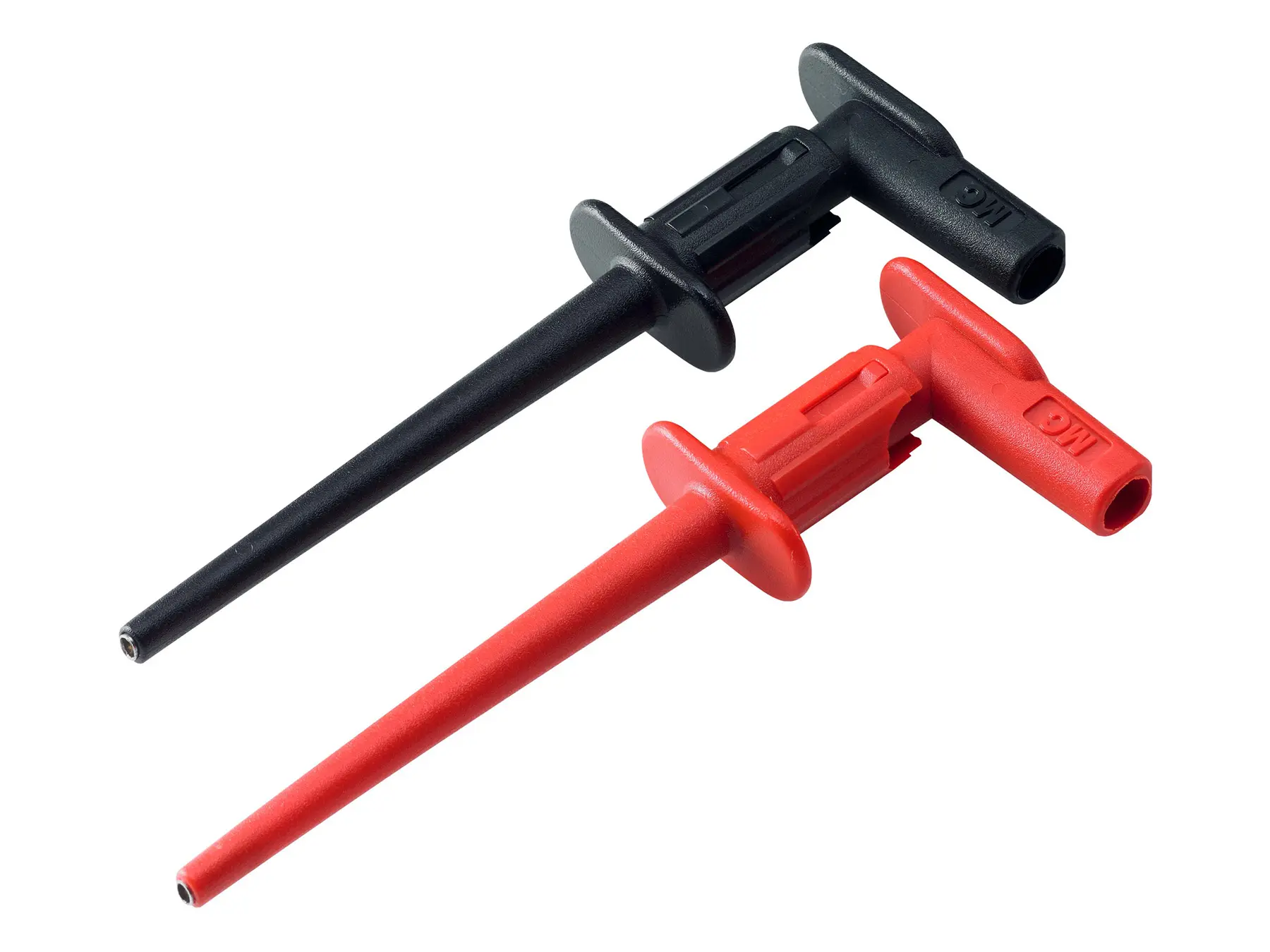

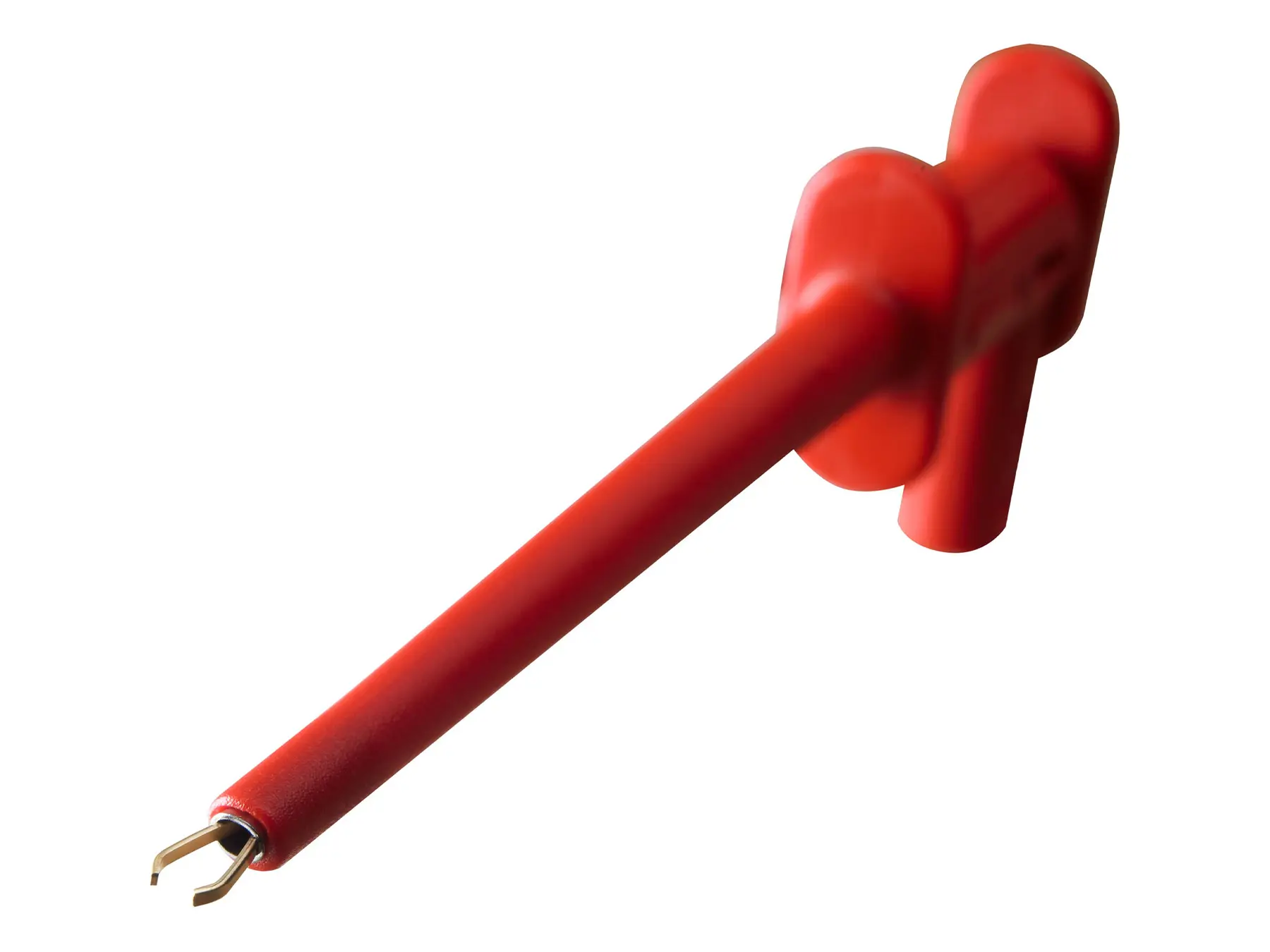

9790-02
9790-02 - Hook clamps
The 9790-02 hook clamps are a pair of grabber clips, fully insulated in red and black, designed to attach to the ends of the L9790 cable. These clamps offer secure and reliable connections in measurement applications, providing robust insulation and compatibility with spring-loaded Ø 2 mm plugs. Technical Information: Overall length: 75 mm Socket diameter: Ø 2 mm Compatible with: L9790 cable Voltage limit: 300 V (CAT III) when attached to the L9790 cable

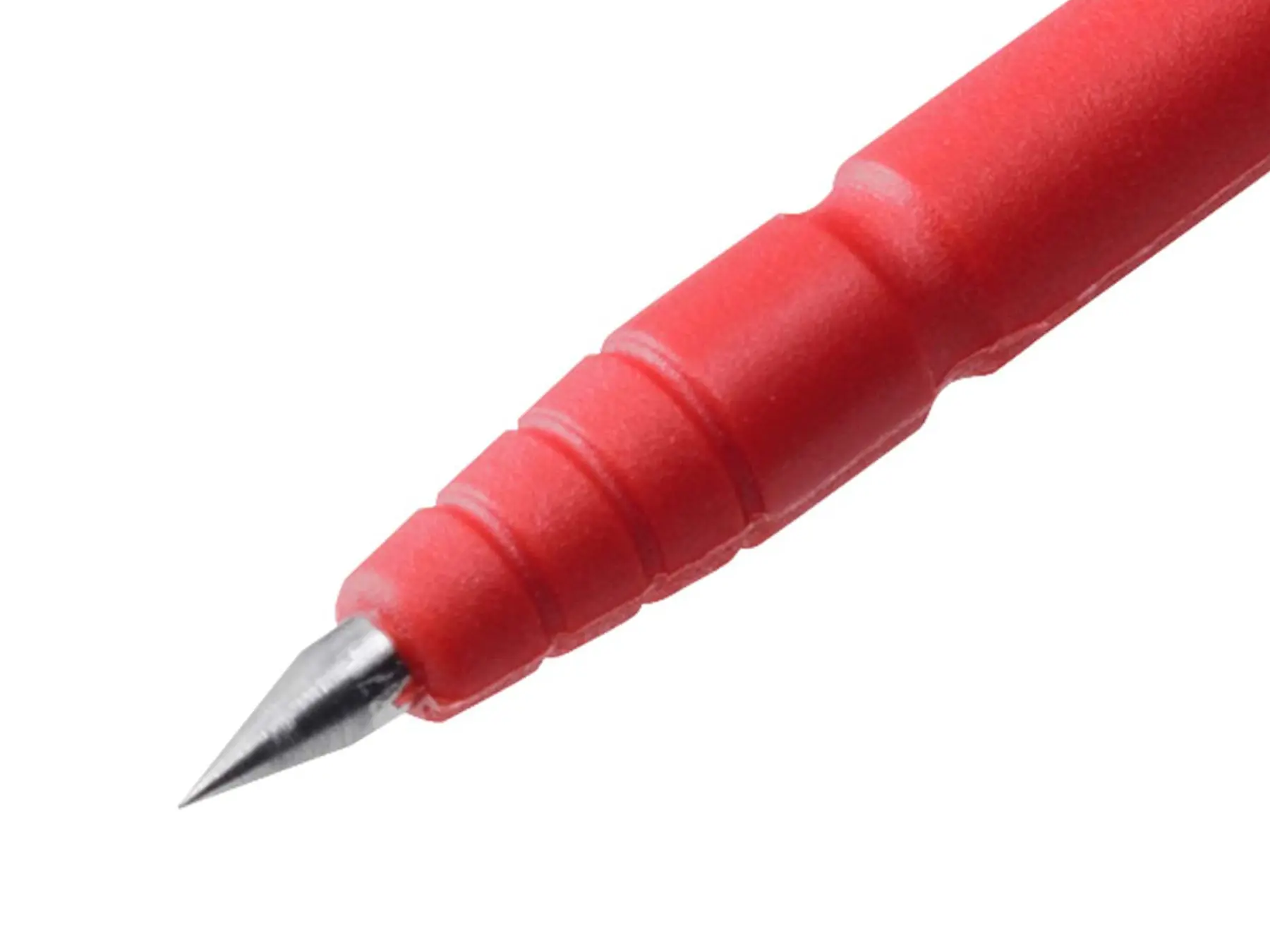

9790-03
9790-03 - Electronics measuring tips
The 9790-03 is a set of measuring tips, consisting of one black and one red tip. They are designed for use with the L9790 measuring cable and ensure safe and precise testing. The included protective caps prevent short circuits in tight testing environments. Technical Information: Overall length: Refer to the external diagram Contact pin diameter: Ø 2 mm Compatible with: L9790 cable Voltage limit: 300 V when attached to the L9790 cable
9804
9804 - Magnetic Clip Set for Test Leads, red/black, 4 mm connectors
Set of red and black magnetic clips for test leads with 4 mm connectors, 11 mm concave
contact surface for ferromagnetic contact points, CAT IV 1000 V, 2 A
