CM3281 - AC Clamp Meter 2000 A for Tight Spaces

Clamp meter for AC currents up to 2000 A with clamp opening for conductors up to 46 mm, voltage measurement up to 600 V AC/DC, CAT IV 300 V / CAT III 600 V, resistance measurement and continuity test
Skip image gallery
CM3281 - AC Clamp Meter 2000 A for Tight Spaces

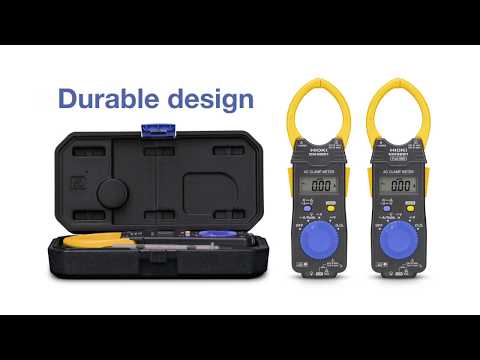

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

CM3281 - AC Clamp Meter 2000 A for Tight Spaces
CM3281 - AC Clamp Meter 2000 A for Tight Spaces
CM3281 - AC Clamp Meter 2000 A for Tight Spaces

€118.00

Content: 1 Each

In stock in Germany

€118.00

CM3281 - AC Clamp Meter 2000 A for Tight Spaces
Product number: CM3281
Available stock: 2
GTIN/EAN: 4536036012640
Length: 198 mm
Width: 57 mm
Height: 16 mm
Weight: 0.103 kg

Description

Product information CM3281 - AC Clamp Meter 2000 A for Tight Spaces


Key Specifications

  • AC current measurement with 3 ranges up to 2000 A
  • Clamp opening for conductors up to 46 mm
  • Voltage measurement up to 600 V AC/DC
  • CAT IV 300 V / CAT III 600 V safety rating
  • Resistance measurement and continuity test

Typical Applications

  • Current measurements in electrical installations
  • Measurements in densely wired distribution panels
  • Service and maintenance of electrical equipment

Feature CM4141-50
CM4141-90		 CM3291 CM3281 CM3289 3280-10F
3280-70F
AC Current 2000 A 1000 A
True RMS yes yes - yes -
Conductor diameter 55 mm 46 mm 33 mm
Voltage
(AC / DC)		 1000 V 600 V
Safety Rating CAT IV 600 V
CAT III 1000 V		 CAT IV 300 V
CAT III 600 V		 CAT IV 300 V / CAT III 600 V (current)
CAT III 300 V (voltage)
Bluetooth available or included -

Detailed Product Overview

The CM3281 clamp meter measures AC current in three ranges up to 2000 A in 50 Hz and 60 Hz power systems. Its clamp accommodates conductors up to 46 mm in diameter and is designed for measurements in densely wired distribution panels where space around the conductor is limited. This makes the instrument suitable for larger installation conductors and supply cables commonly found in electrical installations and power distribution systems.

In addition to AC current measurement, the instrument measures voltage up to 600 V AC/DC and provides resistance measurement and continuity testing. The safety ratings are CAT IV 300 V / CAT III 600 V for both current and voltage measurement.

Test Leads and Flexible Current Sensor

Voltage, resistance and continuity measurements are performed using the included L9208 test leads. The optional 9209 Test Lead Holder allows one test lead to be fixed to the rear of the instrument during measurements. The L9208 test leads are compatible with the optional HIOKI accessories L4934 for temporary hands-free connection to conductors and terminals and L4933 for measurements at closely spaced contact points.

For measurements on larger conductors, the instrument can be used with the optional CT6280 Flexible Current Sensor. This extends AC current measurements up to 4200 A and enables measurements on large conductors, busbars and cable bundles.

Transport and Protection

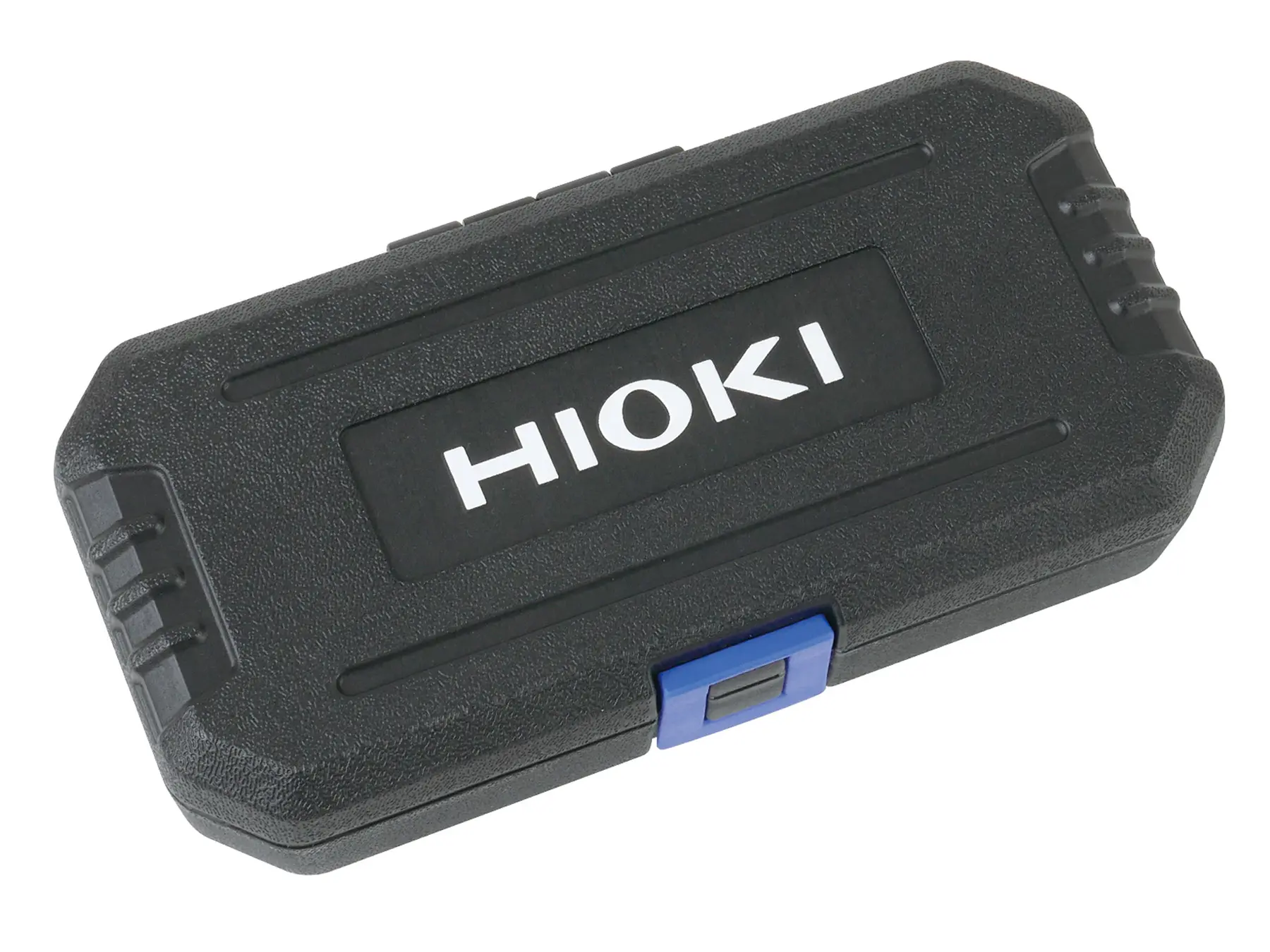

The CM3281 is supplied with a protective hard carrying case that protects the instrument during transport and use in demanding working environments. The instrument also fits into the case when the optional 9209 Test Lead Holder is installed.

Due to its larger clamp opening, the CM3281 does not fit into the smaller, also separately available HIOKI carrying cases 9398 or C0205, which are intended for clamp meters with smaller clamp openings. When the optional CT6280 Flexible Current Sensor is used together with the CM3281, the larger optional 9812 carrying case is recommended for transporting the instrument and sensor together.

Designed for Field Use

The instrument is designed for field use and provides drop protection from a height of 1 m. The operating temperature range of −25 °C to 65 °C allows use in outdoor installations and demanding environments. Like all HIOKI clamp meters, the instrument is manufactured in HIOKI’s own production facilities in Japan.

What's in the Box

  • CM3281 AC Clamp Meter
  • L9208 Test Leads
  • Carrying Case
  • Instruction Manual
  • CR2032 lithium battery
