CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters

Flexible current sensor for HIOKI AC clamp meters, up to 4200 A AC, 130 mm loop diameter, 5 mm coil diameter, 800 mm cable length
Skip image gallery
CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters
HIOKI CT6280 flexible current sensor 4200a 800mm cable
CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters
CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters
HIOKI CT6280 flexible current sensor 4200a 130mm loop diameter

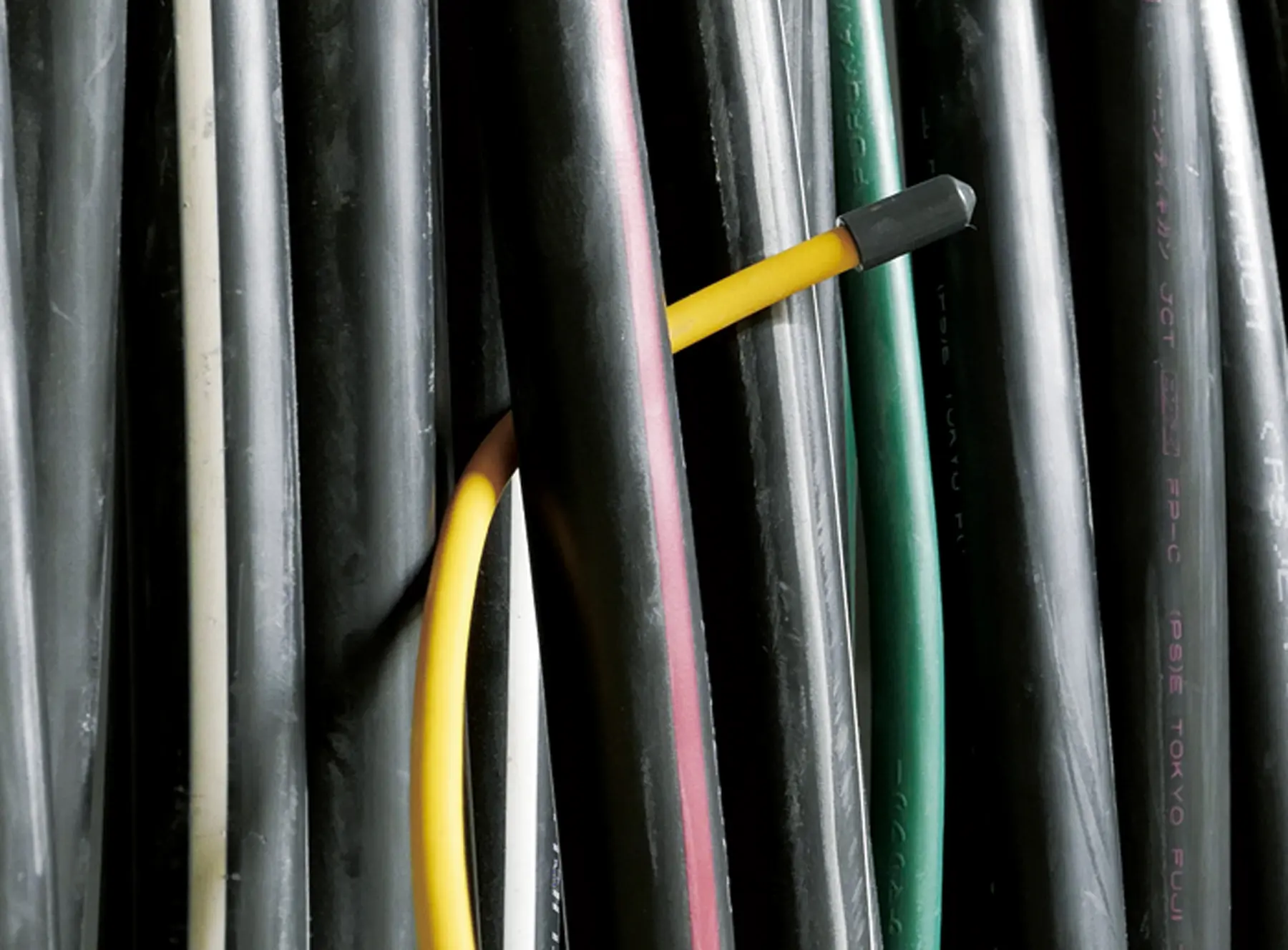

HIOKI CT6280 flexible current sensor 4200a bendable design
HIOKI CT6280 flexible current sensor 4200a small space access
HIOKI CT6280 flexible current sensor 4200a 800mm cable
HIOKI CT6280 flexible current sensor 4200a 130mm loop diameter
HIOKI CT6280 flexible current sensor 4200a bendable design
HIOKI CT6280 flexible current sensor 4200a small space access

€168.00

Content: 1 Each

In stock in Germany

€168.00

CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters
Product number: CT6280
Available stock: 1
GTIN/EAN: 4536036005000
Weight: 0.07 kg

Description

Product information CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters

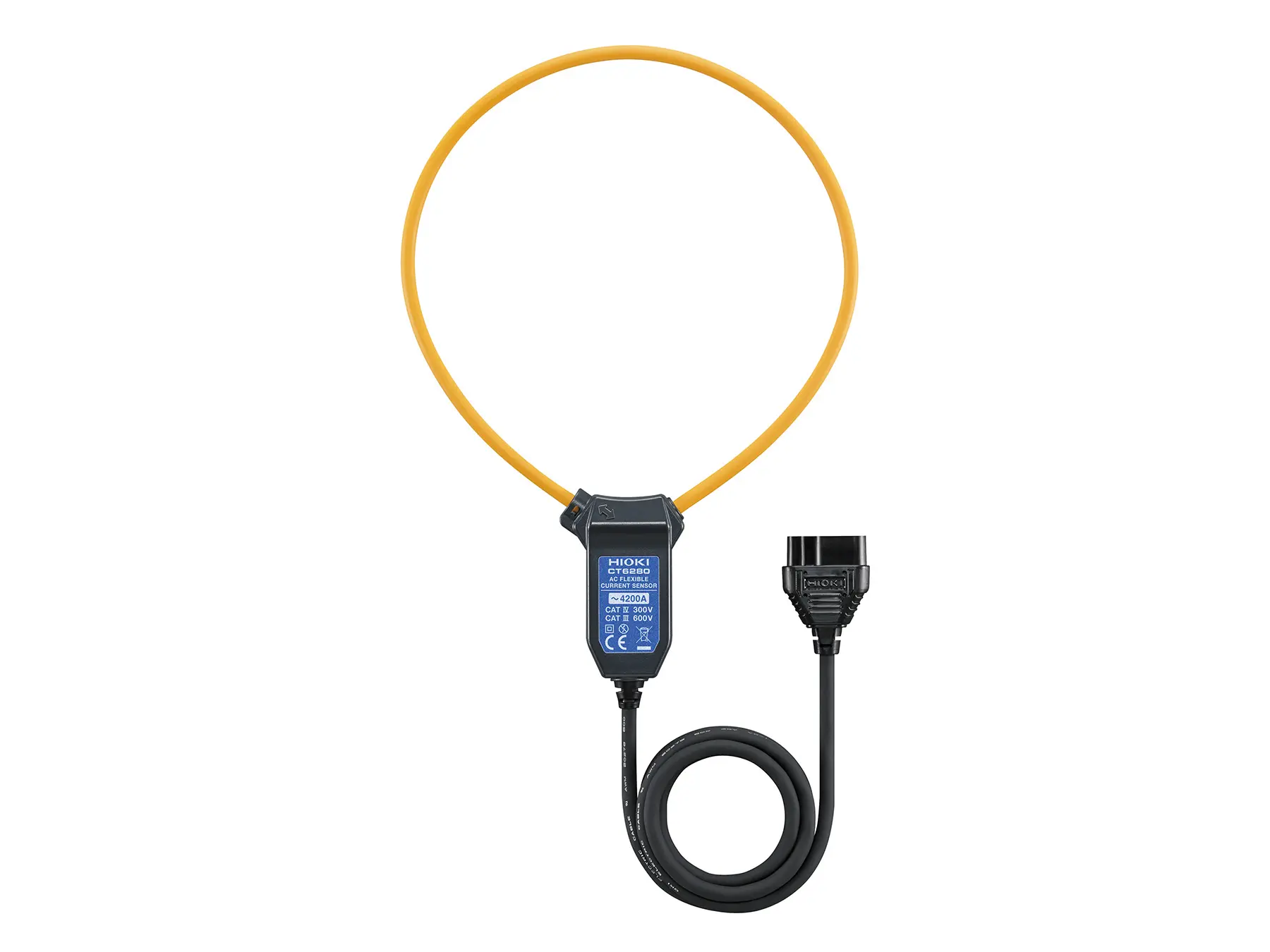

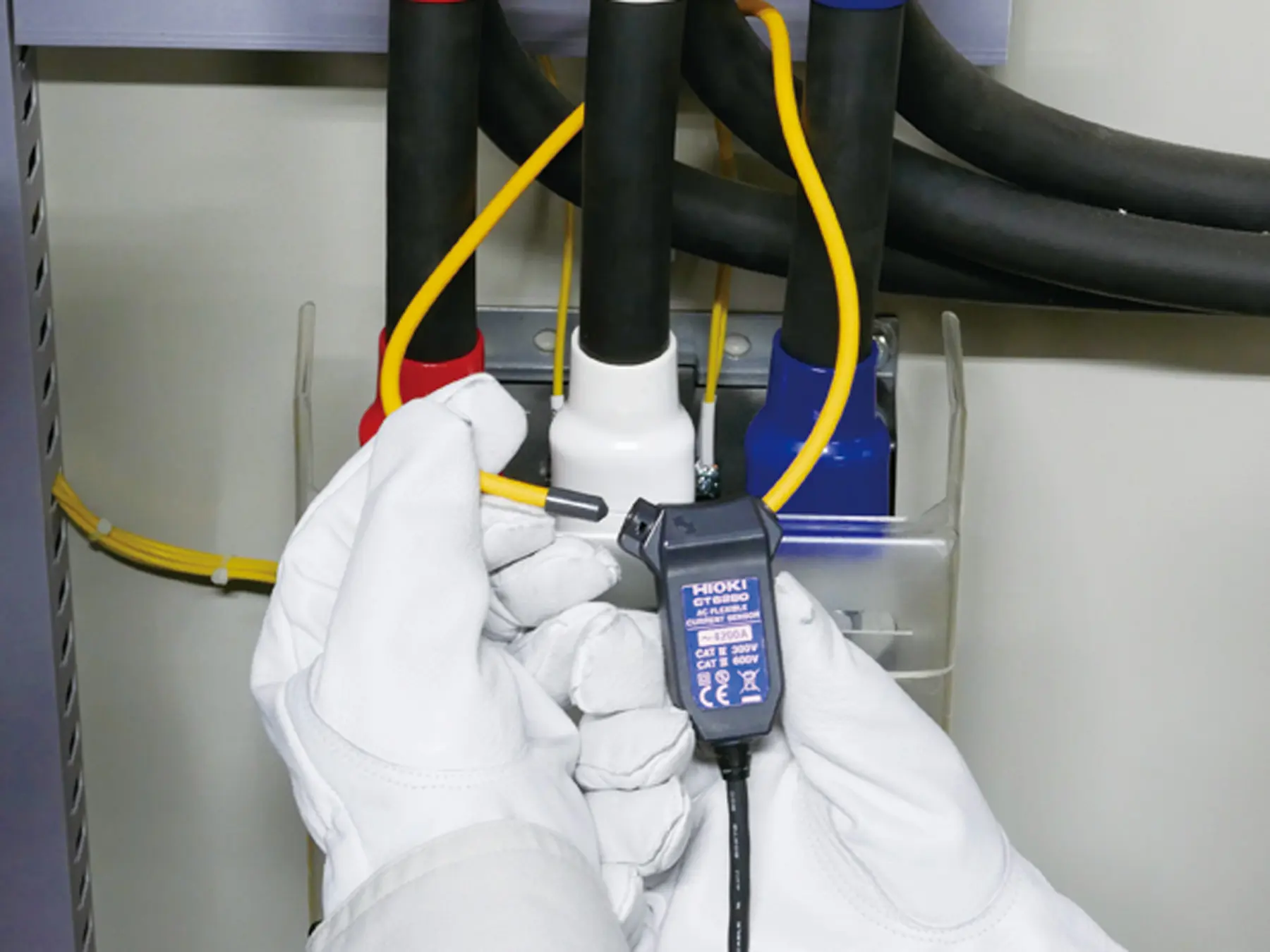

The CT6280 flexible current sensor measures AC currents up to 4200 A continuous at 50 or 60 Hz. The flexible sensor loop has a diameter of 130 mm and a cross section of 5 mm, allowing installation around large conductors, busbars or multiple conductors where a conventional clamp meter cannot be placed around the conductor. The connection cable has a length of 800 mm.

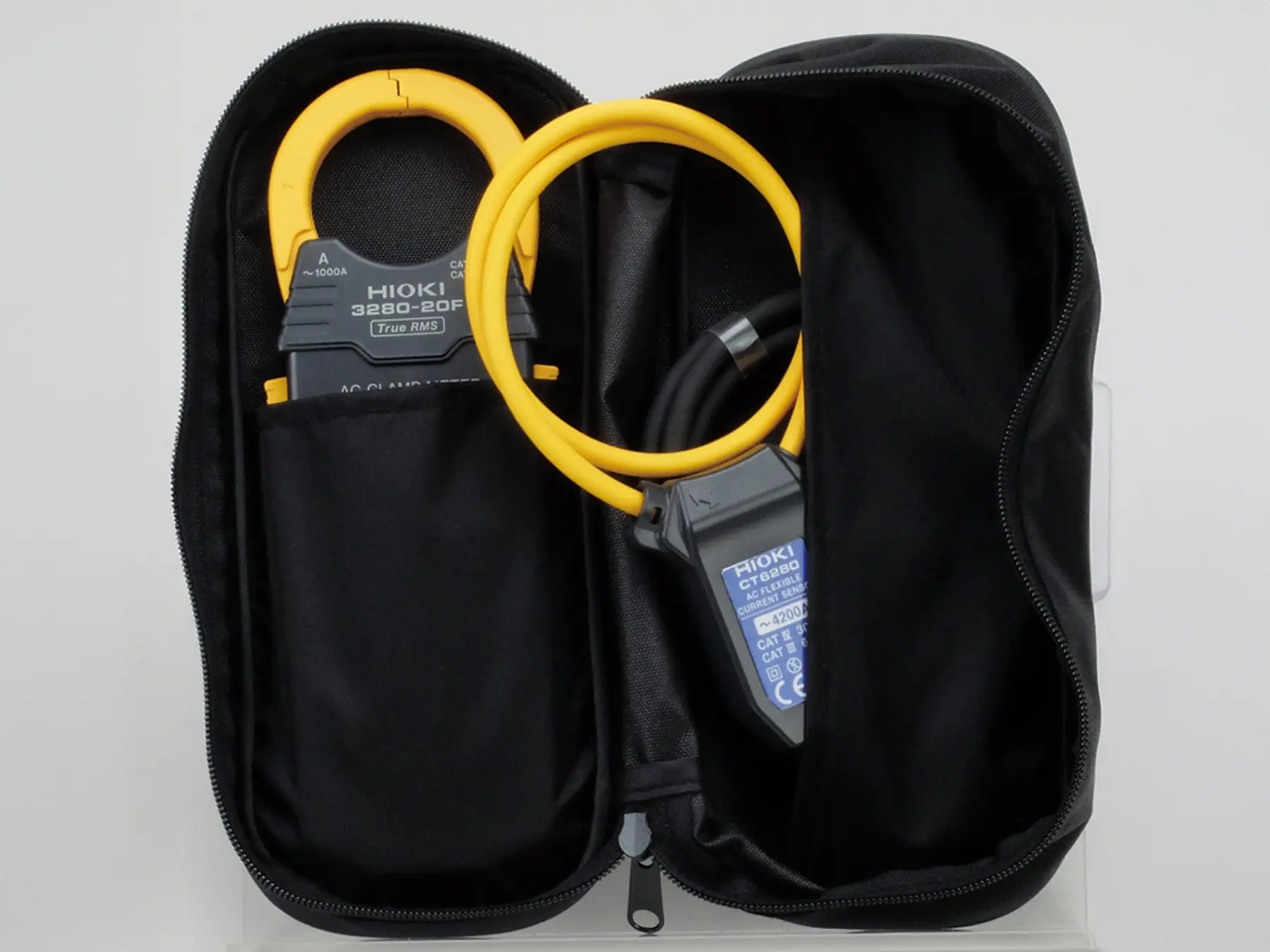

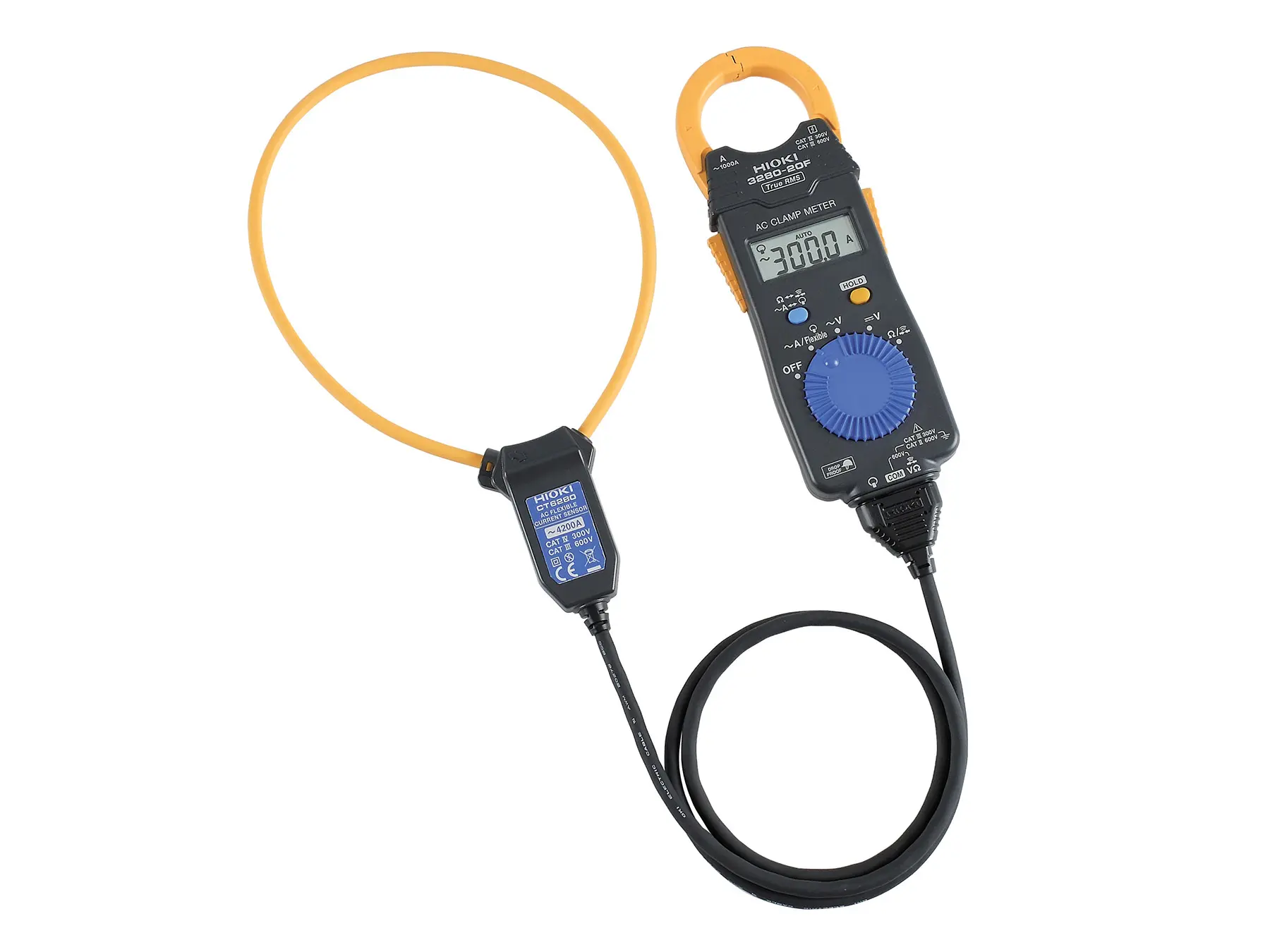

The sensor connects directly to compatible HIOKI AC clamp meters using the same proprietary connector interface used for test leads. The CT6280 is supplied with the C0205 carrying case. Compatible instruments include the 3280-10F, CM3281, CM3289 and CM3291 clamp meters.

The CM3281 and CM3291 clamp meters do not fit into the supplied C0205 carrying case due to their larger clamp jaws. When the CT6280 is used together with these instruments, the larger optional 9812 carrying case is recommended for transporting the instrument and sensor together.

What's in the Box

  • CT6280 Flexible Current Sensor
Skip product gallery

Related Products

HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A
3280-10F
HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A
Clamp meter with three AC current ranges up to 1000 A, voltage measurement up to 600 V AC/DC, CAT IV 300 V / CAT III 600 V (current), CAT III 300 V (voltage), 33 mm conductor diameter, resistance measurement and continuity test

€98.00
View product
CM3281 - AC Clamp Meter 2000 A for Tight Spaces CM3281 - AC Clamp Meter 2000 A for Tight Spaces
CM3281
CM3281 - AC Clamp Meter 2000 A for Tight Spaces
Clamp meter for AC currents up to 2000 A with clamp opening for conductors up to 46 mm, voltage measurement up to 600 V AC/DC, CAT IV 300 V / CAT III 600 V, resistance measurement and continuity test

€118.00
View product
HIOKI CM3289 - True RMS Clamp Meter for AC Currents up to 1000 A HIOKI CM3289 - True RMS Clamp Meter for AC Currents up to 1000 A
CM3289
HIOKI CM3289 - True RMS Clamp Meter for AC Currents up to 1000 A
True RMS clamp meter for AC currents up to 1000 A, voltage measurement up to 600 V AC/DC, CAT IV 300 V (current) and CAT III 300 V (voltage), 33 mm conductor diameter, resistance measurement and continuity test

€138.00
View product
CM3291 - True RMS AC Clamp Meter 2000 A for Tight Spaces CM3291 - True RMS AC Clamp Meter 2000 A for Tight Spaces
CM3291
CM3291 - True RMS AC Clamp Meter 2000 A for Tight Spaces
True RMS clamp meter for AC currents up to 2000 A with clamp opening for conductors up to 46 mm, voltage measurement up to 600 V AC/DC, CAT IV 300 V / CAT III 600 V, resistance measurement and continuity test

€158.00
View product

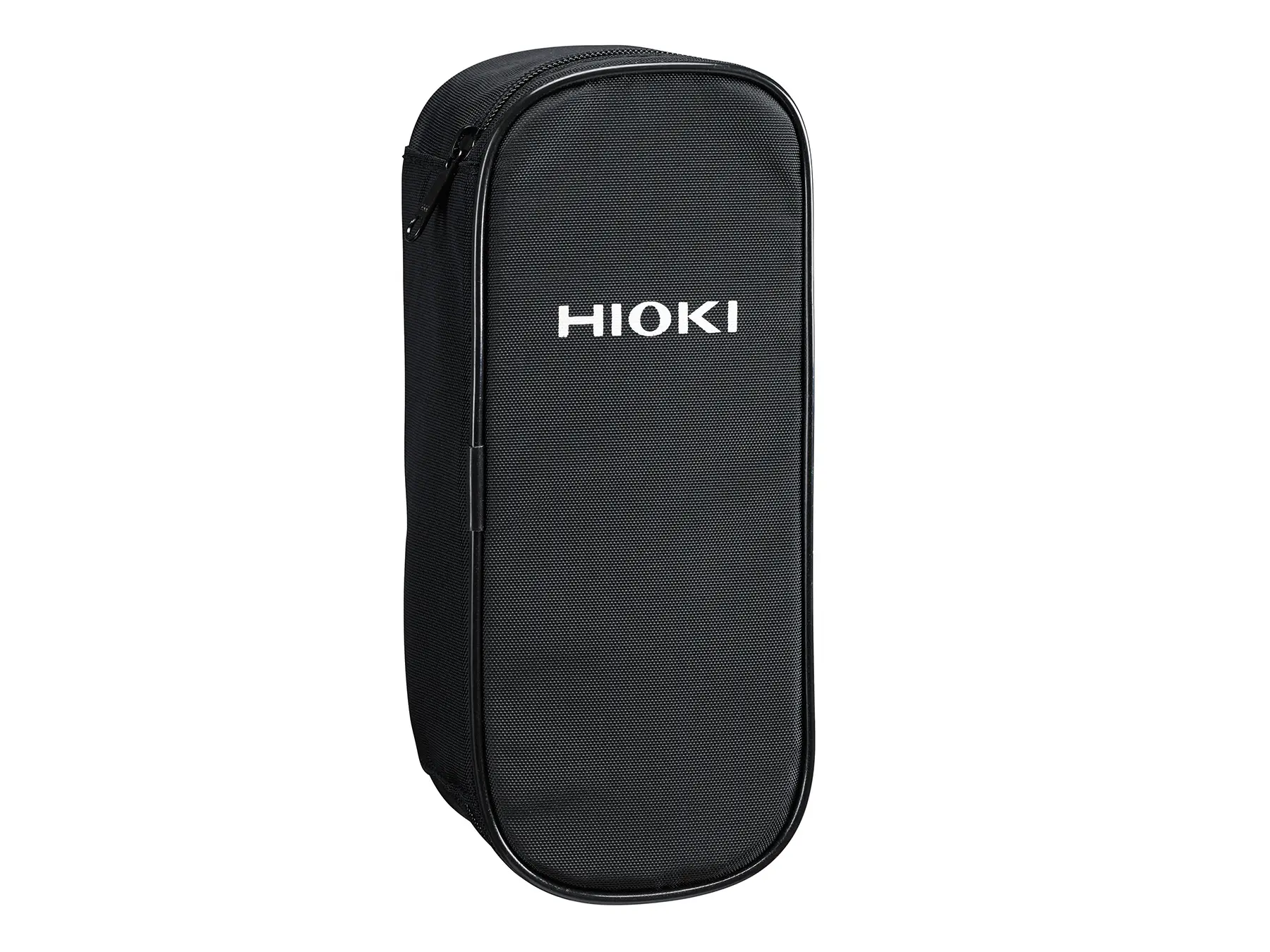

HIOKI C0205 - Carrying Case for HIOKI Clamp Meters and CT6280 Current Sensor HIOKI C0205 carrying case for ac clamp meters
