HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A

Clamp meter with three AC current ranges up to 1000 A, voltage measurement up to 600 V AC/DC, CAT IV 300 V / CAT III 600 V (current), CAT III 300 V (voltage), 33 mm conductor diameter, resistance measurement and continuity test
Skip image gallery
HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A
HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A

€98.00

Content: 1 Each

In stock in Germany

€98.00

HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A
Product number: 3280-10F
Available stock: 1
GTIN/EAN: 4536036004973
Length: 175 mm
Width: 57 mm
Height: 16 mm
Weight: 0.1 kg

Description

Product information HIOKI 3280-10F - AC Clamp Meter with 3 Current Ranges up to 1000 A


Key Specifications

  • AC current measurement with 3 ranges up to 1000 A
  • Conductor diameter up to 33 mm
  • Voltage measurement up to 600 V AC/DC
  • CAT IV 300 V / CAT III 600 V (current), CAT III 300 V (voltage)
  • Resistance measurement and continuity test

Typical Applications

  • Current measurements in electrical installations
  • Load measurements in power distribution systems
  • Service and maintenance of electrical equipment

Feature CM4141-50
CM4141-90 		CM3291 CM3281 CM3289 3280-10F
3280-70F
AC Current 2000 A 1000 A
True RMS yes yes - yes -
Conductor diameter 55 mm 46 mm 33 mm
Voltage
(AC / DC)		 1000 V 600 V
Safety Rating CAT IV 600 V
CAT III 1000 V		 CAT IV 300 V
CAT III 600 V		 CAT IV 300 V / CAT III 600 V (current)
CAT III 300 V (voltage)
Bluetooth available or included -

Detailed Product Overview

The 3280-10F clamp meter measures AC current in three ranges up to 1000 A in 50 Hz and 60 Hz power systems. The clamp accommodates conductors up to 33 mm in diameter and is suitable for typical installation wiring and supply conductors used in electrical installations and power distribution systems.

In addition to AC current measurement, the instrument measures voltage up to 600 V AC/DC and provides resistance measurement and continuity testing. The safety ratings are CAT IV 300 V / CAT III 600 V for current measurement and CAT III 300 V for voltage measurement.

Test Leads and Flexible Current Sensor

Voltage, resistance and continuity measurements are performed using the included L9208 test leads. The optional 9209 Test Lead Holder allows one test lead to be fixed to the rear of the instrument during measurements. The L9208 test leads are compatible with the optional HIOKI accessories L4934 for temporary hands-free connection to conductors and terminals and L4933 for measurements at closely spaced contact points.

For measurements on larger conductors, the instrument can be used with the optional CT6280 Flexible Current Sensor. This enables AC current measurements up to 4200 A. The bundle version 3280-70F includes both the 3280-10F clamp meter and the CT6280 sensor.

Designed for Field Use

The instrument is designed for field use and provides drop protection from a height of 1 m. The operating temperature range of −25 °C to 65 °C allows use in outdoor installations and demanding environments. The 3280-10F is supplied with the 9398 carrying case for transport and storage. Like all HIOKI clamp meters, the instrument is manufactured in HIOKI’s own production facilities in Japan.

What's in the Box

  • 3280-10F AC Clamp Meter
  • L9208 Test Leads
  • 9398 Carrying Case
  • Instruction Manual
  • CR2032 lithium battery
Skip product gallery

Related Products

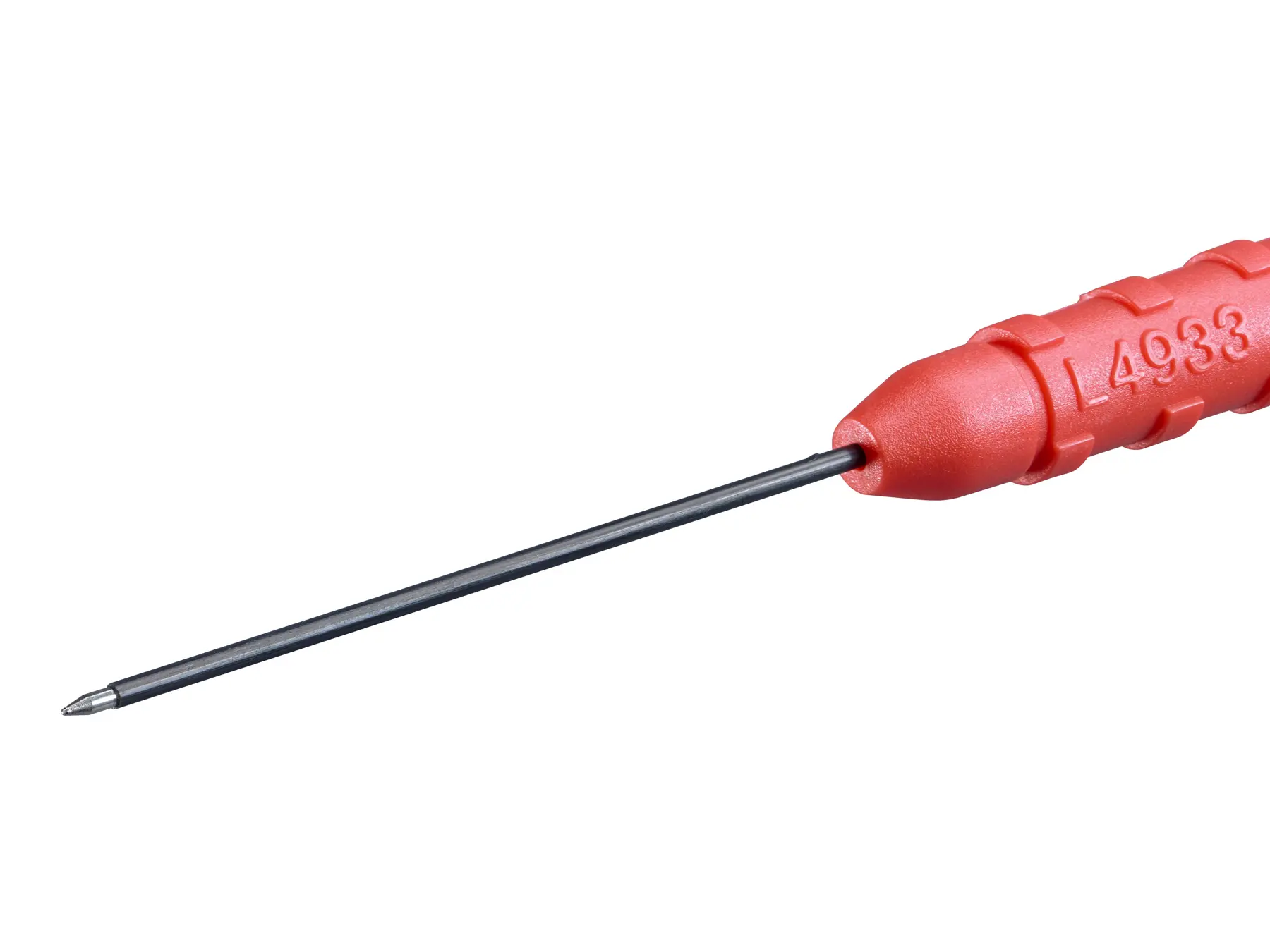

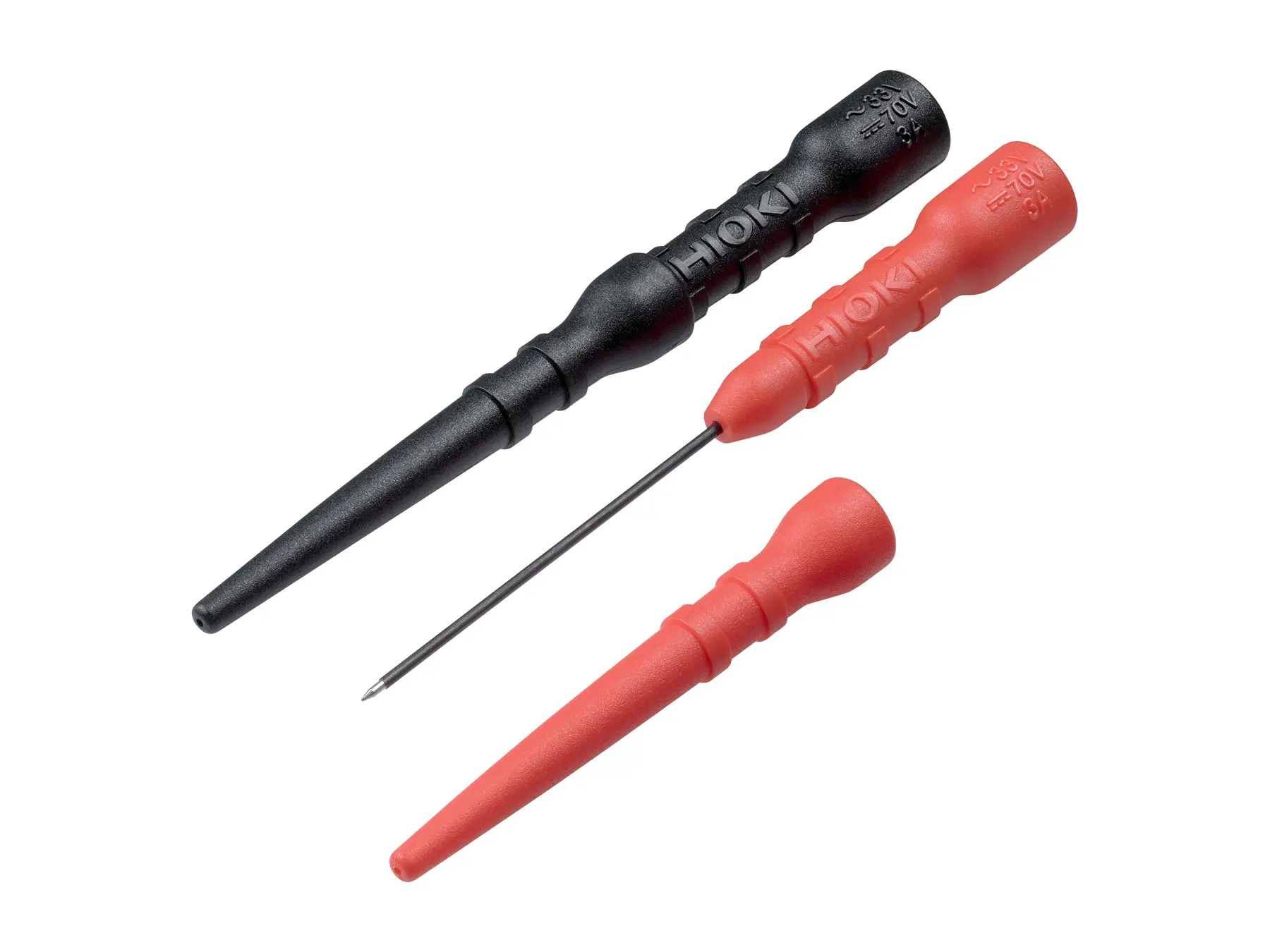

HIOKI L4933 contact pin set fully insulated for multimeters HIOKI L4933 contact pin set fully insulated except tip
L4933
L4933 - Contact Pin Set for Test Leads
Contact pin set for attachment to HIOKI test leads DT4911, L9207-10, L9208 and L9300, partially insulated, extra thin pins, gold plated tip, 60 V DC, 30 V AC, maximum 3 A

€28.00
View product

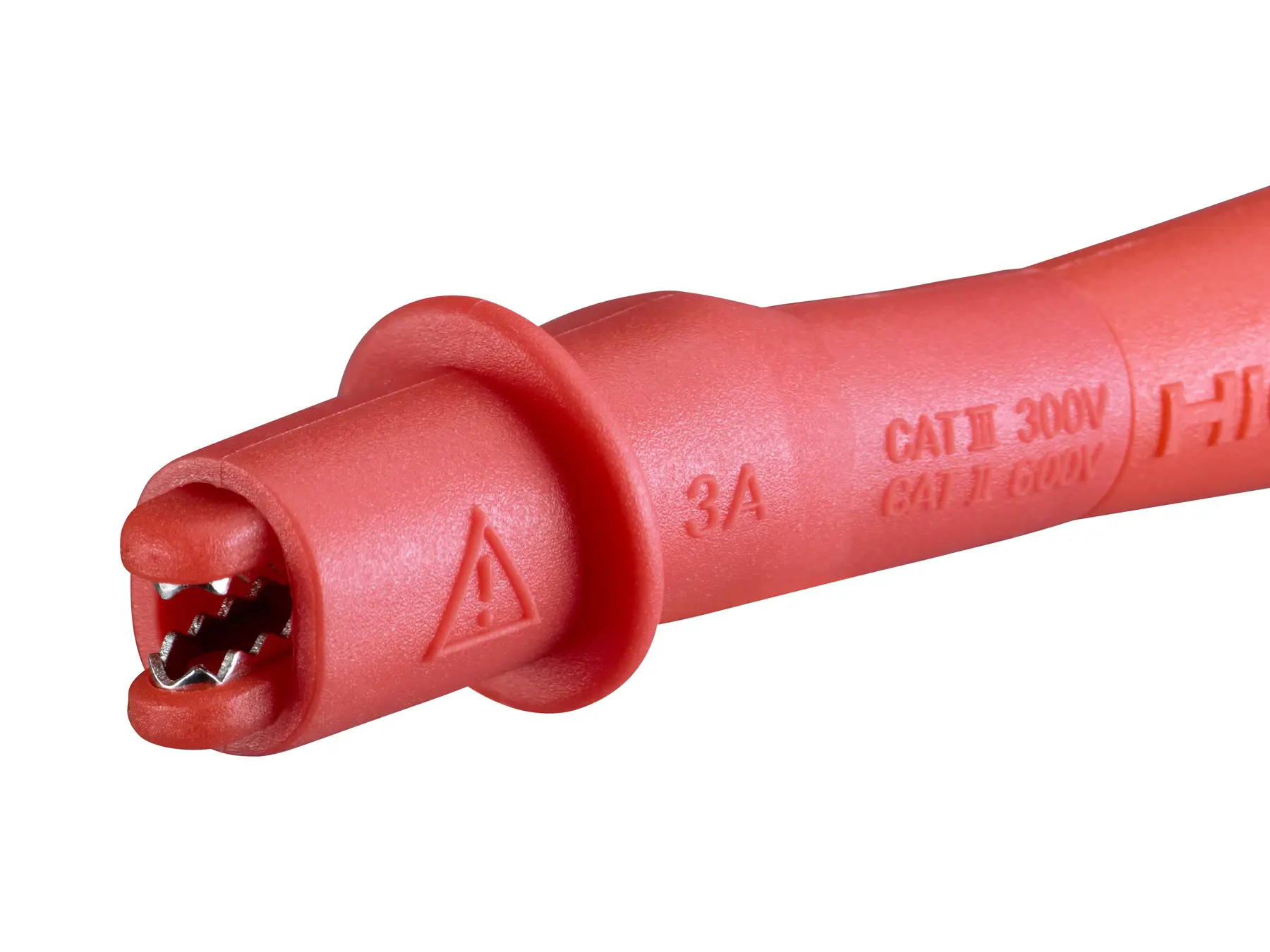

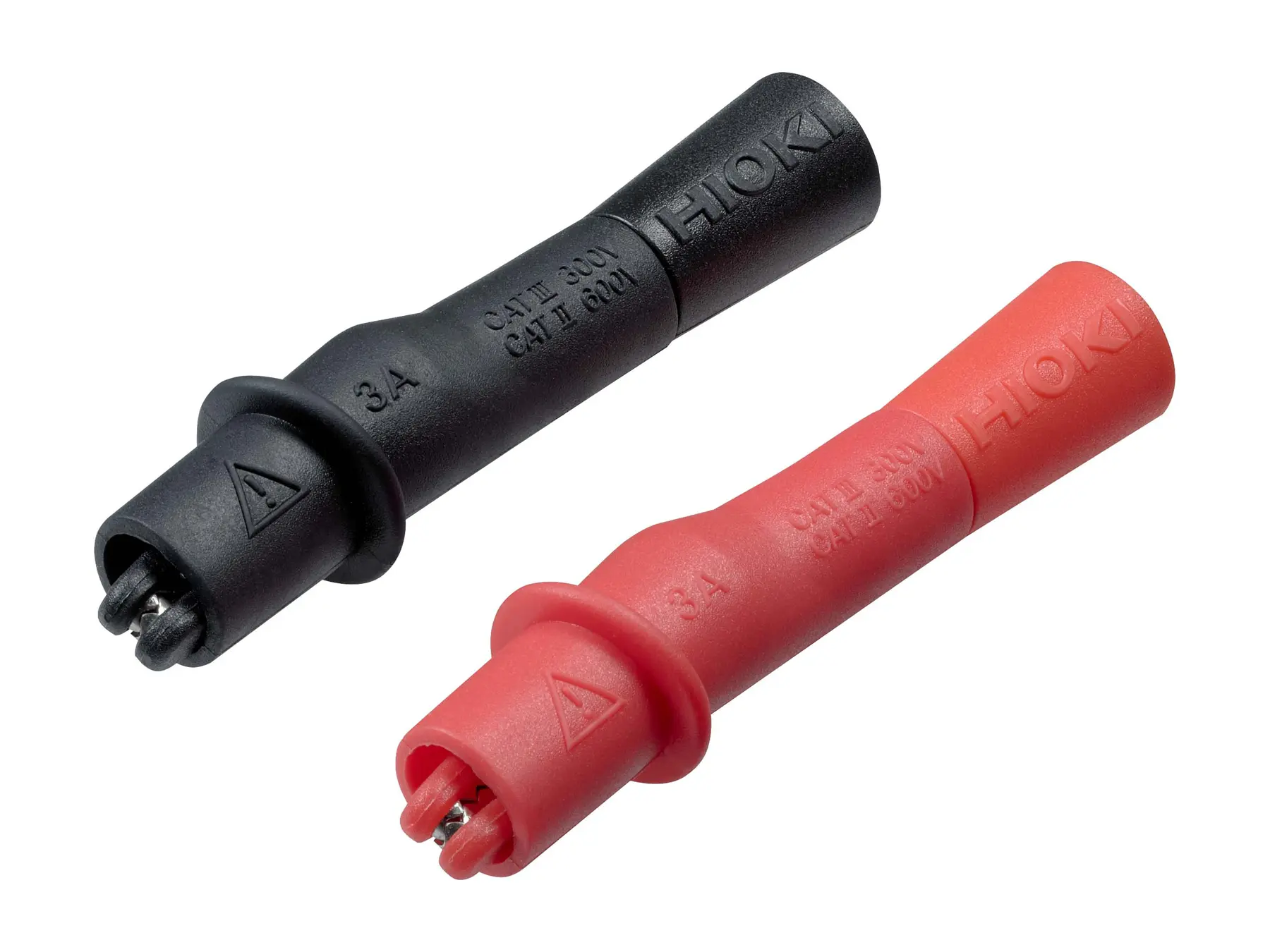

HIOKI L4934 small alligator clip set 2mm tip for multimeters and clamp meters HIOKI L4934 small alligator clip set 2mm tip
L4934
L4934 - Small Alligator Clip Set for Test Leads
Small alligator clip set for attachment to HIOKI test leads DT4911, L9207-10, L9208 and L9300, also compatible with L4932, connection diameter 2 mm to 4 mm, maximum 3 A, CAT II 600 V, CAT III 300 V

€28.00
View product
CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters HIOKI CT6280 flexible current sensor 4200a 800mm cable
CT6280
CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters
Flexible current sensor for HIOKI AC clamp meters, up to 4200 A AC, 130 mm loop diameter, 5 mm coil diameter, 800 mm cable length

€168.00
View product

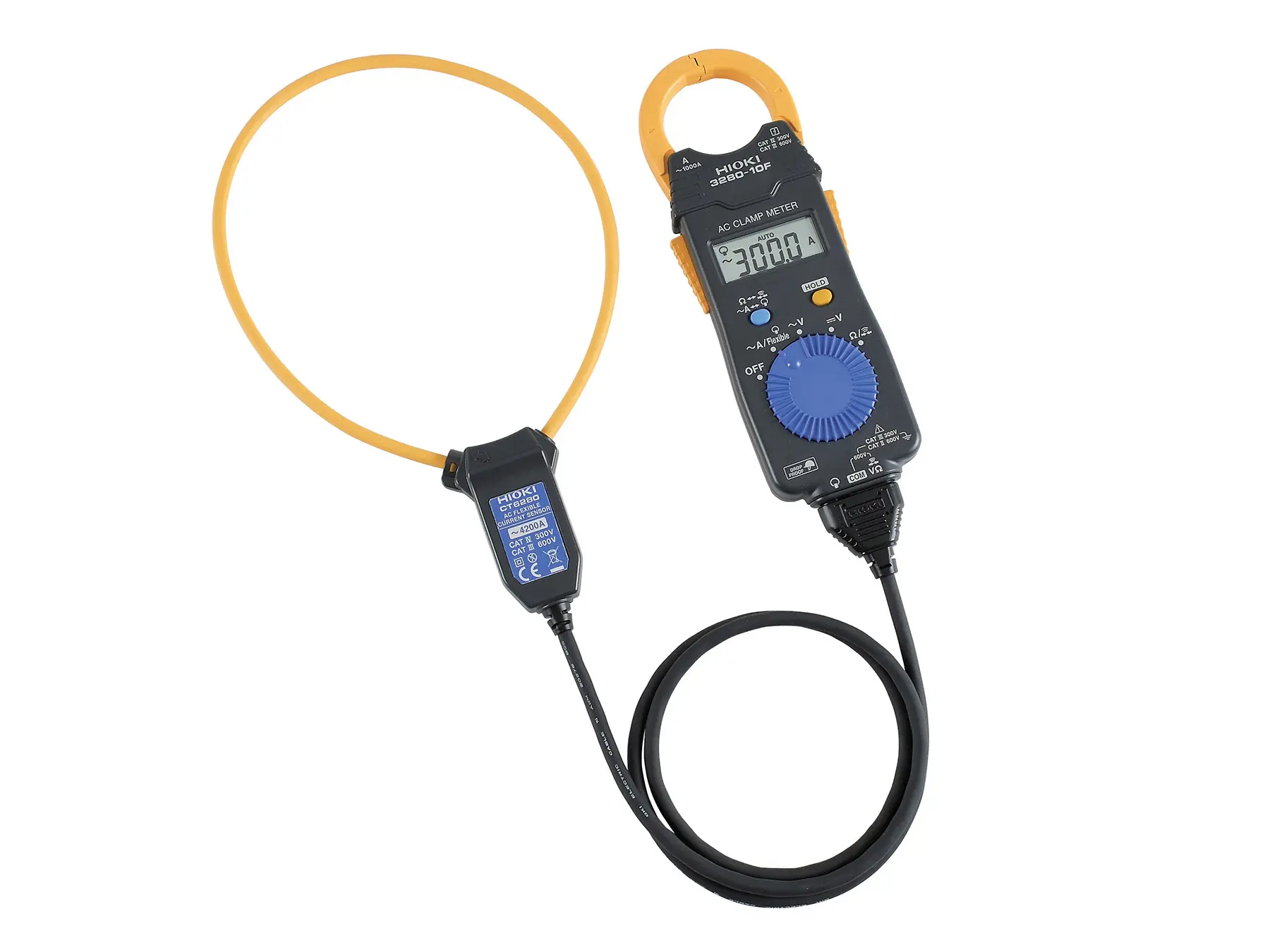

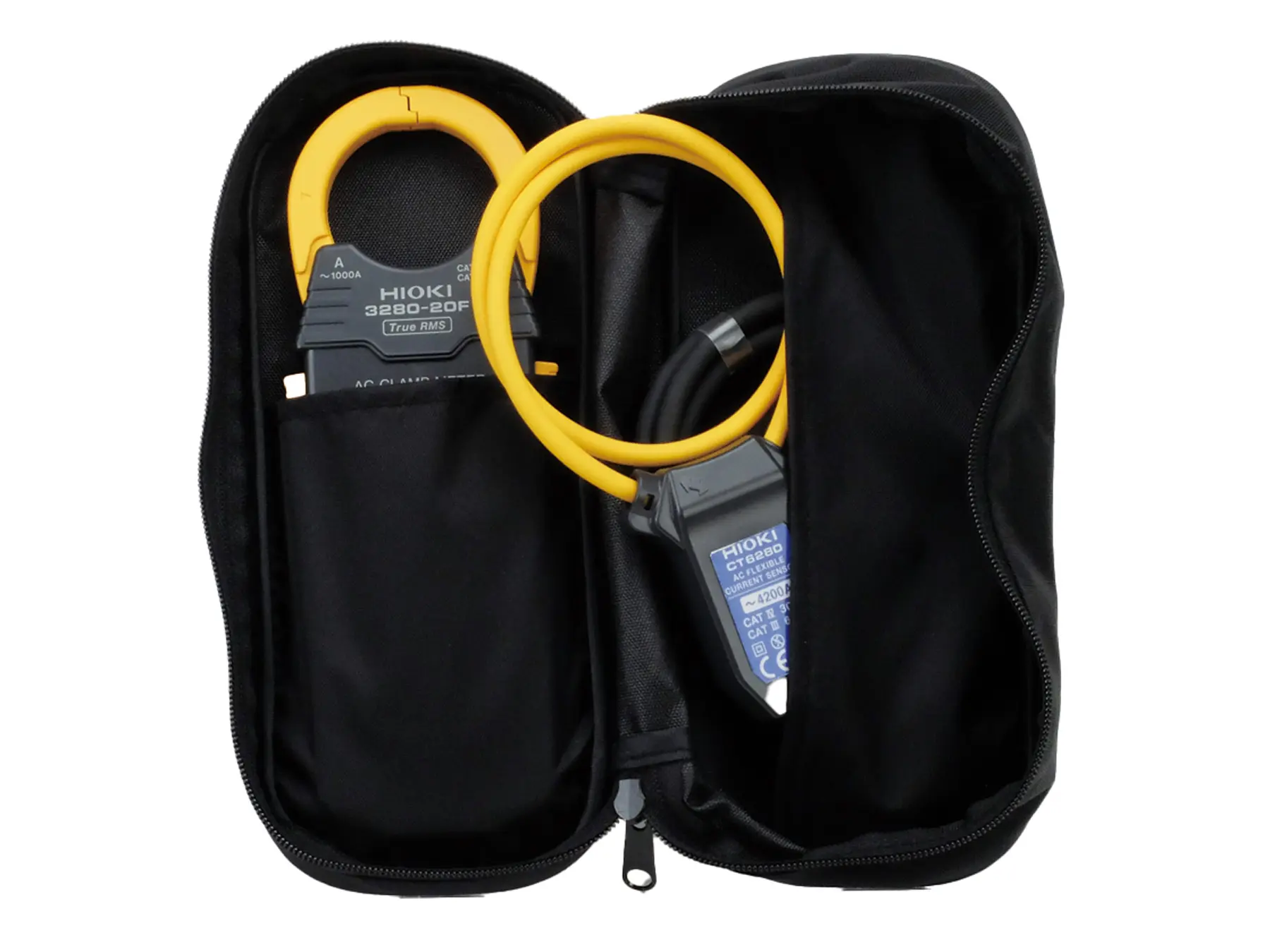

3280-70F - AC Clamp Meter 1000 A with Flexible Current Sensor up to 4200 A HIOKI 3280-70F AC clamp meter with CT6280 flexible AC current sensor in C0205 carrying case
3280-70F
3280-70F - AC Clamp Meter 1000 A with Flexible Current Sensor up to 4200 A
Clamp meter for AC currents to 1000 A with flexible current sensor to 4200 A, voltage measurement to 600 V AC/DC, CAT IV 300 V (current) and CAT III 300 V (voltage), 33 mm conductor diameter, resistance measurement and continuity test

€238.00
View product
CM3281 - AC Clamp Meter 2000 A for Tight Spaces CM3281 - AC Clamp Meter 2000 A for Tight Spaces
CM3281
CM3281 - AC Clamp Meter 2000 A for Tight Spaces
Clamp meter for AC currents up to 2000 A with clamp opening for conductors up to 46 mm, voltage measurement up to 600 V AC/DC, CAT IV 300 V / CAT III 600 V, resistance measurement and continuity test

€118.00
View product

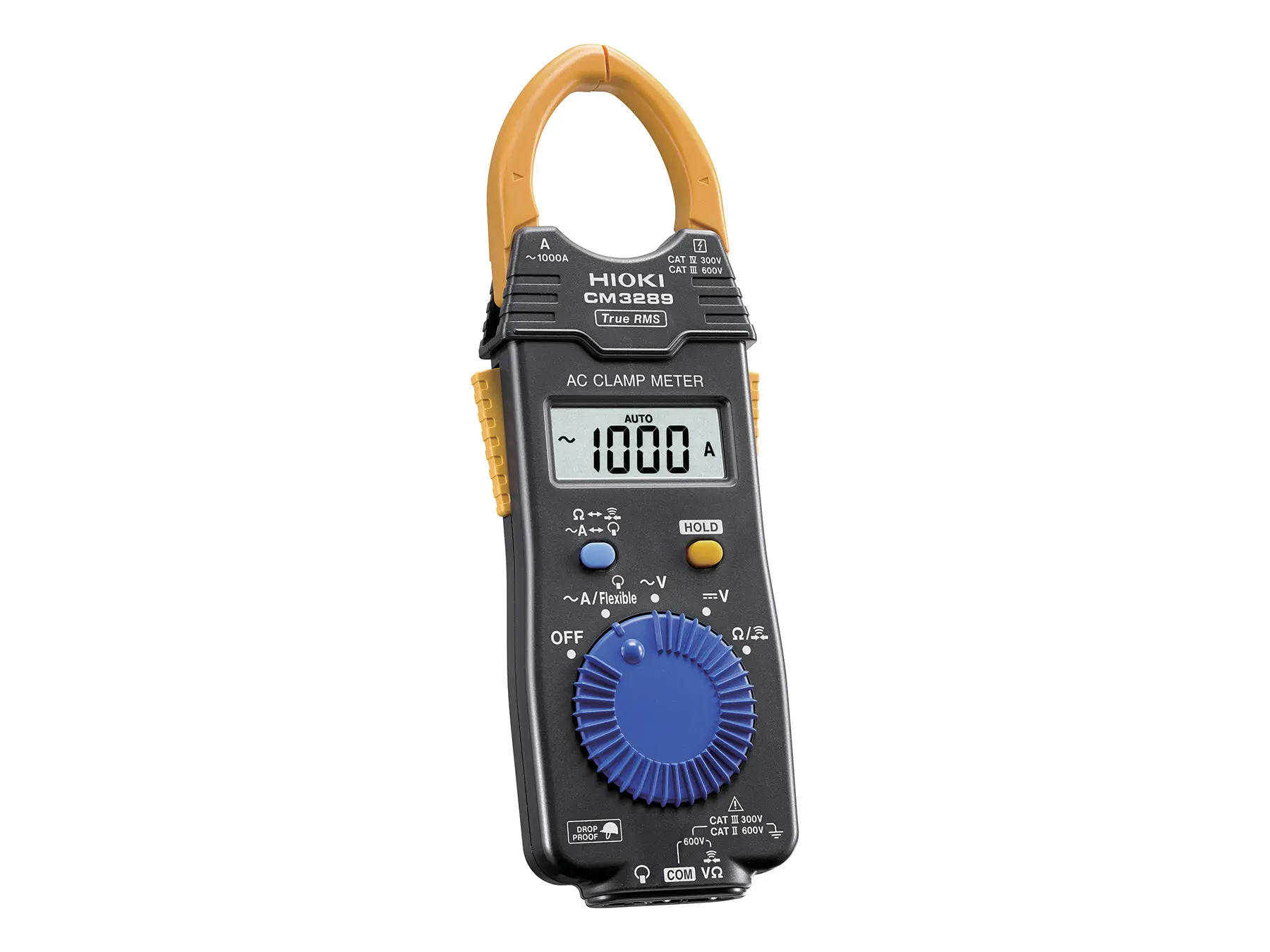

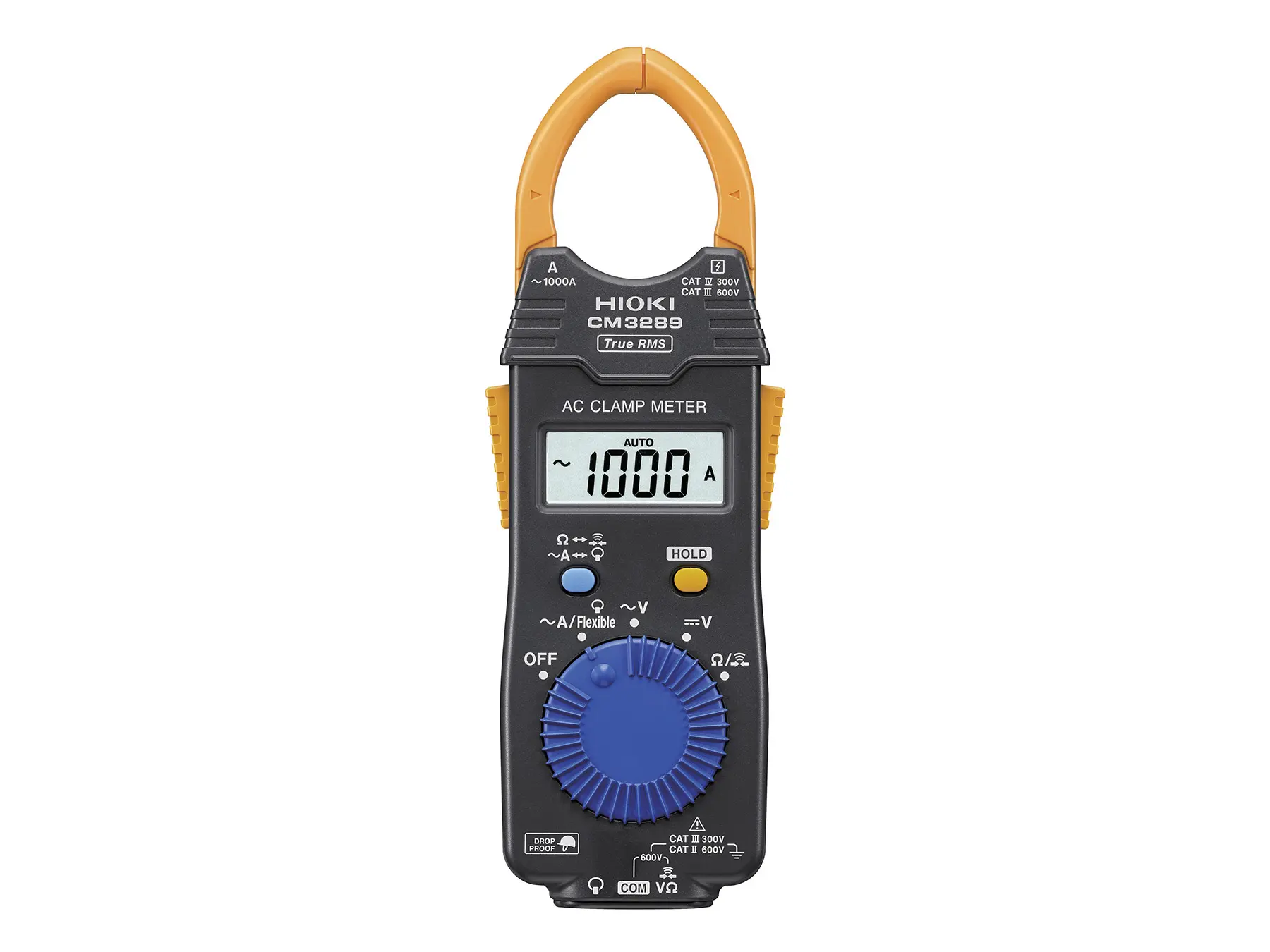

HIOKI CM3289 - True RMS Clamp Meter for AC Currents up to 1000 A HIOKI CM3289 - True RMS Clamp Meter for AC Currents up to 1000 A
CM3289
HIOKI CM3289 - True RMS Clamp Meter for AC Currents up to 1000 A
True RMS clamp meter for AC currents up to 1000 A, voltage measurement up to 600 V AC/DC, CAT IV 300 V (current) and CAT III 300 V (voltage), 33 mm conductor diameter, resistance measurement and continuity test

€138.00
View product

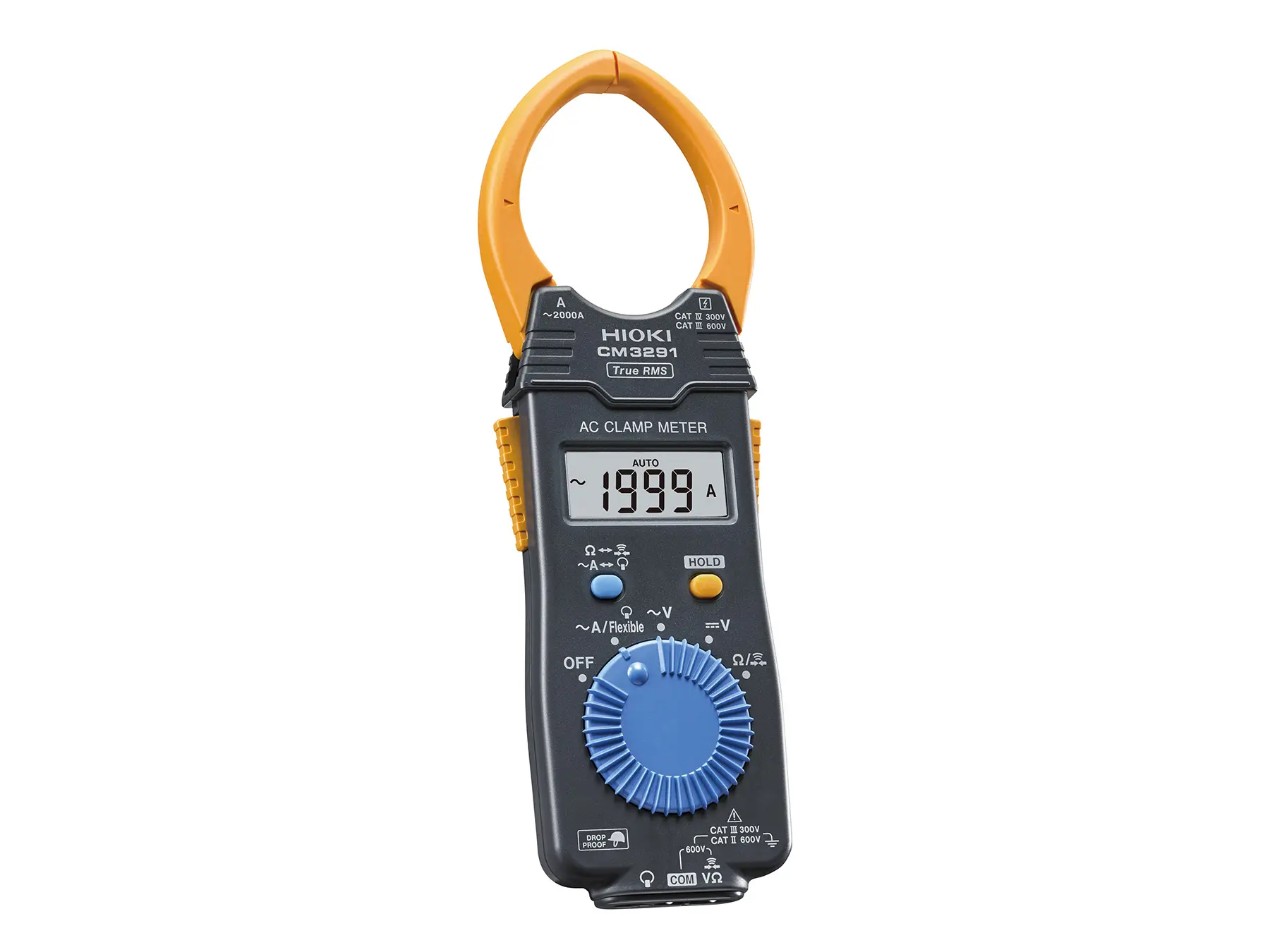

CM3291 - True RMS AC Clamp Meter 2000 A for Tight Spaces CM3291 - True RMS AC Clamp Meter 2000 A for Tight Spaces
CM3291
CM3291 - True RMS AC Clamp Meter 2000 A for Tight Spaces
True RMS clamp meter for AC currents up to 2000 A with clamp opening for conductors up to 46 mm, voltage measurement up to 600 V AC/DC, CAT IV 300 V / CAT III 600 V, resistance measurement and continuity test

€158.00
View product

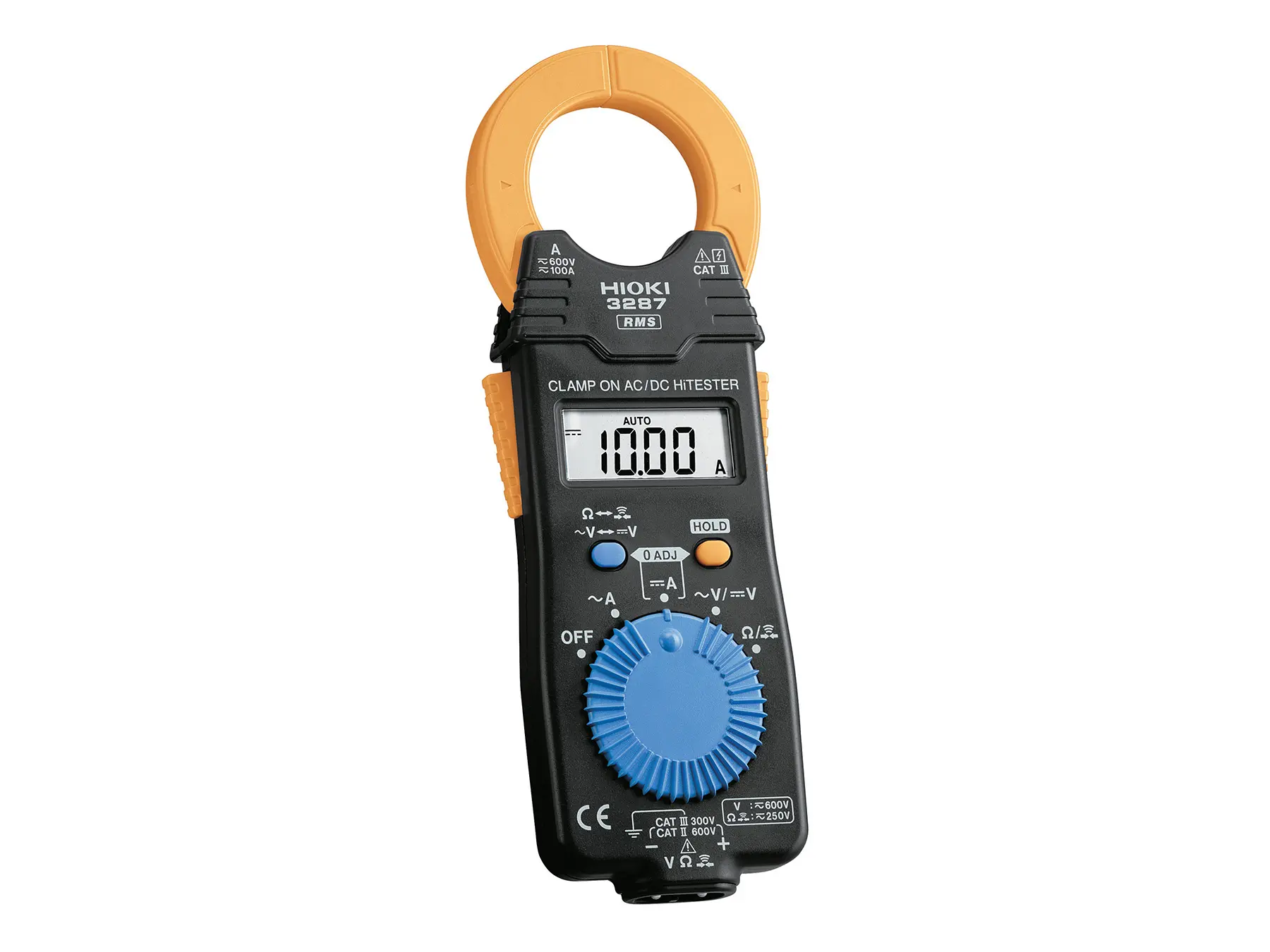

HIOKI 3287 - AC/DC True RMS Clamp Meter with 10 A and 100 A Current Ranges HIOKI 3287 - AC/DC True RMS Clamp Meter with 10 A and 100 A Current Ranges
3287
HIOKI 3287 - AC/DC True RMS Clamp Meter with 10 A and 100 A Current Ranges
True RMS clamp meter with 10 A and 100 A current ranges for AC/DC, voltage measurement up to 600 V AC/DC, CAT III 300 V (voltage), CAT III 600 V (current), 35 mm conductor diameter, resistance measurement and continuity test

€358.00
View product

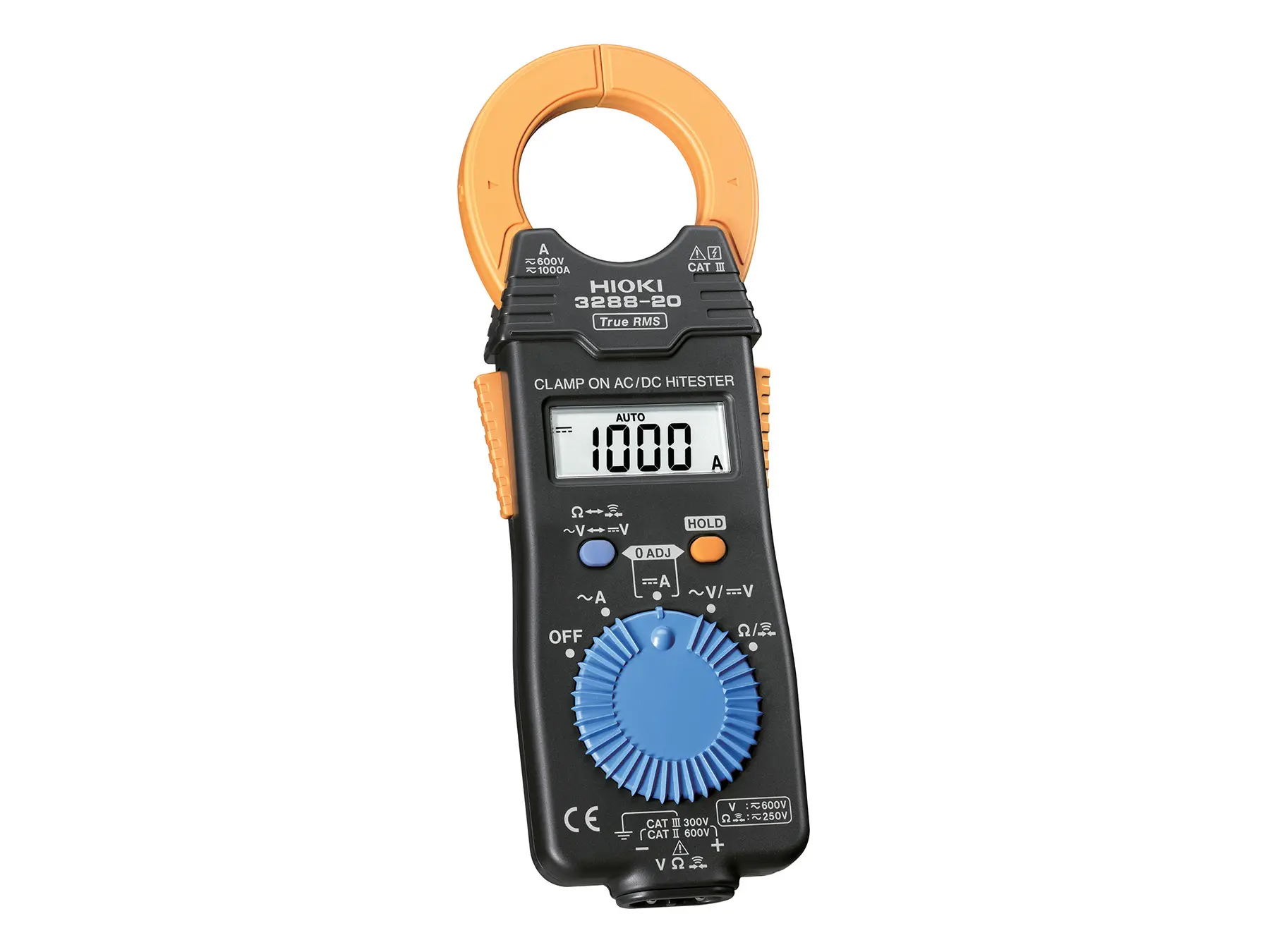

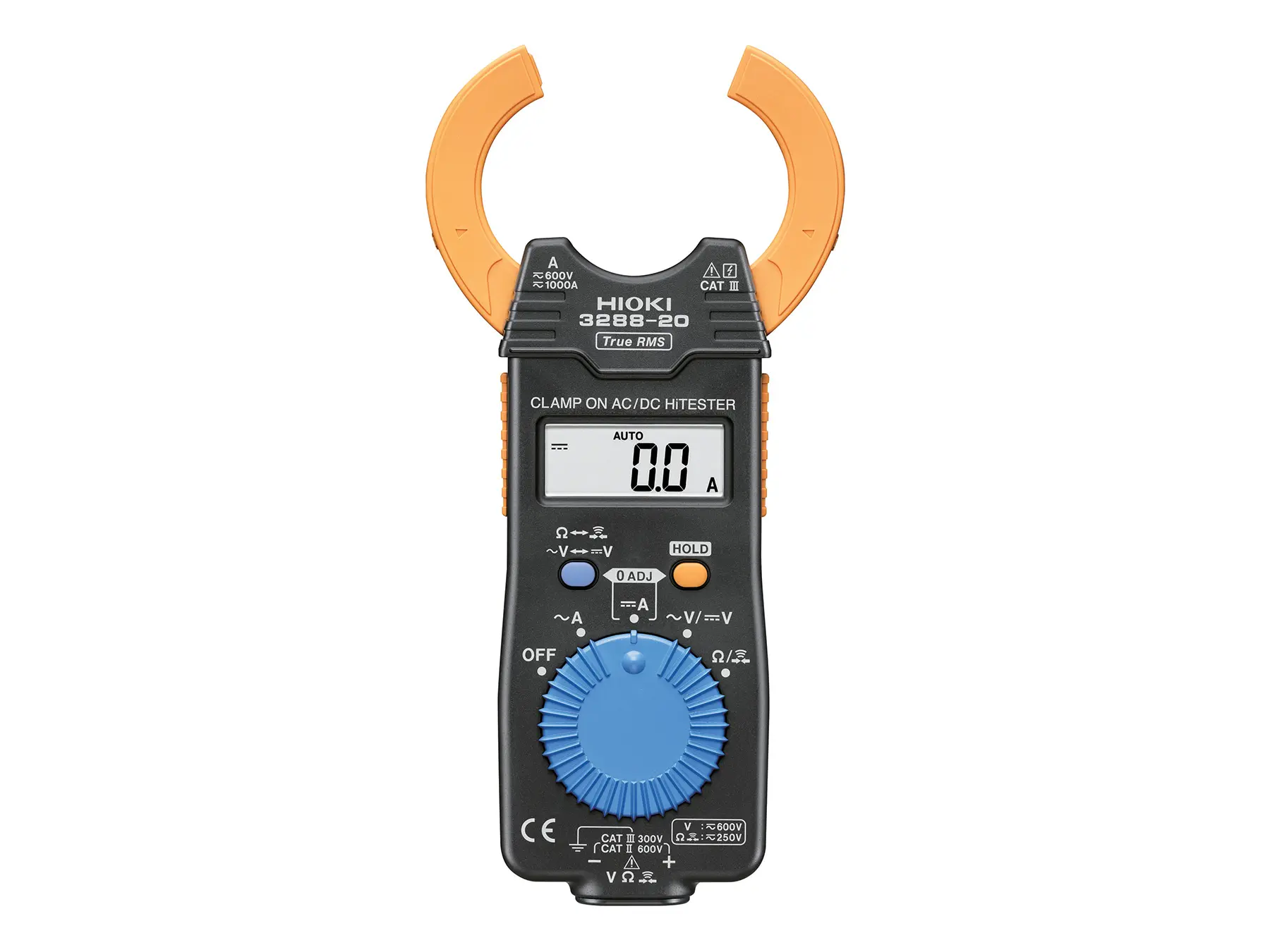

3288-20 - AC/DC True RMS Clamp Meter with 1000 A Current Range 3288-20 - AC/DC True RMS Clamp Meter with 1000 A Current Range
3288-20
3288-20 - AC/DC True RMS Clamp Meter with 1000 A Current Range
True RMS clamp meter with 100 A and 1000 A current ranges for AC/DC, voltage measurement up to 600 V AC/DC. CAT III 300 V (voltage), CAT III 600 V (current), 35 mm conductor diameter, resistance measurement and continuity test

€308.00
View product
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
CM4371-50
HIOKI CM4371-50 - AC/DC True RMS Clamp Multimeter with 20 A and 600 A Current Ranges
True RMS clamp multimeter with 20 A / 600 A ranges for AC/DC currents, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 33 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth (Z3210)

€488.00
View product

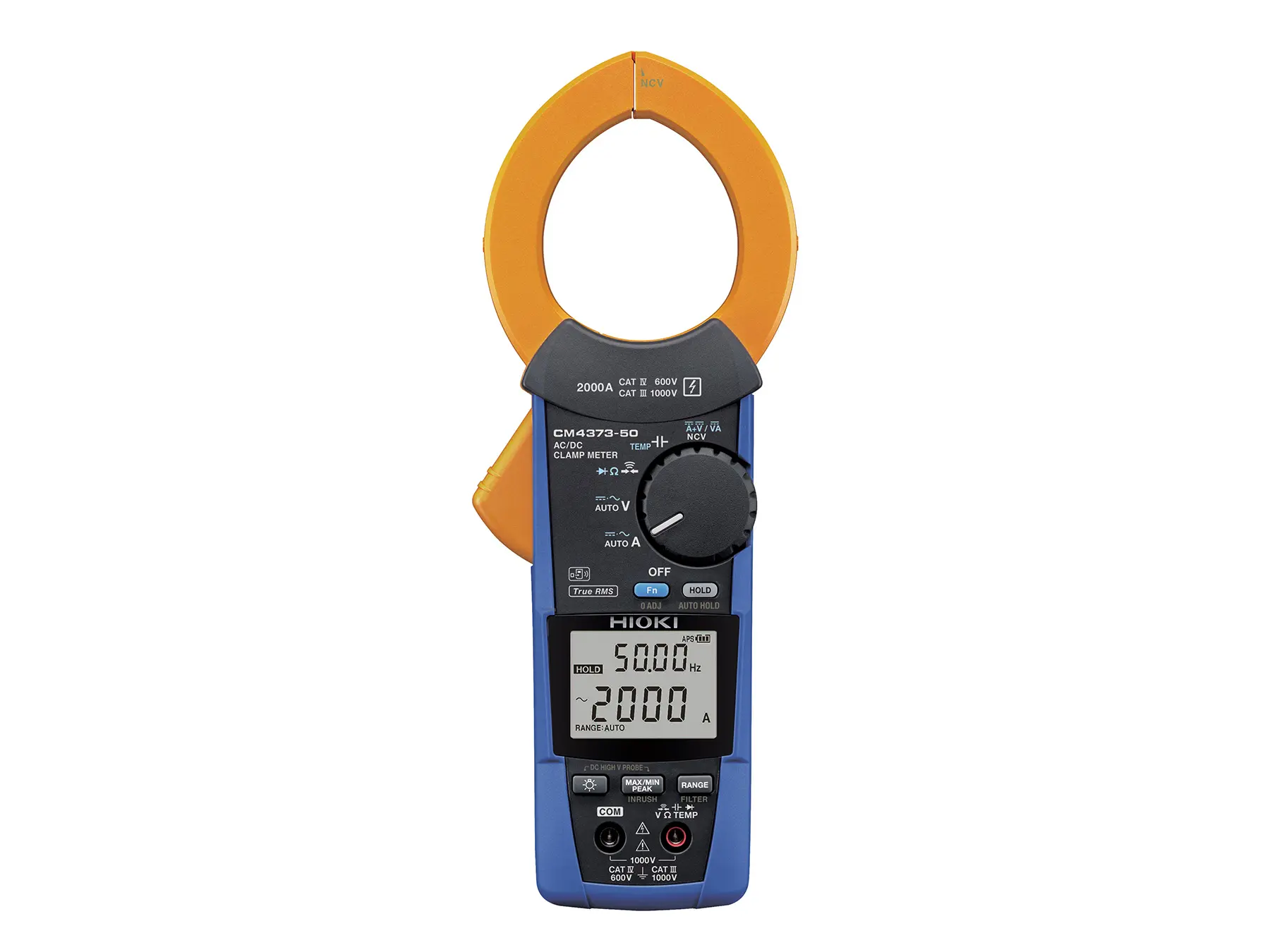

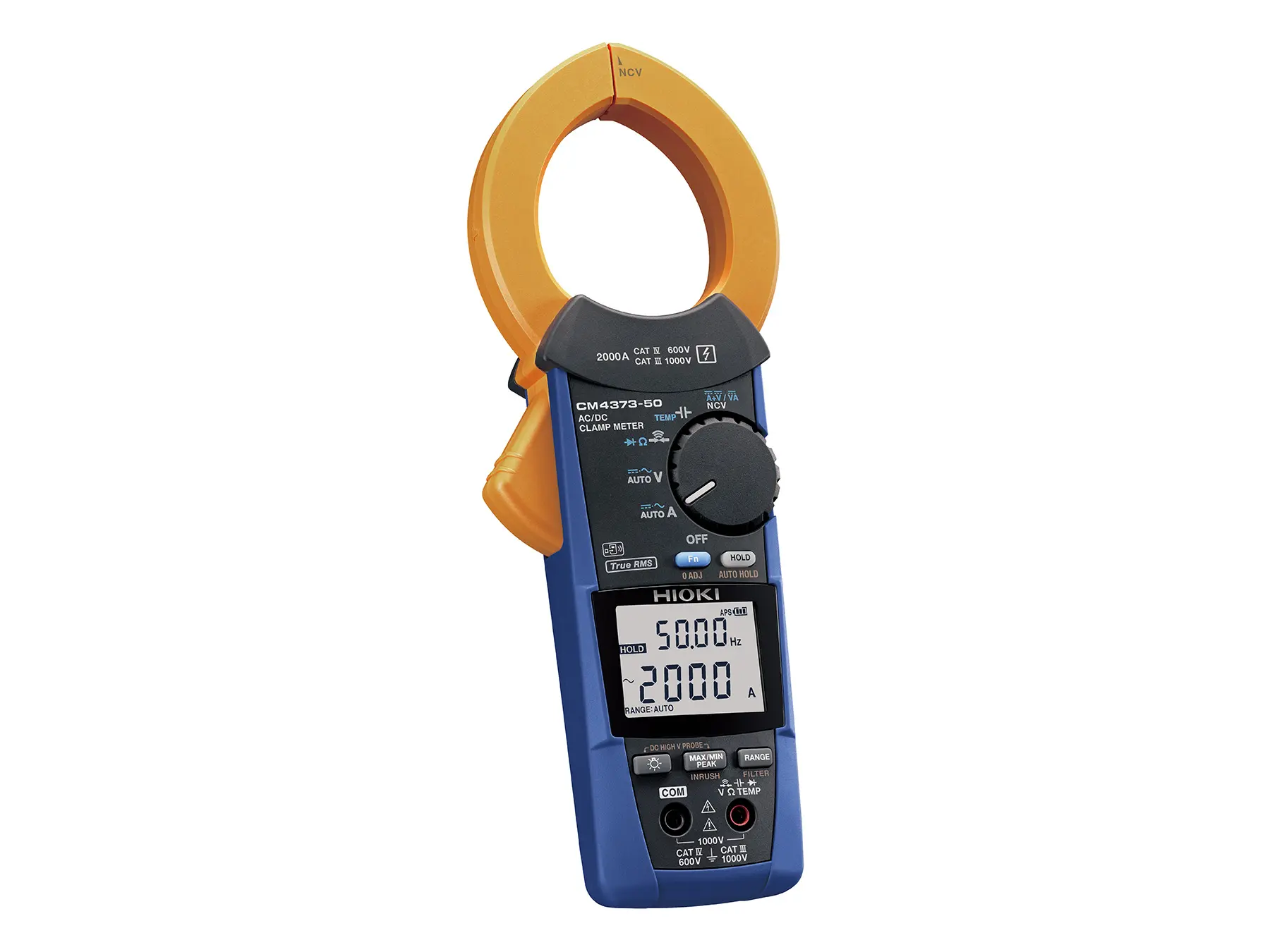

HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
CM4373-50
HIOKI CM4373-50 - AC/DC True RMS Clamp Multimeter with 2000 A Current Range
True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter; resistance, capacitance, continuity, diode test, inrush, optional Bluetooth with Z3210

€508.00
View product
HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws
CM4375-50
HIOKI CM4375-50 - True RMS AC/DC Clamp Multimeter with 1000 A Range and Super Slim Jaws
True RMS clamp multimeter with 1000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 34 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth optional

€558.00
View product
9398 - Carrying Case for HIOKI Clamp Meters
9398
9398 - Carrying Case for HIOKI Clamp Meters
Carrying case for HIOKI clamp meters 3280-10F, 3287, 3288, 3288-20 and CM3289, soft case with zipper

€28.00
View product

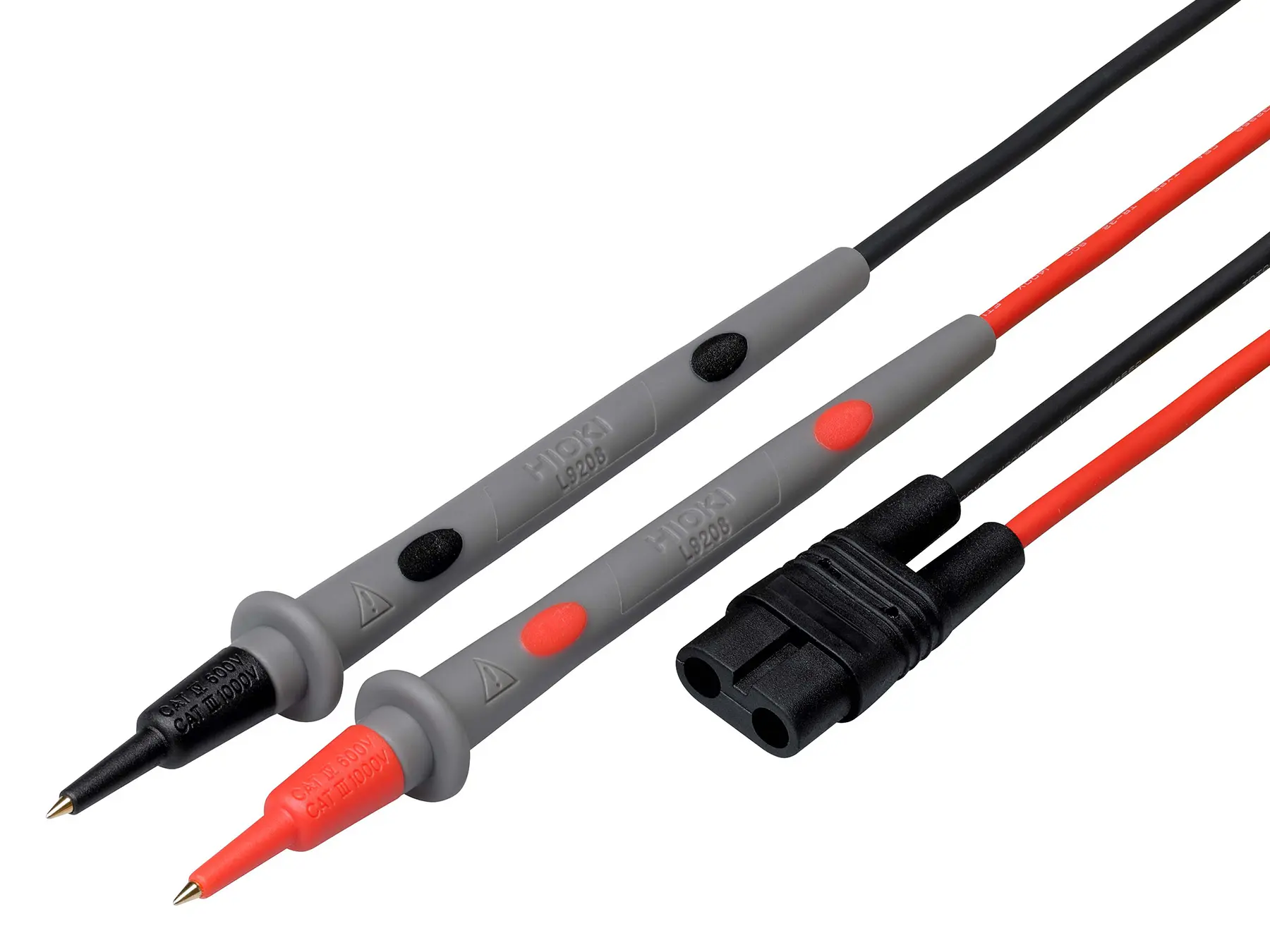

L9208 - Test Leads for HIOKI Clamp Meters L9208 - Test Leads for HIOKI Clamp Meters
