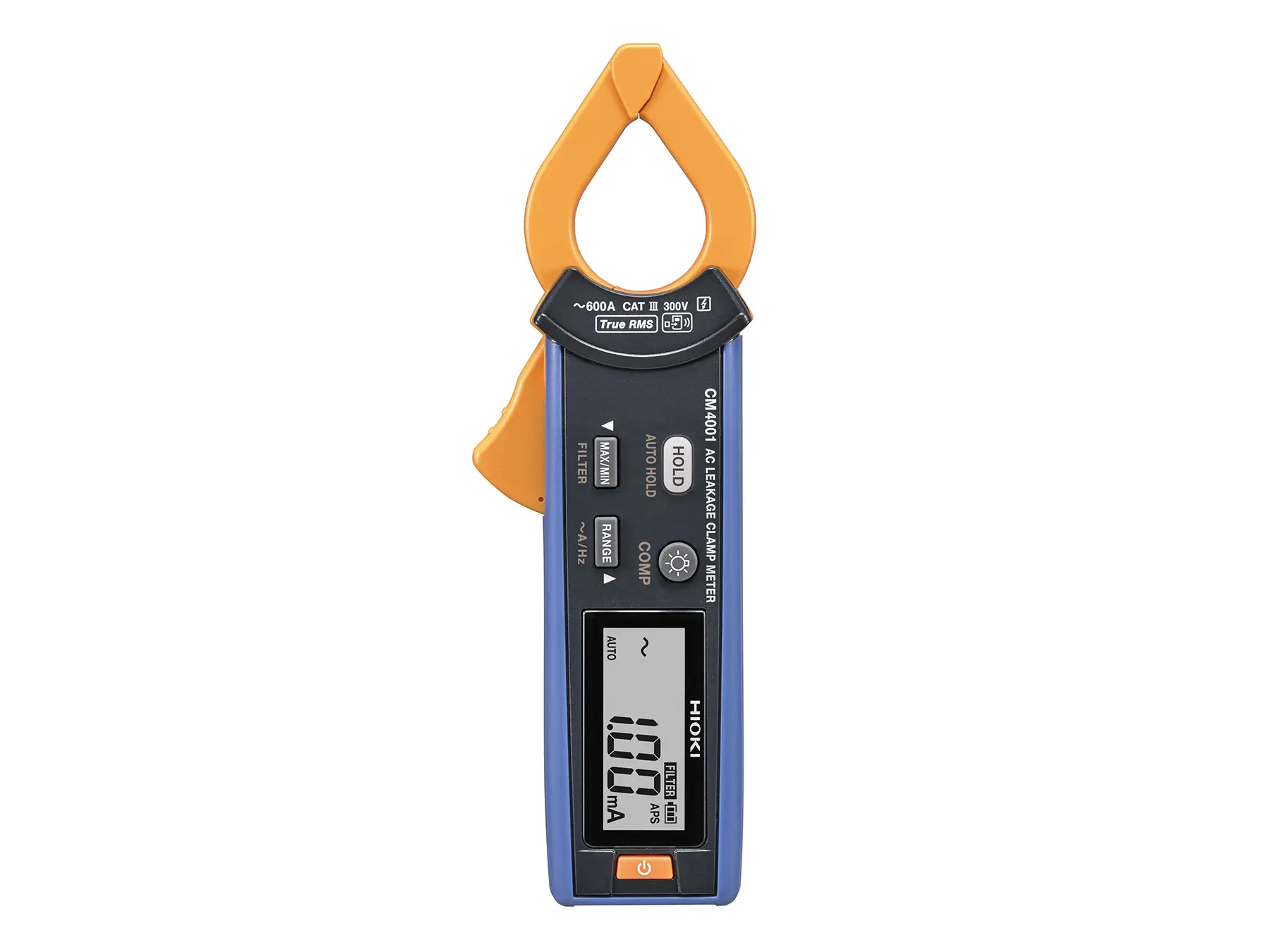

HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A

Ultra-slim AC leakage clamp meter with 24 mm jaws and True RMS measurement, five ranges from 60.00 mA to 600.0 A AC for leakage and load current testing. CAT III 300 V, optional Bluetooth (Z3210)
Skip image gallery
HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A
HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A
HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A
HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A
HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A

€458.00

Content: 1 Each

In stock in Germany

€458.00

HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A
Product number: CM4001
Available stock: 1
GTIN/EAN: 4536036012602
Length: 160 mm
Width: 37 mm
Height: 27 mm
Weight: 0.115 kg

Description

Product information HIOKI CM4001 - Compact AC Leakage Clamp Meter with True RMS measurement, up to 600 A


Key Specifications

  • Slim jaws with 24 mm opening for use in confined spaces
  • Five AC measurement ranges: 60.00 mA to 600.0 A (True RMS)
  • Frequency characteristics: 40 Hz to 1 kHz
  • Safety rating: CAT III 300 V
  • Wireless communication (optional Z3210)

Typical Applications

  • Checking operation of Residual Current Devices (RCDs) and Ground Fault Circuit Interrupters (GFCIs)
  • Locating insulation faults and earth leakage paths
  • Inspecting distribution panels and switchboards with limited space
  • Measuring load current and verifying circuit load balance
  • Comparing leakage current across multiple circuits during maintenance

Detailed Product Overview

The Hioki CM4001 is a compact AC leakage clamp meter for reliable current testing in confined areas such as control cabinets and distribution panels. Its slim 24 mm jaws fit easily between closely routed conductors and enable accurate measurement of leakage, differential, and load currents with True RMS accuracy.

Versatile for Leak and Load Currents

The CM4001 supports a wide range of practical applications in electrical service and maintenance. It detects leakage currents to identify insulation faults or unwanted current paths that can cause ground faults. When clamped around all active conductors, it measures differential current (residual current) to verify the operation of Residual Current Devices (RCDs) and Ground Fault Circuit Interrupters (GFCIs). These functions are essential for diagnosing nuisance tripping and intermittent earth faults. The instrument also measures load current in individual conductors, allowing quick verification of circuit load balance and early detection of abnormal current draw in connected equipment.

The instrument covers five measurement ranges from 60.00 mA to 600.0 A AC, allowing both very small leakage and high load currents to be measured with one device. Its frequency characteristics extend to 1 kHz, and the filter function suppresses high-frequency noise so that only the 50/60 Hz leakage current relevant to RCD operation is captured, even near inverters or switching power supplies.

All you need when testing fixed installations

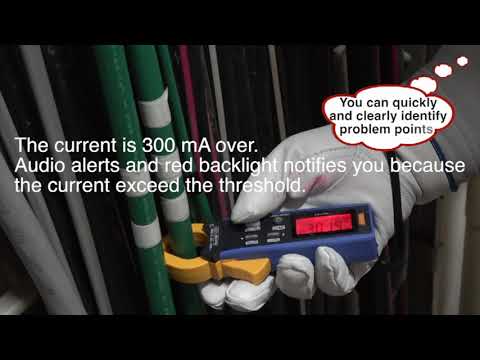

The comparator function provides immediate pass/fail indication with a red backlight and buzzer when the preset threshold is exceeded. Additional functions include Auto Hold, Max/Min/Avg memory, Inrush current measurement (up to 150 ms), and Peak value recording, improving efficiency during inspection and troubleshooting.

Rated CAT III 300 V, the CM4001 is suitable for measurements in fixed installations, distribution panels, and electrical switchboards in residential, commercial, and industrial environments. Its compact size and measurement versatility make it an essential tool in every technician’s toolkit.

With the optional Z3210 Wireless Adapter, measurement data can be transferred via Bluetooth to the GENNECT Cross app for logging, labeling, and on-site PDF reporting. The wireless connection also allows the meter’s readings to be viewed directly on a smartphone or tablet, which is particularly useful when the instrument is positioned where the display cannot be easily seen.

Designed and manufactured in Japan.

HIOKI clamp meters are developed and built at the company’s own facilities in Nagano, Japan, ensuring consistent measurement accuracy, mechanical precision, and long-term reliability.

What's in the Box

  • CM4001 AC Leakage Clamp Meter
  • Carrying case
  • Strap
  • Instruction manual
  • Operating precautions
  • 1 × LR03 (AAA) alkaline battery
Skip product gallery

Related products

HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Z3210
HIOKI Z3210 - Bluetooth Adapter for compatible HIOKI Instruments
Bluetooth adapter for data transfer from compatible HIOKI instruments to Windows, iOS or Android devices using GENNECT Cross or HID keyboard profile

€118.00
View product

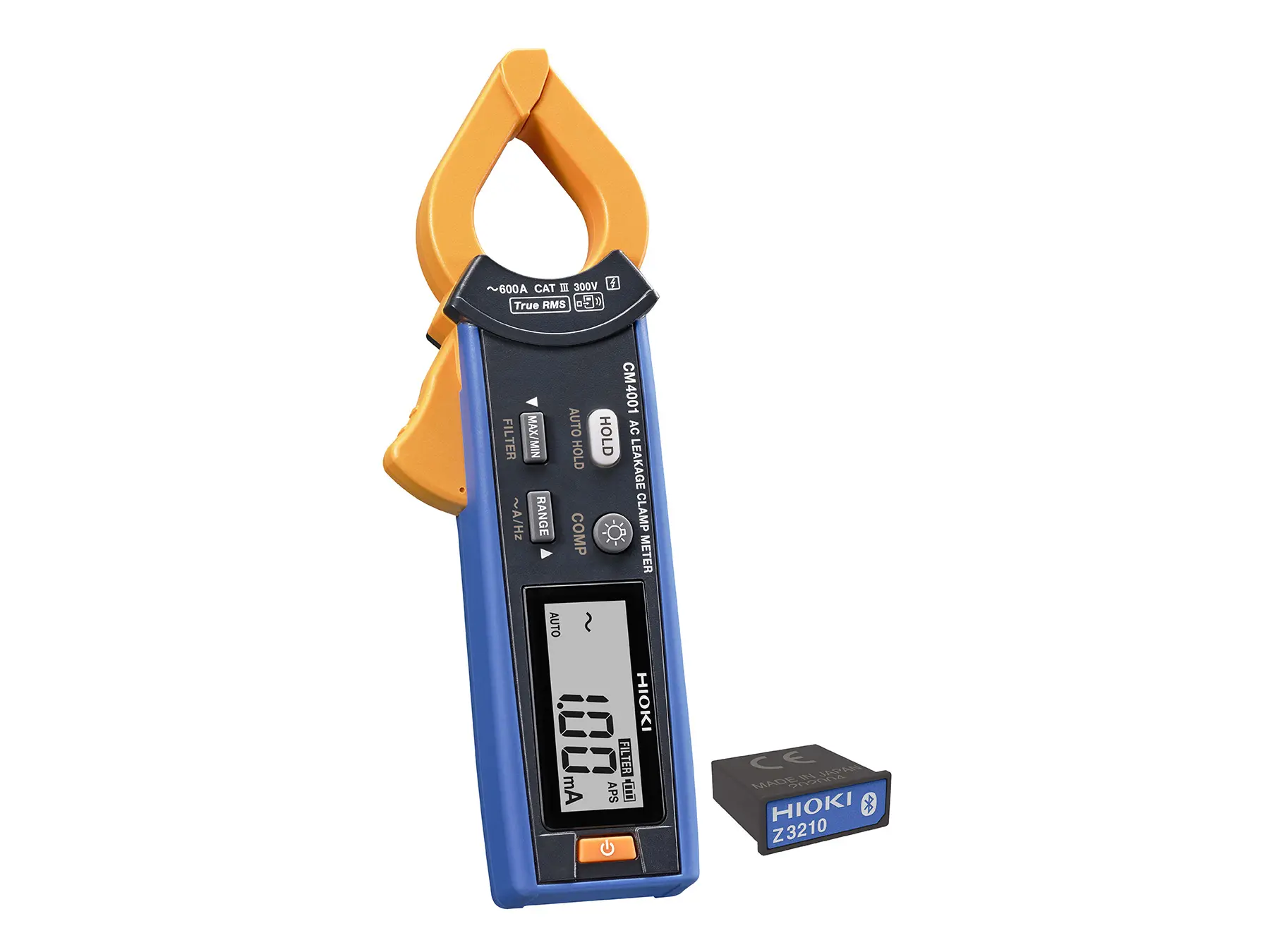

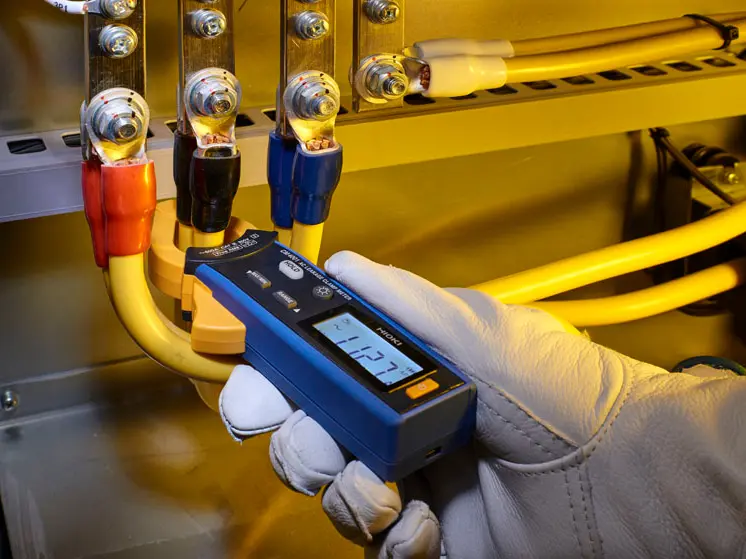

HIOKI CM4001-90 - AC Leakage Clamp Meter, Bluetooth, 600 A HIOKI CM4001-90 AC leakage clamp meter Bluetooth measuring range 060 mA to 600A testing
CM4001-90
HIOKI CM4001-90 - AC Leakage Clamp Meter, Bluetooth, 600 A
The HIOKI CM4001-90 is a compact AC leakage clamp meter equipped with slim measuring clamps, allowing easy clamping into tightly packed cables with diameters up to 24 mm. This design enhances safety and reduces working time. The meter offers precise accuracy for current measurements ranging from 0.60 mA to 600.0 A, and operates within a frequency range of 40-1000 Hz. The HIOKI CM4001 provides a complete solution for various applications, including harmonic measurements. An integrated comparator function enables quicker problem detection. CM4001-90 is bundled with the Z3210 Bluetooth-Module wireless data transmission. Technical Details: Measuring range: 0.60 mA to 600.0 A Frequency range: 40-1000 Hz Cable diameter: Up to 24 mm Key functions: Harmonic measurement, comparator function Wireless data transmission: Prepared for Bluetooth Features: Slim measuring clamps for easy clamping in tight spaces Wireless data transmission via Bluetooth using Z3210 moduleLearn more in our blog What’s special about HIOKI’s AC Leakage Current Clamps?

€528.00
View product

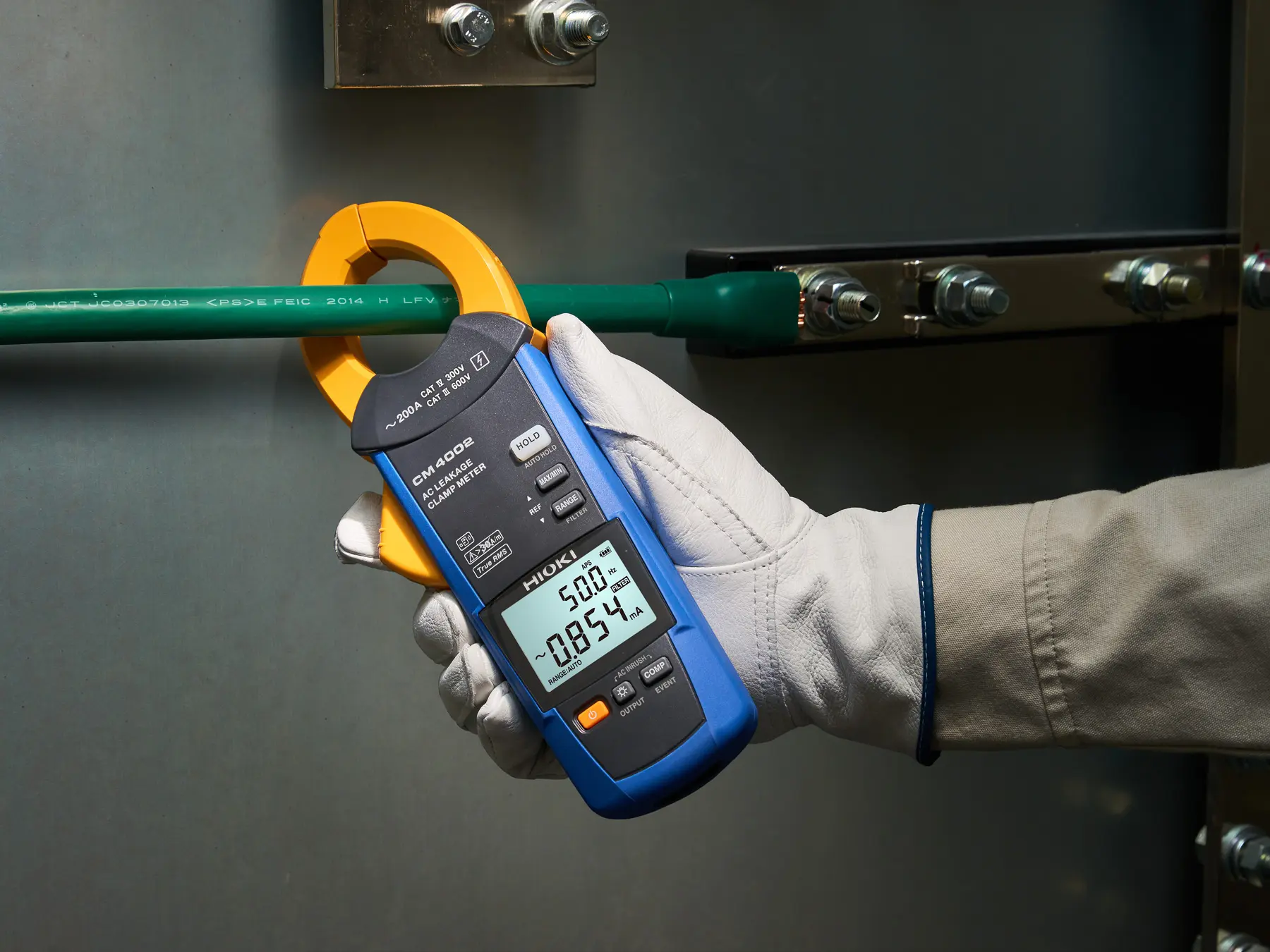

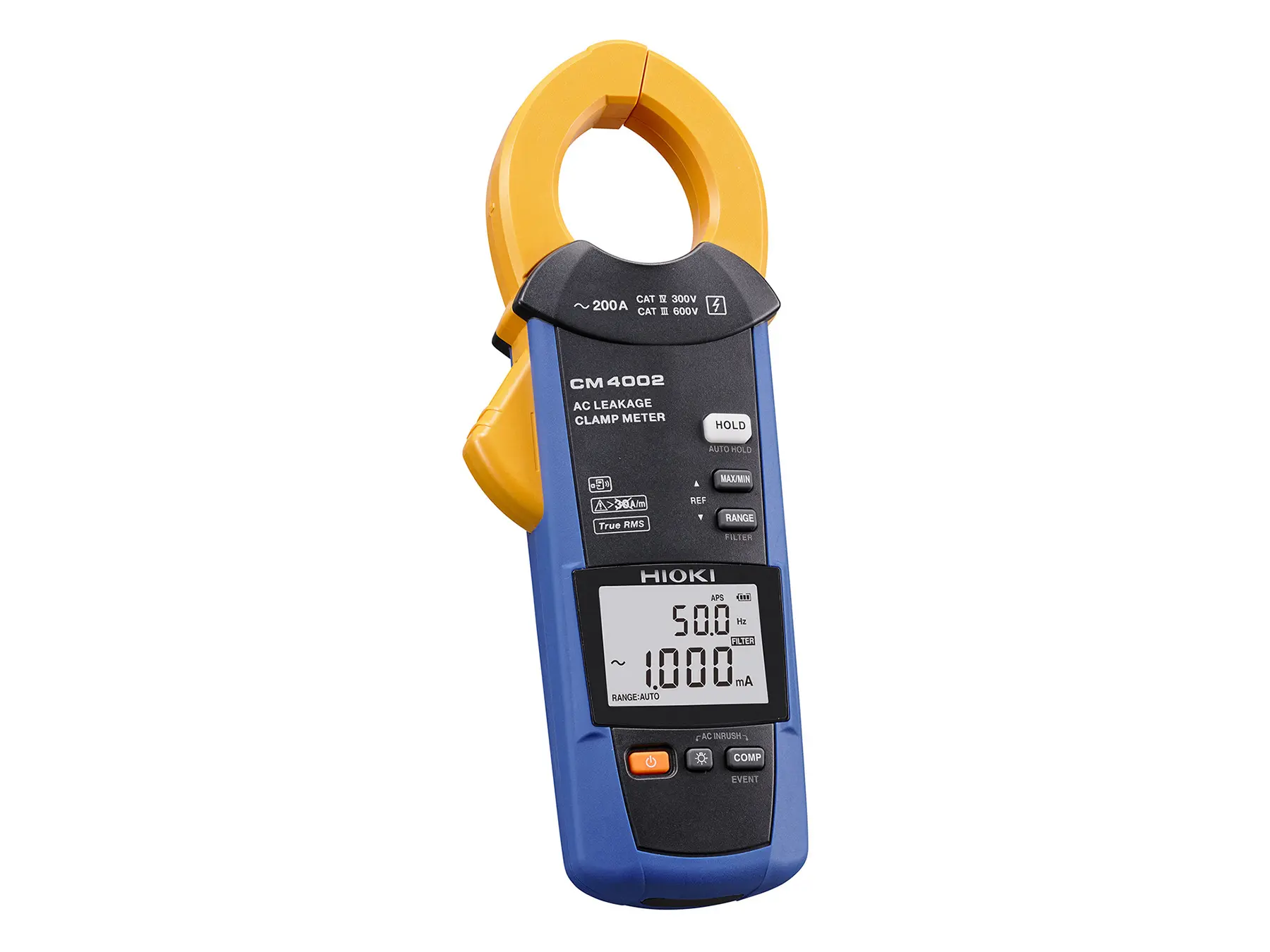

CM4002 AC Leakage Clamp Meter Bluetooth HIOKI CM4002 ac leakage clamp meter Bluetooth measuring range of 6mA to 200A
CM4002
HIOKI CM4002 - AC Leakage Clamp Meter
The HIOKI CM4002 is a true RMS AC leakage current meter with a measuring range of 6 mA to 200 A and a frequency range of 15 to 2000 Hz. It is designed for conductors with a diameter of up to 40 mm and offers a variety of functions, including Max/Min/AVG/PEAK MAX/PEAK MIN value display, display hold and auto-hold, backlight, automatic energy saving mode, acoustic signal (buzzer), event display, comparison function, simple event recording and inrush current measurement.The HIOKI CM4002 is also prepared for wireless data transmission via Bluetooth, for which the Z3210 module is required.Technische Details: Measuring range: 6 mA to 200 A Frequency range: 15 to 2000 Hz Cable diameter: Up to 40 mm Main functions: Max/Min/AVG/PEAK MAX/PEAK MIN, display hold, auto hold, backlight, auto power save mode, buzzer, event display, comparison function, simple event recording, inrush current measurement Wireless data transmission: Bluetooth ready (Z3210 module required)Learn more in our blog What’s special about HIOKI’s AC Leakage Current Clamps?

€618.00
View product
CM4002-90 AC Leakage Clamp Meter Bluetooth HIOKI CM4002 ac leakage clamp meter Bluetooth measuring range of 6mA to 200A
CM4002-90
CM4002-90 - AC Leakage Clamp Meter, Bluetooth
The CM4002-90 is a True RMS AC leakage meter with a measuring range of 6mA to 200A and a frequency range of 15 to 2000 Hz. Designed to cover conductors up to 40 mm in diameter, the CM4002 offers a range of advanced functions including Max/Min/AVG/PEAK MAX/PEAK MIN value display, display hold and auto-hold, backlight, automatic power-saving mode, acoustic signal (buzzer), event display, comparator, simple event recording, and inrush current measurement.The CM4002-90 is equipped with the Z3210 module for wireless data transmission via Bluetooth. Technical Details: Measuring range: 6 mA to 200 A Frequency range: 15 to 2000 Hz Cable diameter: Up to 40 mm Key functions: Max/Min/AVG/PEAK MAX/PEAK MIN, display hold, auto-hold, backlight, automatic power-saving mode, buzzer, event display, comparator, simple event recording, inrush current measurement Wireless data transmission: Via Bluetooth with Z3210 moduleLearn more in our blog What’s special about HIOKI’s AC Leakage Current Clamps?

€688.00
View product

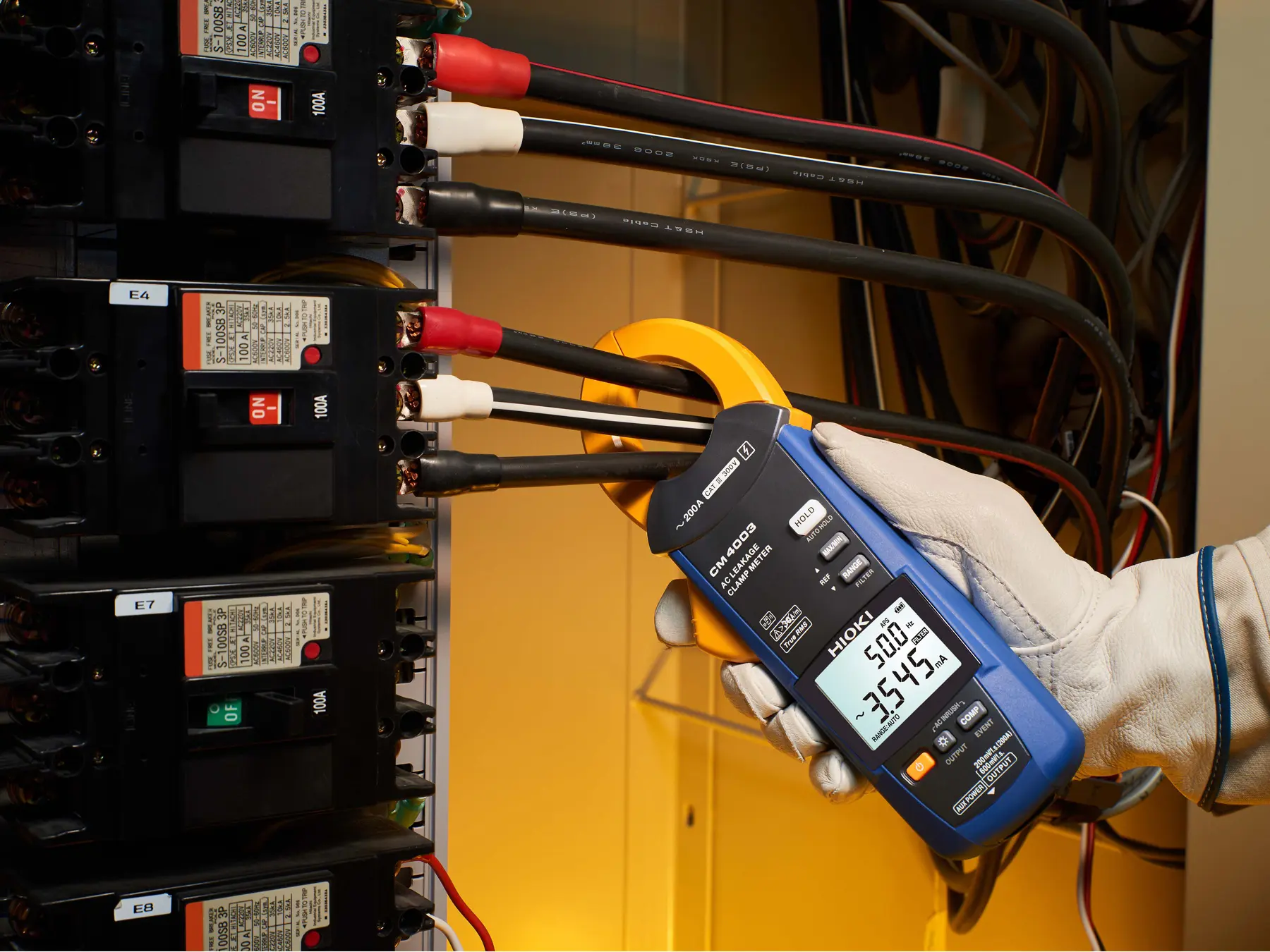

HIOKI CM4003 - AC Leakage Clamp Meter HIOKI CM4003 ac leakage clamp meter bluetooth
CM4003
HIOKI CM4003 - AC Leakage Clamp Meter
The HIOKI CM4003 is a True RMS AC leakage current meter with a measuring range of 6 mA to 200 A and a frequency range of 15 to 2000 Hz. It is designed for conductors with a diameter of up to 40 mm. The CM4003 offers advanced functions such as Max/Min/AVG/PEAK MAX/PEAK MIN value display, display hold and auto hold, backlight, automatic energy saving mode, acoustic signal (buzzer), event display, comparison function, simple event recording and inrush current measurement.In addition, the CM HIOKI 4003 has a waveform/RMS output function that enables signals to be recorded with a memory recorder. The device is also prepared for wireless data transmission via Bluetooth, for which the Z3210 module is required.Technical details:Measuring range: 6 mA to 200 A Frequency range: 15 to 2000 Hz Cable diameter: Up to 40 mmMain functions: Max/Min/AVG/PEAK MAX/PEAK MIN, display hold, auto hold, backlight, automatic energy saving mode, buzzer, event display, comparison function, simple event recording, inrush current measurementAdditional function: Waveform/RMS output for signal recording with a memory recorderWireless data transmission: Bluetooth ready (Z3210 module required)Learn more in our blog What’s special about HIOKI’s AC Leakage Current Clamps?

€718.00
View product

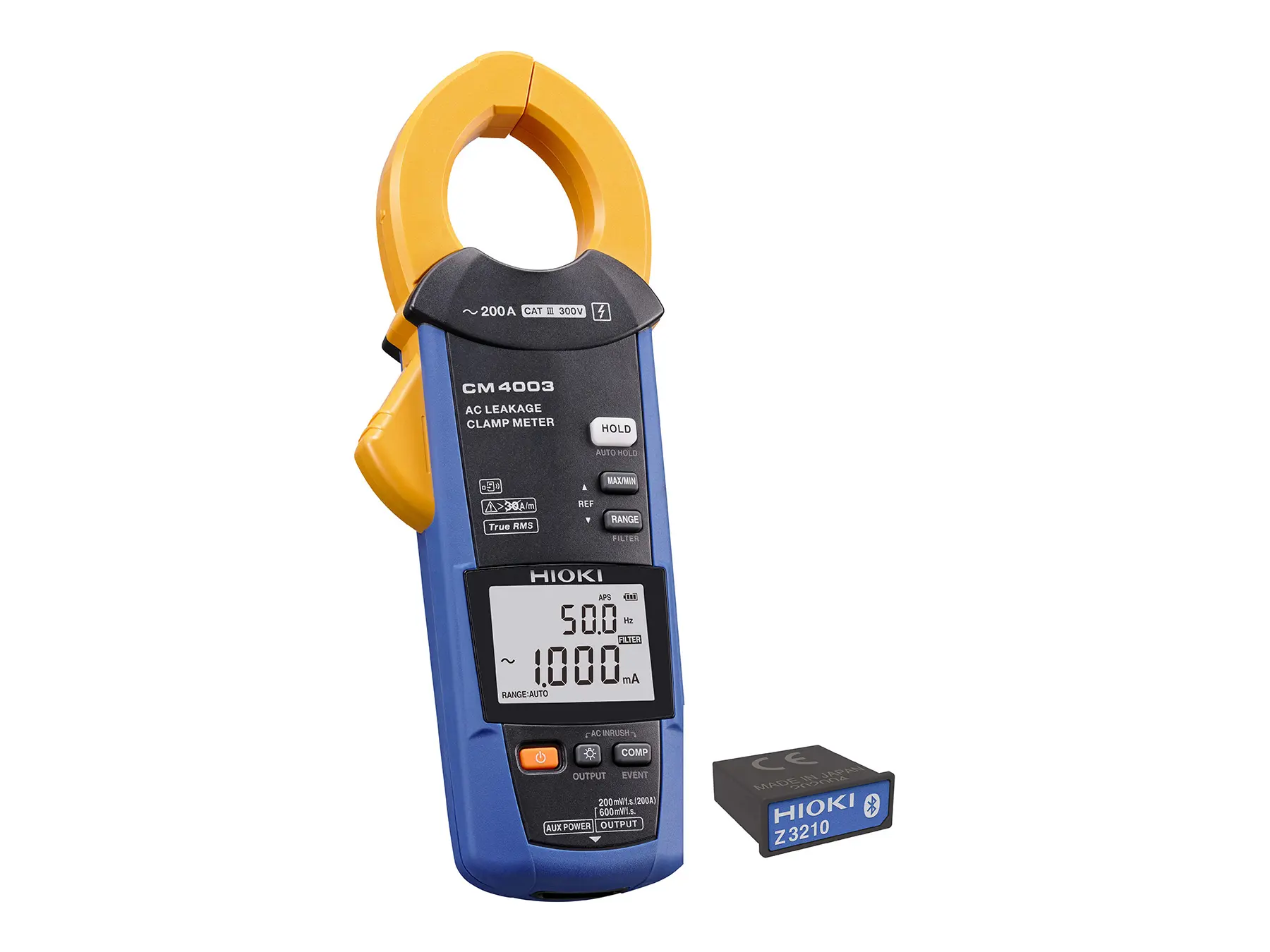

HIOKI CM4003-90 - AC Leakage Clamp Meter, Bluetooth HIOKI CM4003 ac leakage clamp meter measuring range of 6ma to 200a
