HIOKI Precision Test Instruments for R&D and Production
Select your precision instrument – ensure reliable data.
Recommended instruments for R&D and production
Find out exactly how your technology performs to ensure innovation in R&D and high-quality output in your production lines. HIOKI’s precise measurement solutions provide the accuracy and reliability you need to validate prototypes, optimize processes, and confirm final product quality. From battery testing to power measurements, accurate current sensing, resistance measurements and LCR measurements, and data recording – our electrical test and measurement instruments deliver the trusted data that helps you move faster from idea to proven application.
Skip product gallery
Regular price:
€2,498.00
Regular price:
€2,268.00
Regular price:
€9,098.00
Regular price:
€5,598.00
Regular price:
€2,368.00
Regular price:
€5,598.00
Regular price:
€5,408.00
Regular price:
€4,758.00
Regular price:
€3,098.00
PW3390
PW3390 - Portable 4-channel Power Analyzer
Portable 4-channel Power Analyzer, ±0.09% basic accuracy, DC to 200 kHz measurement band for power, 16-bit conversion, phase shift correction for HIOKI current sensors, 50 ms data update rate, 16-ch waveform/analog output, motor analysis function, WLTP compliant
CT6846A
HIOKI CT6846A - AC/DC High-accuracy Current Clamp, 1000 A / 100 kHz
AC/DC current clamp using advanced fluxgate technology, 1000A rated current, basic accuracy ±0.2% rdg., wide temperature range of -40 °C to 85 °C, bandwidth from DC to 100 kHz, maximum conductor diameter 50 mm, cable length 3 m

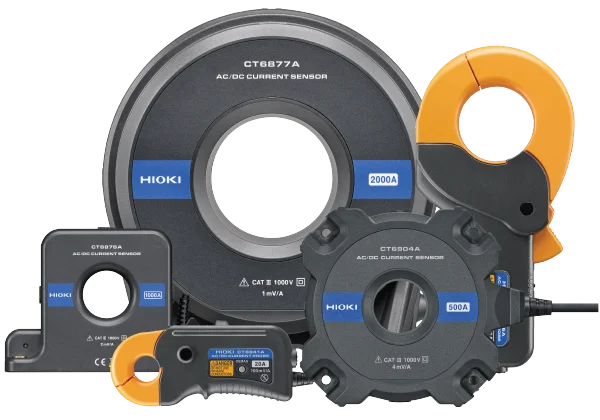

CT6877A
CT6877A - AC/DC-Current sensor, 2000 A / 1 MHz
Hioki's pass-through AC/DC current sensors are premium devices for use with power meters, memory HiCorders and high performance oscilloscopes.
MR8848
HIOKI MR8848 - Modular 32-channel memory recorder, 20 MS/s, 1000 V direct input, rugged design
Modular memory recorder, up to 32 analog and 16 logic channels, max. sampling rate 20 MS/s, max 1000 VDC isolated direct voltage input, 1 TB storage with SSD option, optional real-time saving, rugged design, AC or DC power supply
LR8450-01
LR8450-01 - Wireless modular multi-channel Data Logger
WLAN-enabled multi-channel data logger with up to 4 plug-in and 7 WLAN modules (maximum 330 channels), 1 ms sampling interval, 100 VDC, 8 inputs for pulse/logic/rotational speed, 7″ TFT display, Gigabit LAN, USB/SD, optional battery operation.

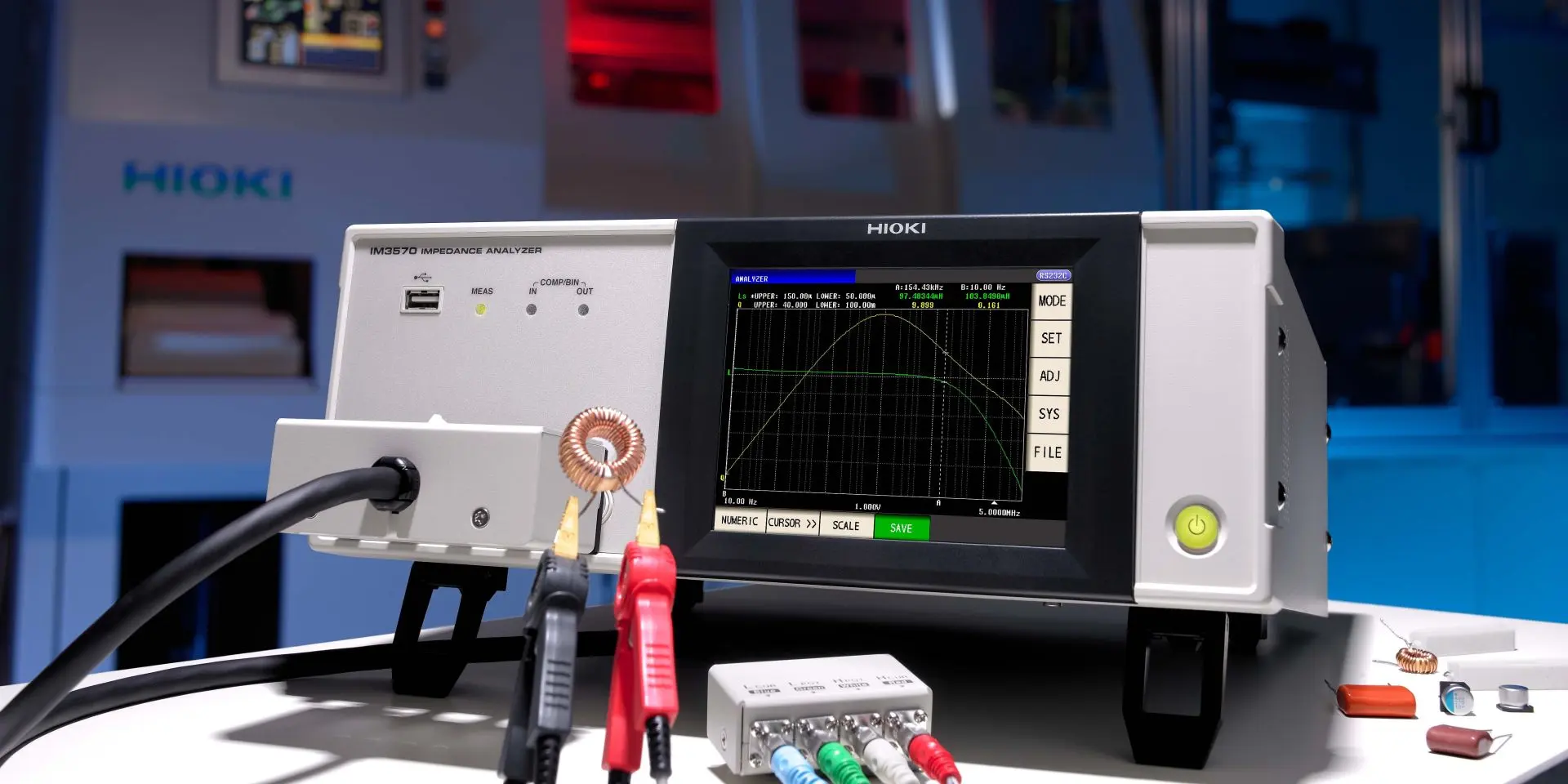

IM3570
HIOKI IM3570 - Impedance Analyzer, 4 Hz to 5 MHz
Impedance analyzer and LCR meter in one instrument, 4 Hz to 5 MHz, 0.5 ms measurement
speed, basic accuracy Z: ±0.08%, θ: ±0.05°, guaranteed accuracy from 1 mΩ, comparator
and BIN function, interfaces: USB, LAN, RS-232C, GP-IB, handler I/O
PW3337
PW3337 - 3-channel AC/DC power meter up to 65 A and 1000 V
3-channel AC/DC Power Meter, voltage up to 1000 V, direct current input up to 65 A without
internal shunts, 5000 A via external sensors, frequency bandwidth DC to 100 kHz, IEC
61000-4-7 harmonic analysis, LAN and RS-232C interface
CT6834
CT6834 - Super-slim AC/DC high-accuracy Current Clamp, 500 A / 50 kHz
Ultra-slim AC/DC current clamp using advanced fluxgate technology, 500 A rated current, DC to 50 kHz frequency bandwidth, high accuracy ±0.07% rdg., wide temperature range of -40°C to +85°C, maximum conductor diameter 20 mm, cable length 5 m
CT6711
HIOKI CT6711 - AC/DC multi-range Current Probe, 30 A / 120 MHz
Hall sensor based zero-flux current probe suitable for capturing micro to high-speed currents, wide bandwidth from DC to 120 MHz, measurable current from 200 µA to 30 A in 3 ranges (500 mA, 5 A, 30 A), high signal-to-noise ratio, standard BNC oscilloscope connectivity, builtin overload protection
BT4560-50
HIOKI BT4560-50 - Battery Impedance Meter, 0.01 Hz to 1050 Hz
Battery impedance meter, DC voltage range 5 V, resistance ranges 3 mΩ / 10 mΩ / 100 mΩ, measurement frequency 0.01 Hz to 1050 Hz, maximum test current 1.5 A rms, interfaces: USB, LAN, RS-232C, EXT. I/O

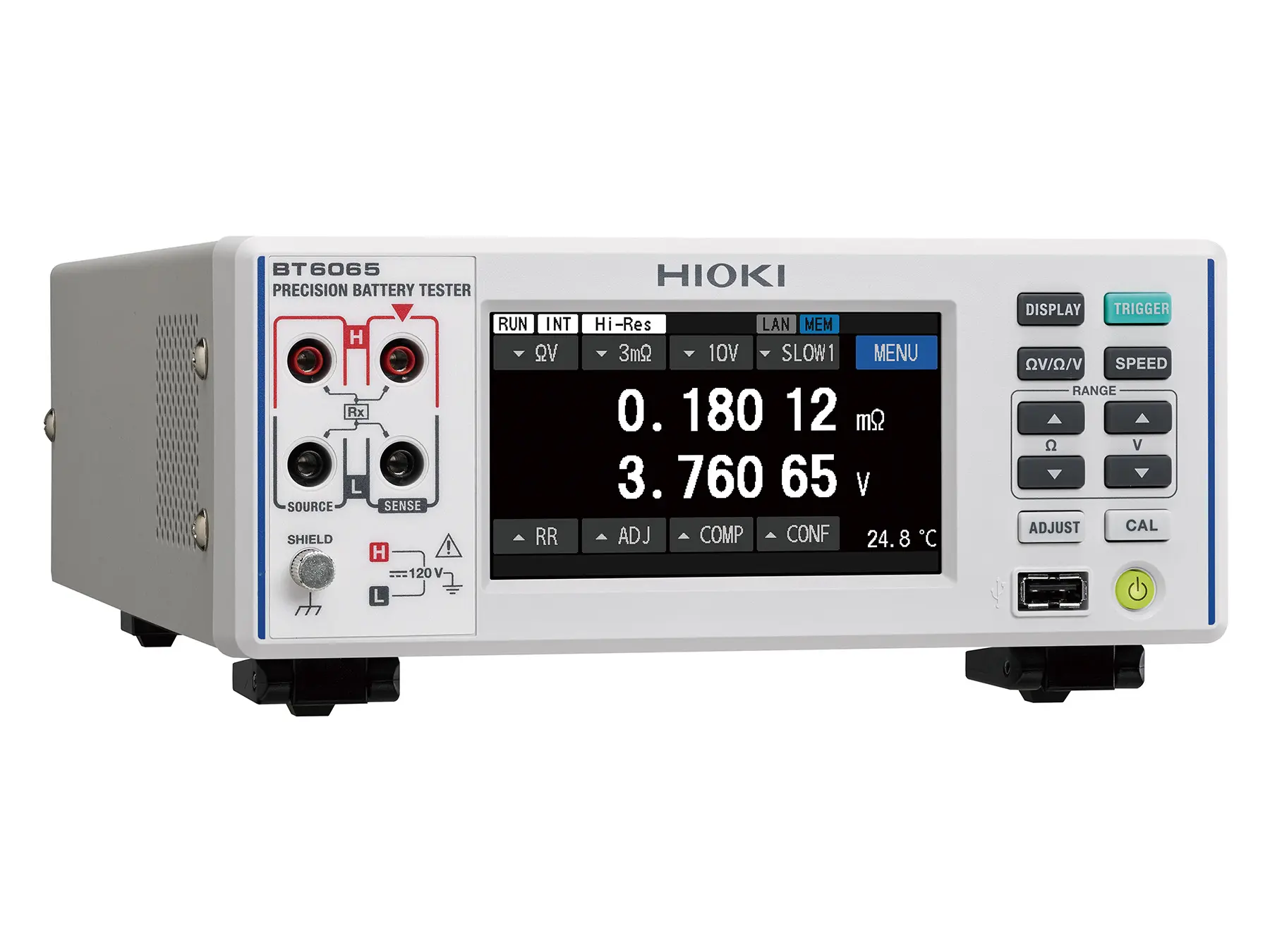

BT6065
BT6065 - precision battery tester and 6.5 digit voltmeter
Precision Battery Tester for simultaneous internal resistance (AC-IR) and open circuit voltage
(OCV) measurements, 6.5-digit resolution and two ranges for OCV (10 V and 100 V), 5.5-
digit resolution and 5 ranges for AC-IR at 1 kHz, fully remote-controllable via LAN, RS-232C,
USB, and External I/O.

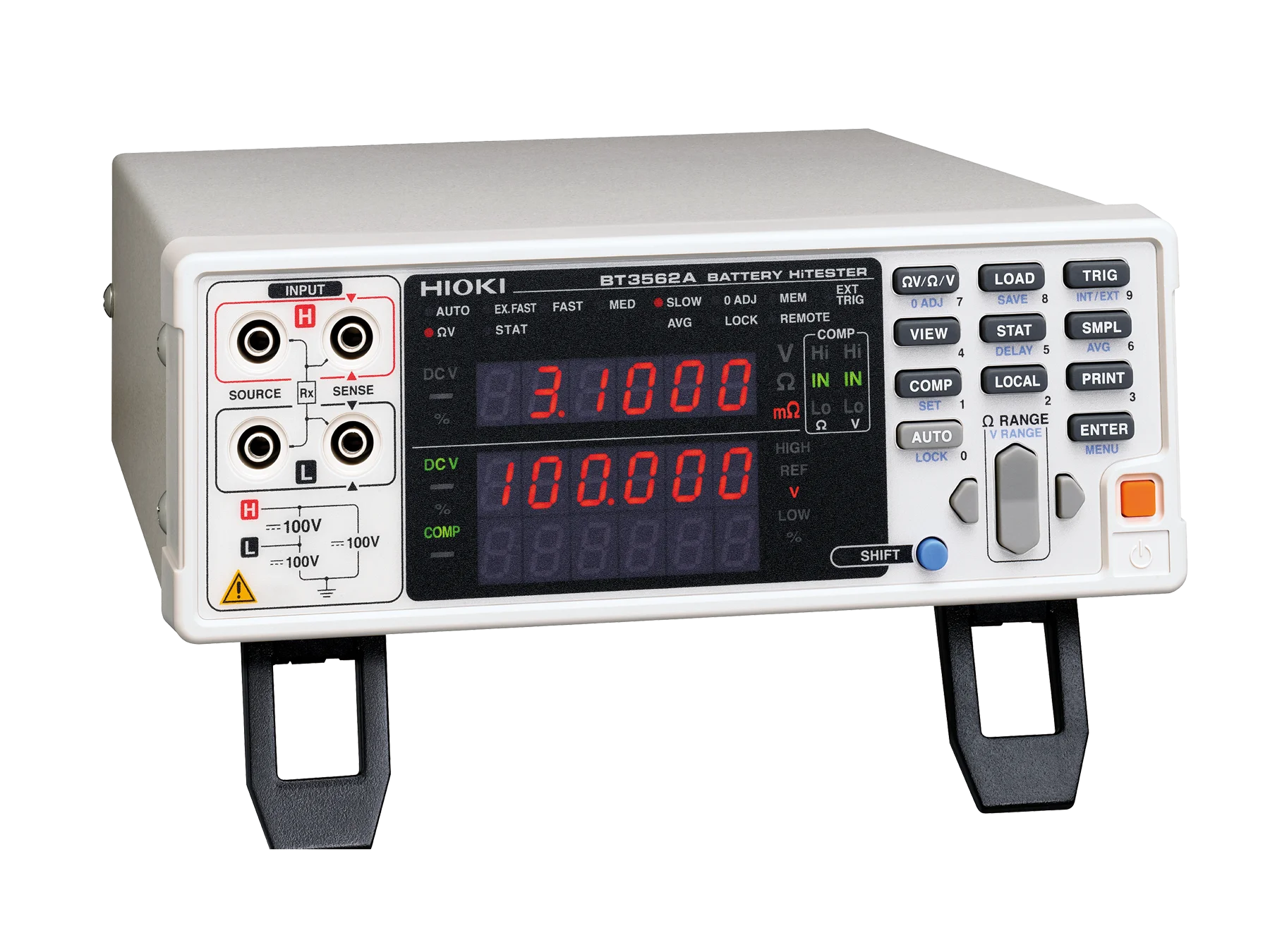

BT3562A
HIOKI BT3562A - Battery Tester, 100 V, 3 mOhm
The Hioki BT3562A Battery Tester is an advanced measurement instrument designed for fully automated testing of battery packs, particularly in electric vehicles (xEVs).
