Hioki General current sensors for power logging and monitoring

Reliable current sensing for on-site maintenance

HIOKI’s general-purpose current sensors are ideal for power quality analysis, current logging, and AC/DC measurement up to 100 kHz. They combine dependable performance with compact or flexible form factors at a practical price.

Use the CT7131 for cabinet-level measurements, or choose flexible Rogowski coils like the CT7045 for installations in tight environments. For broader current and frequency ranges, the CT7736 offers robust AC/DC measurement performance.

Most sensors use HIOKI’s PL14 connector and can be linked to HIOKI DAQ systems. They also connect to BNC instruments using the L9910 adapter.

Explore the full lineup to find the right sensor for your application.

25 Products

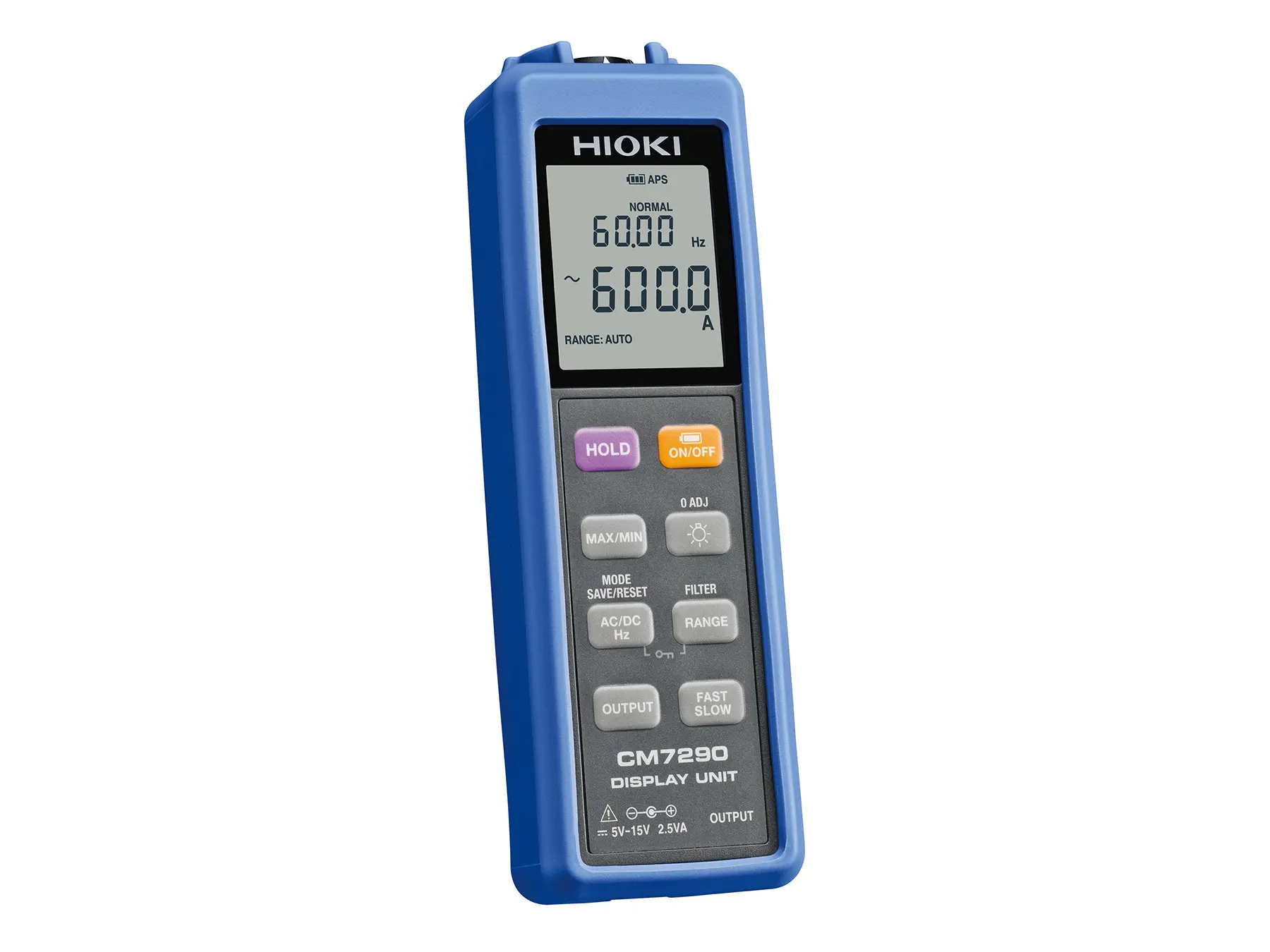

CM7290

CM7290 - Display unit for current clamps (CT7600 and CT7700 series)

The CM7290 is the display and output unit for the CT7600 and CT7700 series AC/DC current sensors, providing a stand-alone clamp-on meter for field use or enabling waveform signals to be output to a Hioki chart recorder or logger for further analysis. Power supply and signal output for CT7000 series current sensor Simultaneous dual display of measured values, frequency and output rateFour output formats to output data to logger or other devices (via display unit) Supports AC adapter, AA alkaline batteries and external power supply

€328.00

View product

9661

9661 CLAMP ON SENSOR

The Hioki 9661 Clamp-On Sensor is designed to measure AC current up to 500 A with high precision. It features a voltage output, making it ideal for use with recorders or other instruments. The compact design with a 46 mm conductor diameter capacity ensures flexibility in various electrical environments. The sensor is robust, complying with CAT III 600V safety standards, making it safe for use in industrial settings. Technical Details: Rated current: AC 500 A Output rate: AC 1 mV/A Amplitude accuracy: ±0.3% rdg. ±0.01% f.s. (500 A, 45 Hz - 66 Hz, at jaw center) Phase accuracy: ±0.5° (45 Hz - 5 kHz) Frequency range: 40 Hz - 5 kHz Maximum current: 550 A (continuous) Dielectric strength: AC 7060 V (for 1 minute)Conductor diameter: 46 mm or less Operating temperature: 0°C to 50°C (80% RH or lower, non-condensing) Storage temperature: -10°C to 60°C Safety standards: EN61010, CAT III 600V Dimensions: 78 W x 152 H x 42 D mm Weight: Approx. 380 g • Cable length: 3 m

€298.00

View product

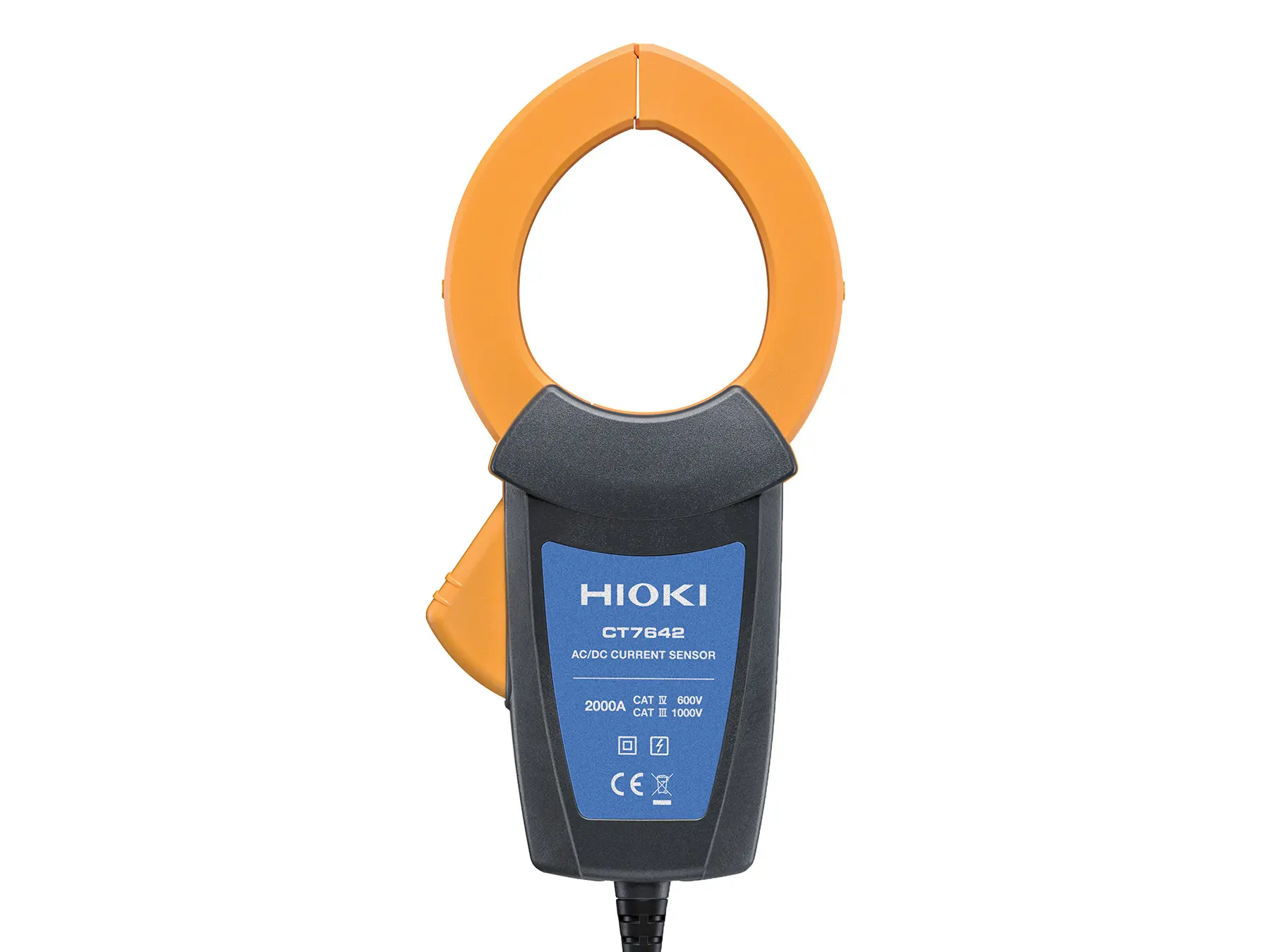

CT7642

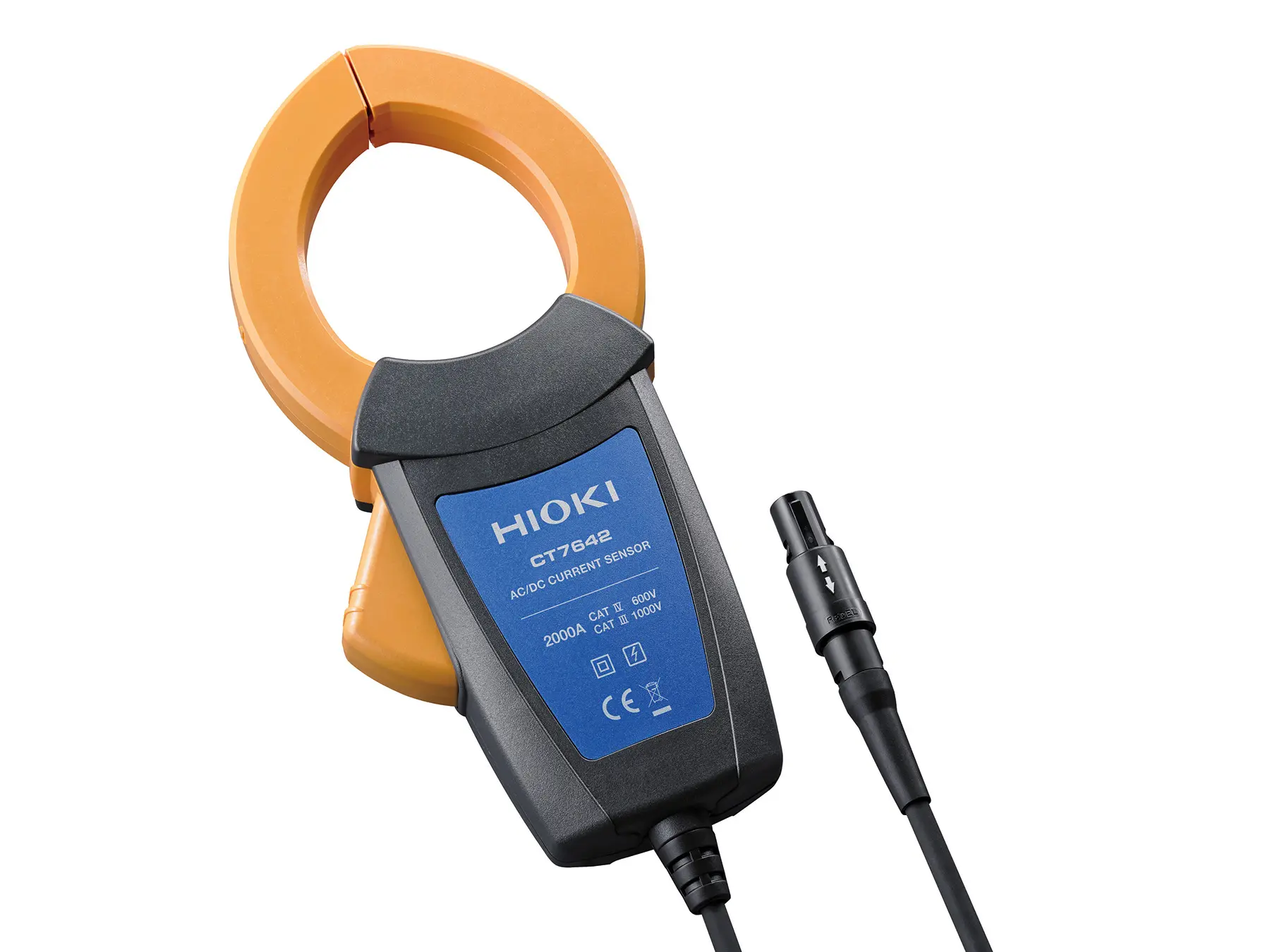

CT7642 - AC/DC Current Probe

The Hioki CT7642 is a high-capacity AC/DC current sensor capable of measuring currents up to 2000 A. It operates over a wide frequency range from DC to 10 kHz, making it ideal for power electronics and waveform analysis. With a large conductor diameter of 55 mm, it is designed for industrial applications requiring precise, high-current measurements.The sensor provides high accuracy of ±1.5% for DC measurements and maintains performance across varied environmental conditions. Compatible with Hioki's Memory Recorders and data loggers, the CT7642 ensures reliable data acquisition for long-term monitoring.Technical Information:Measurement range: 2000 A AC/DC Frequency range: DC to 10 kHz Maximum conductor diameter: 55 mm Accuracy: ±1.5% for DC (45 Hz to 66 Hz) Operating temperature: −25°C to 65°C Safety category: CAT III 1000 V / CAT IV 600 VOutput connector: HIOKI PL14

€438.00

View product

CT9667-01

CT9667-01 - AC FLEXIBLE CURRENT SENSOR

The CT9667-01 is a flexible AC current sensor that allows easy measurement of large conductors and cables. Its flexibility makes it ideal for confined spaces or irregular shapes.Technical Details: Rated current: 500 A, 5000 A AC Frequency range: 10 Hz to 20 kHz Amplitude accuracy: ±2% rdg, ±0.3% f.s. Diameter of conductors: 100 mm (3.94 in.) Cable length: 2 m, 1 m² (6.56 ft., 3.28 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) CAT: 600 V CAT IV, 1000 V CAT III Output terminal: BNC

€568.00

View product

9660

HIOKI 9660 - CLAMP ON SENSOR

The HIOKI 9660 Clamp On Sensor is designed for measuring AC currents with a rated measurement range of 100A. It is commonly used with power quality analyzers, power meters, and similar devices for load current measurements. With its compact design the sensor fits into narrow spaces and is ideal for use in commercial power lines and inverter devices. Technical Details: Measurement range: 100A AC (max continuous 130A, 45-66 Hz) Output rate: 1 mV AC per A Accuracy: ±0.3% of reading (45-66 Hz) Phase accuracy: ±1° (45 Hz to 5 kHz) Connector type: BNC Cable length: 3 meters Measurement category: CAT III 300VAC Max. core diameter: 15 mm

€268.00

View product

9018-50

9018-50 - AC Multi-Range Current Clamp, 500 A, 3 kHz, BNC Output

AC multi-range current clamp, 6 selectable ranges from 10 A to 500 A AC, BNC output with 0.2 V AC f.s., frequency bandwidth 3 kHz, CAT III 600 V

€338.00

View product

CT7126

CT7126 - AC Current Probe

The CT7126 AC Current Sensor is a compact, reliable solution for accurate AC current measurement. Ideal for power measurement and analysis, the sensor is designed to meet the needs of various industrial applications. Its compact form factor allows for easy handling, while its durable construction ensures precise and consistent performance. Technical Specifications: Measurement Range: 60 A AC Frequency Range: 40 Hz to 5 kHzBasic Accuracy: ±0.3% rdg. ±0.01% f.s. Maximum Conductor Diameter: 15 mm Operating Temperature: -10°C to 50°C Cable Length: 2.5 m Safety Category: 300 V CAT III Output connector: Hioki PL14 Connector

€268.00

View product

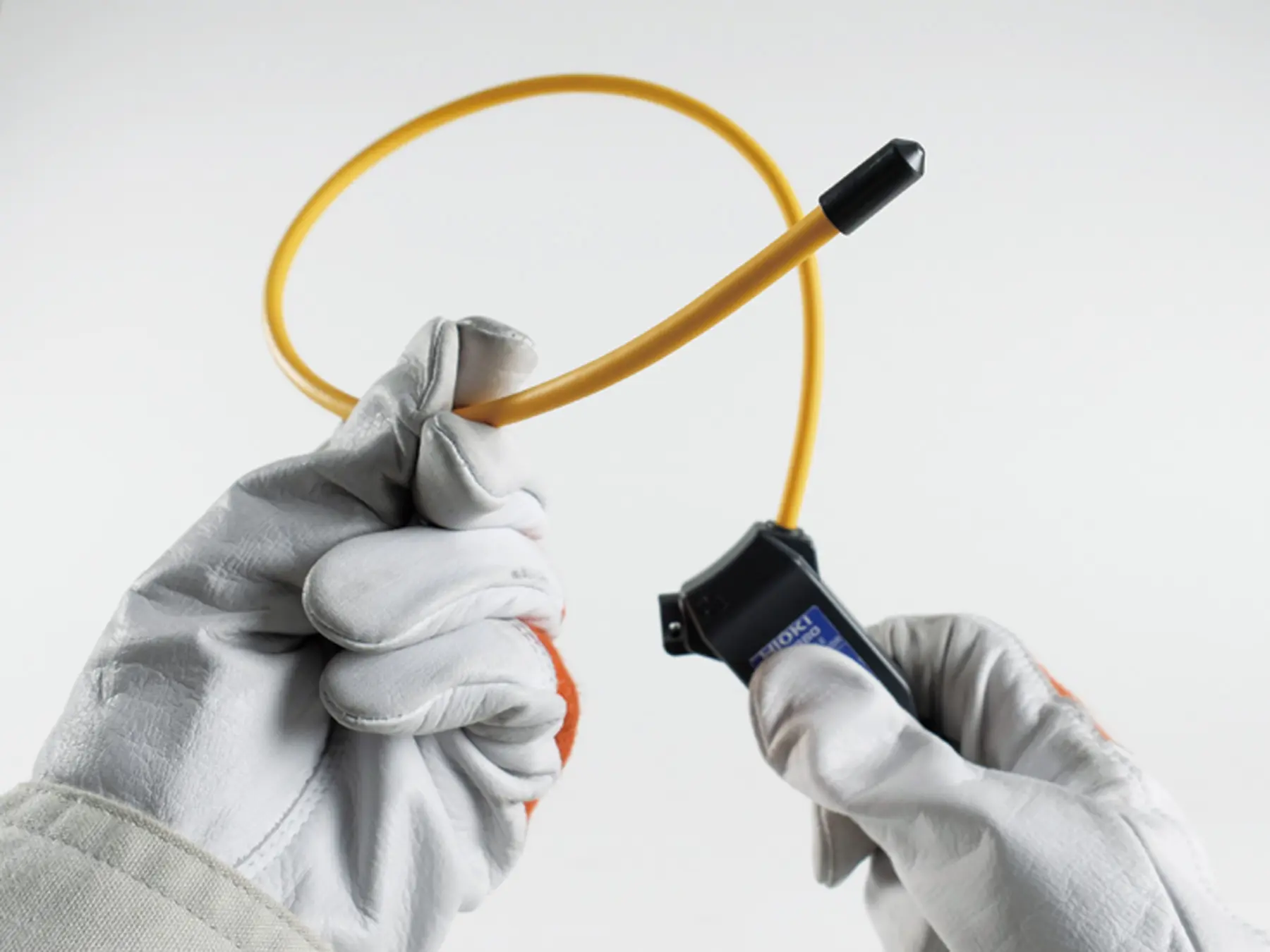

CT6280

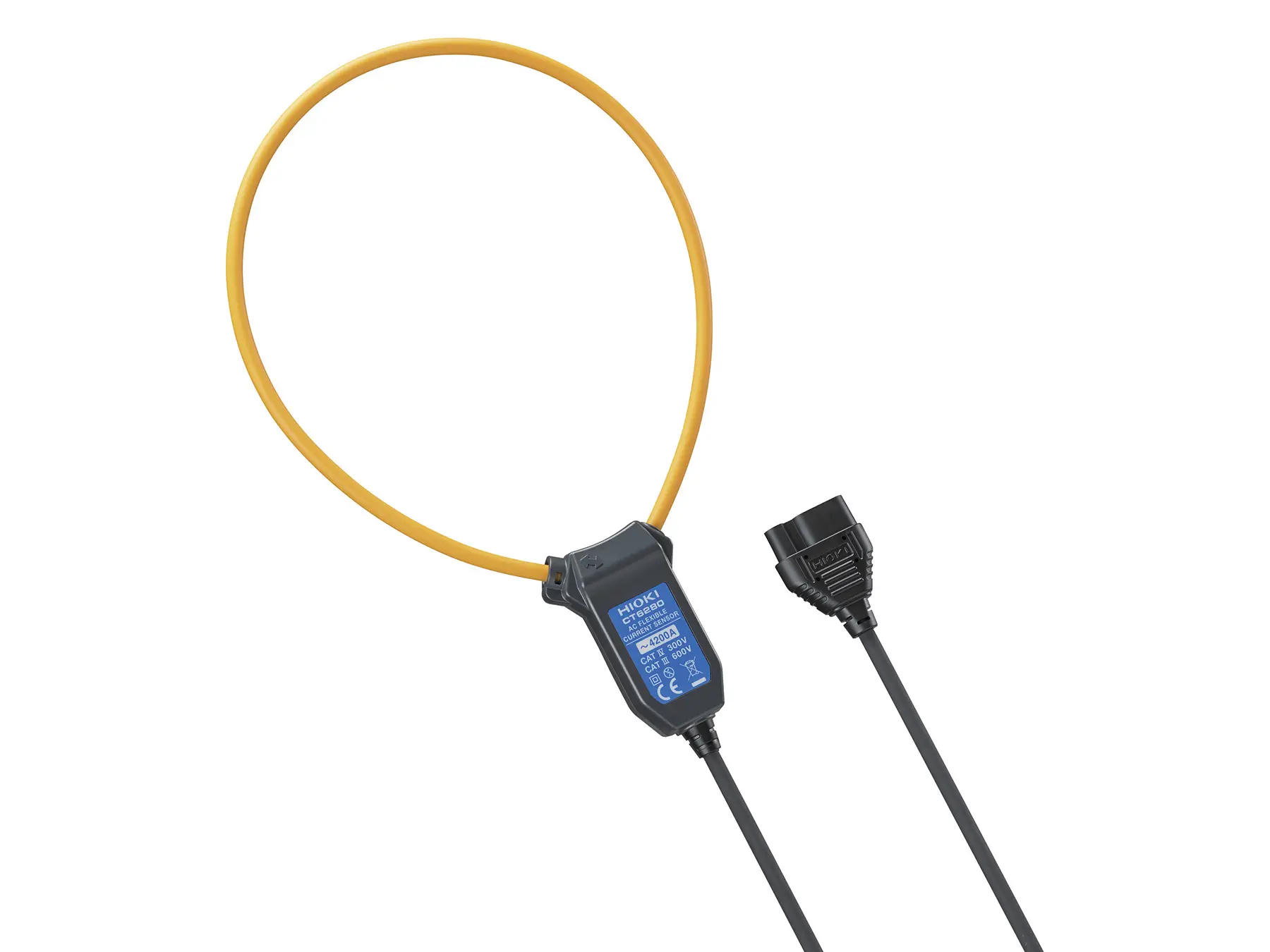

CT6280 - Flexible Current Sensor for HIOKI AC Clamp Meters

Flexible current sensor for HIOKI AC clamp meters, up to 4200 A AC, 130 mm loop diameter, 5 mm coil diameter, 800 mm cable length

€168.00

View product

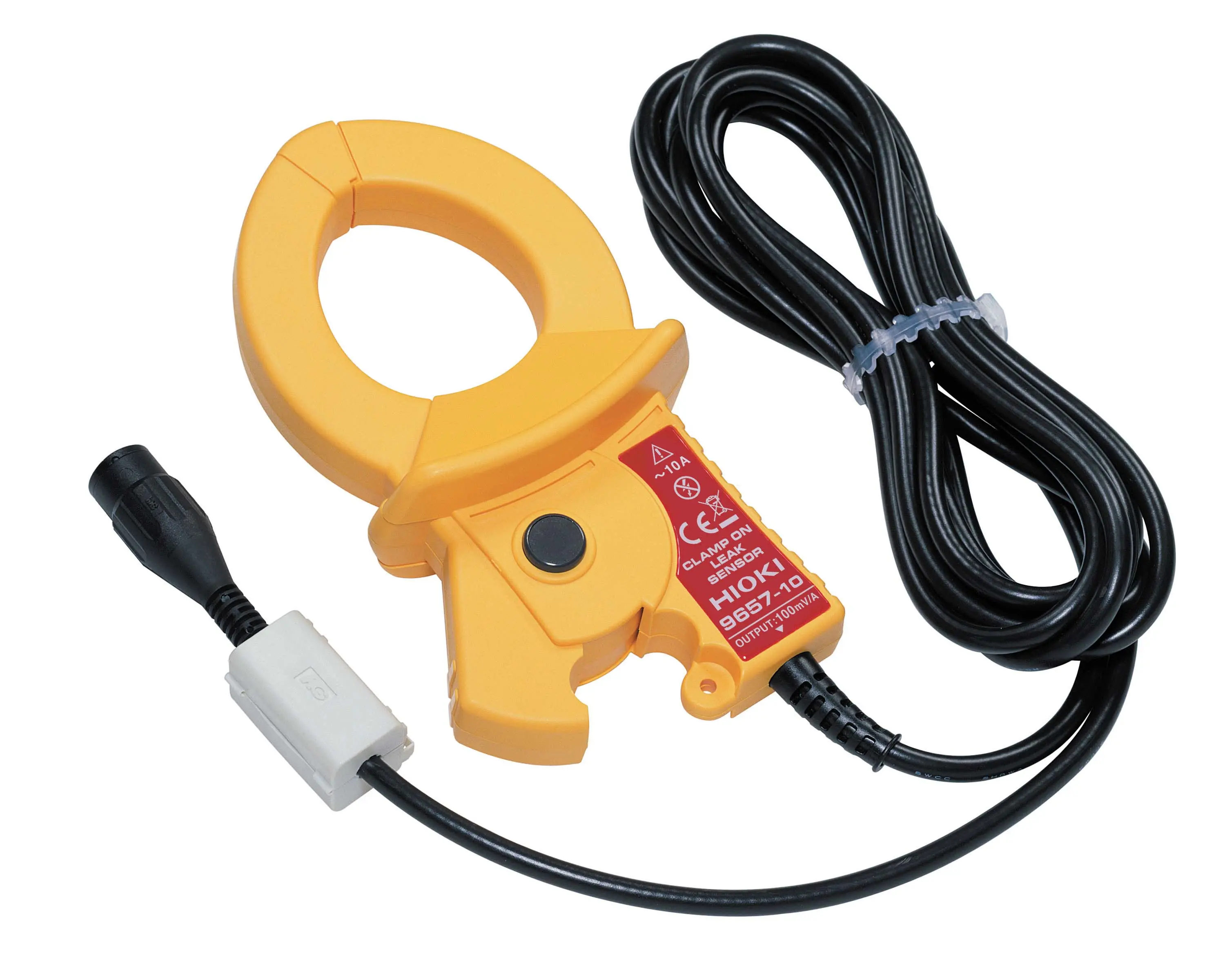

9657-10

9657-10 - Precision AC clamp leak current sensor, 10 A, 40 Hz to 5 kHz

AC current probe, measurement range up to 10 A AC, max. input 30 A, base accuracy ±1.0% rdg, phase accuracy ±3°, frequency range 40 Hz to 5 kHz, max. conductor diameter 40 mm, CAT III 300 V, BNC Connector

€298.00

View product

CT7116

CT7116 - AC LEAKAGE CURRENT SENSOR

The CT7116 is designed for precise leakage current measurements with high accuracy. It supports BNC conversion for versatile applications. Technical Details: Rated current: 6 A AC Frequency range: 40 Hz to 5 kHz Amplitude accuracy: ±1.0% rdg, ±0.05% f.s. Diameter of conductors: 40 mm (1.57 in.) Cable length: 2.5 m (8.20 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) Output terminal: PL14

€358.00

View product

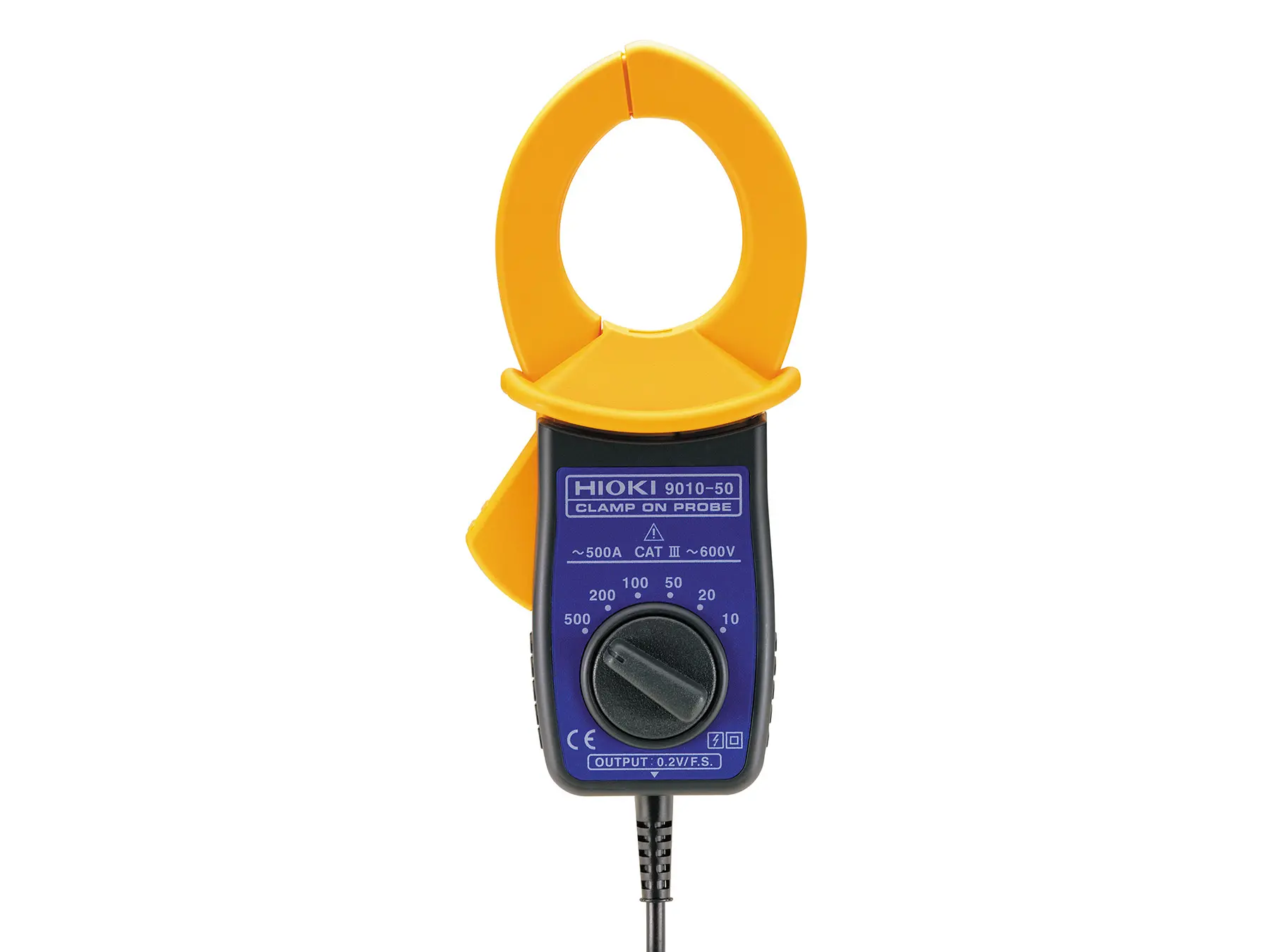

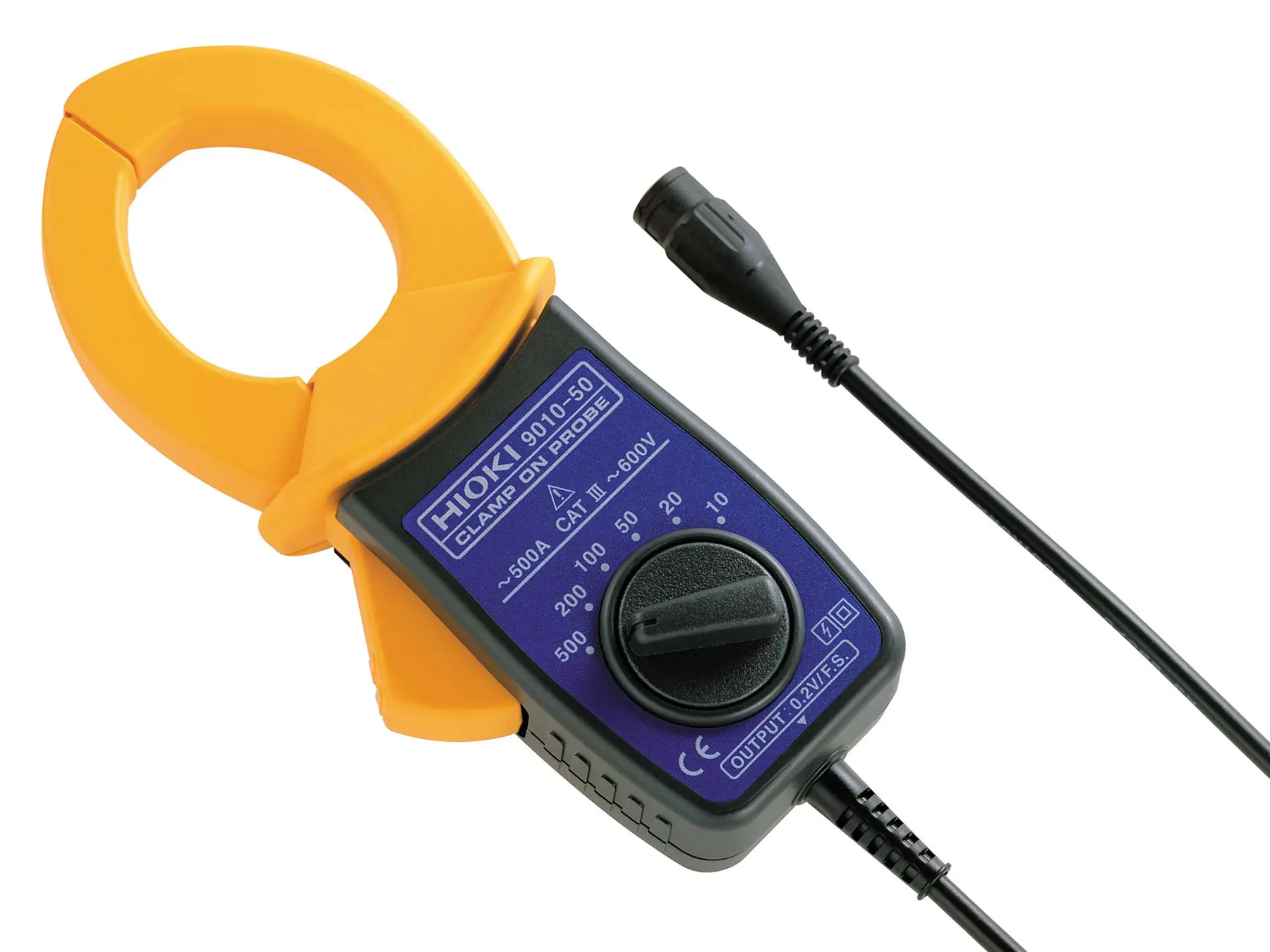

9010-50

9010-50 - AC Multi-Range Current Clamp, 500 A, 1 kHz, BNC Output

AC multi-range current clamp, 6 selectable ranges from 10 A to 500 A AC, BNC output with 0.2 V AC f.s., frequency bandwidth 1 kHz, CAT III 600 V

€168.00

View product

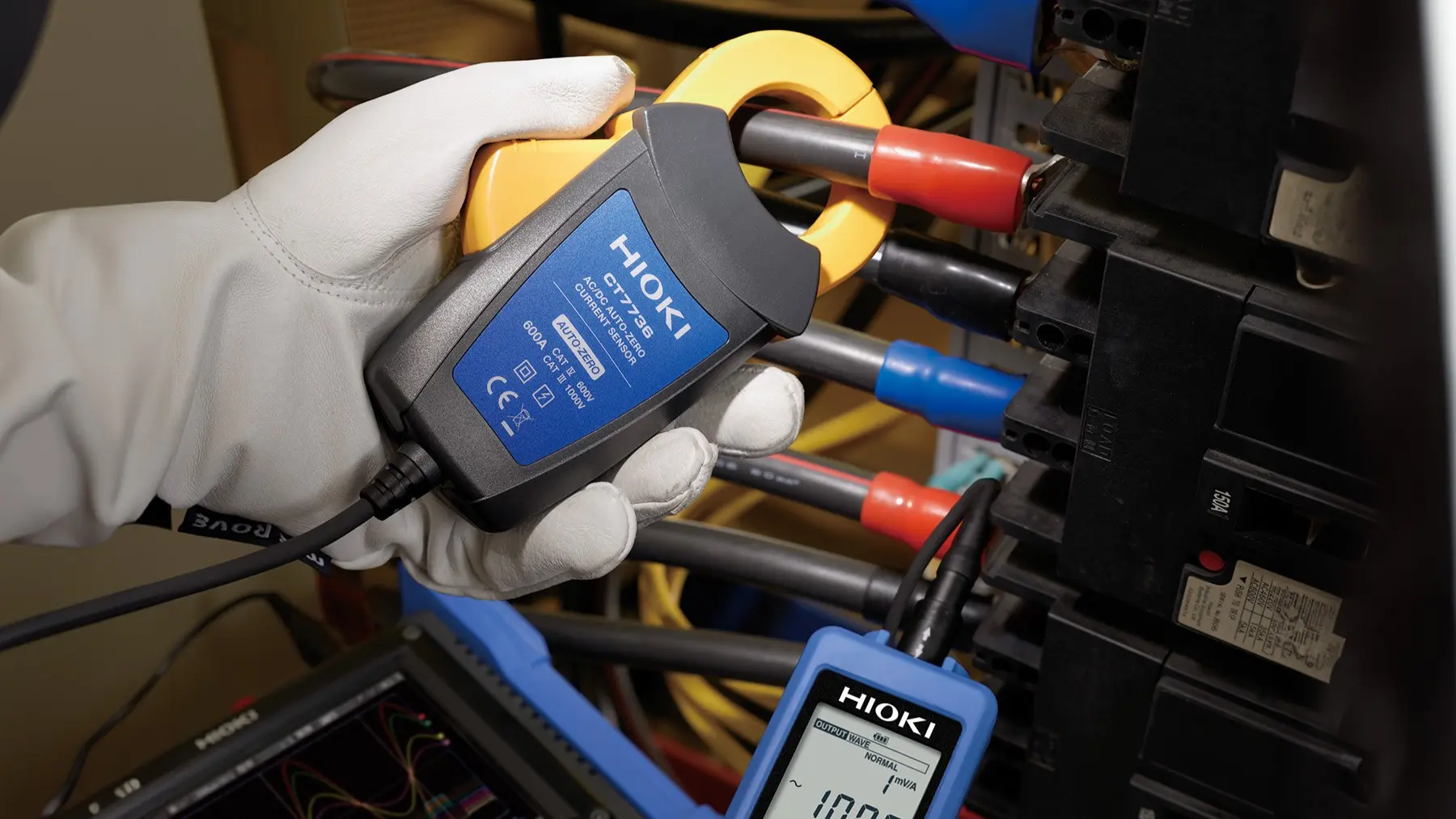

CT7736

CT7736 - AC/DC current clamp

The Hioki CT7736 is a high-performance AC/DC current sensor capable of measuring currents up to 600 A. With a frequency range from DC to 5 kHz, it is ideal for waveform analysis and high-current applications. The sensor features a compact design with a 33 mm conductor diameter, making it easy to install in various environments.Offering high accuracy of ±2.0% for DC measurements, the CT7736 is built for stable performance in fluctuating temperatures. It is compatible with Hioki's Memory Recorders and data loggers for precise and efficient data collection. Technical Information: Measurement range: 600 A AC/DCFrequency range: DC to 5 kHz Maximum conductor diameter: 33 mm Accuracy: ±2.0% for DC (45 Hz to 66 Hz) Operating temperature: −25°C to 65°CSafety category: CAT III 1000 V / CAT IV 600 V Output connector: HIOKI PL14

€608.00

View product
