SP9200 - Screw-type probes for SP7001 CAN-FD Sensor

Screw-type probes for use with the SP7001 CAN-FD Sensor, set of two probes
Skip image gallery
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor compatible devices
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor connector set

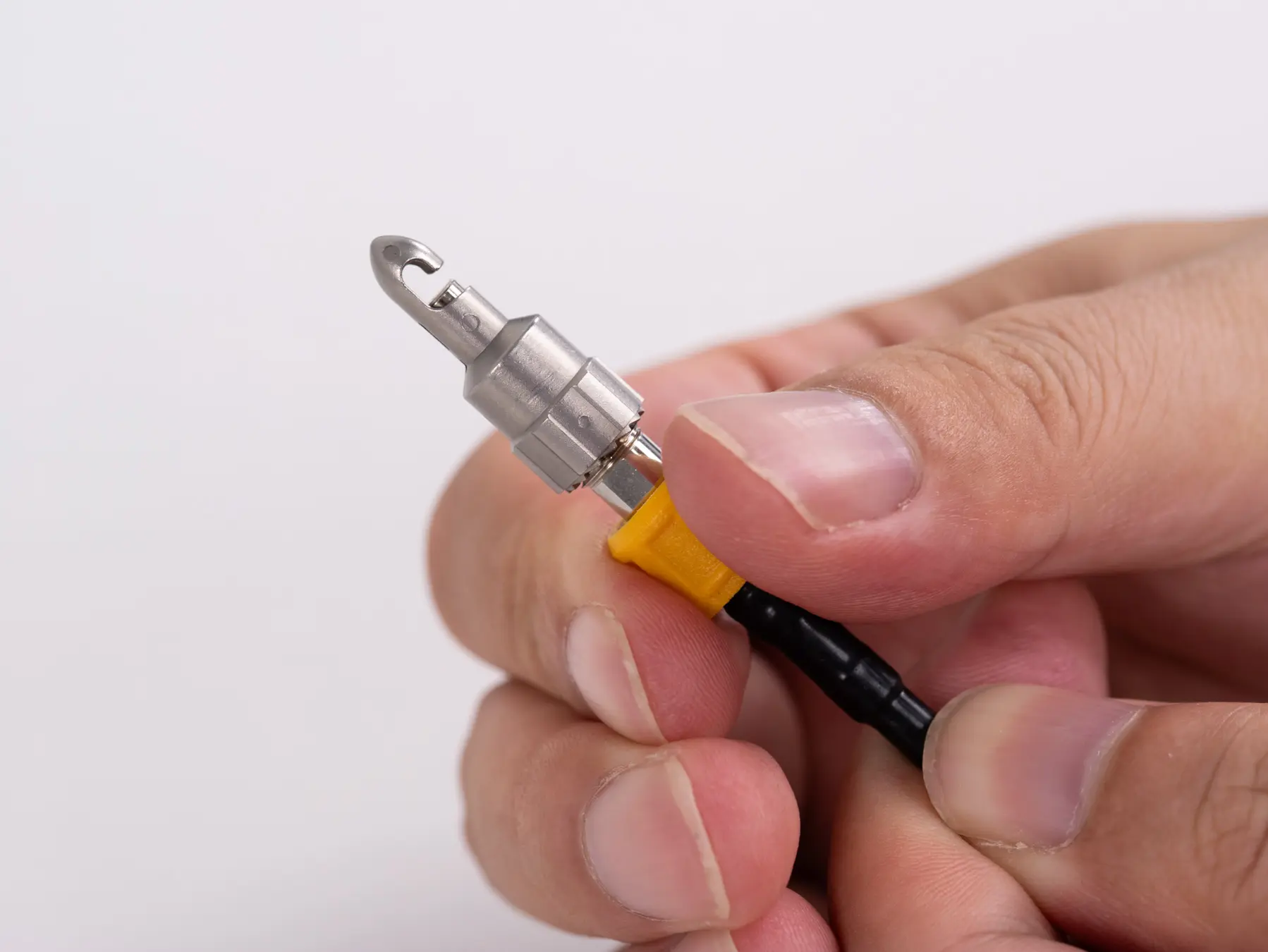

HIOKI SP9200 screw type probes for SP7001 CAN FD sensor non invasive

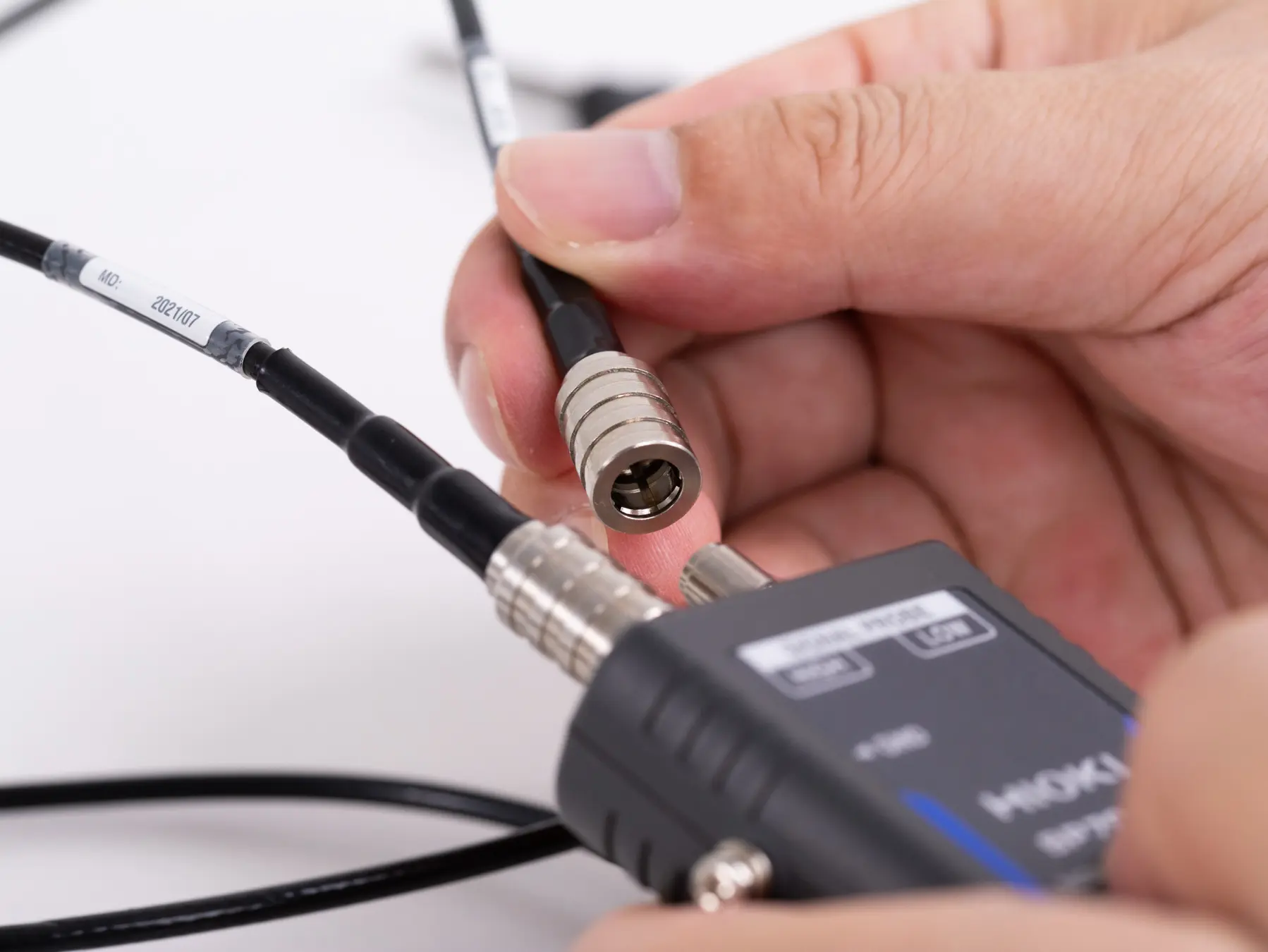

HIOKI SP9200 screw type probes for SP7001 CAN FD sensor

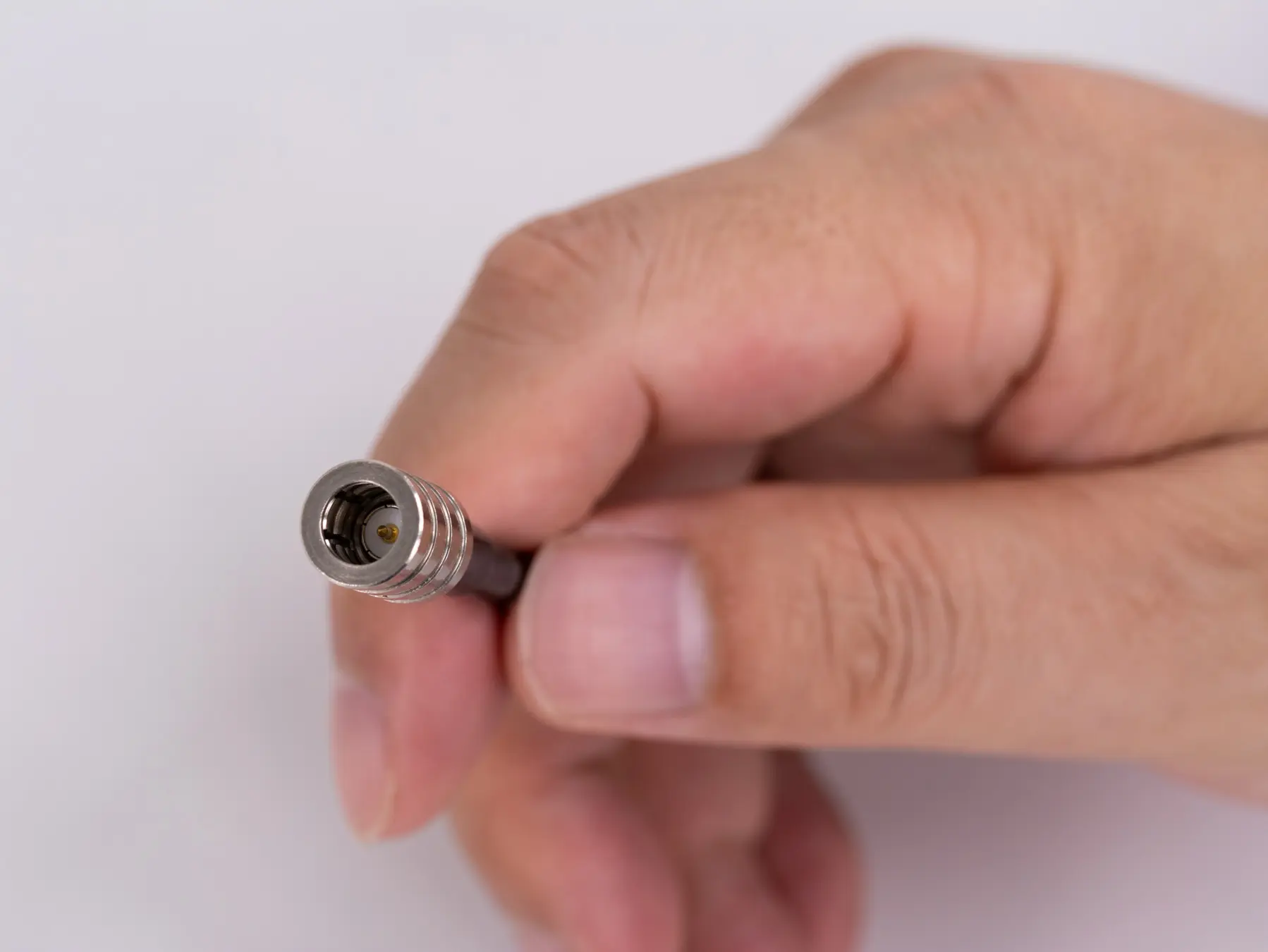

HIOKI SP9200 screw type probes for SP7001 CAN FD sensor field testing

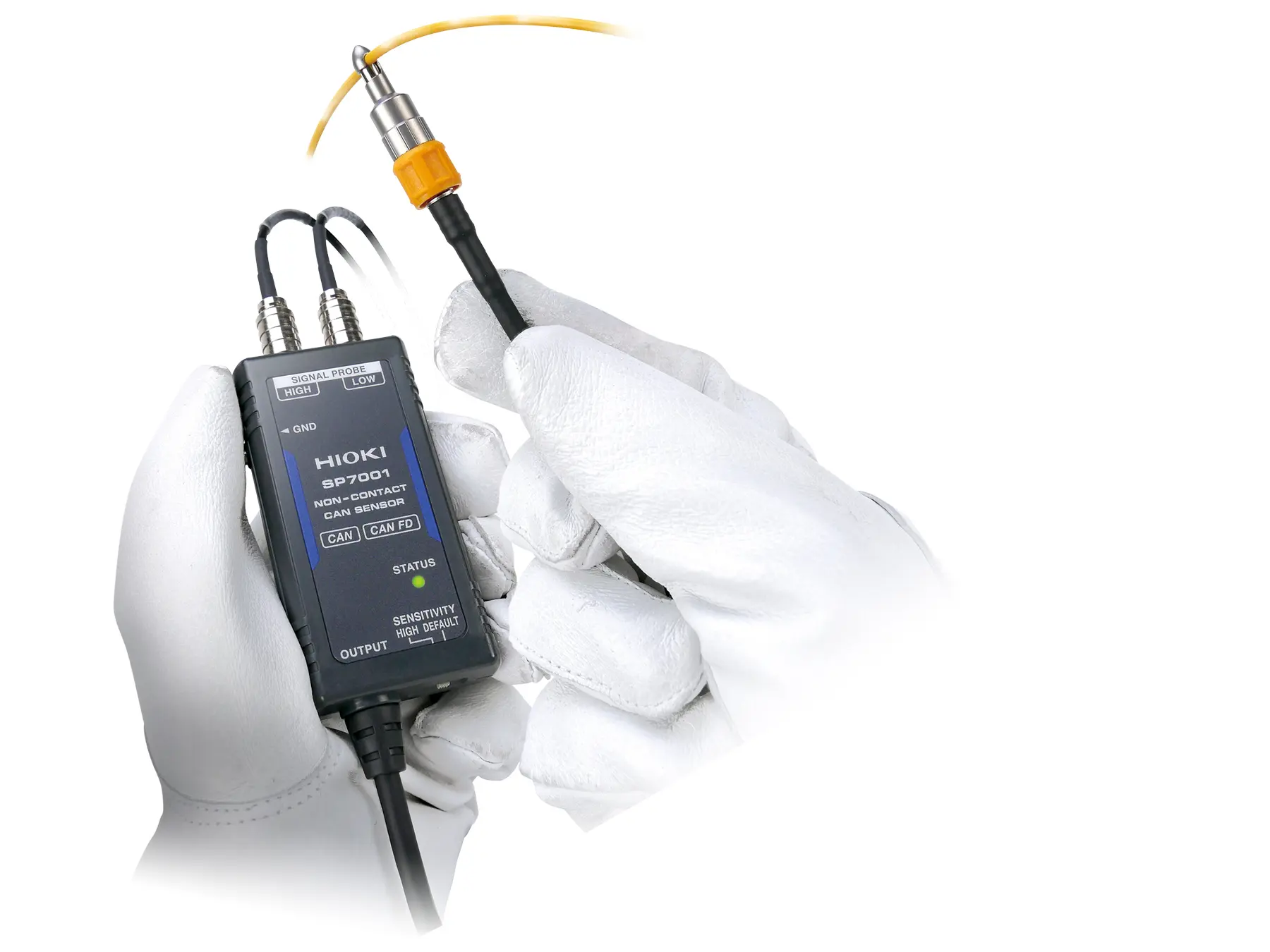

HIOKI SP9200 screw type probes for SP7001 CAN FD sensor passive detection

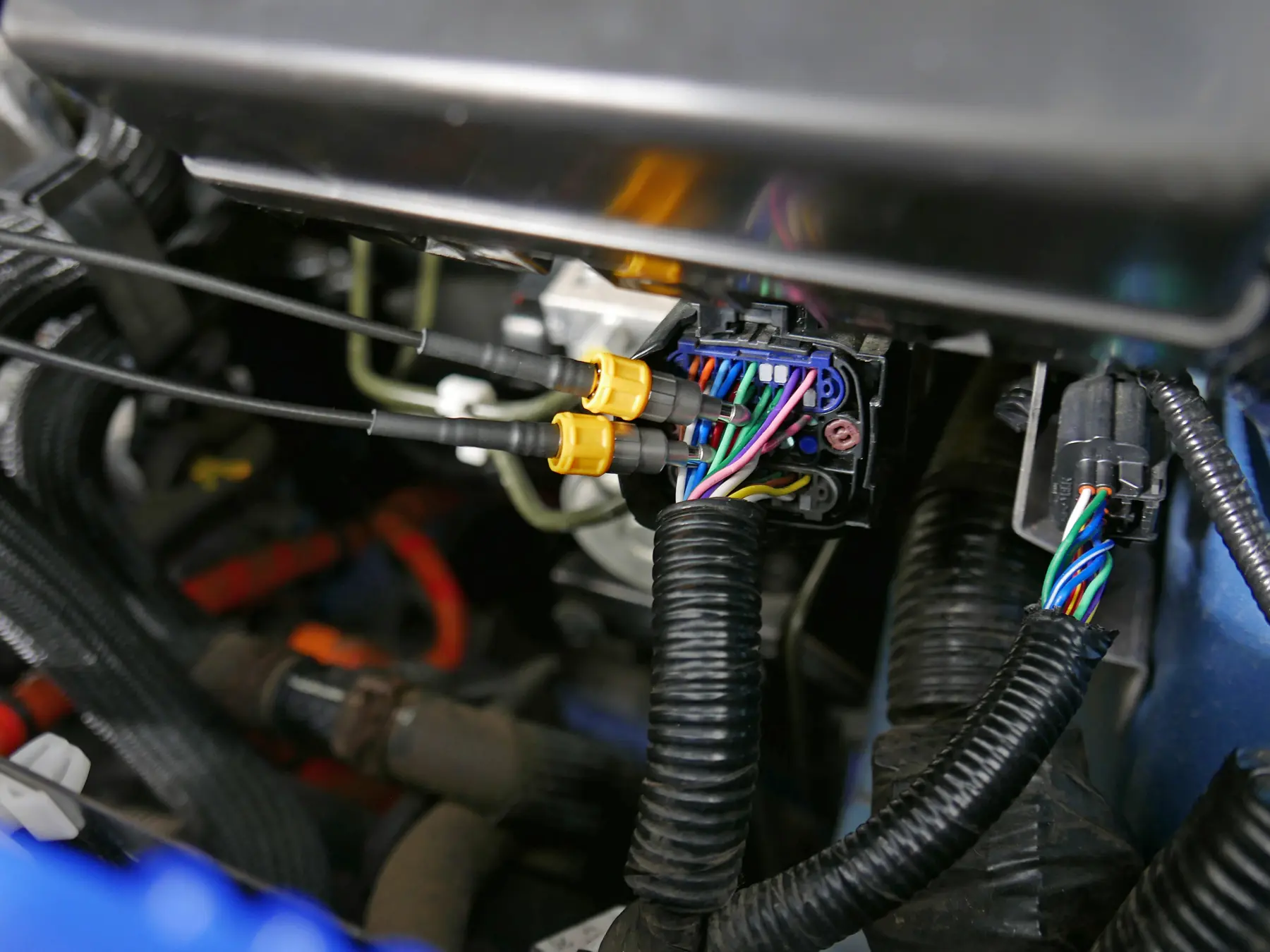

HIOKI SP9200 screw type probes for SP7001 CAN FD sensor vehicle bus analysis

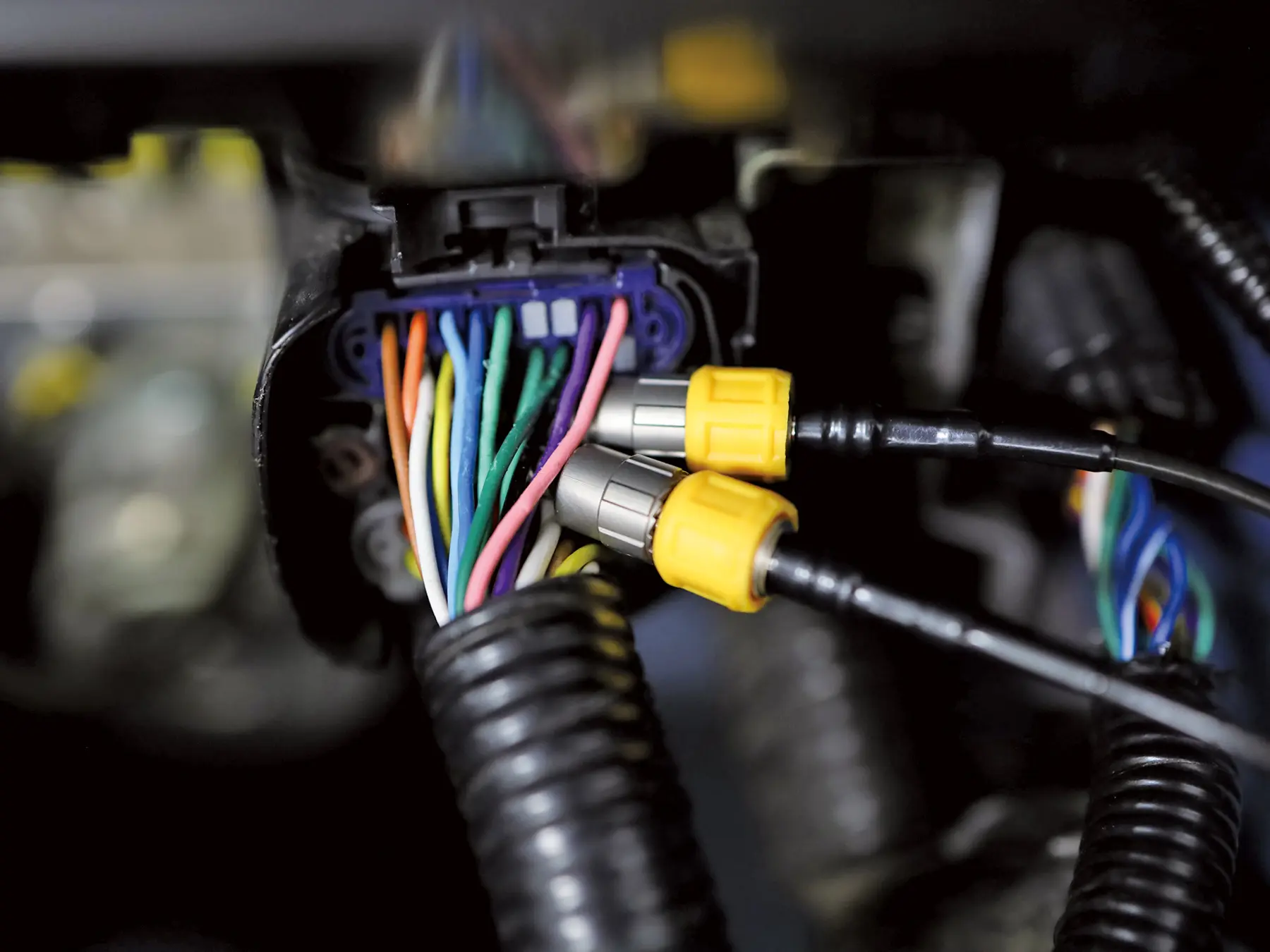

HIOKI SP9200 screw type probes for SP7001 CAN FD sensor coupling method
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor compatible devices
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor connector set
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor non invasive
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor field testing
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor passive detection
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor vehicle bus analysis
HIOKI SP9200 screw type probes for SP7001 CAN FD sensor coupling method

€908.00

Content: 1 Each

In stock in Germany

€908.00

SP9200 - Screw-type probes for SP7001 CAN-FD Sensor
Product number: SP9200
Available stock: 1
GTIN/EAN: 4536036012398
Length: 217 mm
Width: 60 mm
Height: 158 mm
Weight: 0.14 kg

Description

Product information SP9200 - Screw-type probes for SP7001 CAN-FD Sensor


Detailed Product Overview

The HIOKI SP9200 Screw-type Probe Set is designed for use with the SP7001 CAN-FD Sensor and the SP7100 or SP7150 CAN Interface to enable non-contact detection of CAN or CAN FD signals through the cable insulation. Using capacitive coupling, the two probes together detect the differential signal through the insulation of the CAN H and CAN L lines, without requiring direct electrical contact or wire modification.

The screw-type clamping mechanism allows the probes to be firmly fixed to the insulated CAN wires, ensuring a stable capacitive connection even under vibration or mechanical stress. This design makes the SP9200 ideal for long-term or in-vehicle measurements, where durability and signal stability are essential.

Each set contains two probes, corresponding to one CAN bus (CAN H and CAN L). When combined with the SP7001 CAN-FD Sensor and a compatible interface, the SP9200 enables reliable, non-intrusive monitoring of CAN or CAN FD communication under real operating conditions.

Designed for operation from -40 °C to +85 °C, the SP9200 provides a robust and vibrationresistant solution for contactless acquisition of CAN and CAN FD signals in automotive development and validation environments

What's in the Box

  • SP9200 Screw Type Probe Set
