SP9250 - Clamp-type probes for SP7001 CAN-FD Sensor

Clamp-type probes for use with the SP7001 CAN-FD Sensor, set of two probes
Skip image gallery
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor can can fd
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor field testing

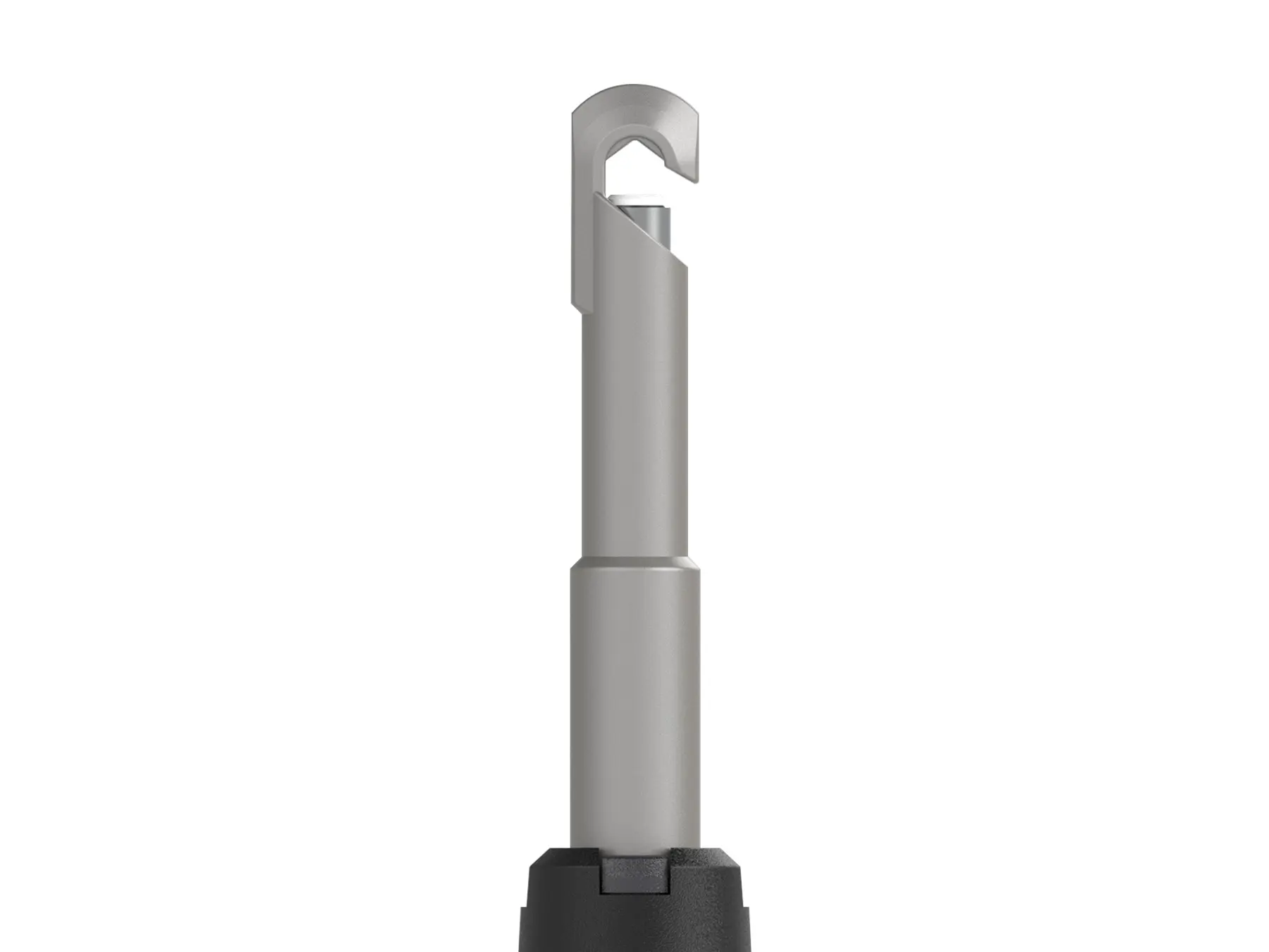

HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor non-invasive

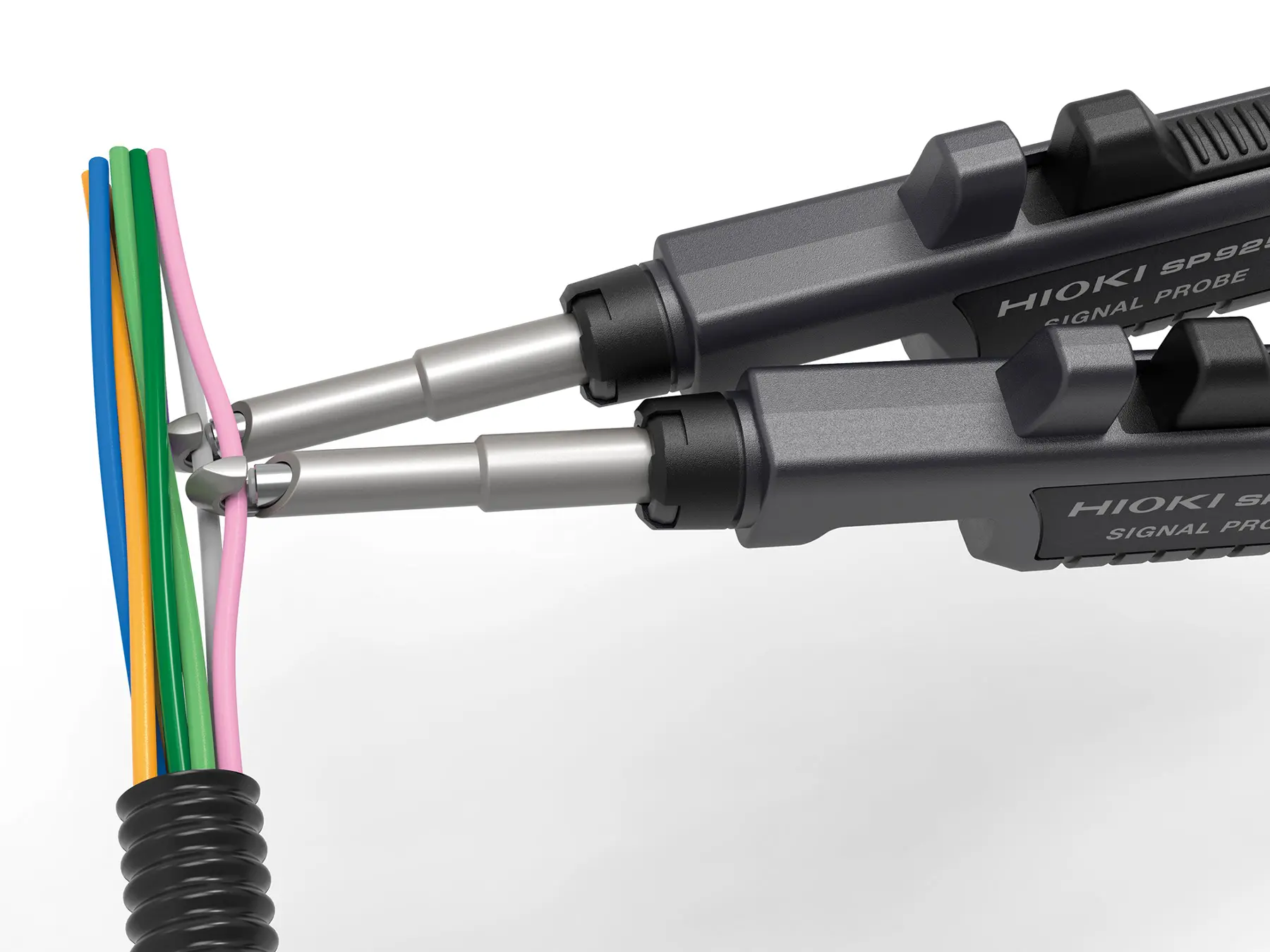

HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor

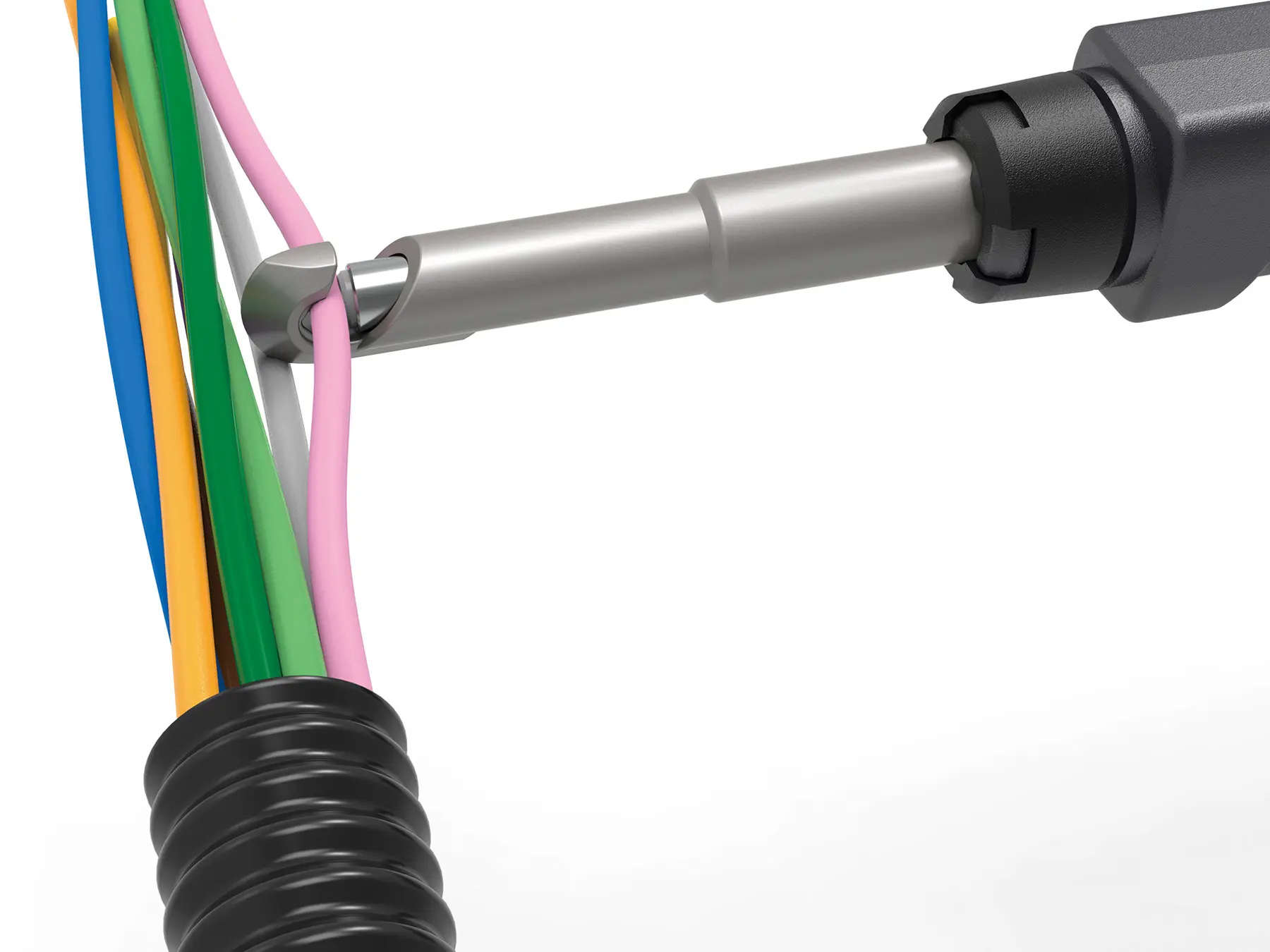

HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor passive detection
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor accessory

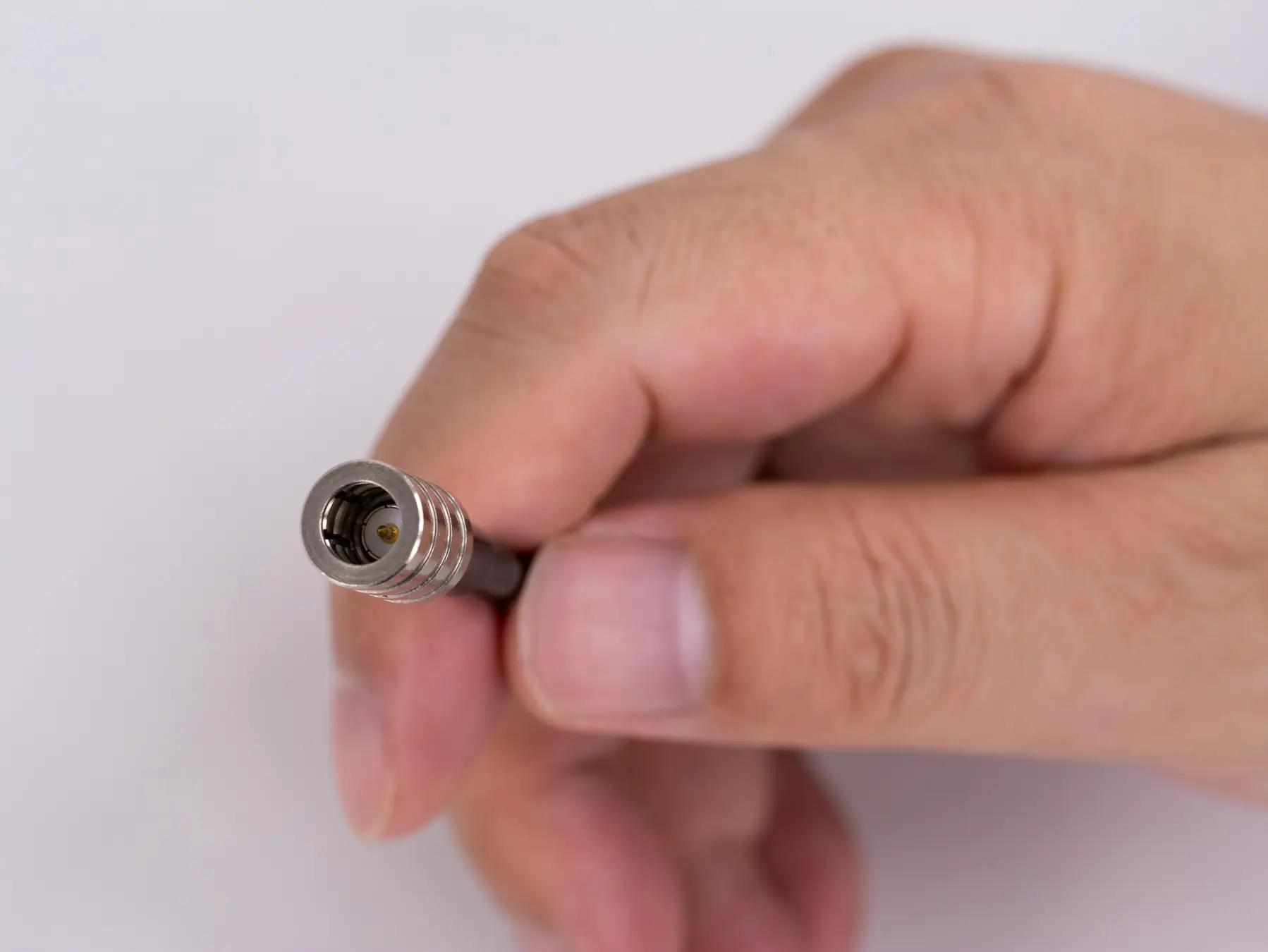

HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor close up

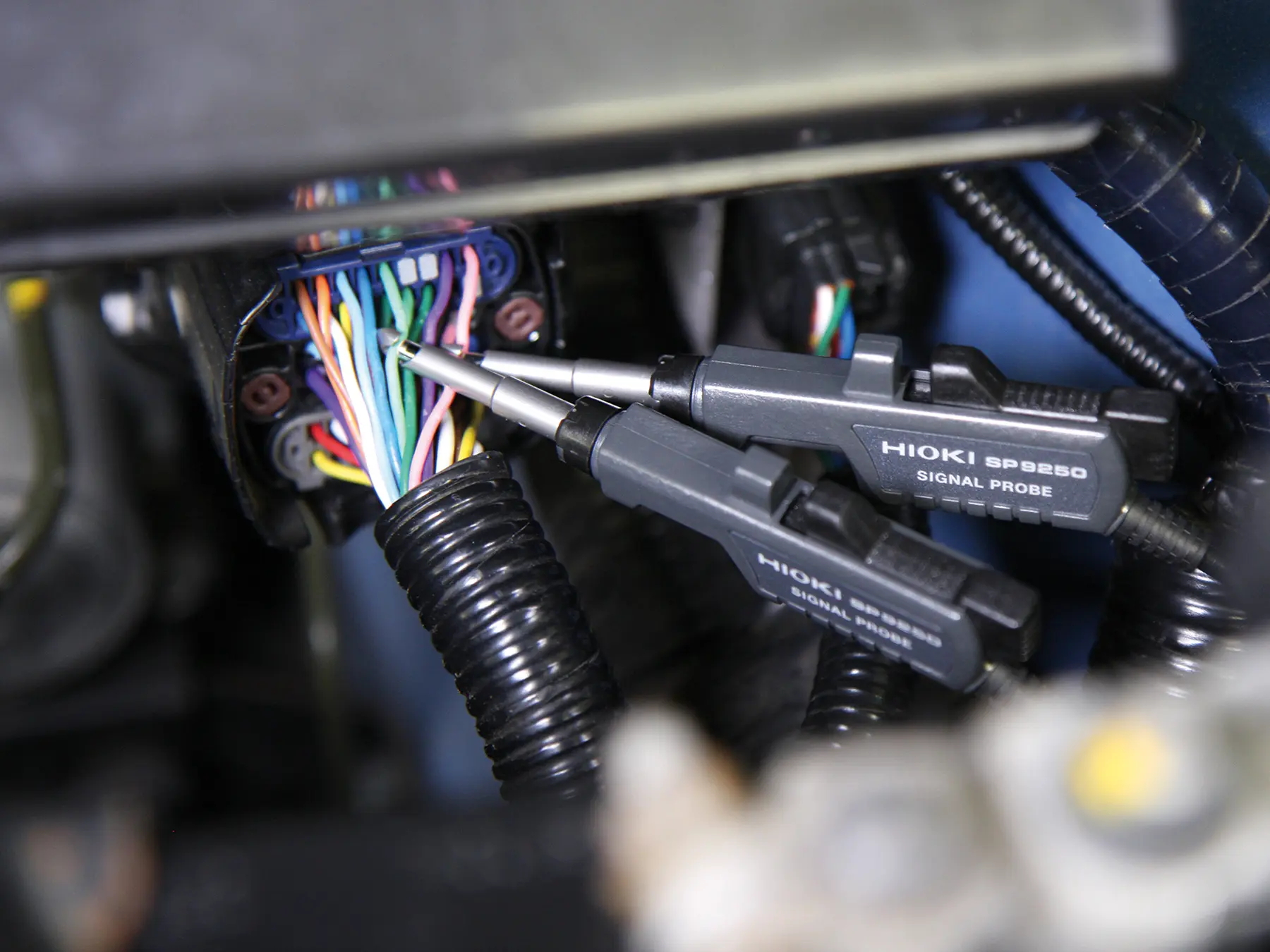

HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor vehicle bus

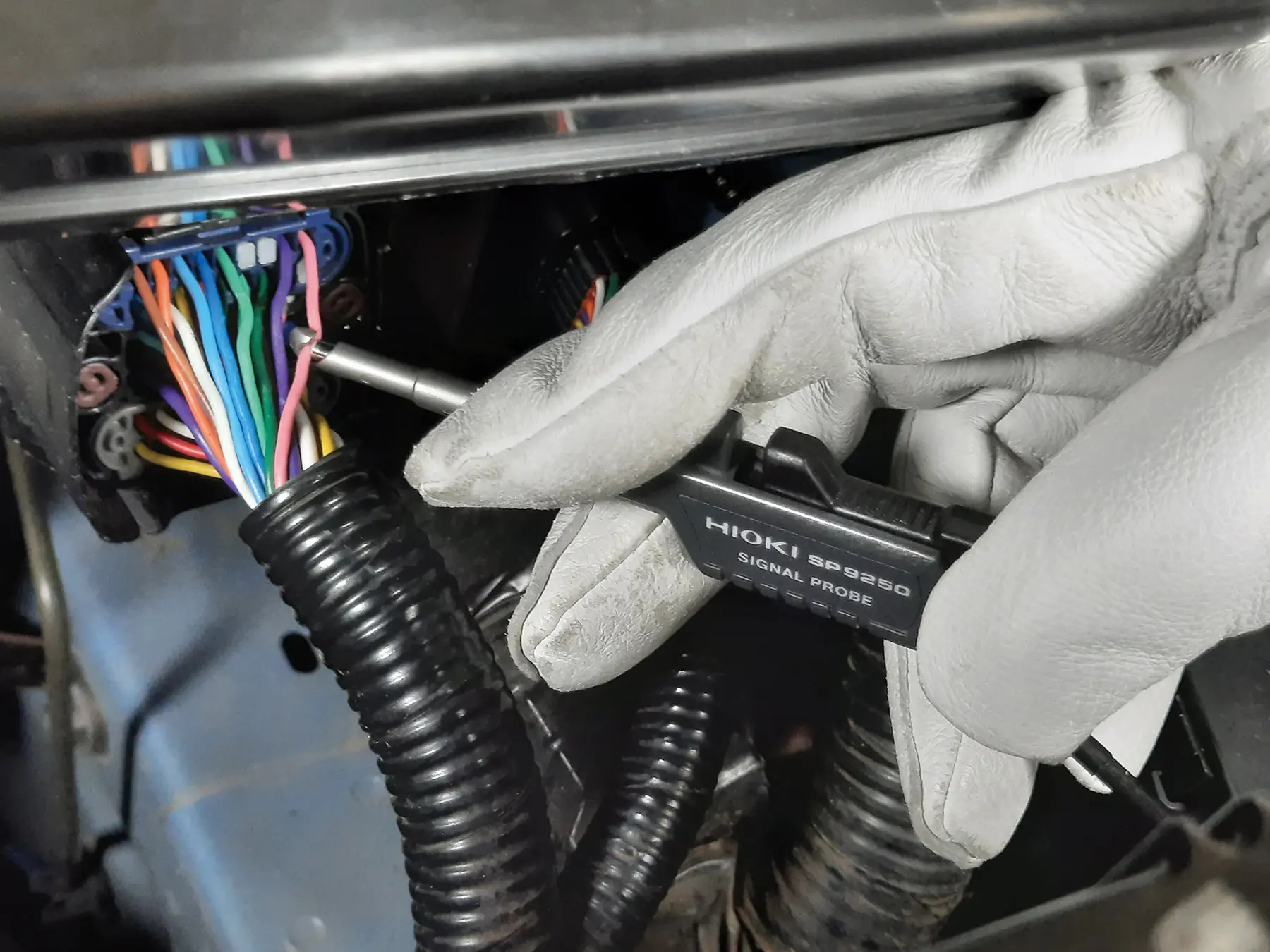

HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor sideview

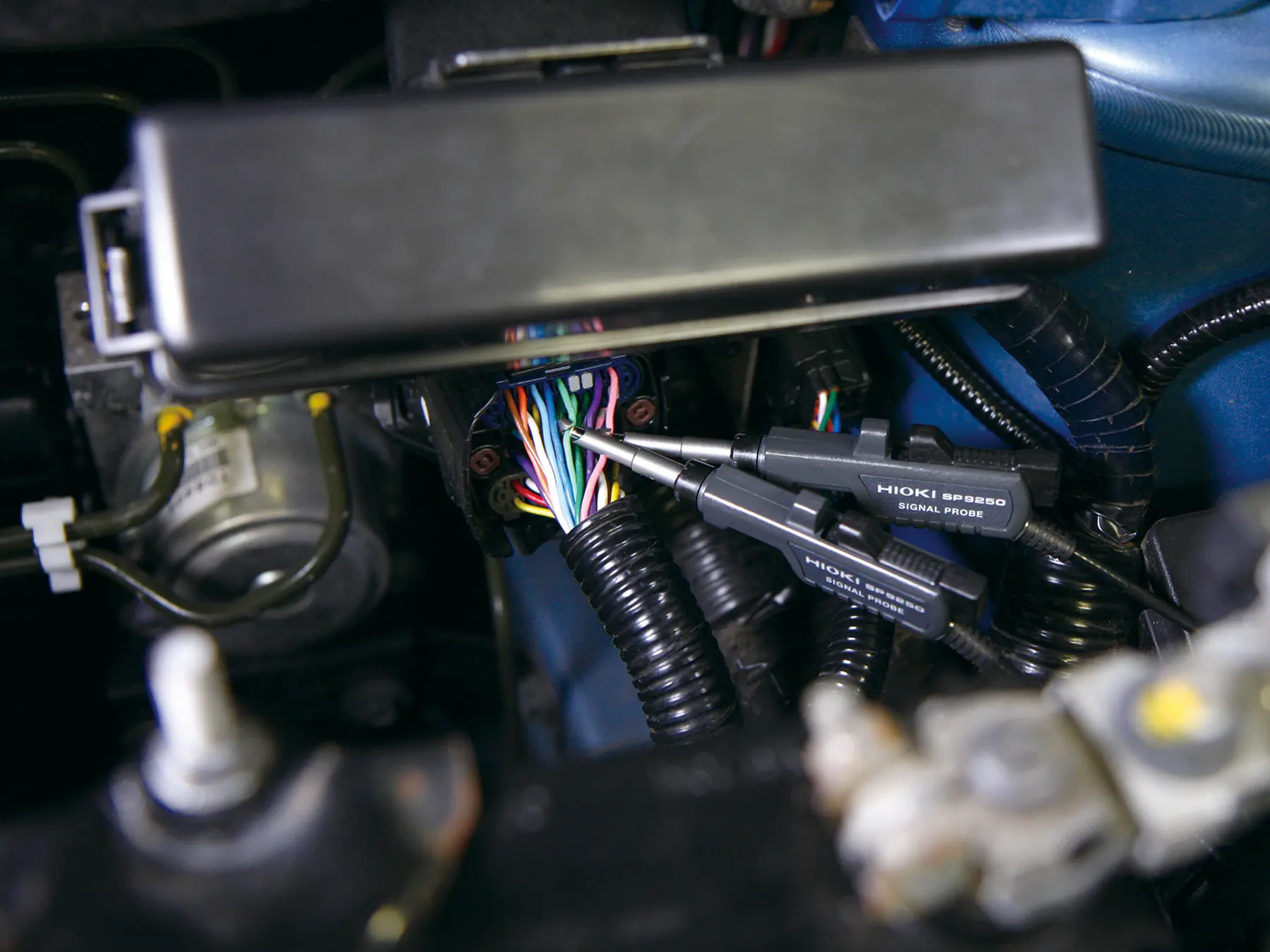

HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor clamp type
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor can can fd
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor field testing
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor non-invasive
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor passive detection
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor accessory
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor close up
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor vehicle bus
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor sideview
HIOKI SP9250 clamp type probes for SP7001 CAN FD sensor clamp type

€1,048.00

Content: 1 Each

In stock in Germany

€1,048.00

SP9250 - Clamp-type probes for SP7001 CAN-FD Sensor
Product number: SP9250
Available stock: 1
GTIN/EAN: 4536036013654
Weight: 0.18 kg

Description

Product information SP9250 - Clamp-type probes for SP7001 CAN-FD Sensor


Detailed Product Overview

The HIOKI SP9250 Clamp-type Probe Set is designed for use with the SP7001 CAN-FD Sensor and the SP7100 or SP7150 CAN Interface to enable non-contact detection of CAN or CAN FD signals through the cable insulation. Using capacitive coupling, the two probes together detect the differential signal through the insulation of the CAN H and CAN L lines, without requiring direct electrical contact or wire modification.

The clamp-type design allows quick and secure attachment even in confined wiring spaces, enabling fast setup and reliable signal detection without altering the harness. This makes the SP9250 ideal for laboratory measurements, evaluations, and troubleshooting during development or testing, where frequent connection and removal are required.

Each set includes two probes, corresponding to one CAN bus (CAN H and CAN L). When combined with the SP7001 CAN-FD Sensor and a compatible interface, the SP9250 provides accurate and non-intrusive monitoring of CAN or CAN FD communication under real operating conditions.

Designed for operation from -40 °C to +85 °C, the SP9250 offers a robust and easy-to-use solution for contactless CAN and CAN FD signal acquisition in automotive development, prototyping, and validation environments.

What's in the Box

  • SP9250 Clamp Type Probe Set
