HIOKI 3481 - Non Contact Voltage Detector with Adjustable Sensitivity

Non contact voltage detector with adjustable sensitivity and integrated white LED work light for voltage checks from 40 V to 600 V AC, CAT IV 600 V, manufactured in Japan

€48.00

Content: 1 Each

Available in 21 days

€48.00

HIOKI 3481 - Non Contact Voltage Detector with Adjustable Sensitivity

Product number: 3481

GTIN/EAN: 4536036003266

Length: 15 mm

Width: 20 mm

Height: 126 mm

Weight: 0.05 kg

Product information HIOKI 3481 - Non Contact Voltage Detector with Adjustable Sensitivity

Key Specifications

Operating voltage range 40 V to 600 V AC
Measurement category CAT IV 600 V
Adjustable sensitivity
Integrated white LED work light
Manufactured in Japan

Typical Applications

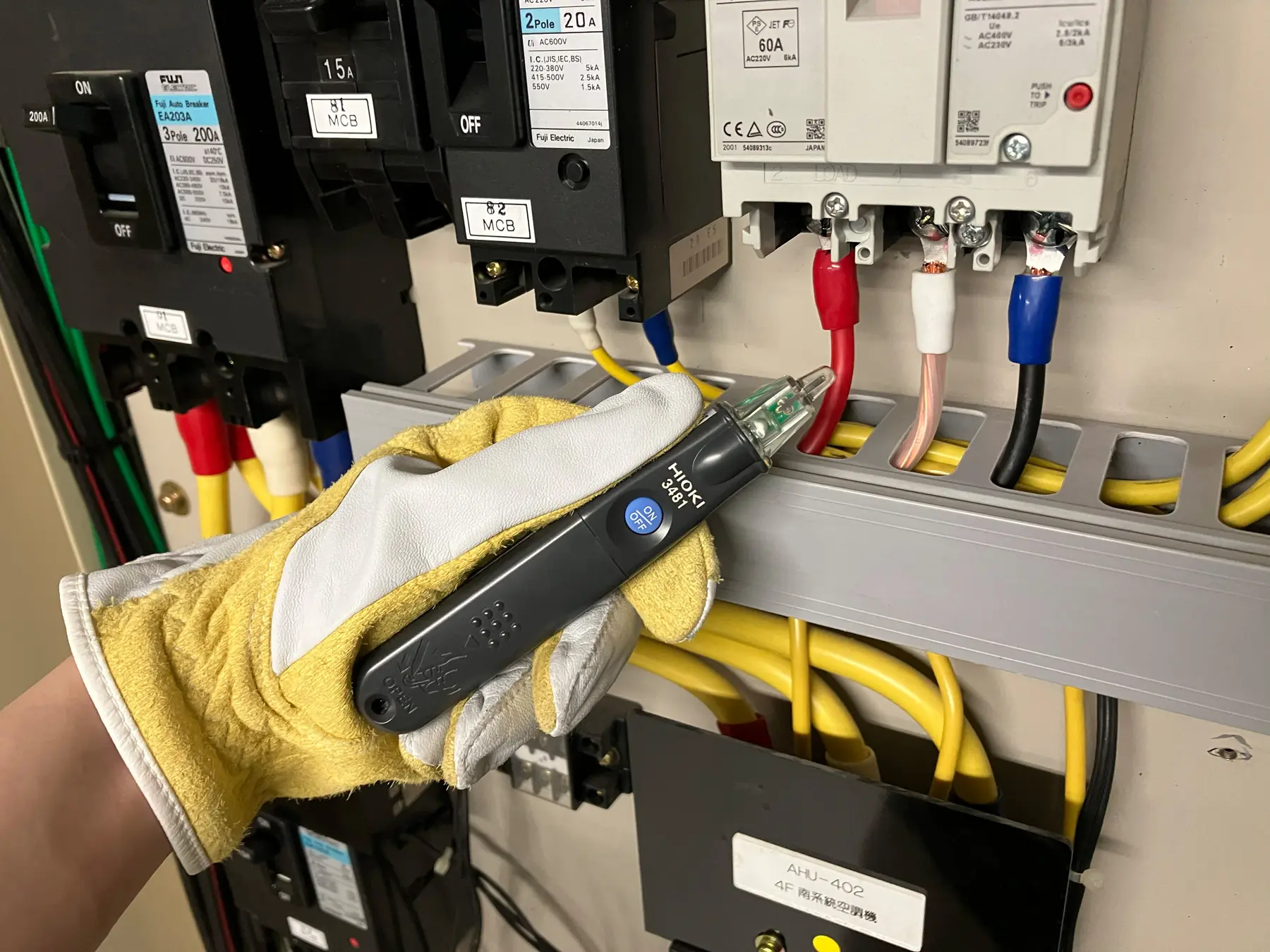

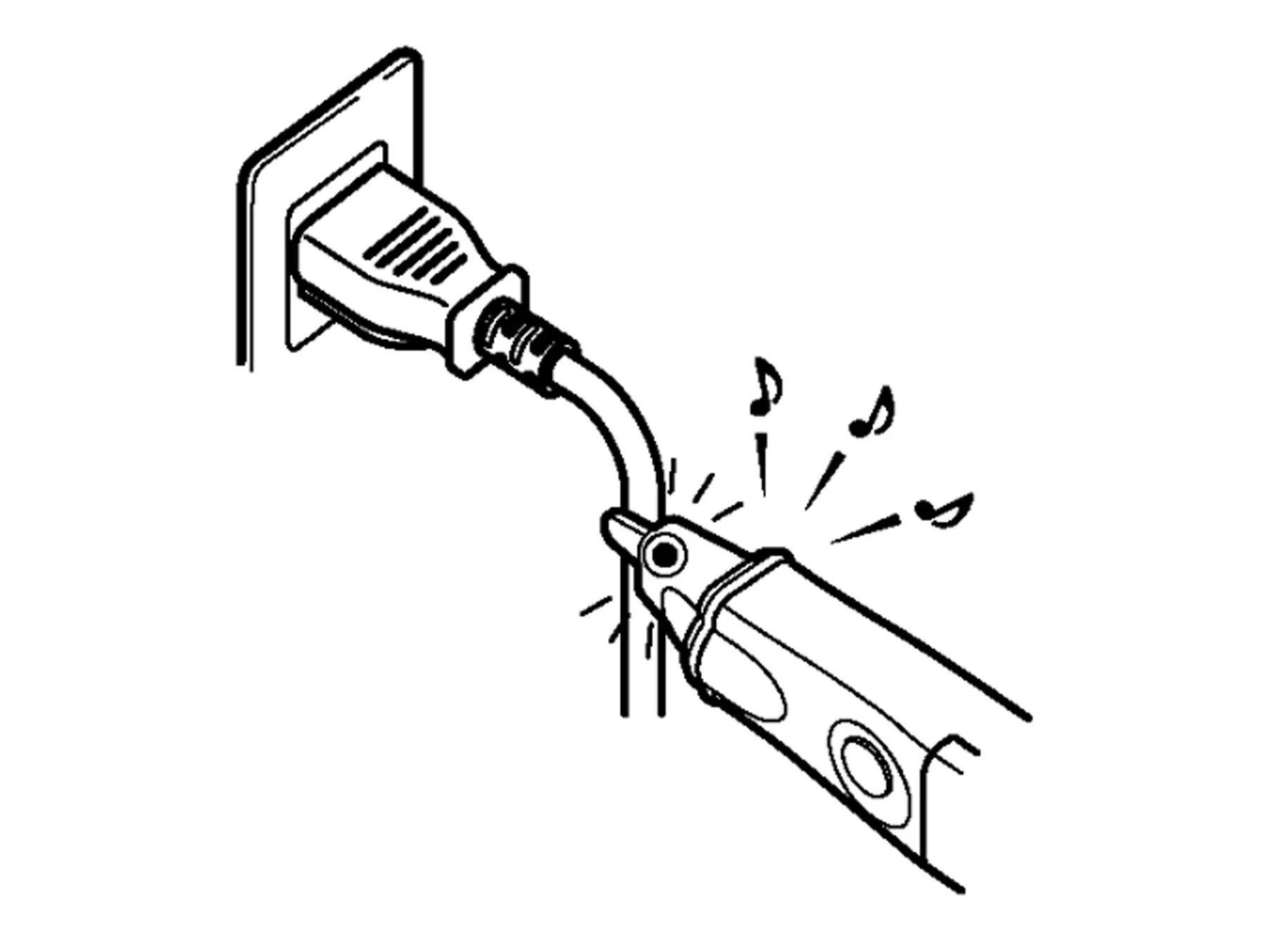

Non contact voltage checks on insulated cables, terminals, switches, distribution boards and outlets, including outlets with child protection

Detailed Product Overview

The HIOKI 3481 is a compact non contact voltage detector for everyday use in electrical installation and service work. About the size of a permanent marker and weighing less than 30 g including batteries, it is equipped with a pen style pocket clip and easy to carry in a shirt pocket for quick checks at any time.

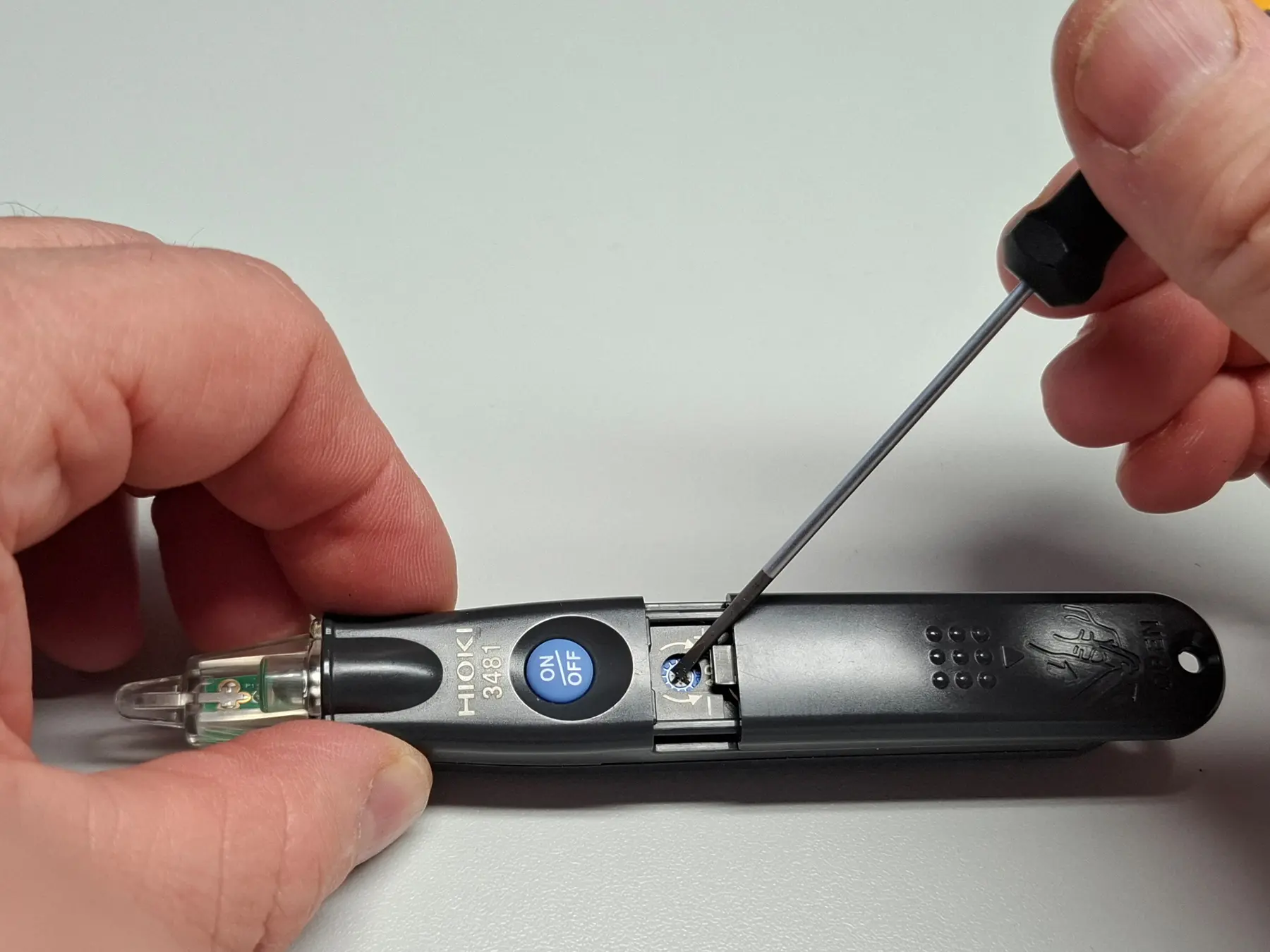

The detector features adjustable sensitivity and is rated for voltage checks from 40 V to 600 V AC, CAT IV. If you mainly work on sockets, a higher sensitivity helps ensure reliable voltage detection, even when child protection limits direct access. If most work is done in distribution panels with many live conductors close together, a lower sensitivity usually gives cleaner indication. The sensitivity is adjusted using a screwdriver via the adjustment trimmer located beneath the battery clip.

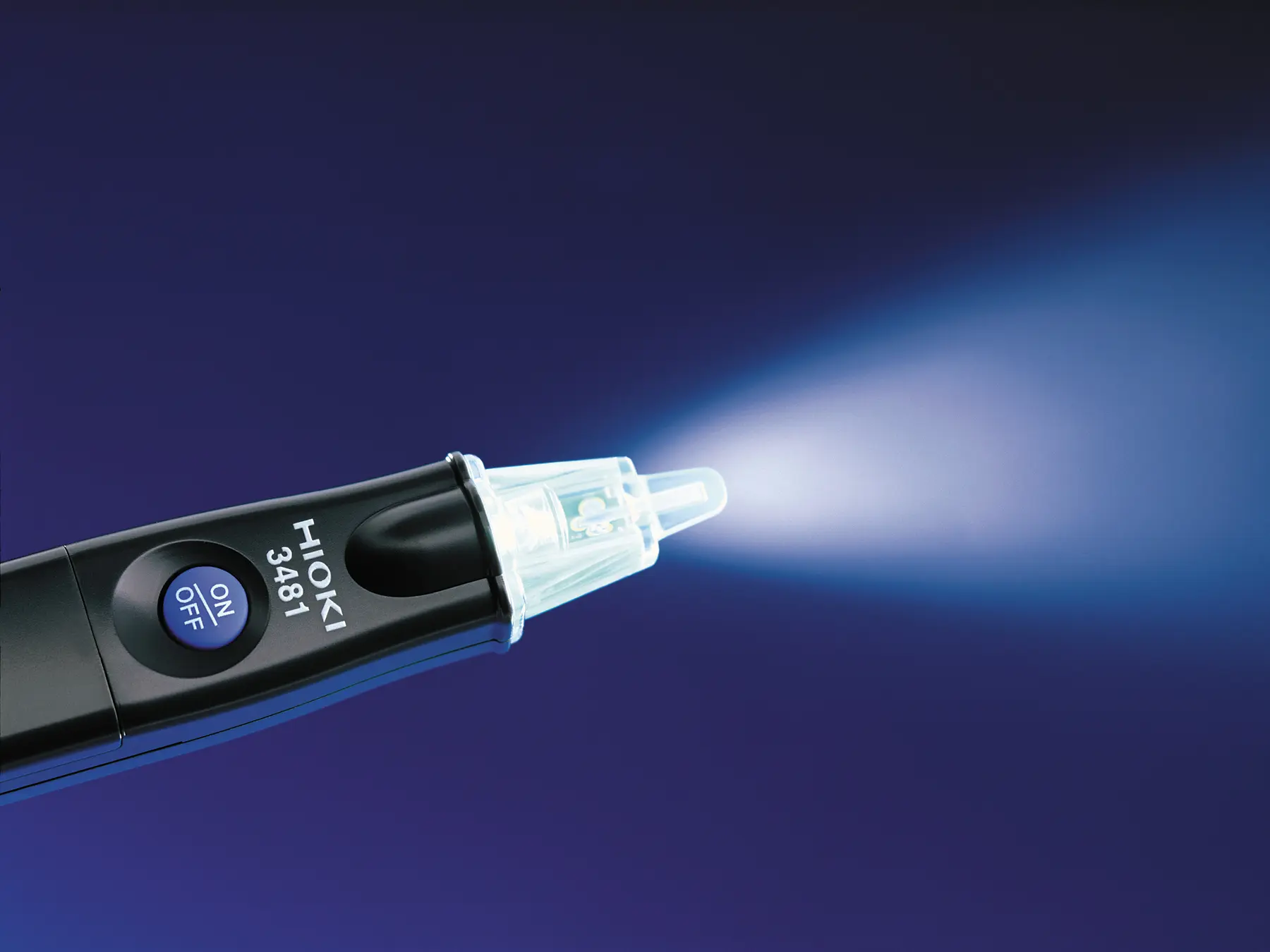

Bright LED Work Light for dark work areas

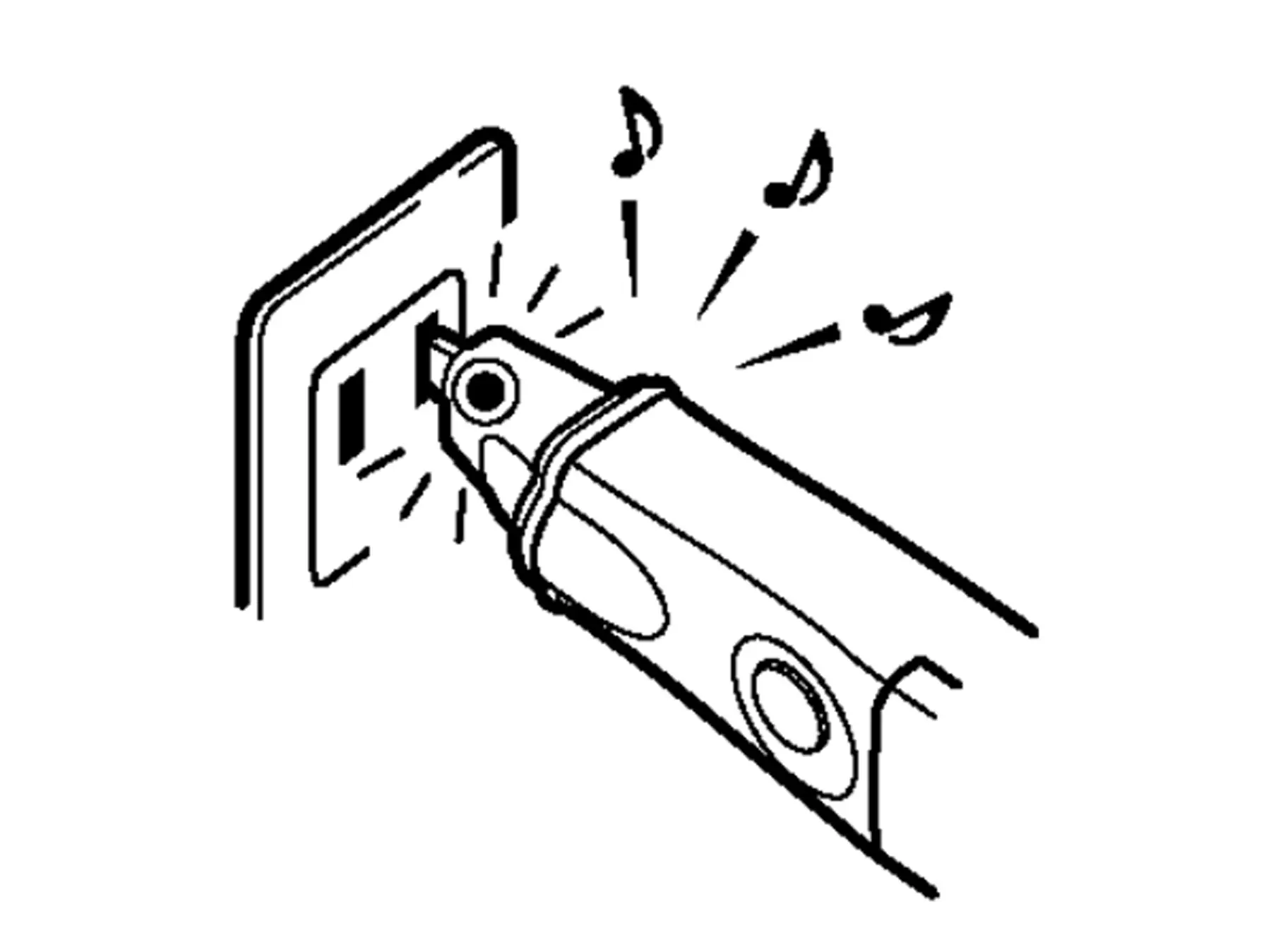

Voltage presence is indicated by a red LED and an audible buzzer. An integrated white LED work light illuminates sockets, terminals and distribution cabinets, making everyday work much easier in poorly lit environments.

Developed and manufactured in Japan at HIOKI’s own facility, the 3481 fits naturally into the shirt pocket of professionals who deliver high quality work every day.

3481 Voltage Detector
Instruction manual
3x LR44 alkaline button batteries, installed (for operation check)
