HIOKI Precision Resistance Meters for R&D and Production

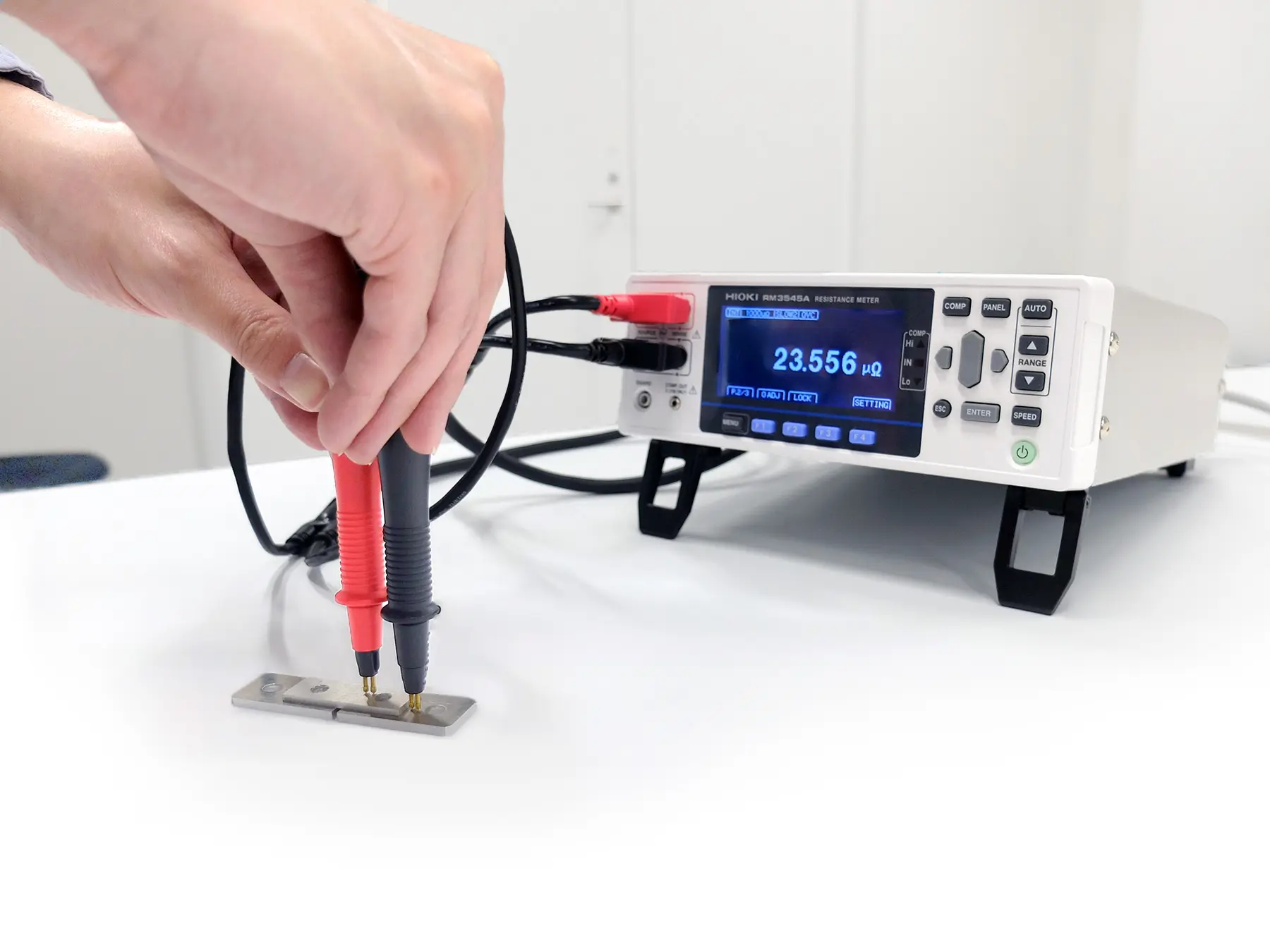

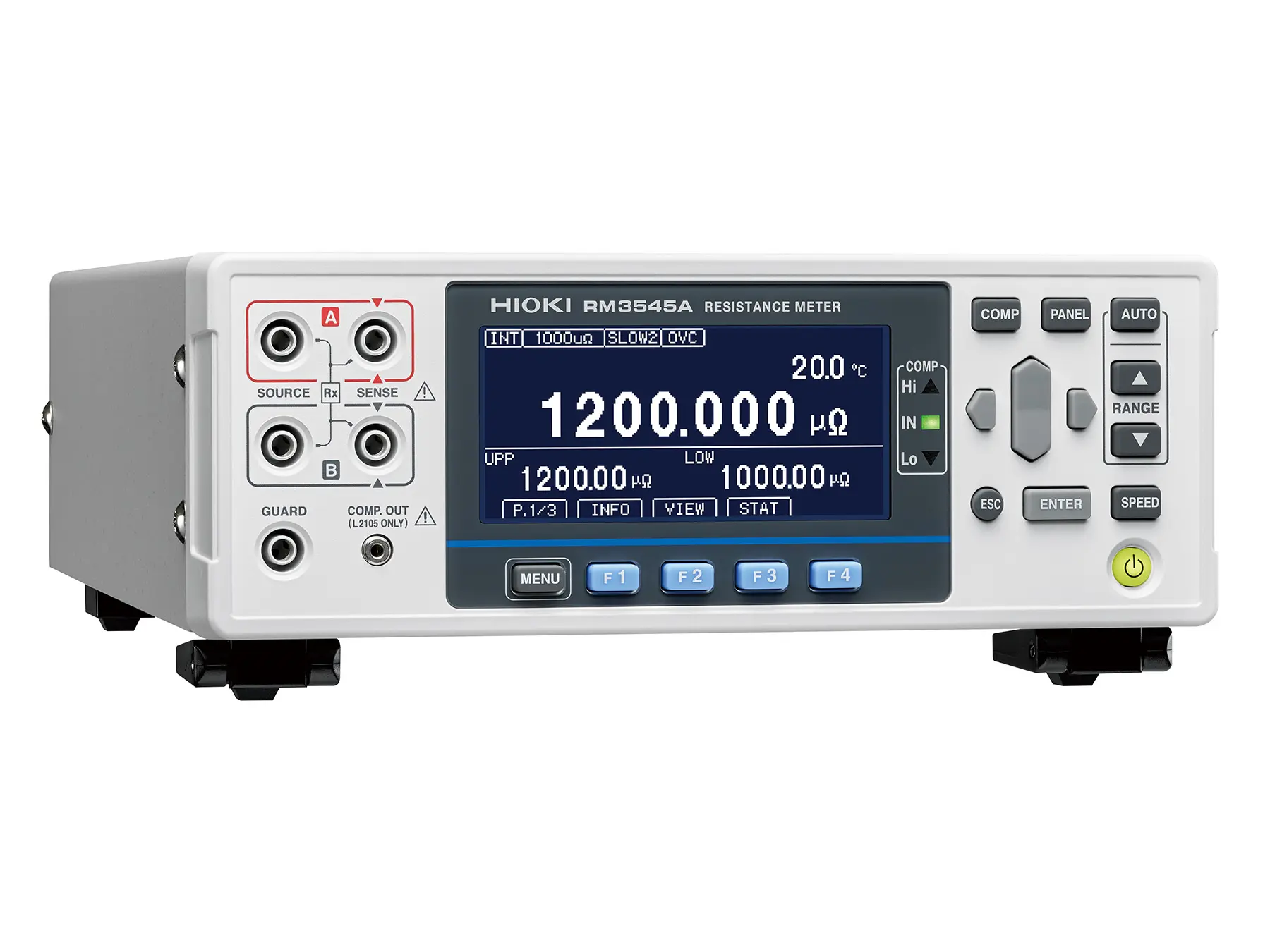

High-precision DC resistance meter, 13 ranges from 1 mΩ to 1200 MΩ, basic accuracy 0.045 %, 1 nΩ resolution, 6 ½-digit display, multiplexer option (up to 20 channels), 2.3 ms fastest measurement time, remote control via LAN, RS-232C and USB

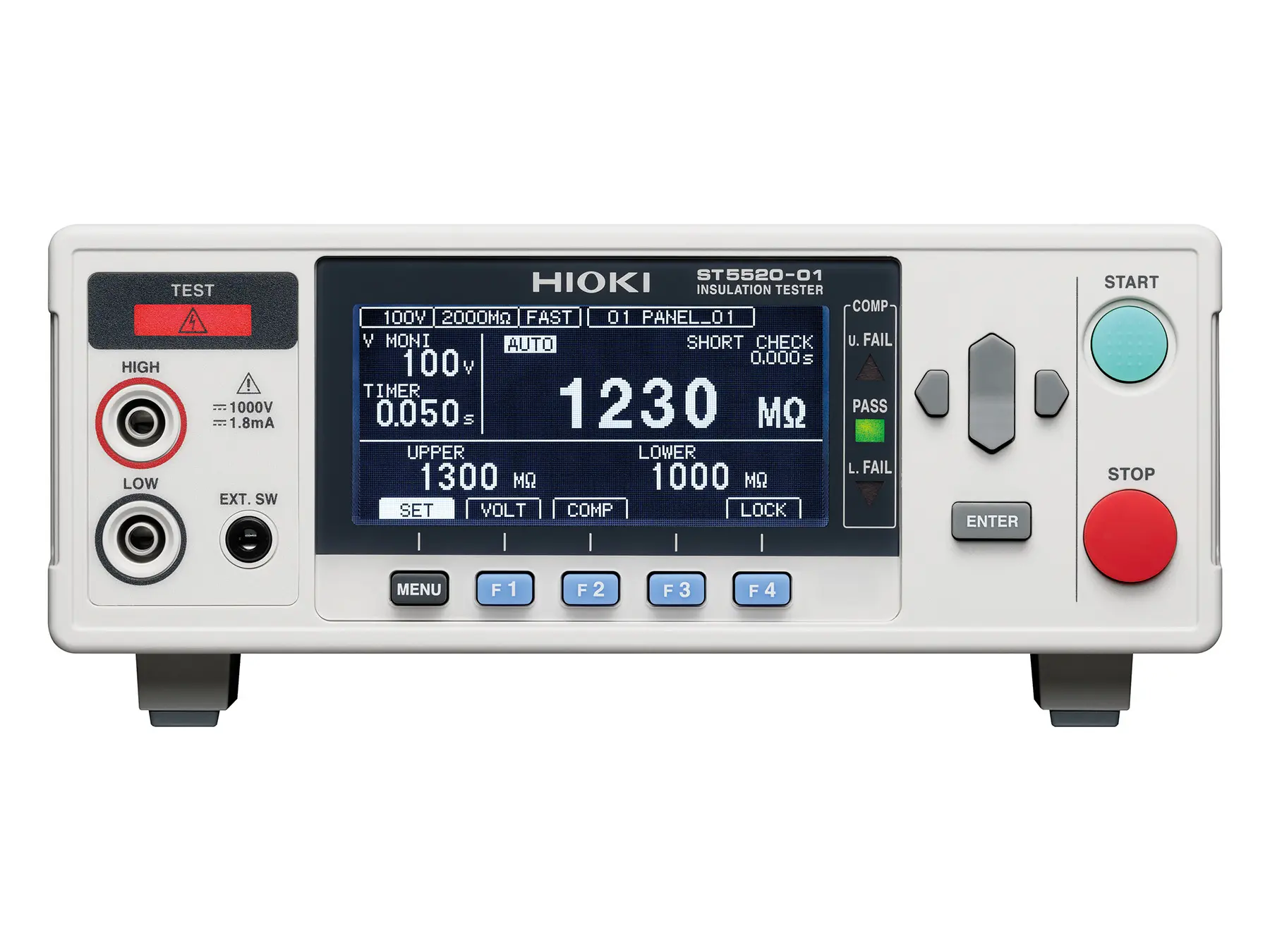

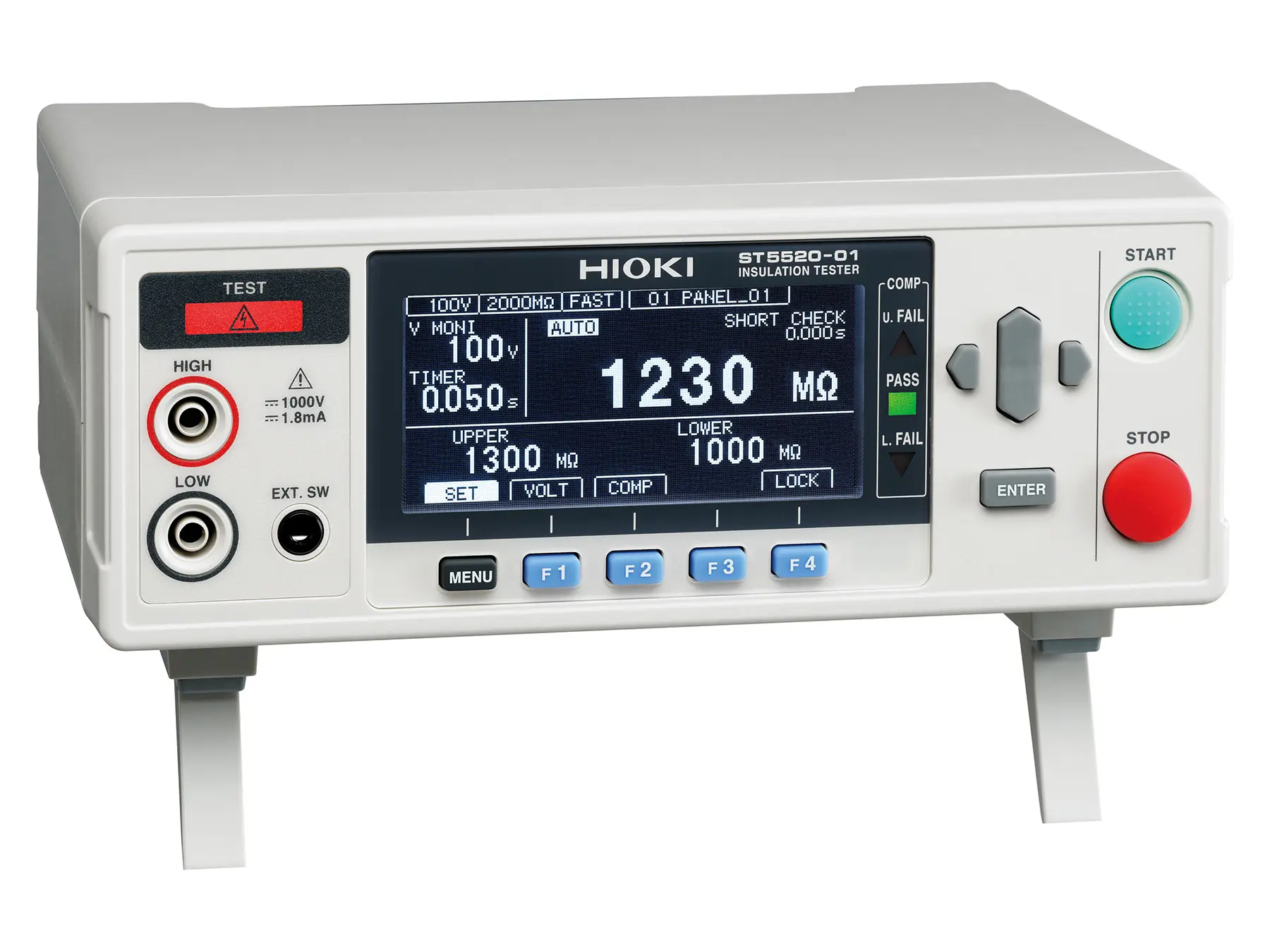

The ST5520 is an insulation resistance tester designed for fast, accurate testing in production lines. It is ideal for high-throughput environments where rapid, reliable measurements are crucial.

Multiplexer card for the RM3545A-2 resistance meter, provides 10 (4-wire) or 21 (2-wire) channels per card, mechanical relays, 50-pin D-sub output

High precision DC resistance meter, 13 ranges from 1 mΩ to 1200 MΩ, basic accuracy 0.045%, 1 nΩ resolution, 6 1/2 digit display, compatible with SW1001 / SW1002 Multiplexer Systems, remote controllable via LAN, RS-232C, USB

The RM3544 provides precise measurements for a wide range of applications in electronics manufacturing and testing. It uses the 4-terminal measurement method with a constant current source to perform accurate resistance measurements. It is suitable for measuring electrical components such as motors, transformers, relays, switches, and wire connections. Additionally, it supports temperature measurement using thermistors, which is particularly important for applications requiring temperature compensation. With its high resolution and measurement accuracy, it is equally effective on production lines and in research laboratories. Technical details: High measurement accuracy of 0.02%Measurement range from 0.000 mΩ to 3.5 MΩSupports measurement currents up to 300 mAIdeal for simpler applications and manual operation on production linesScaling function for converting resistance values into physical quantities. Comparator function for pass/fail assessments based on predefined thresholds.Temperature compensation function to correct for temperature fluctuations.

The RM3544-01 is a high-precision bench-top resistance meter designed for reliable resistance measurement across a wide range of applications. It is suitable for production lines, quality inspections, and integration with automated systems. With its ability to measure resistance from microohms to megohms and an optional LED Comparator attachment for clear pass/fail judgments, this device delivers fast, stable results in even noisy environments. The RM3544-01 also features enhanced durability and noise resistance, making it a robust choice for industrial use. Technical details: Measurement range: 0.000 mΩ to 3.5000 MΩ Max. resolution: 1 μΩ Basic accuracy: 0.02% Measurement speed: Fast (21 ms at 50 Hz) to Slow (401 ms) Temperature measurement range: -10.0 °C to 99.9 °C (thermistor) Display: 5 digits/4 digits selectable Safety: EN61010, EMC: EN61326 Power supply: 100 to 240 VAC Dimensions: 215W × 80H × 166D mm Weight: Approx. 1.0 kg Selectable communication interfaces: EXT I/O, RS-232C, USB

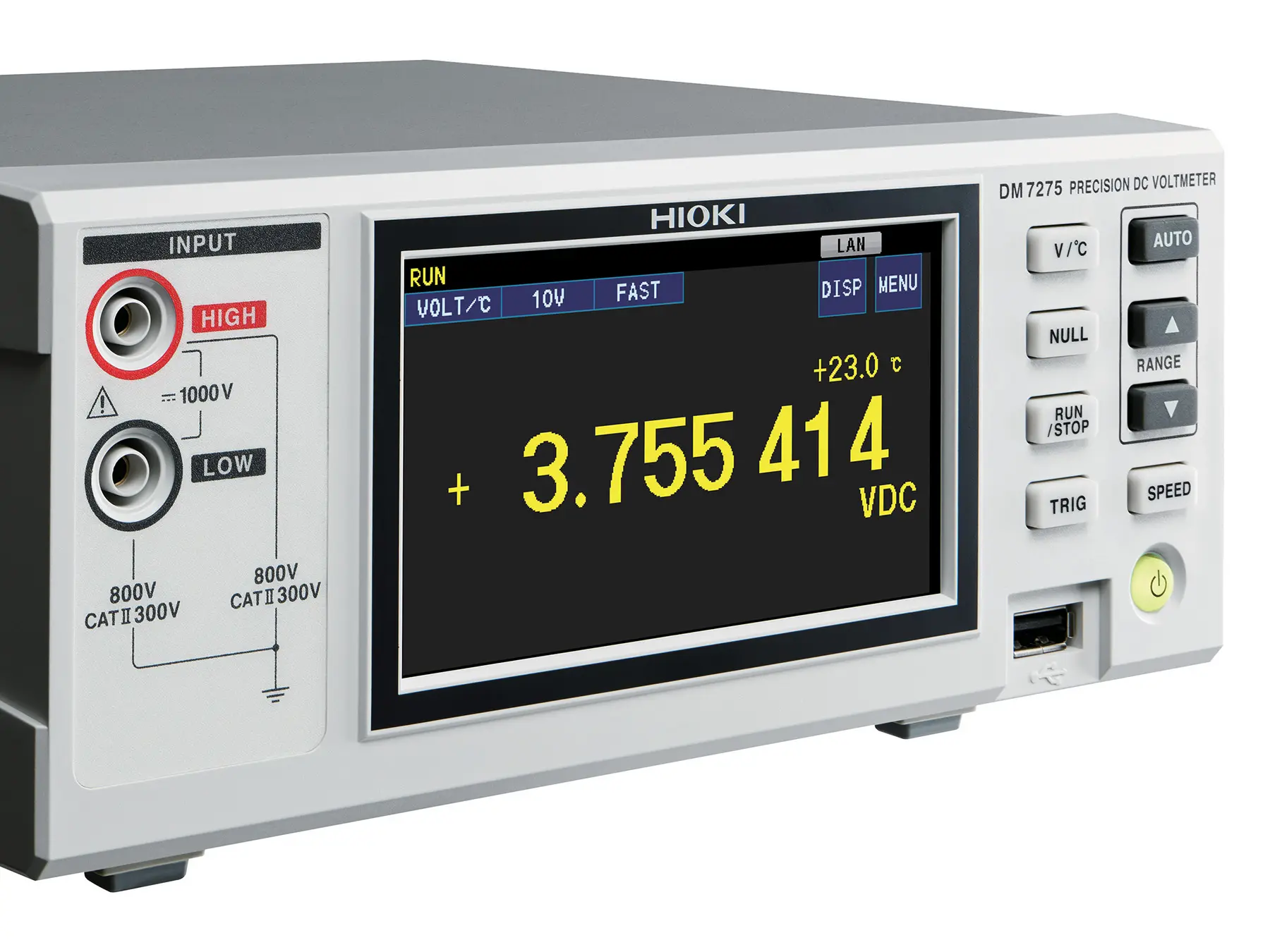

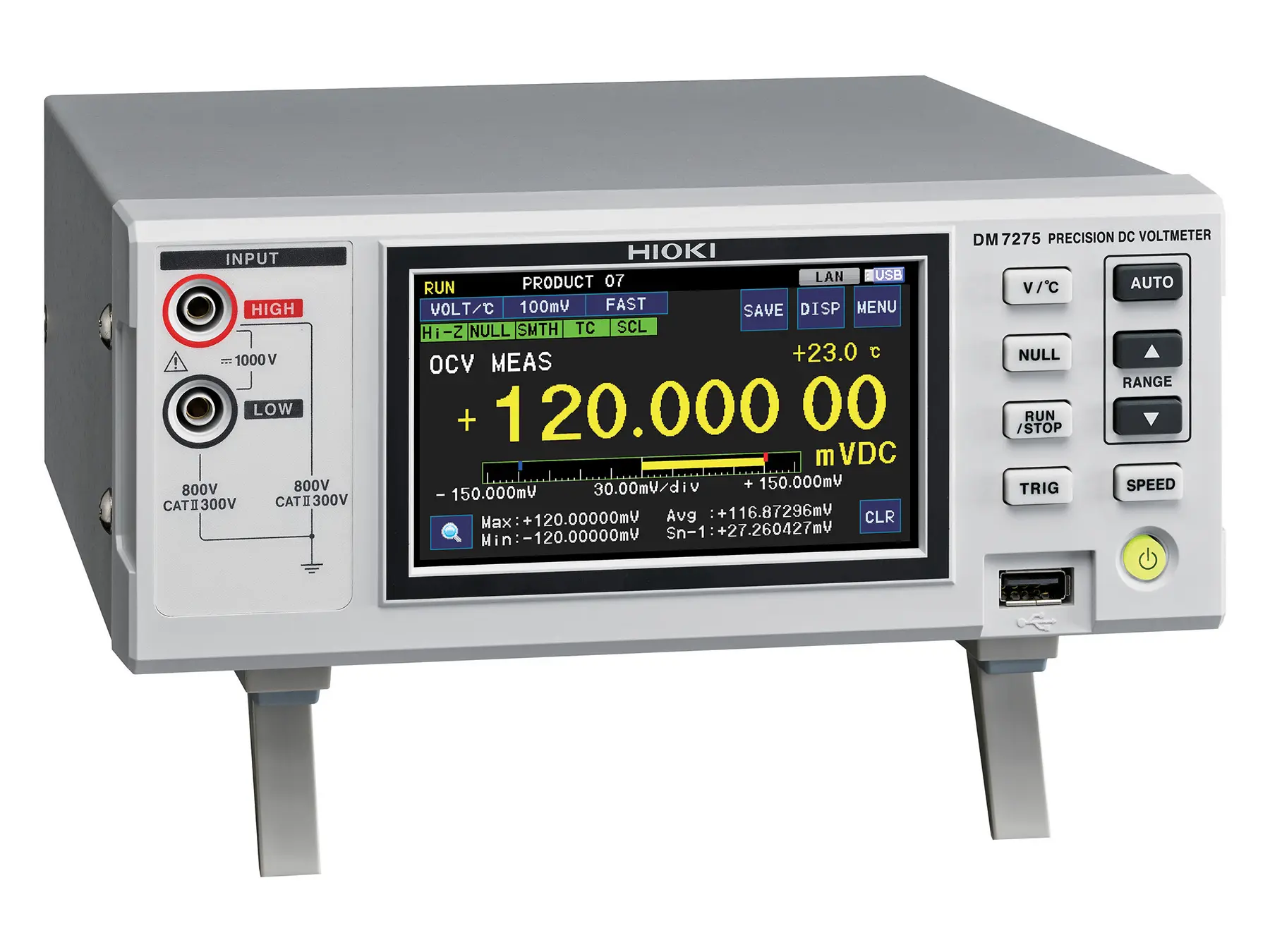

Precision DC Voltmeter, DC V only, measure DC Voltage and temperature simultaneously, 7-1/2 digit resolution, 1-year 20ppm accuracy, built-in EXT I/O, LAN, USB and RS-232C interface

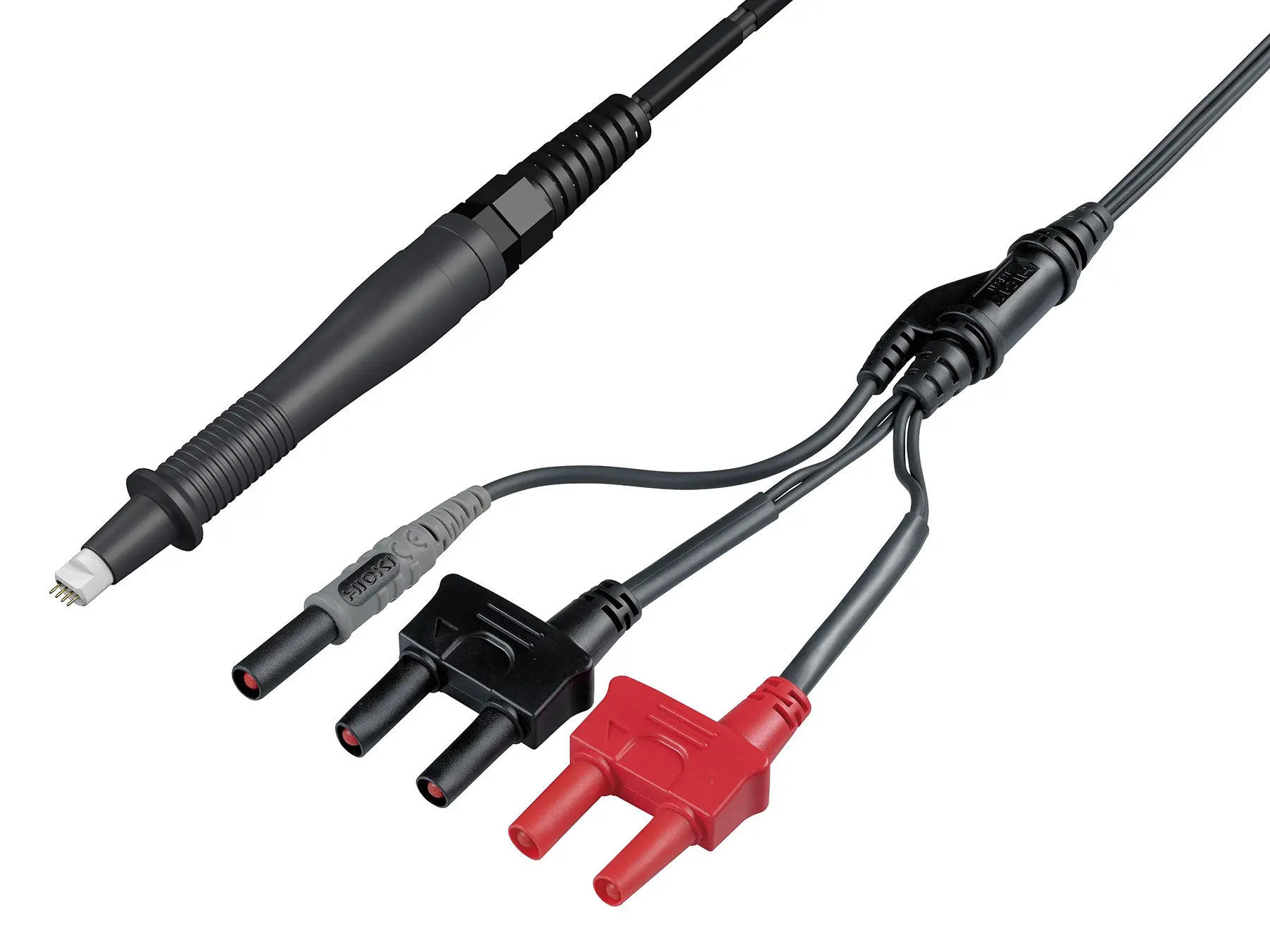

Four-point array probe with 1.5 mm between the contact pins, for the RM3545, including PC software for calculating volume resistivity (O-m), surface resistivity (O/sq), conductivity (S/cm) and resistance (O)

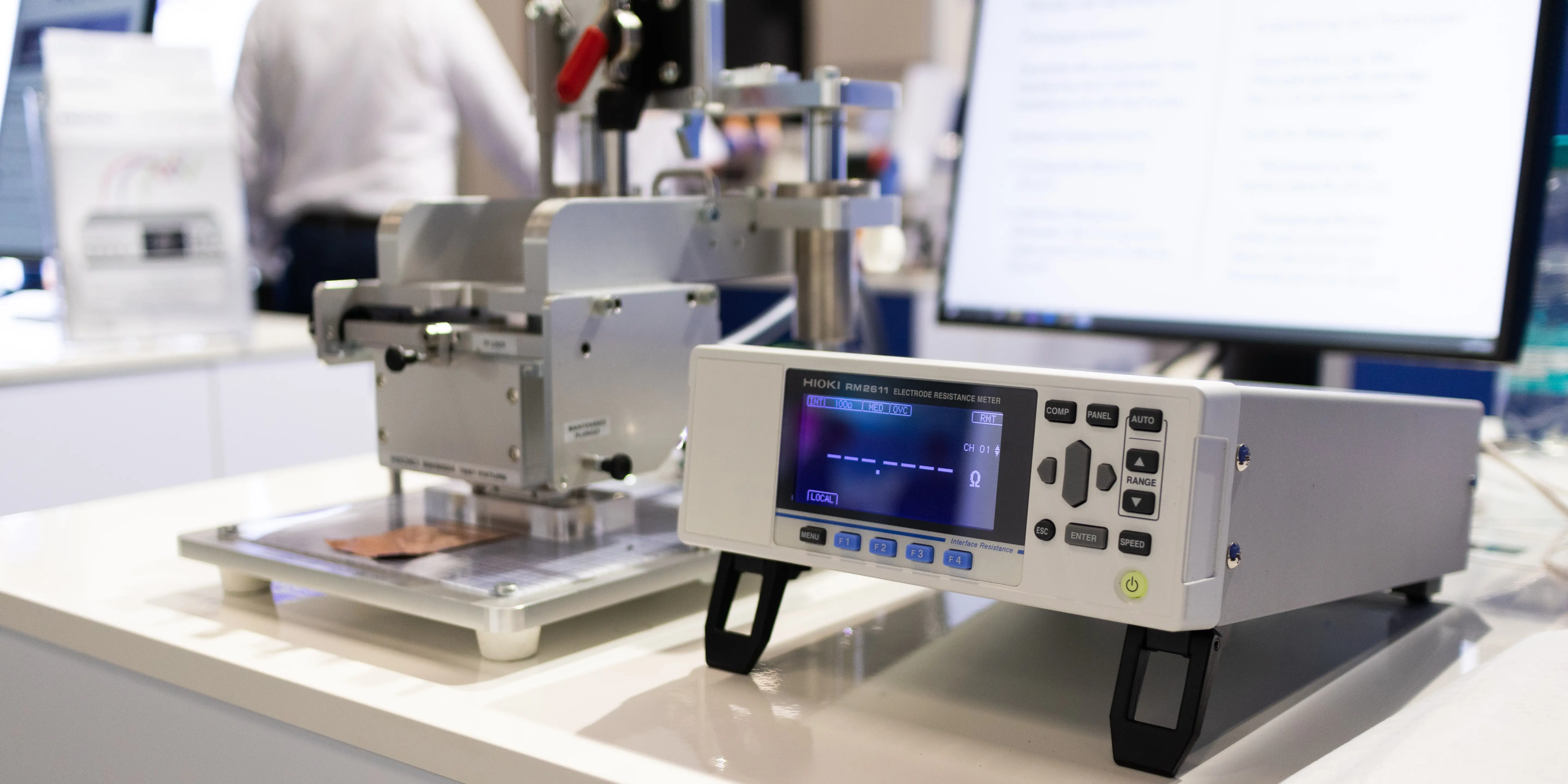

Electrode Resistance Measurement System, isolates and quantifies the composite layer resistivity and the interface resistance between the composite layer and the aluminum or copper current collector foil of LIB electrode sheets in a single measurement

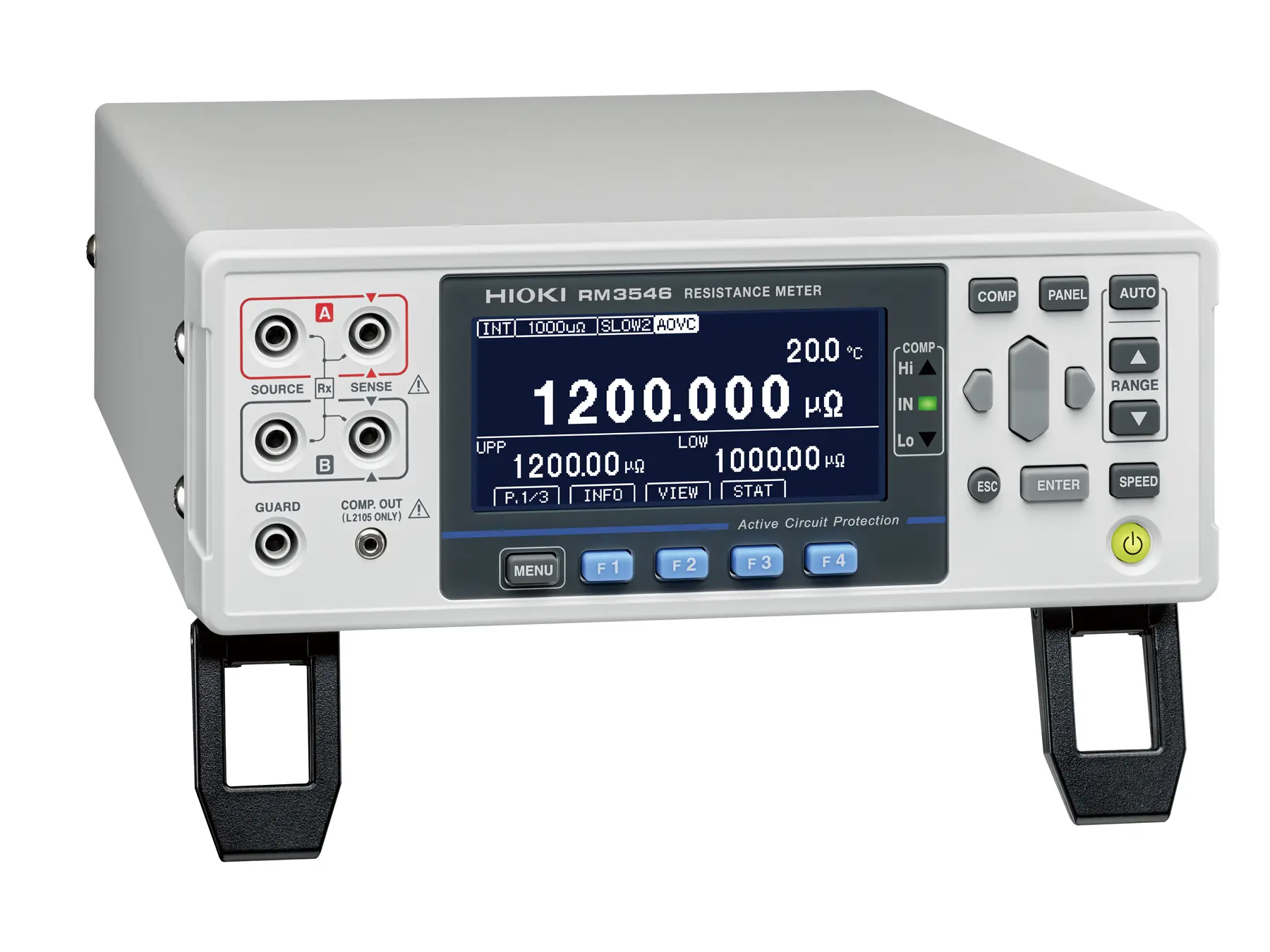

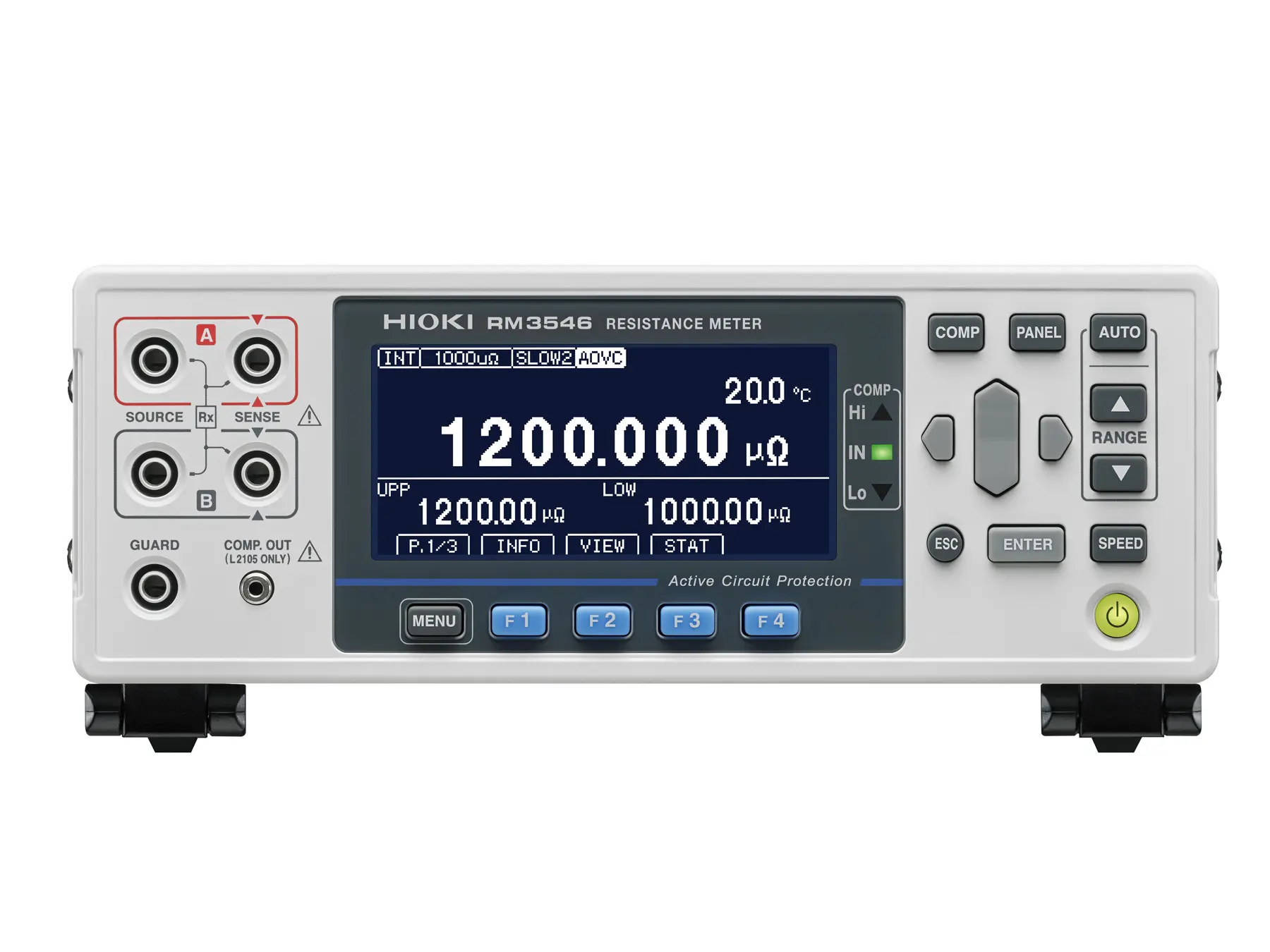

DC resistance meter with Active Circuit Protection up to DC 60 V, high path resistance tolerance, 13 ranges from 1 mΩ to 1000 MΩ, max 1 A test current, multiplexer option (up to 20 channels), remote control via LAN, RS-232C and USB

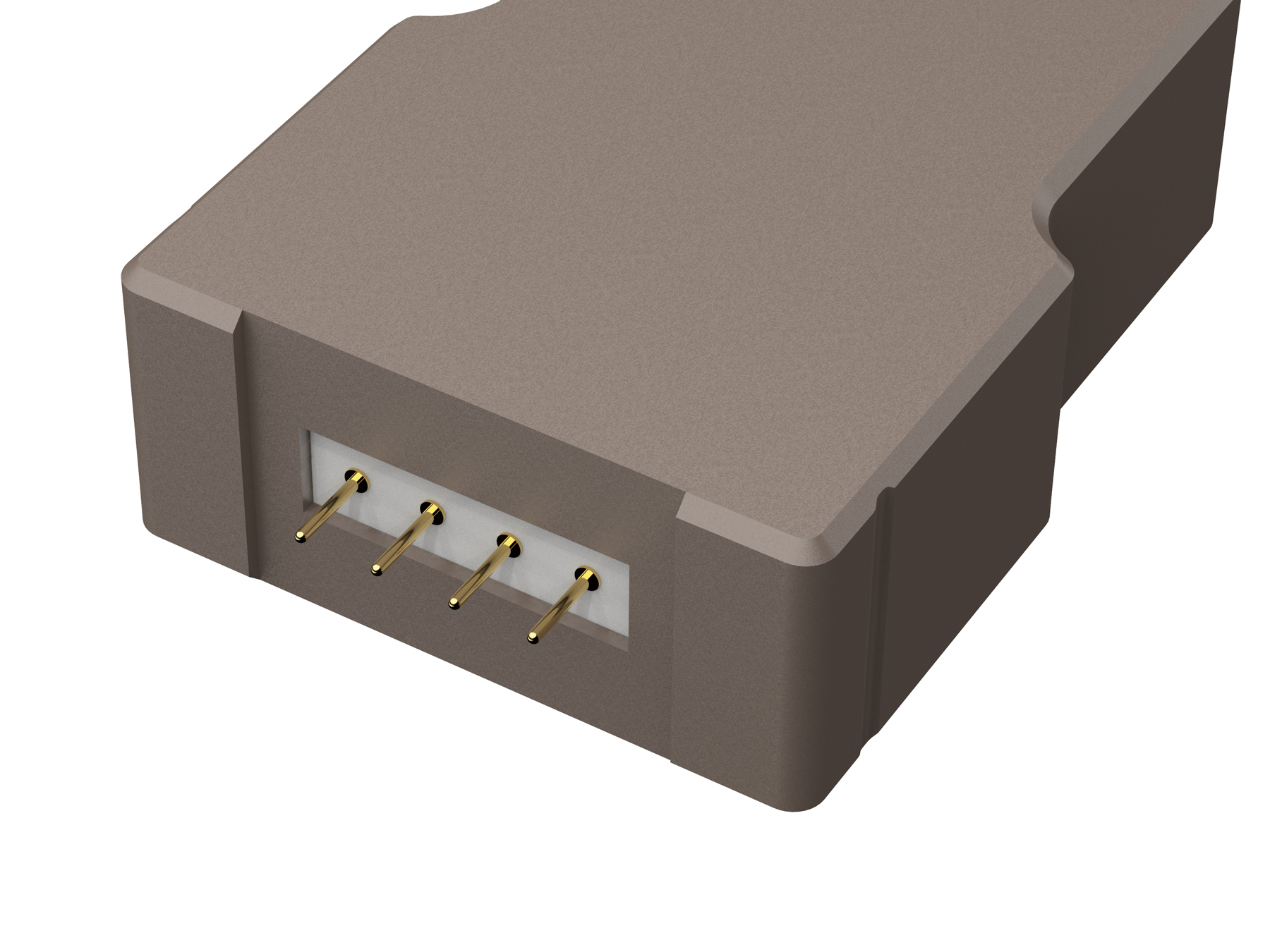

The RM9010-01 is a high-precision specialized probe tip designed for resistance, resistivity, and conductivity measurements using the four-terminal method. It is an optional accessory for the RM3545 precision resistance meter and its available variants, extending these instruments with a defined four-contact measurement geometry for reproducible material testing.Four precisely aligned in-line measurement contacts with a spacing of 5.0 mm ±0.1 mm ensure accurate separation of current and voltage paths. This effectively minimizes contact and lead resistance – a key requirement for stable and comparable measurement results, particularly on thin layers or delicate samples. The spherical, gold-plated measurement contacts provide uniform contact conditions. A defined spring force of approximately 1.25 N per contact ensures consistent contact pressure and supports repeatable measurement performance in laboratory and development environments.Separate SOURCE and SENSE connectors as well as a GUARD plug are precisely matched to the RM3545 input terminals, enabling direct and secure connection without additional adapters. With an overall cable length of approximately 1.5 m and a robust design, the RM9010-01 is built for professional indoor use. Replaceable measurement contacts contribute to long service life and cost-efficient operation.
