HIOKI Probes for Voltage and Signal Acquisition

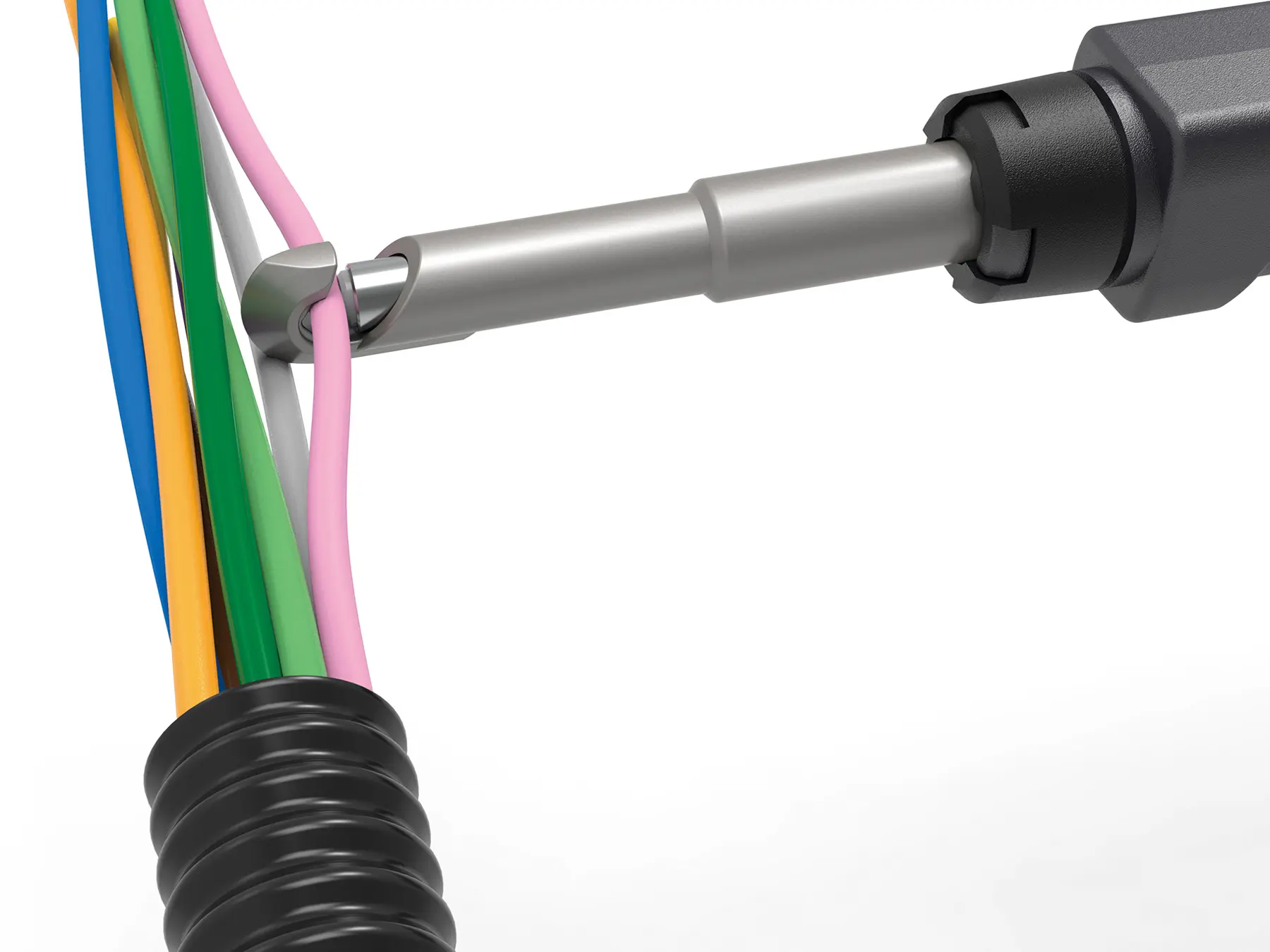

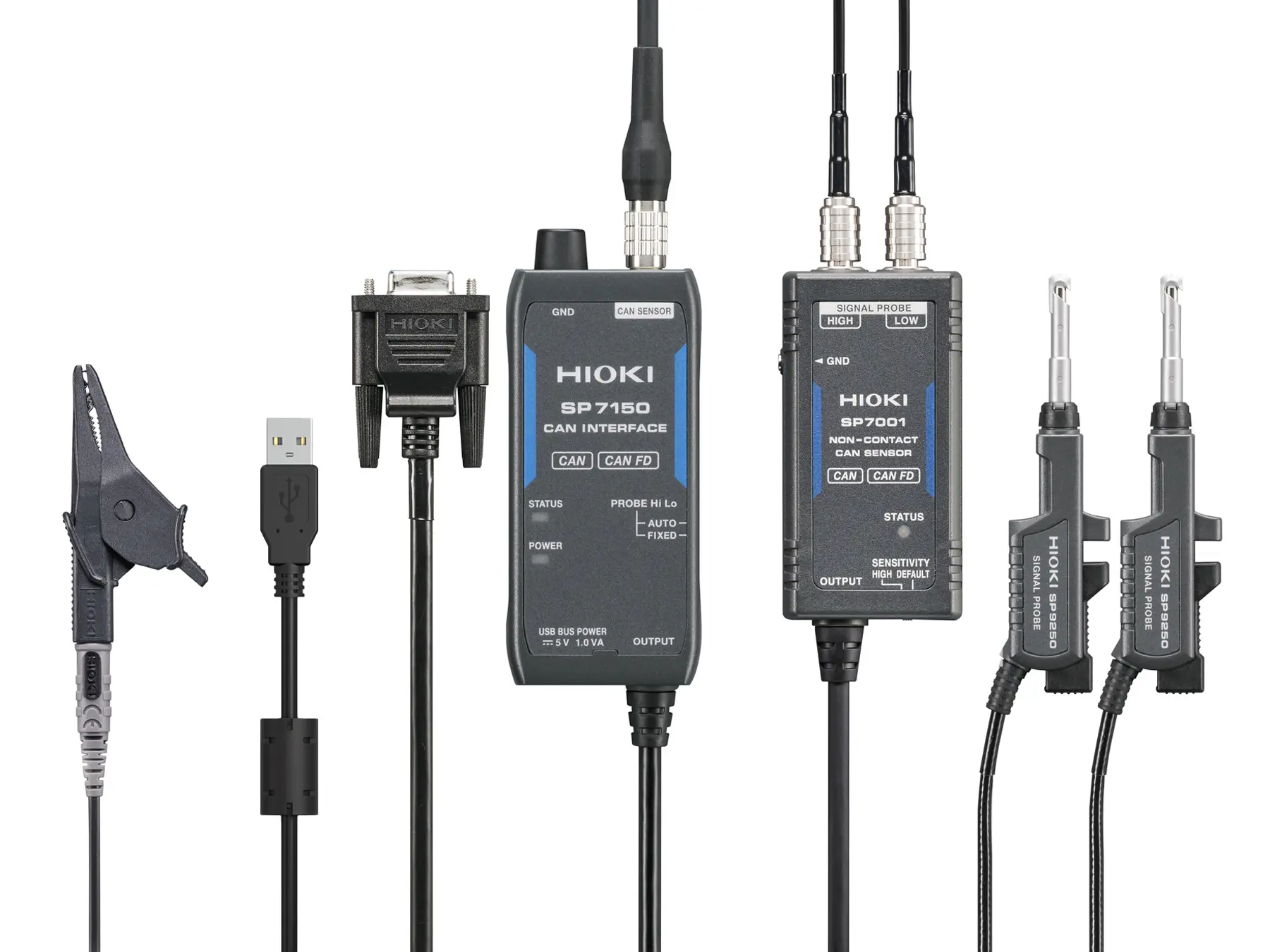

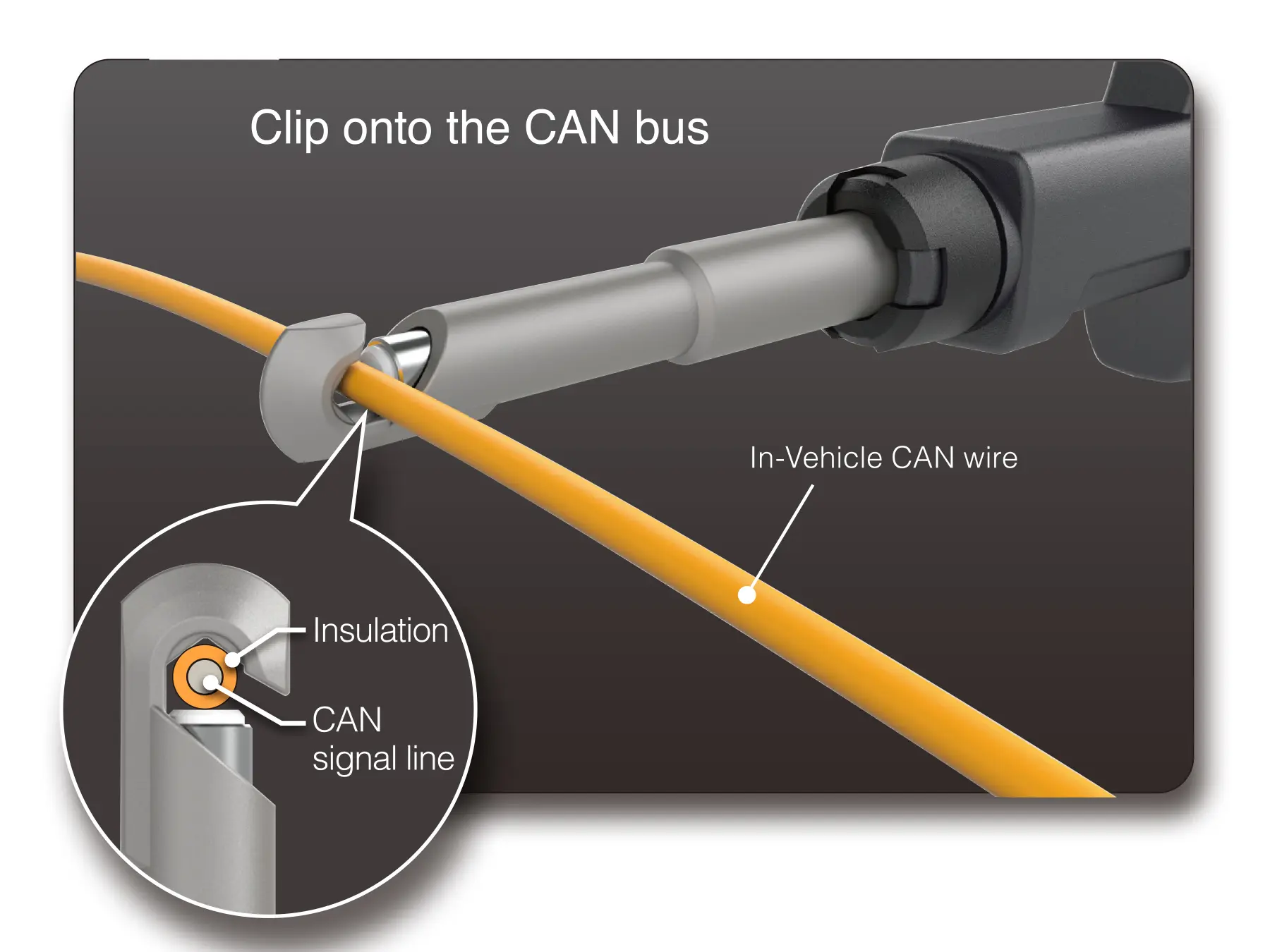

Non-contact CAN/CAN FD sensor set, clamp type probes, capacitive coupling, for 1 CAN bus, 125 kbit/s to 3 Mbit/s, Vector-compatible D-sub output, USB powered, includes SP7001 sensor, SP9250 probes, and SP7150 interface

Non-contact CAN/CAN FD sensor set, screw type probes, for 1 CAN bus (expandable to 2), 125 kbit/s to 3 Mbit/s, Vector-compatible D-sub output, DC powered, includes SP7001 sensor, SP9200 probes, and SP7100 interface

CAN/CAN FD interface to analyze 2 CAN buses, for SP7001 sensors and SP9200 screwtype or SP9250 clamp-type probes, 125 kbit/s to 3 Mbit/s, Vector-compatible D-sub output, DC 10 V to 30 V input

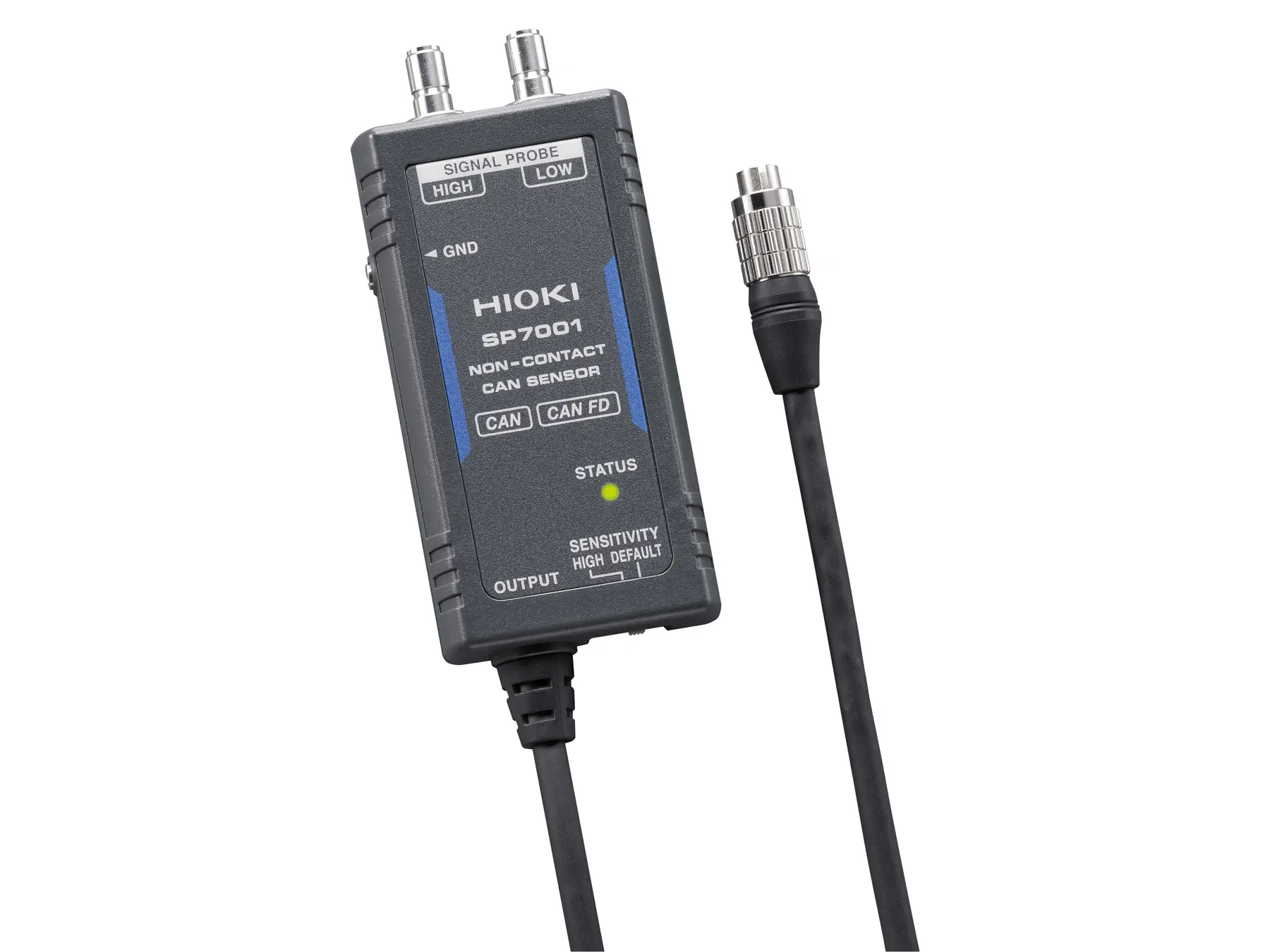

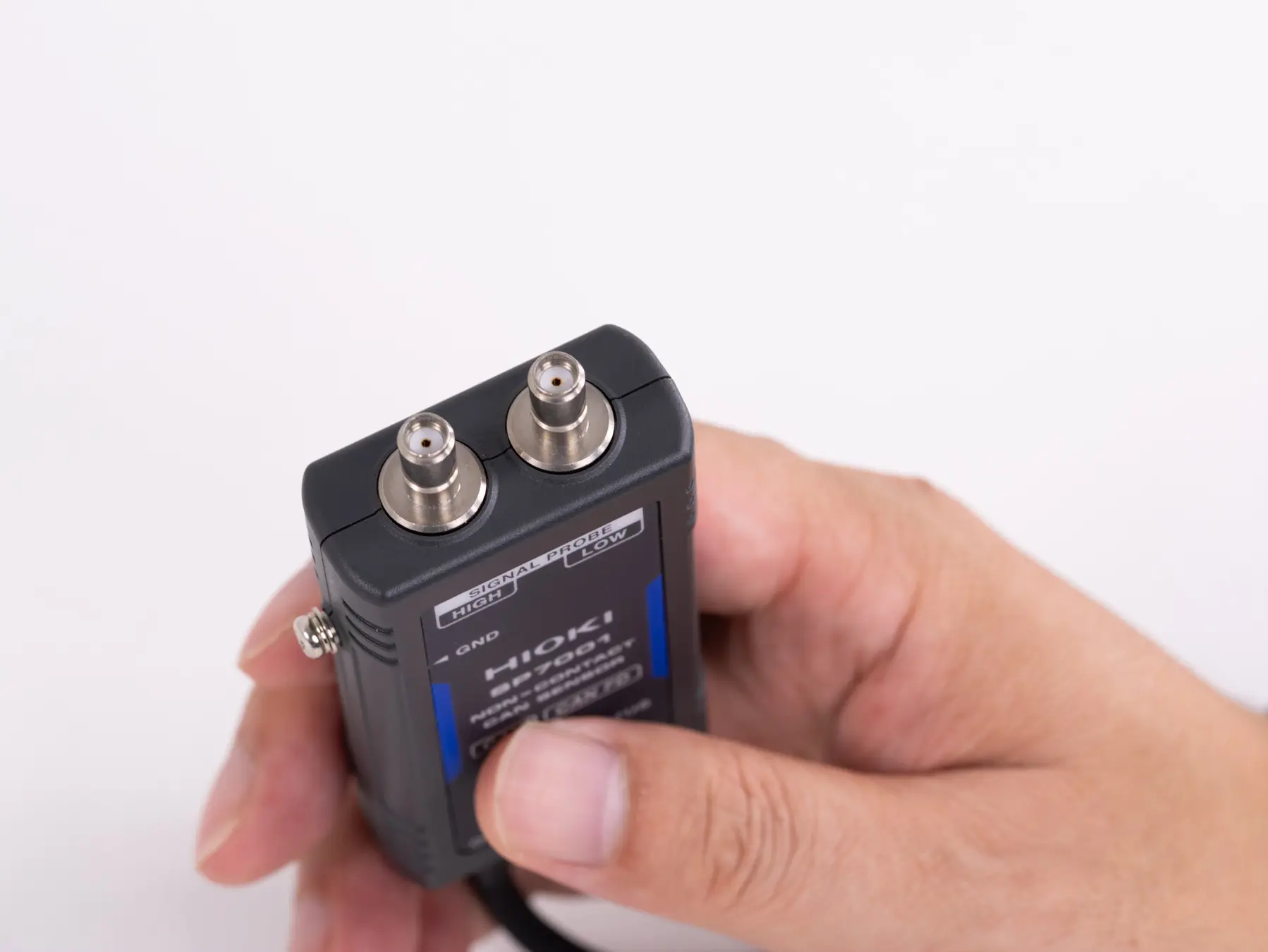

Non-contact CAN/CAN FD sensor, for use with SP7100 or SP7150 interface and SP9200 or SP9250 probes, 125 kbit/s to 3 Mbit/s, requires interface and probes

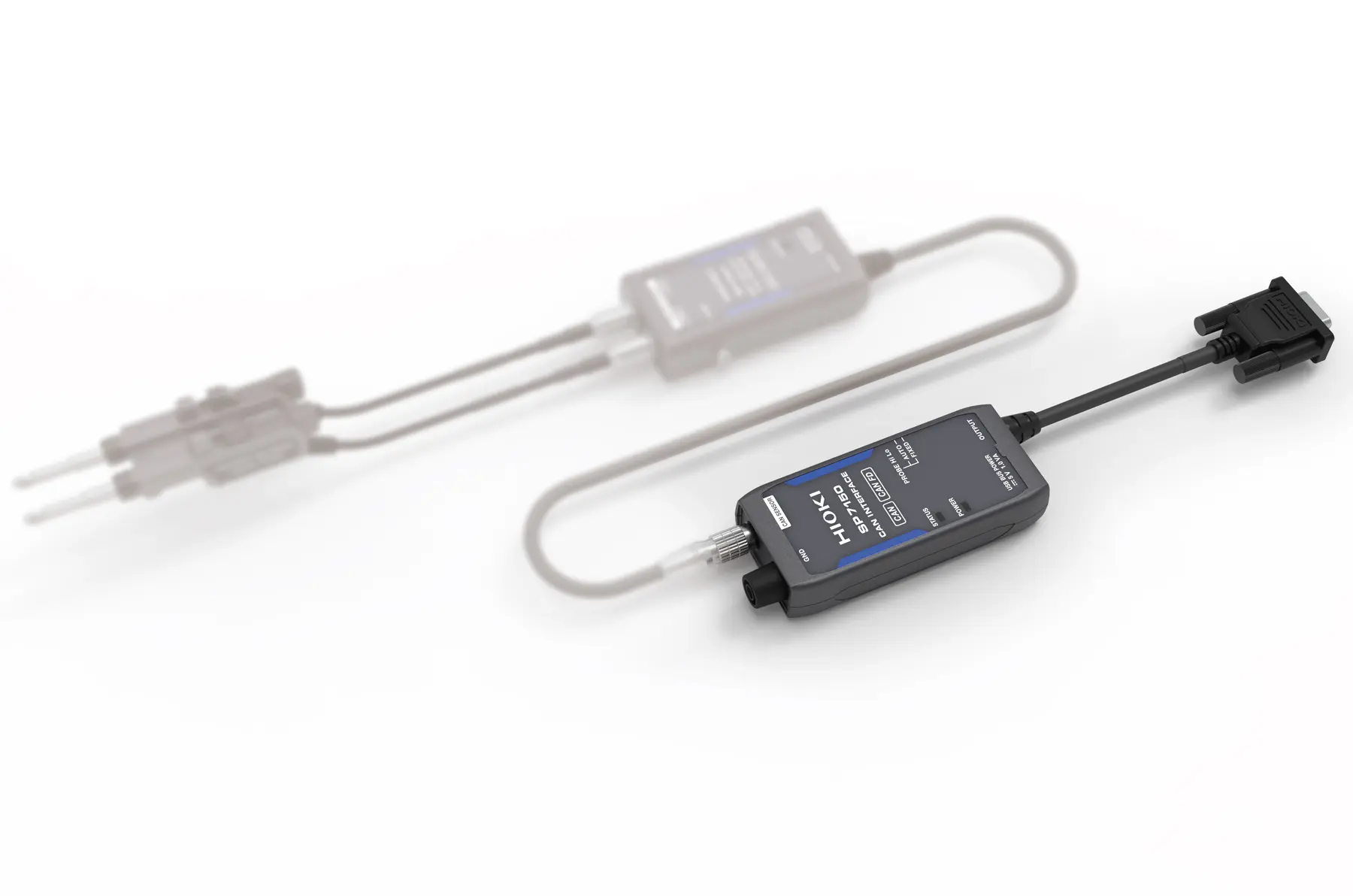

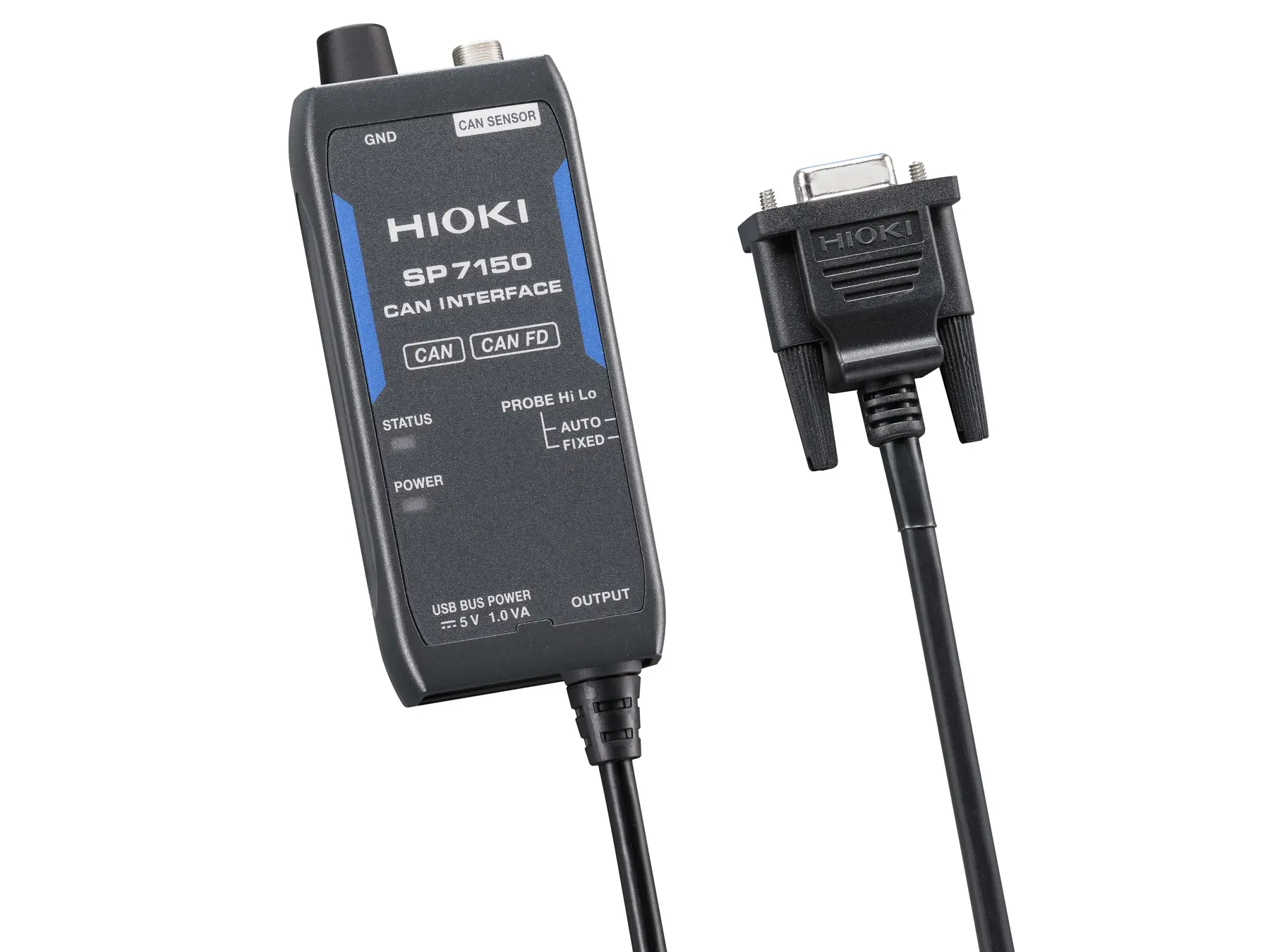

CAN/CAN FD interface for SP7001 sensors and SP9200 screw-type or SP9250 clamp-type probes, 125 kbit/s to 3 Mbit/s, Vector-compatible D-sub output, powered via USB Type-C

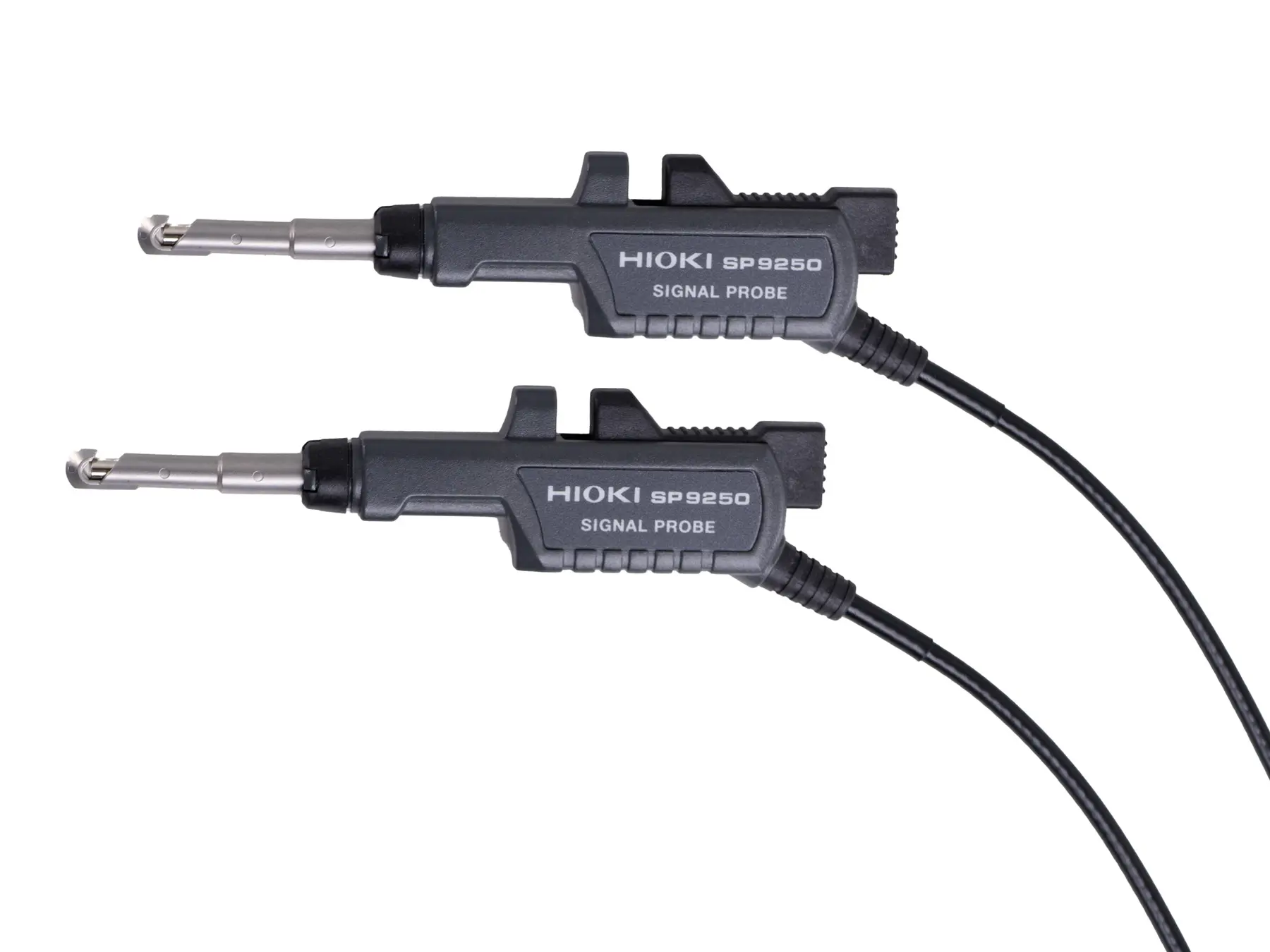

Clamp-type probes for use with the SP7001 CAN-FD Sensor, set of two probes

Screw-type probes for use with the SP7001 CAN-FD Sensor, set of two probes

The Hioki 9322 Differential Probe is a versatile 3-in-1 probe designed for the floating measurement of high-voltage waveforms, detecting power line surge noise, and providing true RMS rectified output of high-voltage AC. With the ability to handle up to 2000 V DC and 1000 V AC (CAT II), the 9322 ensures safe and accurate measurements even in demanding environments. This probe is compatible with the Memory Memory recorder series and can be powered via an AC adapter or Hioki’s Probe Power Unit Z5021. It offers a wide frequency range for detecting high-frequency components, making it ideal for inverter circuits and power supply noise detection. Technical details: Measurement functions: o DC mode: Waveform monitor output, DC to 10 MHz ±3 dB o AC mode: Detection of power line surge noise, 1 kHz to 10 MHz ±3 dB o RMS mode: Rectified RMS output of DC and AC voltages, DC, 40 Hz to 100 kHz o Response speed: 200 ms or less (400 V AC) Max. allowable input: 2000 V DC, 1000 V AC Max. rated voltage to earth: o 1000 V AC/DC (CAT II) when using the Grabber Clip L9243 o 1000 V AC/DC (CAT II), 600 V AC/DC (CAT III) when using alligator clips Output: Voltage division ratio 1/1000, BNC terminal (3-mode selectable: DC/AC/RMS) • DC amplitude accuracy: ±1% f.s. (1000 V DC or less), ±3% f.s. (2000 V DC) RMS amplitude accuracy: ±1% f.s. (DC, 40 Hz to 1 kHz), ±4% f.s. (1 kHz to 100 kHz)Input resistance and capacity: o H-L: 9 MΩ, approx. 10 pF (at 100 kHz) o H-case, L-case: 4.5 MΩ, approx. 20 pF (at 100 kHz) Power supply: o General requirement: +5 V to +12 V, less than 300 mA (DC jack OD 5.5 mm, ID 2.1mm)Hioki provided power supplies: o AC Adapter 9418-15 o Z5021combined plus Power Cord 9248 o Use of Logic terminal on Memory Recorder plus Power Cord 9324 o Use of sensor terminal of F/V Unit 8940 plus Power Cord 9325 o Use of DC power output terminal attached to the input unit for the 8855 through Power Cord 9328 o Via the 8860 series Probe Power Unit 9687 plus Power Cord 9248 Dimensions and mass: 70 mm (W) × 150 mm (H) × 25 mm (D), 350 g, Cord length: Input 46 cm, Output 1.3 m

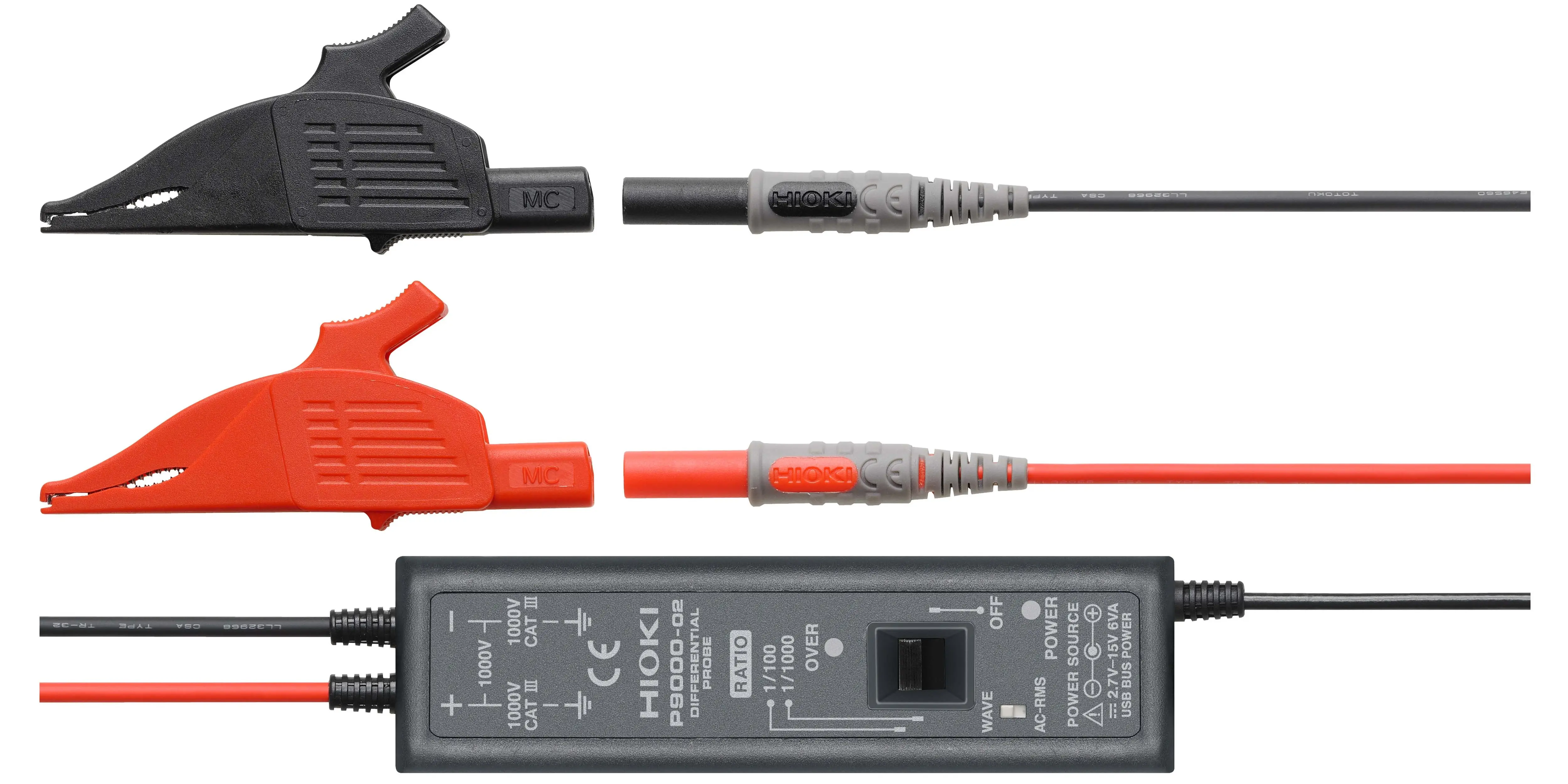

The Differential Probe P9000-02 combines waveform monitoring with AC RMS value output, offering increased versatility for high-voltage applications. With the capability to monitor waveforms and RMS values, it is suitable for industrial applications such as electric vehicle battery circuits, solar power systems, and commercial high-voltage circuits. The probe is lightweight, compact, and offers high accuracy across a wide range of operating temperatures, ensuring durability and performance in demanding conditions. Technical Specifications: Measurement Functions: Waveform monitor output and AC RMS value output (switchable) Frequency Characteristics (Wave Mode): DC to 100 kHz, -3 dB Frequency Characteristics (RMS Mode): 30 Hz to 10 kHz RMS Amplitude Accuracy: ±1% f.s. (30 Hz to 1 kHz); ±3% f.s. (1 kHz to 10 kHz) Response Time (RMS Mode): 300 ms (rising), 500 ms (falling) Division Ratio: 1000:1 or 100:1 (user selectable) DC Amplitude Accuracy: ±0.5% f.s. Input Resistance and Capacity: 10.5 MΩ, 5 pF or less (at 100 kHz) Maximum Allowable Input: 1000 V AC/DC Max. Rated Voltage to Earth: 1000 V AC/DC (CAT III) Operating Temperature Range: -40°C to 80°C Power Supply Options: o AC Adapter (Z1008), USB, External DC (2.7V to 15V DC) Dimensions: 128 mm (W) × 36 mm (H) × 22 mm (D) Mass: 170 g Cord Length: Input 70 cm; Output 1.5 m

The Differential Probe P9000-01 is designed to offer superior flexibility for waveform monitoring in high-voltage environments. Ideal for use with Hioki Memory Reorders and Dataloggers, it allows accurate and reliable measurement in various industrial applications, such as electric vehicles, solar power systems, and commercial power circuits. Compact and lightweight, this probe offers 1000 V AC/DC measurements with a choice between 1000:1 and 100:1 division ratios. With a robust operating temperature range, it ensures performance even in challenging conditions. Technical Specifications: Measurement Functions: Waveform monitor output only Frequency Characteristics (Wave Mode): DC to 100 kHz, -3 dB Division Ratio: 1000:1 or 100:1 (user selectable) DC Amplitude Accuracy: ±0.5% f.s. Input Resistance and Capacity: 10.5 MΩ, 5 pF or less (at 100 kHz) Maximum Allowable Input: 1000 V AC/DCMax. Rated Voltage to Earth: 1000 V AC/DC (CAT III) Operating Temperature Range: -40°C to 80°CPower Supply Options: o AC Adapter (Z1008), USB, External DC (2.7V to 15V DC)Dimensions: 128 mm (W) × 36 mm (H) × 22 mm (D) Mass: 170 g Cord Length: Input 70 cm; Output 1.5 m
