Electrochemical Testing Solutions
Key to assessing material quality
Electrochemical measurements are vital for understanding and optimizing material properties in batteries, capacitors, and other energy devices. HIOKI’s solutions provide quantitative insight into conductivity, dispersion, and interface resistance - key parameters for performance and quality. The SA2634-KIT Slurry Analysis System evaluates slurry properties before coating, combining advanced software and precise hardware for standardized analysis.
The RM2610 Electrode Resistance Measurement System isolates composite layer and interface resistances after coating to ensure consistent electrode quality. Complementary instruments like the IM3590 Impedance Analyzer expand electrochemical evaluation across research and production. Browse our solutions and contact us for more information.
7 Products
SA2634-KIT

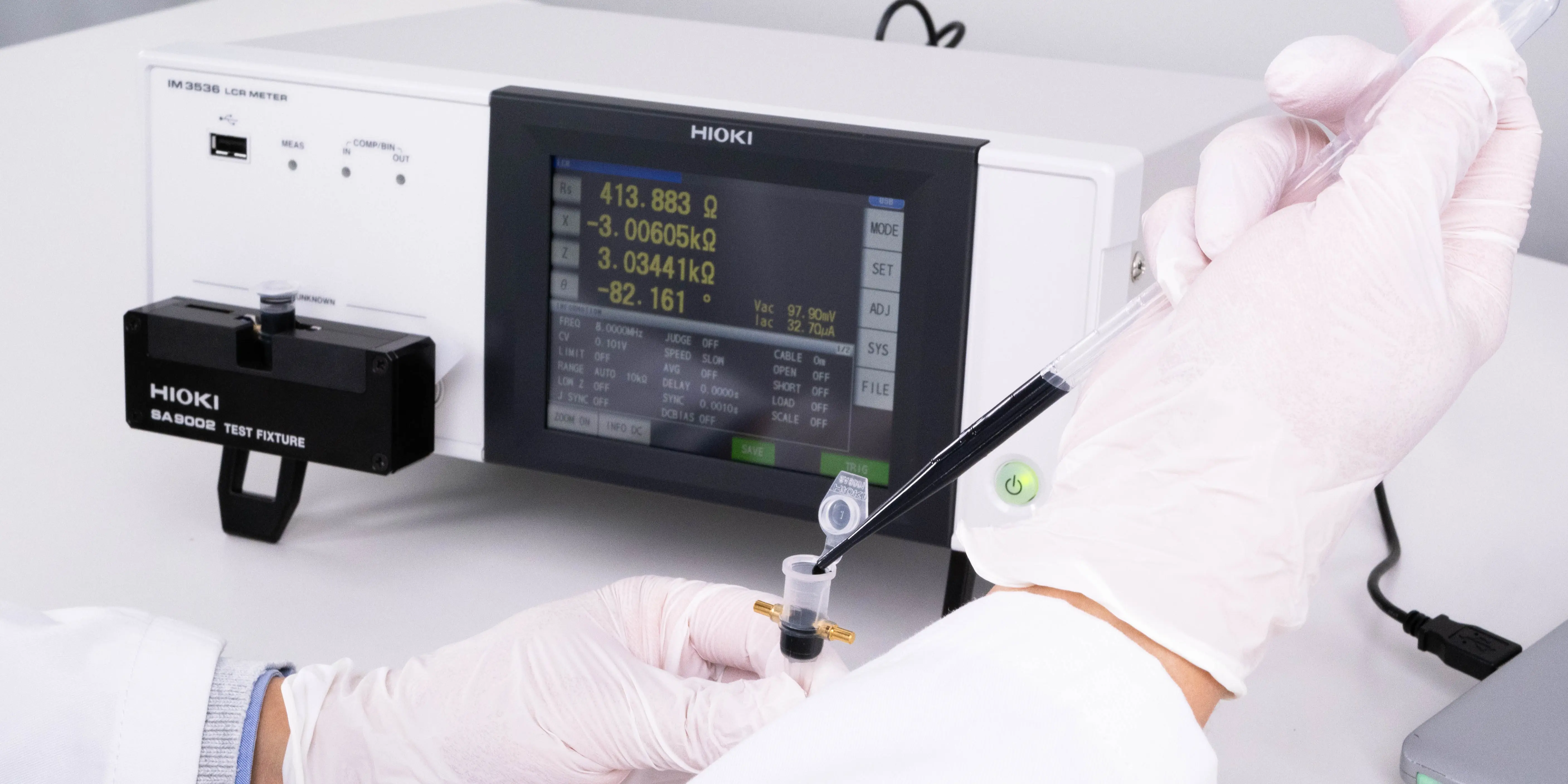

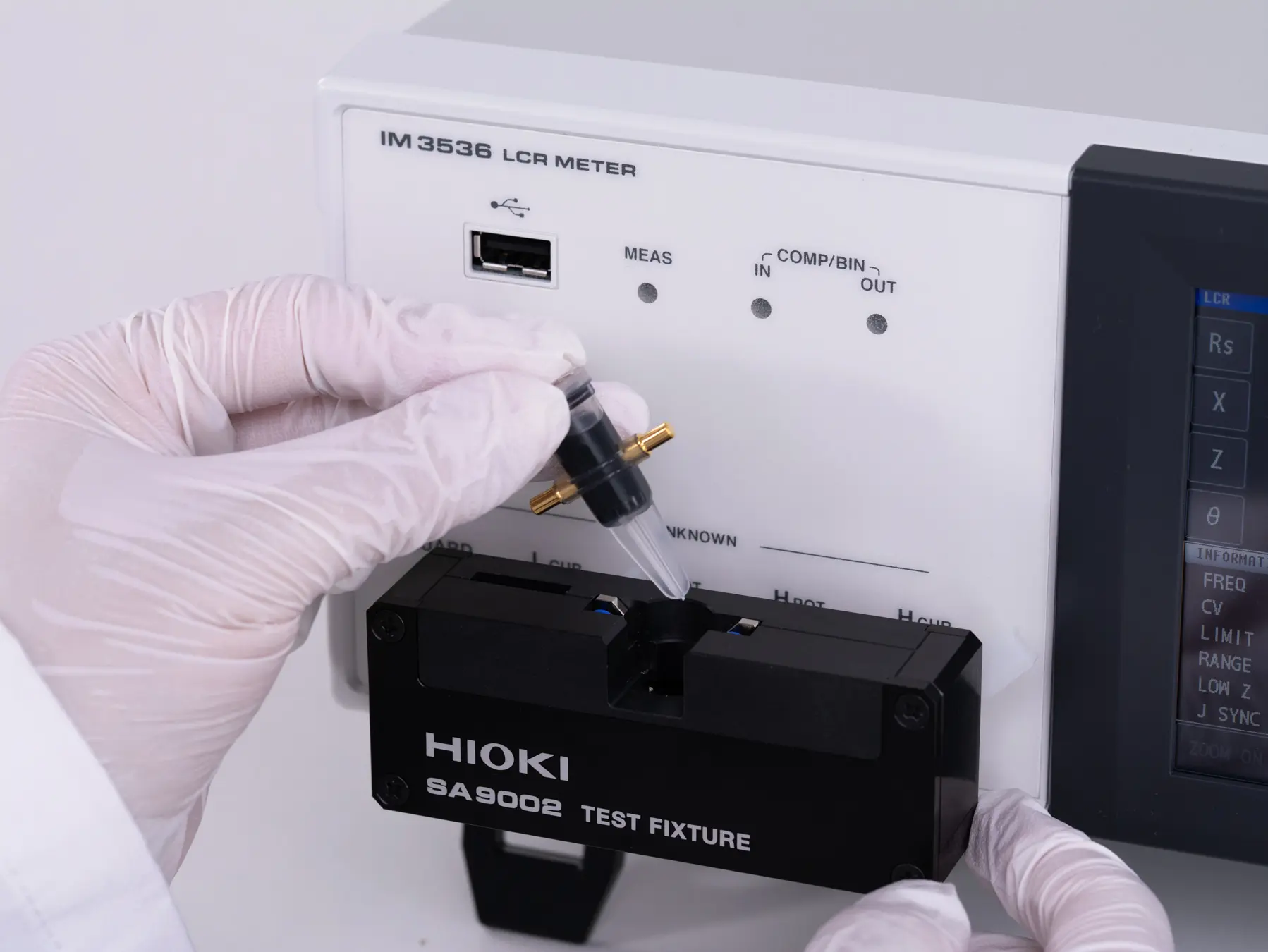

HIOKI SA2634-KIT - Slurry Analysis System for LiB Conductivity Evaluation
Software-based slurry analysis system for lithium-ion batteries, evaluates slurry conductivity
and dispersion through DCR, R-ratio and Uniformity; impedance measurements 4 Hz to 8
MHz, for aqueous and NMP-based slurries
RM9004

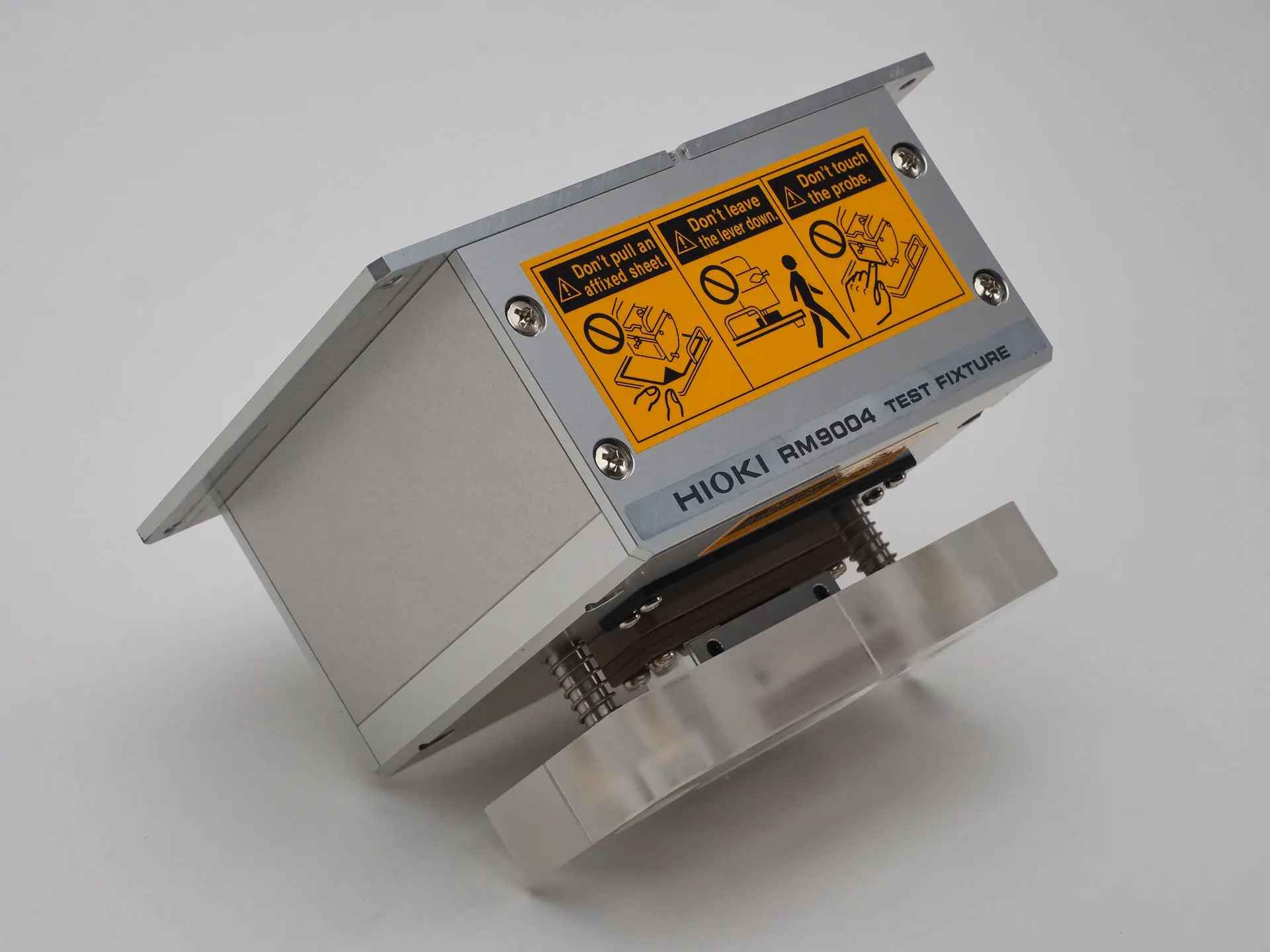

HIOKI RM9004 - Probe Head for RM2610 Electrode Sheet Measurement System
Replaceable probe head for the RM2610 Electrode Sheet Measurement System with 46 spring-loaded measurement pins (75 µm each) and a contact area of just 1 mm²
IM3590

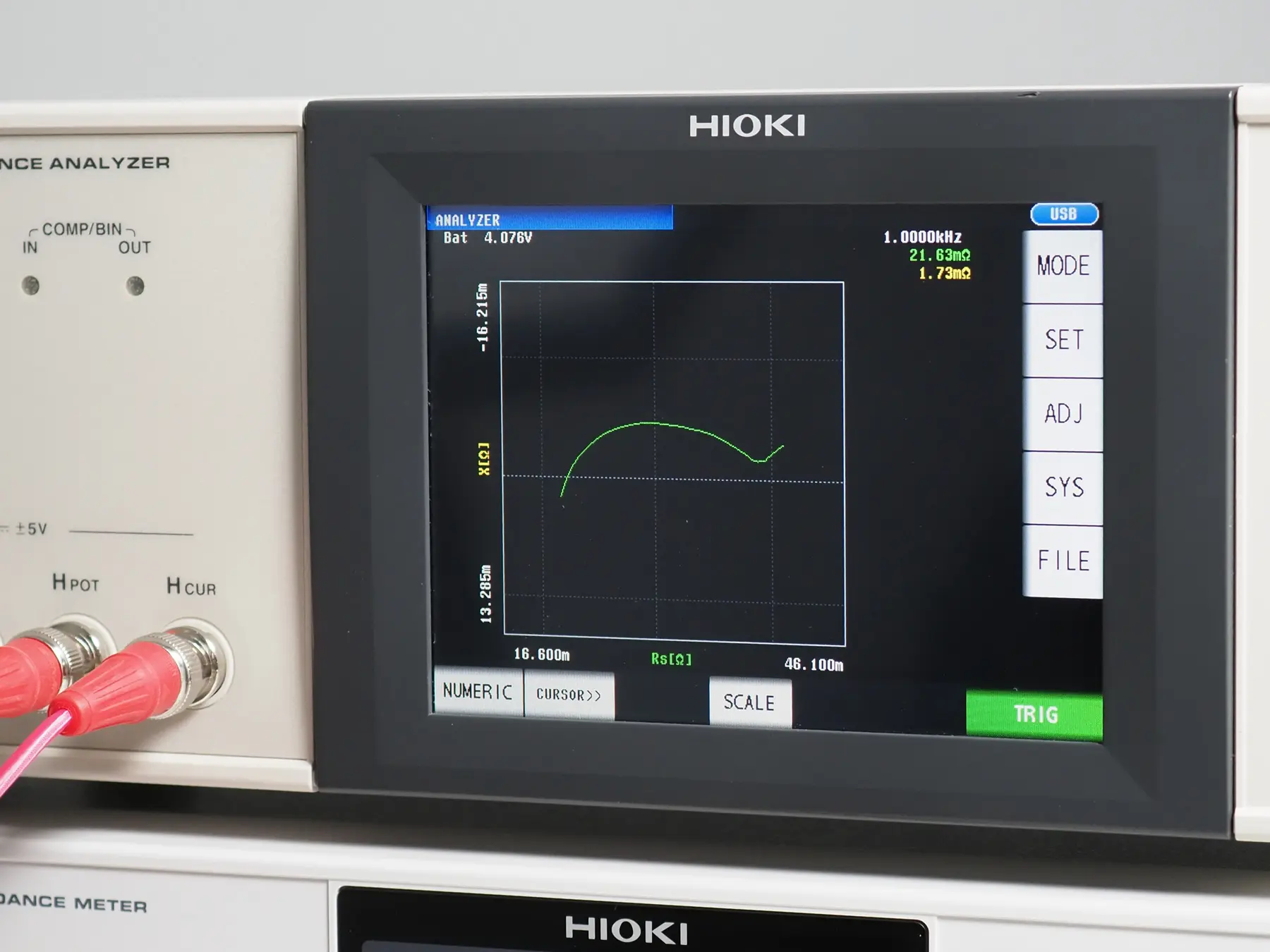

HIOKI IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz
Chemical impedance analyzer, 1 mHz to 200 kHz, battery mode with automatic DC bias up to 5 V, frequency sweep and equivalent circuit analysis, ±0.05% basic accuracy, USB and handler I/O, optional LAN, RS-232C and GP-IB
RM2610
HIOKI RM2610 - Measurement System for LIB battery electrode sheets
Electrode Resistance Measurement System, isolates and quantifies the composite layer resistivity and the interface resistance between the composite layer and the aluminum or copper current collector foil of LIB electrode sheets in a single measurement
SA9002

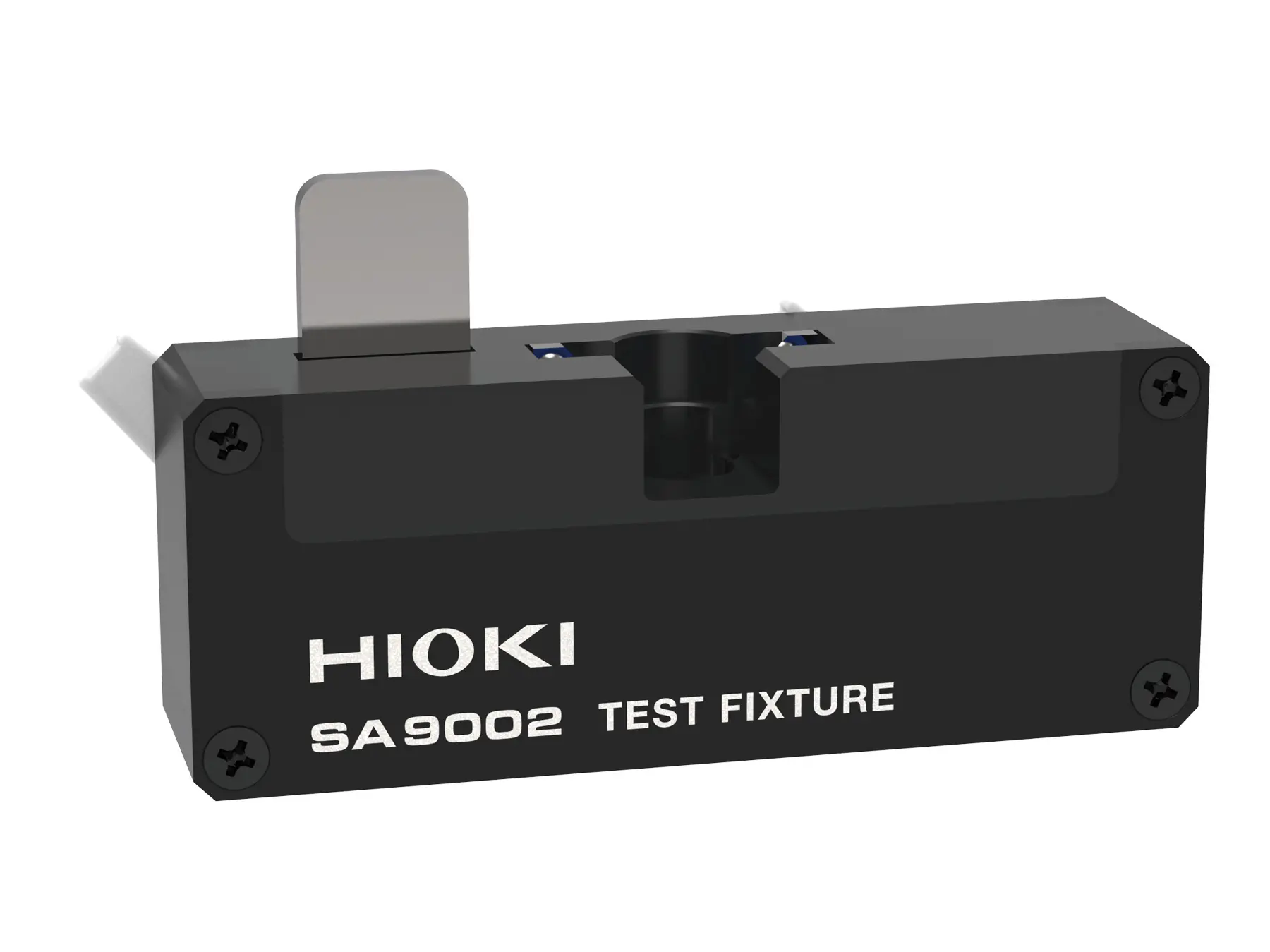

SA9002 - Fixture for slurry measurement with IM3536
Impedance measurement fixture for slurry analysis; connects to IM3536 LCR Meter via 4
BNC terminals; for use with disposable sample containers SA9001 / SA9001-01
SA9001-01

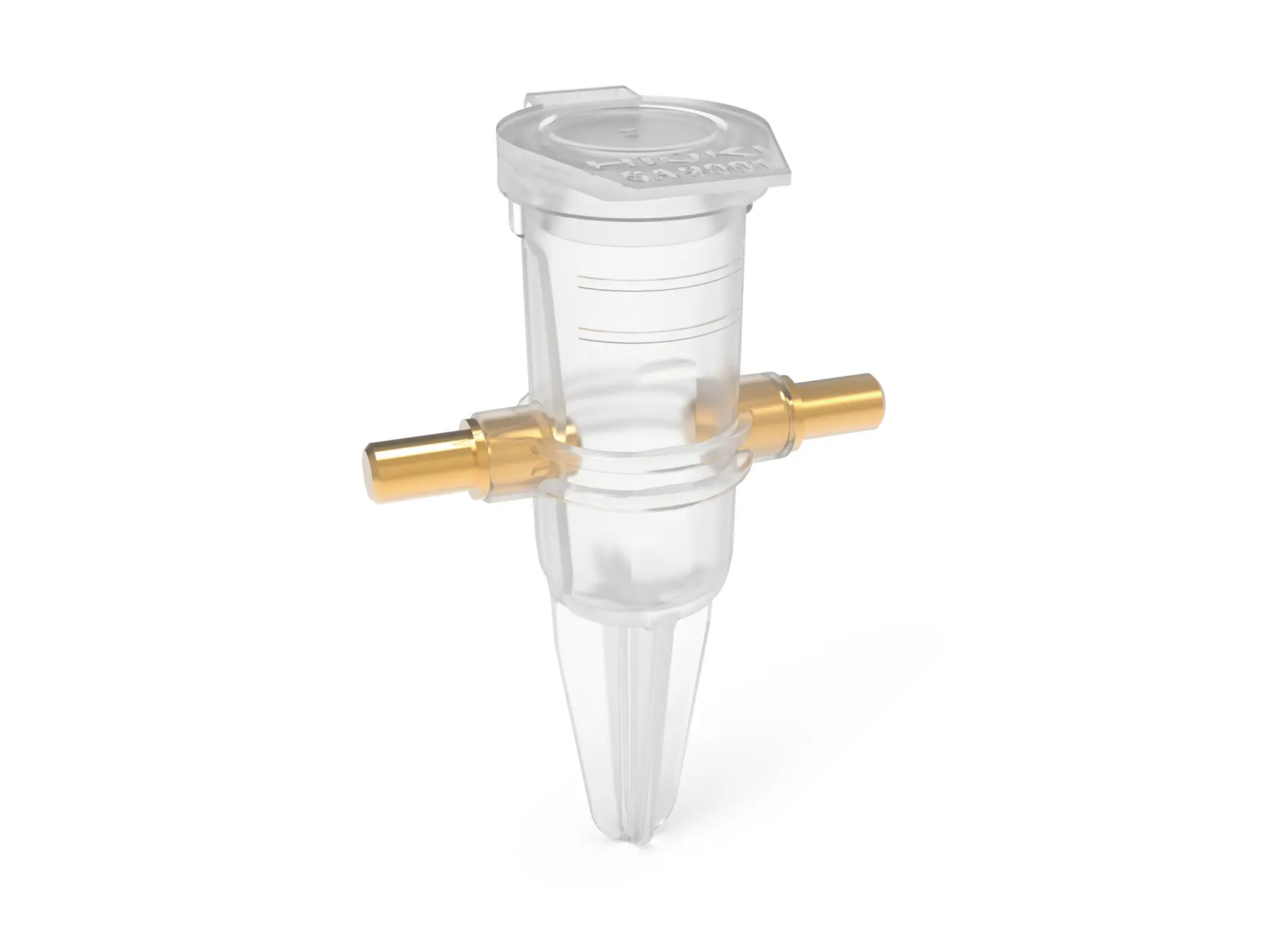

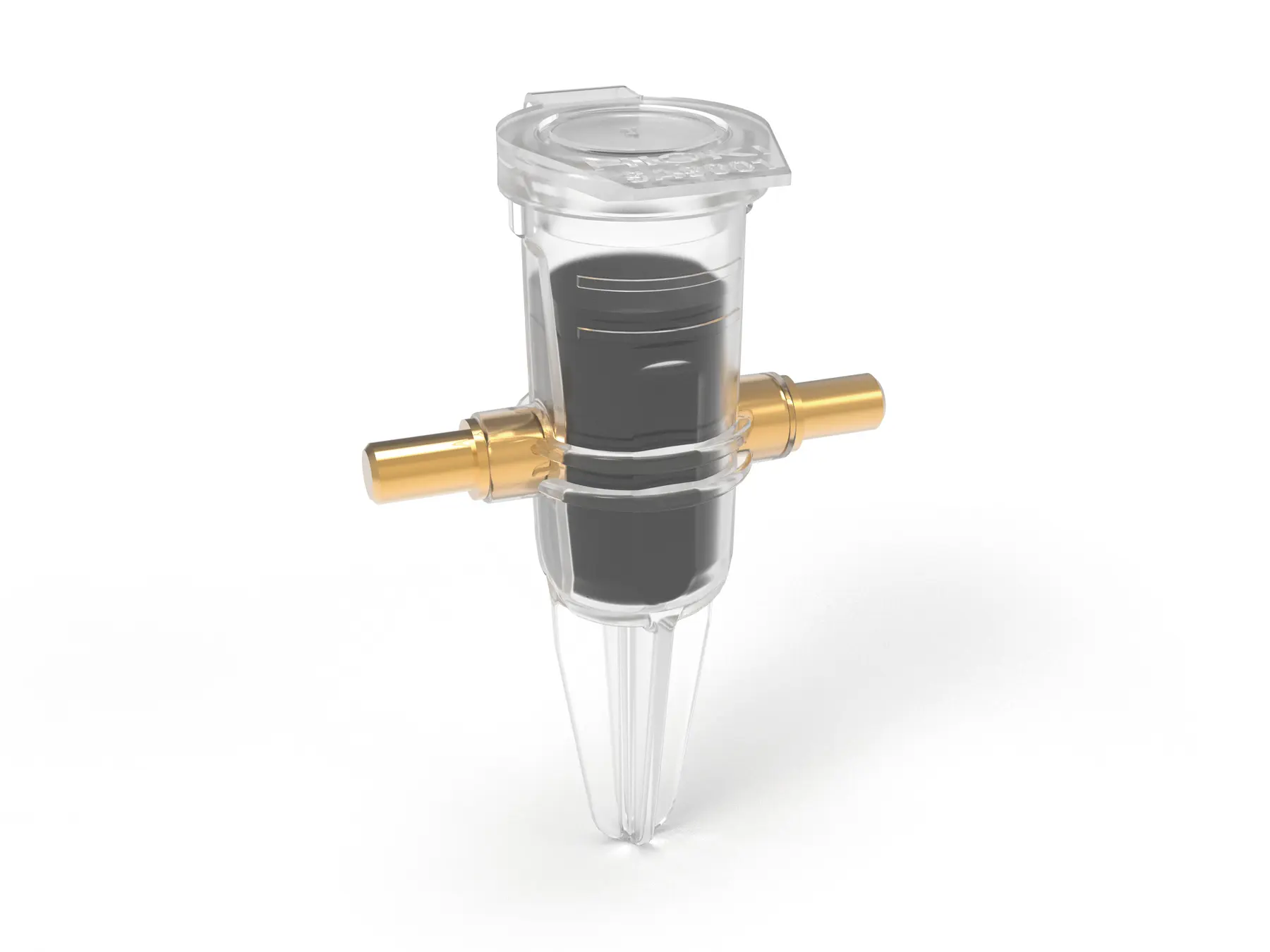

SA9001-01 - Slurry sample container for aqueous slurry measurement
Slurry sample containers for aqueous (water-based) lithium-ion battery slurries, gold-plated
electrodes, for use with SA9002 Test Fixture, pack of 50
SA9001

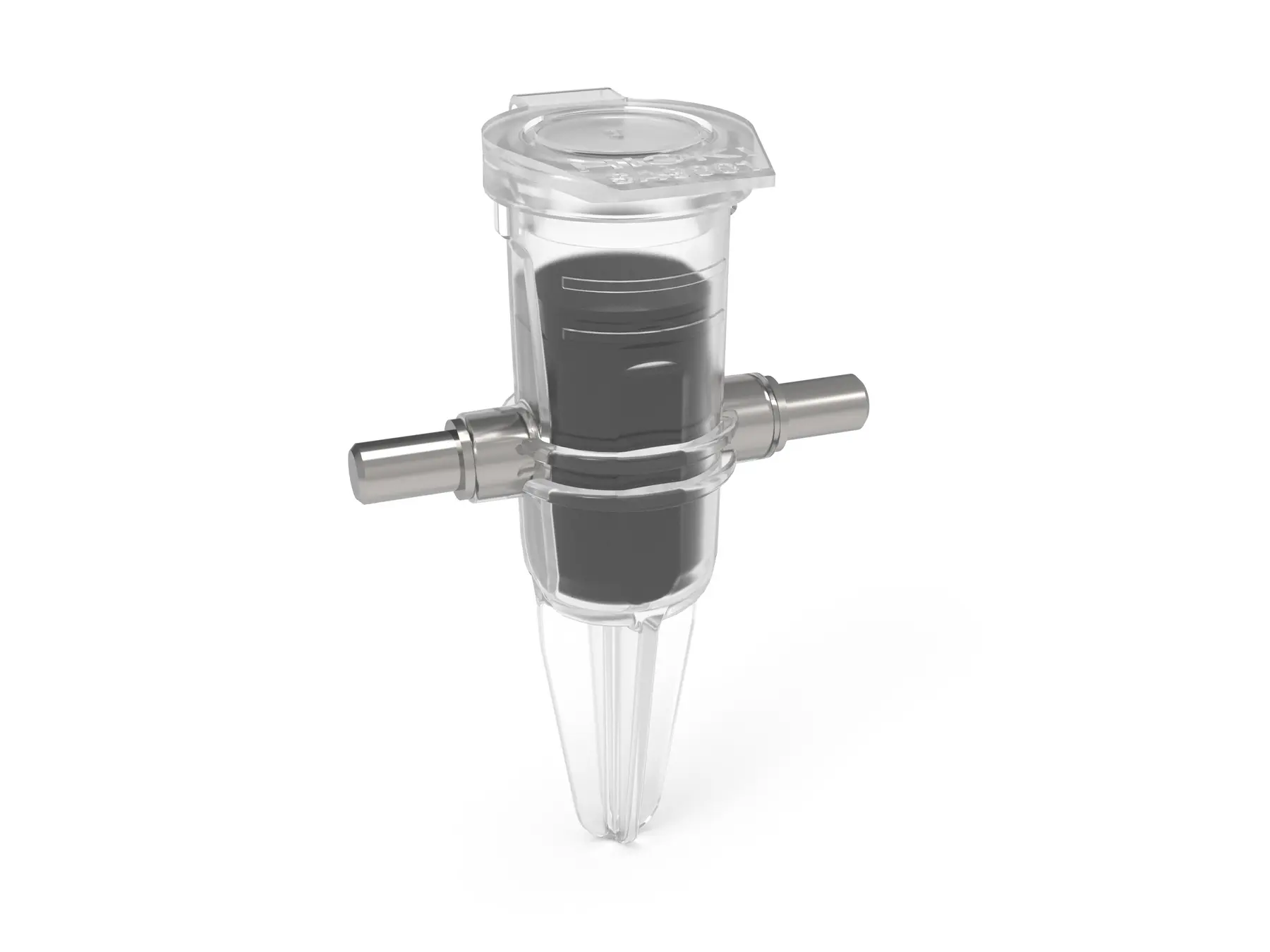

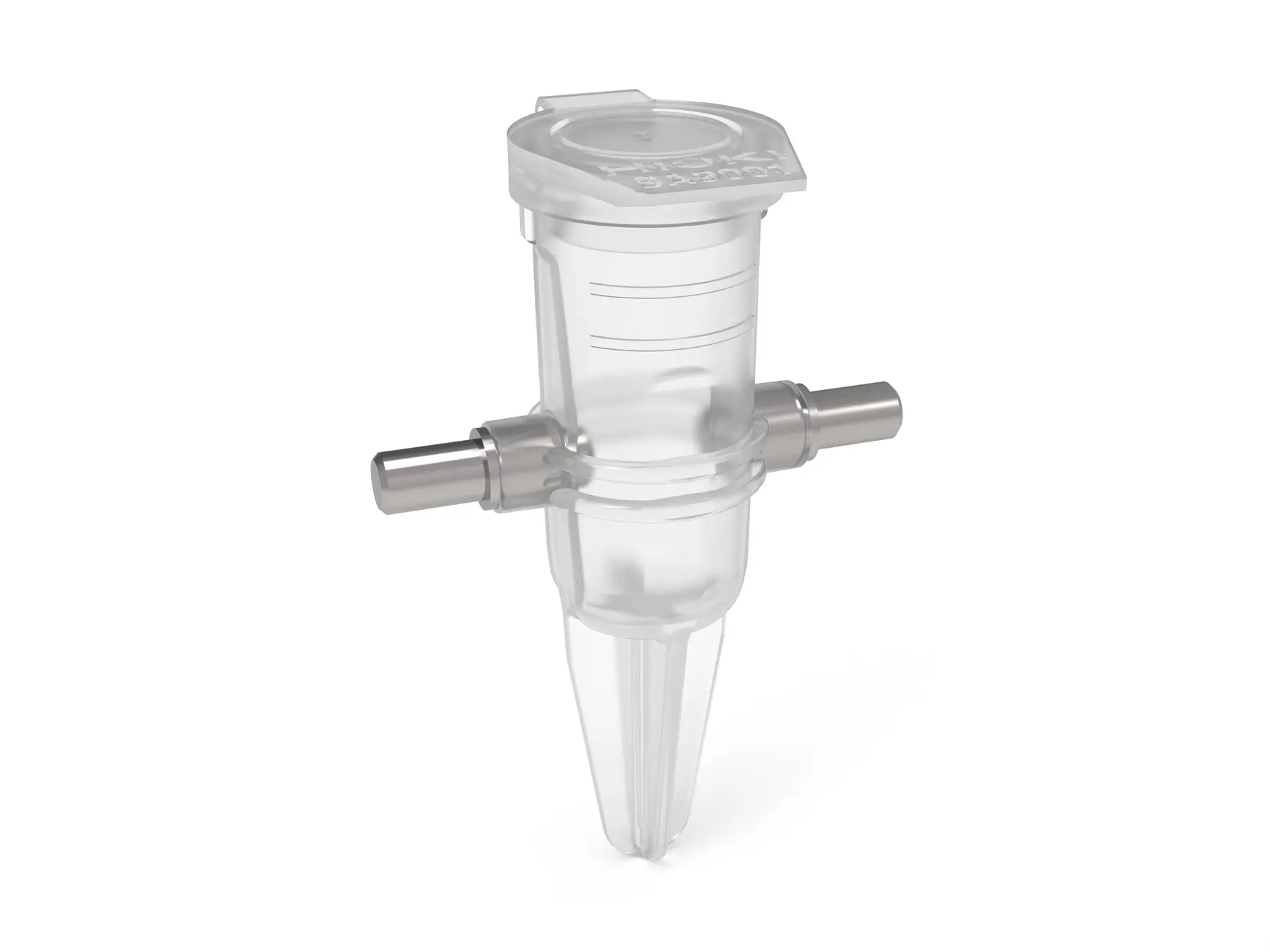

SA9001 - Slurry sample container for NMP-based slurry measurement
Slurry sample containers for NMP-based lithium-ion battery slurries, nickel-plated electrodes,
for use with SA9002 Test Fixture, pack of 50
